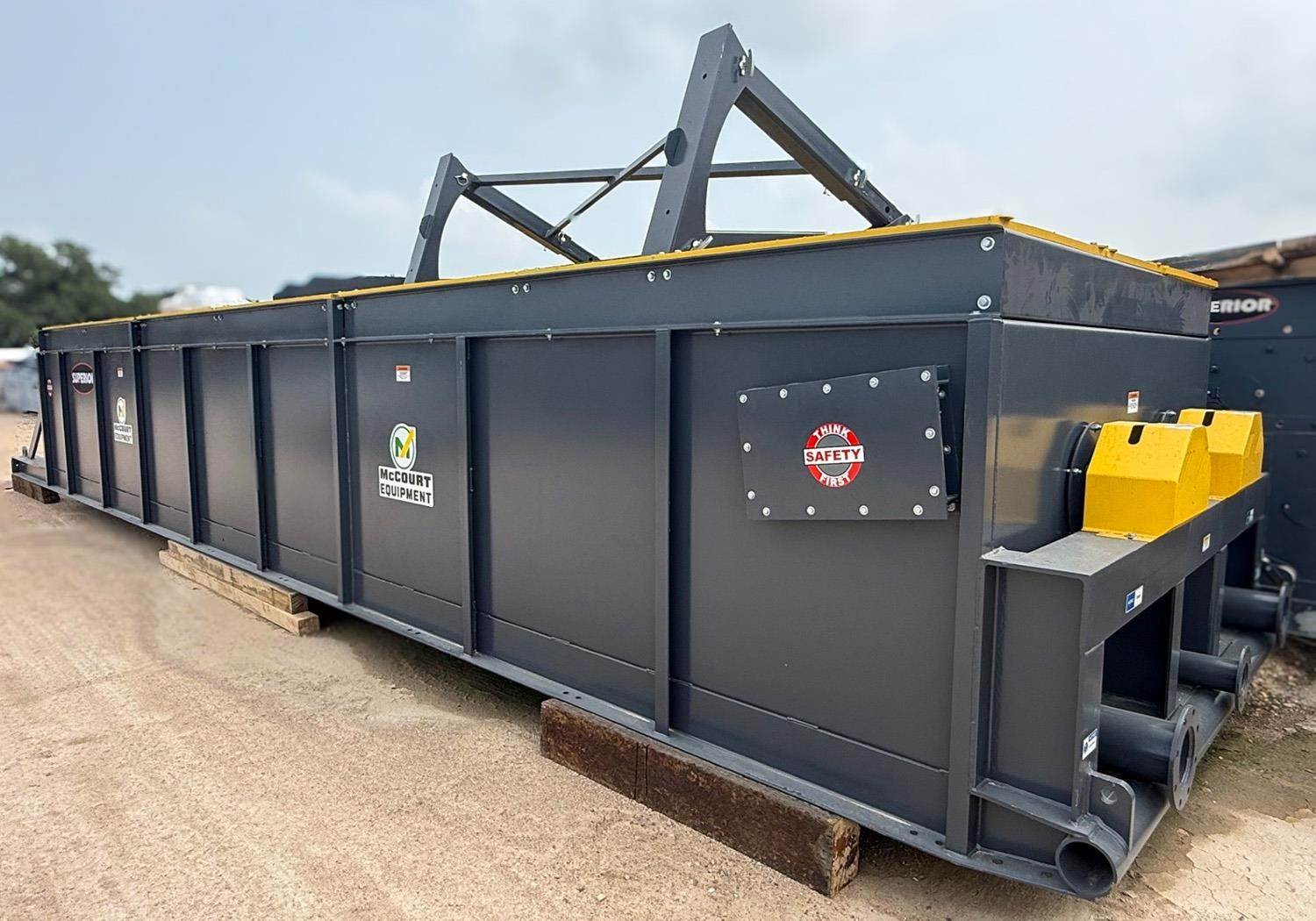

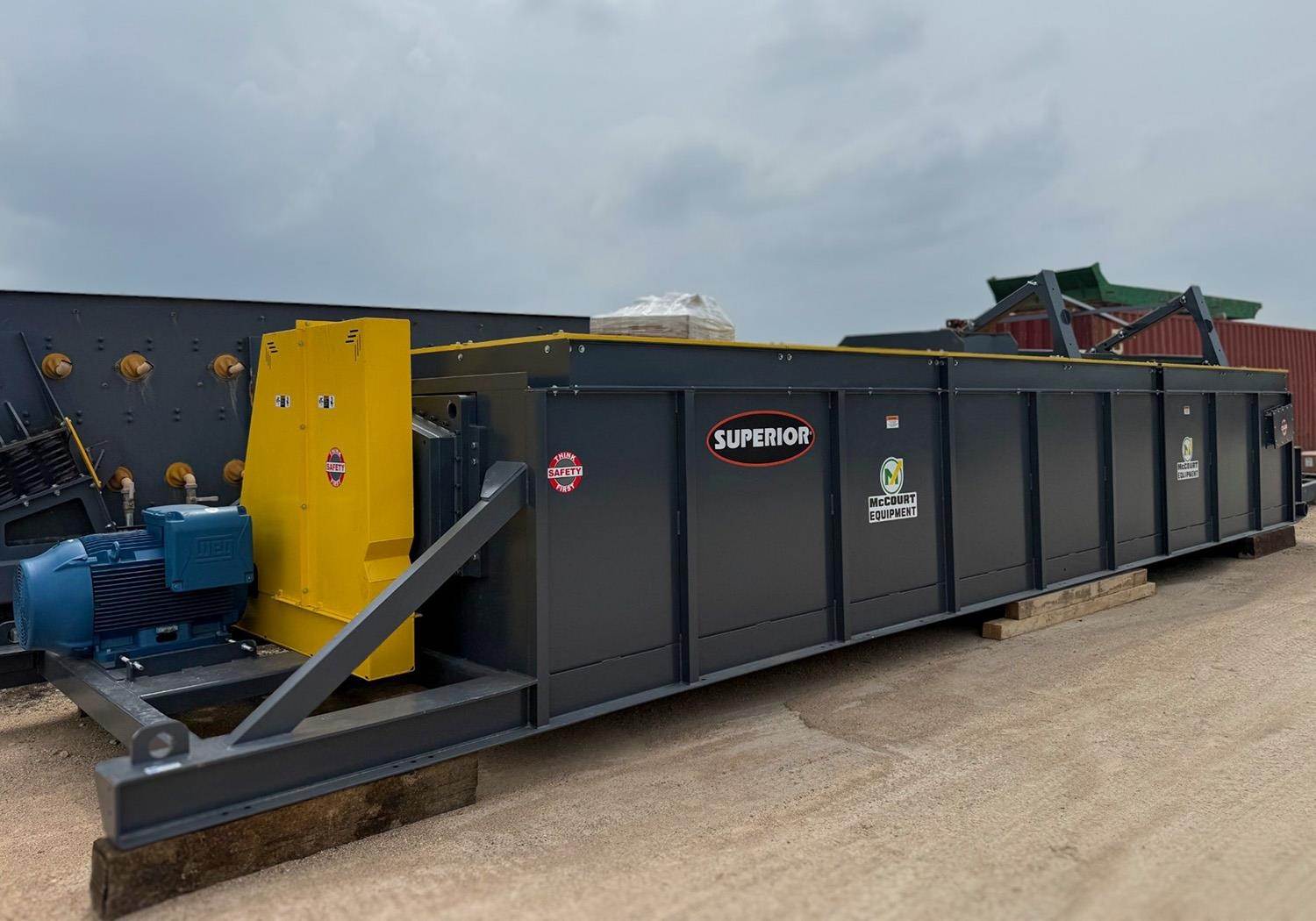

New 2026 Superior F4432WFMTF 44" x 35' Log Washer

Superior 44" x 35' Log Washer

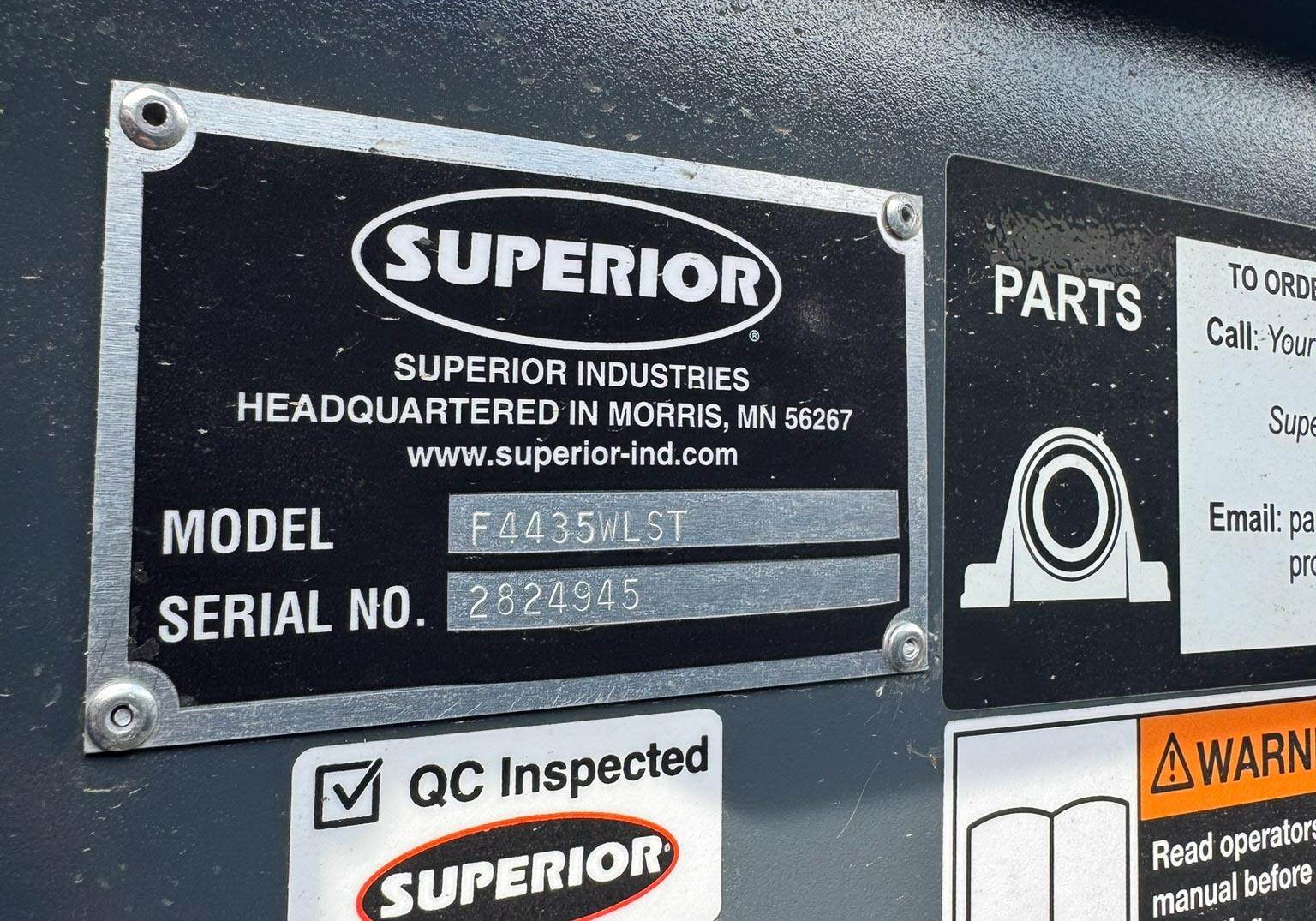

F4435WLST

UNIT SPECIFICATIONS

CONSTRUCTION: 5/16" ASTM A36 STEEL
MAX MATERIAL SIZE: 4"
SKID FRAME: HEAVY DUTY CONSTRUCTION
SUPPORT LEGS: ADJUSTABLE LENGTH SUPPORT LEGS, ADJUSTABLE TO 6º, 8º (STANDARD) AND 10º INCLINE*
OVERFLOW GATE: ADJUSTABLE OVERFLOW GATE
DISCHARGE CHUTE: MATERIAL DISCHARGE INCLUDED AT HEAD END*
SAFETY COVER: SAFETY COVER OVER SCREW SHAFT
SIDEWALL GUARDING: NOT INCLUDED
CLEAN-OUT DOOR: CLEAN OUT DOORS LOCATED ON BOTTOM SIDE OF TUB

SCREW SPECIFICATIONS

SCREW SIZE: (2) 44" X 35'
SCREW (RPM): 26 RPM
CAPACITY: 75-175 STPH
WEAR PADDLES: A-532

DRIVE SPECIFICATIONS

MOTOR: 200 HP
VOLTAGE: 480V / 3PH/ 60 HZ
V-BELT DRIVE: WITH DRIVE GUARD
GEAR REDUCER: SINGLE INPUT, DUAL OUTPUT TIMED HEAVY DUTY GEARBOX
ELECTRICAL: CONTROL PANEL AND WIRING NOT INCLUDED

STATIONARY DIMENSION SPECIFICATIONS

SHIPPING LENGTH: 40' - 9"
SHIPPING WIDTH: 8' - 9"
SHIPPING: UNIT SHIPPED UNASSEMBLED, SUPPORT LEGS, AND DISCHARGE CHUT ASSEMBLED ON SITE BY CUSTOMER
EMPTY WEIGHT: 71,000 LBS
