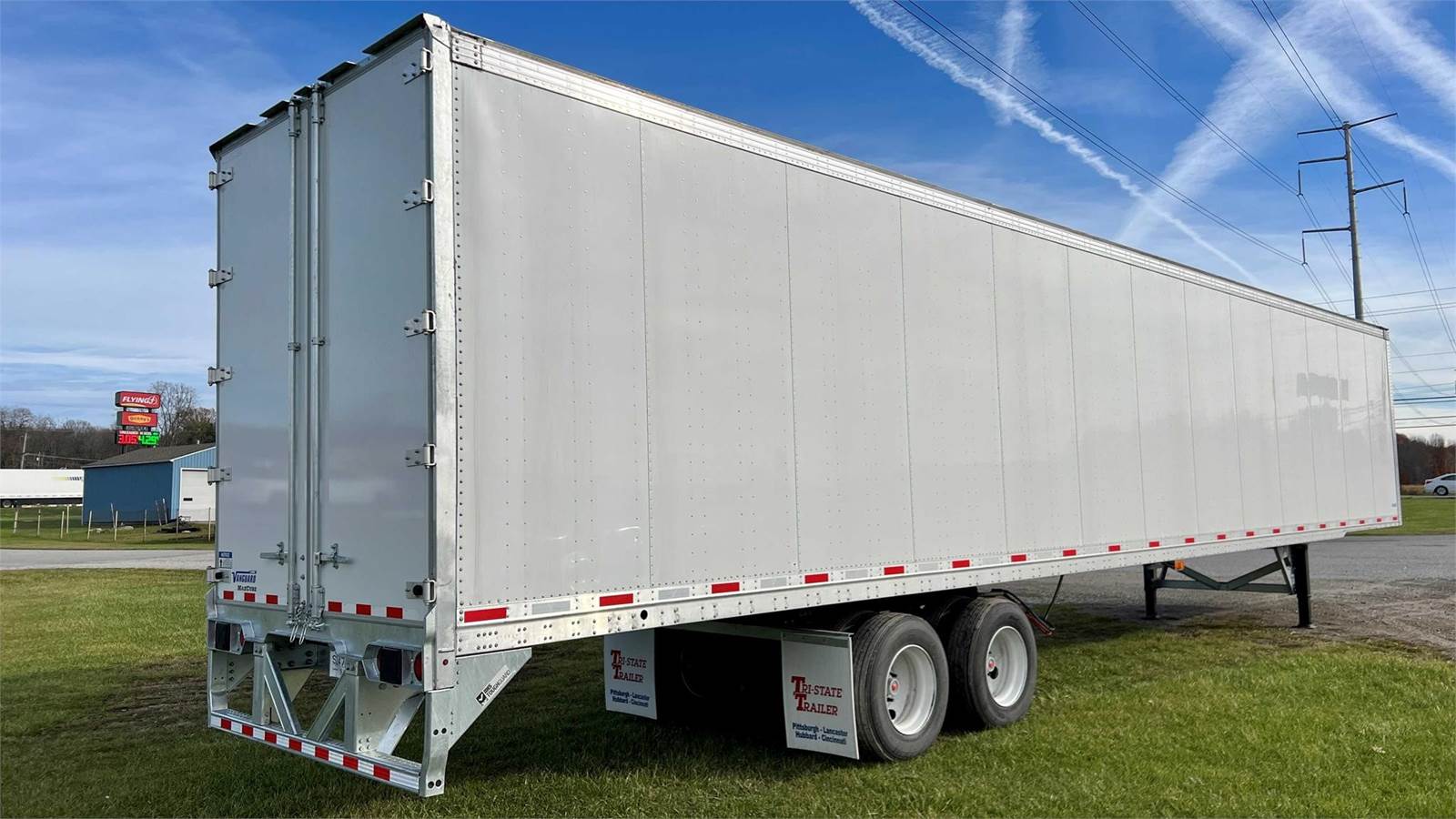

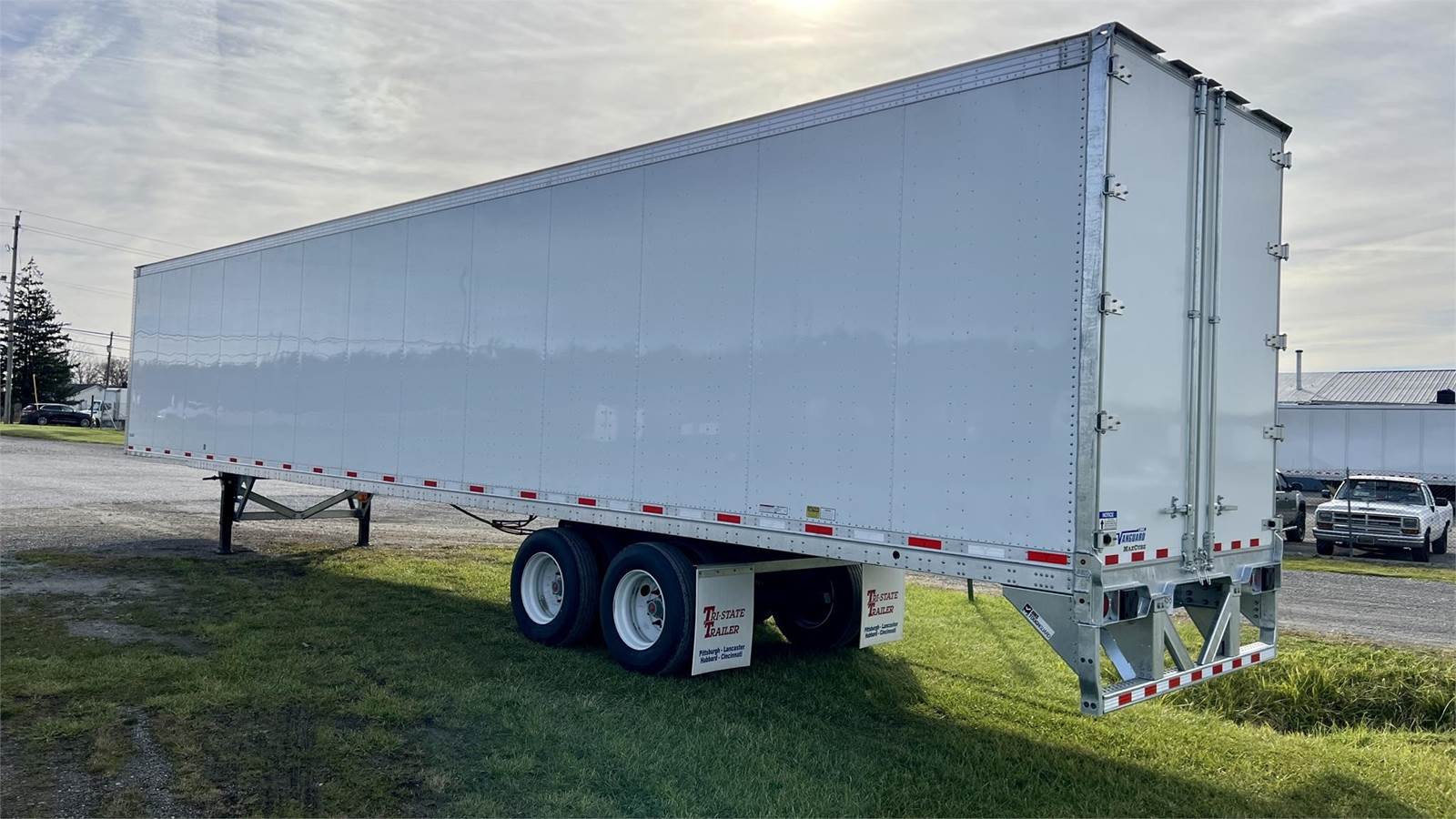

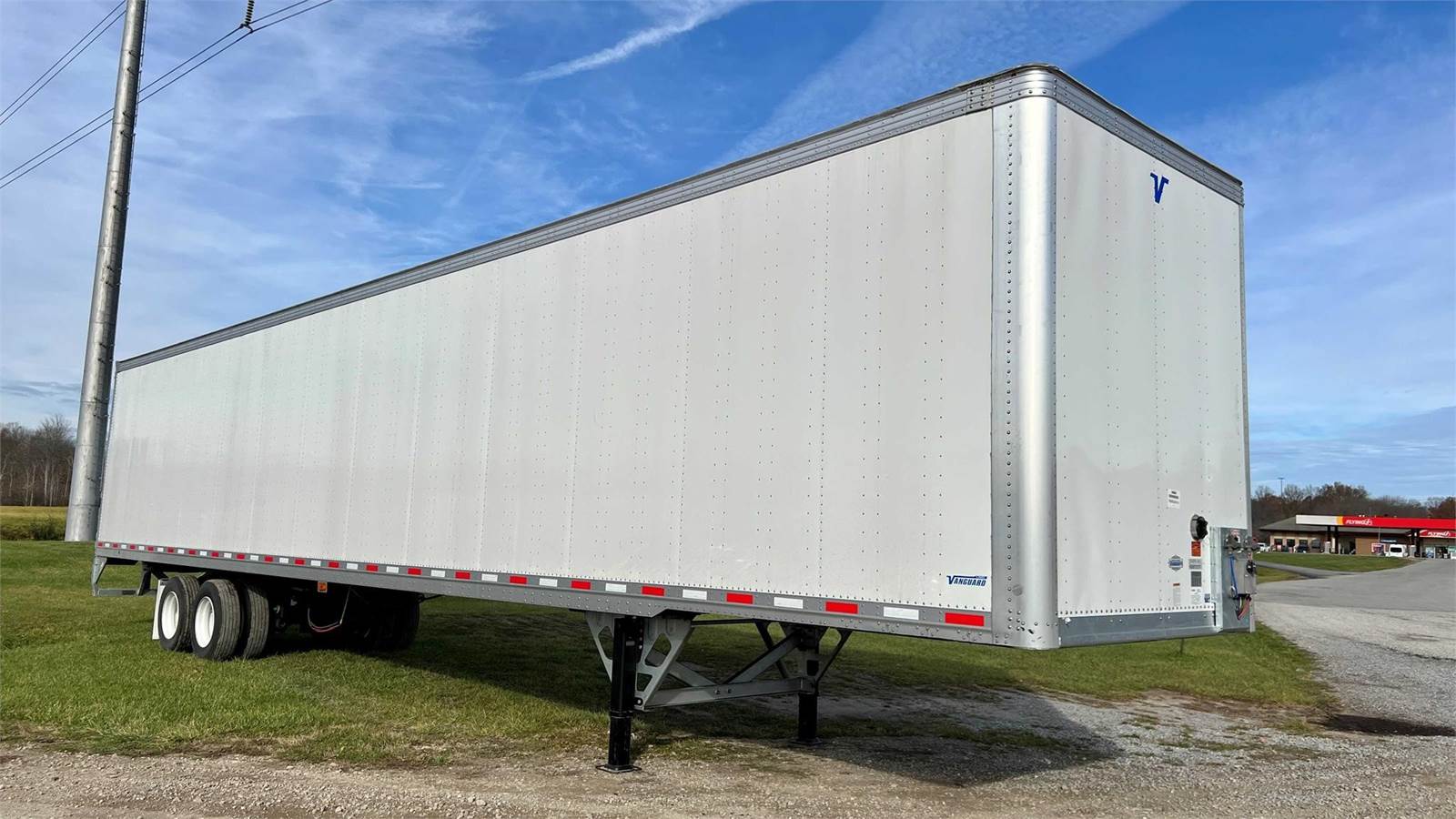

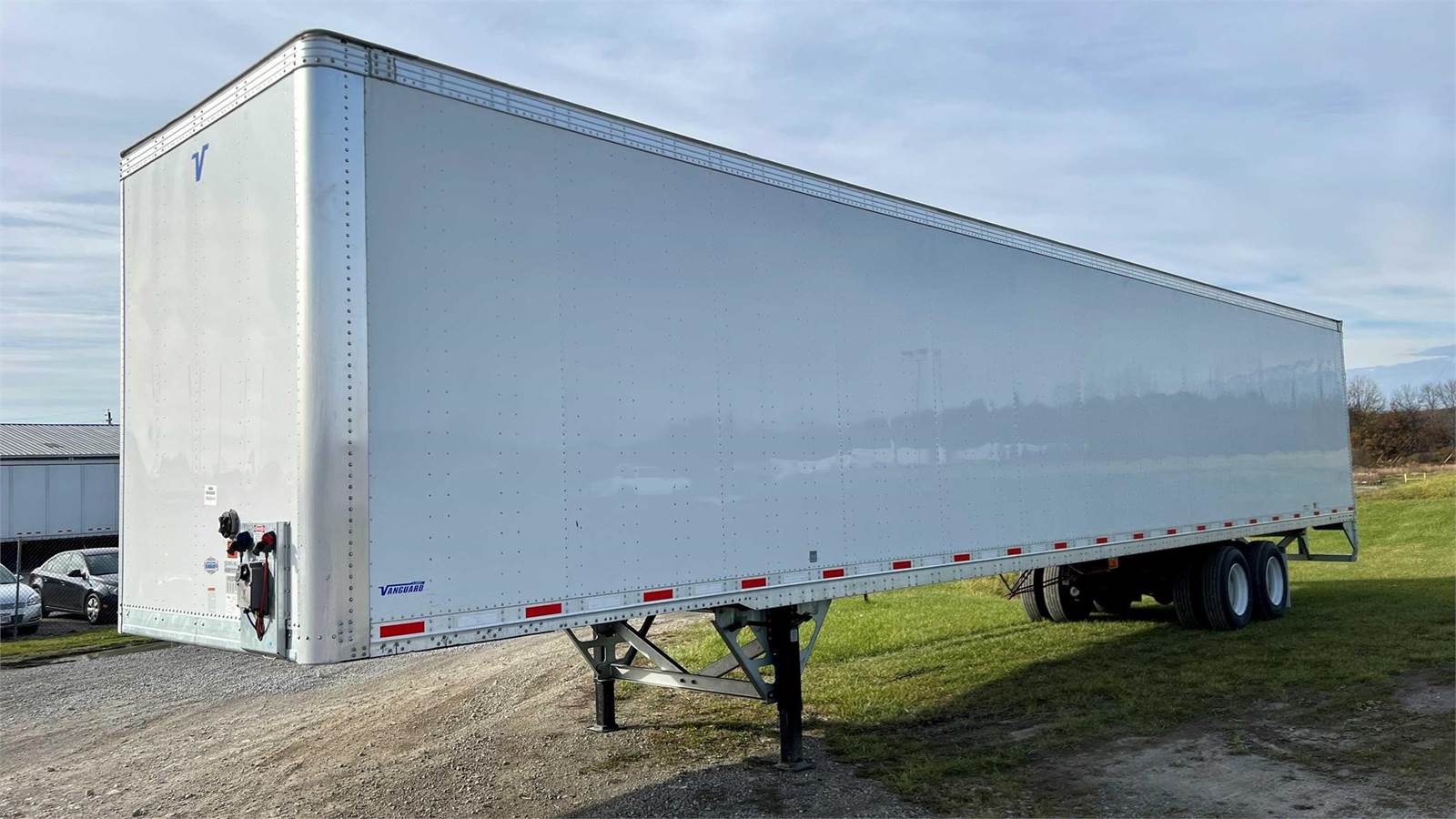

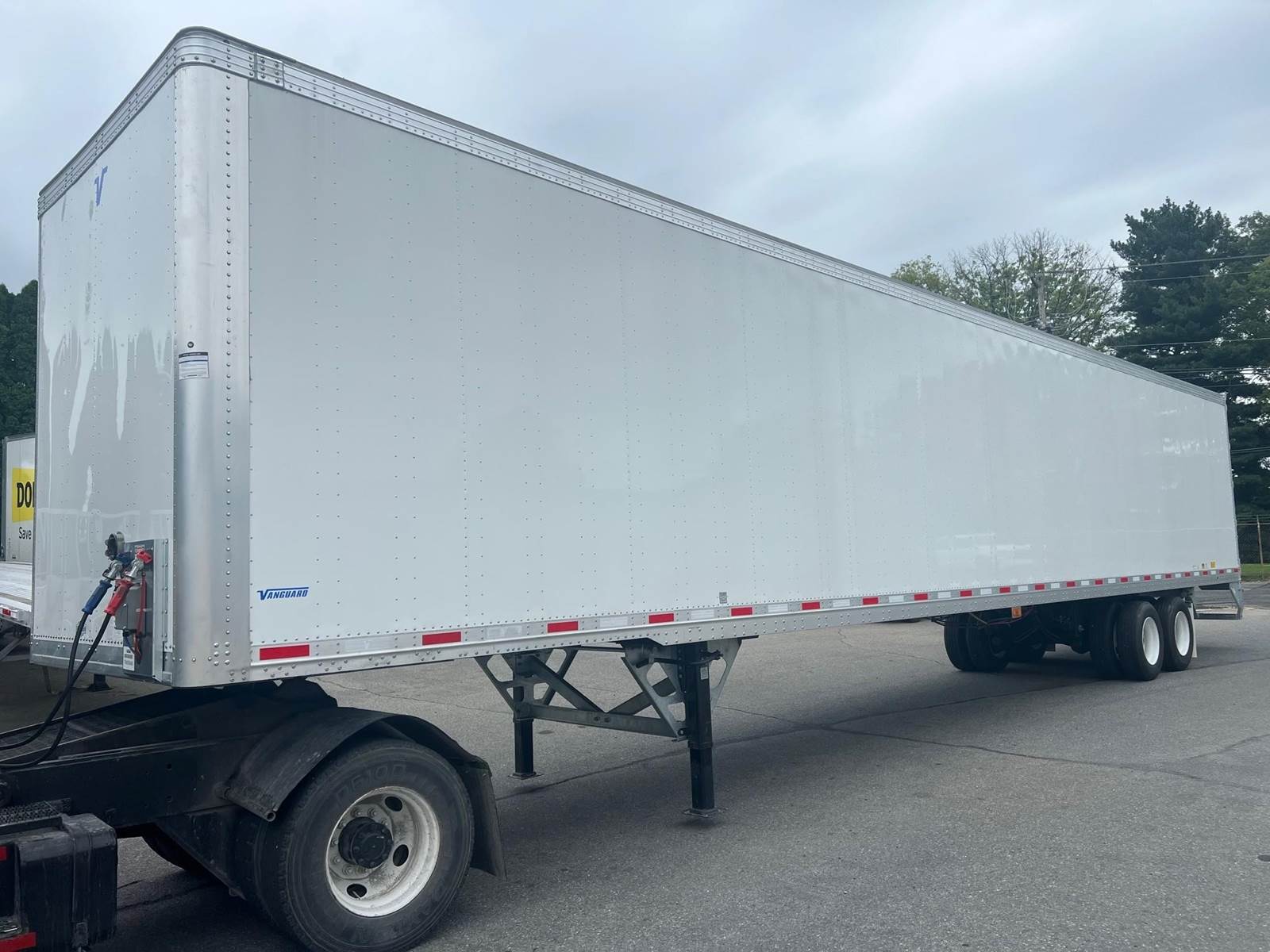

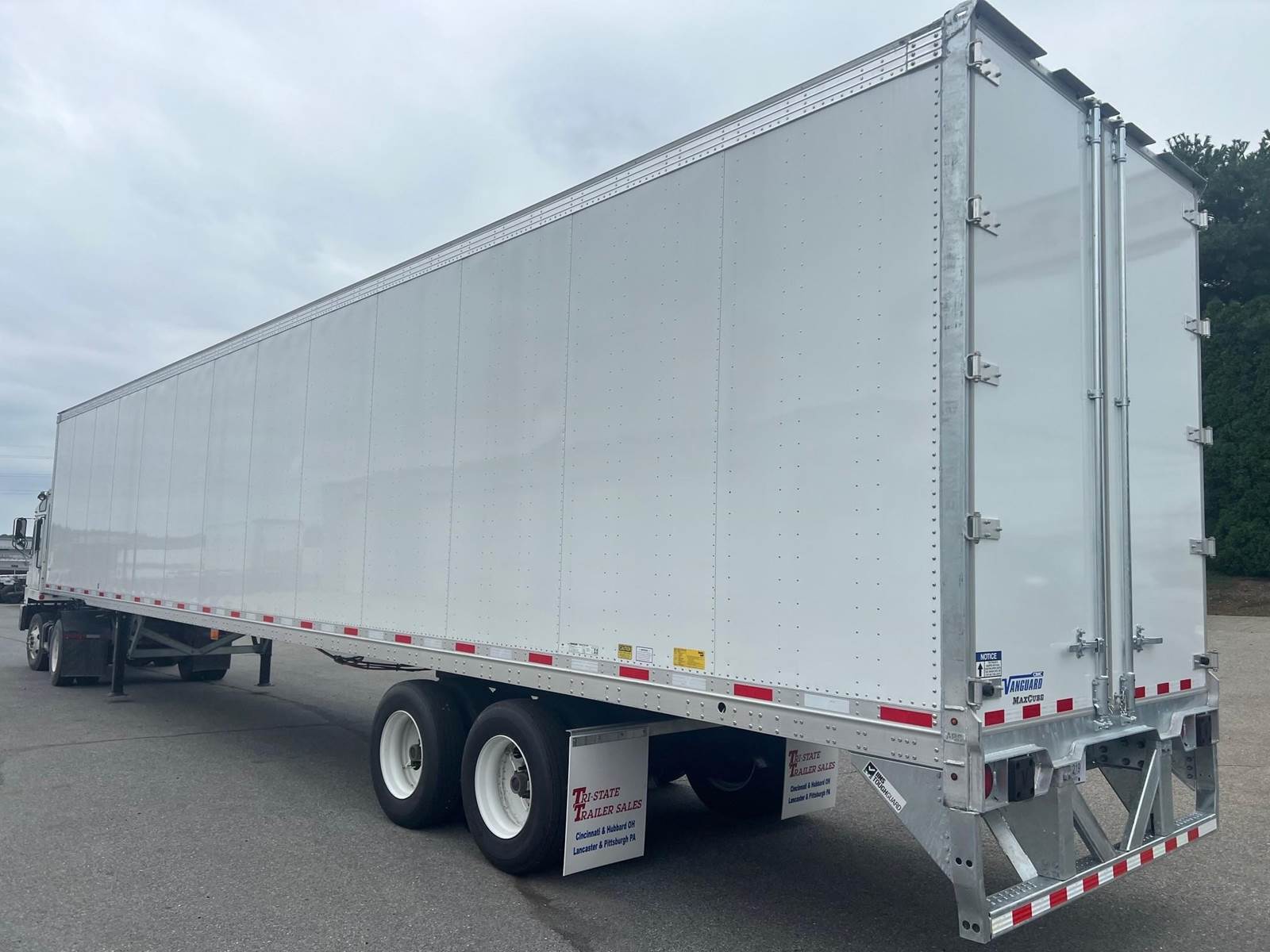

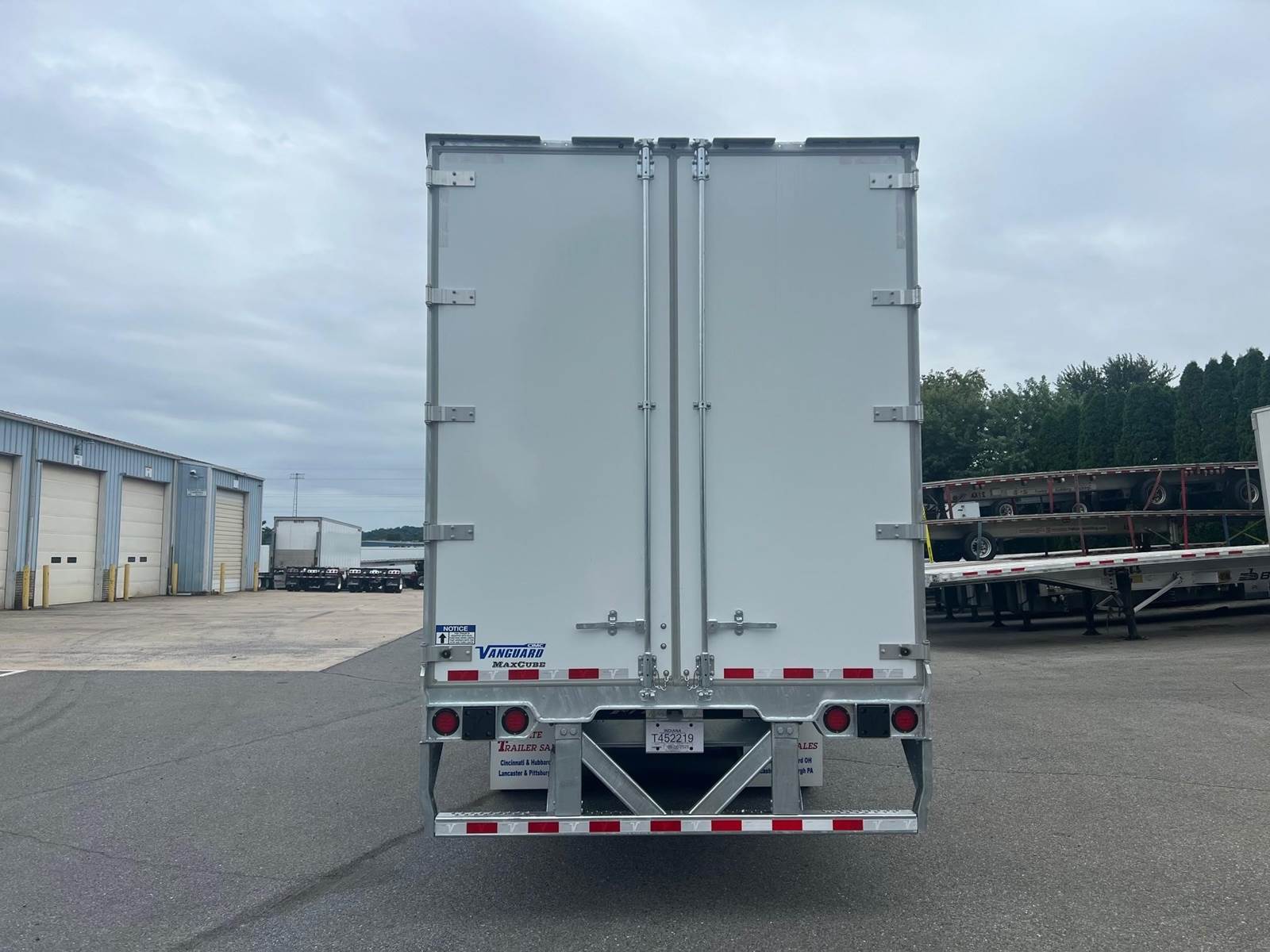

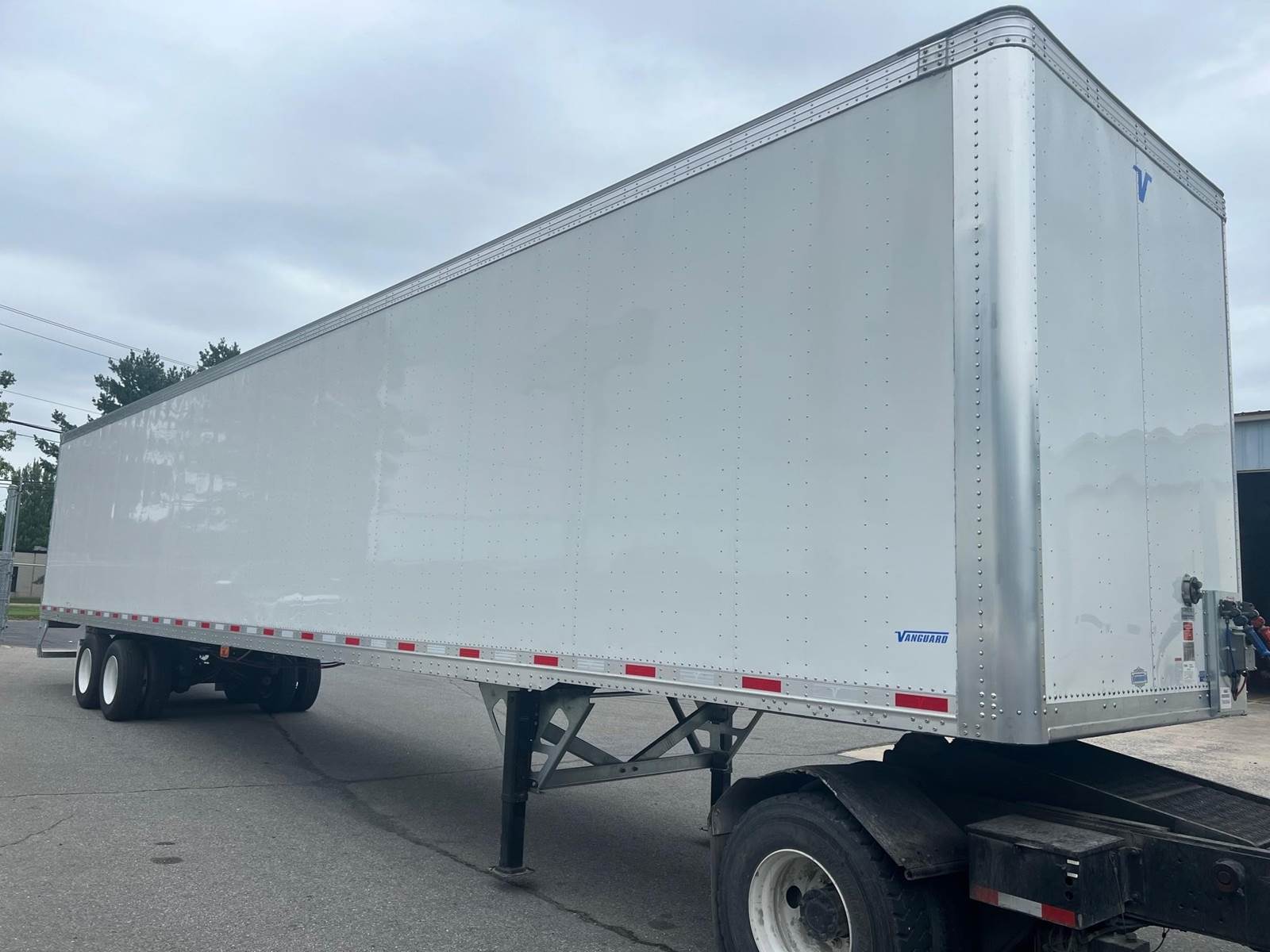

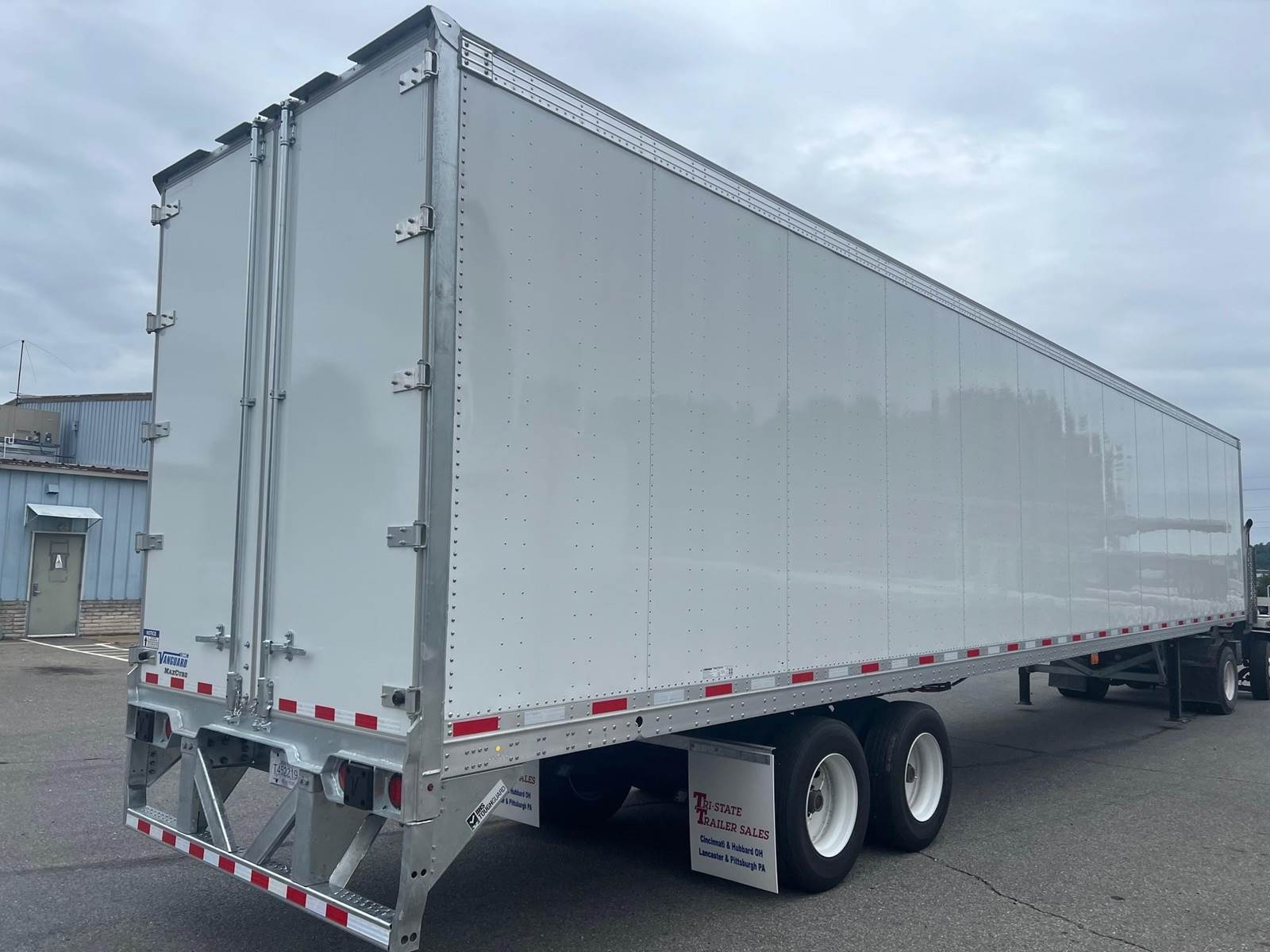

2026 Vanguard MAXCUBE - SHEET / POST Dry Van Trailer

Length 53'
Width 102"
Height 13' 6"
Body
Inside Width 101" Post to Post
Inside Height 110"
Door Opening 110" Tall, 99" Wide
Sides Smooth Aluminum
Color White
Type Posts Series "A" logistics posts
Post Spacing 16"
Side Scuff 12" Corrugated Steel
Side Lining Plastic
Nose Lining .180" Ridge OGRE Full Height
Internal Bulkhead 10 ga x 12" Smooth Steel

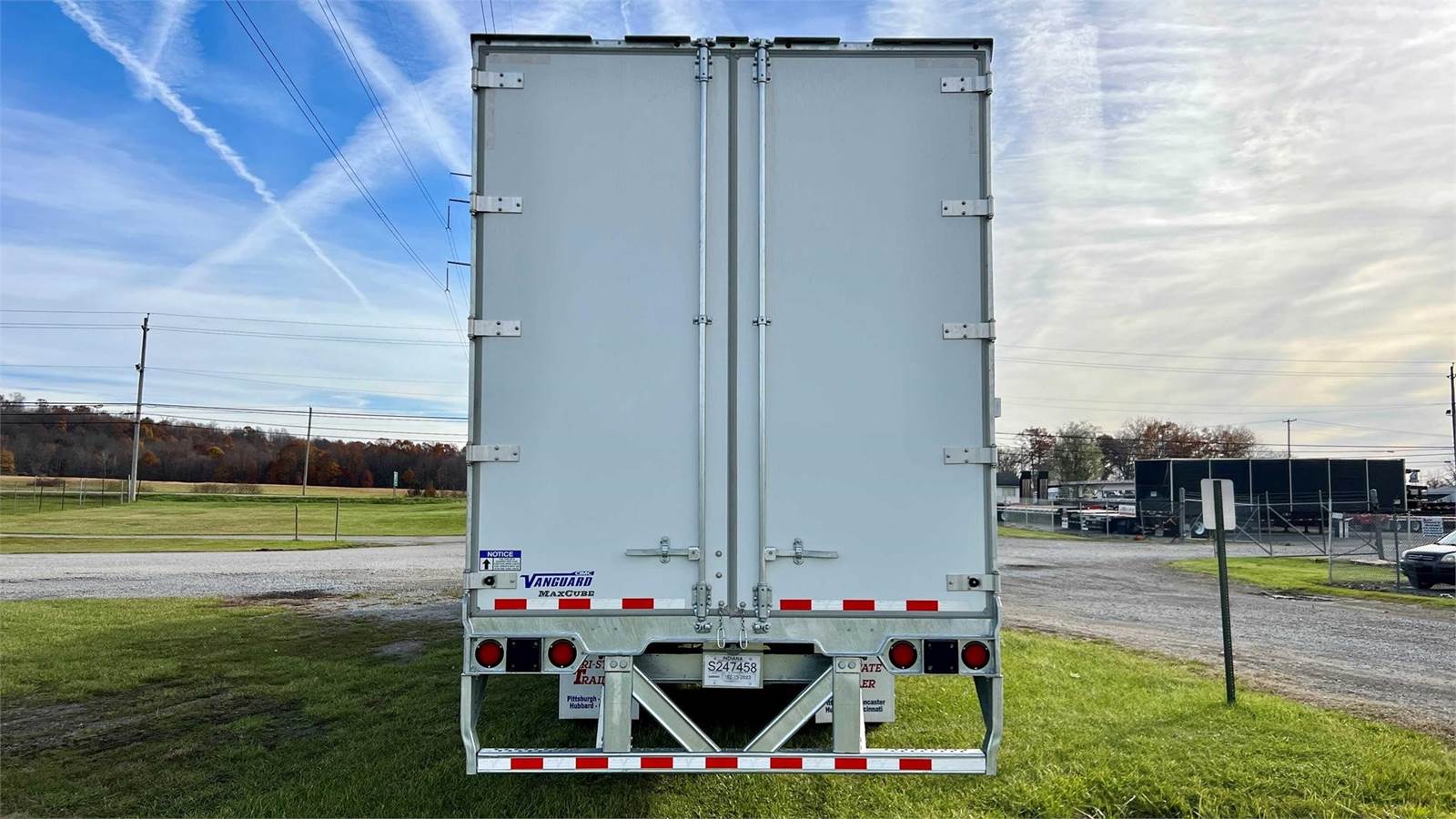

Rear Doors 1/2" Composite PPW Galvanized Panels
Hinges Five per Door
Roof Aluminum
Roof Bows 1" Deep Galvanized Anti-Snag on 16"/24"
Rear Frame GALVANIZED
Bumper GALVANIZED, Reinforced for Dock-Lock
Rubber Dock Bumpers One Pair Recessed Between Lights
Floor/Body

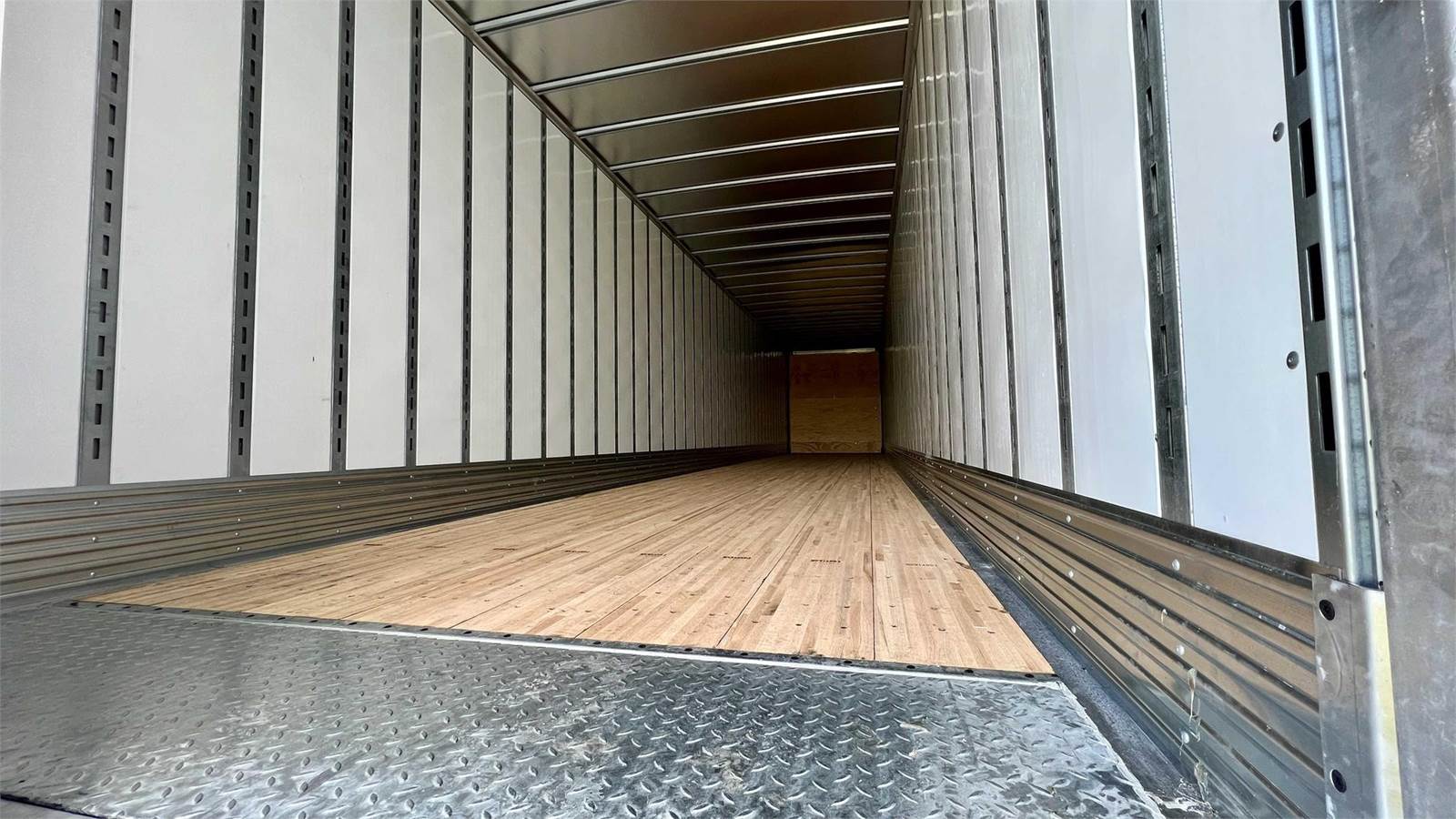

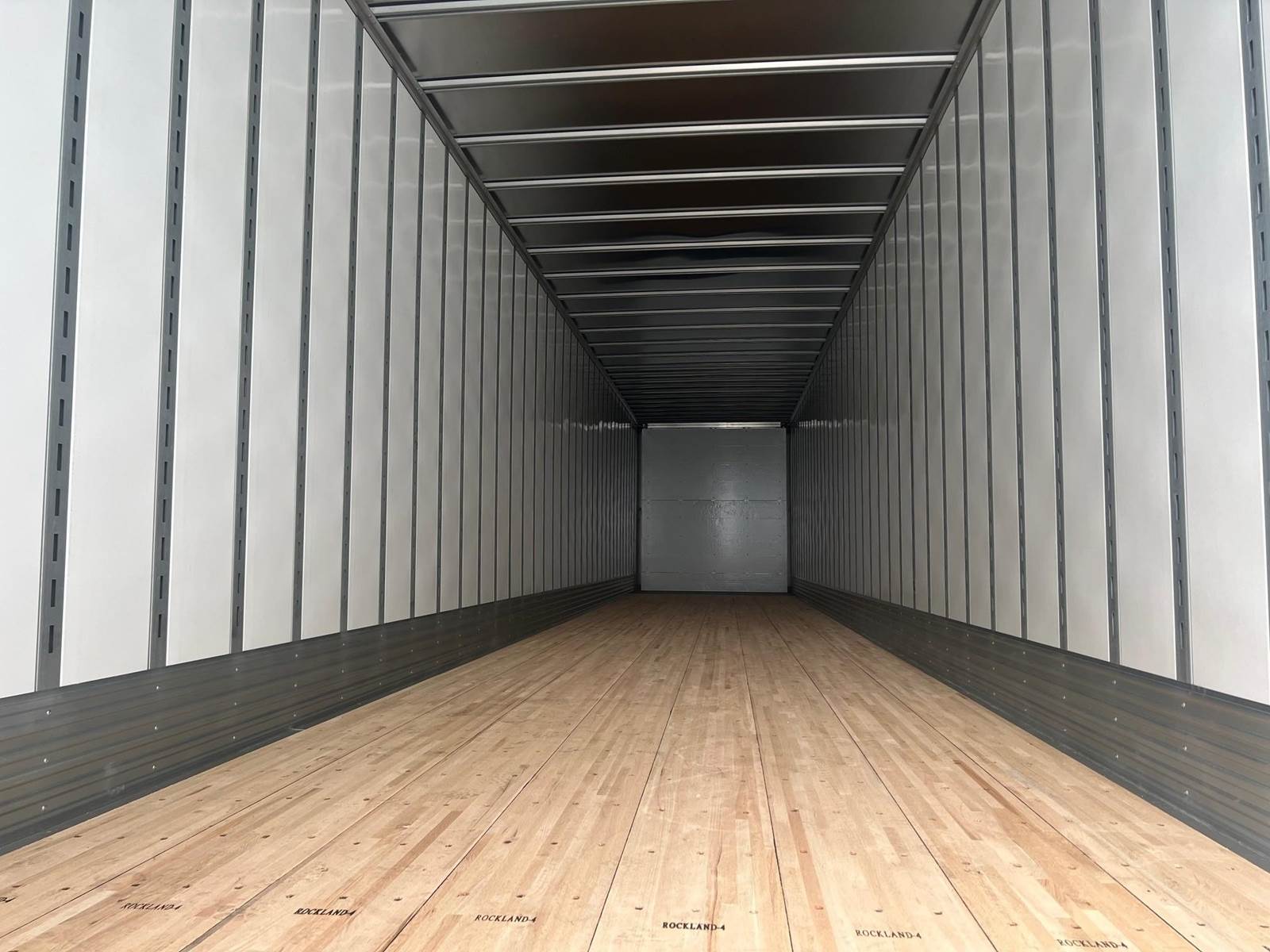

Van Floor 1 3/8" Oak with Three 5/16" Screws per Board
Threshold Plate 27" Galvanized Steel
Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Brand Hendrickson HKANT40K, SureLok & QuikDraw
Suspension Setting 49" Sliding Tandem, 216" Slide Rails
Tire Size 295/75R22.5
Wheels Steel, Powder Coated White
UnderFrame
King Pin Setting 36"
Cross Member Center 12"
Landing Gear Jost, Two-Speed
Comments
Hendrickson TireMaax PRO Tire Inflation
ABS: Bendix 2S-1M with SR-5 Spring Brake Release Valve
SALE PRICE INCLUDES FET - LOCATED IN PITTSBURGH, PA
