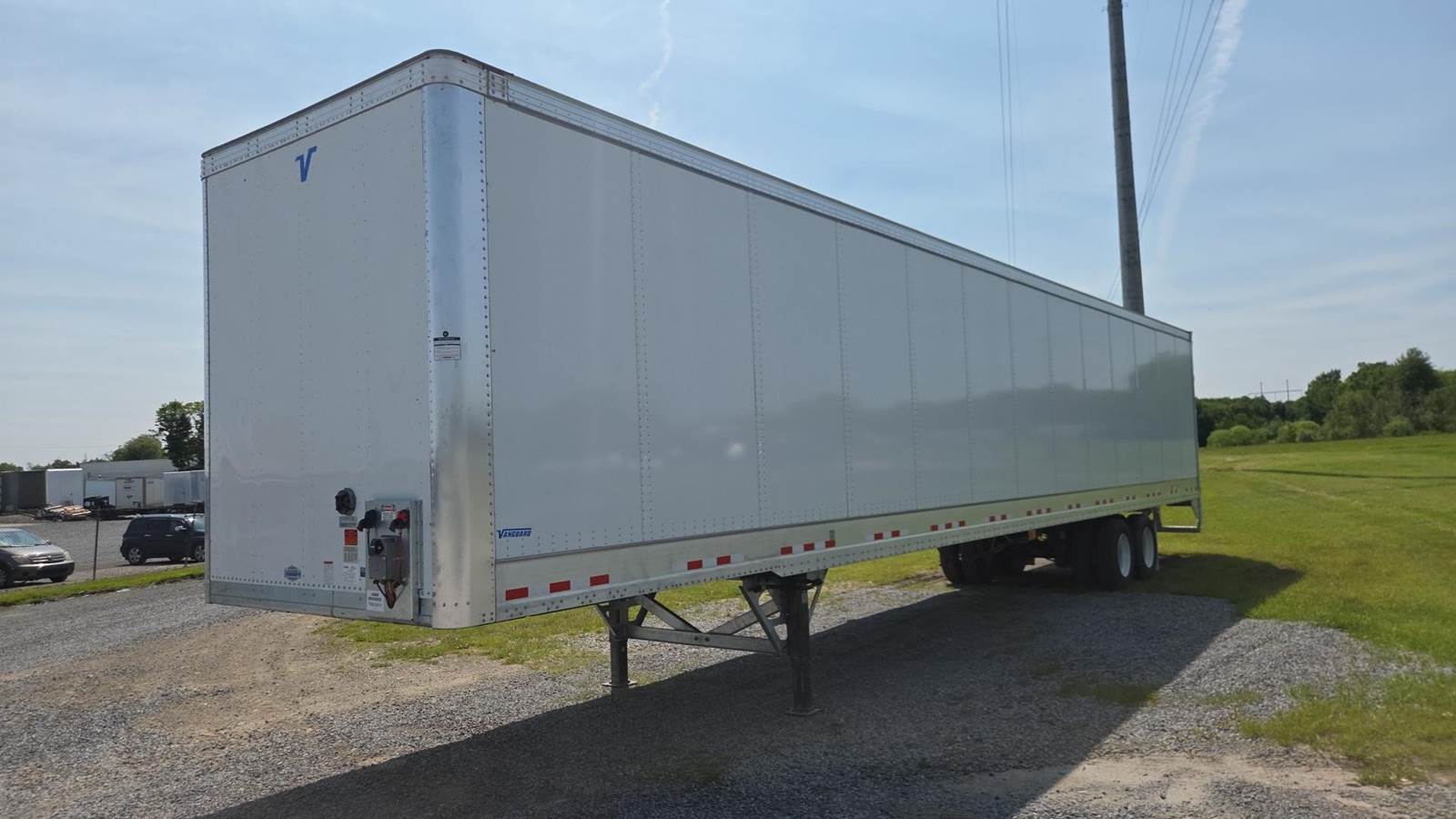

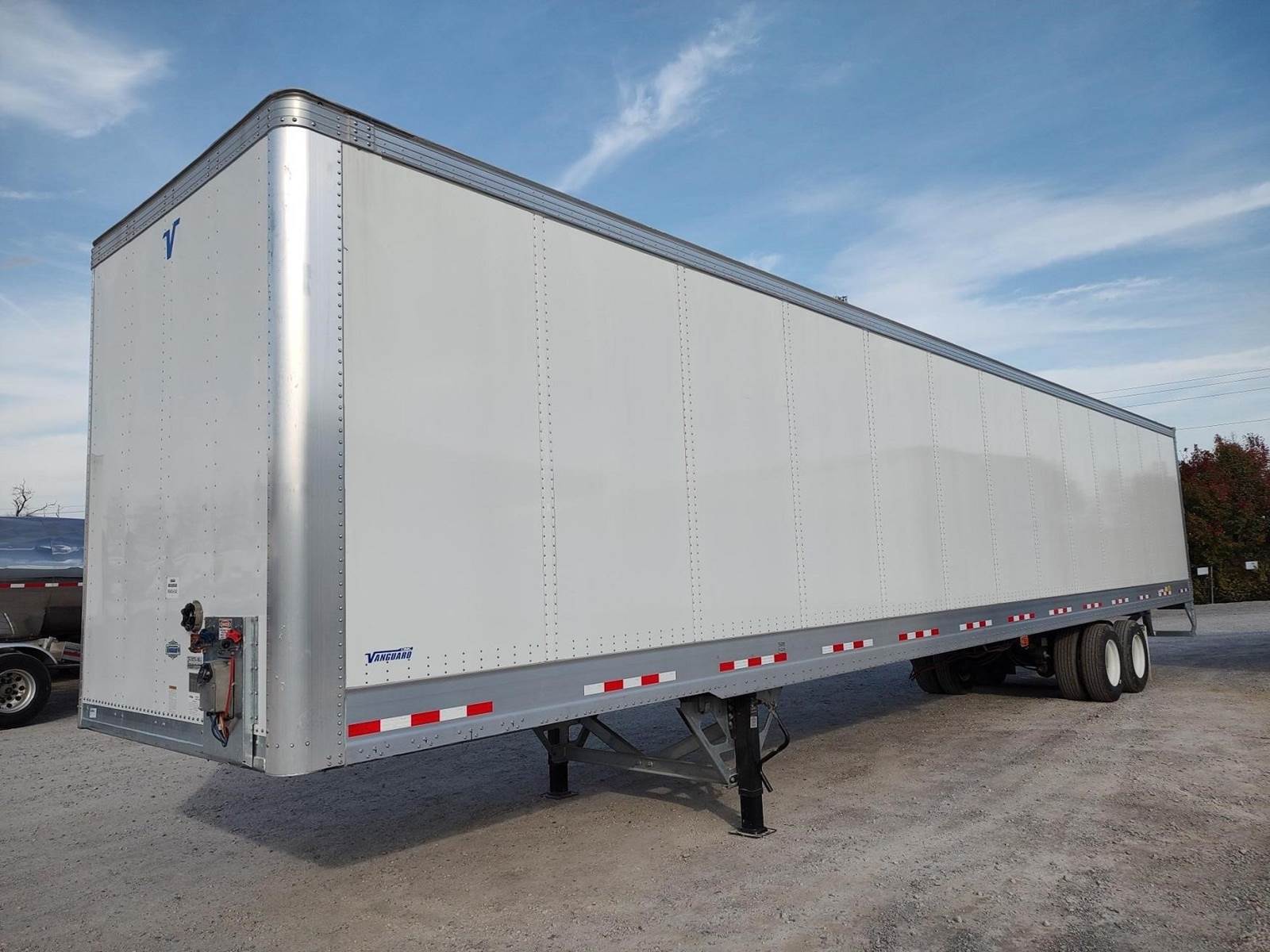

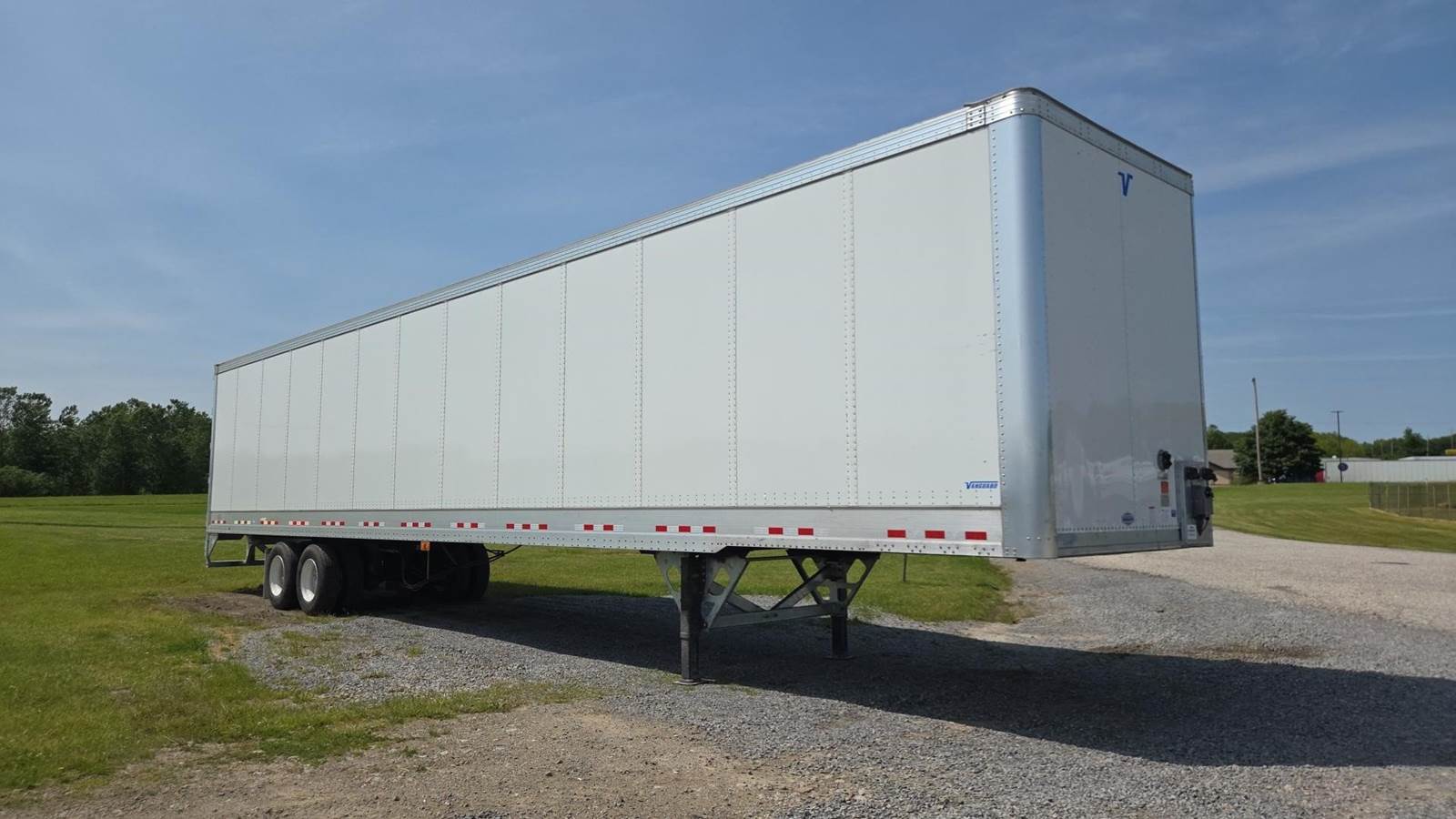

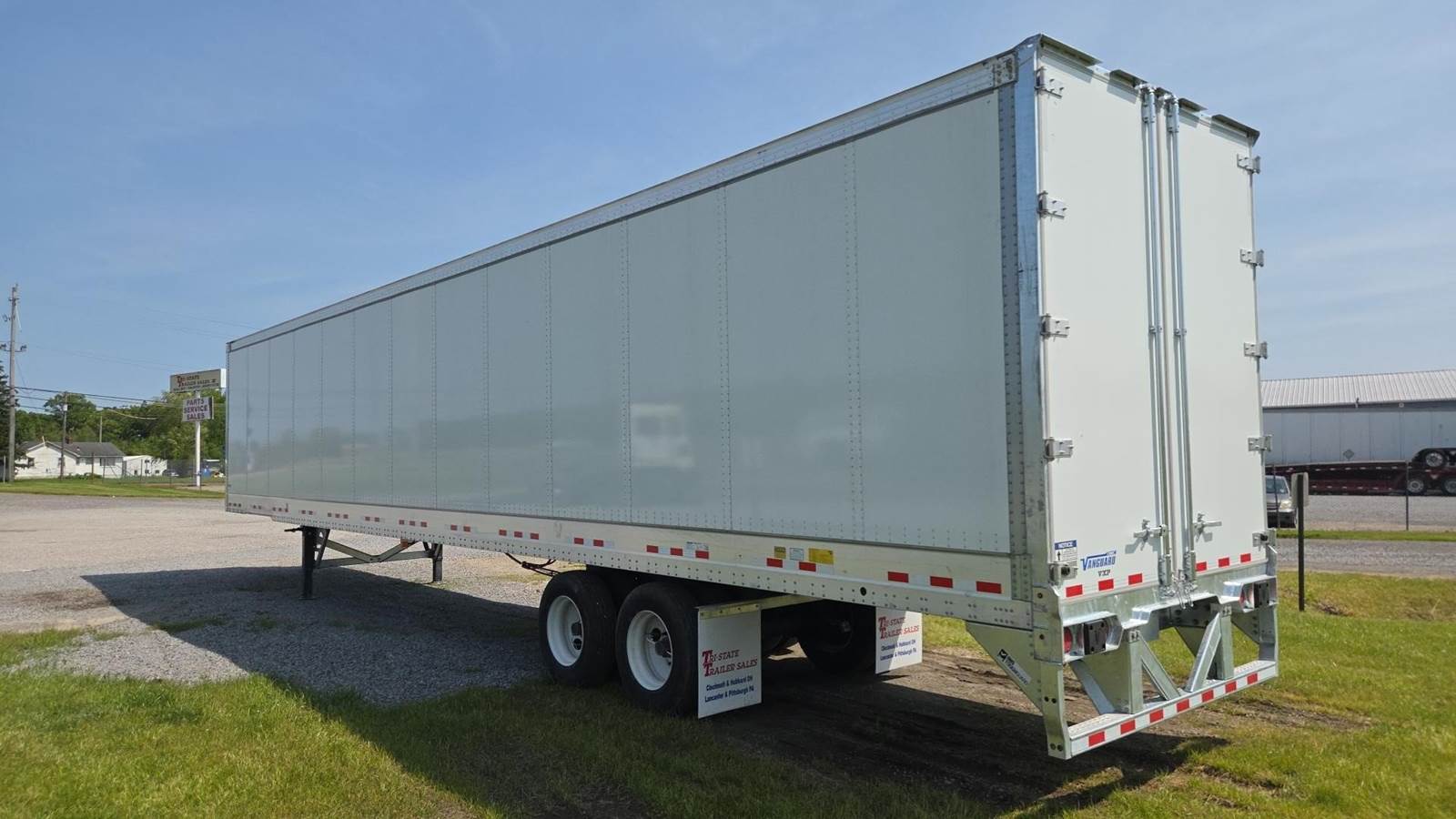

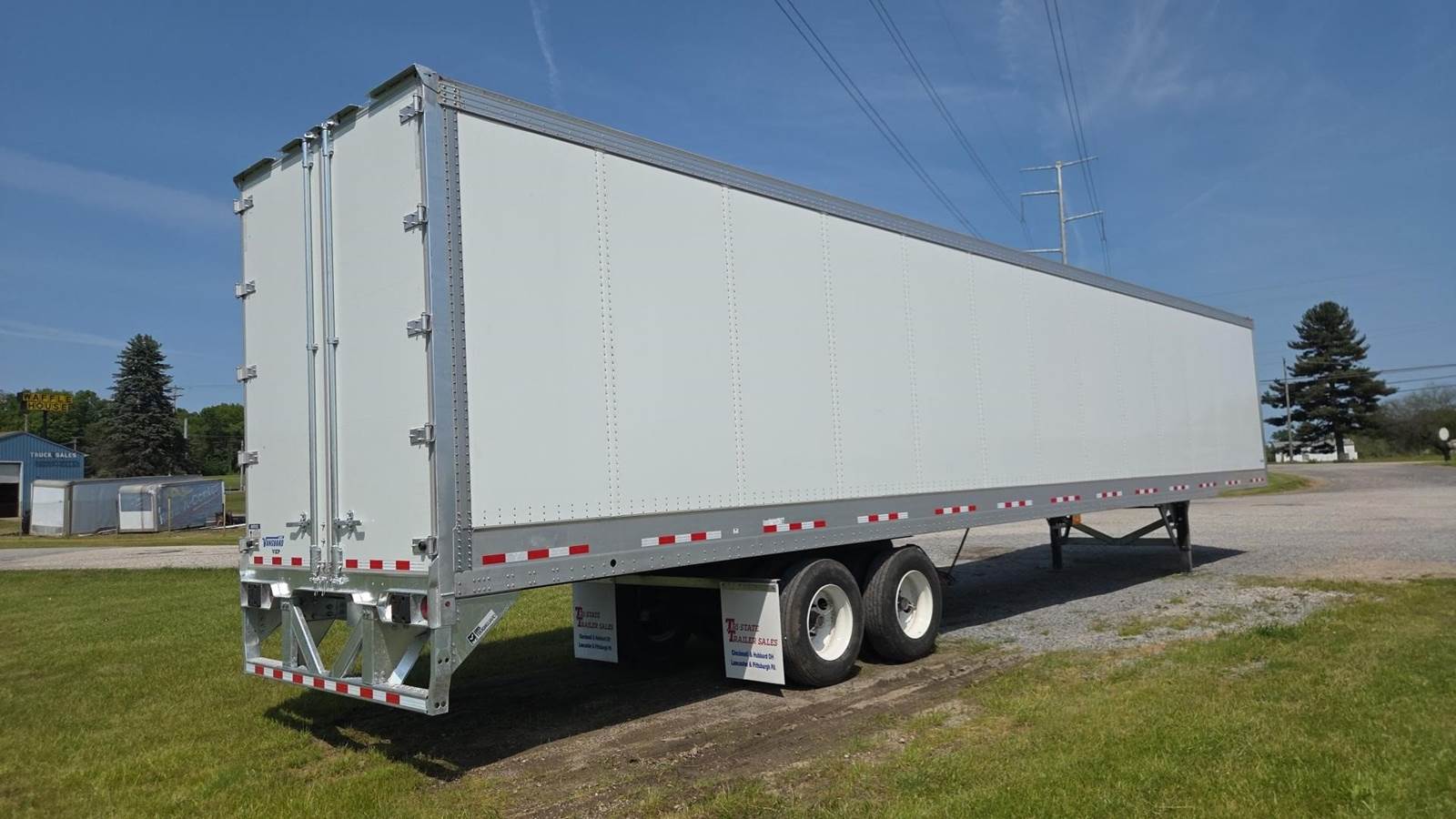

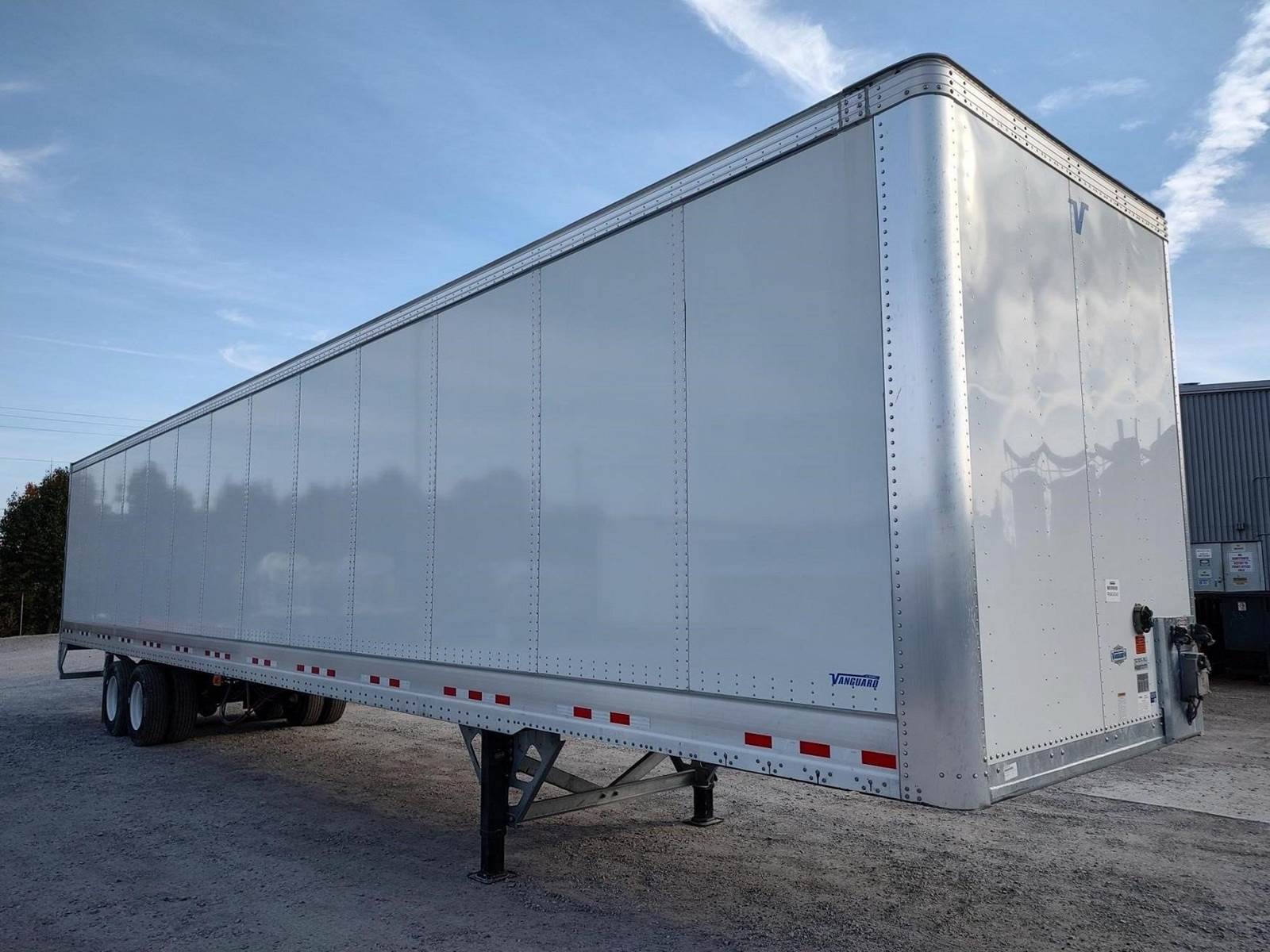

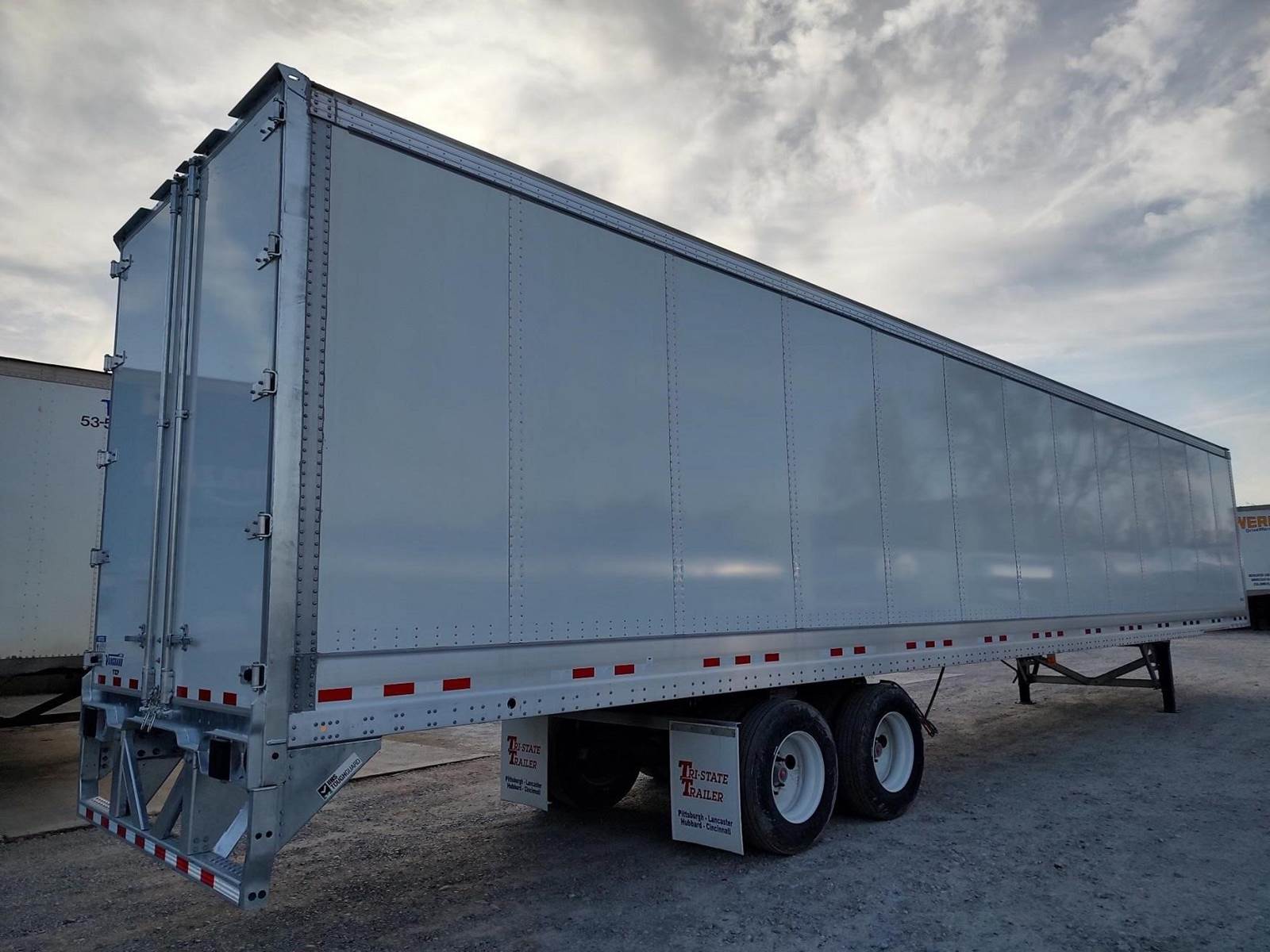

2026 Vanguard VXP 53 ft Dry Van Trailer - Swing Door, Air Ride, Sliding Axle

Length 53'
Width 102"
Height 13' 6"

Inside Width 101" Scuff to Scuff (101-1/4" Panel to Panel)
Inside Height 110"
Door Opening 110" Tall, 99" Wide

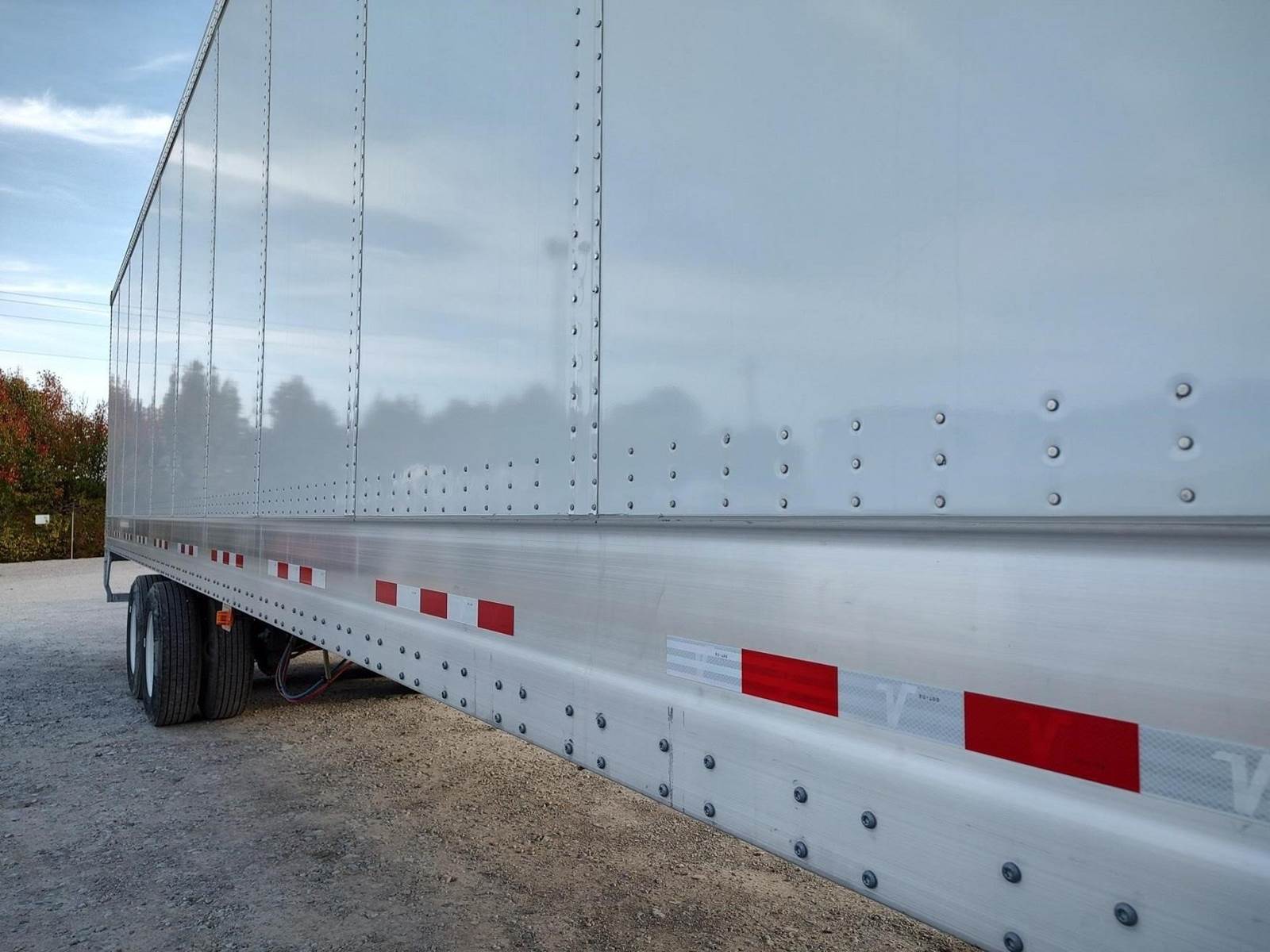

Sides VXP Composite Plate
Color White
Type Posts Series "A" logistics posts
Post Spacing 48"
Side Scuff HBR Design w Integral Alum Scuff, 14" Total
Side Lining Plate

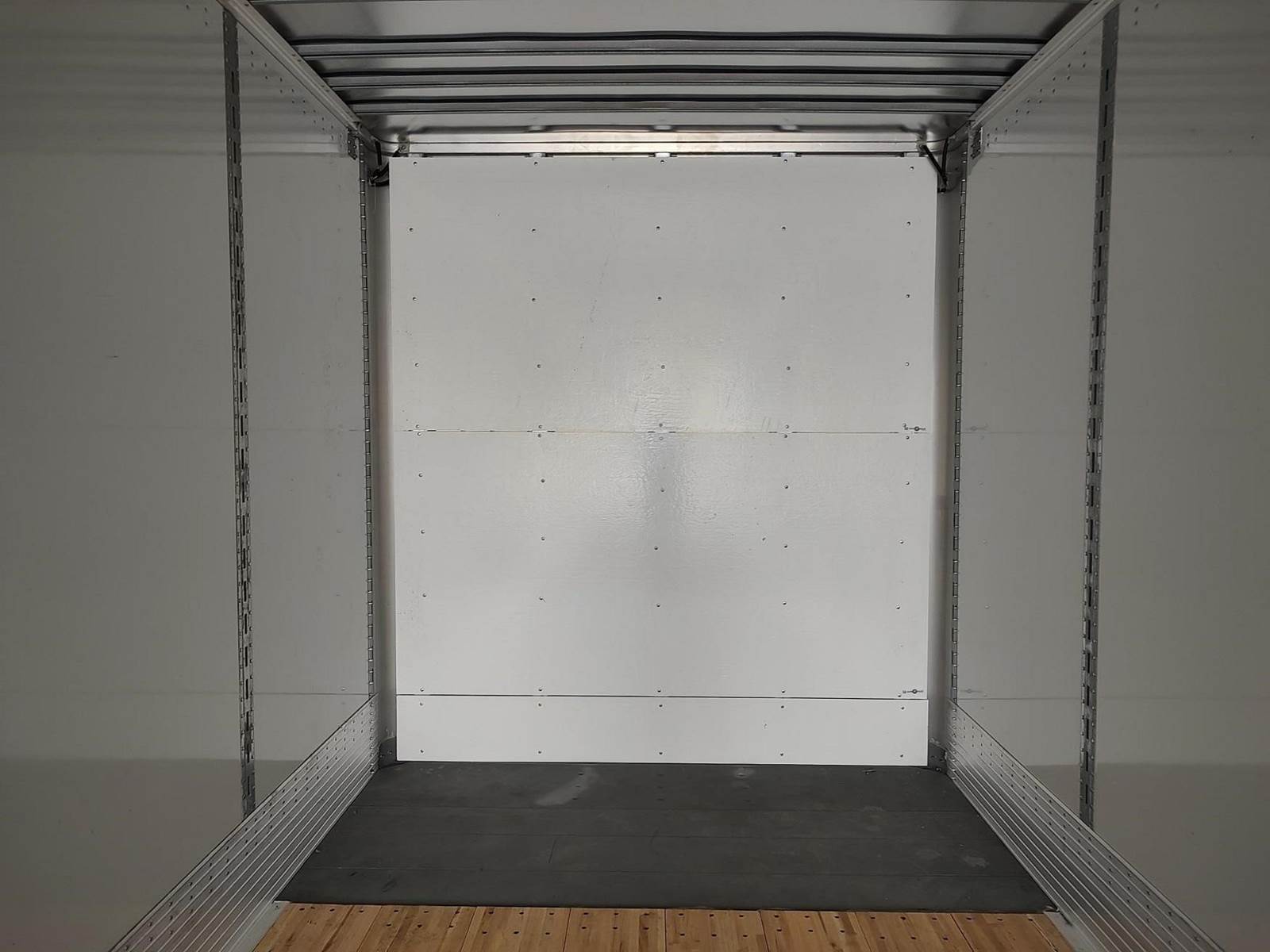

Nose Lining .180" Ridge OGRE Full Height
Internal Bulkhead 10 ga x 12" Smooth Steel

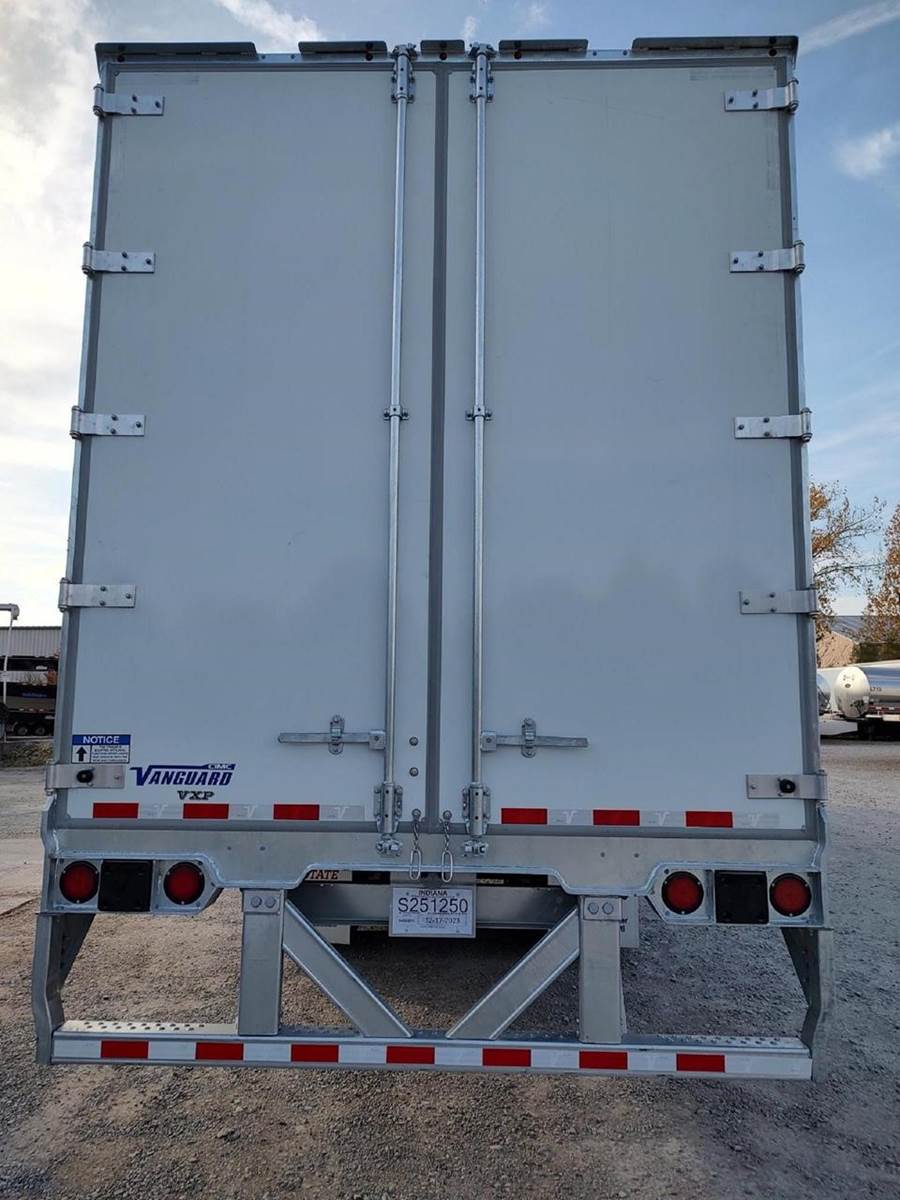

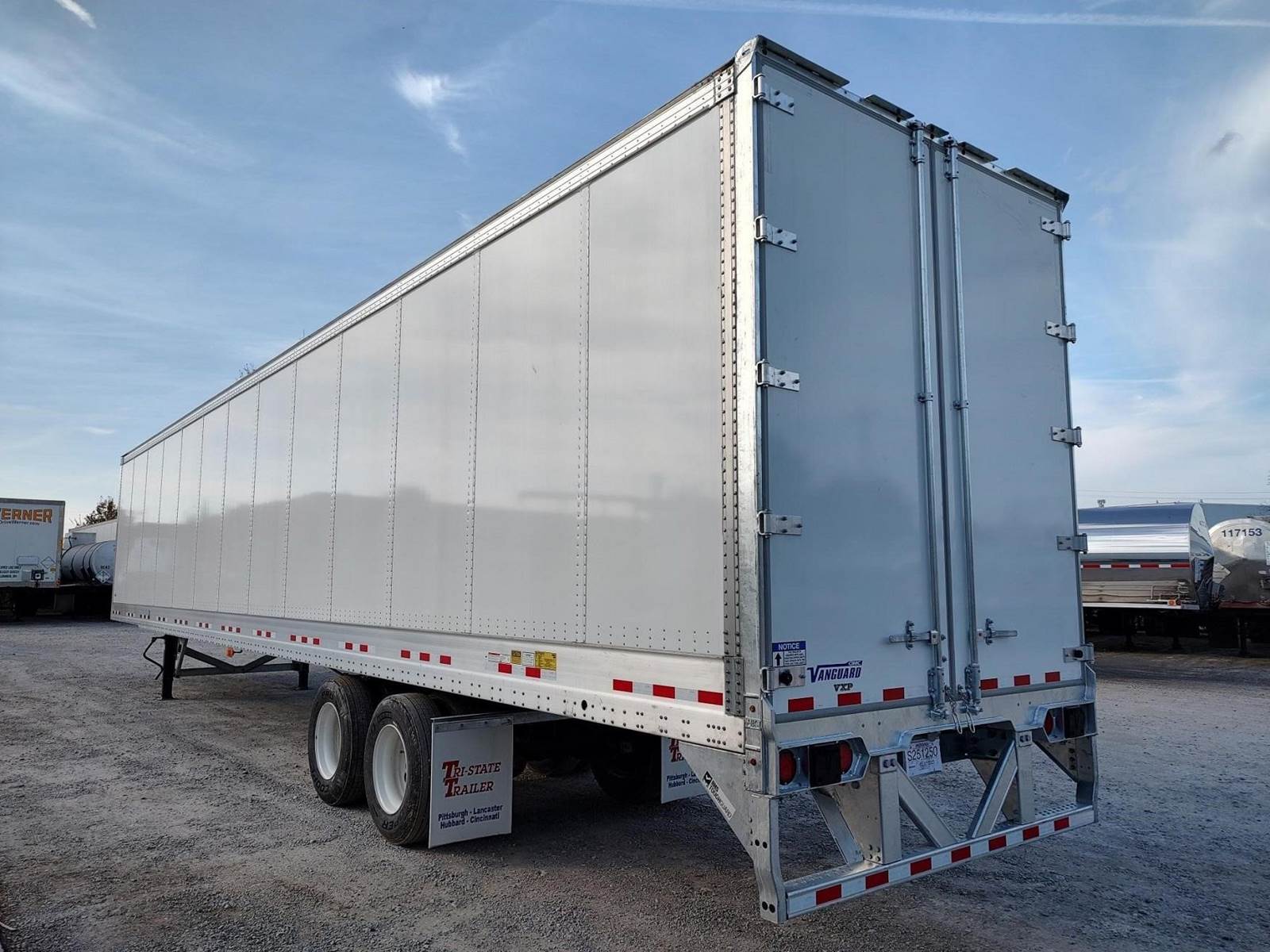

Rear Doors 1/2" Composite PPW Galvanized Panels
Hinges Five per Door
Roof Aluminum
Roof Bows 1" Deep Galvanized Anti-Snag on 16"/24"
Rear Frame GALVANIZED
Bumper GALVANIZED, Reinforced for Dock-Lock
Rubber Dock Bumpers One Pair Recessed Between Lights

Van Floor 1 3/8" Oak with Three 5/16" Screws per Board

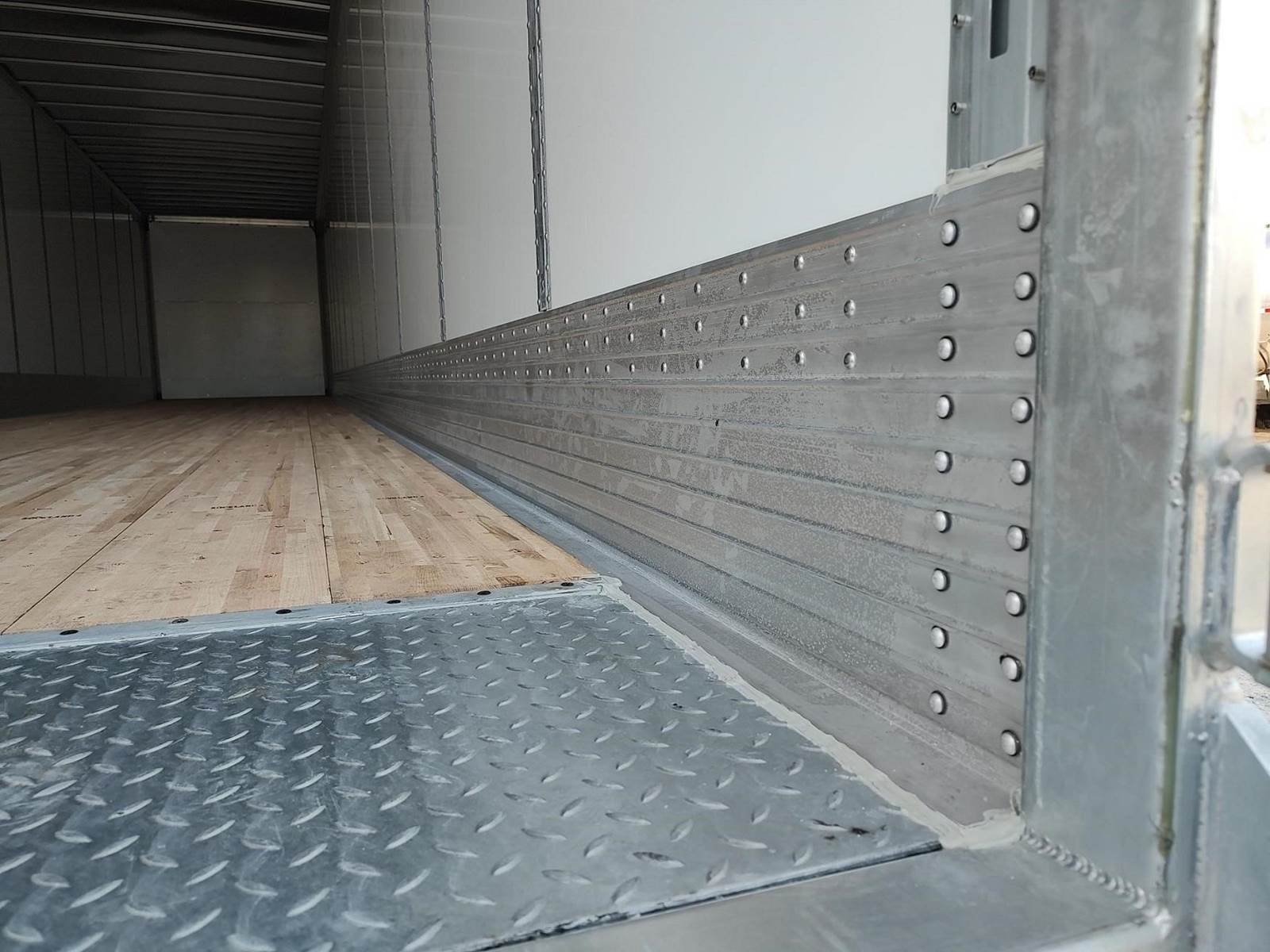

Threshold Plate 27" Galvanized Steel

# of Axles 2
Suspension Type Air Ride

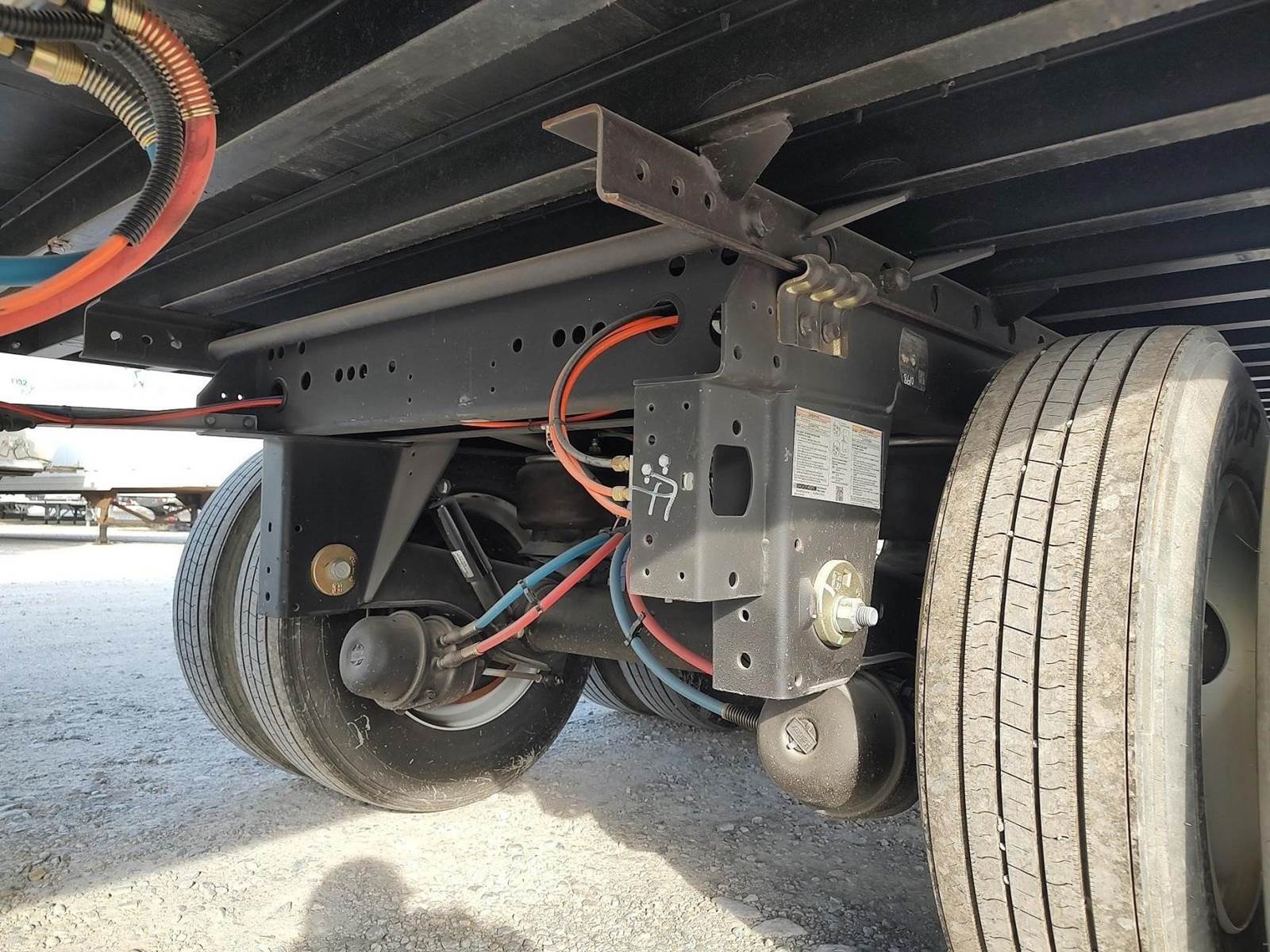

Suspension Brand Hendrickson HKANT40K, SureLok & QuikDraw
Suspension Setting 49" Sliding Tandem, 216" Slide Rails
Tire Size 295/75R22.5
Wheels Steel, Powder Coated White

King Pin Setting 36"
Cross Member Center 10" - Bolted vs. Riveted to Base Rail
Landing Gear Jost, Two-Speed
22,000 Lb. Floor Rating

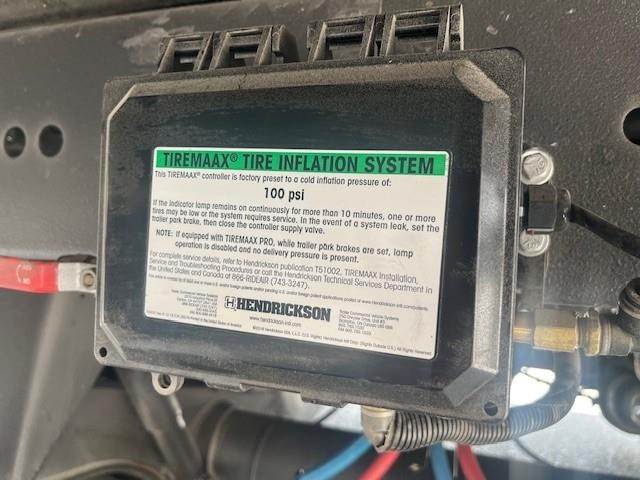

Hendrickson TireMaax PRO Tire Inflation
ABS Bendix 2S-1M with SR-5 Spring Brake Release Valve

FET Included in Price
