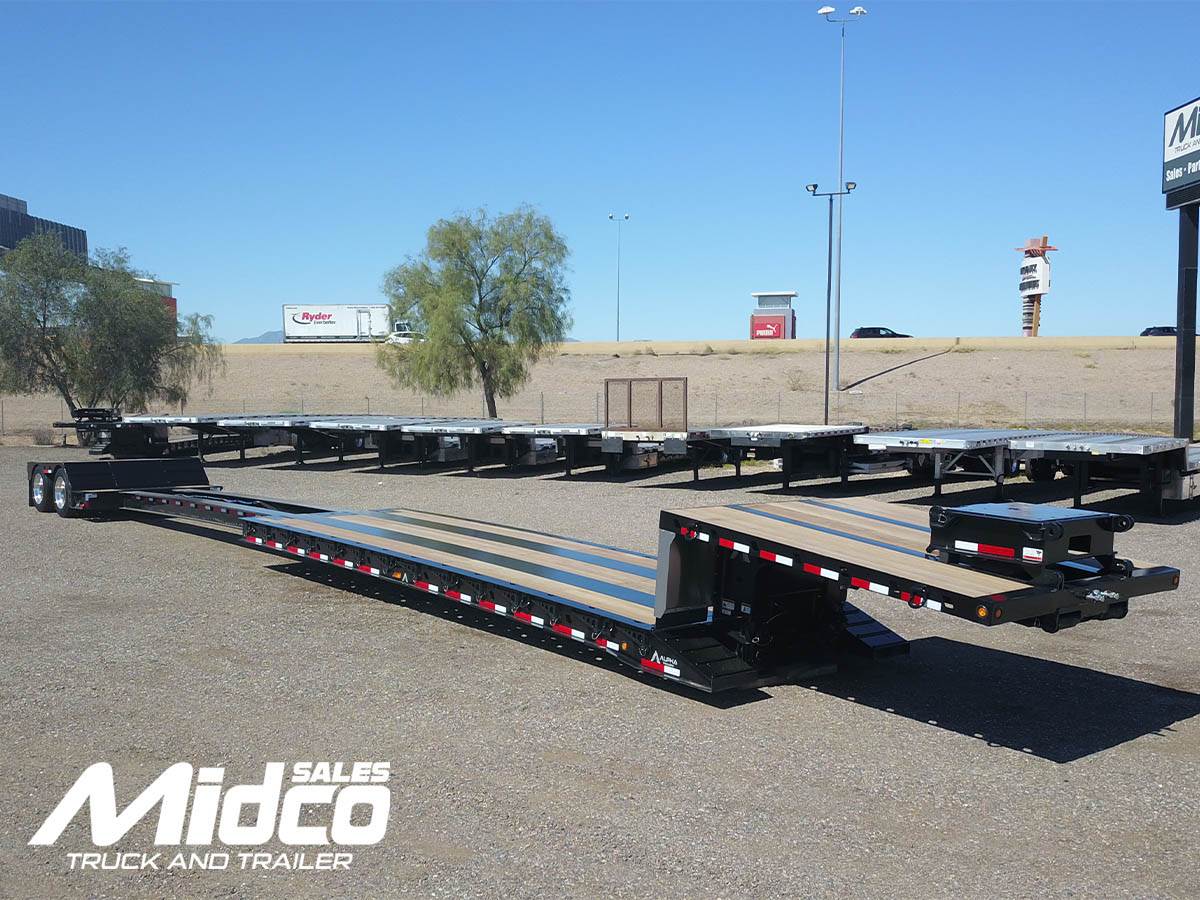

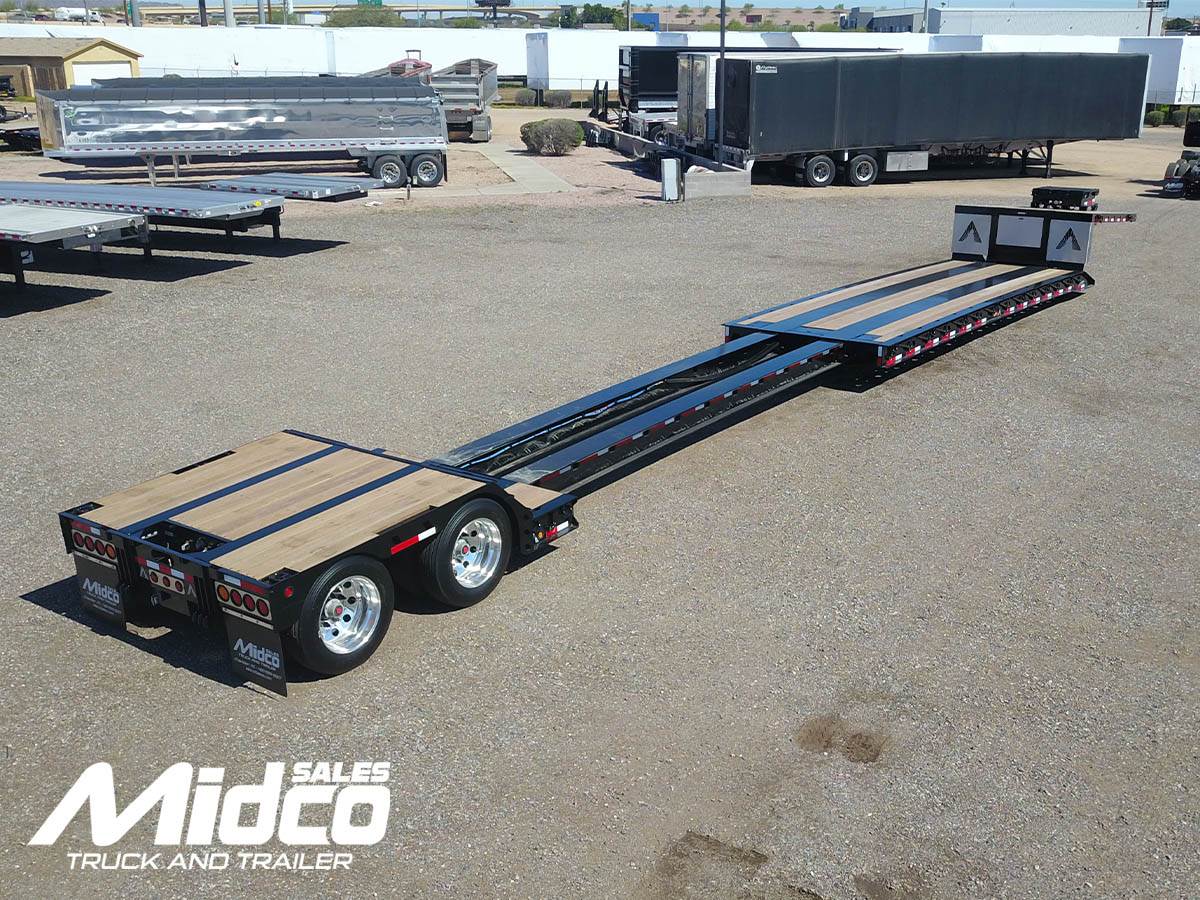

2027 Alpha HD A80MG-E Extendable Double Drop Trailer, 48x102, Air Ride, Steel, New, Iowa, Arizona

2027 Alpha HD A80MG-E Extendable Double Drop Trailer for Sale at Midco Sales – 40 Ton Heavy Haul Trailer

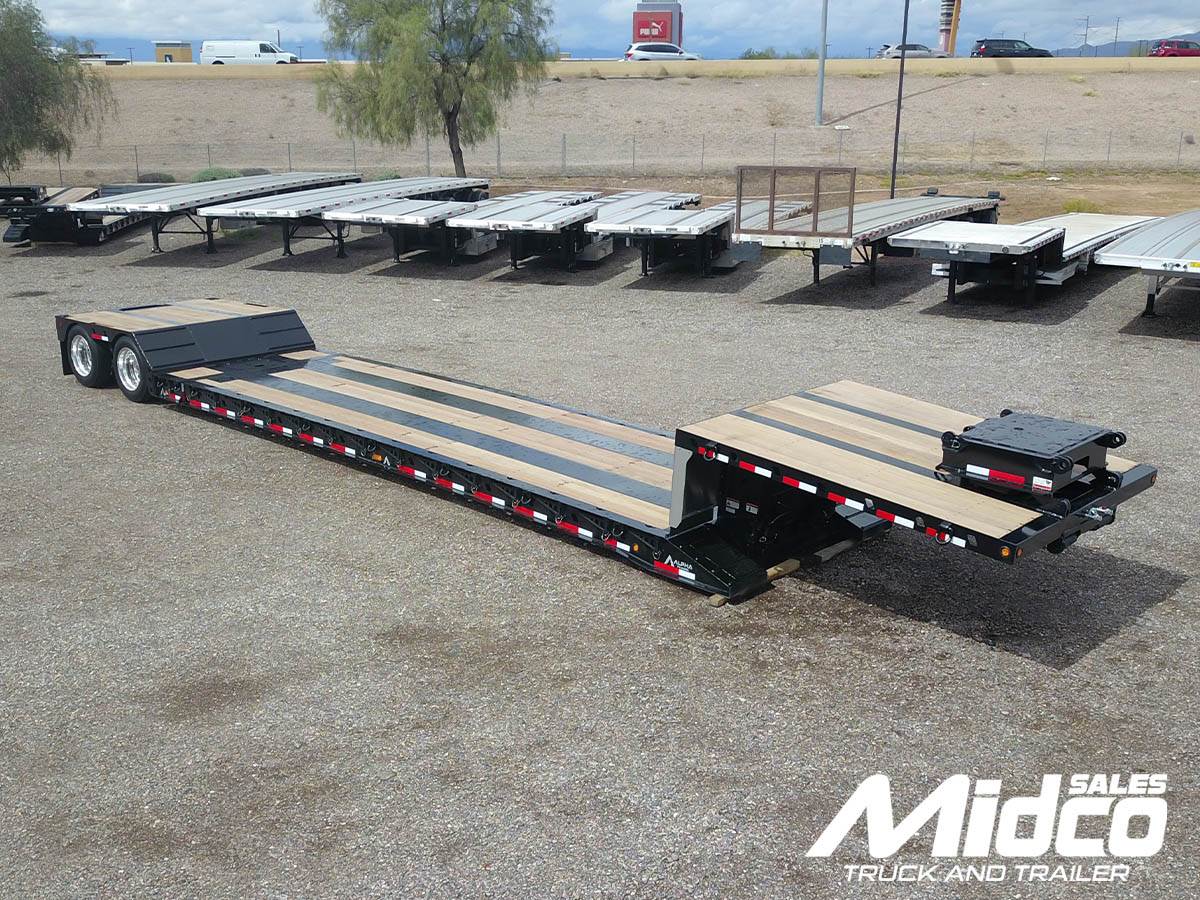

The 2027 Alpha HD A80MG-E Extendable Double Drop Trailer is built for serious heavy haul applications requiring strength, versatility, and low deck height for oversized equipment transport. Available from Midco Sales, this 40 ton extendable double drop trailer is designed for contractors, equipment haulers, and fleet operators who demand dependable performance in the field.

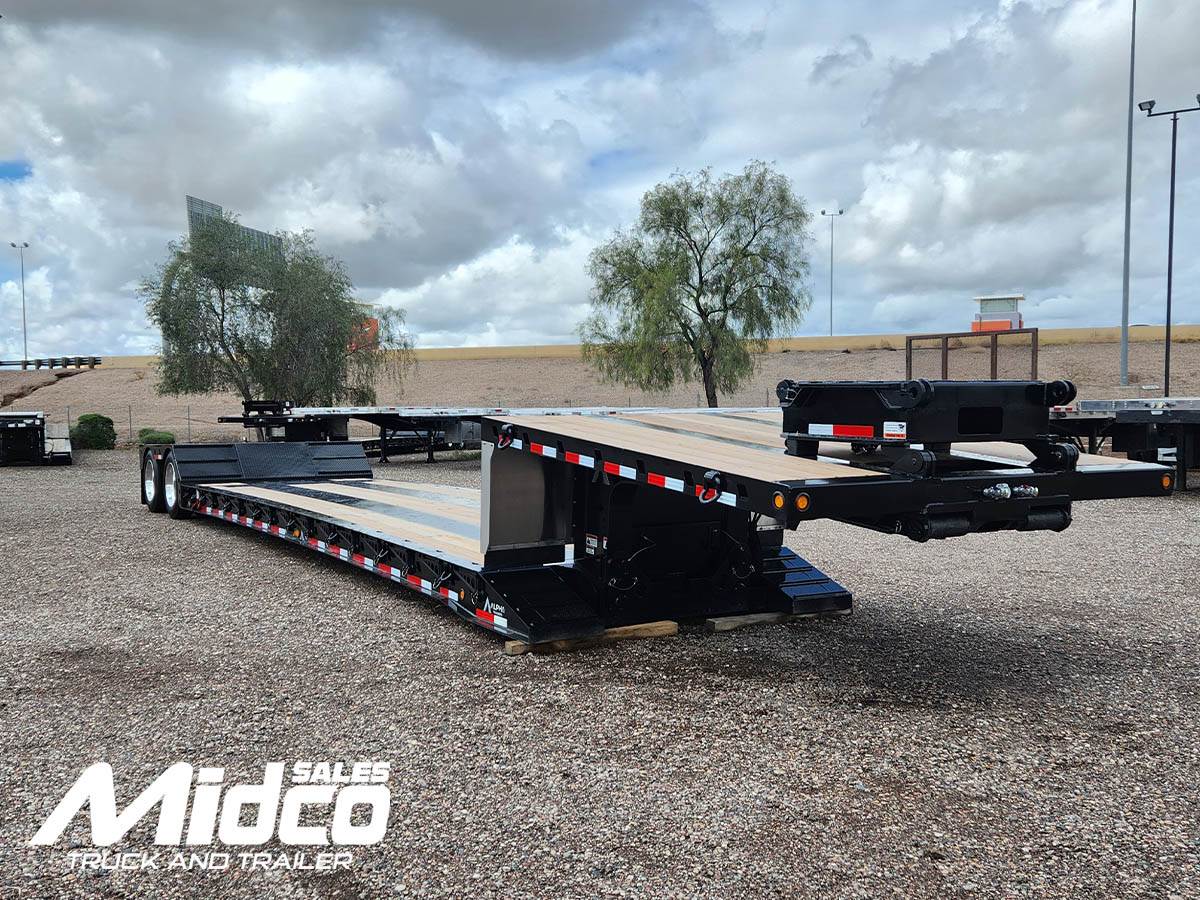

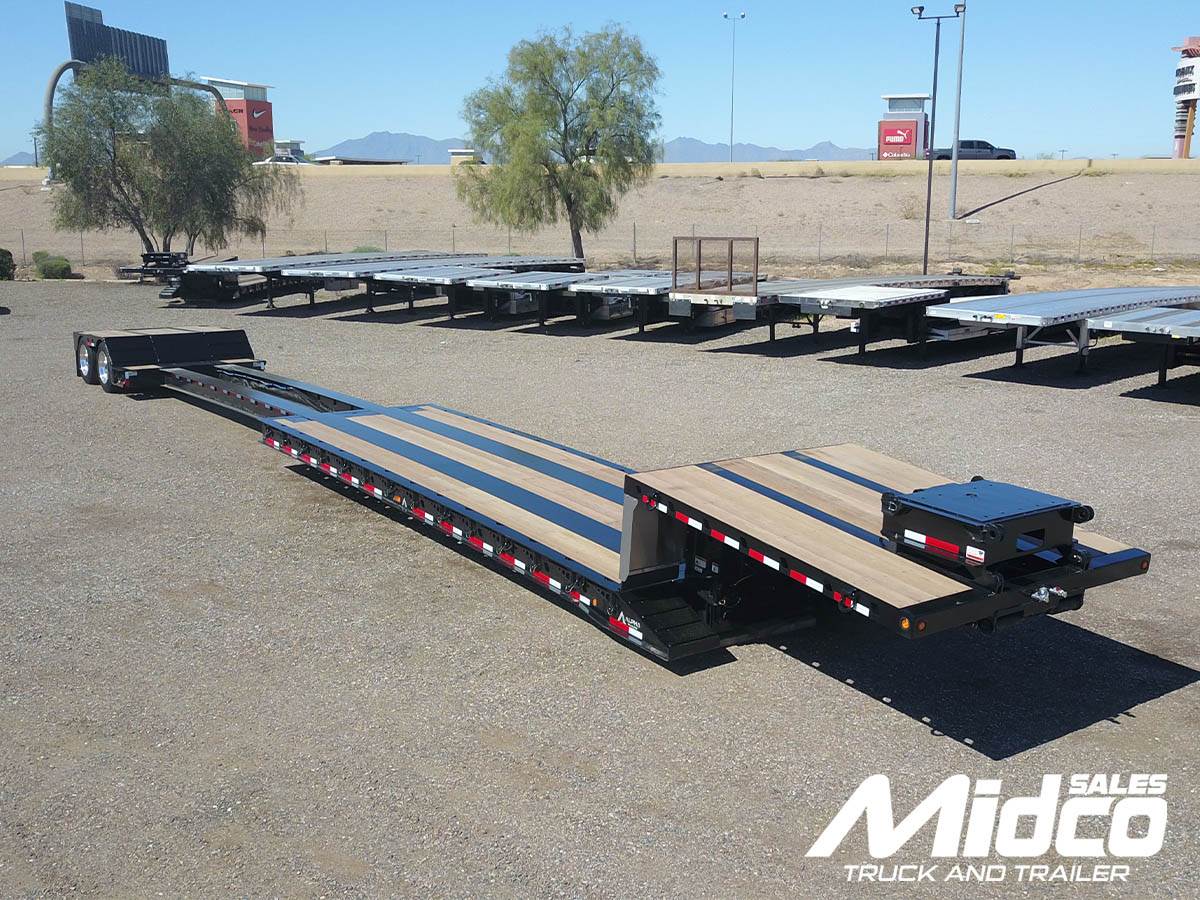

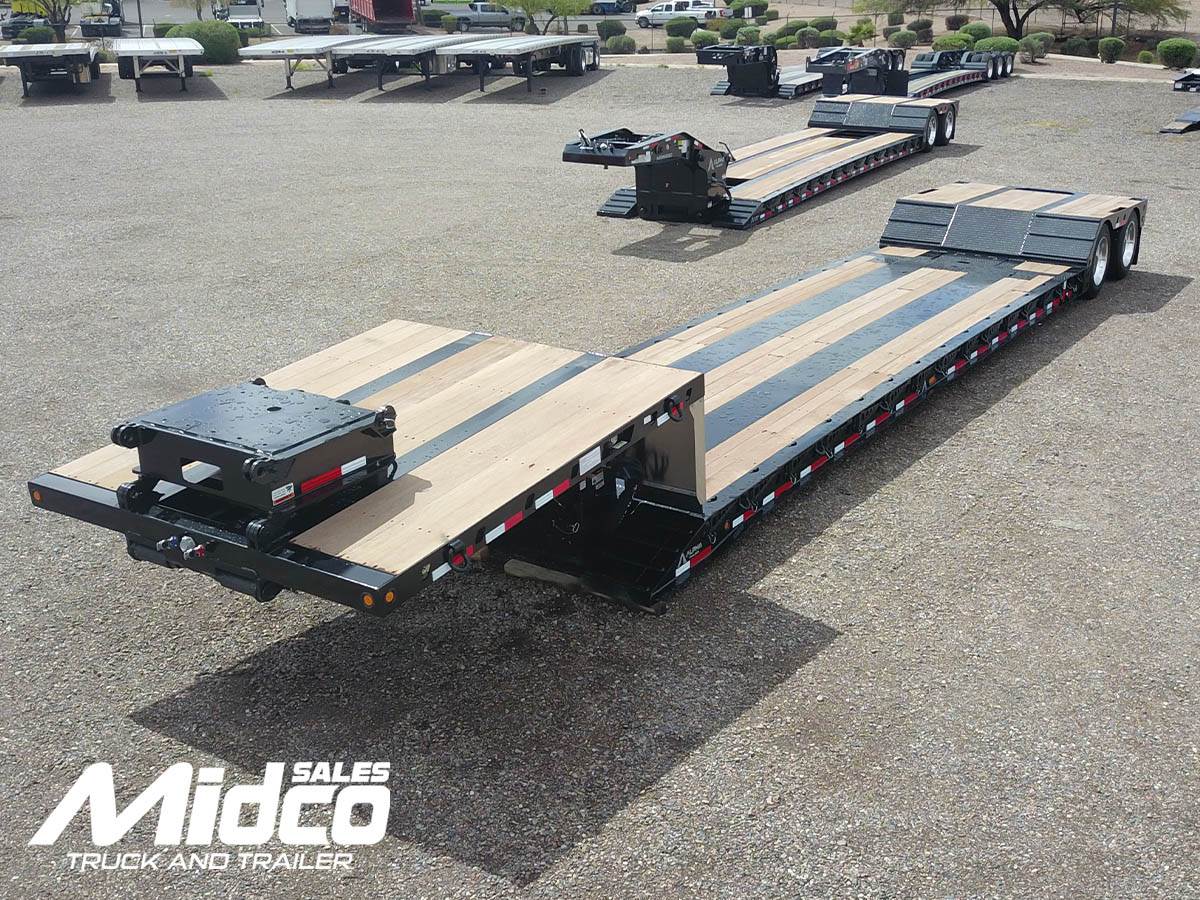

This heavy-duty trailer features a 48' x 102" configuration with an extendable main deck, making it ideal for hauling long construction equipment, machinery, agricultural equipment, and other oversized loads. The mechanical detachable gooseneck allows for efficient loading and unloading, while the air ride suspension helps improve ride quality and cargo stability.

Additional features include aluminum outer wheels, tandem axles, Apitong decking, and a durable heavy haul design engineered for demanding commercial use. The lowered deck height helps maximize legal transport height for taller equipment while maintaining excellent load stability.

Midco Sales is a trusted heavy haul trailer dealer based in Chandler, Arizona, serving customers nationwide with new and used trailers for construction, transportation, agriculture, and specialized hauling industries. Contact Midco Sales for availability, specifications, financing options, and nationwide delivery assistance.

DIMENSIONS & CAPACITY
Length:  48'
Width:  102"
Capacity: 80,000 lbs (80,000 lbs in 16' closed)
GVWR:  104,045 lbs

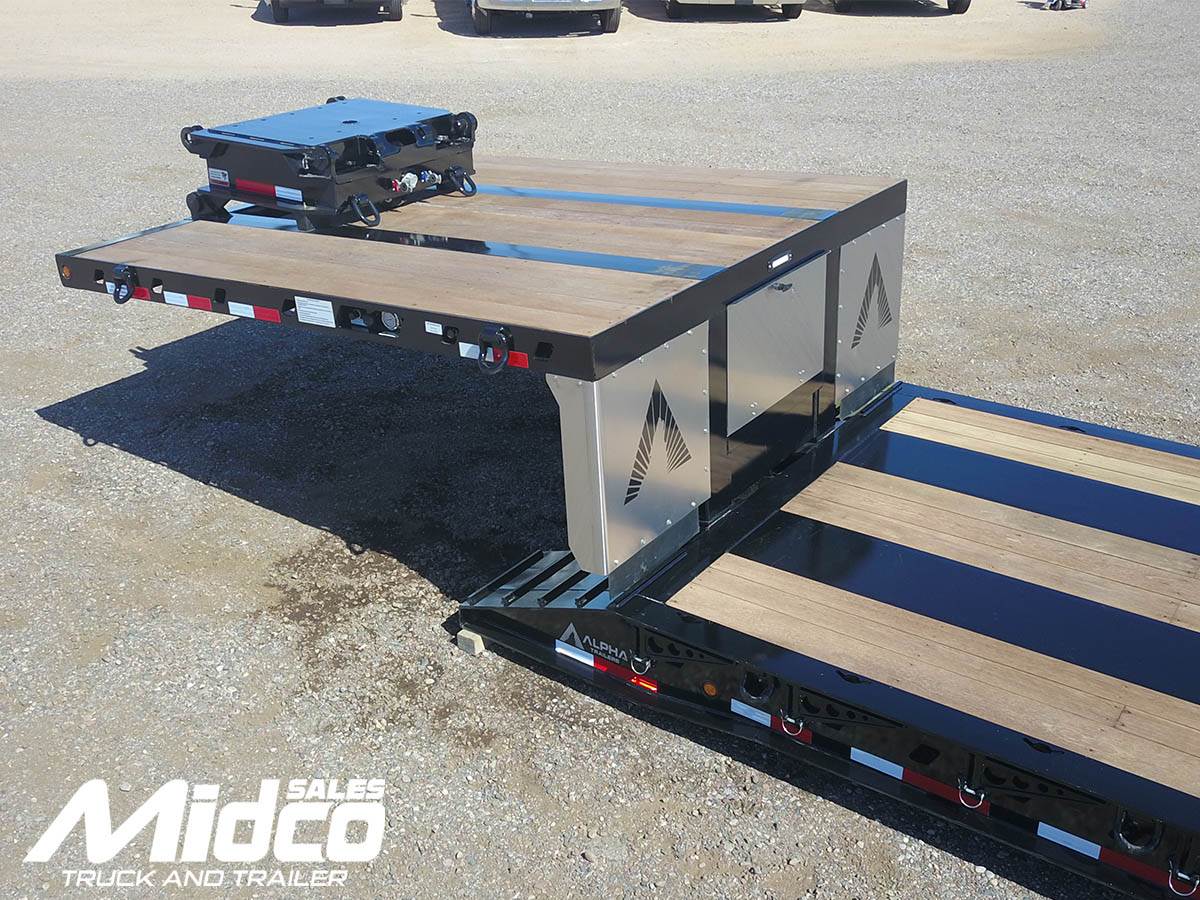

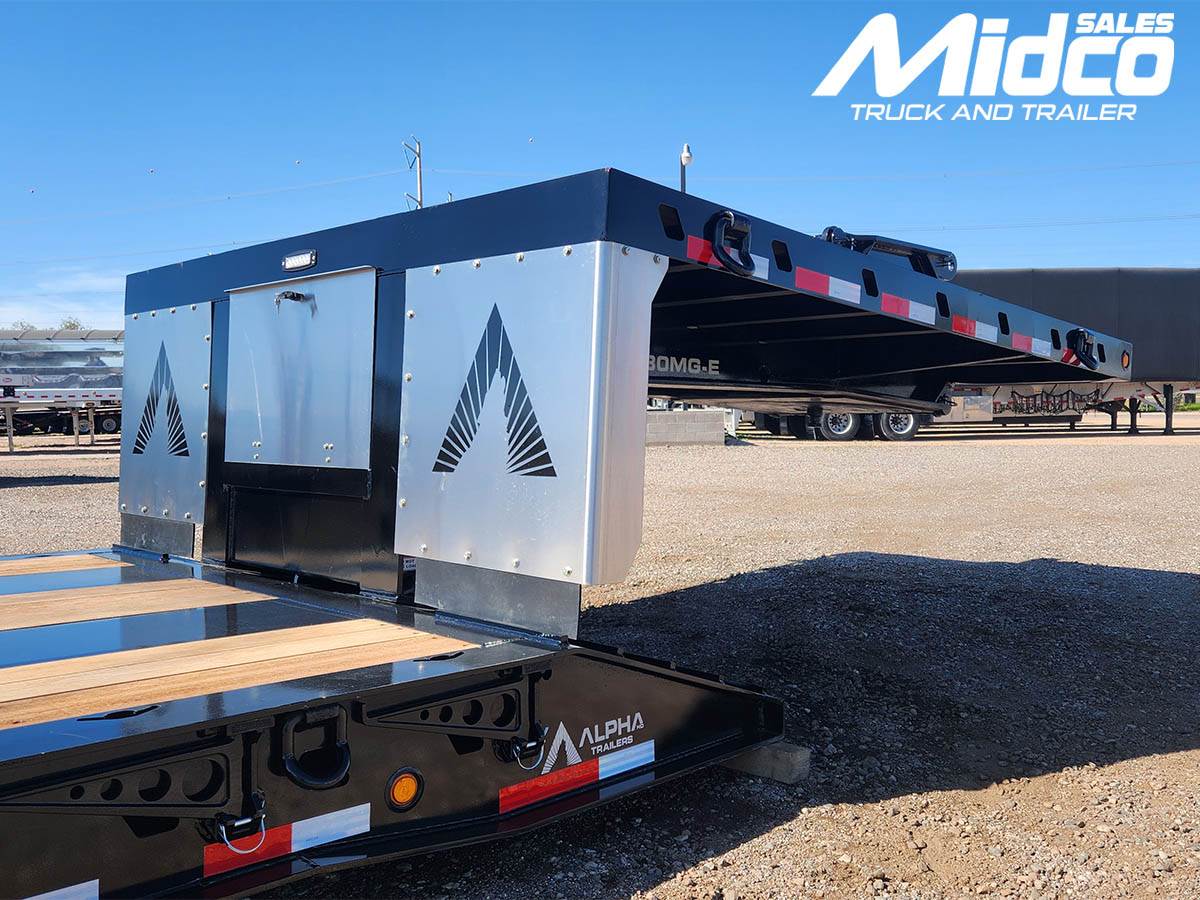

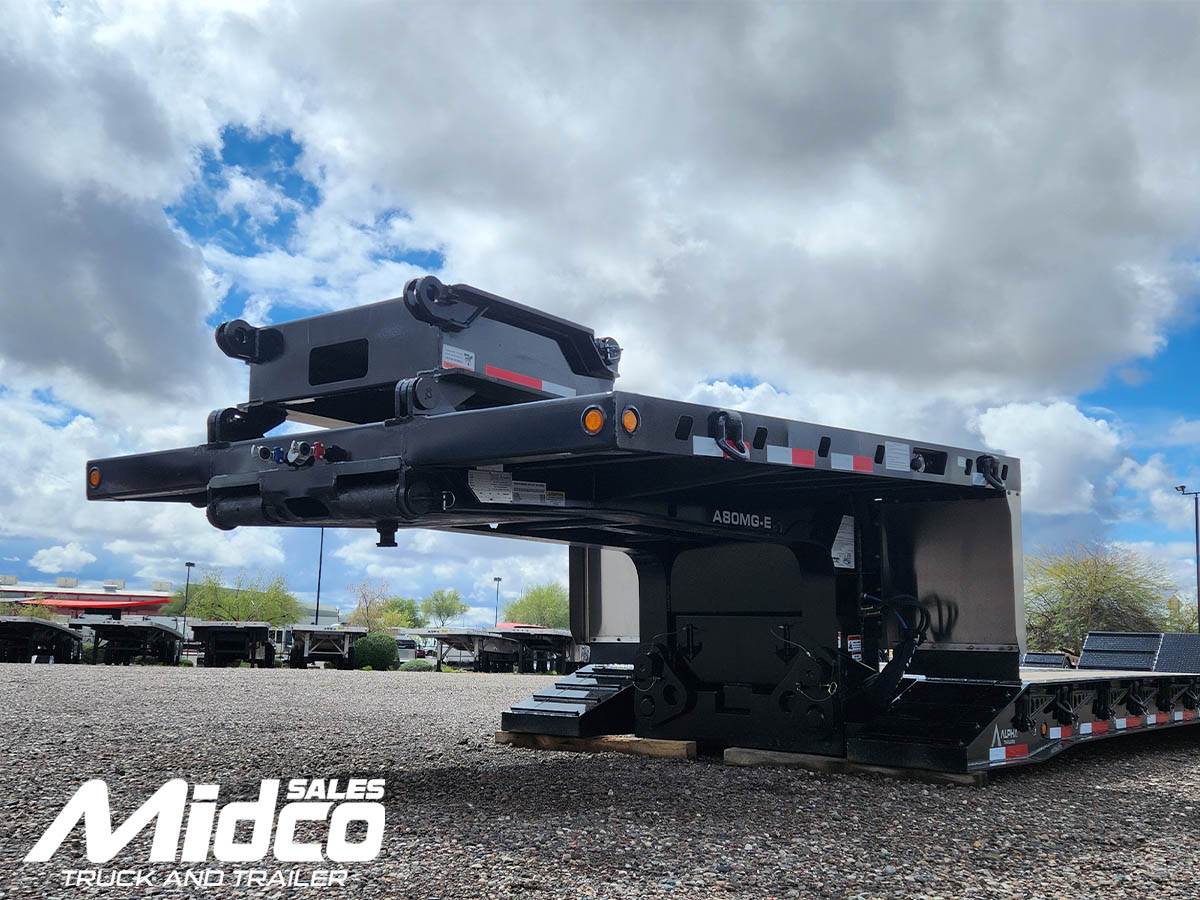

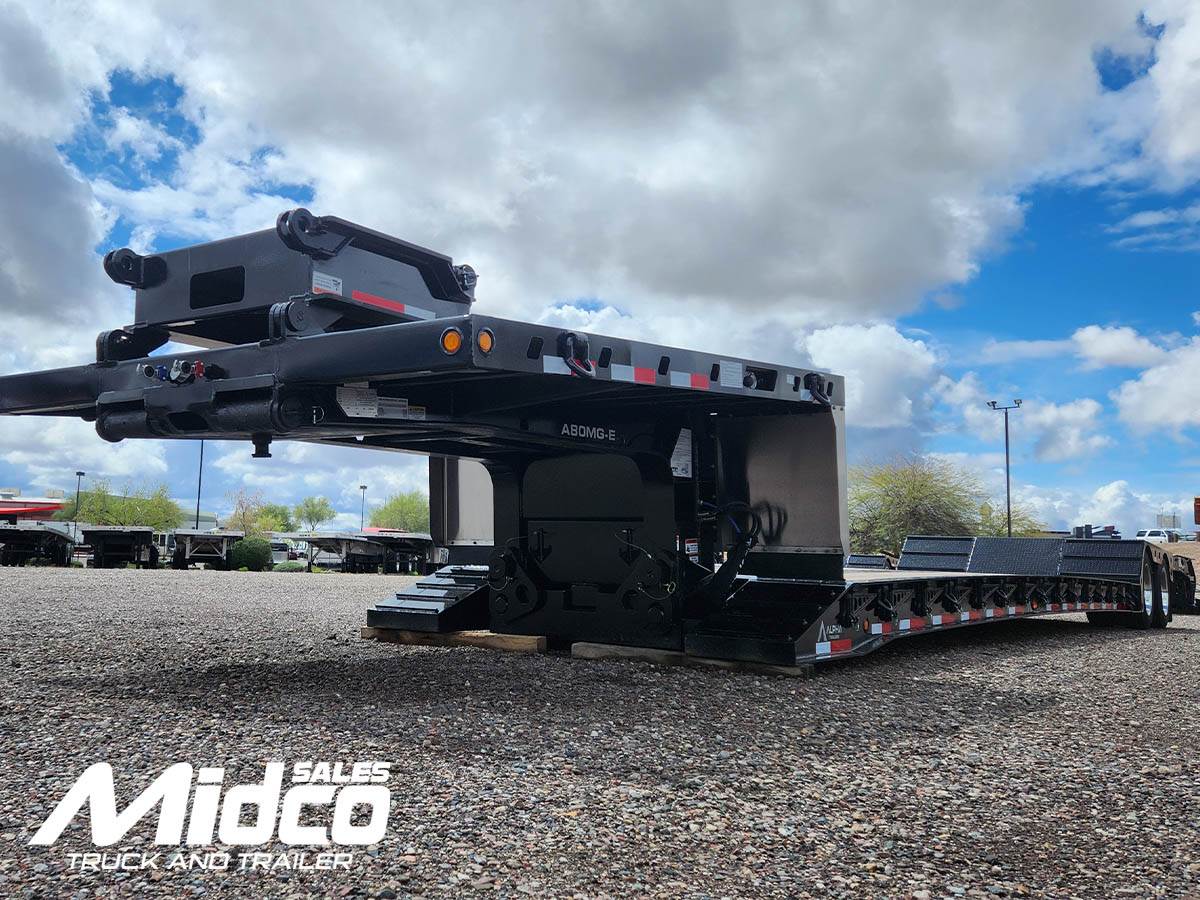

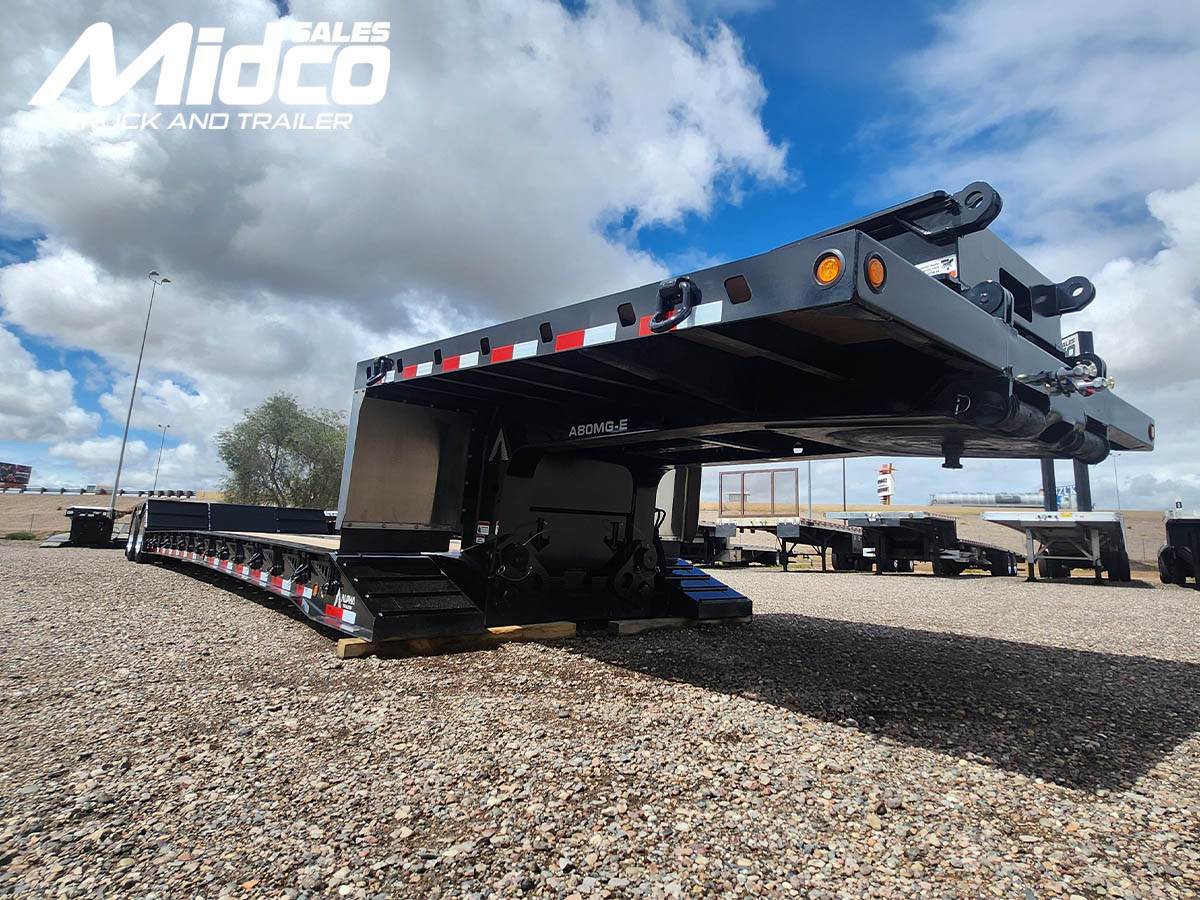

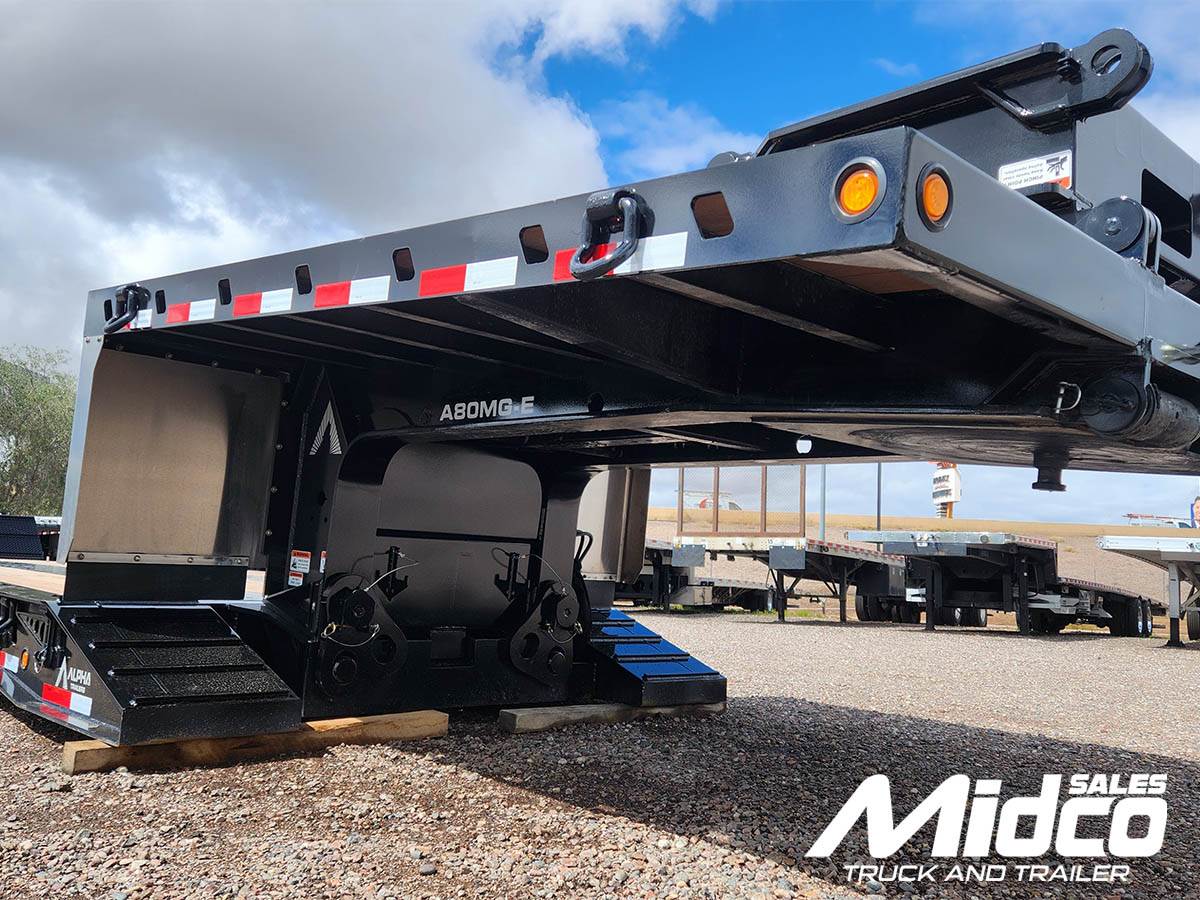

GOOSENECK

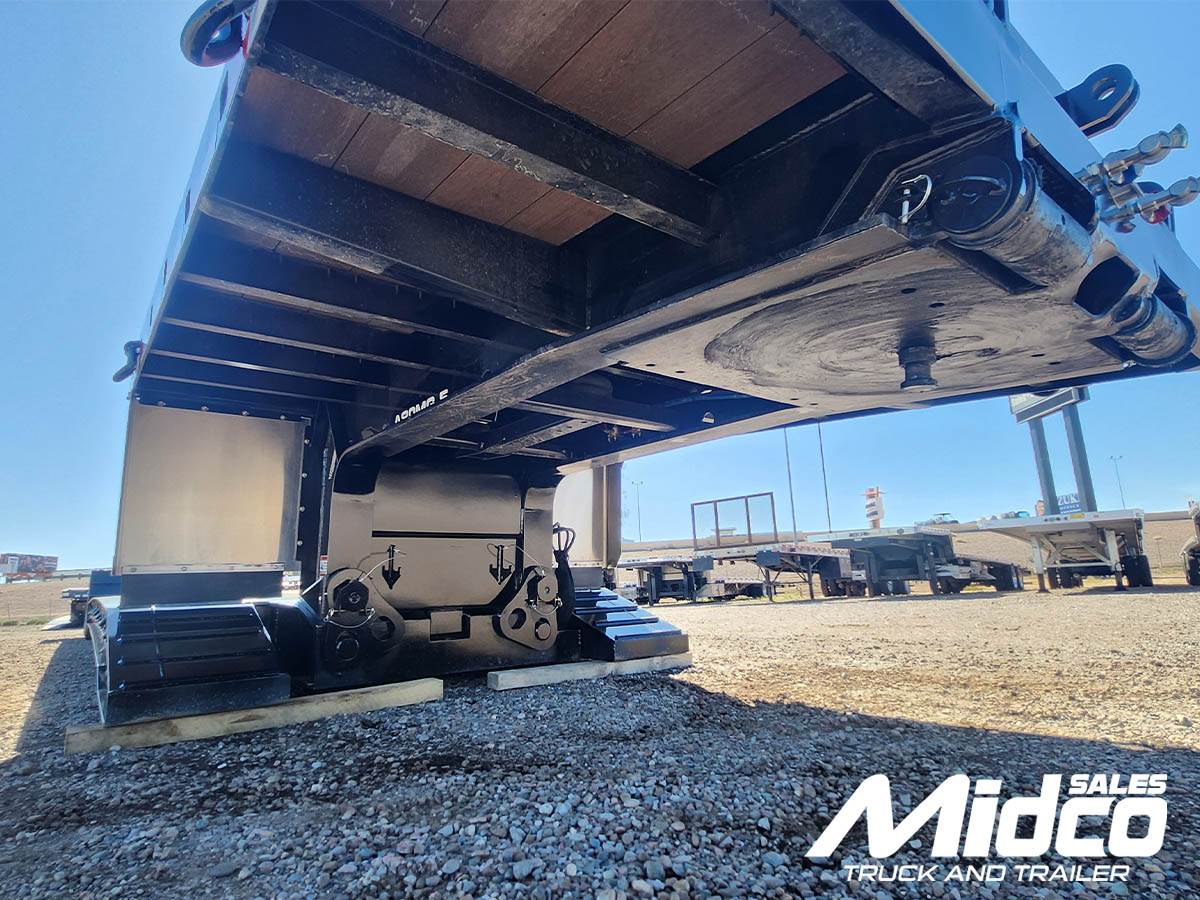

10' Mechanical Detachable neck
Full Width Platform - 1 1/8" Apitong

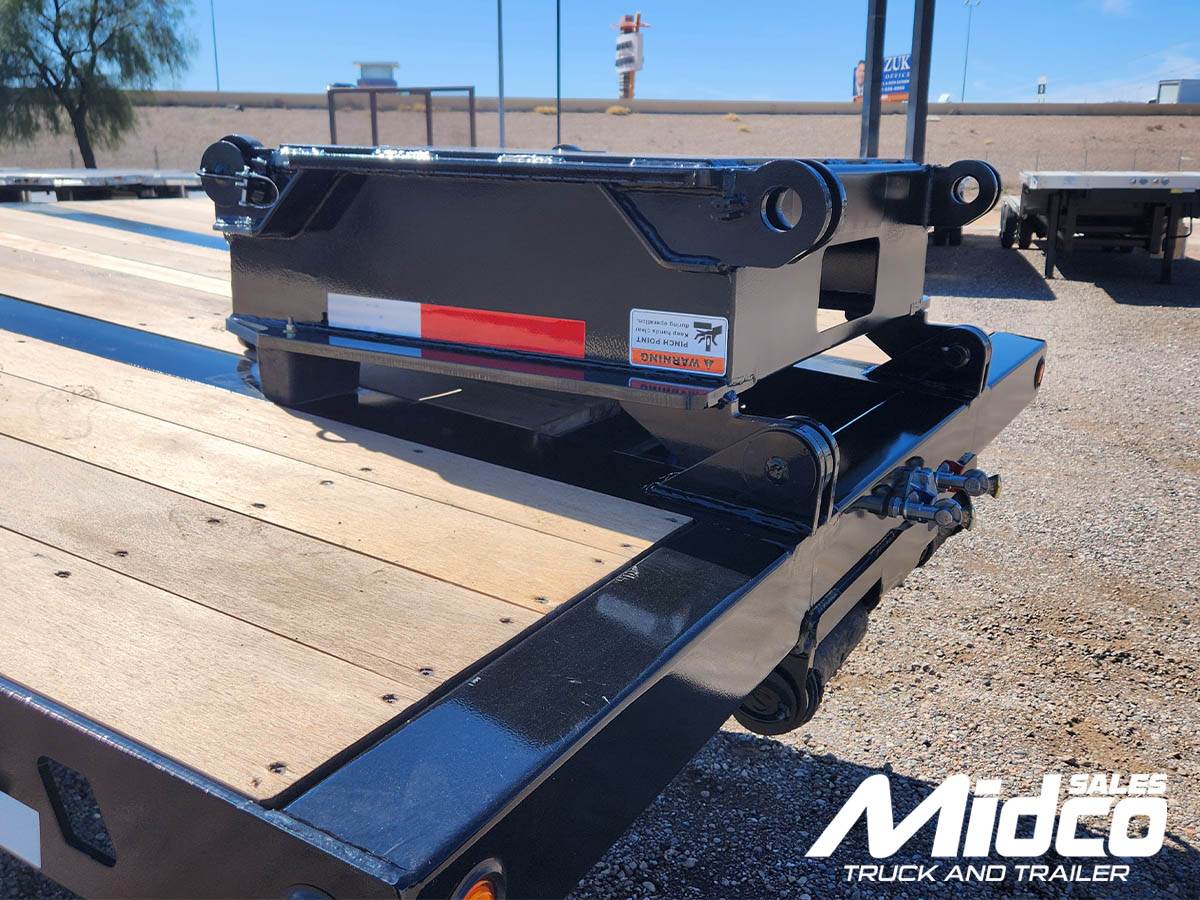

3' flip neck
49" 5th Wheel Height
15" King Pin
85" Swing Clearance
3 position connector plate
2 Bent D-Rings Per Side
Lightning holes each side of platform
2 Position Neck Connection Plate(49"/51")
Stainless Steel Mudflaps
Toolbox in Back of Neck with Door & Light
Air Assist Gooseneck Support Arm
LED Work Light in the Rear Platform
Additional clearance lights

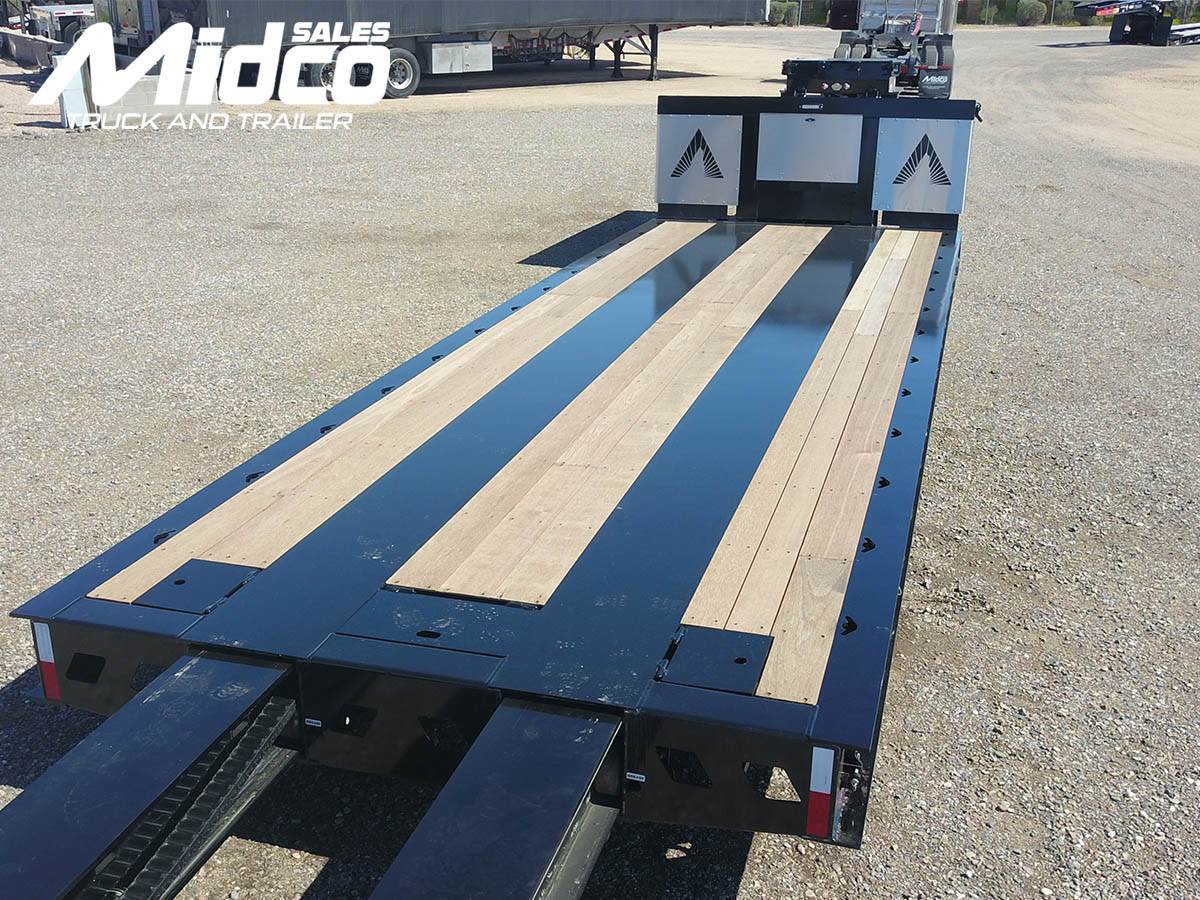

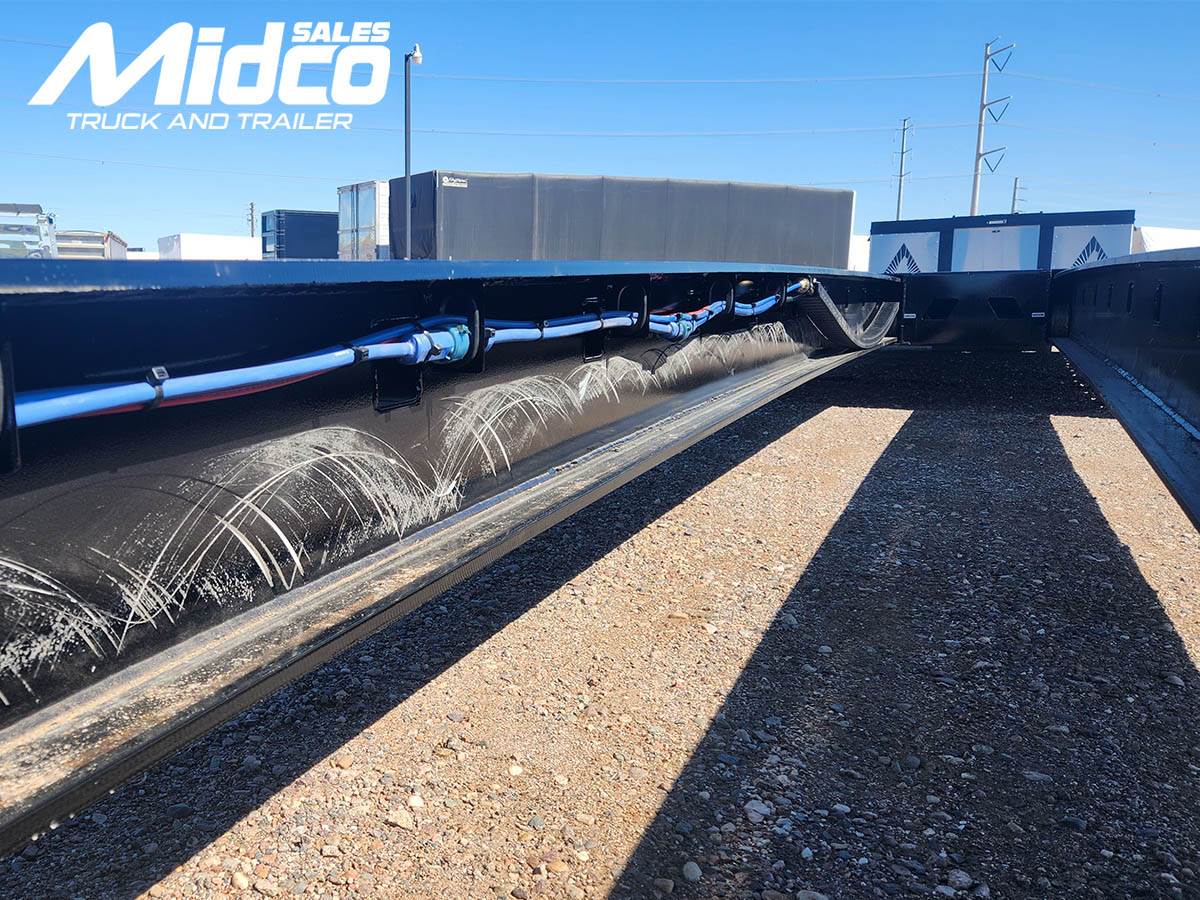

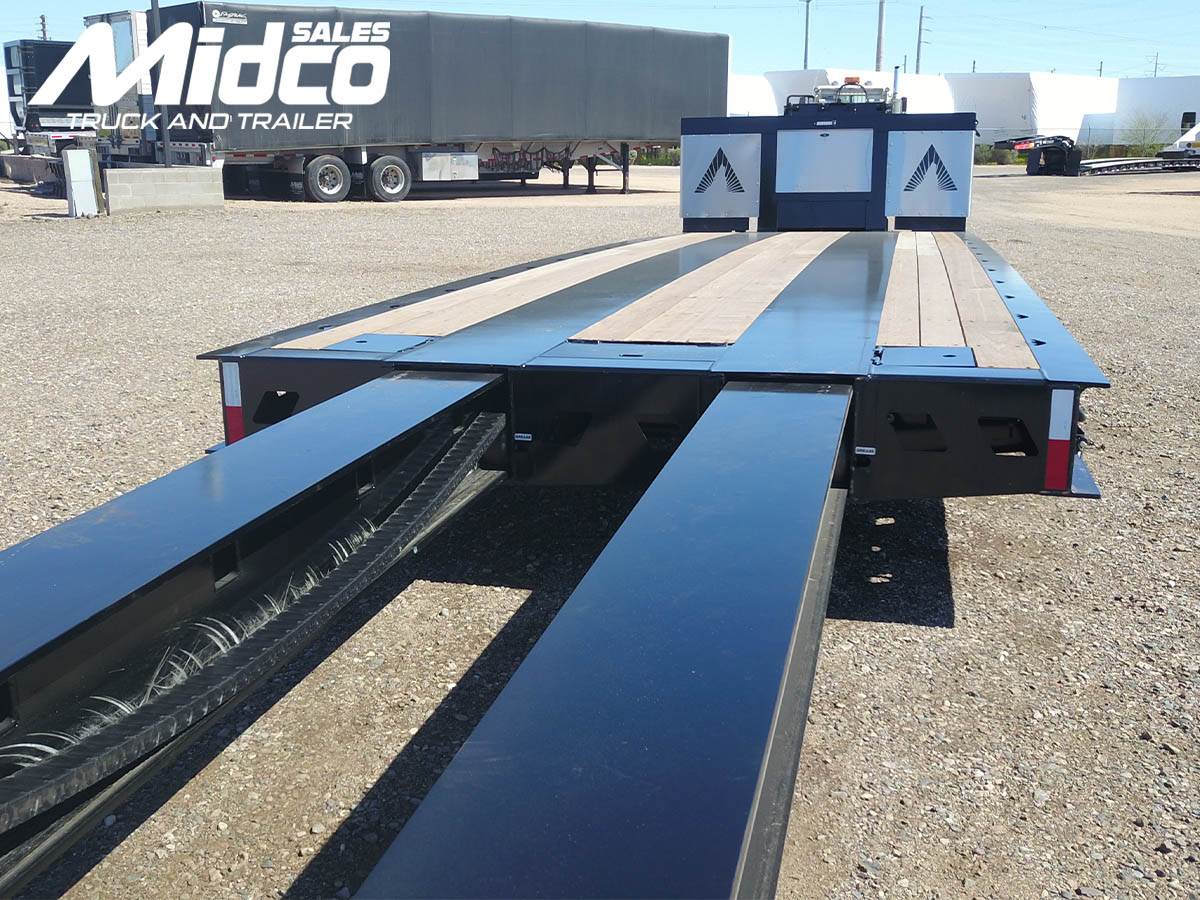

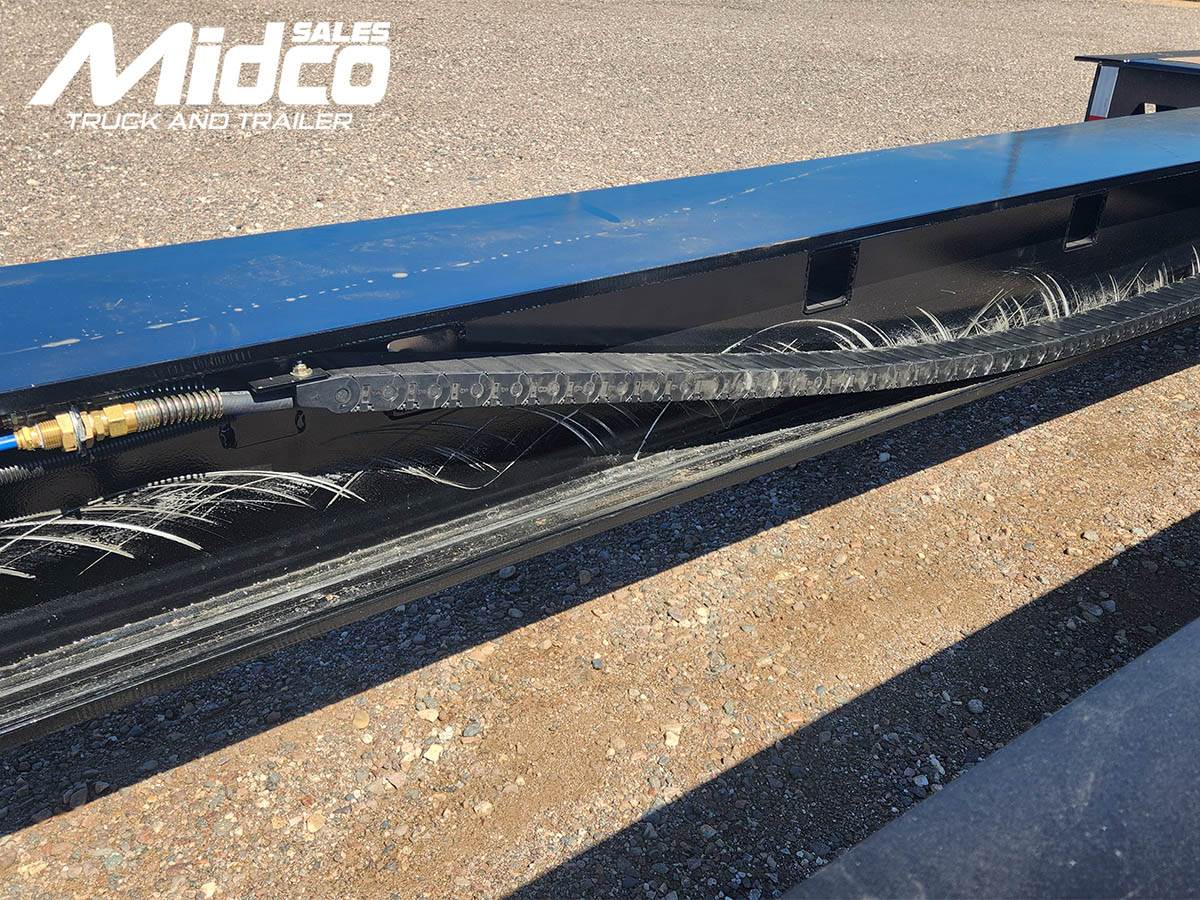

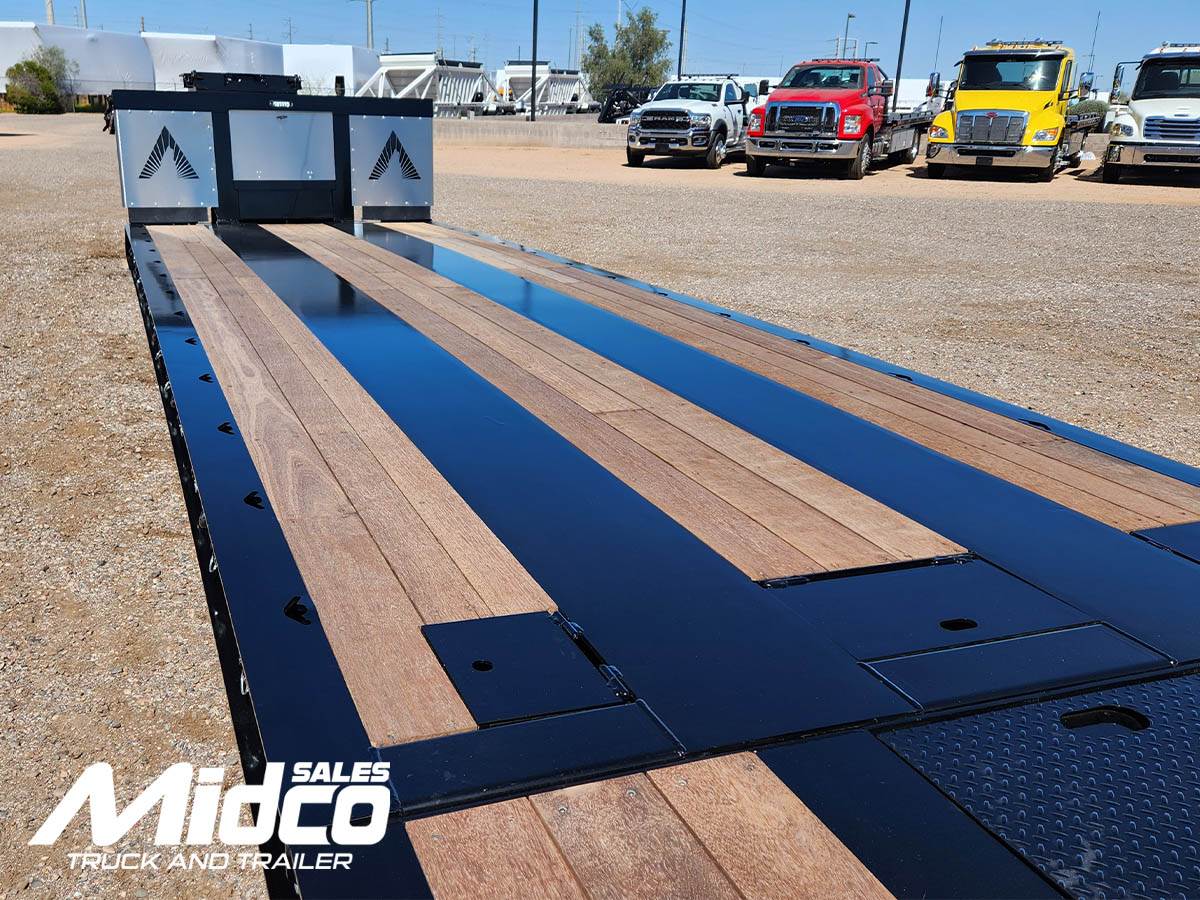

MAIN DECK

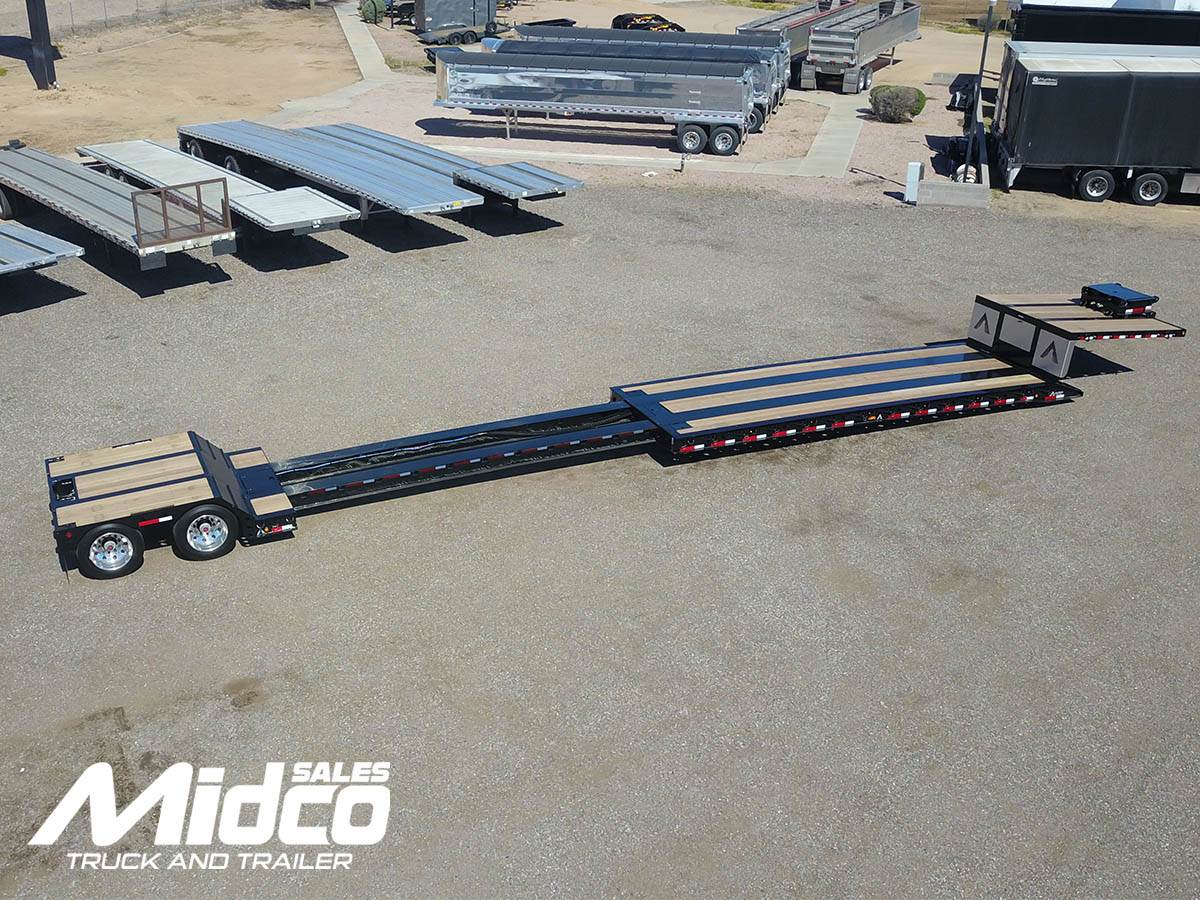

Length:  29' Closed, extending to 50' 5" Open
14" Fabricated I-Beams
20" Loaded Deck Height
6" Ground Clearance
6"/4" JRI Beam Cross Members ALT on 12" Centers

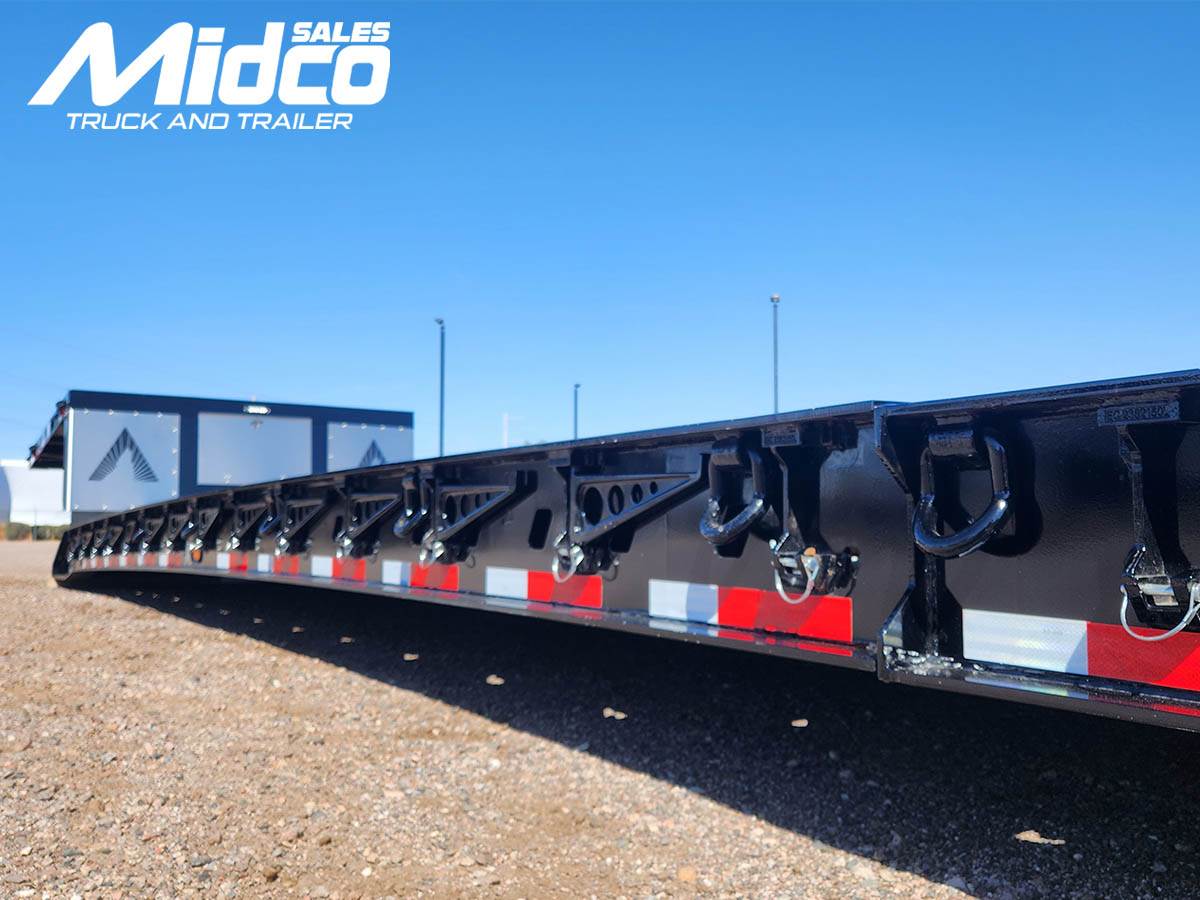

8 Bent D-Rings per Side
Chain Slots on 24" Centers each side

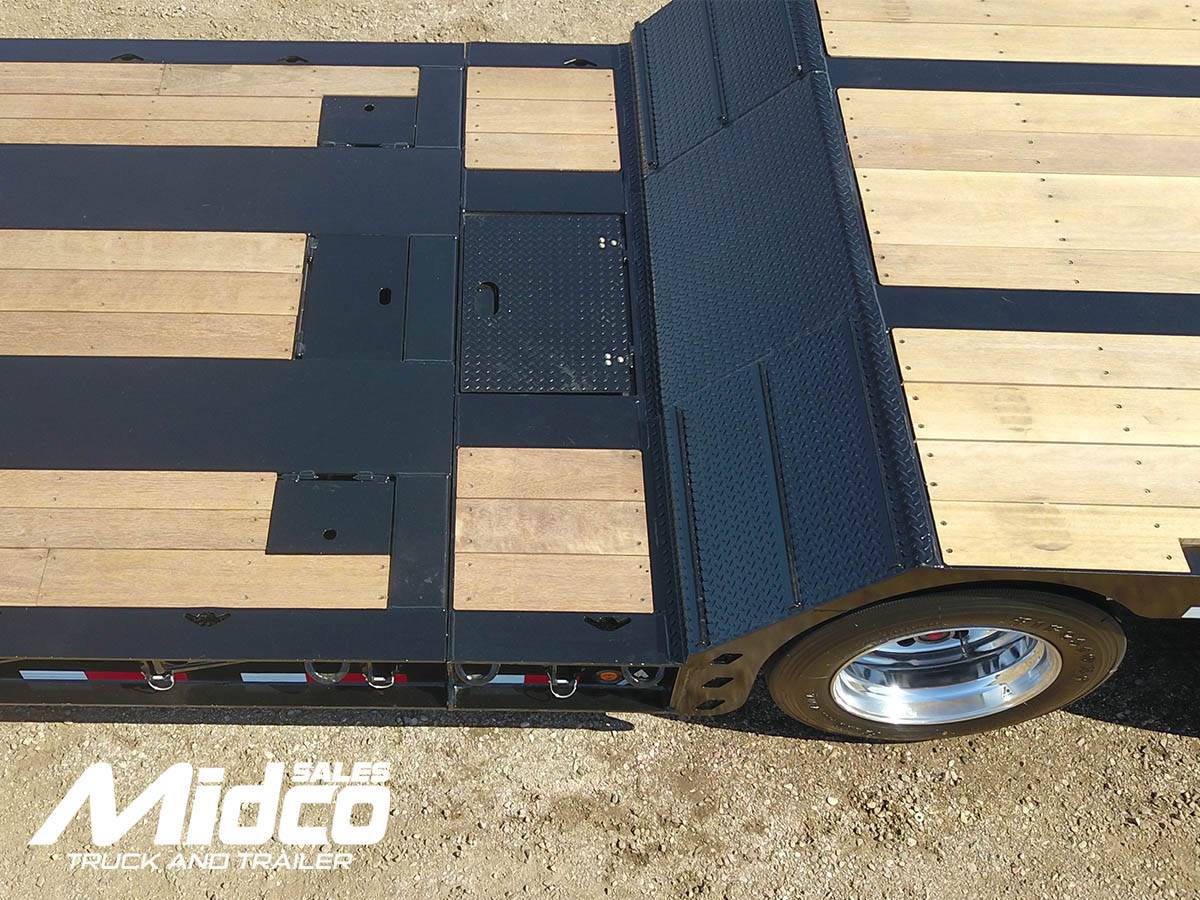

1 1/8" Apitong Flush Decking-Full Width
Front Ramps tapered to 4" W/Traction Bars
Removable Swingout Outriggers
Air Operated Lock Pin, Deck opens every 2'

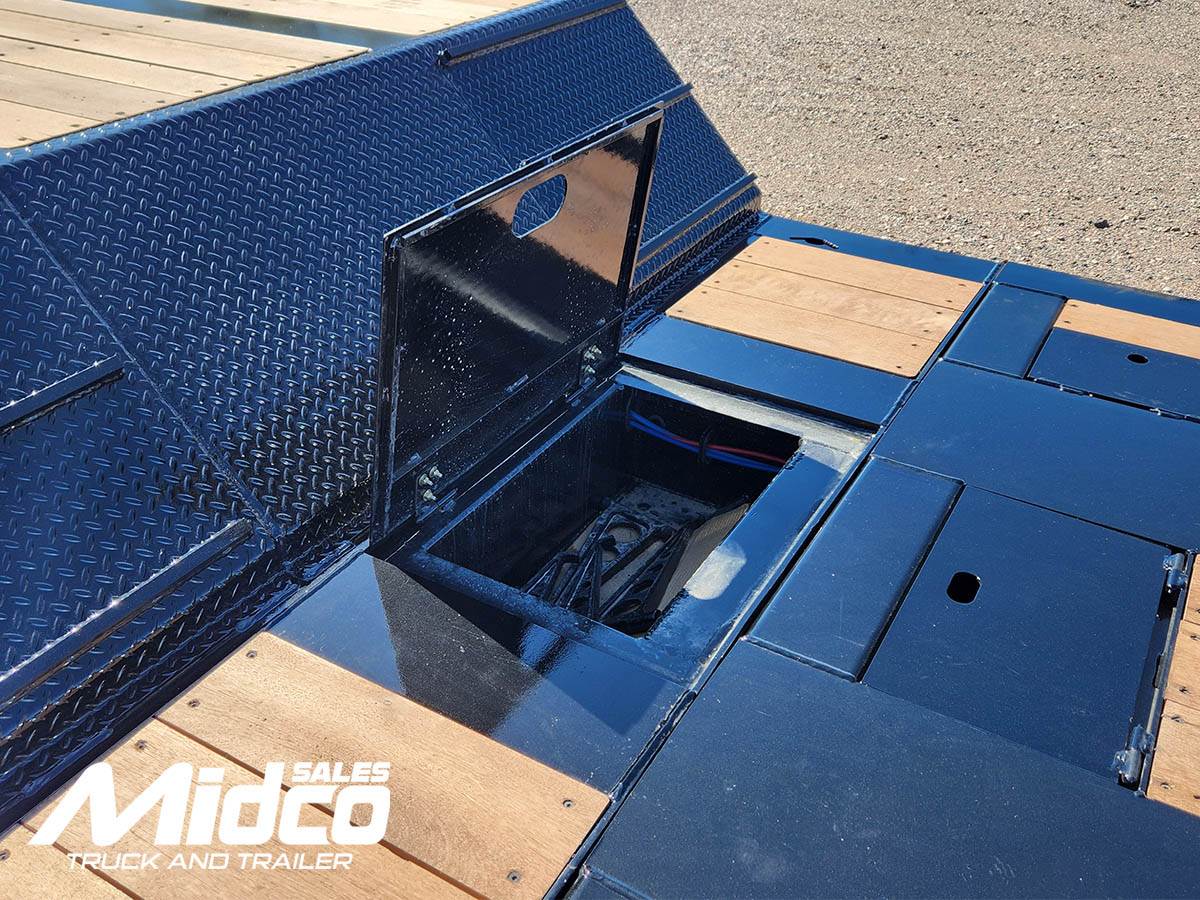

Toolbox W/Lid In Rear of Male Deck Section
Toolbox in front of deck
2 pair additional clearance lights

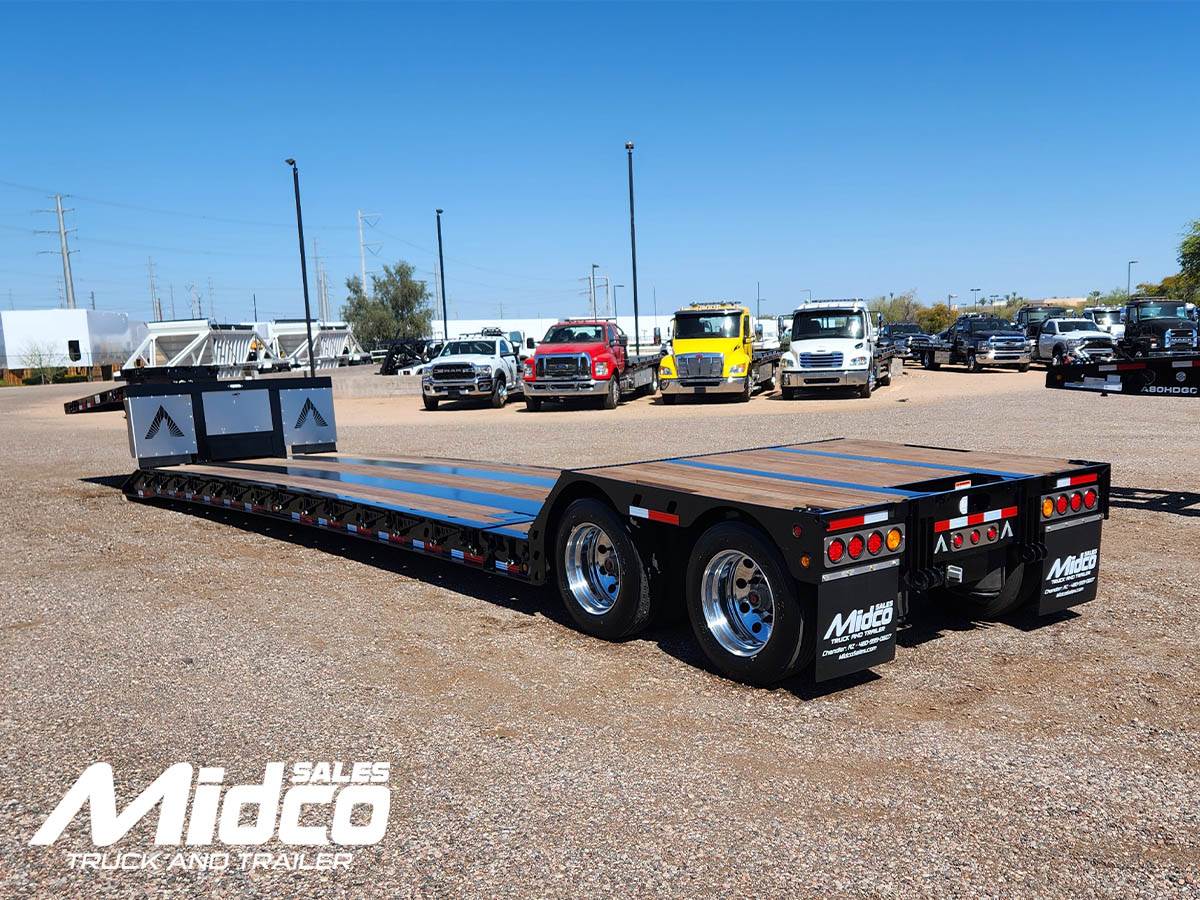

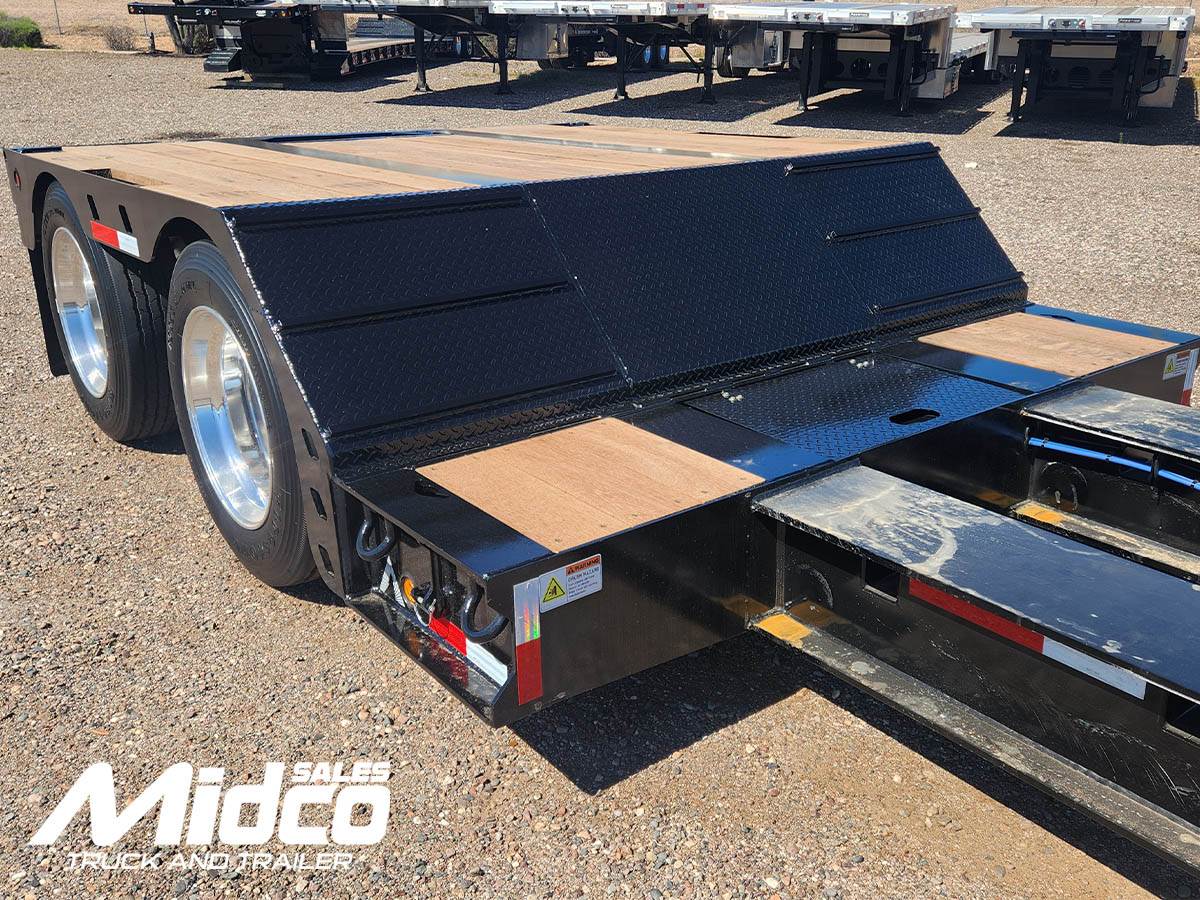

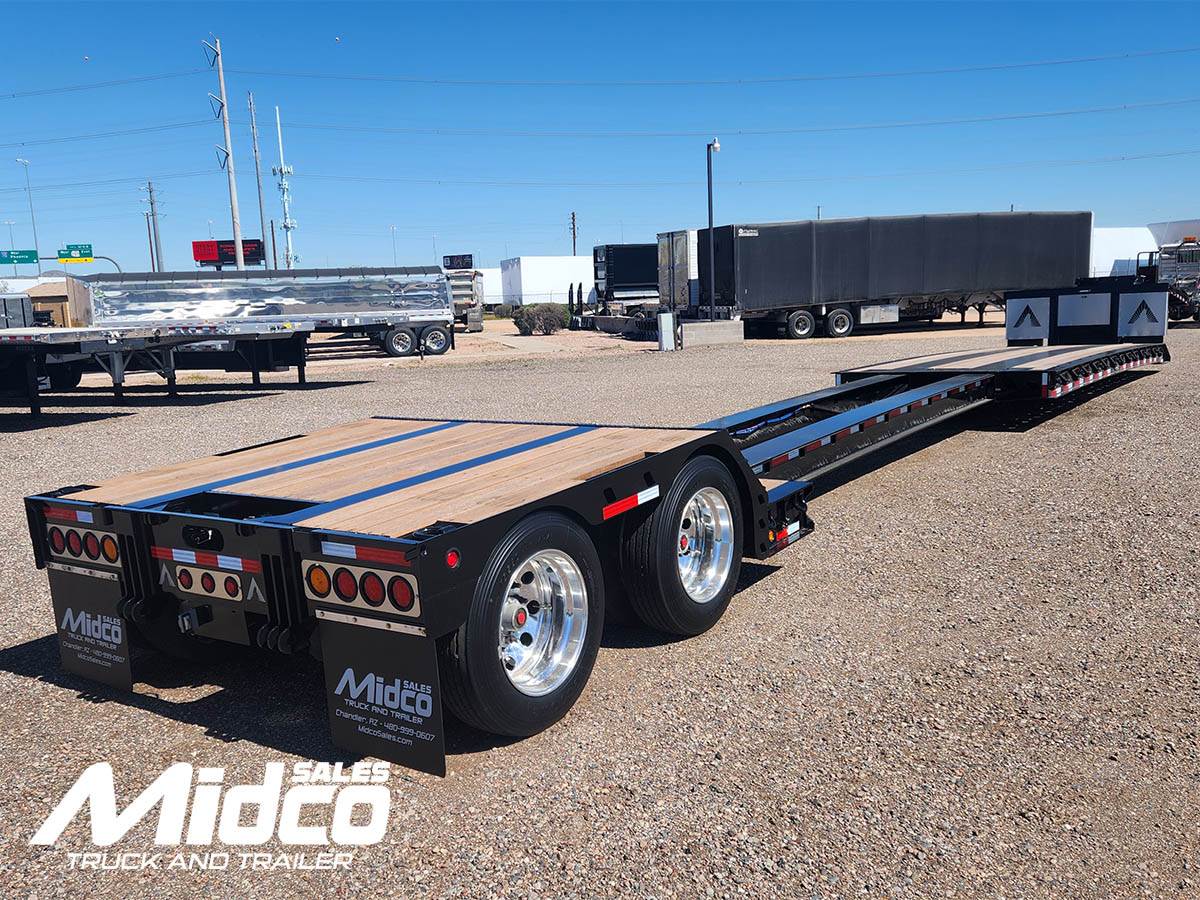

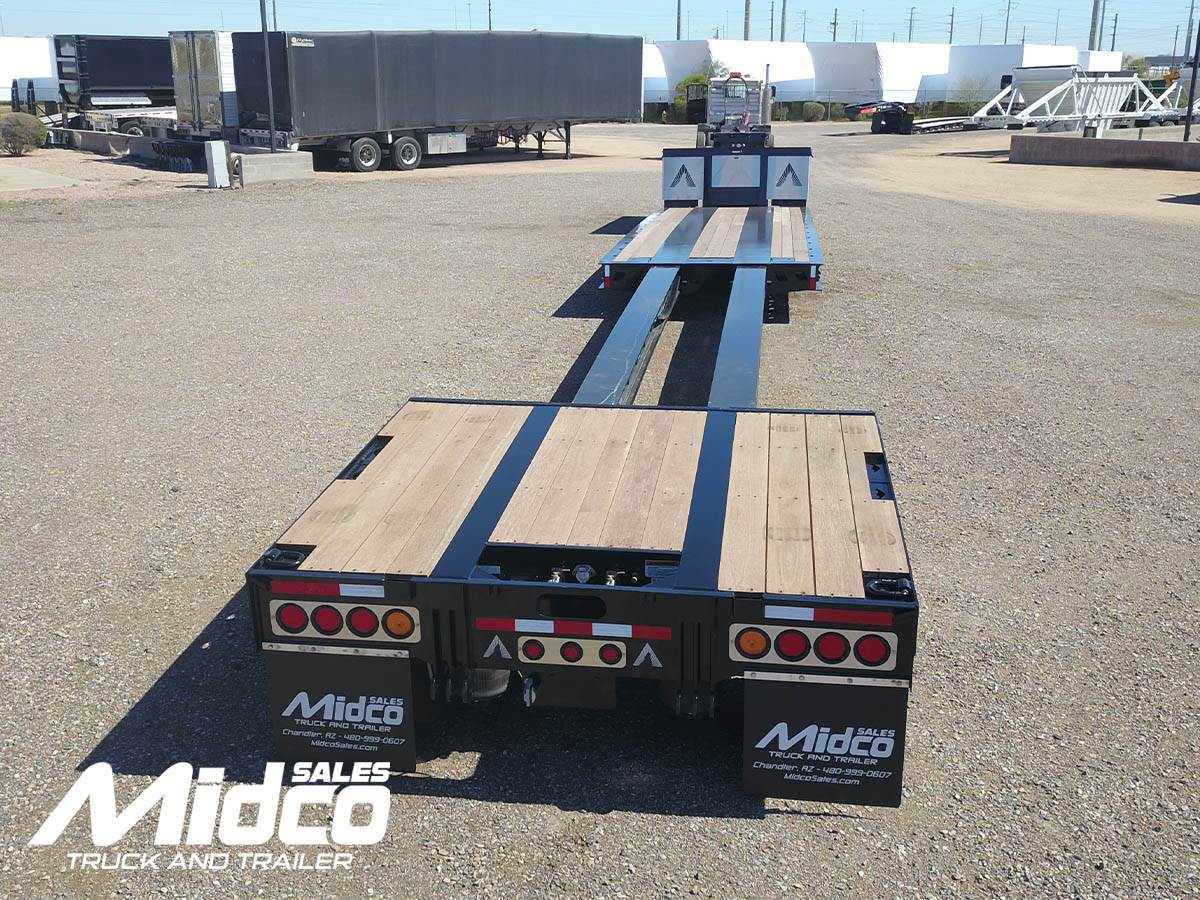

REAR DECK
9' Long
40" Loaded Deck Height
Full Width Decking - 1 1/8" Apitong
1 Pair Flag Holders
1 pair Stake Pockets in Tail Channel
2 pair of chain slots mid platform
1 pair pan d-ring at rear
Frame Reinforcement for optional Flip Axle
Additional clearance lights at front

AXLES & SUSPENSION
2 - 25,000 lb Axles
54" Axle Spacing
Cush Suspension-25K Air
16 1/2" x 7" Drum Brakes
4S2M ABS
Spring Brakes on Both Axles
Raise & Lower Valve
Manual Ride Height Control

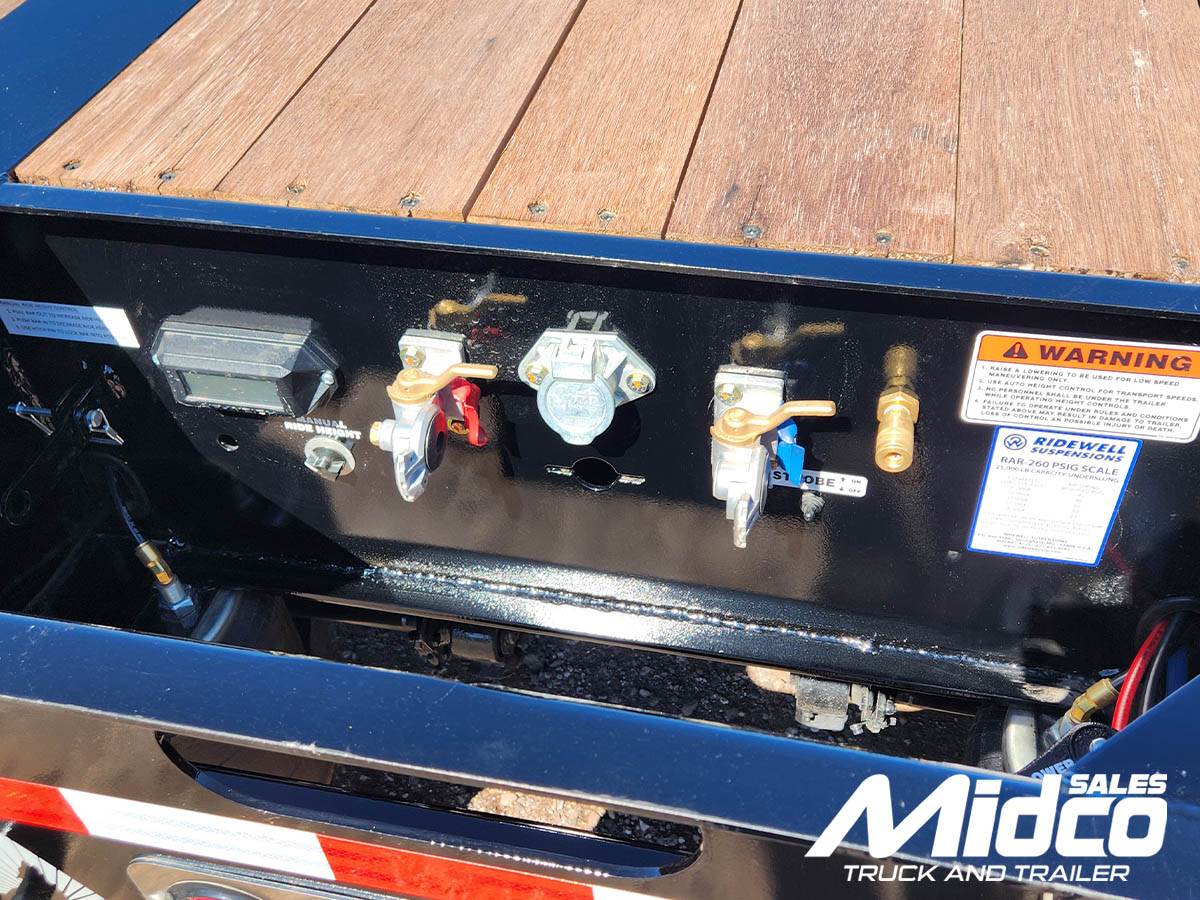

Airweigh Quickweigh Scale

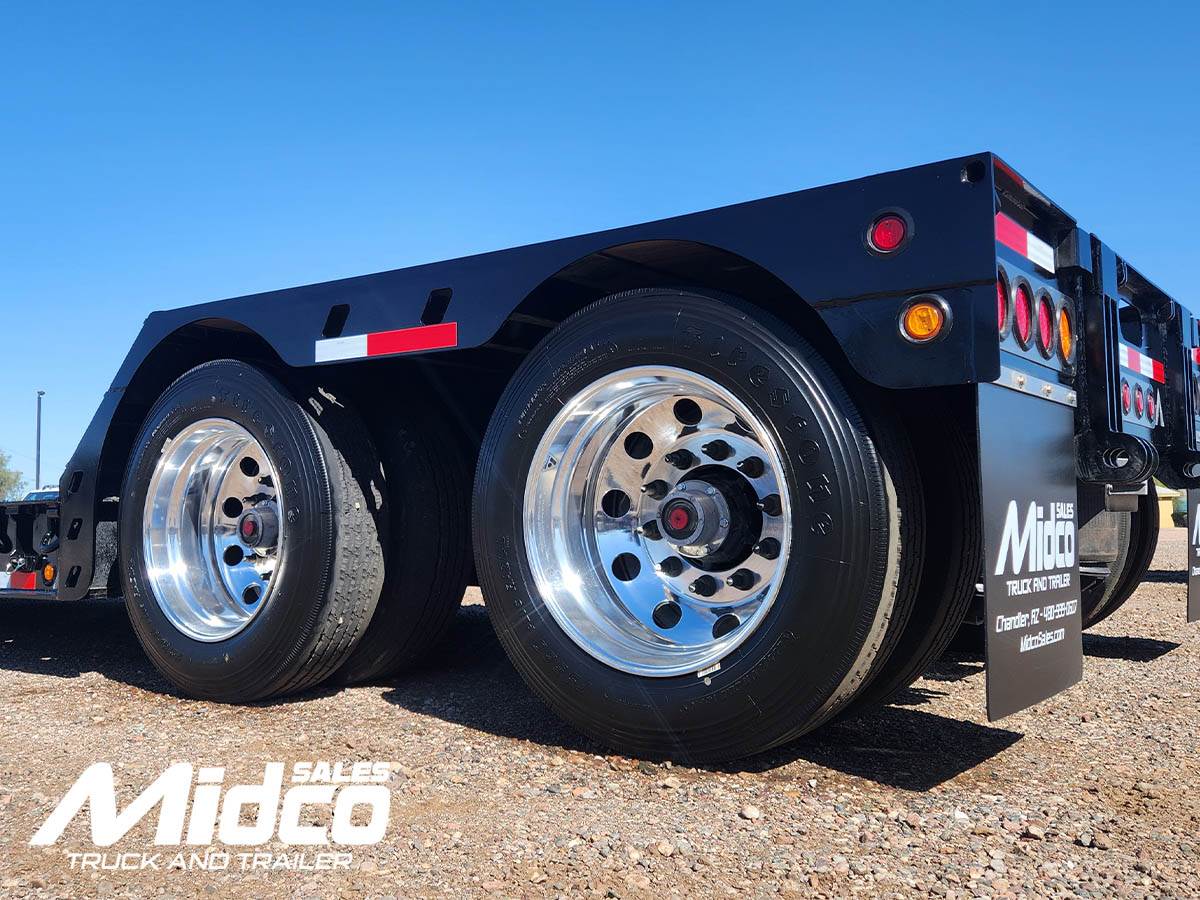

WHEELS & TIRES
255/70R22.5 Tires
8.25 x 22.5 Aluminum outer wheels

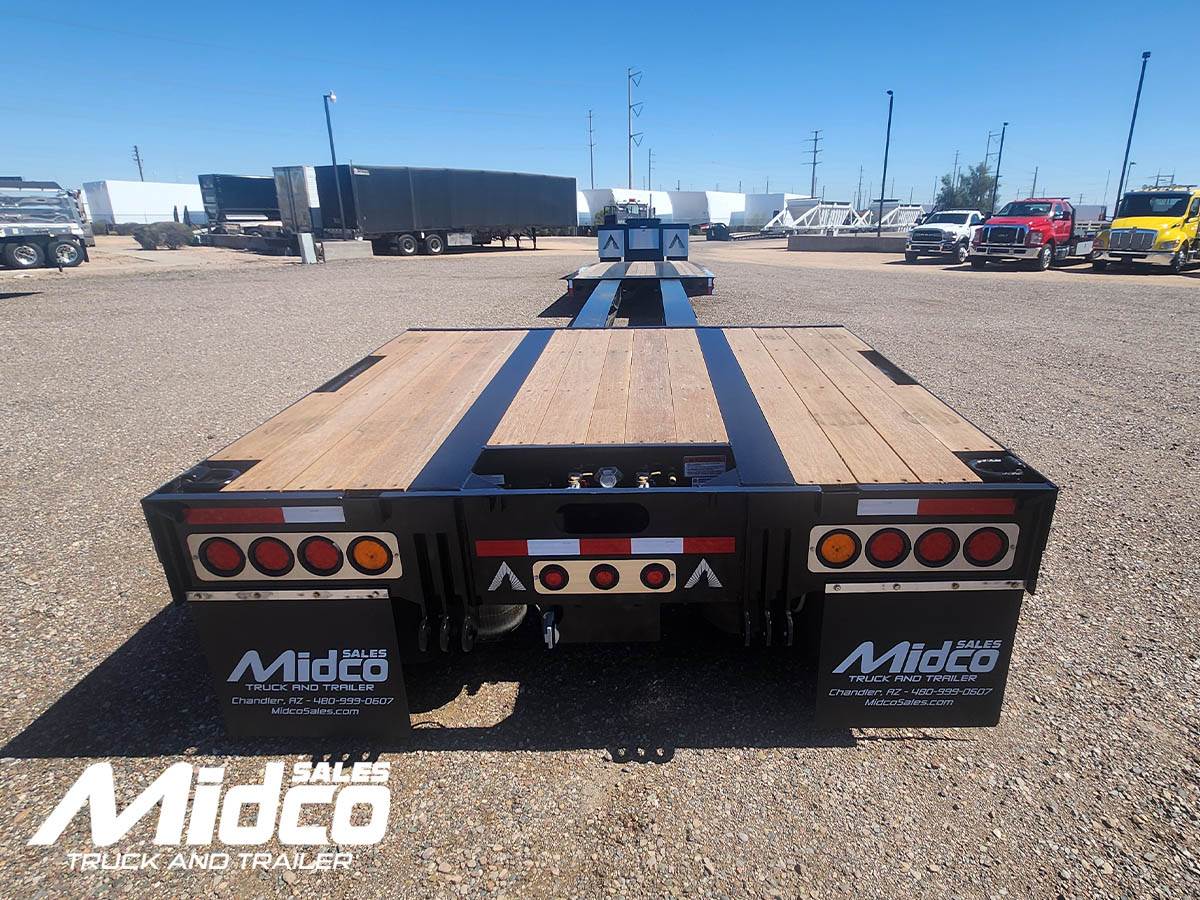

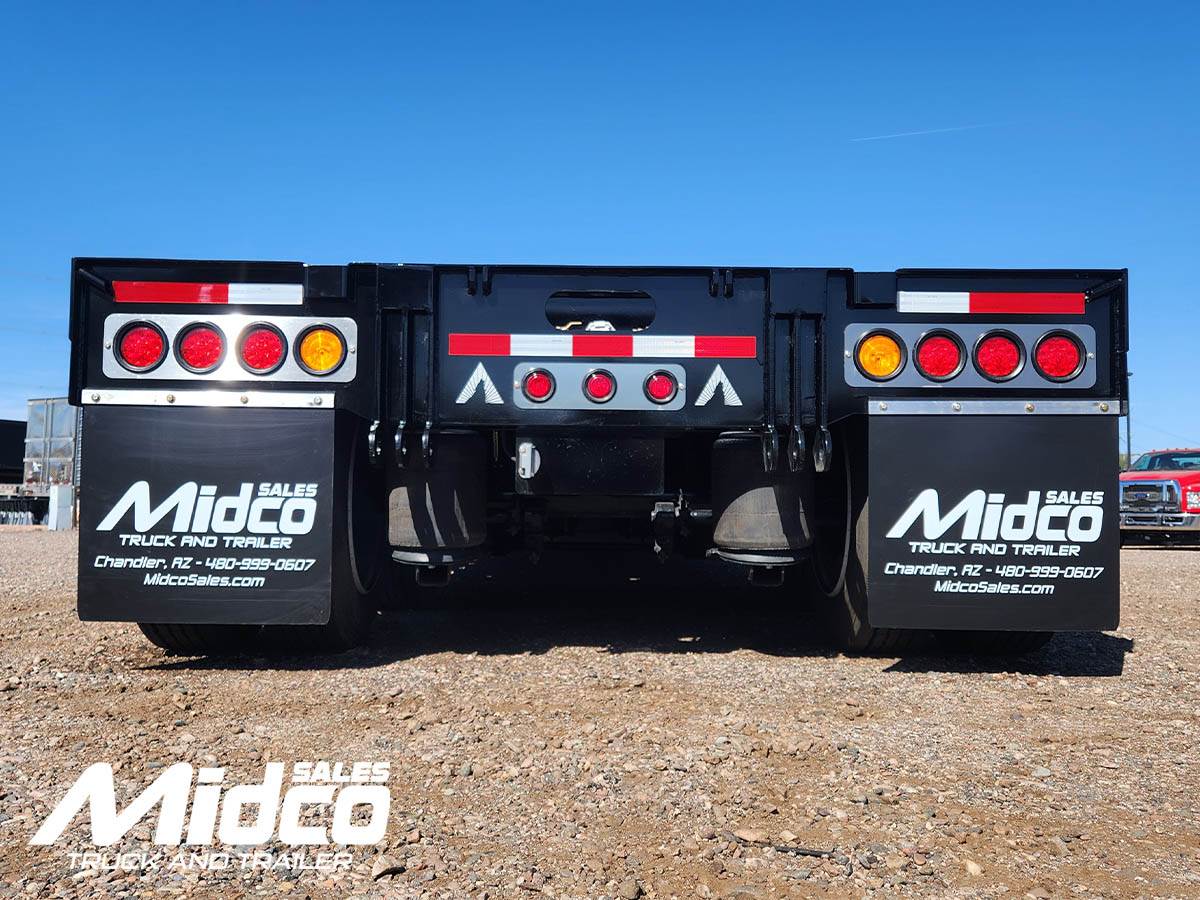

LIGHTING
2 Tail Light Package with Stainless Steel Covers
2 Pr. Side Markers/ 1 Pr. Mid-Turns in Deck
Grote Ultra Blue-Seal Wire Harness
4" amber strobe light
Additional tail light
