2027 Beall 9500 GAL Fuel Trailer

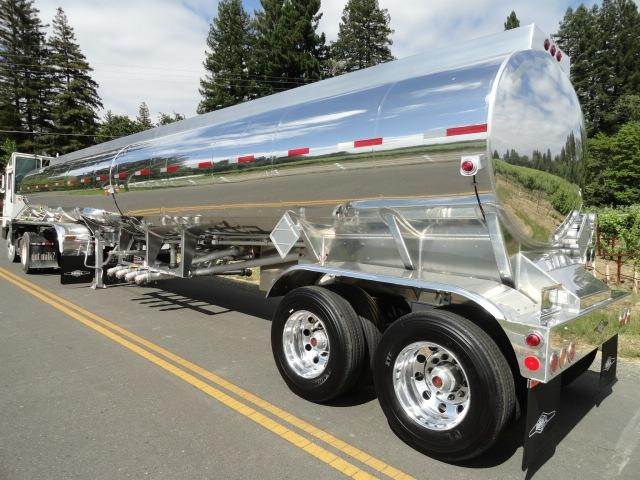

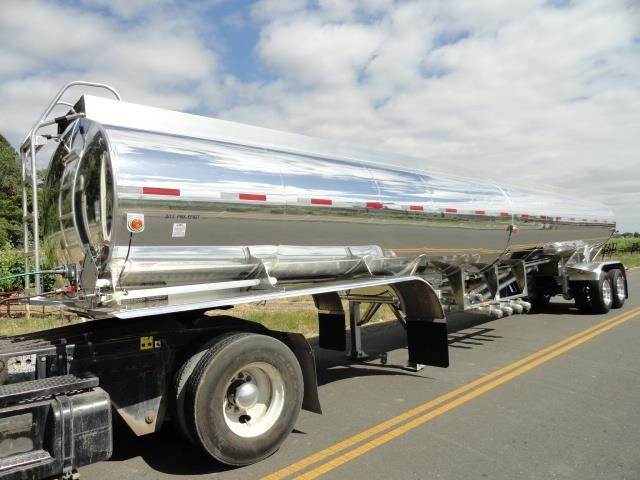

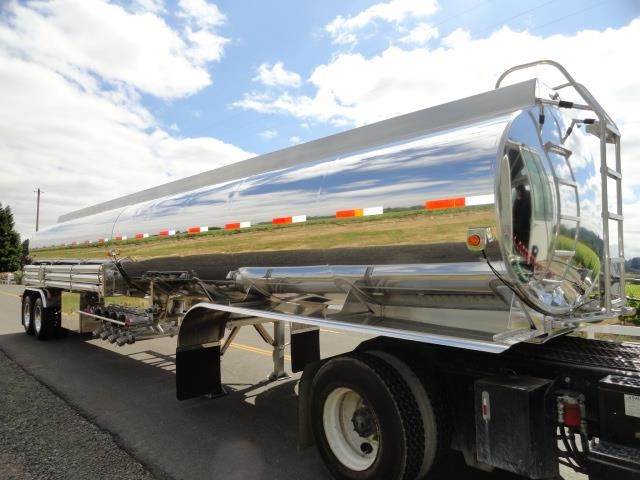

2027 BEALL 9500 GALLON 4-COMPARTMENT 2-AXLE ALUMINUM SEMI TANK TRAILER

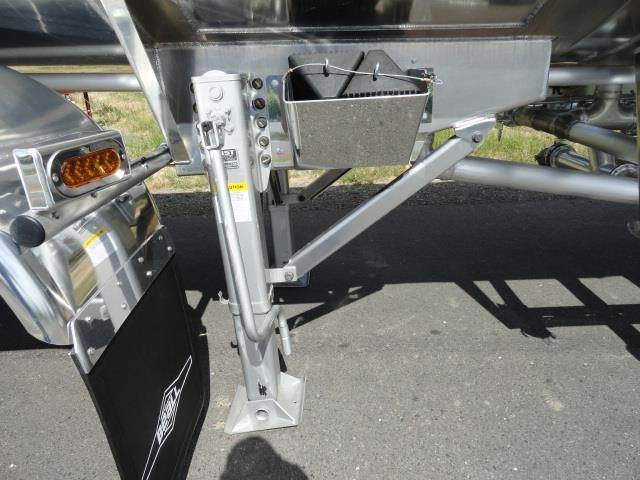

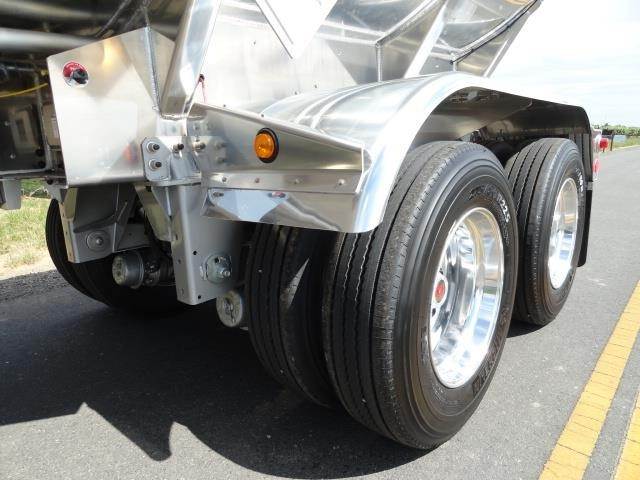

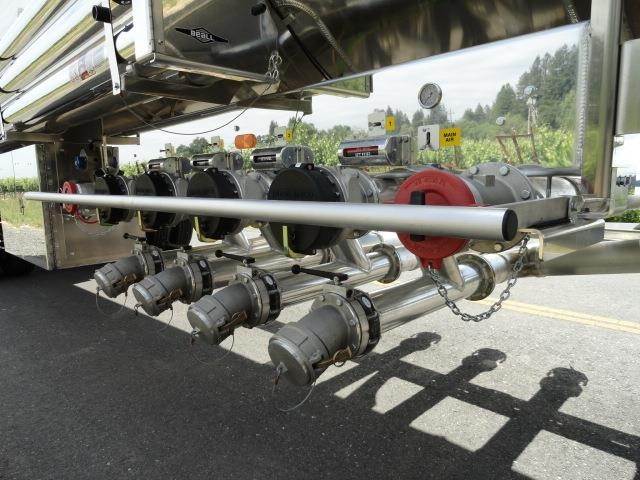

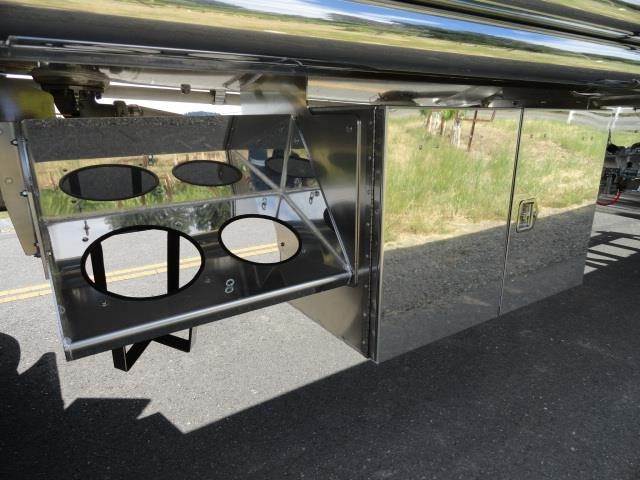

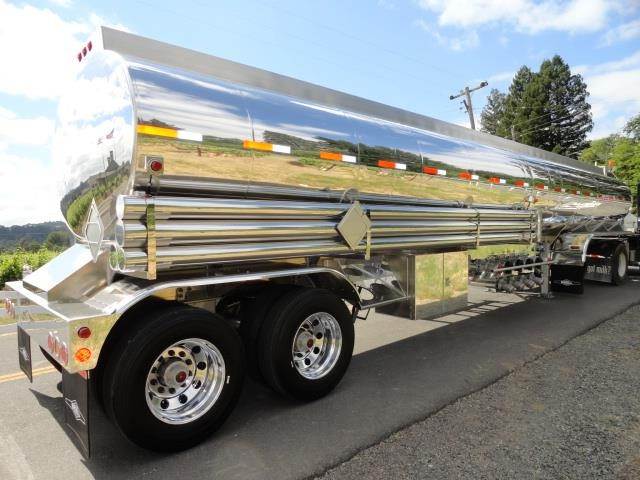

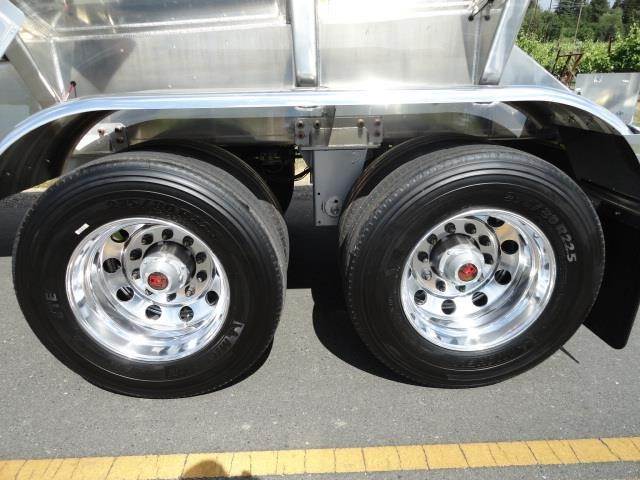

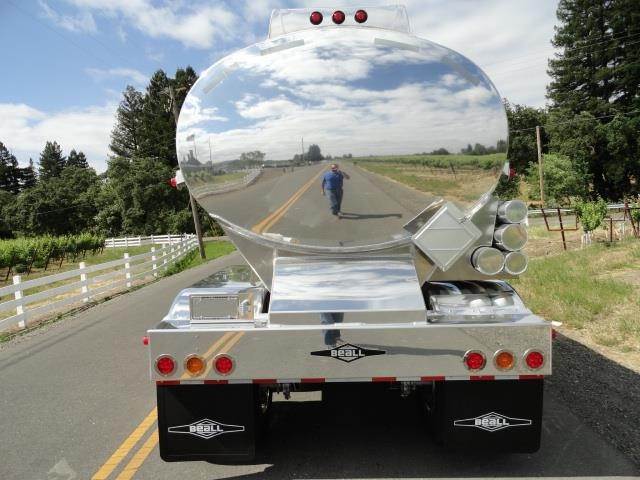

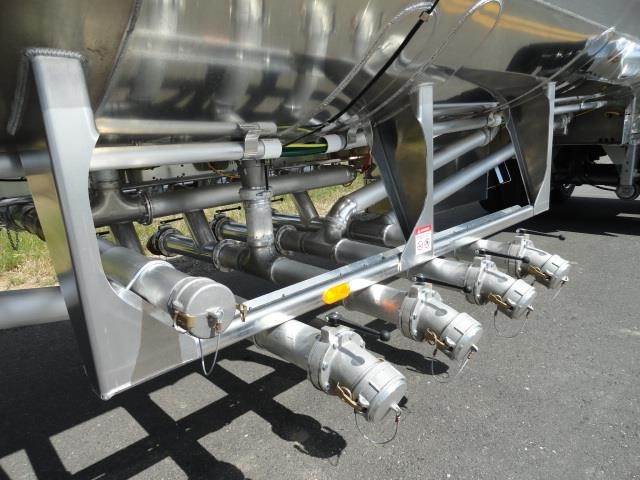

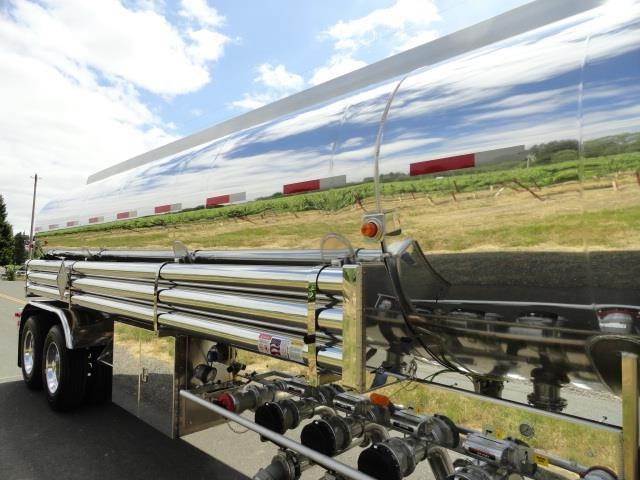

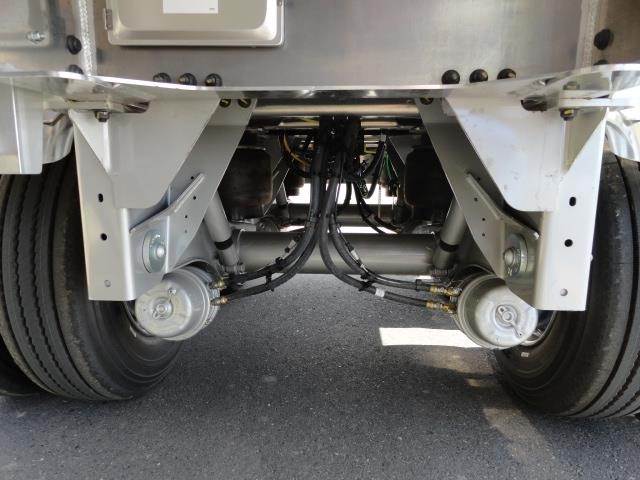

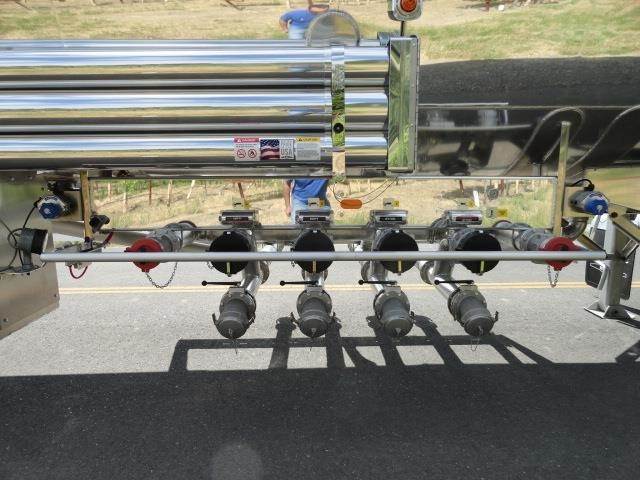

DOT406AL, 9500 gallons shell full, 4 compt. ( 4100-2100-1100-2200 ), double bulkheads, frameless double conical aluminum construction, 4” Betts air operated internal valves, Bayco 4” API Y- branch with Bayco dust cap, site glass on each curbside discharge valve, Street side gravity drops with 4” butterfly valves, brake interlock bar covering bottom loading heads and both vapor recovery outlets, street side vapor recovery with 3” male adapter and cap, Bayco Flo-Tech 5 wire system with no control module, Optic socket, (4) hose tube cluster with 2- 6” tubes( polished ) and 2- 7” tubes located curbside rear with front openings, 1 ½” X 14’ stick tube, aluminum ladder at front, catwalk drains thru ladder uprights, aluminum fenders front & rear, 48”L x 30”H x 24”D aluminum fitting box installed curbside, Jost AX150 aluminum landing gear, Hendrickson air ride suspension with dump valve, Meritor Wabco ABS brakes with Roll Stability System, 8.25 X 22.5 aluminum wheels, 295/75R tires, polished aluminum DOT rear bumper……

***Y-Branch WITH Offside Discharge***

**PRICE AND SPECS SUBJECT TO CHANGE**

**STOCK PHOTOS - not actual unit**
