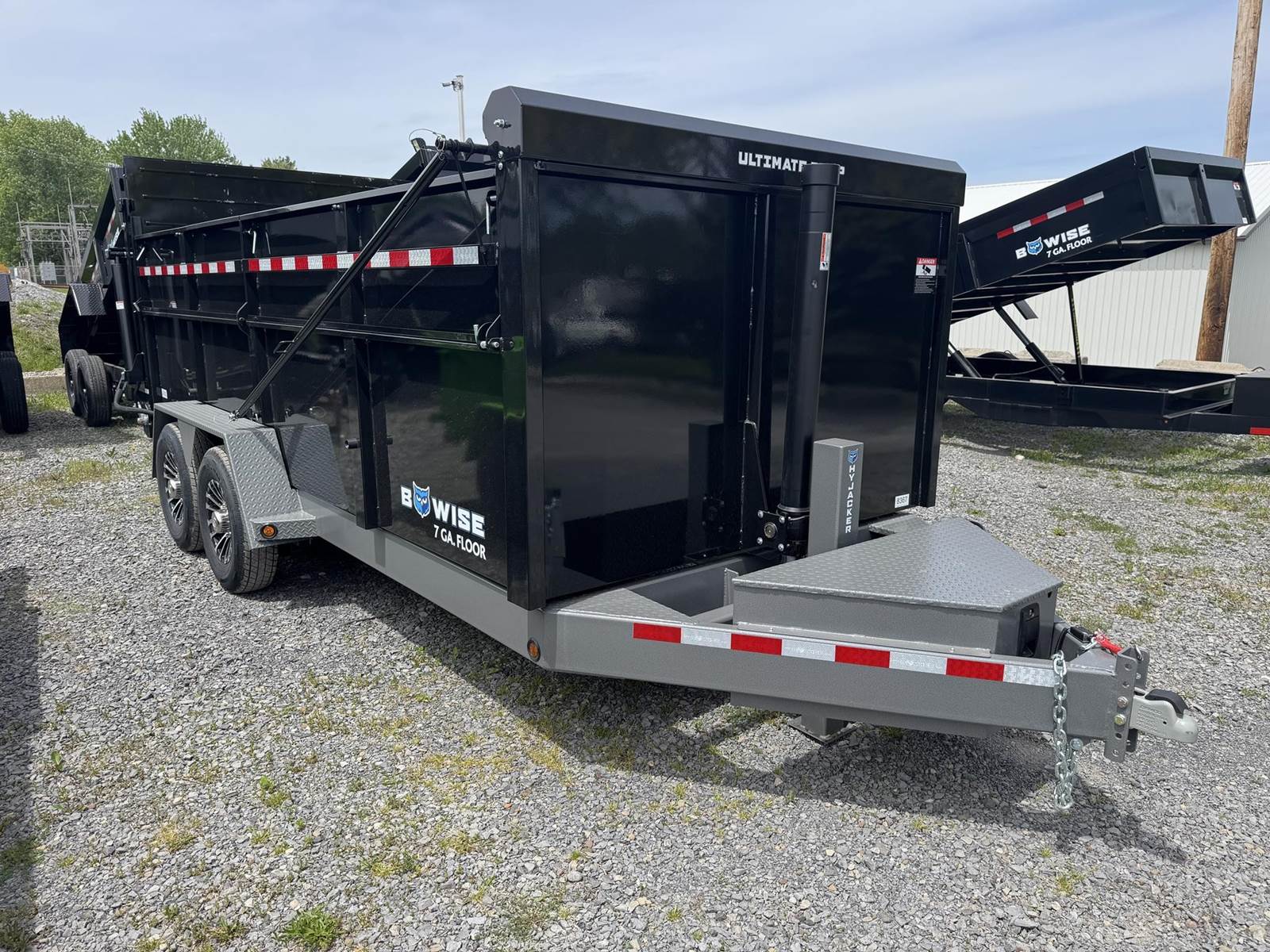

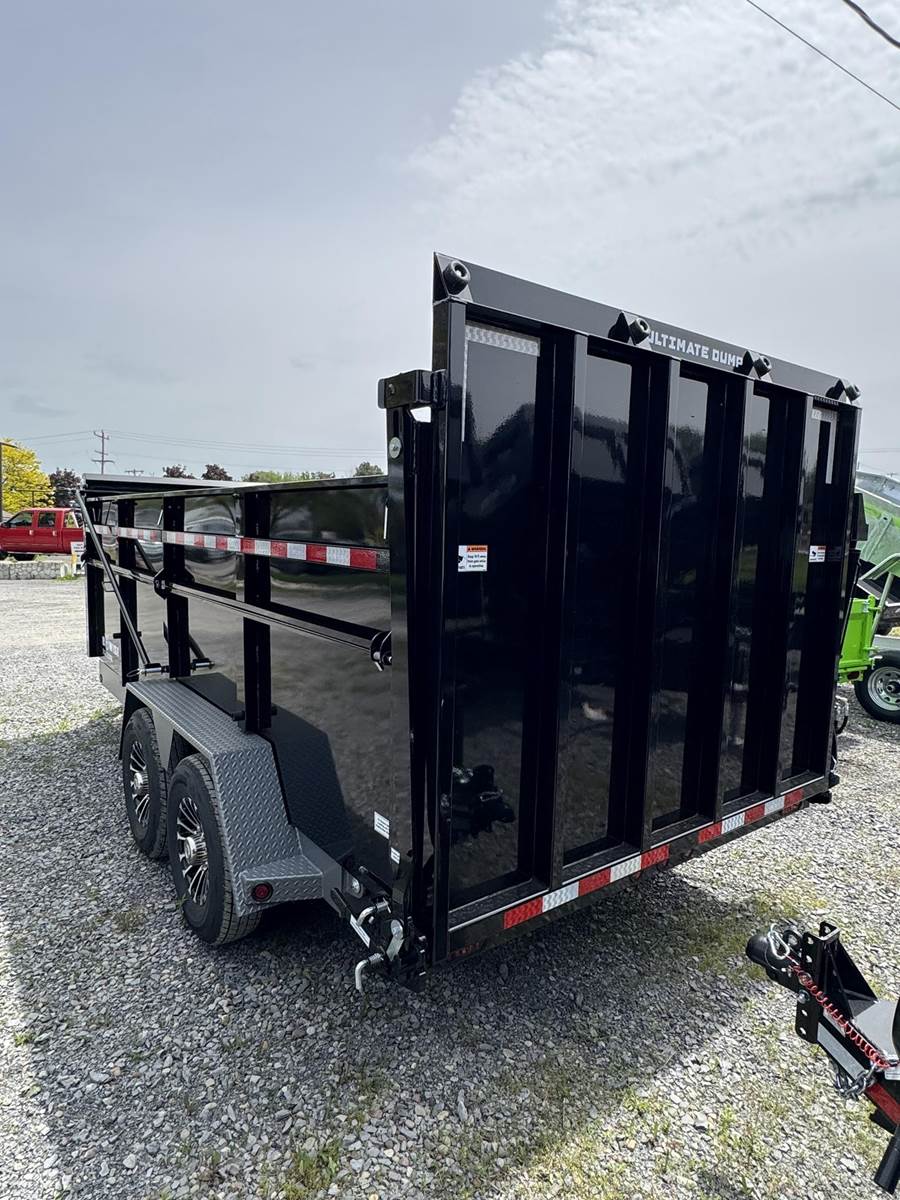

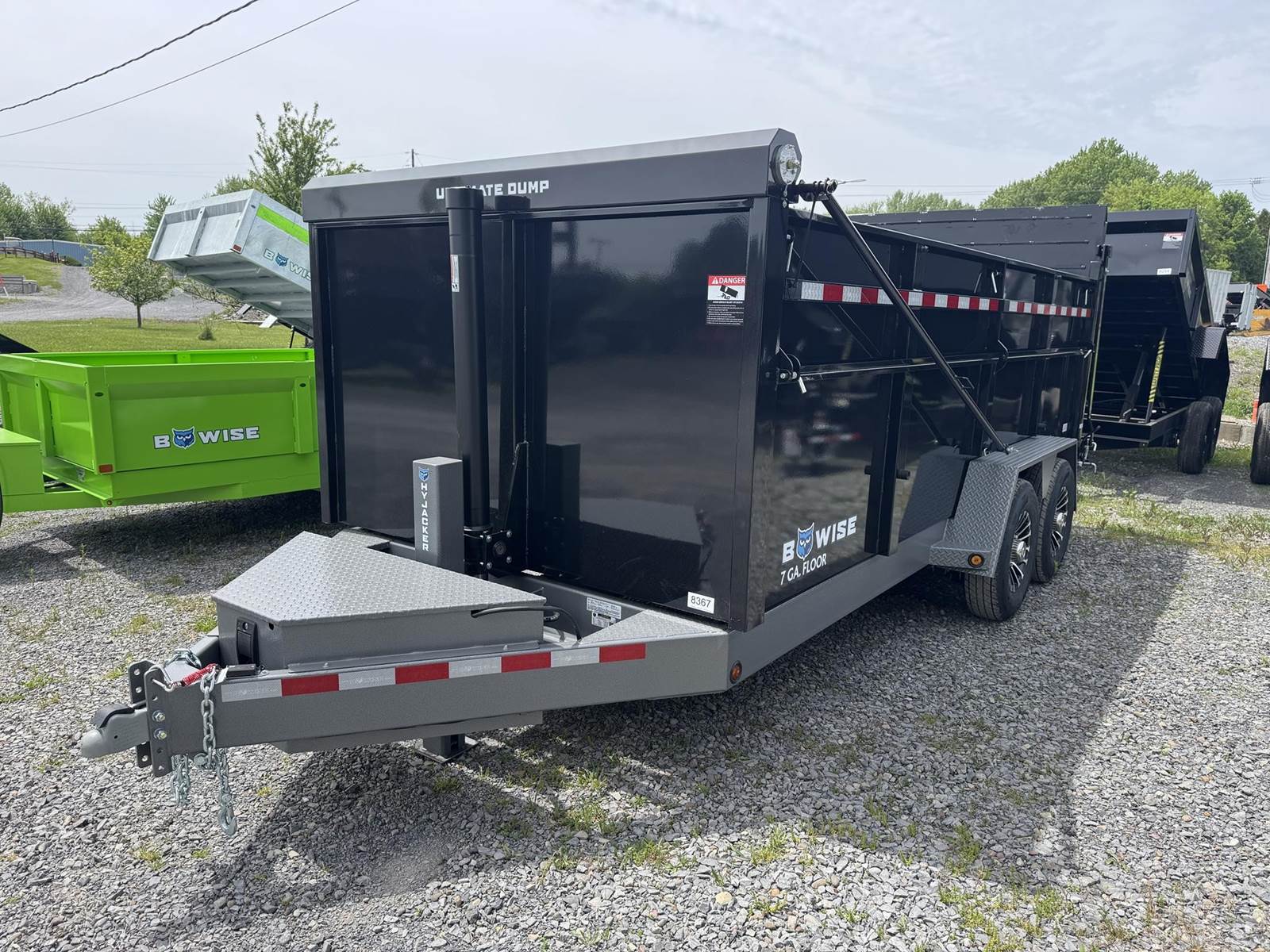

2027 BWISE DUT16-15 Dump Trailer

General

GVWR: 15,400 lbs.
Deck Size: 82" W x 16' L
Empty Weight: 5,800 lbs.
Payload Capacity: 9,600 lbs.
Dump Angle: 45°
Cargo Capacity: ~16.2 cu. yds.

Frame & Body

Main Frame: 8" Tube Frame
Crossmembers: 3" Channel
Floor: 7 GA One-Piece Steel
Sides: 48" with 20" fold-down, 12 GA steel
Fenders: Treadplate steel
Stake Pockets: Full height
D-Rings: 6 side-mount bolt-on

Axles, Brakes & Suspension

Axles: 2 × 7,000 lb. 4" Drop SS Tandem Axles, electric self-adjusting brakes
Suspension: 5-Leaf Slipper
Tires: ST235/80R16E Radial 10-ply
Wheels: 16" Black Aluminum — aluminum spare included

Hydraulics & Hitch

Cylinder: Front-mounted 3-stage telescopic 5" cylinder, 45° lift angle
Gate: 6' Hydraulic Double-Acting Ramp/Gate
Jack: 10K Hydraulic Hyjacker
Coupler: 2-5/16" Adjustable
Rear Support: Stabilizer legs

Electrical & Convenience

Battery: Group 27 Deep Cycle
Battery Charger: Redarc inverter charger included
Remote: TUFF Wireless Remote standard
Wiring: All-weather 7-way RV harness with charge wire and circuit breaker
Lights: Rubber-mount lifetime LED lights
Toolbox: Lockable pump box with gas shock
Tarp: Spring-loaded tarp with arms
