2027 Earthworm Conveyors 36x100 Conveyor

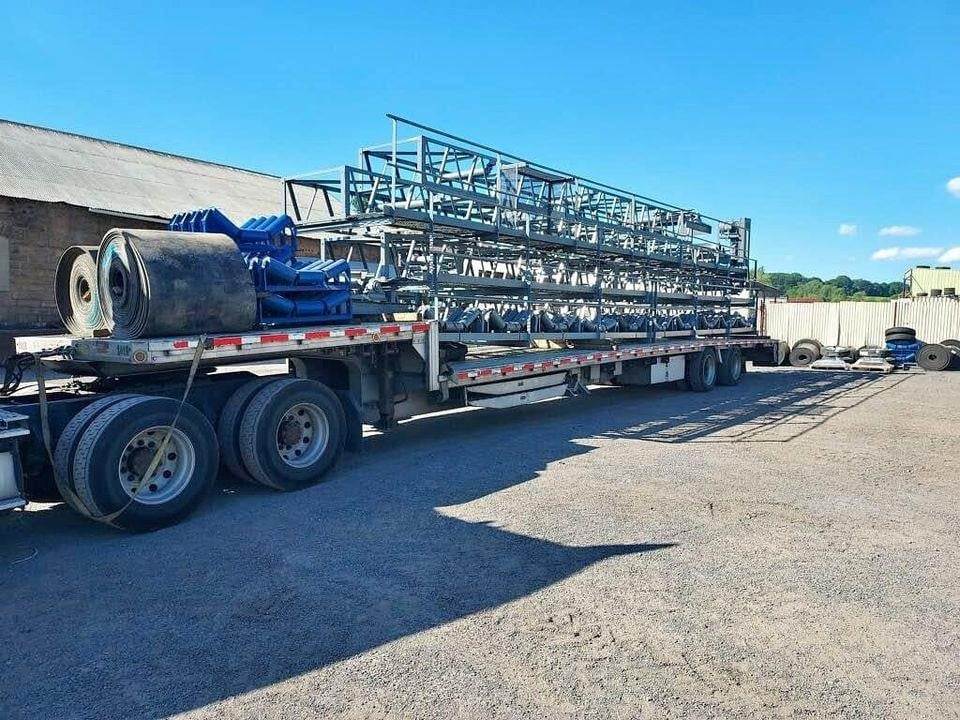

New 36" x 100' Truss Frame Transfer Conveyor – 30 HP – Ships in 2–3 Weeks

New 36" x 100' truss frame transfer conveyor, built for long transfers between plant equipment and stockpiles. Rigid 24" deep truss frame for long spans, Pioneer CEMA C idlers, and a skirted load zone to keep material on the belt. Lead time 2–3 weeks. Custom builds available. We ship anywhere in the USA.Prices Start At $37,000

Structure: 24" deep truss, 2 x 2 x ¼ chord angle, 1½ x 1½ x 3/16 lattice
Head: 18" lagged head pulley, 2 15/16" shaft, roller bearings
Tail: 16" winged tail pulley, 2 15/16" shaft, screw take-ups, roller bearings
Motor: 30 HP, TEFC, 1800 rpm, 230/460V, 60 Hz
Drive: WorldWide [#6-25] shaft-mount reducer with motor mount and belt guard
Idlers: Pioneer CEMA C, 20° trough, 12" centers in load zone, 48" centers balance
Return rollers: Pioneer CEMA C, 10' centers
Belt: 2-ply, 220 PIW, 3/16" x 1/16" covers
Load zone: 4' with skirt boards
Tail guard included
Finish: primed and painted grey

Need a different length, width, or drive? We build to your specs. Call Joe for pricing and availability.
