2027 Fontaine RENEGADE 20 Double Drop Trailer

Length 47' 11"
Top Deck Length 9' 10"
Width 102"
Main Deck Height 20" with 6" Ground Clearance

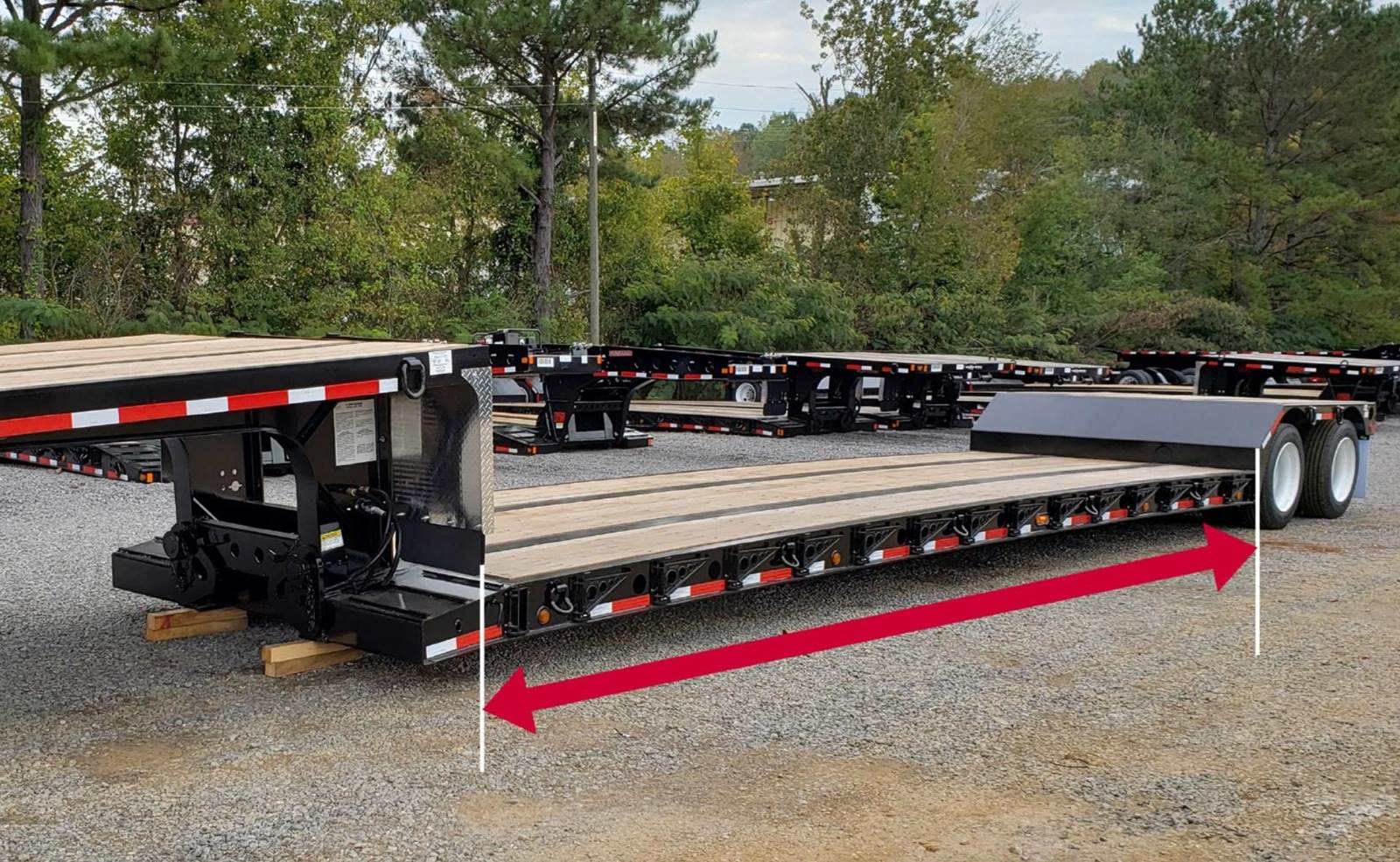

Main Deck Length 29'

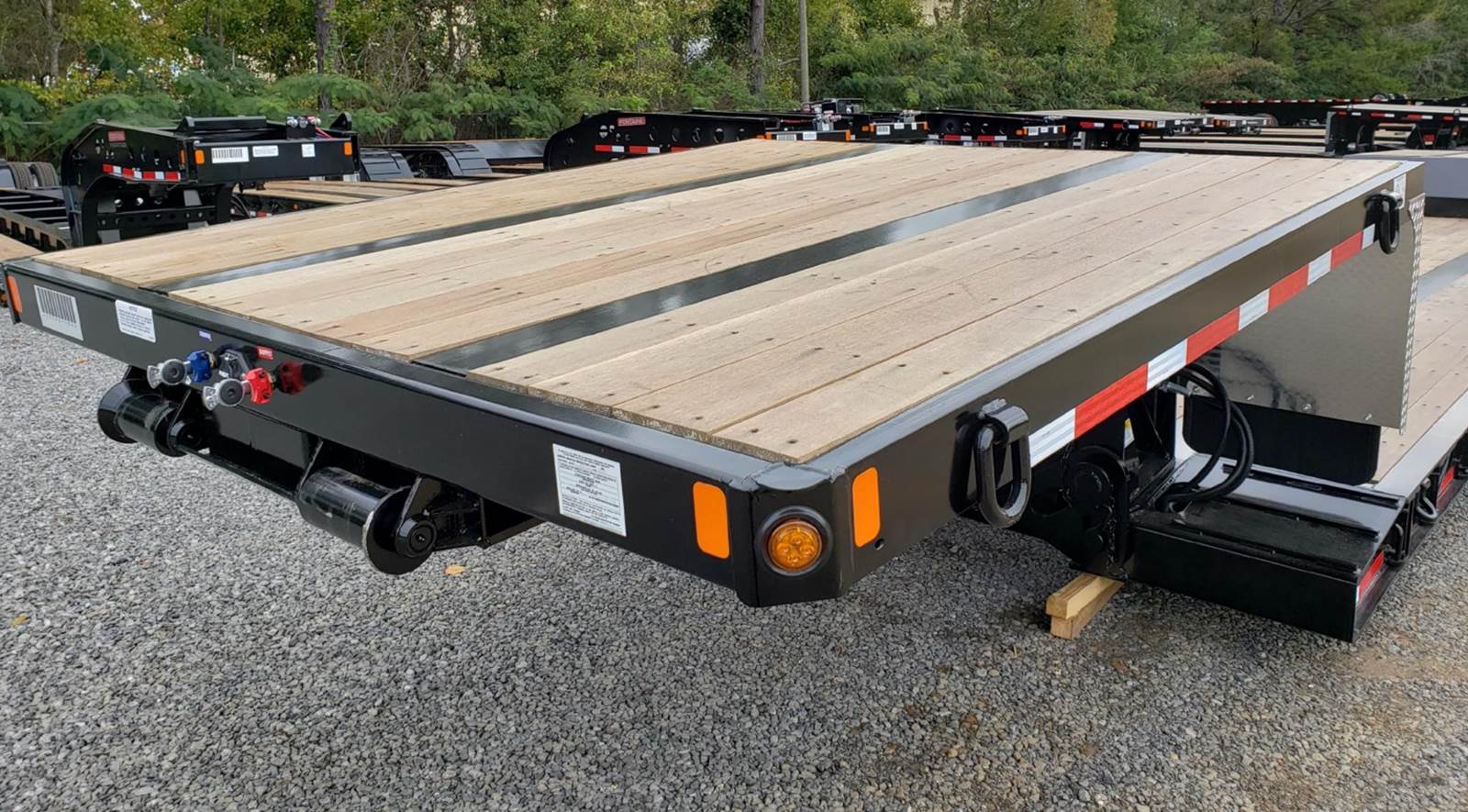

Rear Deck Length 9' 2"
Weight 16,035 Lbs. +/- 3%
Unit Description 40-Ton Mechanical Detachable Double Drop Lowboy
Flat Body
Compatibility Designed to Accept 3rd Axle Flip
Floor 1 3/8" Apitong
Ramps None - Front Deck Sloped Down w/ Traction Cleats
Side Rail Steel
Outriggers 14 Pair Removable Swing Type, 1 Pair Hook-On Type
D-Rings 9 Pair
Side Rail Lights Nine (9) per Side
Rear Lights (3) Stop/Tail, (3) Clearance
Strobe Lights Battery Powered Rear Amber Strobes
Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Setting 54 1/2" Closed Tandem
Raise & Lower Valve Mechanical Ride Height Control Valve
Tire Size 255/70R22.5
Wheels Polished Aluminum Outside / Steel Inside
UnderFrame
Cross Member Center 12"
Paint Black
Weight Ratings 40 Ton in 16' Length
Comments

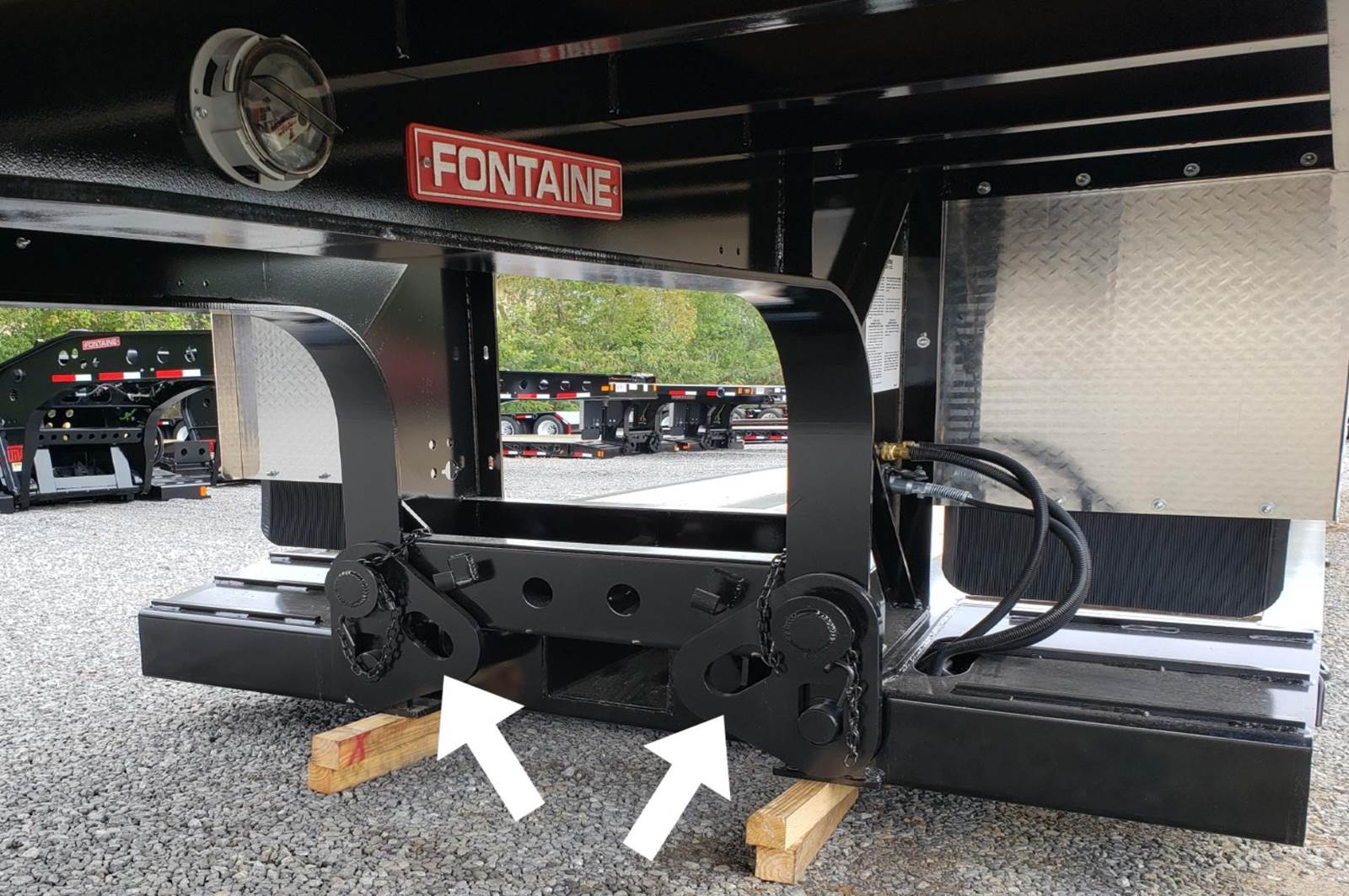

Mechanical Detachable w/ Removalble Guide Rollers
Combination Figure-8 Plate - Provides 50" & 52" Loaded Fifth Wheel Heights
Swing Radius of 81"
Full Width Gooseneck Platform with 1 1/8" Wood Floor

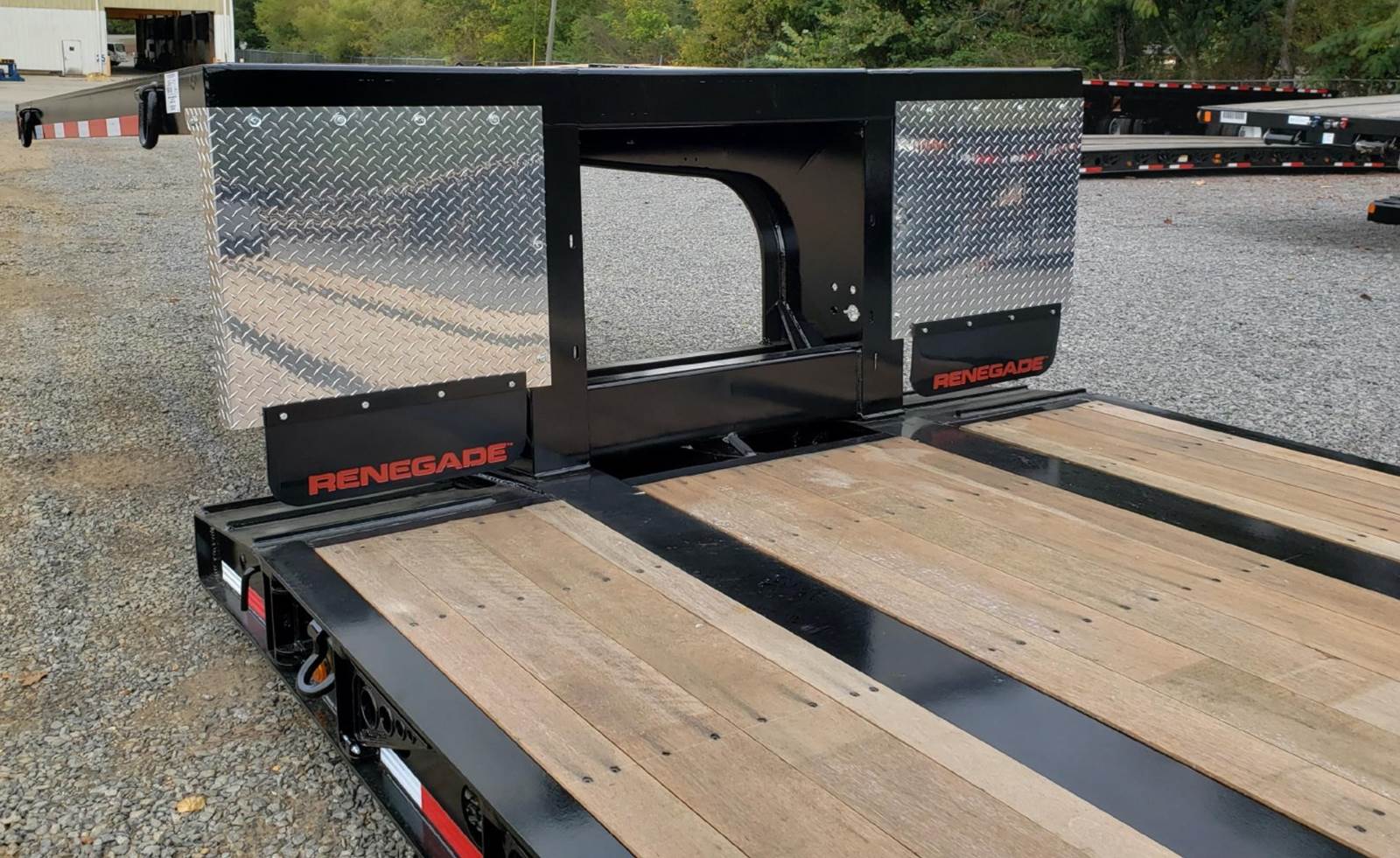

Aluminum Fenders at Rear of Gooseneck
Mini Boom Trough & Traction Cleats Installed on Sloped Bogie Ramp
Liquid Filled Gauge
Stainless Steel Bumper Insert
