Product Description

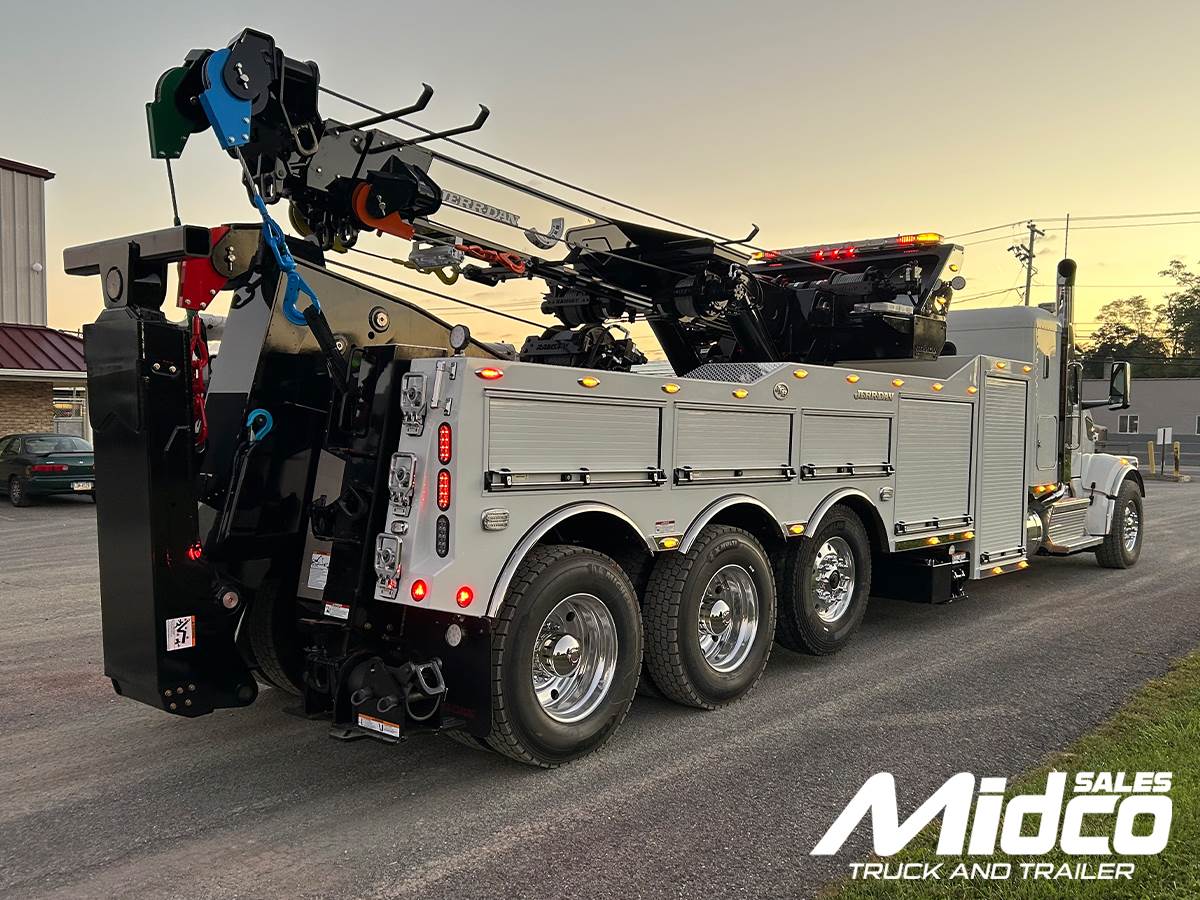

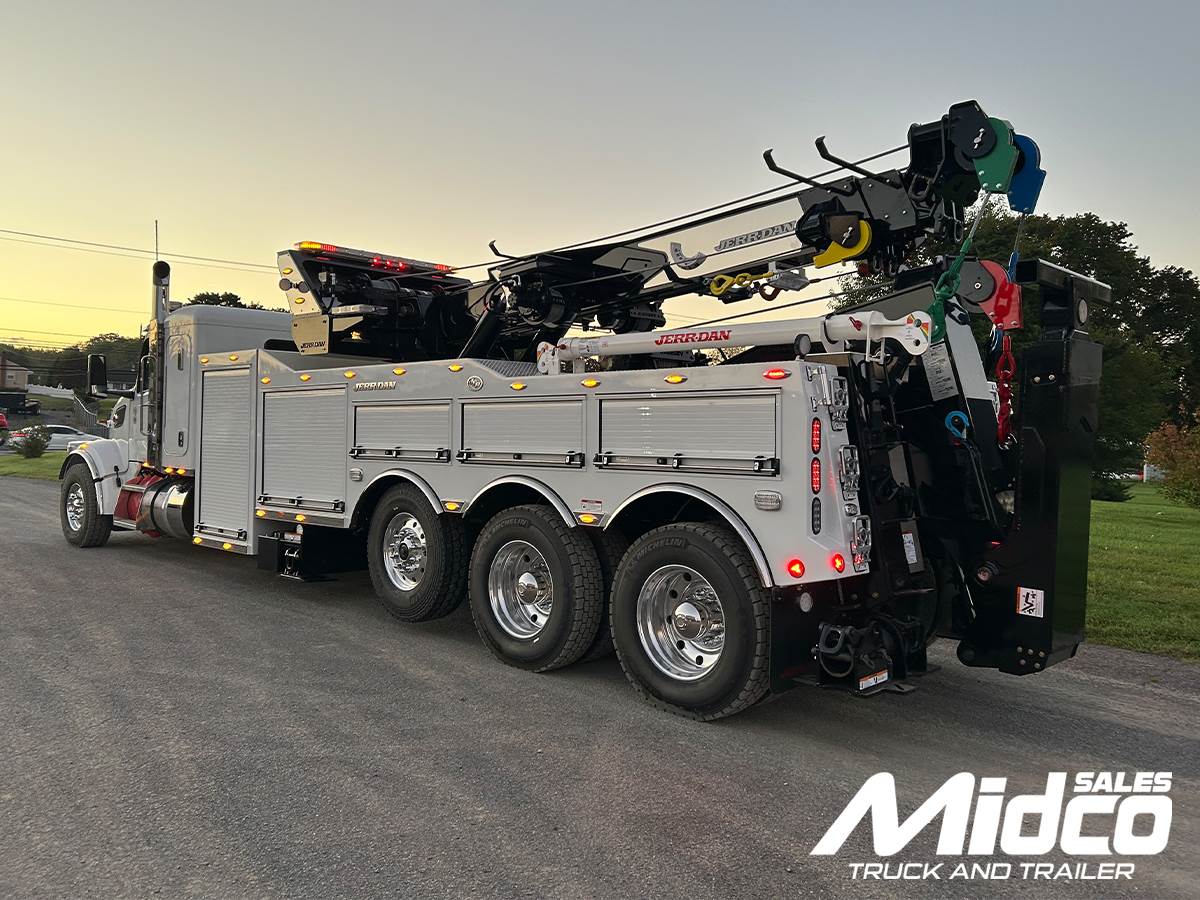

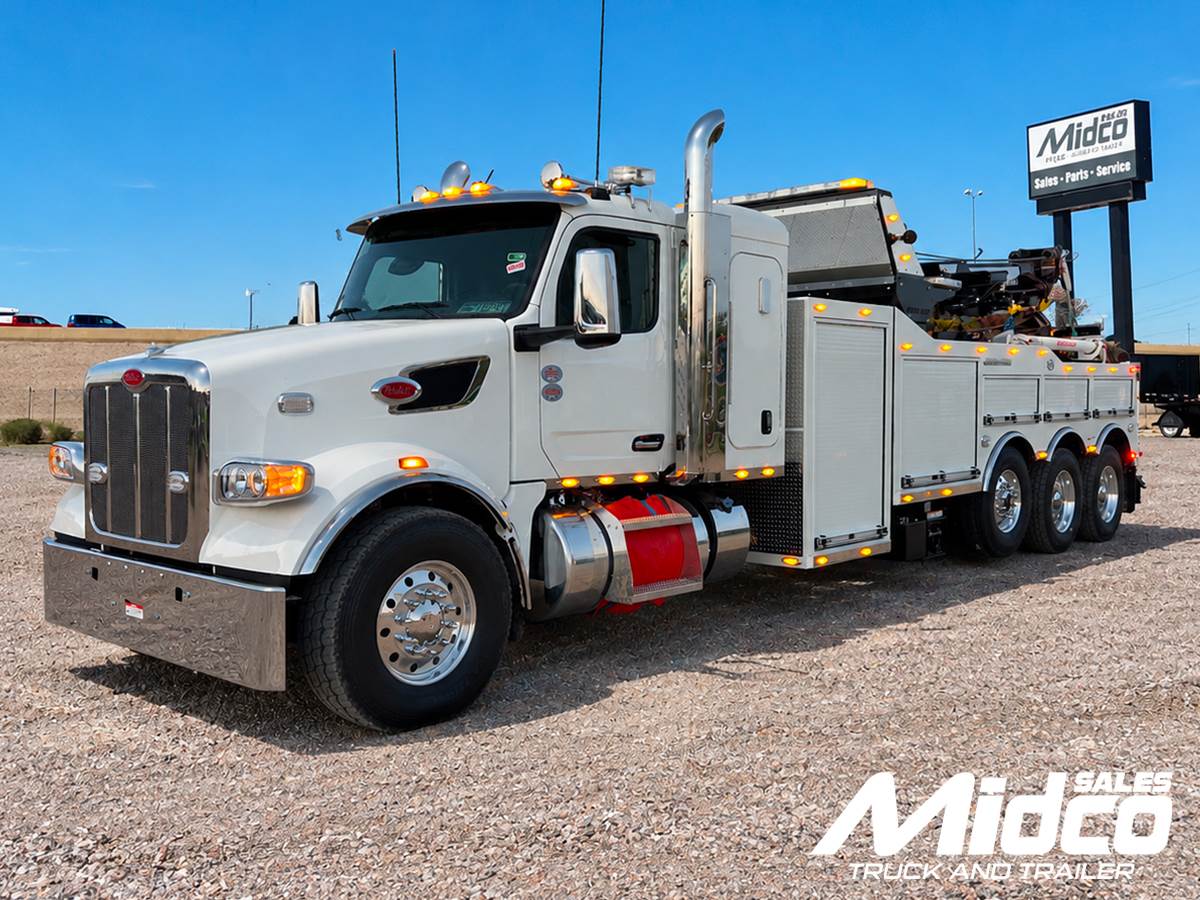

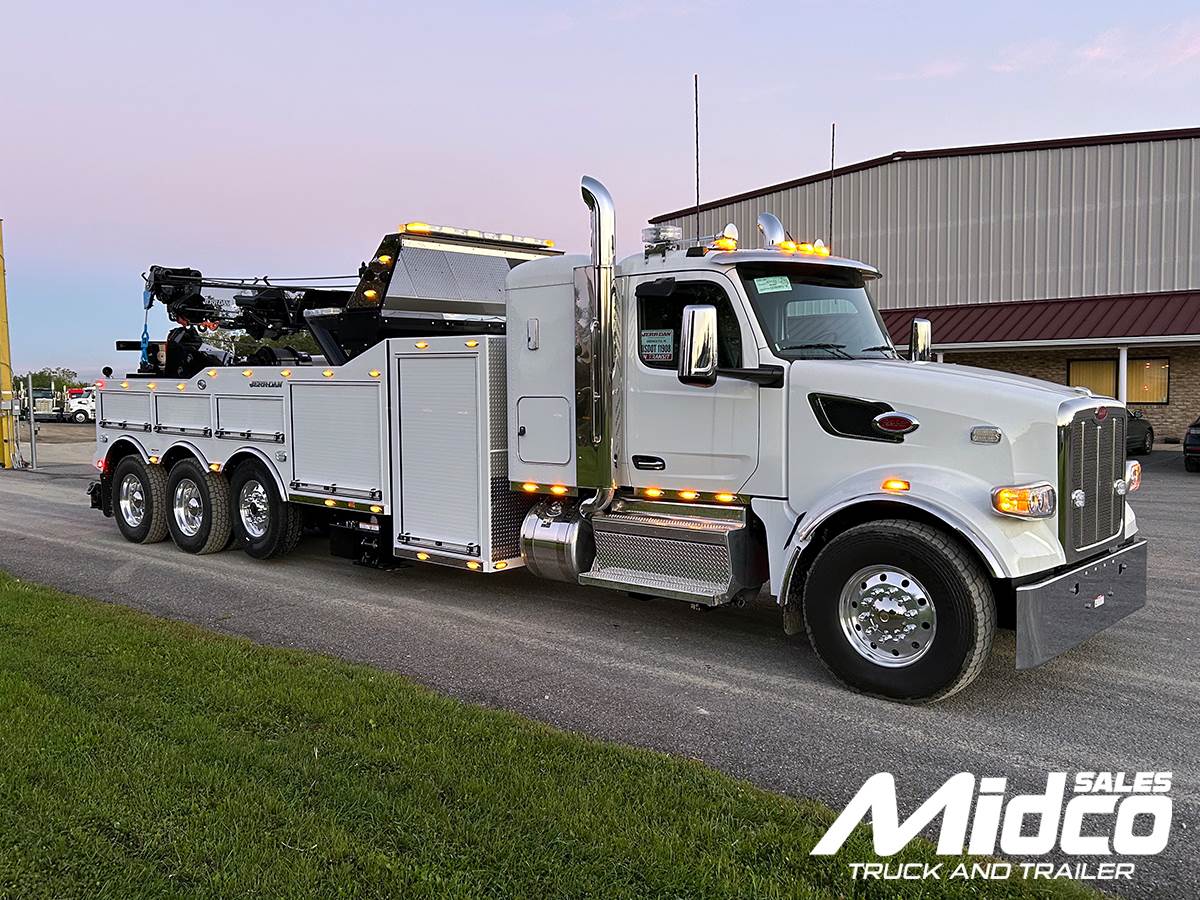

2027 Peterbilt 567 Jerr-Dan JD35/40 Ton Rotator Tow Truck
Built for demanding heavy-duty towing and recovery, this 2027 Peterbilt 567 Jerr-Dan JD35/40 Ton Rotator combines a rugged Peterbilt chassis with Jerr-Dan's latest heavy-recovery rotator platform. Power comes from a 565 HP Cummins X15 diesel paired with an Allison 4700 RDS-P automatic transmission, while the 44-inch sleeper provides added comfort and storage for long-distance and extended recovery operations.
The Jerr-Dan JD35/40 features a three-stage 37.5-foot rotating recovery boom with continuous 360-degree operation, dual 35,000-lb Ramsey main winches, a 15,000-lb auxiliary winch, and a 50,000-lb underlift/drag winch. Its S130-style outrigger system and heavy-duty torsion subframe provide the stability needed for demanding side and rear recoveries. Jerr-Dan rates the boom at 70,000 lbs retracted at 30 degrees.
For towing, this truck is equipped with Jerr-Dan's 500LP three-stage underlift, rated at 50,000 lbs retracted, 17,000 lbs extended and 80,000 lbs towing capacity, with up to 147 inches of reach past the tailboard. The build also includes front outriggers, wireless remote controls, a 40,000-lb spreader bar, 25,000-lb tire lift, fifth-wheel attachment, spring forks, recovery rigging packages, underlift and backup cameras, Whelen LED lighting, and Jerr-Dan's Gold tall-tunnel storage package.
With its 20,000-lb steer axle, 20,000-lb self-steering pusher, 52,000-lb tandem drives, 354-inch wheelbase, 160 gallons of fuel capacity, Platinum interior, this Peterbilt 567 is configured as a complete heavy-recovery truck—combining substantial lifting and towing capability with the equipment, storage and operator features needed for professional recovery work.
CHASSIS
Peterbilt 567
8×4 configuration – 1 steer, 1 lift/pusher, 2 drive axles
44" sleeper
354" wheelbase
86,000 lb GVWR
110,000 lb GCW rating
ENGINE & TRANSMISSION
Cummins X15 Performance Series diesel
565 HP @ 1,900 RPM
1,850 lb-ft torque @ 1,000 RPM
Cummins Intebrake
Allison 4700 RDS-P Gen 6 7-speed automatic transmission (Push-button shifter)
AXLES & SUSPENSION
PACCAR FX-20 steer axle – 20,000 lb
20,000 lb taper-leaf front suspension
Watson-Chalin self-steering pusher axle – 20,000 lb
Dana Spicer D52-190 tandem drive axles – 52,000 lb
Neway ADZ252 rear air suspension – 52,000 lb
4.56 rear axle ratio
Tandem differential locks
Lift axle regulator & gauge
BRAKES
Air brakes
Bendix front air disc brakes
Tandem rear air disc brakes
6S/6M ABS
Tire pressure monitoring system
FUEL & ELECTRICAL
Dual aluminum fuel tanks – 160 gallons (110-gallon LH, 50-gallon RH tank)
24-gallon DEF tank
275-amp alternator
3 PACCAR Premium batteries – 2,190 CCA
Engine block heater
DAVCO 382 fuel/water separator
WHEELS & TIRES
Front: Michelin 315/80R22.5, 20-ply
Rear: Michelin 11R24.5, 16-ply
Tri-axle wheel covers
CAB & SLEEPER
Peterbilt 44" sleeper cab
Platinum Sterling Gray interior
Sleeper heat & air conditioning
Heated power mirrors
Dark-tinted rear sleeper window
7" infotainment display
Premium speaker package
JERR-DAN JD35/40 ROTATOR BODY
Tri-axle JFB rear body
50" tall tunnel
JFB Gold storage package
Polished pylon dress-up kit
Boom dress-up kit
Front outriggers
Outrigger platforms
Hydraulic oil heater
ROTATOR BOOM
3-stage hydraulic rotating main boom
Multiplex/electro-hydraulic controls
Wireless remote controls
Auxiliary boom winch
Hydraulic oil cooler/heater
Whelen under-boom work light
WINCHES
Dual Ramsey 35,000 lb main boom winches
Ramsey 15,000 lb auxiliary boom winch
Ramsey 50,000 lb underlift/drag winch
JERR-DAN 500LP 3-STAGE UNDERLIFT
50,000 lb rated capacity – retracted
17,000 lb rated capacity – extended
80,000 lb tow capacity
77" reach past tailboard – retracted
147" reach past tailboard – extended
10° positive tilt
20° negative tilt
3-stage hydraulic extension
UNDERLIFT & TOWING ATTACHMENTS
Spring forks
7" tall fork adapter
Fifth-wheel attachment
25,000 lb tire lift
Pintle hook
2" ball
2-5/16" ball
Underlift camera
Backup camera
Color-coded guides, hooks & handles
RECOVERY & RIGGING EQUIPMENT
Jerr-Dan 112" spreader bar – 40,000 lb capacity
Heavy-duty chain kit – Level 2
Shackle kit – Level 2
Loop sling kit – Level 2
Flat recovery strap kit
Snatch block kit
Telescopic ladder
STORAGE
Jerr-Dan Gold tri-axle tall-tunnel storage package
Ladder storage
Tool drawer
Shackle storage
Chain & chain-binder storage
Tow-light storage
Snatch-block storage
Bottle-jack storage
Long-tool storage
Base-body shelving
Tunnel storage
LIGHTING & CONTROLS
Wireless remote-control system
In-cab control panel
72" Whelen LED lightbar
22" Whelen LED wing lights
Upper & lower hookup lights
Upper work lights
Underlift lighting
Outrigger lighting
Whelen under-boom work light
7-way trailer electrical connector
Emergency & service air glad hands
Backup alarm
