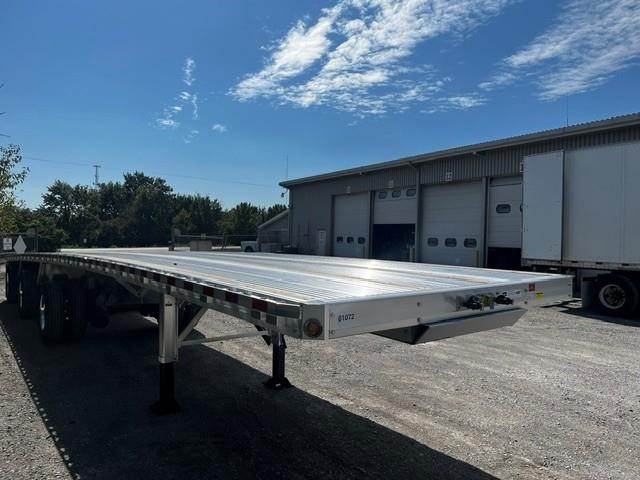

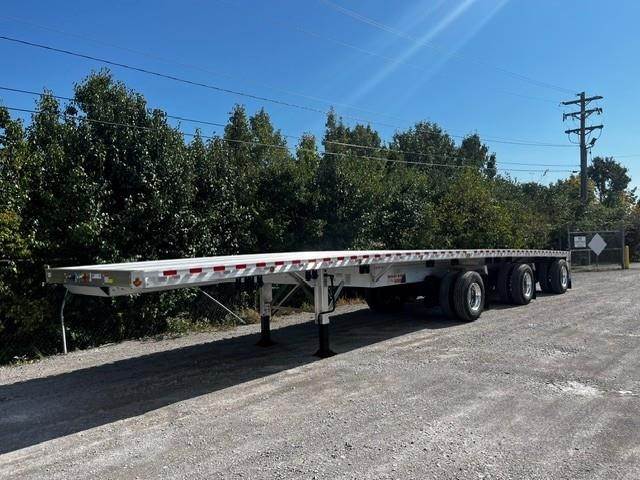

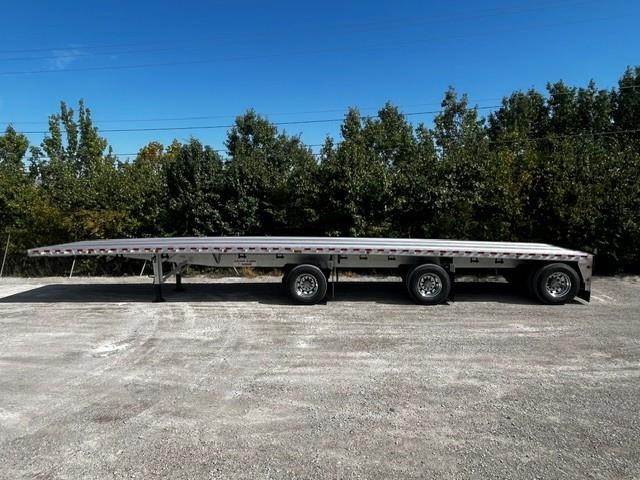

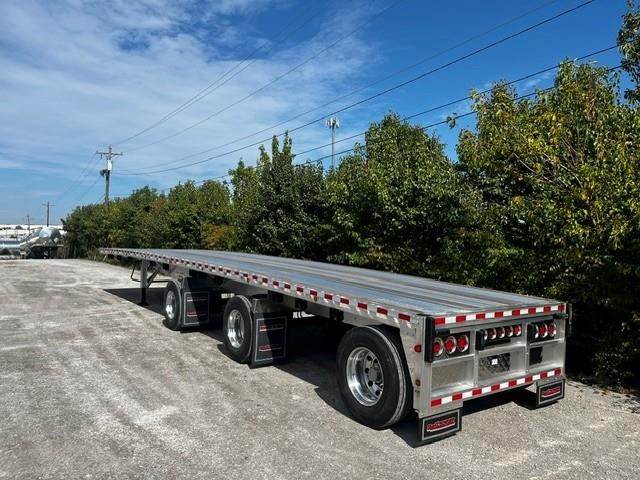

2027 Reitnouer Bigger Bubba 48x102 Tri Axle Aluminum Flatbed Trailer - Air Ride, Fixed Spread Axle

Aluminum Air Tanks
Grease Hubs
120,000 Lbs. GVWR
Length 48'
Width 102"
Weight 11,947 lbs. +/-3%
Unit Description TS-5
Flat Body
Bulkhead None
Floor Aluminum with Center Tie Down Track
Nailing Strips Four (4), Apitong
Chain Tiedowns 10 Pair, 6" Oval, Removable
Front/Rear Member Aluminum
Side Rail Aluminum
Pipe Spools Double
Winch Track Full Length with No Breaks, Roadside
Sliding Winches 12
Toolbox None
Add. Receptacle ISO 7-Way
Side Rail Lights Nine (9) per Side, LED

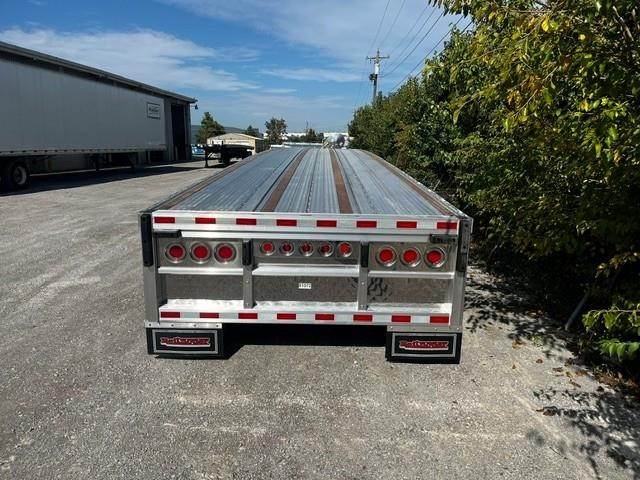

Rear Lights (3) Stop/Tail, (5) Clearance (outer 2 reflectors)
Mud Flap Brackets Behind All Axles
Suspension
# of Axles 3
Suspension Type Air Ride
Suspension Brand Hendrickson Intraax 30K
Suspension Setting 10'2" & 10'2" Spread, Set at Rearmost Position
Lift Axle Front Axle Lift - Wired to Red of ISO 7-Way
Electric Dumpvalve Rear Axle - Wired to Center Pin of Aux 7-Way
Manual Dumpvalve Auto 6-Bag Dump Valve

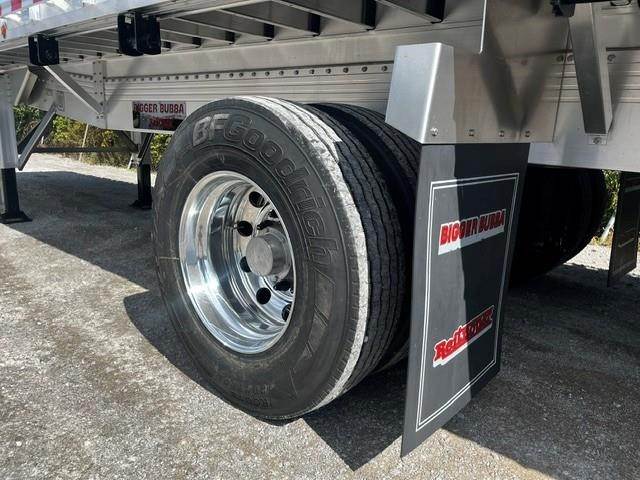

Tire Brand BF Goodrich #3285
Tire Size 11R22.5
Wheels Aluminum, Outside Wheels Polished

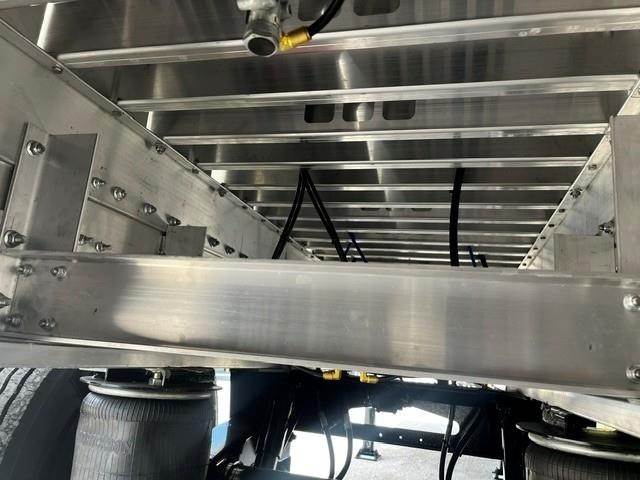

UnderFrame
King Pin Setting 30" w/ 3/8" HD 5th Wheel Plate
Cross Member Center 12"
Coil Package Double Full Coil Package w 24 Extra Cross Members
Landing Gear Jost, Two-Speed, Aluminum Housing
Paint Black
Weight Ratings 85,000 lbs. in 10', 72,000 lbs. in 4'
