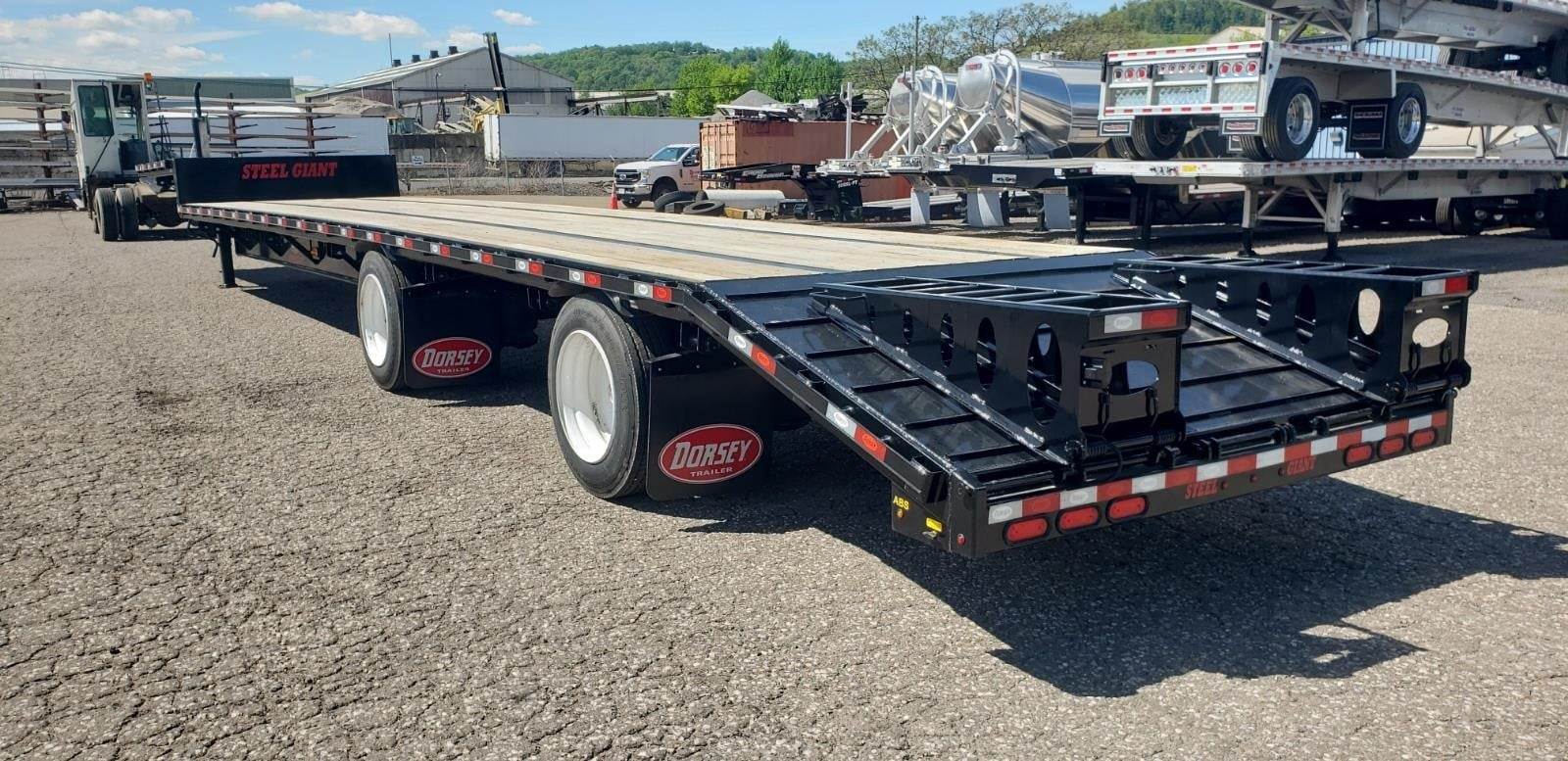

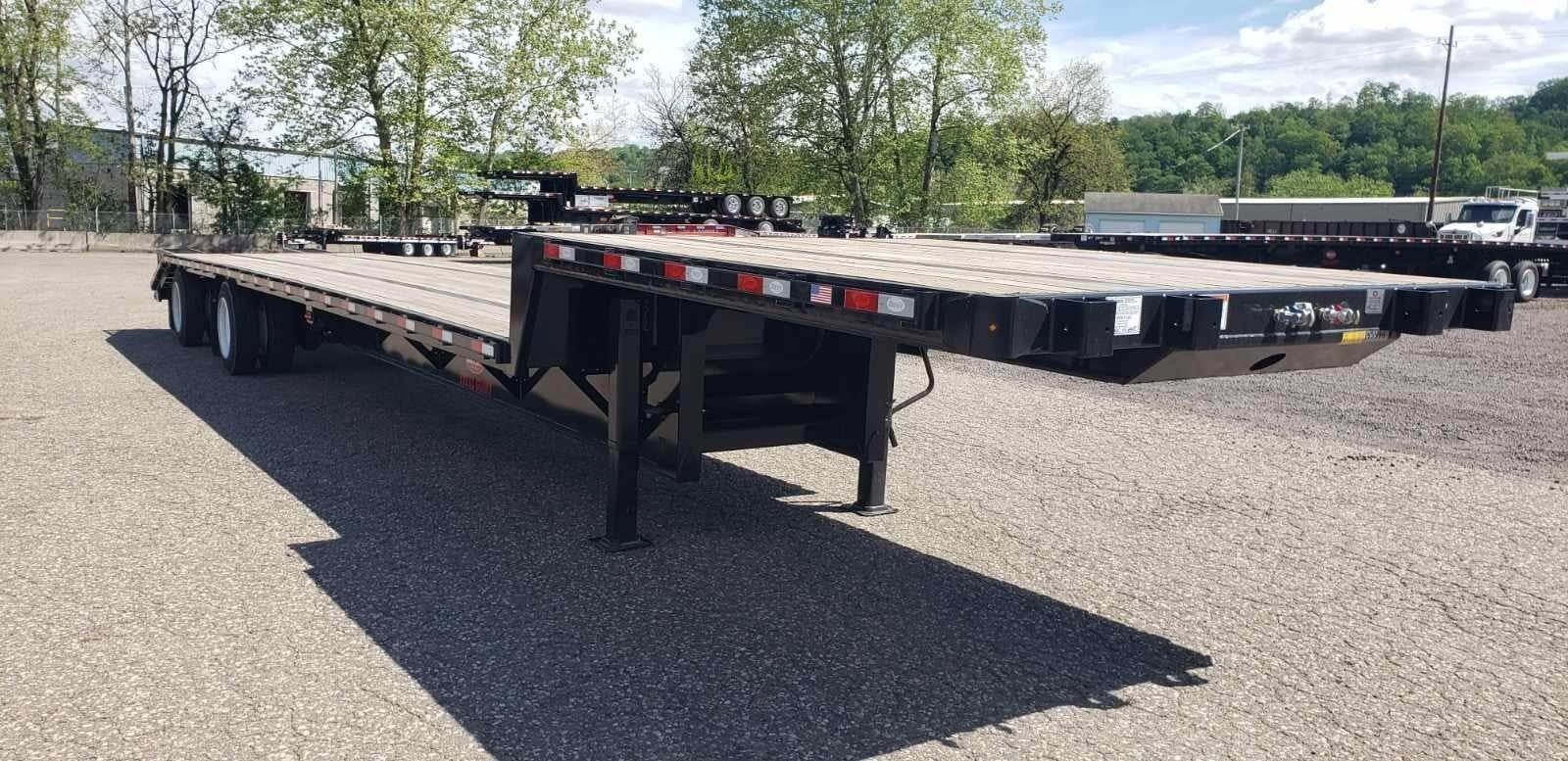

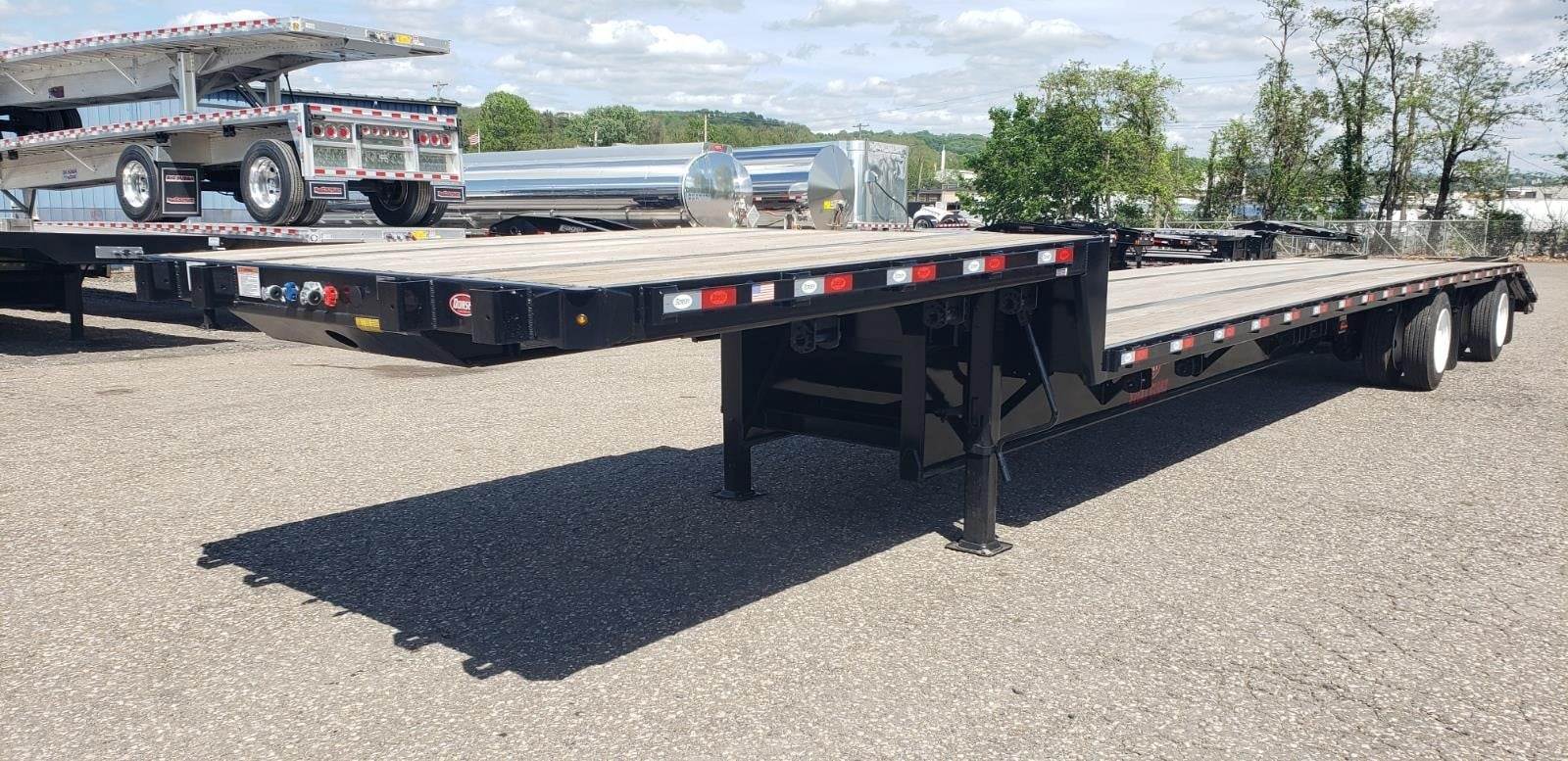

2028 Dorsey 53x102 Steel Drop Deck Trailer - Air Ride, Fixed Spread Axle

*FET Included*
Length 53' - Including Beavertail
Width 102"
Top Deck Length 10'
Main Deck Length 38'
Main Deck Height 41" Loaded Deck Height
Weight 13,990 Lbs. (+/- 3%)
Inspection New
Flat Body
Floor 1 1/8" Apitong
Front/Rear Member Steel

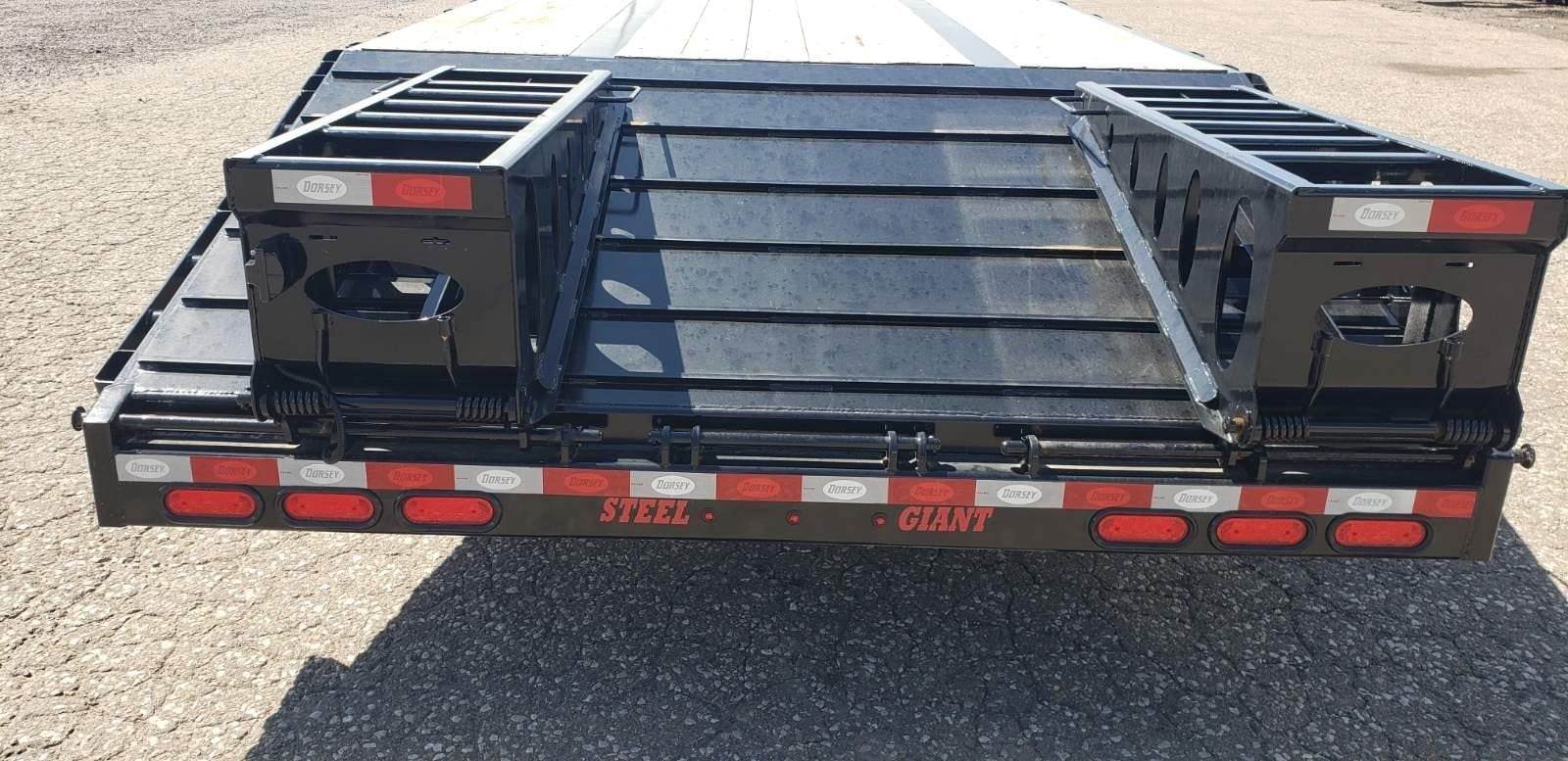

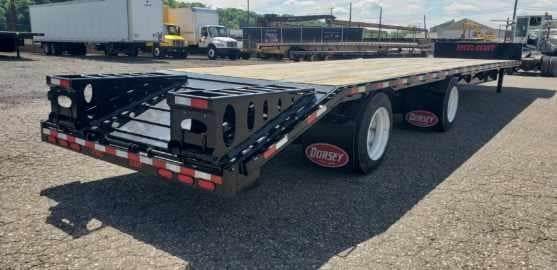

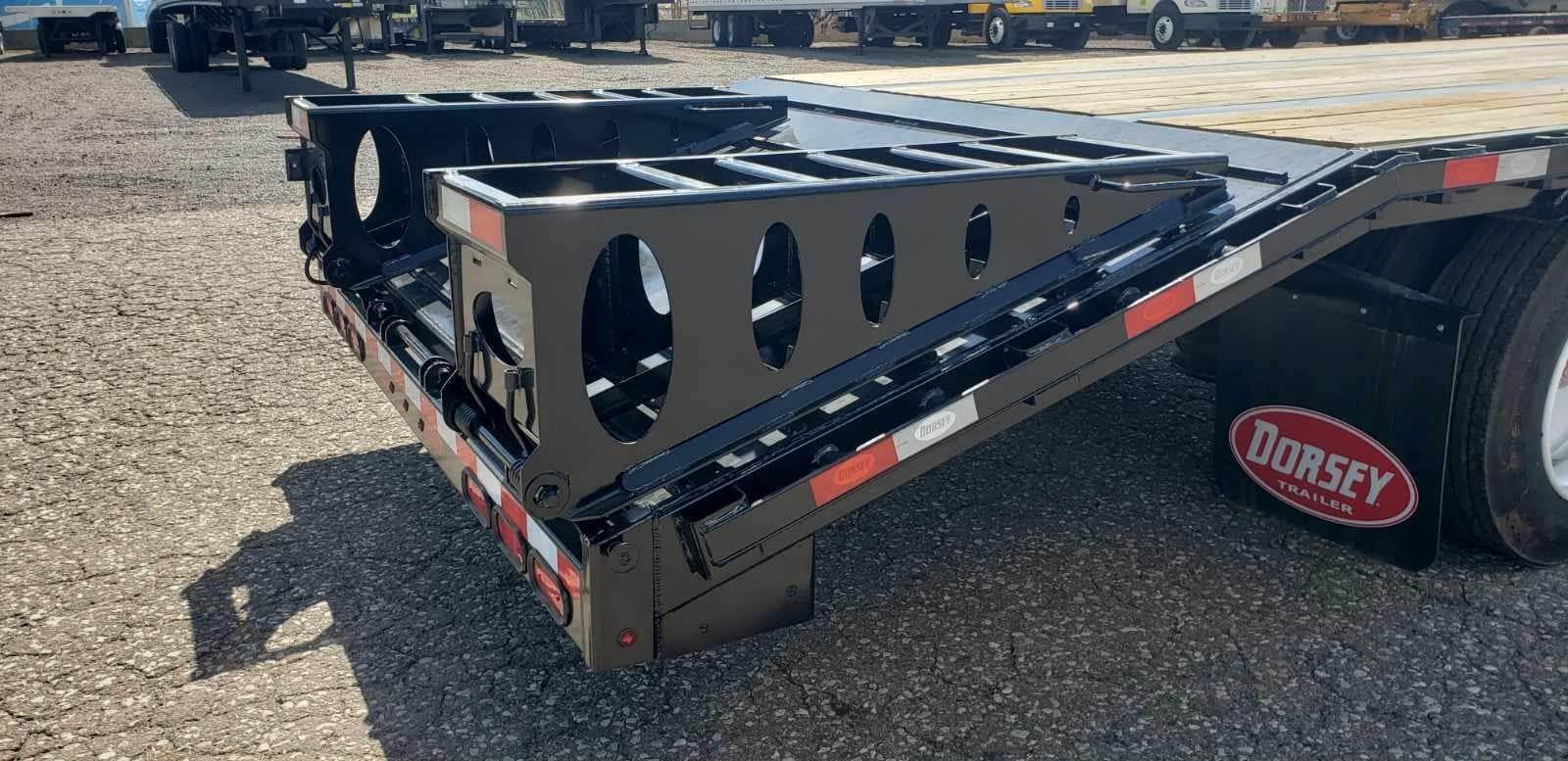

Beavertail 60" w 15 Degree Transition, Steel w Traction Bars

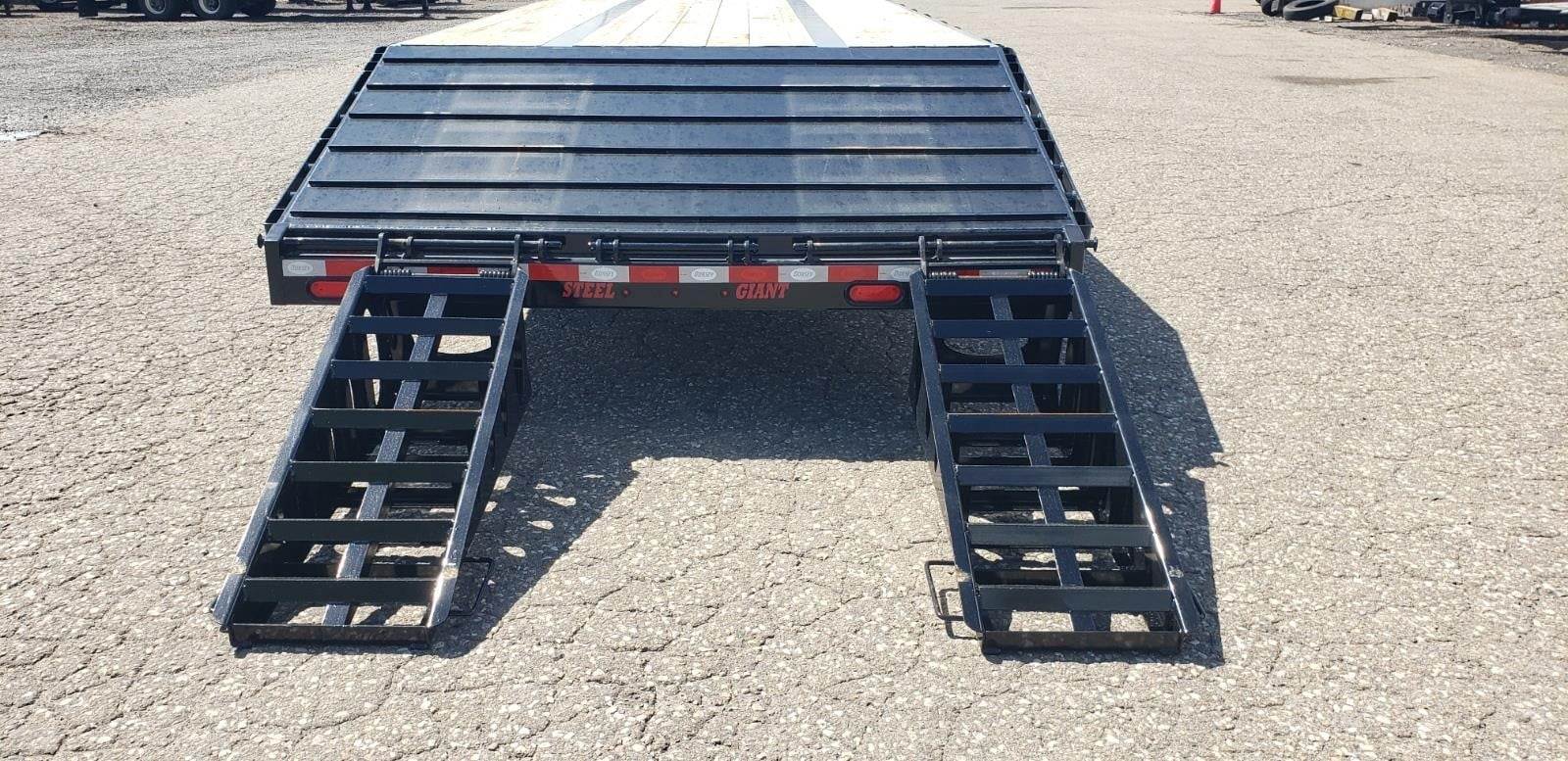

Ramps Two (2) Spring Assisted, 3' 11" Long
Side Rail Steel
Pipe Spools Double
Winch Track Roadside
Sliding Winches 12
Side Rail Lights Three (3) per Side, LED
Rear Lights (3) Stop/Tail, (3) Clearance
Mud Flap Brackets Behind Front & Rear Axle
Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Brand Hendrickson Intraax 23K
Suspension Setting 10' 2"
Manual Dumpvalve Yes
Tire Brand Double Coin
Tire Size 255/70R22.5
Wheels Steel
UnderFrame
King Pin Setting 18"
Cross Member Center 18" Top Deck, 12" Main Deck
Landing Gear Two Speed
Paint Black
Weight Ratings 80,000 GVWR - 60,000 in 10'
Comments
Center pipe installed, capable of adding future 3rd ramp
Aluminum Double "L" winch track. No tie bar. Side rail is deep enough to accept a flat hook from a strap.
