30" x 80' Radial Stacker Conveyor

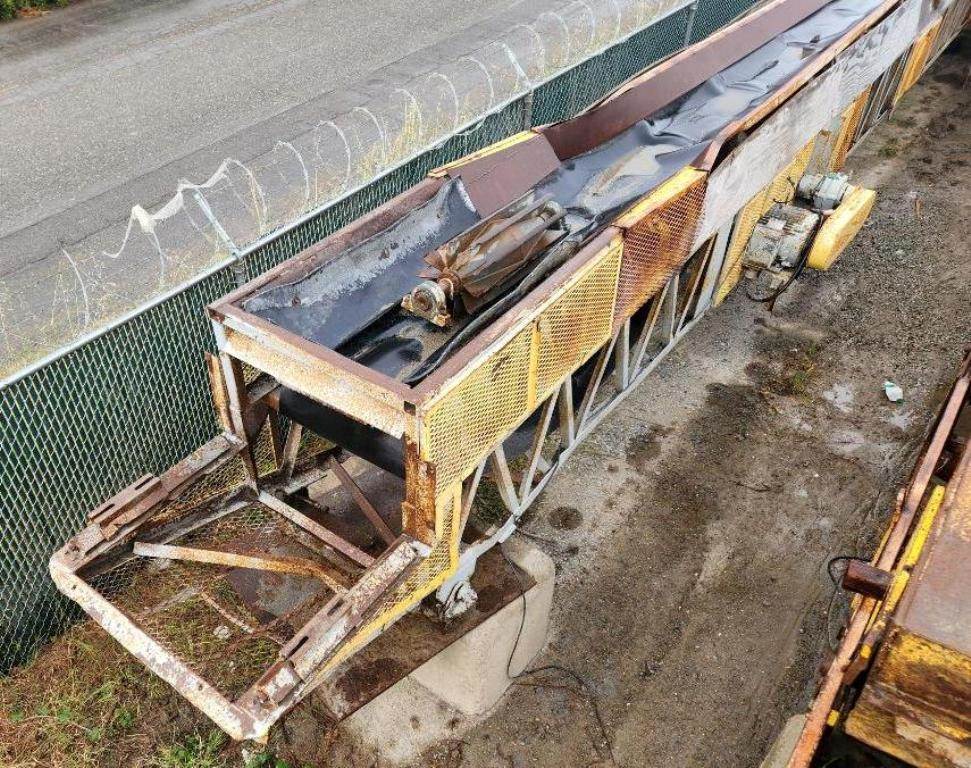

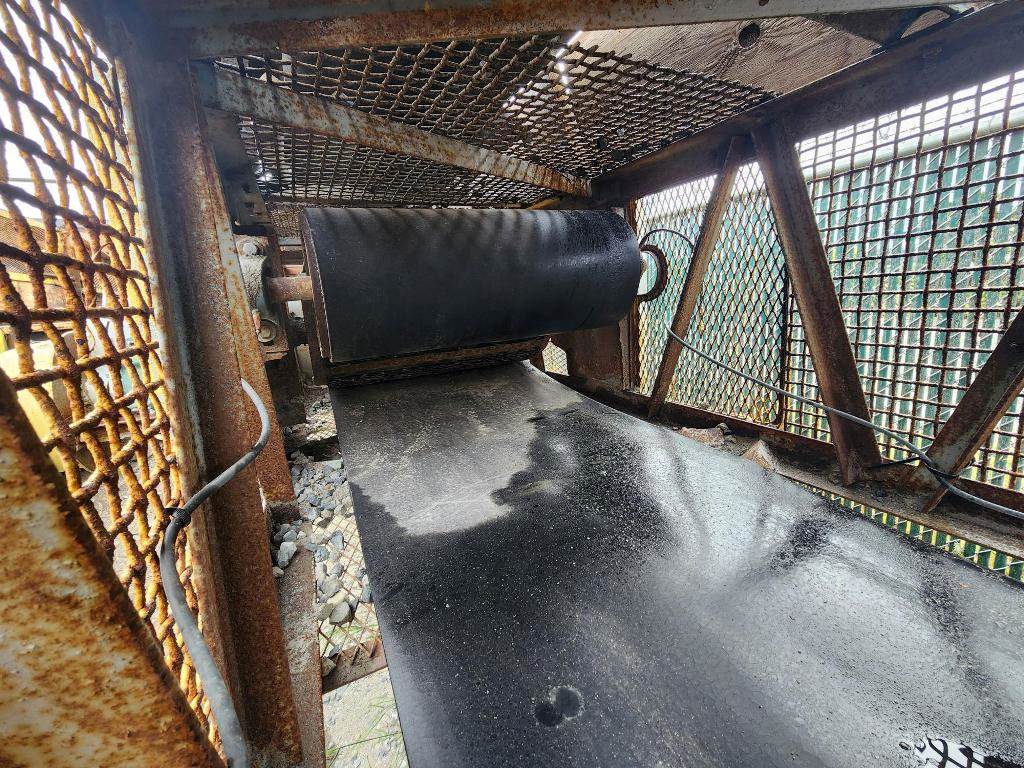

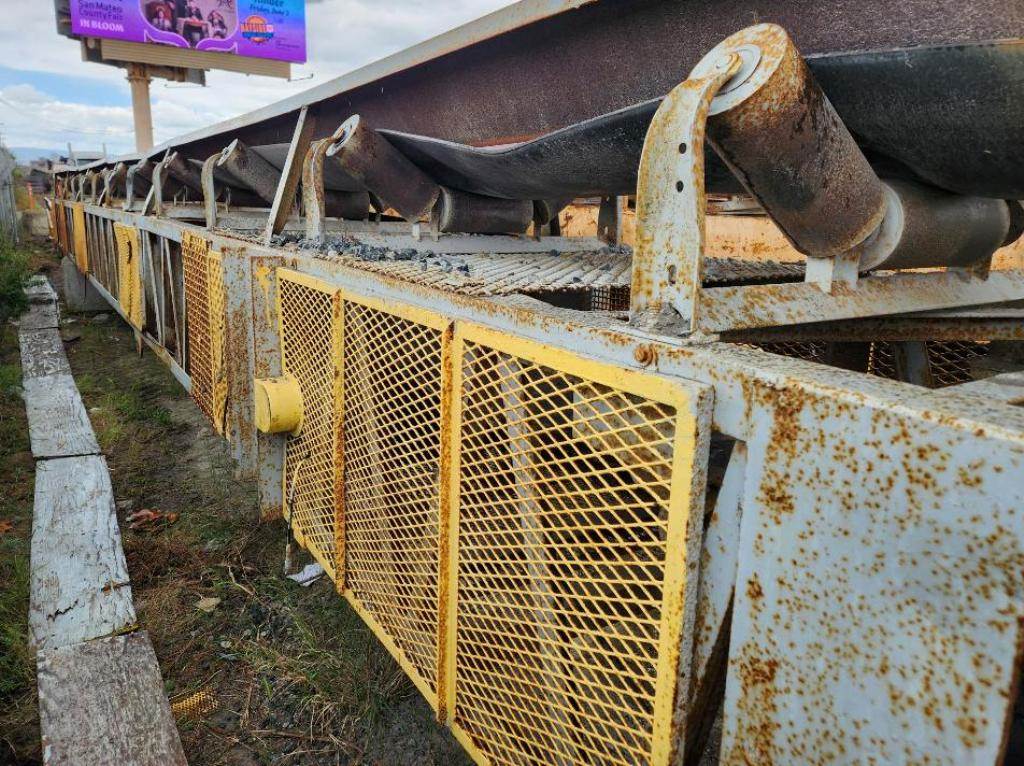

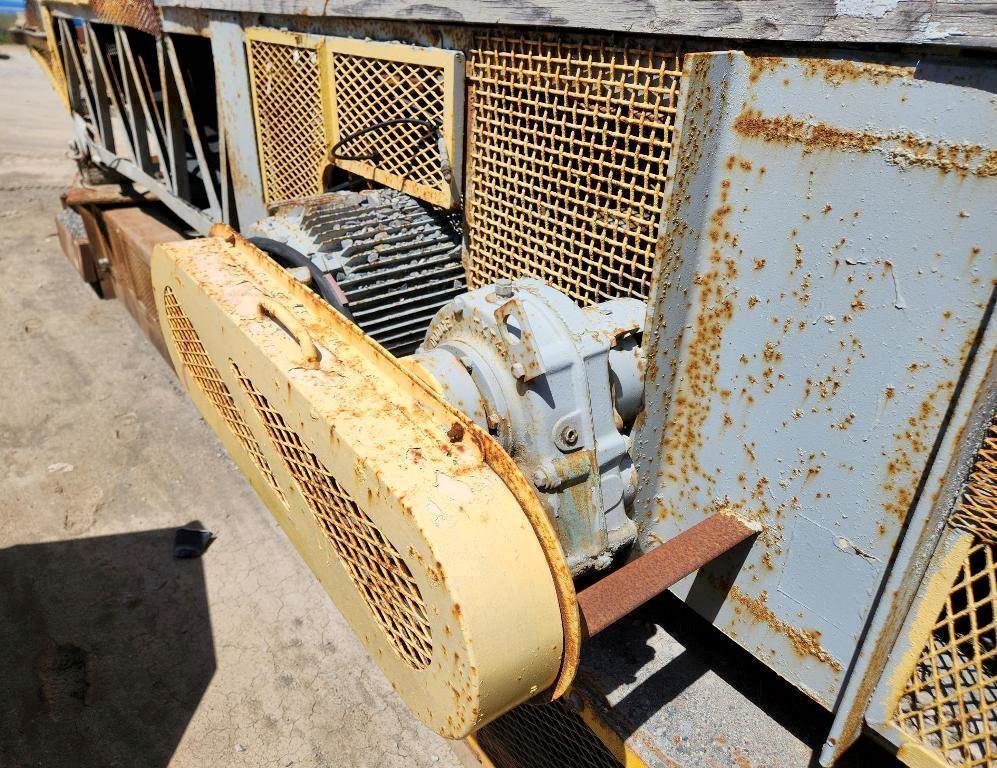

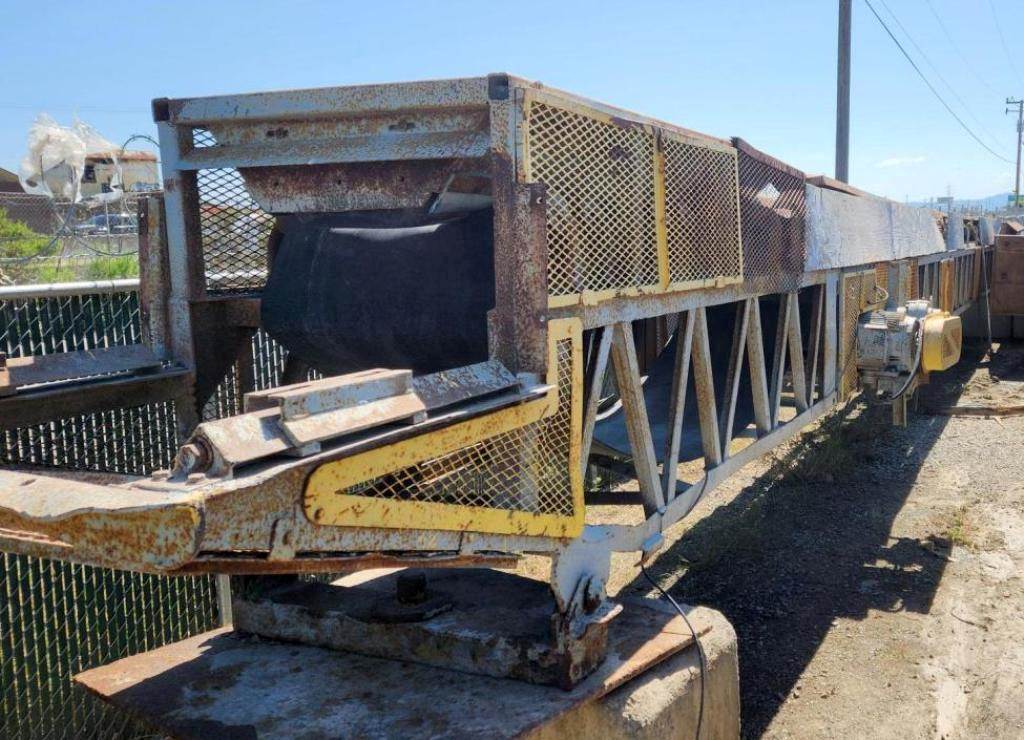

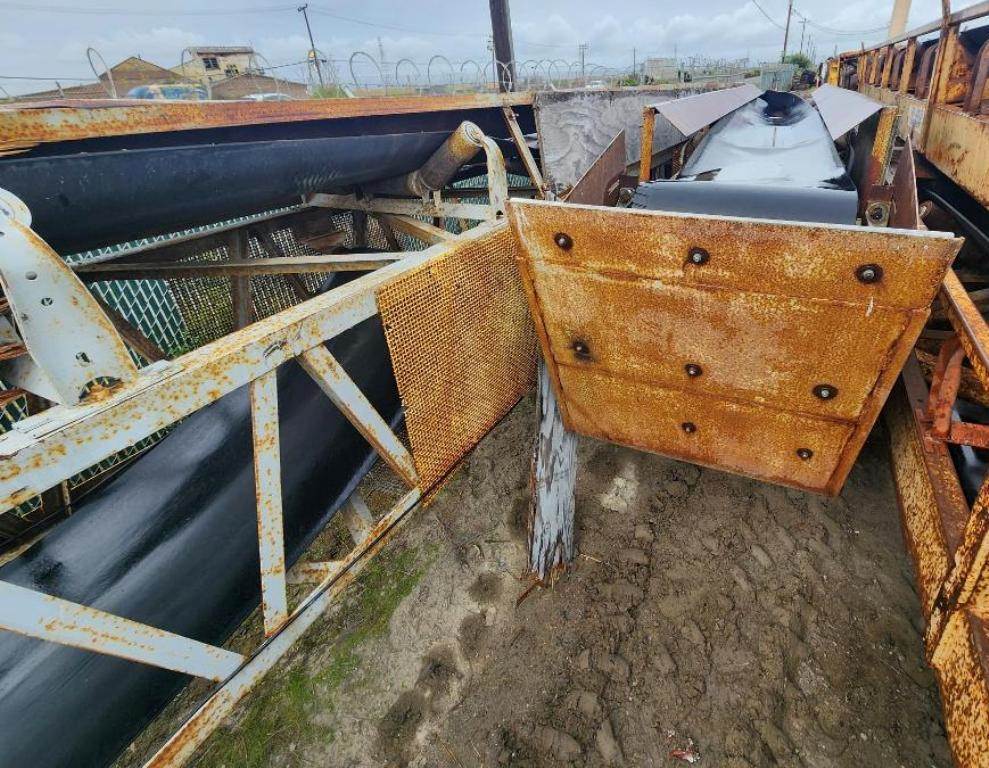

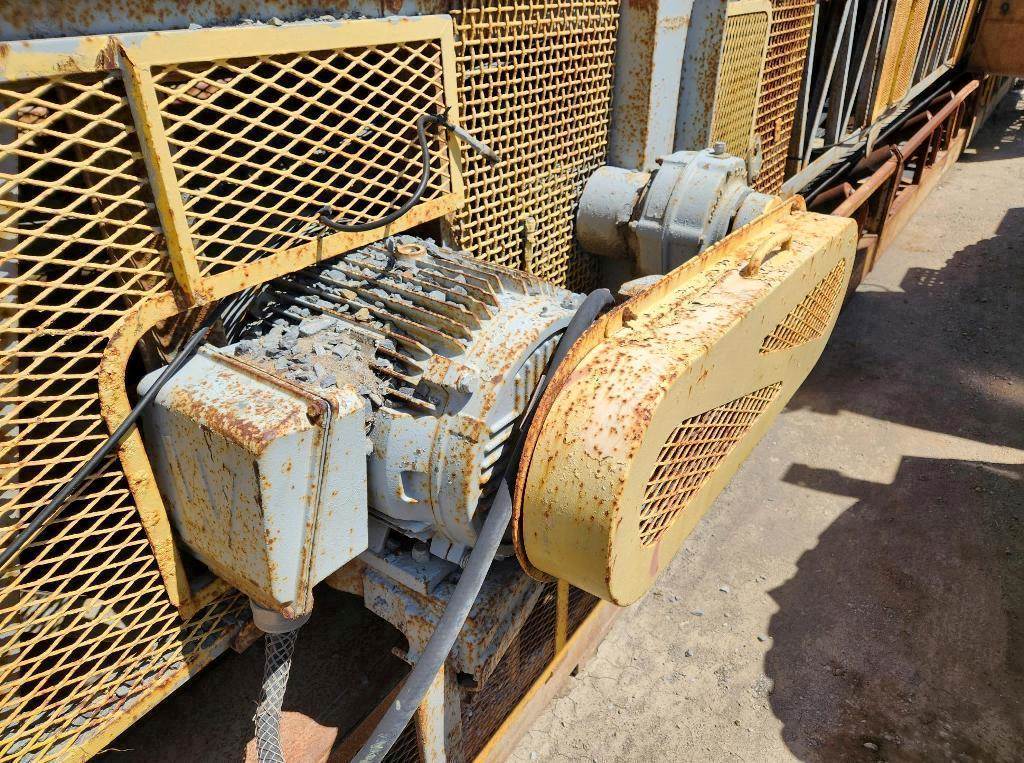

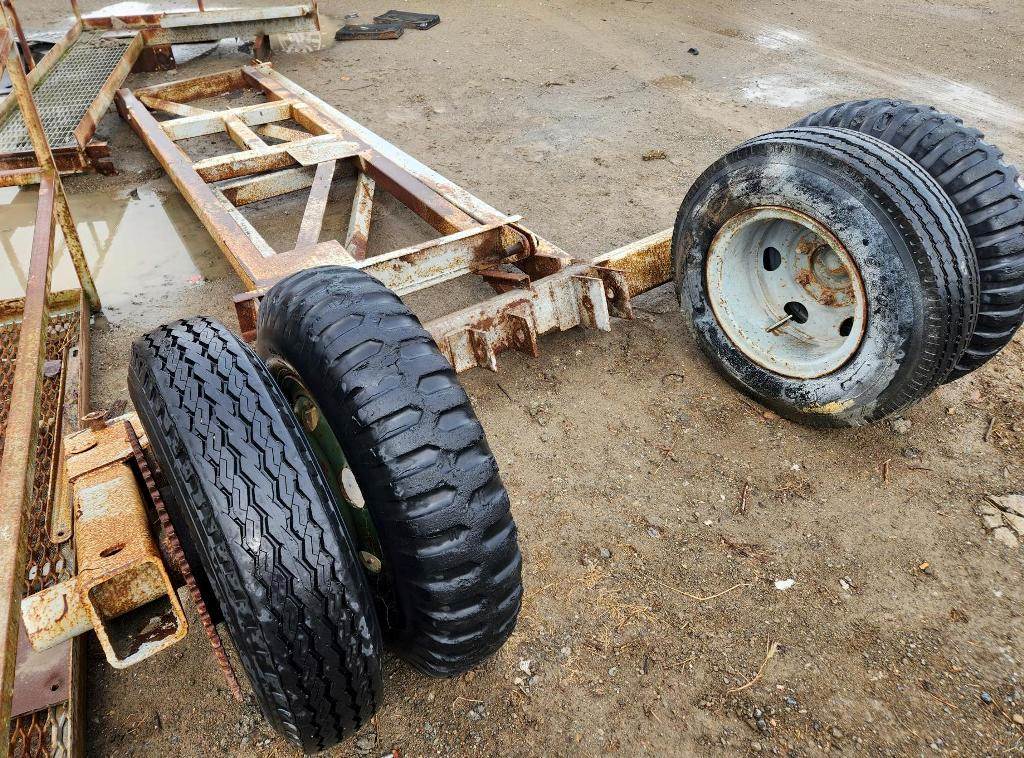

(1) – one – Radial Stacking Conveyor 30” wide x 80’ long, hinged-side folding 30” deep main frame-folds for transport, 5” diameter 20 degree idlers on 8” centers under hopper load point, 4” diameter 35 degree trough idlers for remainder of length, in-frame wrap drive assembly with 20 h.p. electric motor, Dodge TXT4A shaft mounted gear box, V-Belt drive with guard, receiving hopper with adjustable rubber skirting, wing type self-cleaning tail pully, rubber lagged drive pulley, screw take up assemblies, 2-Ply rubber conveyor belting, single axle dual tire adjustable height undercarriage with swivel hubs for travel or radial positions. Telescoping front support legs for pin-in-place height adjustment. Pivot plate under receiving hopper load point.

Used equipment.....Selling Price $16,500.00

Truck loading is included in the selling price.

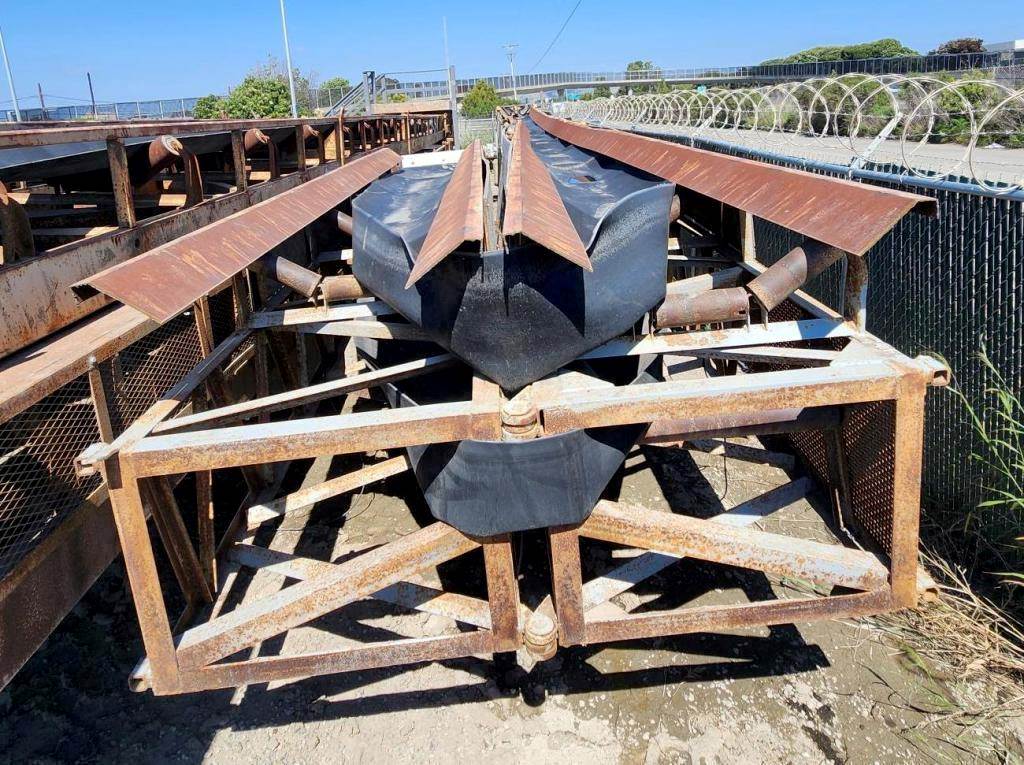

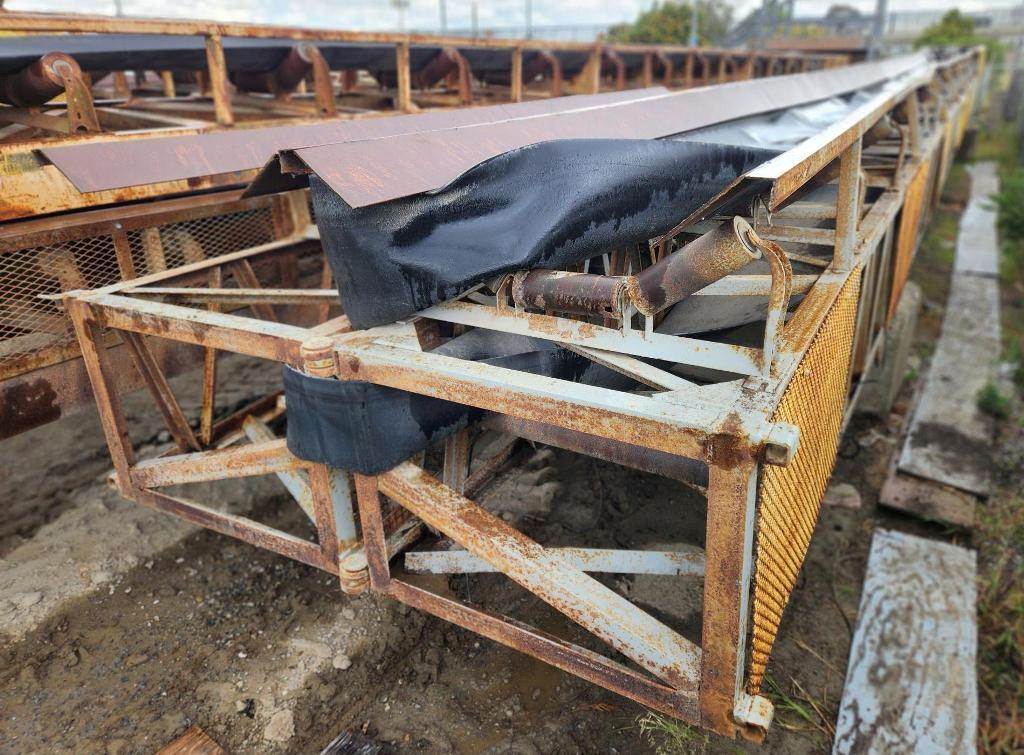

Condition: Fair. Tail pully, shaft & bearings removed to reduce belt tension for folding frame. Full length skirt rails bent inward as seen in the photos. Belting is dry but useable as is.

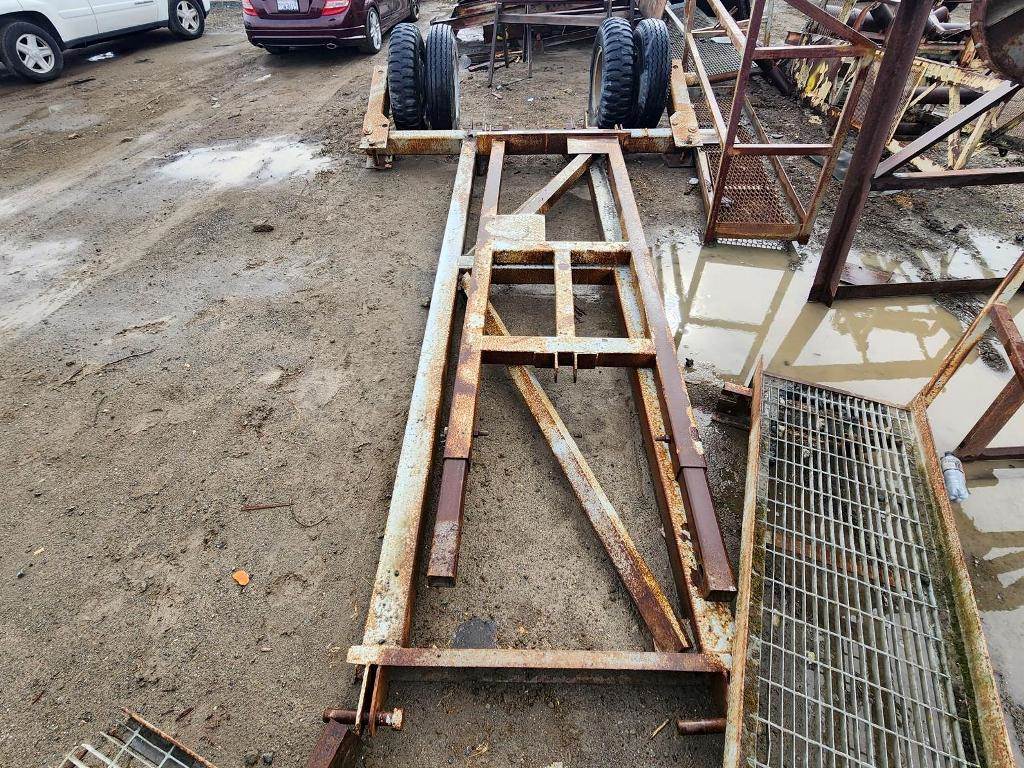

Transport: Conveyor frame: 63’ 3” long, under 8’ wide when folded. Weight estimate: 10,000 lbs. Separate undercarriage: 9’ 11” wide x 18’ long x 36” tall, Weight estimate; 1,500 lbs.
