Afc p/n A211B-12M High Pressure Solenoid VAlve The Afc A211B12M Is A

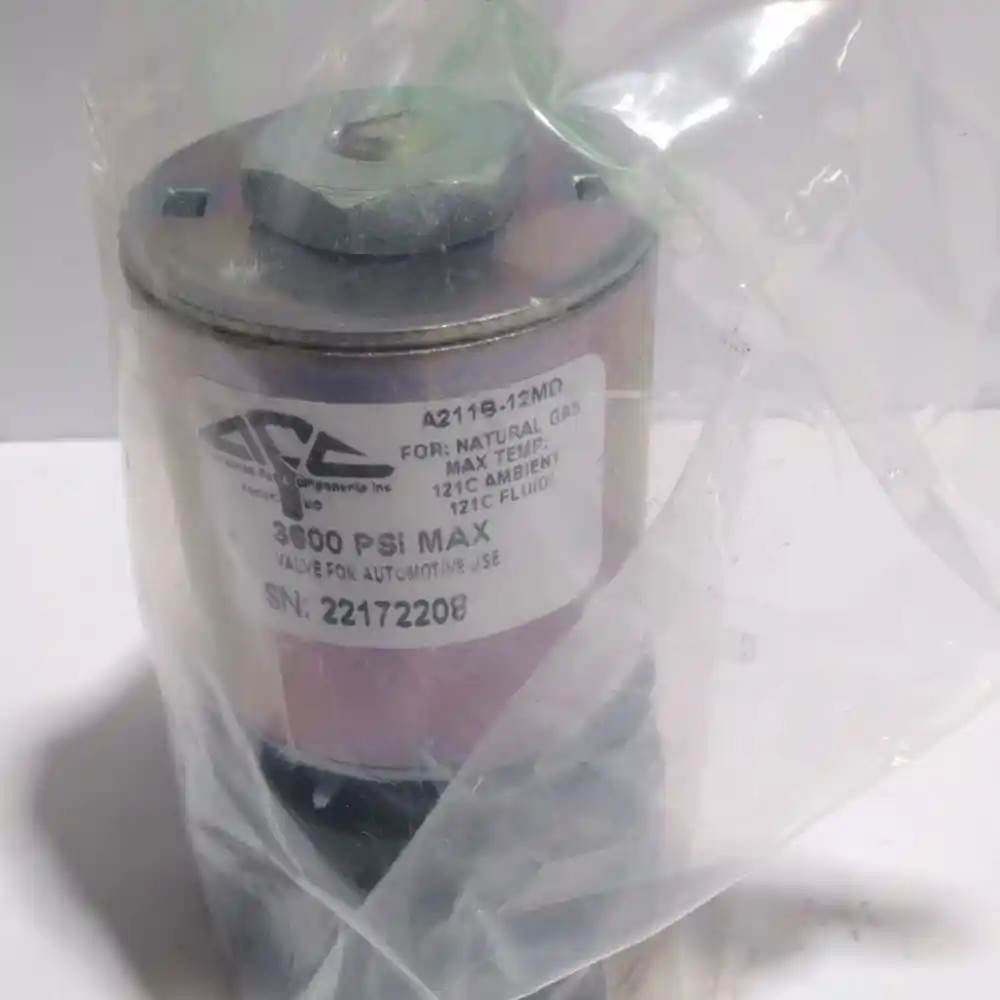

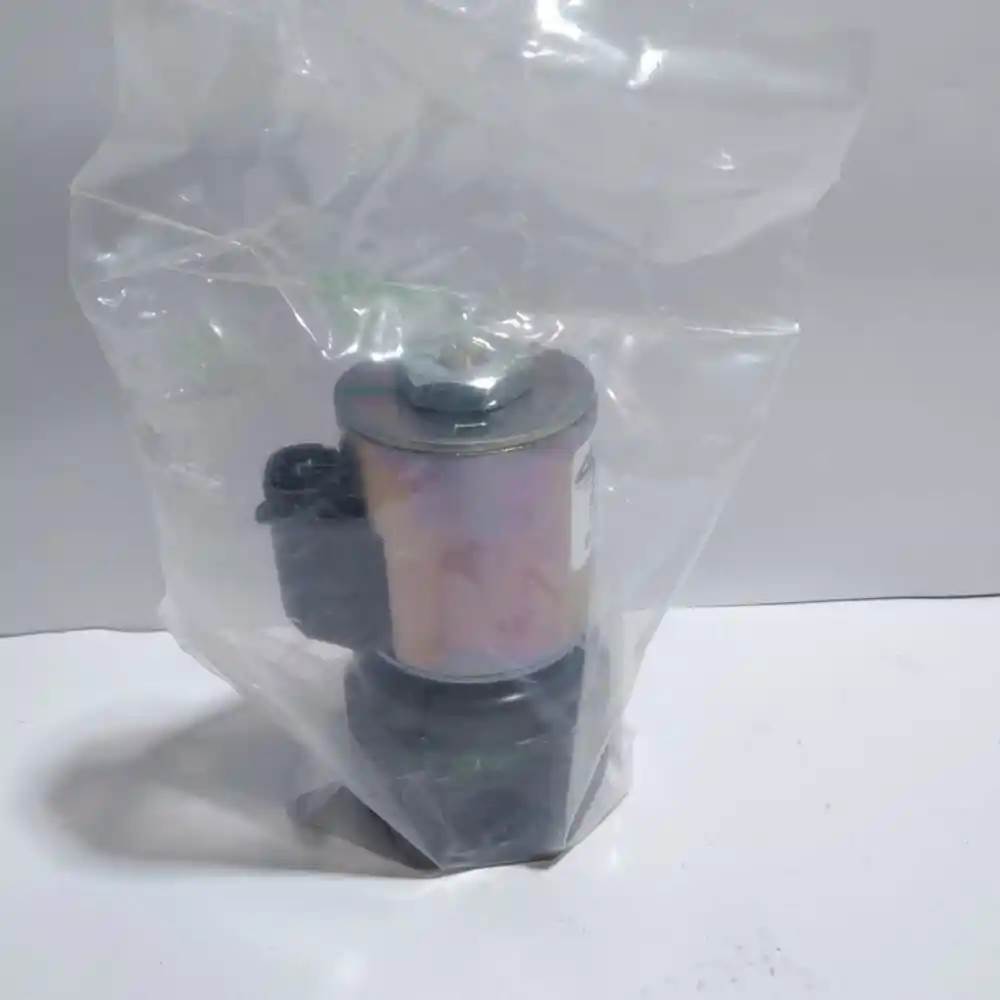

AFC p/n A211B-12M High Pressure Solenoid Valve The AFC A211B12M is a high-pressure, 2-way, normally closed solenoid shut-off valve, manufactured by Advanced Fuel Components (AFC). It is primarily designed for Compressed Natural Gas (CNG) applications in buses and trucks. This valve is built for heavy-duty performance and can operate in harsh environments, including those with dirty or wet gas. Here's a summary of its key features: High Pressure Rating: Rated for up to 3600 PSI (pounds per square inch), with the ability to operate up to 6000 PSI. Bubble-Tight Seal: Achieves bubble-tight leakage down to 40 PSI, ensuring minimal leakage even at lower pressures. Corrosion Resistant Construction: Made from durable materials including solid brass, plated steel, and anodized aluminum, for superior corrosion resistance. Temperature Range: Operates effectively in ambient temperatures ranging from -40 F to +250 F (-40 C to +121 C). Low Power Consumption: Draws only 1.0 amp nominal at 12V DC. Integrated Connector: Features an integrated Delphi Metri-Pack 150 connector for easier installation and wiring. Safety Tested: Every unit undergoes 100% functional testing for low/high pressure leaks and dielectric breakdown, and is ECER 110 certified for CNG applications. Fill-Through Capability: Allows for filling the tank while the valve remains in operation. Wide Compatibility: Compatible with a range of gaseous fuels and other common media, including CNG. This valve's robust design and features make it well-suited for high-pressure applications where reliability and durability are crucial, particularly in the demanding environment of commercial vehicle CNG systems., Core Charge: 0.00
