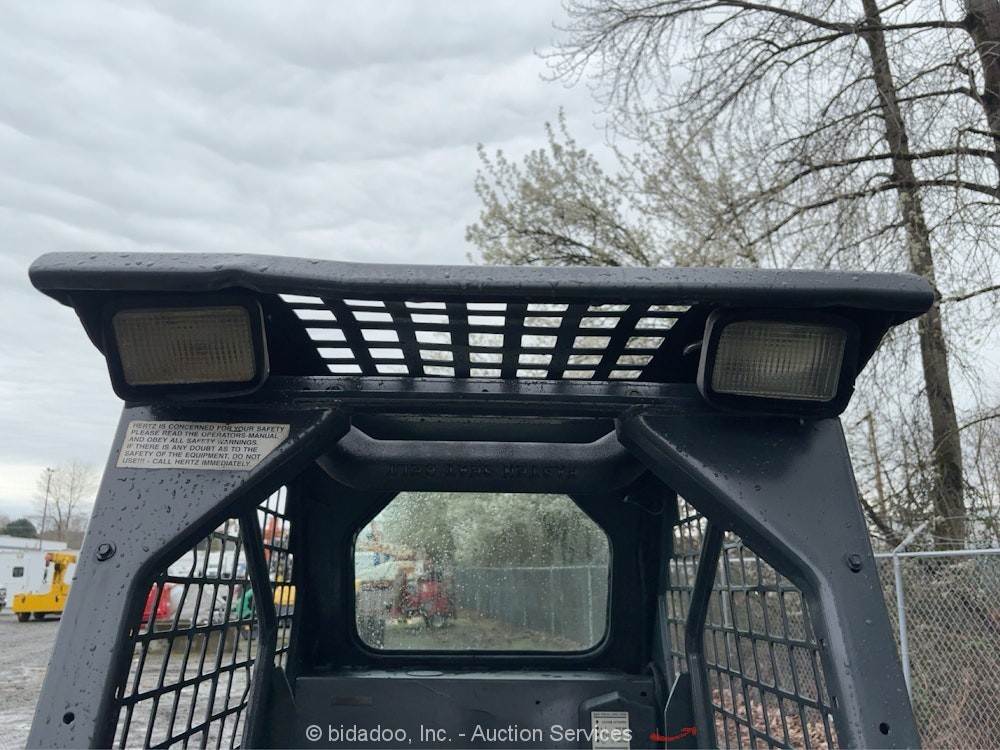

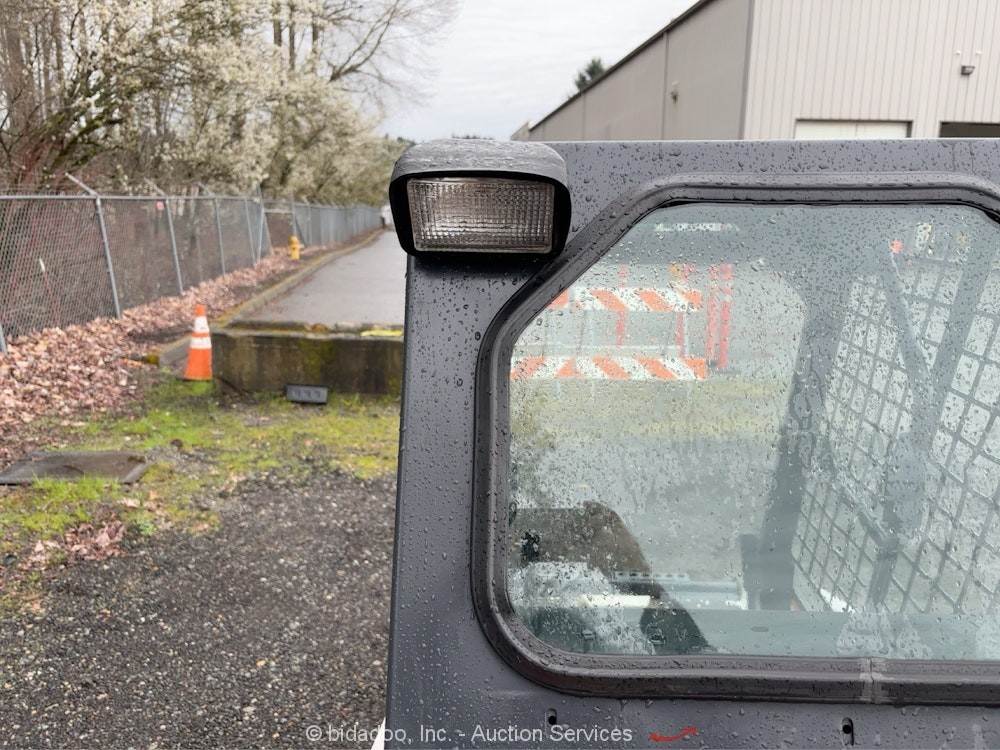

Work Lights
Auxiliary Hydraulics
Pneumatic Tires
Universal Compact Quick Coupler
Open Rops

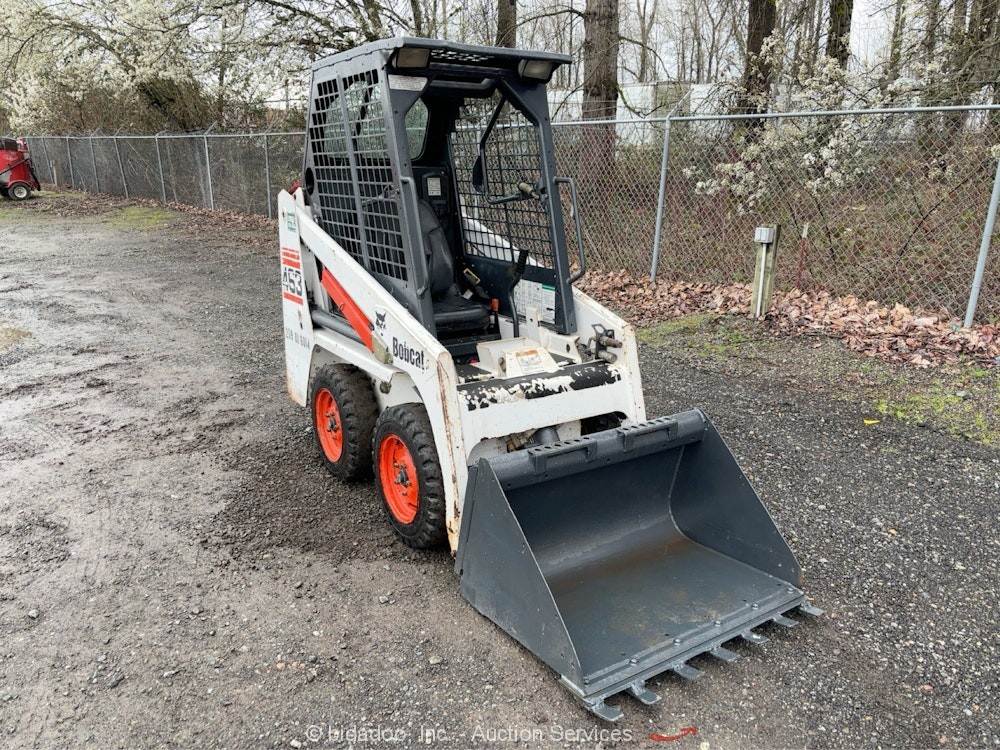

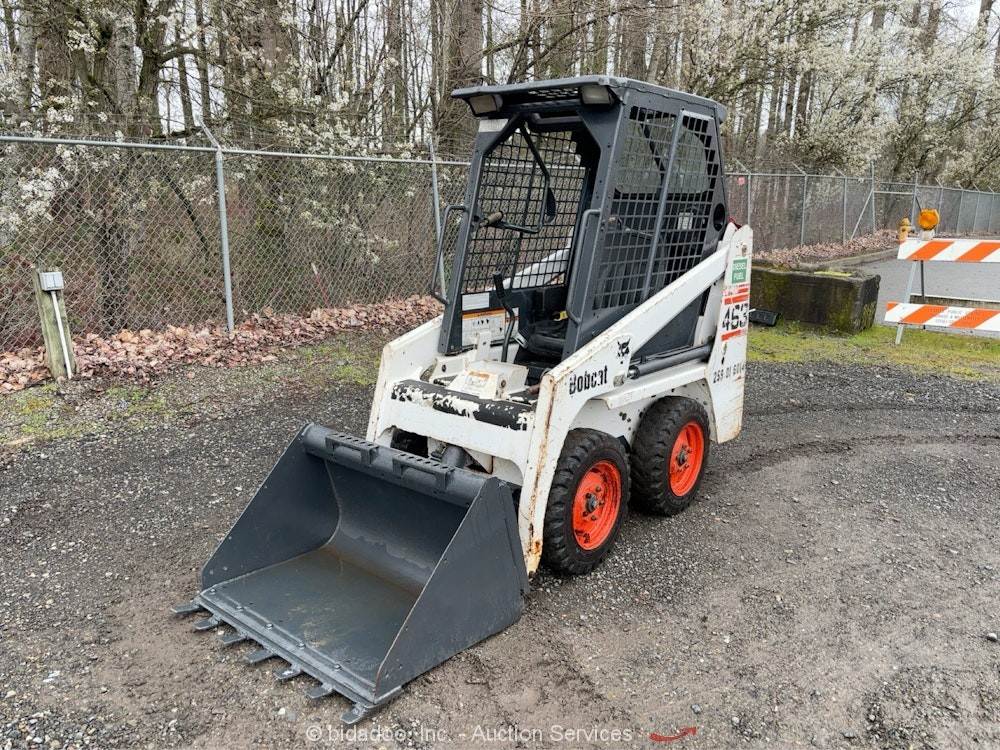

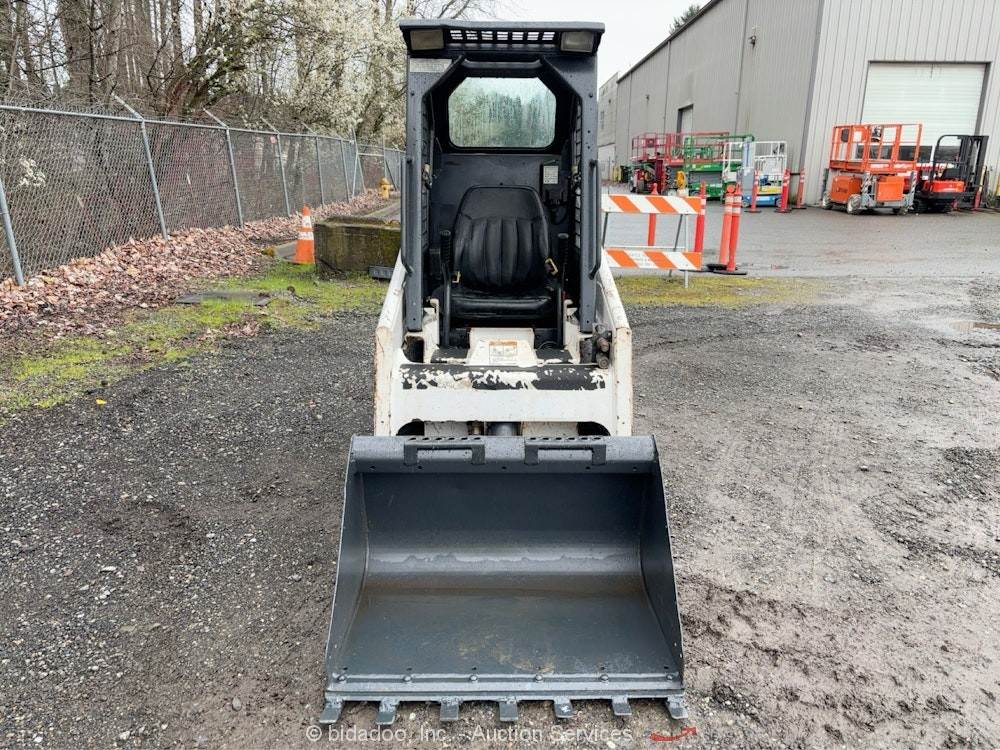

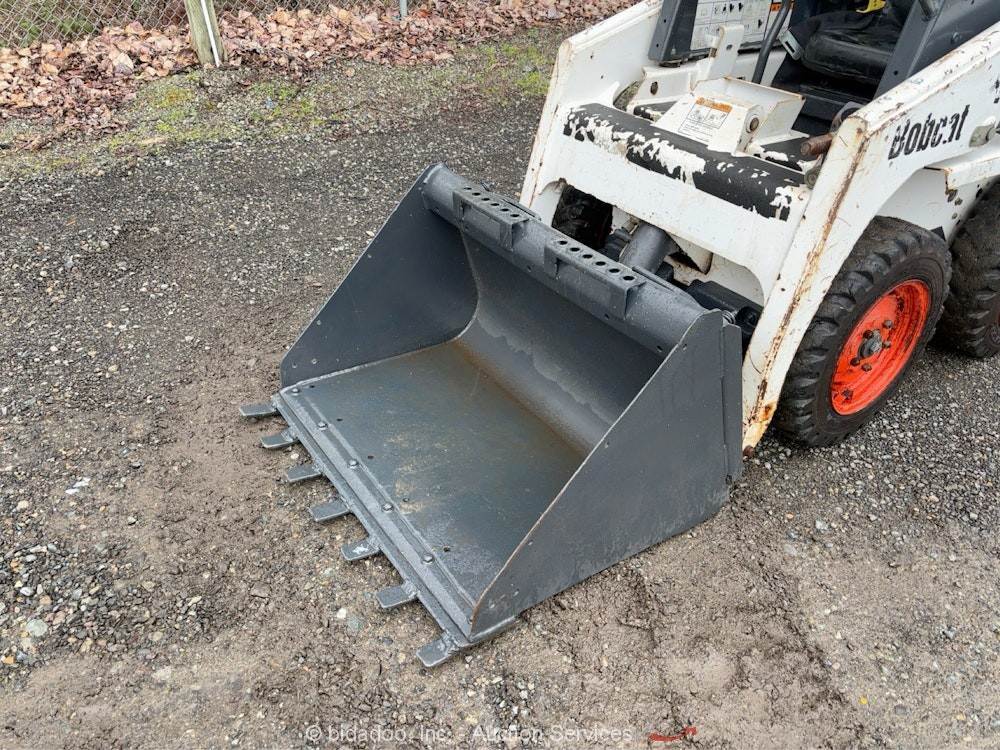

Bucket with teeth
Operating Capacity: 700 lbs
Travel Speed: 6.5 mph
Height
to Hinge Pin: 94.5 in
to Top of Cab: 71.4 in
Wheelbase: 28.4 in
Engine
Fuel Type: Diesel
Horsepower: 22.5 hp
D1005-E2B
Displacement: 61.1 cid
manufacturer: Kubota
Number of cylinders: 3.0
Cooling Method: Liquid
Power Mode: Diesel
Tire
Size: 23 x 5.70 x 12-4PR in
Type: Pneumatic
Dump
Height: 74.1 in
angle: 34.0 degrees
Reach @ Full Height: 18.5 in
Ground Clearance: 5.5 in
Loader Controls Type: Foot
Operator
Station: Open ROPS
Protection: ROPS/FOPS
Fuel Tank Capacity: 6.5 gal
Bucket
Type: General Purpose
Capacity: 6.0 cu yd
Width: 36.0 in
Range (Capacity): 0.2 cu yd
Rollback (Full Height): 97.0 degrees
Rollback (Groundline): 24.0 degrees
Transmission: Hydrostatic
Number of Speeds: Variable
Angle of Departure: 26.0 degrees
Maximum Operating Height: 123.3 in
Hydraulic Pump Flow (Standard): 10.0 gal/min
Tipping Load (SAE): 1405.0 lbs
Clearance Circle Front (w/Bkt): 61.3 in
Length
Less Bucket: 75.5 in
With Bucket (Dig/Carry): 100.8 in
Width Less Bucket: 35.4 in
