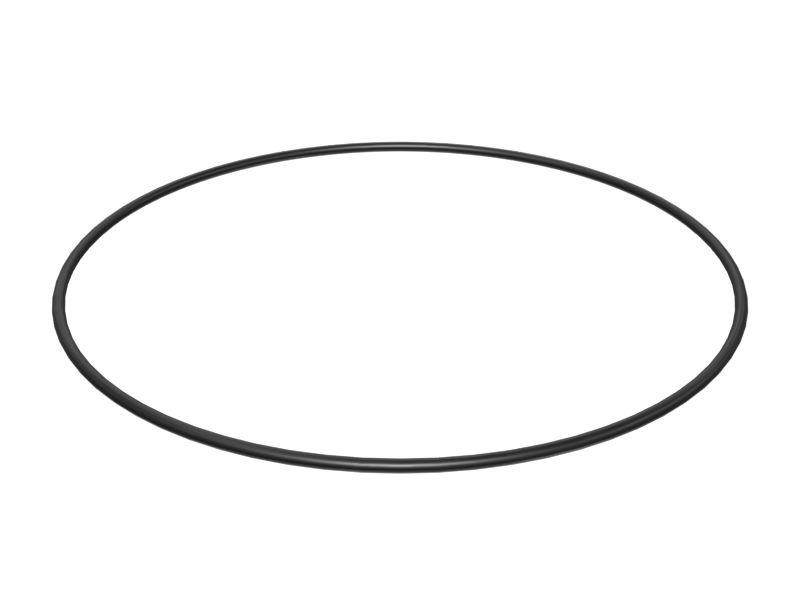

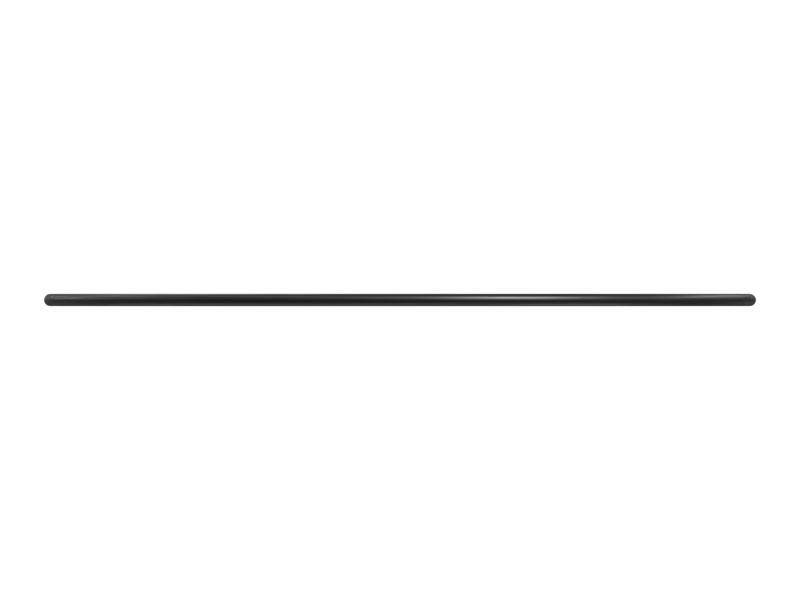

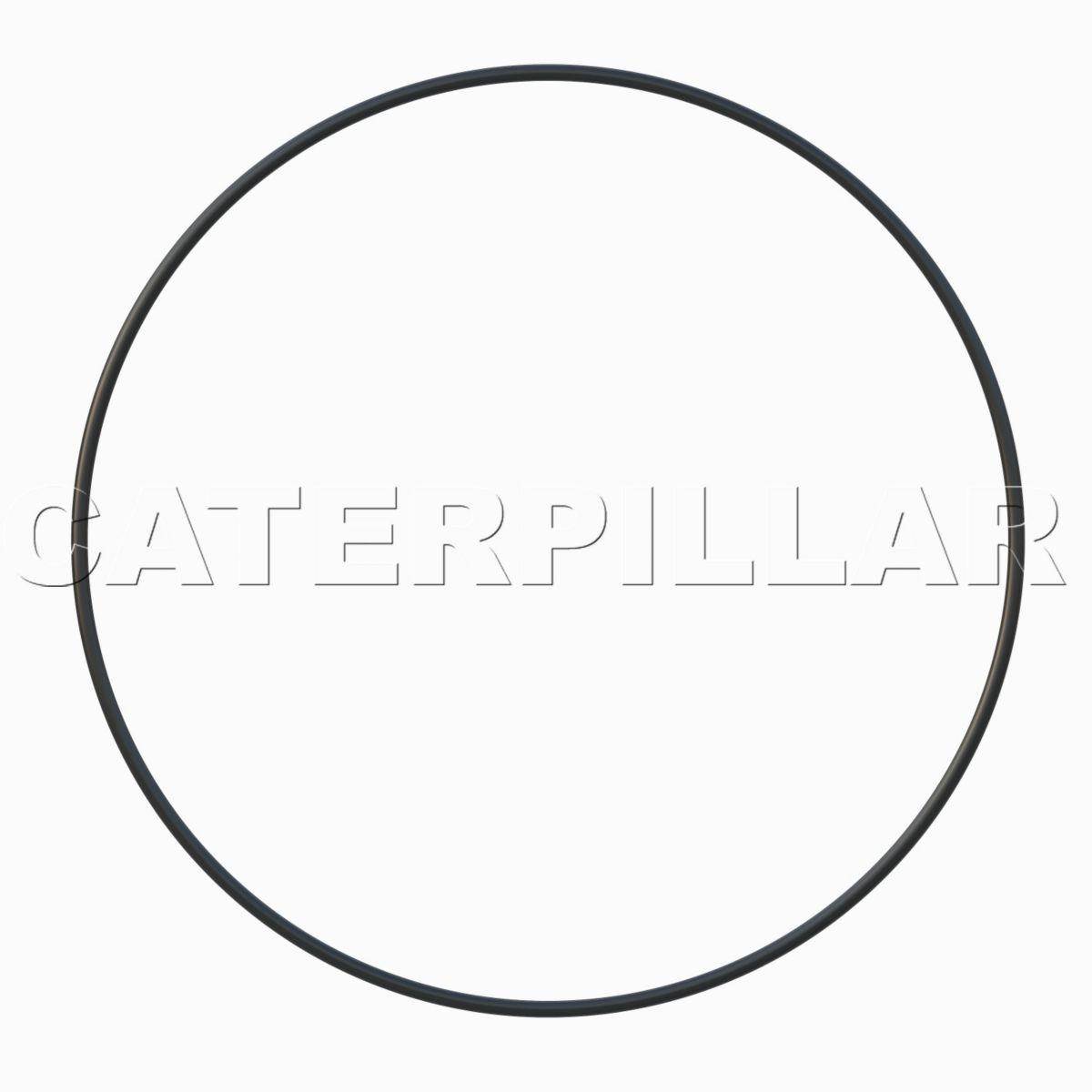

Caterpillar SEAL-O-RING 2275538 NEW

== Information in English ==

Type number: 2275538 - caterpillar

Brand: CATERPILLAR
Motor Types: C32
Condition: NEW
Similar Parts:
Properties:
Cross Section Diameter (mm)      3.53
Inside Diameter (mm)      202.79
SAE AS568 Dash Size      -266
Hardness (Shore A)      75
Outside Diameter (mm)      8.26
Color      Dark Blue
Material      FKM - Fluoroelastomer,FKM (75),FKM
Material Description      FKM rubber is capable of service temperatures of -40 to 150C and is resistant to air, fuel (including bio-diesel), lubricants and oils. FKM rubber should not be used in applications that require resistance to water or coolant.
Coating      PTFE coating protects the O-Ring from installation damage and provides ease of assembly.
Color Notes      Actual o-ring color may differ from image.
Notes      Dimensions and material descriptions provided for reference only.
Applications      High temperature applications requiring resistance to air, fuels, lubricants and hydraulic fluids
Not Compatible With      Amines; Brake fluids; Engine Coolant; Fire Resistant Fluids; Ketones; Steam; Water
Temperature (°C)      -40 - 175
Compatible With      Diester lubricants; Halogenated hydrocarbons (above 100 Deg. C); Highly resistant to compression set; Petroleum fluids; Phosphate ester fluids; Silicone fluids; Some acids
Seal Inside Diameter (mm)      202.79
Seal/O-Ring Type      Standard
Primary Sealing Material      Rubber

Applications suitable (detailed):
ENGINE      C32 MARINE C32B
PETROLEUM ENGINE      C32 C27
SHOVEL      6040
GENERATOR      SR5 SR4B
WHEEL-TYPE LOADER      993K 992K 990H 990K
TRUCK      775G 773G LRC 793D 793C 789C 777D 777G 777F 775G OEM 773G 775G LRC 773G OEM
MARINE ENGINE      C32B C32 C32 MARINE
PETROLEUM PRODUCTS      TH48-E70 C32 C27
OFF HIGHWAY TRUCK      777G 777 775 773
PETROLEUM PACKAGE      TH48-E70 CX35-P800
TRACK-TYPE TRACTOR      D9 D10T2 D10 D9T D10N D10R D10T D11T
MOTOR GRADER      24
HYDRAULIC SHOVEL      6020B 6015B 6015 6040 6030
OFF-HIGHWAY TRUCK      773F D10R 775F 793C 777 777C 777D 777B 777G 777E 777F
ENGINE - GENERATOR SET      C32 C27
EXPANDED MINING PRODUCTS      6015B LD350 6020B 6040 MD6310 6030 T2 6030 T4 6040 FS 6030
LOCOMOTIVE ENGINE      C32
ENGINE - INDUSTRIAL      C32 GENSET
GENERATOR SET      DE1400 D1250 DE1000S C32 GEN SET D1000 DE1250 C32 GENSET C27 C32 DE1500 DE1250S D800
UNDERGROUND ART TRUCK      AD60 AD55B AD63
WHEEL DOZER      844 854K 844H 844K
ROTARY DRILL      MD6250 MD6310
UNDERGROUND ARTICULATED TRUCK      AD60
WHEEL TRACTOR-SCRAPER      657 651
ENGINE - MACHINE      C27
WHEEL LOADER      993 992 993K 992K
GEN SET ENGINE      POWER SYS DE1100 DE800S
INDUSTRIAL ENGINE      C32 C27
MARINE AUXILIARY      C32
PETROLEUM GEN SET      C32


/stock/engine-parts/caterpillar-o-ring-seal-2275538-new/36290
