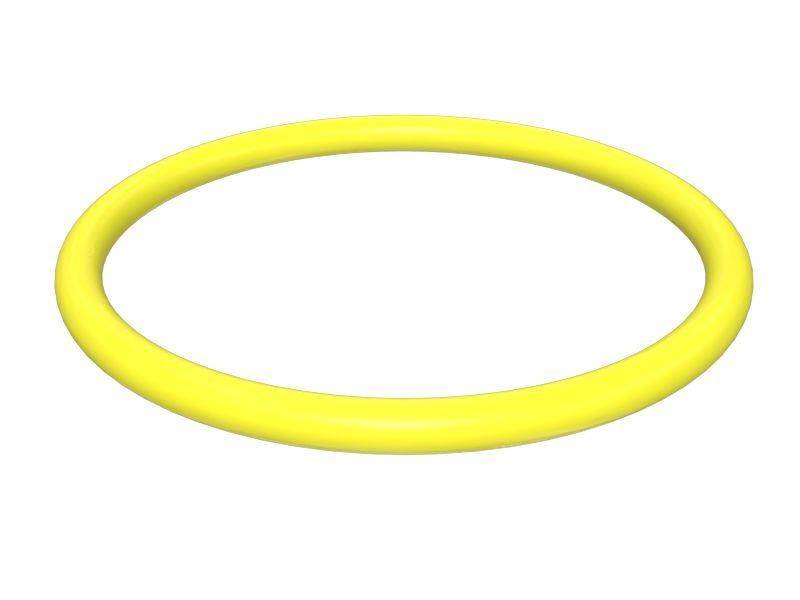

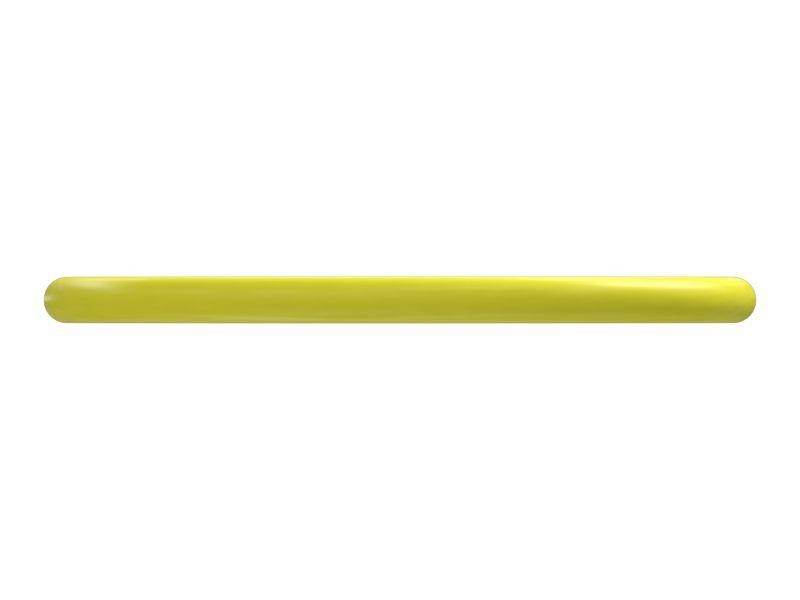

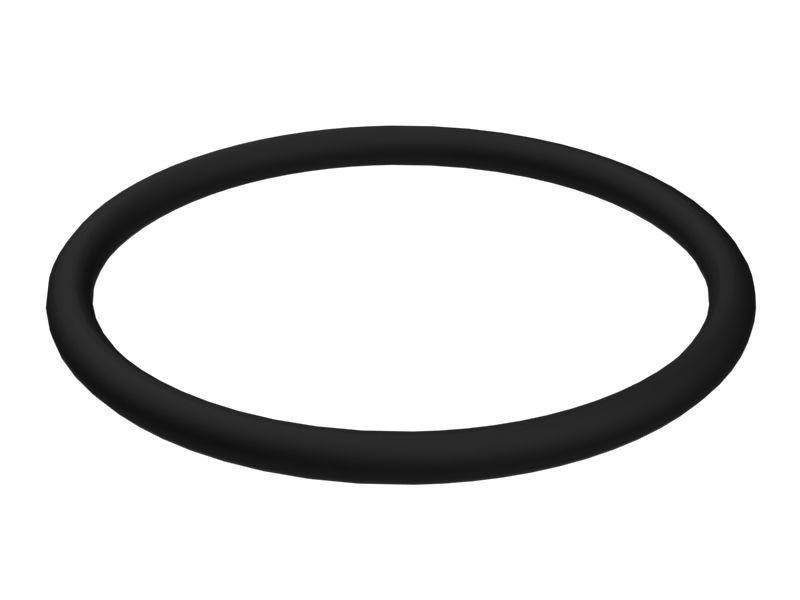

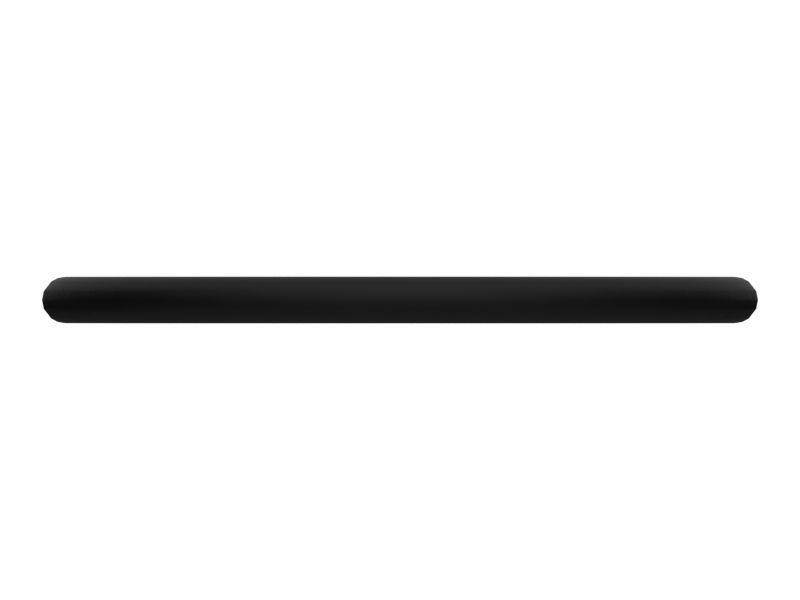

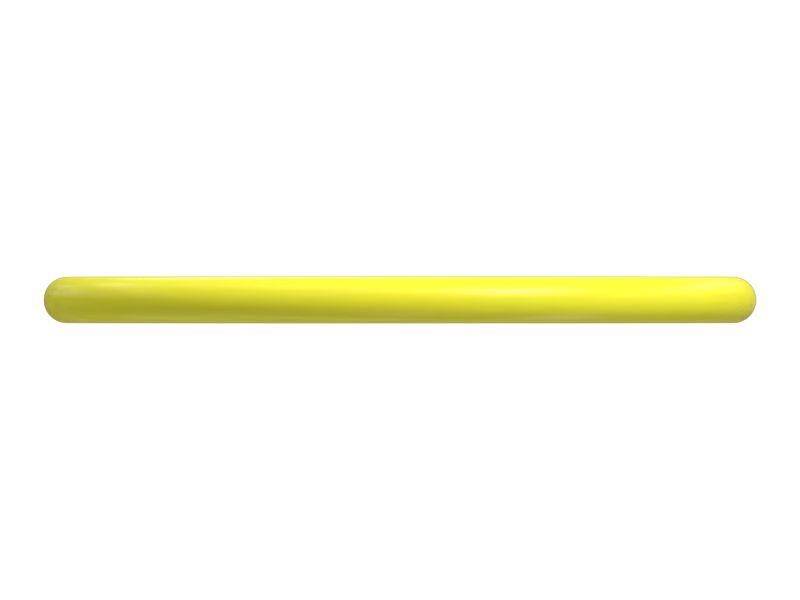

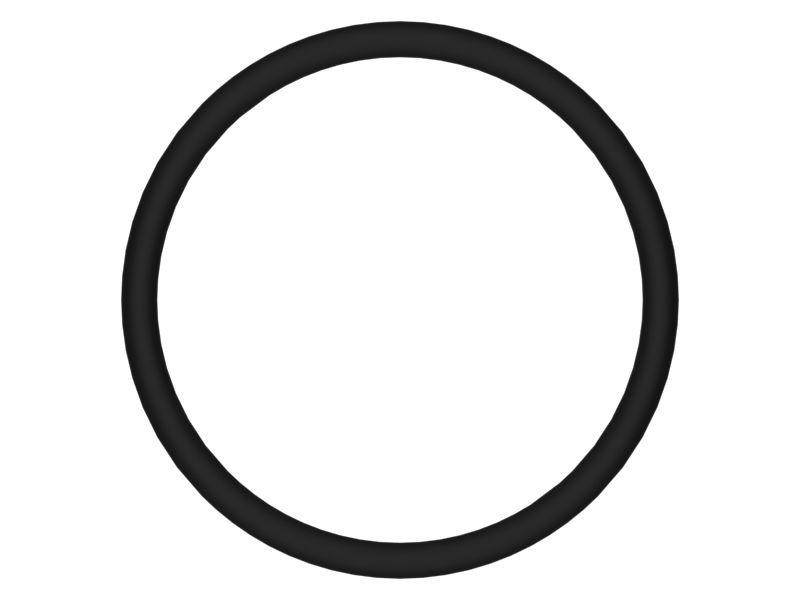

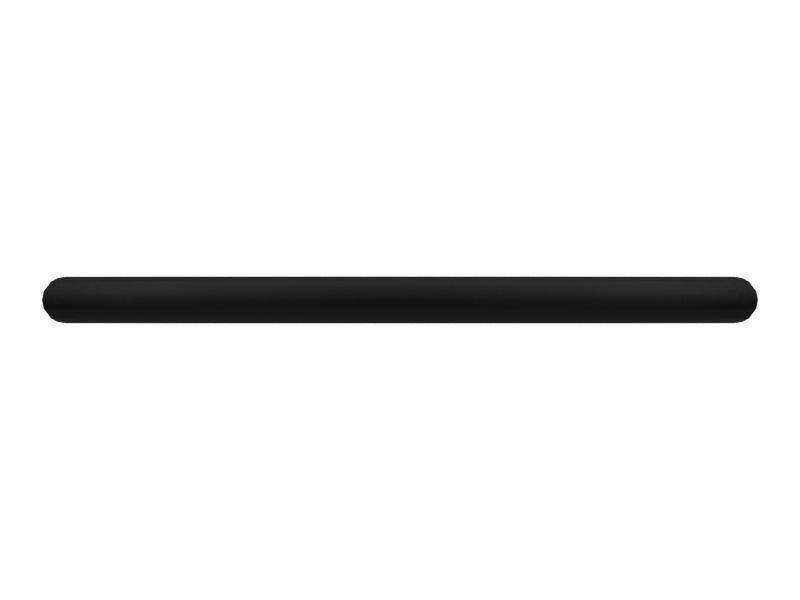

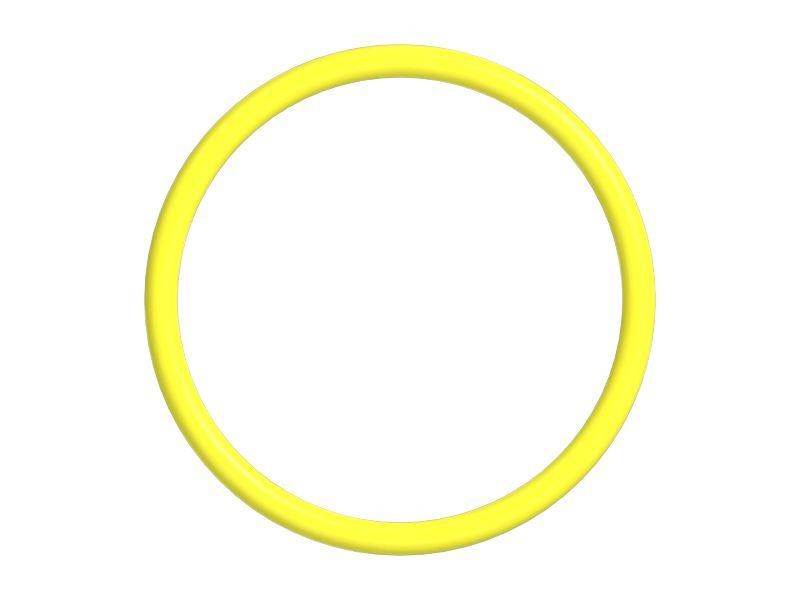

Caterpillar SEAL O-RING 5H7704 NEW

== Information in English ==

Type number: 5h7704 - caterpillar

Brand: CATERPILLAR
Motor Types: 3306
Condition: NEW
Similar Parts:
Properties:
Cross Section Diameter (mm)      6.99
Inside Diameter (mm)      94.61
SAE AS568 Dash Size      0
Material      Silicone (70),VMQ - Silicone,Silicone (VMQ)
Material Description      Silicone (VMQ) rubber is capable of service temperatures of -55 to 150C and is resistant air. Silicone rubber should not be used in applications that require resistance to fuel, oil and coolants.
Outside Diameter (mm)      4.28
Hardness (Shore A)      70
Coating      None
Color      Yellow
Color Notes      Actual o-ring color may differ from image.
Notes      Dimensions and material descriptions provided for reference only.
Applications      Electrical system seals; High temperature air seals; High temperature static grease seals
Not Compatible With      Acetone; Aromatic hydrocarbons; EP oil; Fuel oil; Gasoline; Ketones; Low aniline point oils; Petroleum oils; Steam & hot water
Compatible With      Air; Diacetone alcohol; Ethylene glycol; Extreme high/low temperatures; High aniline point oil; Iso-butyl alcohol; Ozone & UV light; Polyglycol
Temperature (°C)      -46 - 150
Seal Inside Diameter (mm)      94.61
Seal/O-Ring Type      Standard
Primary Sealing Material      Rubber

Applications suitable (detailed):
WHEELED EXCAVATOR      W330B
ARTICULATED DUMP TRUCK      D400E II D250E II 740 D350D D350C 735 D35C D250E D25C D25D D300B D300E D300D D300E II D30D D30C
EXCAVATOR      330 L 350-A 225B 225D 330B L 330B LN 330-A L 330 LN 229D 229 225 330-A L 231D 235 330-A 235B 235C 235D 330-A LN 245 330B
PETROLEUM ENGINE      C32
PIPELAYER      572R 561C 572F 572G 571G 571F
WHEEL-TYPE LOADER      980C 980B 980G 990 980 988 950 990 II 966C 966E 966D 966G 966F 966R 966F II 980G II 972G 970F
CHALLENGER      70C 65 65C 65B 65D
TRUCK      773E 773D 769D
SOIL COMPACTOR      825G II
REMAN ENGINE      3406E
MARINE ENGINE      3306B 3306
GENERATOR      SR4
WHEEL SCRAPER      637G 627F
ENGINE - TRUCK      3406B 3306 1673B 1673C 1673 1674 1693 3306B
WHEEL TRACTOR      623G 621G 627G 627F 637E
TRACK-TYPE TRACTOR      D6H XL D6H XR D6D SR D6G2 LGP D6GC D6H II D7R LGP D6R II D6F SR D5B 57H D5M D6E SR D6C D6D D7G2 D6R 7 5 D6E 6 D6G 4 D6H D7R D7F D6G SR D7G D7H D5 D8L 55 57 143 140 141 D9R 6A D9N 153 D6G2 XL 7A 6S 163 7U 7S LGP 7S D10N 7SU D10R D11N D11R D7R XR
LOAD, HAUL, DUMP      R2900 R2900G
MARINE PRODUCTS      D330C D342C D330A D353E D353D D353C D398A D398B D399 D337F D379A D379B D342 D336 D333C D333A D334
MOTOR GRADER      160H ES 12H NA 140B 140H 140G 16G 140H NA 140 143H 14G 14E 12H 12G 120 160H 12F 12E 160H NA 12H ES 14H NA 163H NA 140H ES
OFF-HIGHWAY TRUCK      773E 773D 773B 775B 771D 769 769B 768B
ENGINE - GENERATOR SET      3306B 3456 C32 D379B D399 3406 SR4 D398B 3306 3406B
TRUCK ENGINE      C-18 C-15 C-16 3306 1673C 3406E 3406C 3406B C16 3306C 3306B
WHEEL-TYPE SKIDDER      528 528B 545
TRACK-TYPE LOADER      955H 955L 955K 977 983 973 955 951 983B 973C 951B 977H 977L 977K
EARTHMOVING COMPACTOR      815F 815B 826G 826C 826B 825B 825C 826G II 816 815 816F 816B
ENGINE - INDUSTRIAL      G399 G398 D398B D353C D353D D353E G379 D379B D379 G353D D342C D330C D333C D342 D343 3306C G342C D398 D399 G379A 3406B 3406 G343
GENERATOR SET      DE1400 DE1000S D1000 C27 C32 DE1250S D800 C32 GEN SET DE1250 3306B DE1500
MINING EXCAVATOR      5110B
INDUSTRIAL ENGINE      3406E 3406C 3408E 3306B D333C 3406 C-15 C-16
WHEEL DOZER      834 824B 844 814B 824G 824C 814F 814 824 824G II
UNDERGROUND ARTICULATED TRUCK      AE40 II AD55 AD45 AD30
WHEEL TRACTOR-SCRAPER      615 611 631D 631G 627 623 621 637 621S 623B 623G 623E 657B 621E 621B 633D 621F 621G 627B 639D 627G 615C 627E 637B 637E 637D 637G 641 657 651 666 615C II
FOREST PRODUCTS      227
ENGINE - MACHINE      3306
WHEEL LOADER      972G 980G II 966G 924G 980G
GEN SET ENGINE      3406C 3406E 3406B 3408B 3408C DE1100 3304B 3306B DE800S 3408
ARTICULATED TRUCK      D350E II


/stock/engine-parts/caterpillar-seal-o-ring-5h7704/36475
