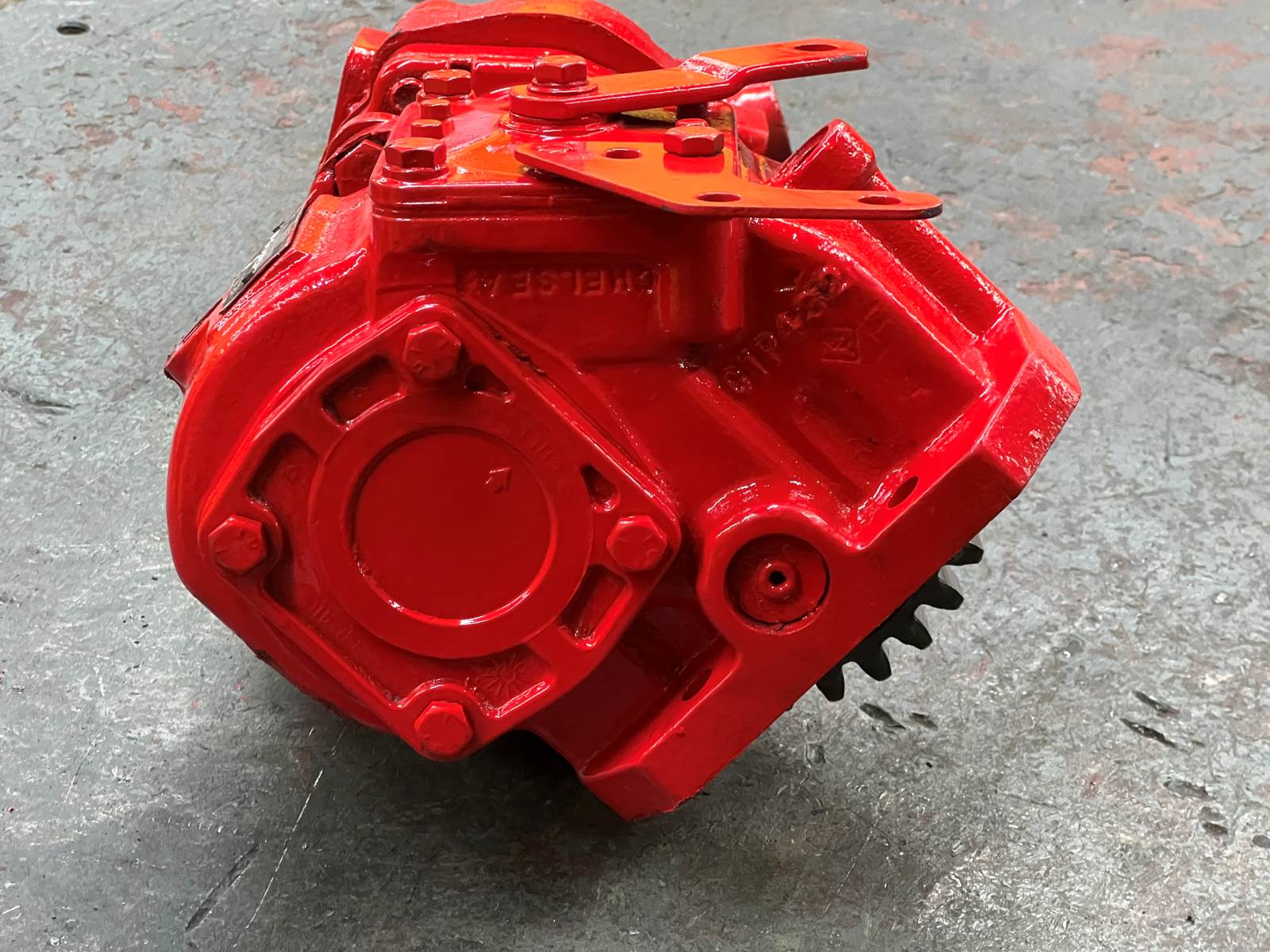

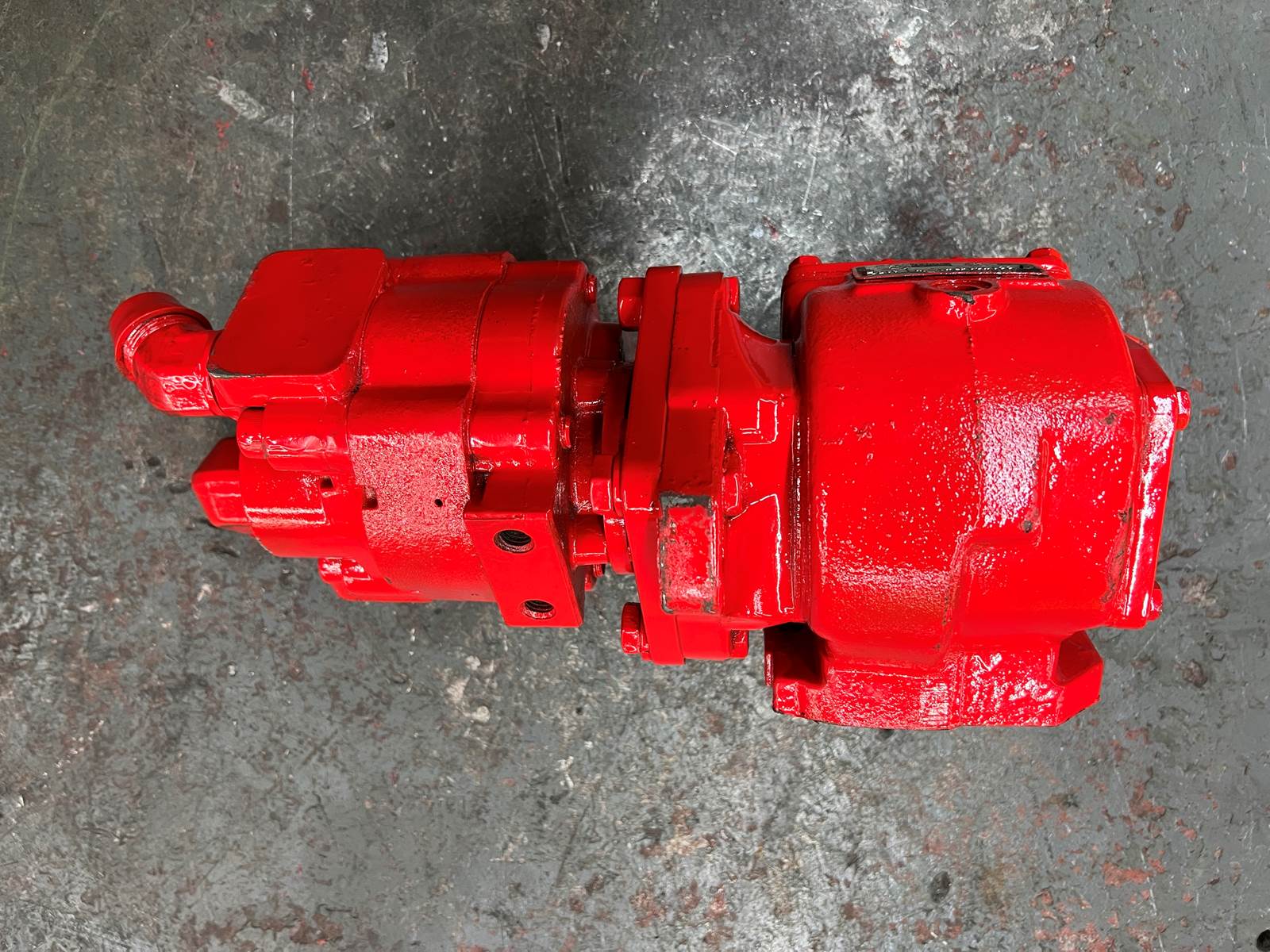

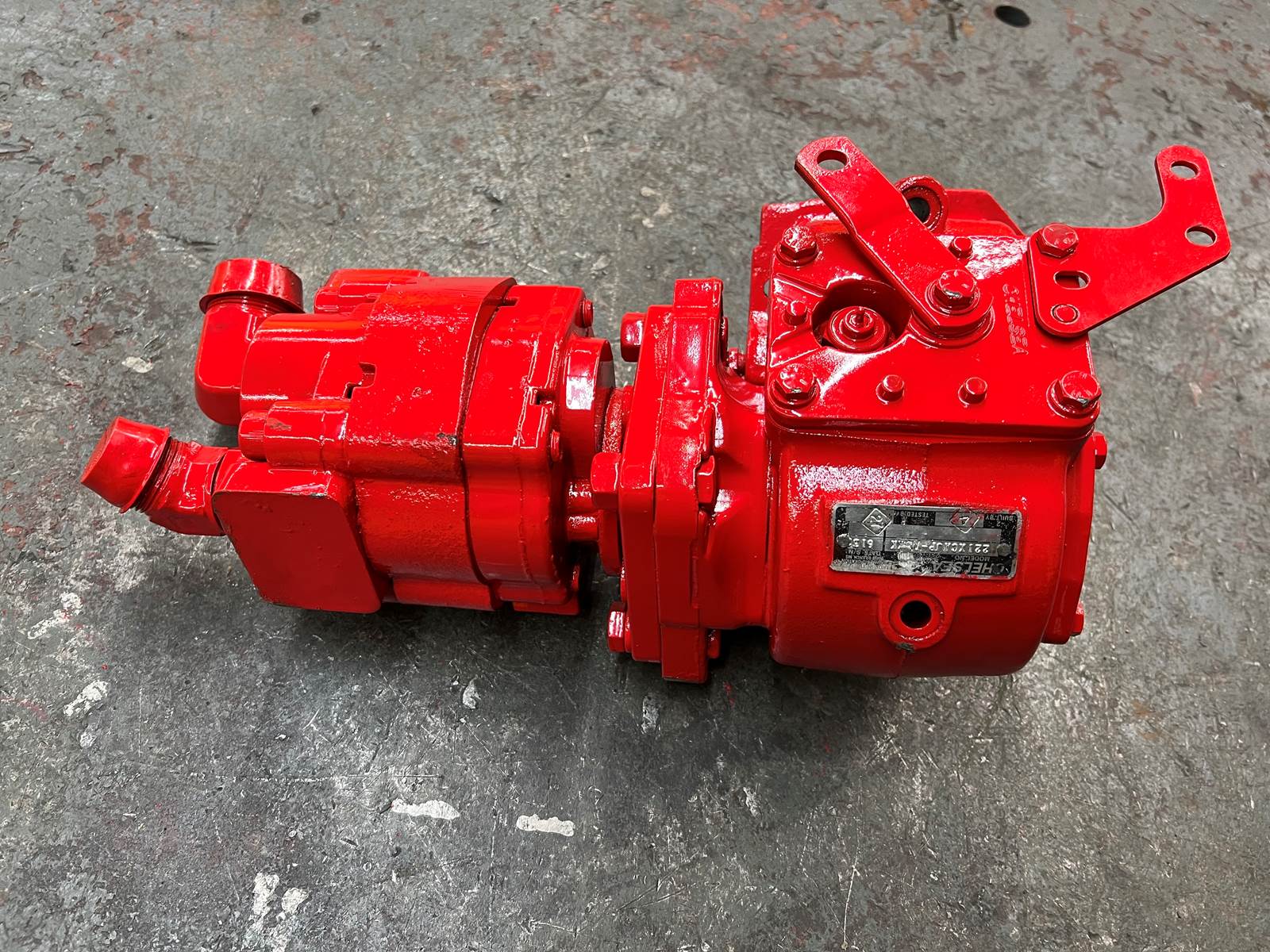

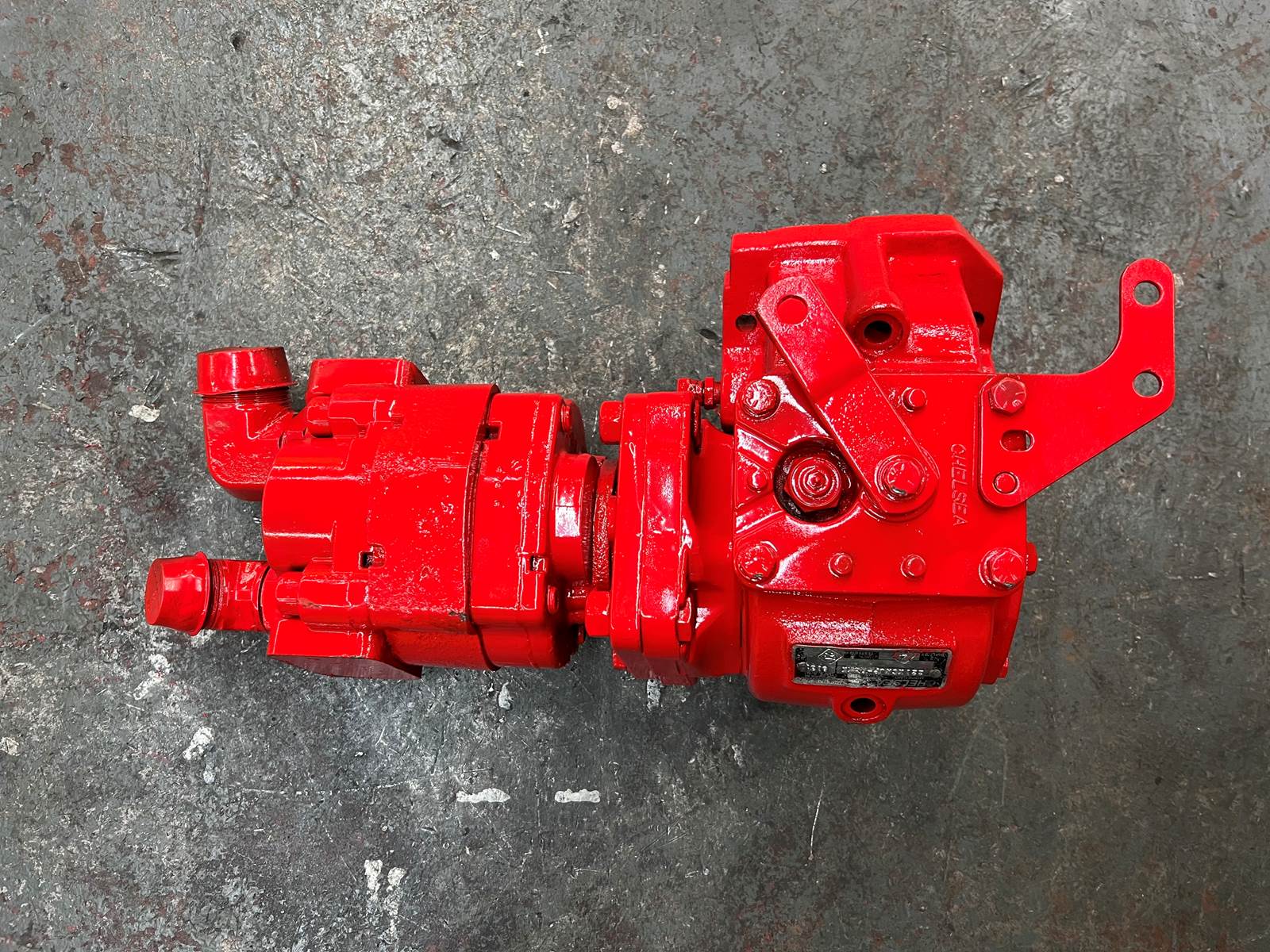

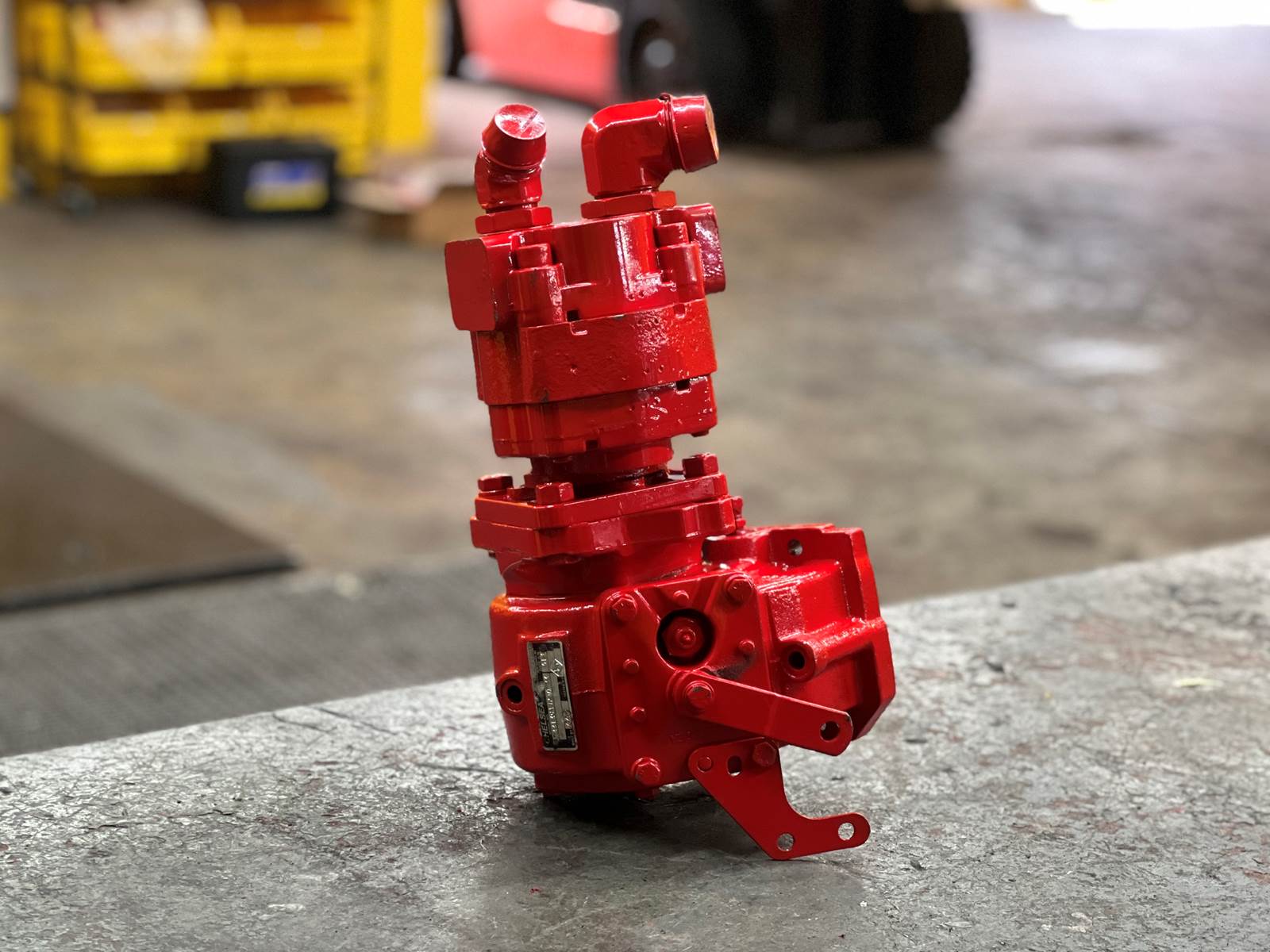

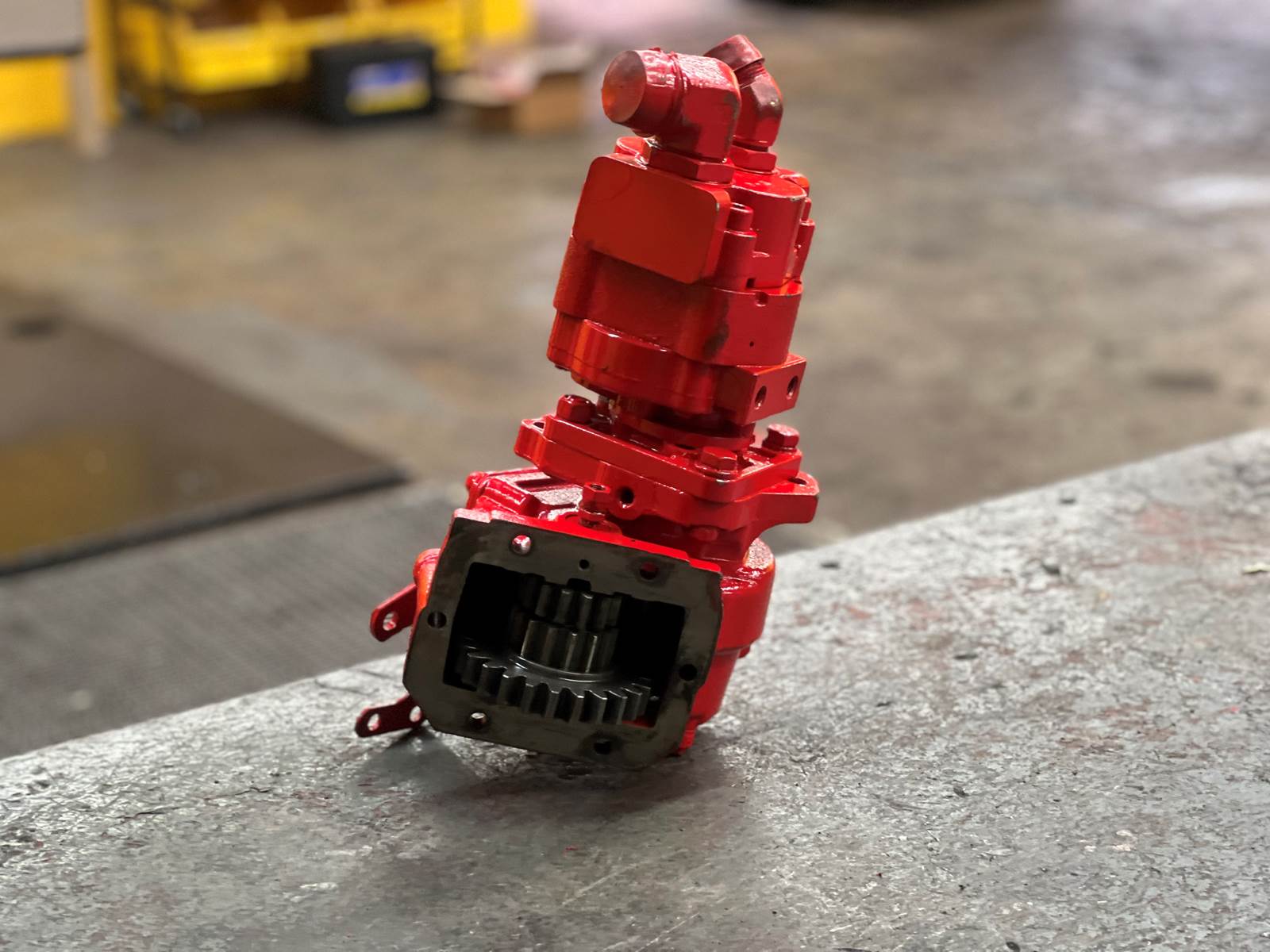

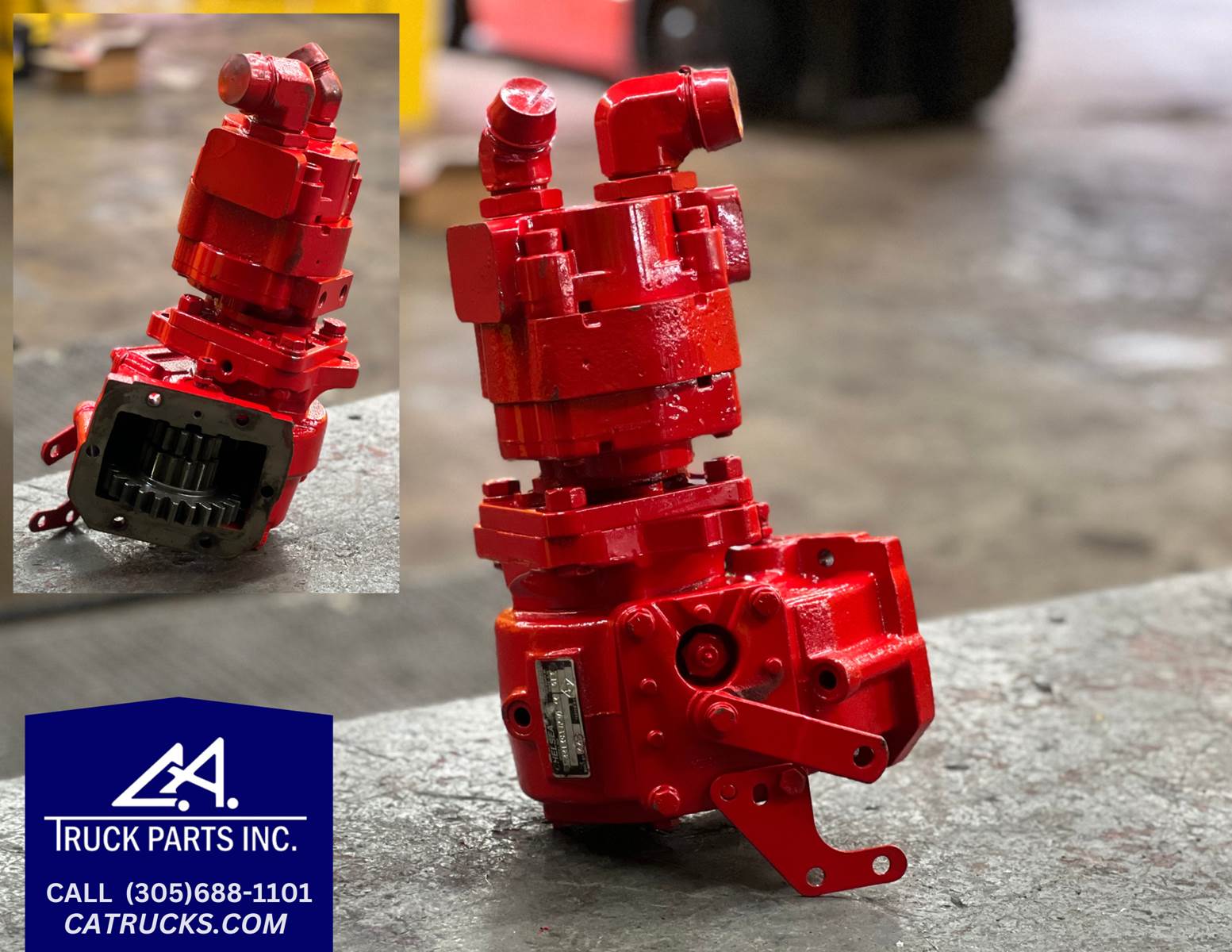

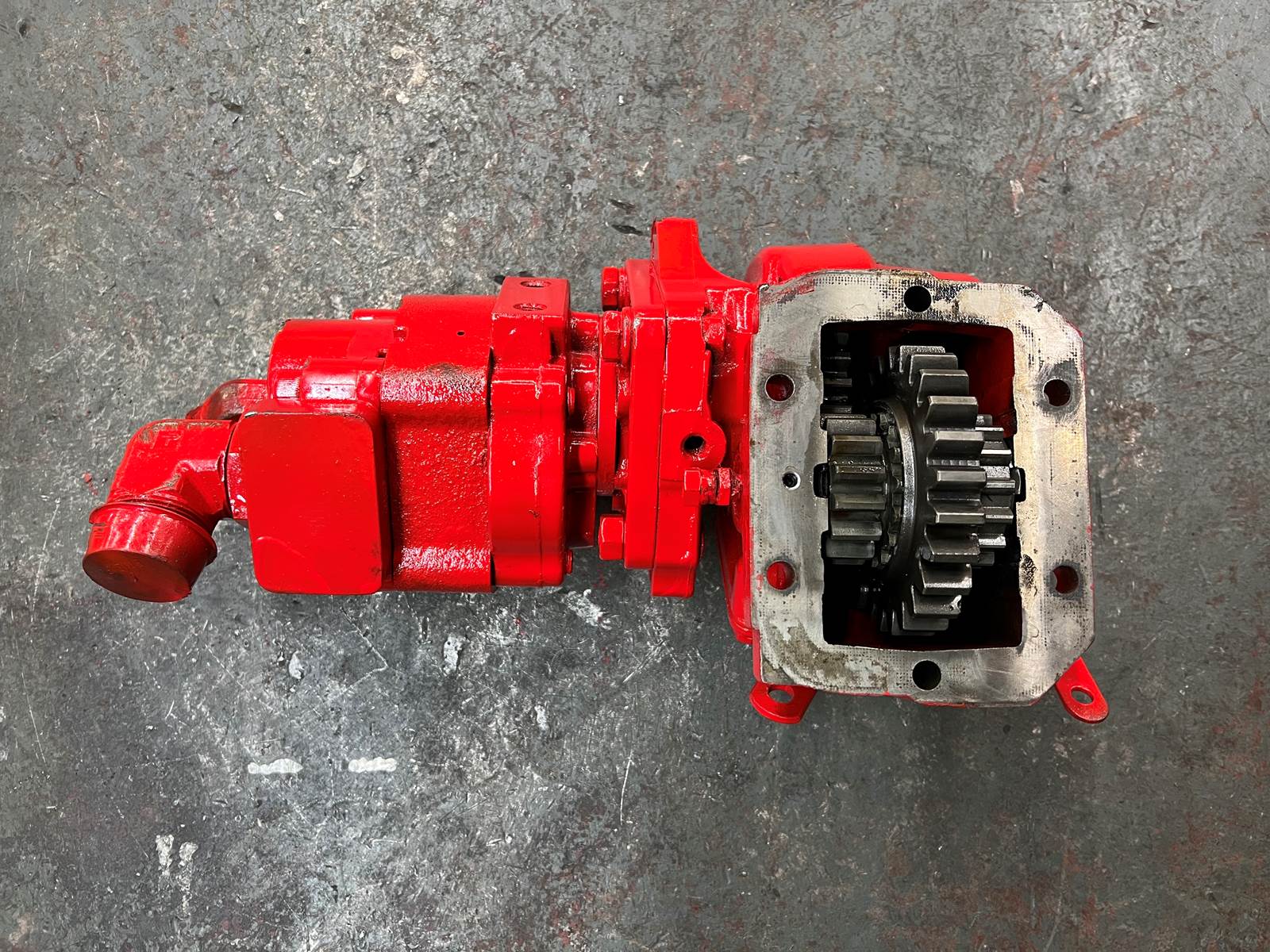

Chelsea Parker 221 Series Power Take Off (PTO) w/ Hydraulic Pump P16, OFF Allison AT542

(GOOD USED) Chelsea Parker 221 Series Power Take Off (PTO) w/ Hydraulic Pump P16 For Sale, PTO Model: 221XCAJP-W3XK, Application: LO-LO Speed - Allison, Flange Suffix: XK - S.A.E. “B” 2 or 4 Bolt 7/8” - 13 Spline, Standard 6-BOLT Mounting PTO, Date S/N 6132, Hydraulic Pump MODEL: P16-115C-2J1, Pulled Off Allison AT542, Stock # 9648

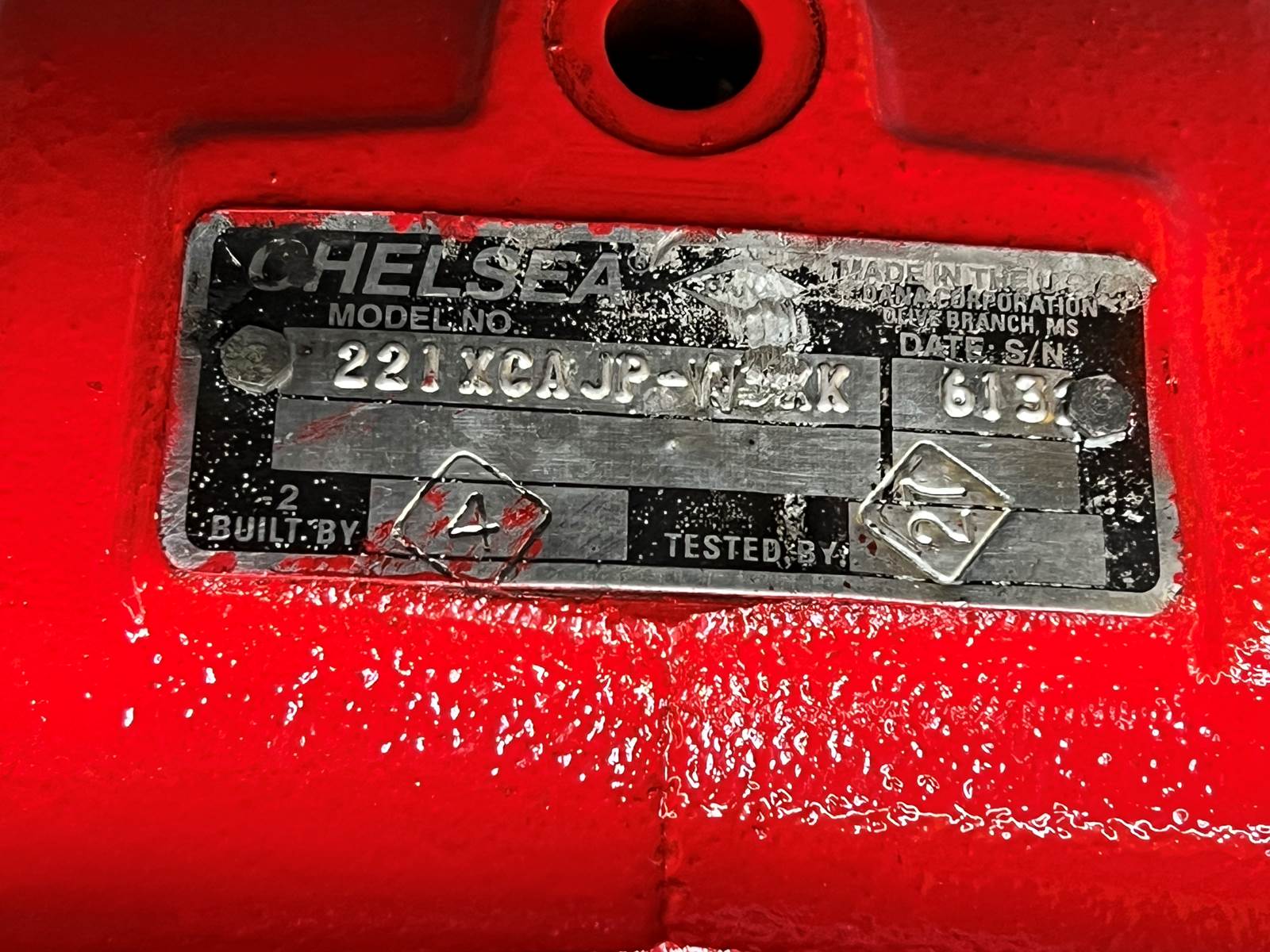

CHELSEA PTO: 221XCAJP-W3XK

BASCI MODEL: 221
MOUNTING OPTION: X : STANDARD MOUNTING
GEAR RATIO: C = .445:1
INPUT GEAR DESIGNATOR: AJ
LUBRICATION: P = PRESSURE LUBE
SHIFT TYPE: W = WIRE SHIFT
ASSEMBLY ARRANGEMENT: 3 = 3, 4, 5, 6
OUTPUT TYPE: XK = S.A.E. “B” 2 or 4 Bolt, 13T

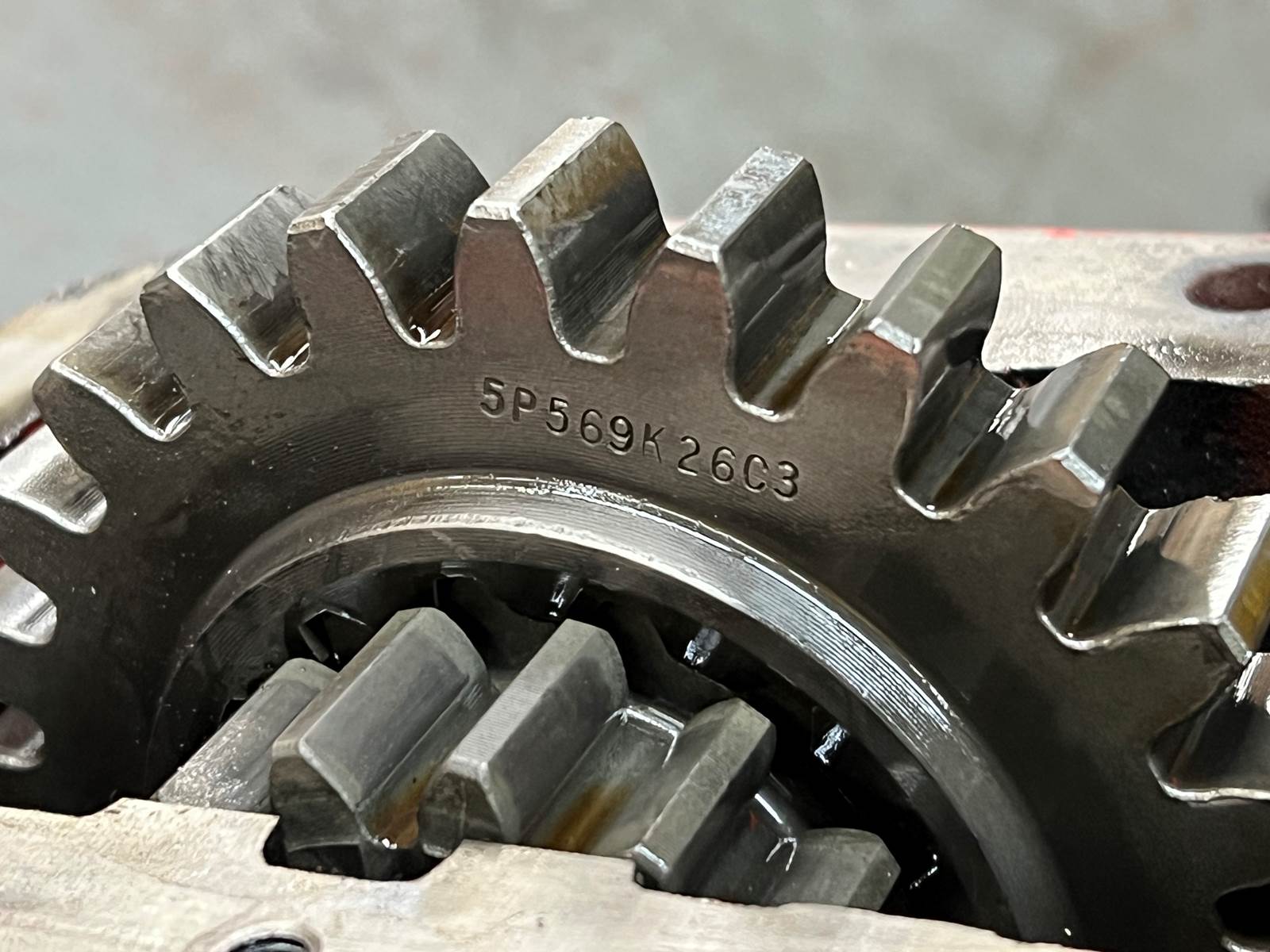

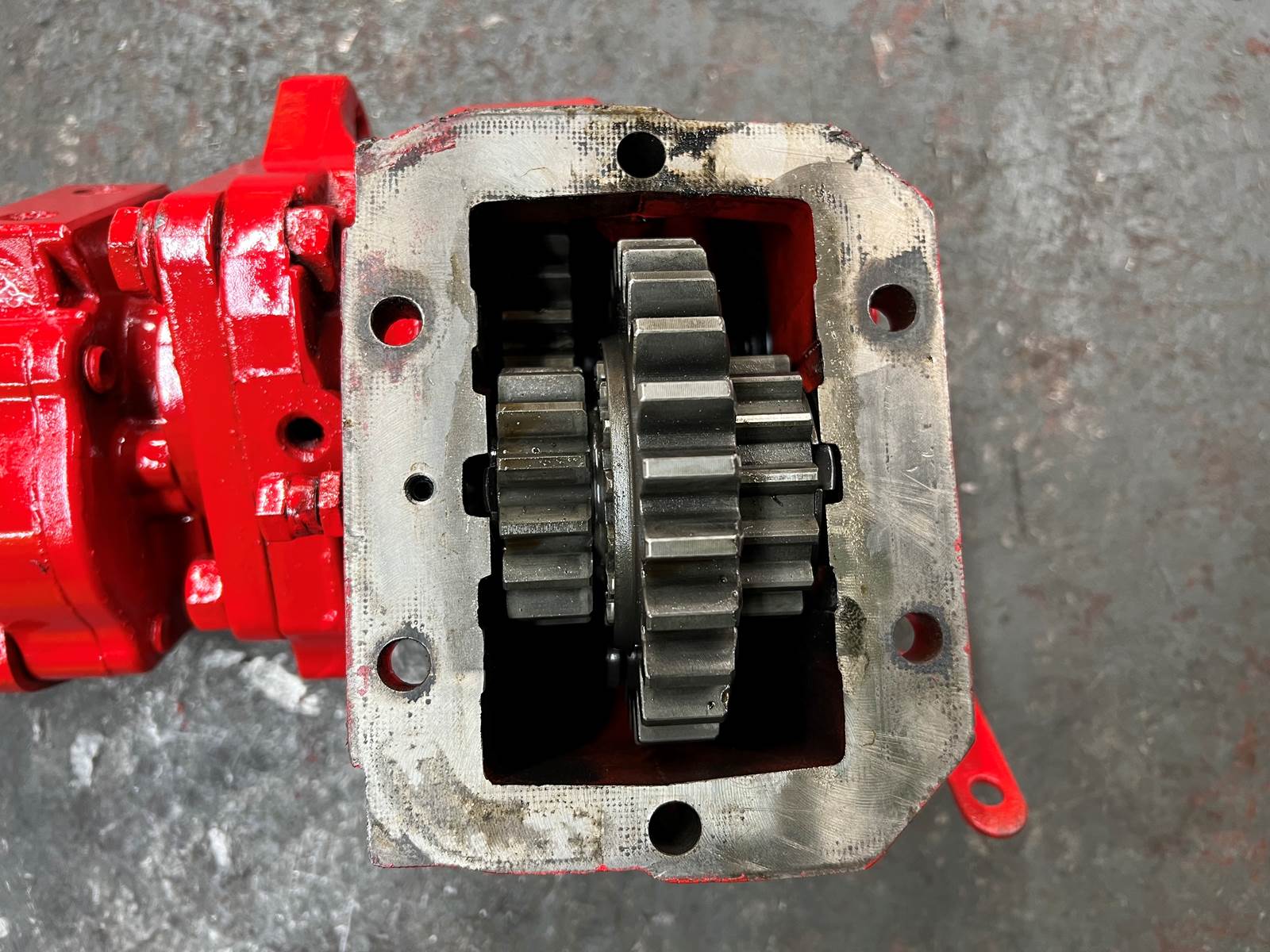

Input Sliding Gear Part # 5P569K26C3, 25T
Ratio Gear Part # 5-P-903, 14T
Output Gear Part # 2-P-283, 29T
HELIX ANGLE Part # 5-P-569, SPUR 25

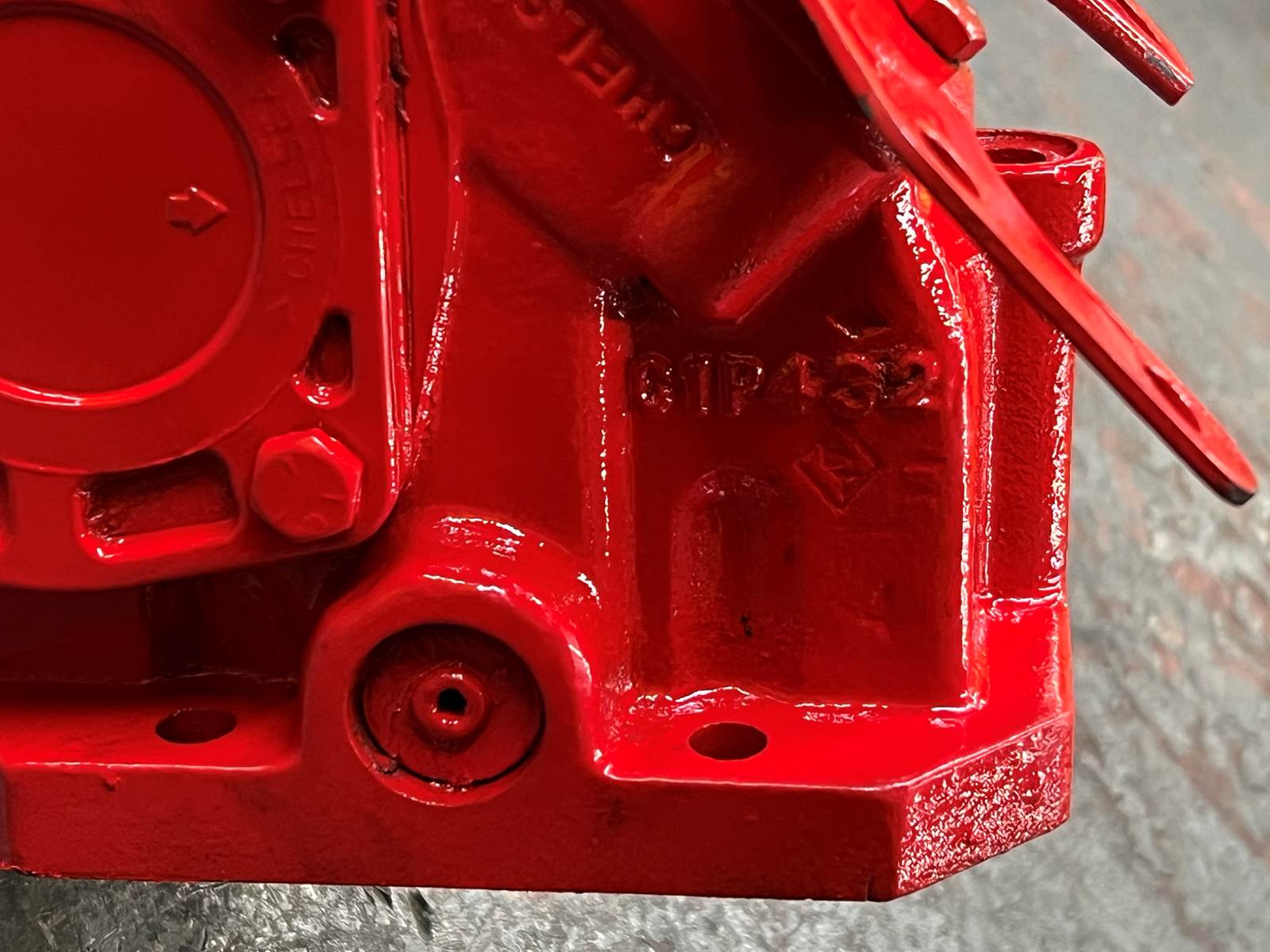

HOUSING PART # C1P432

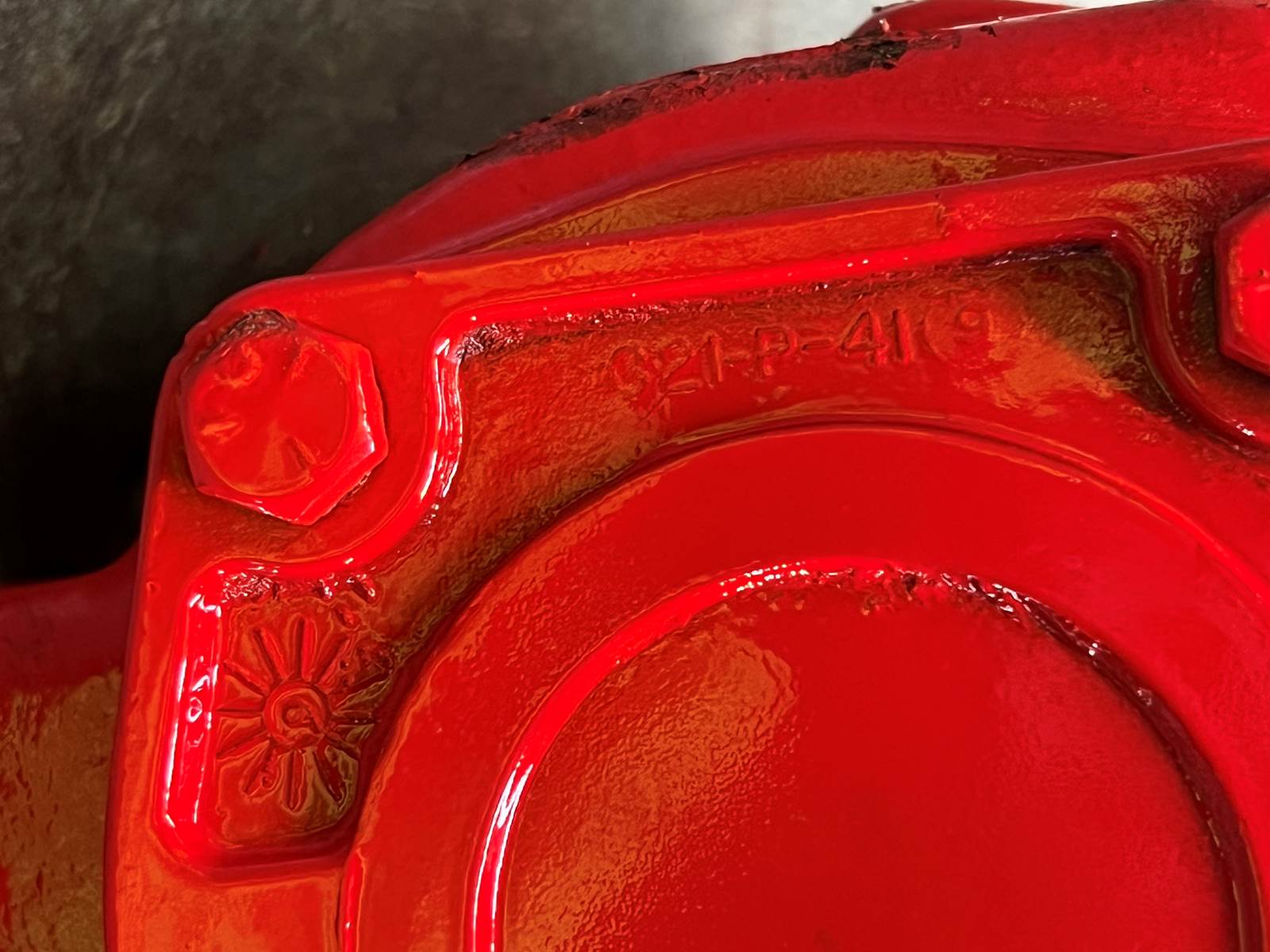

BEARING COVER PART # C21-P-419

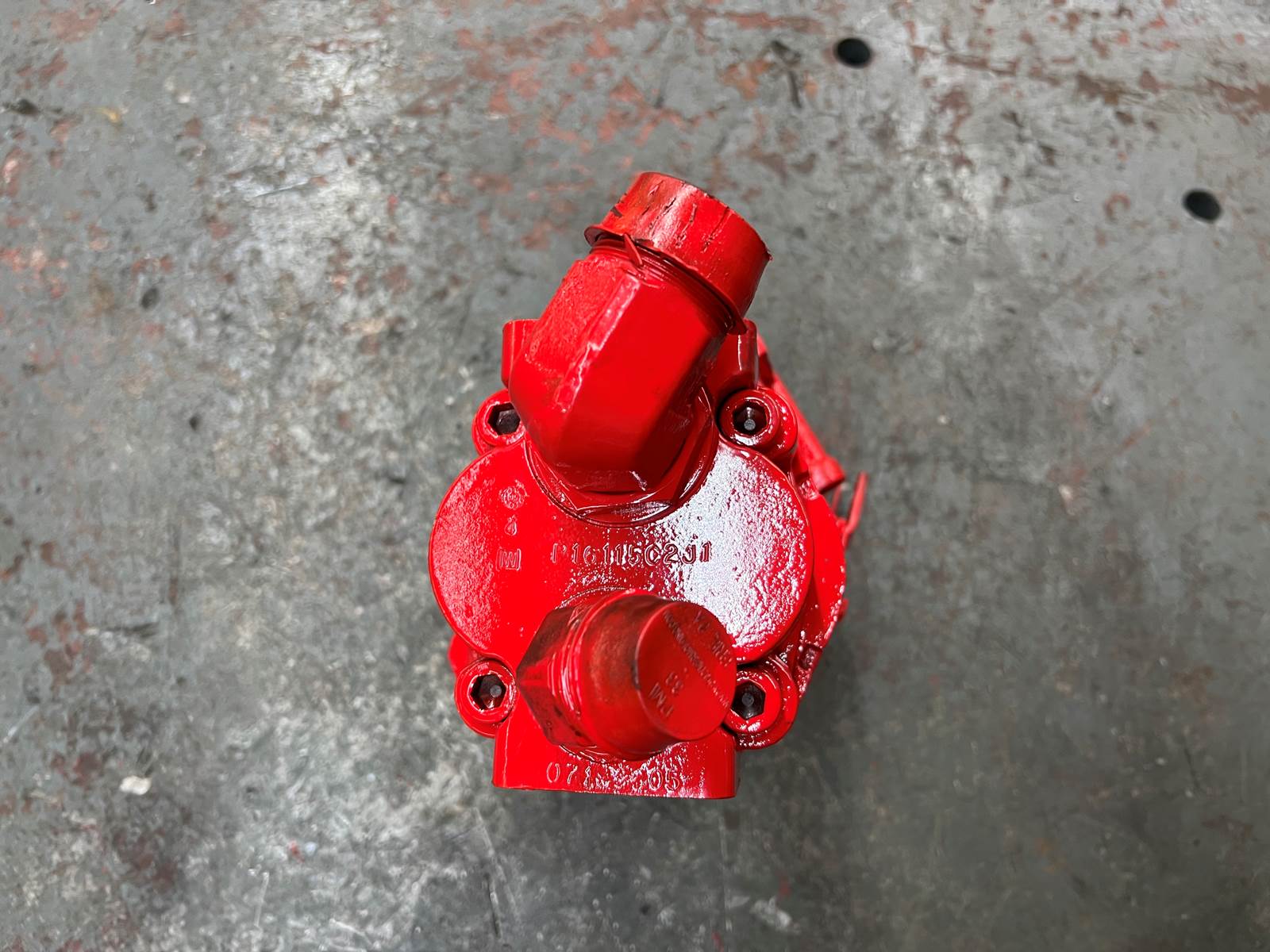

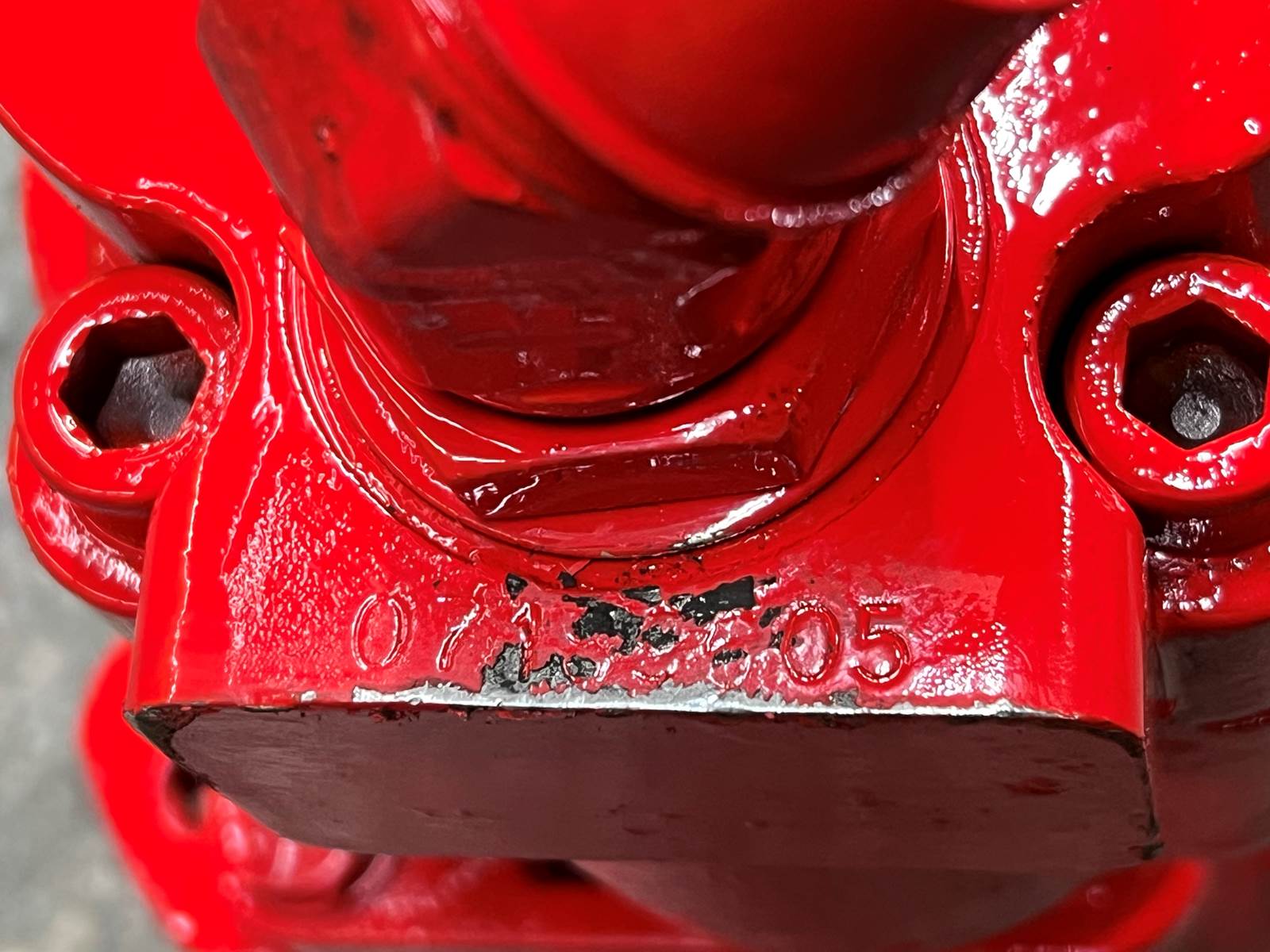

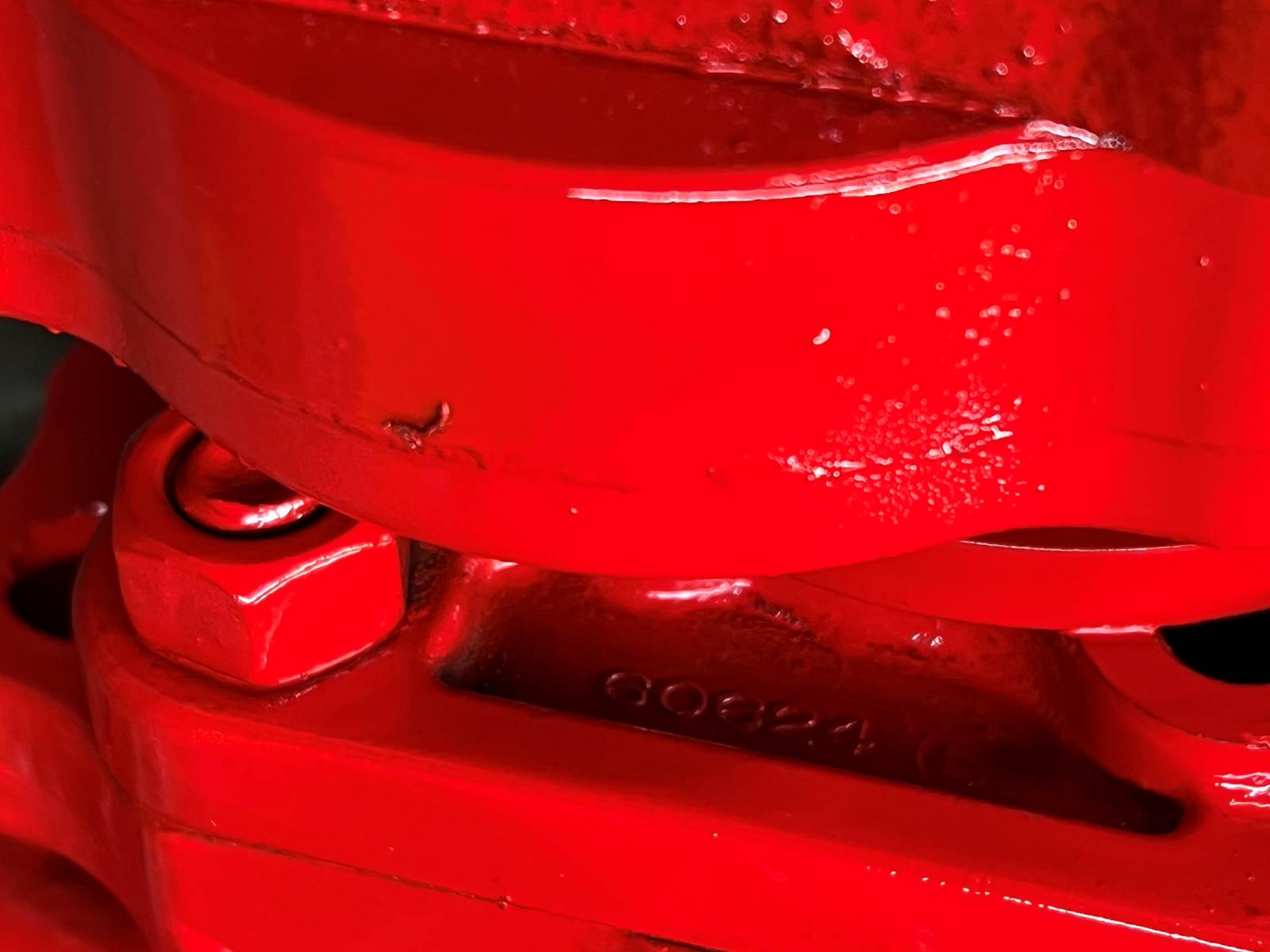

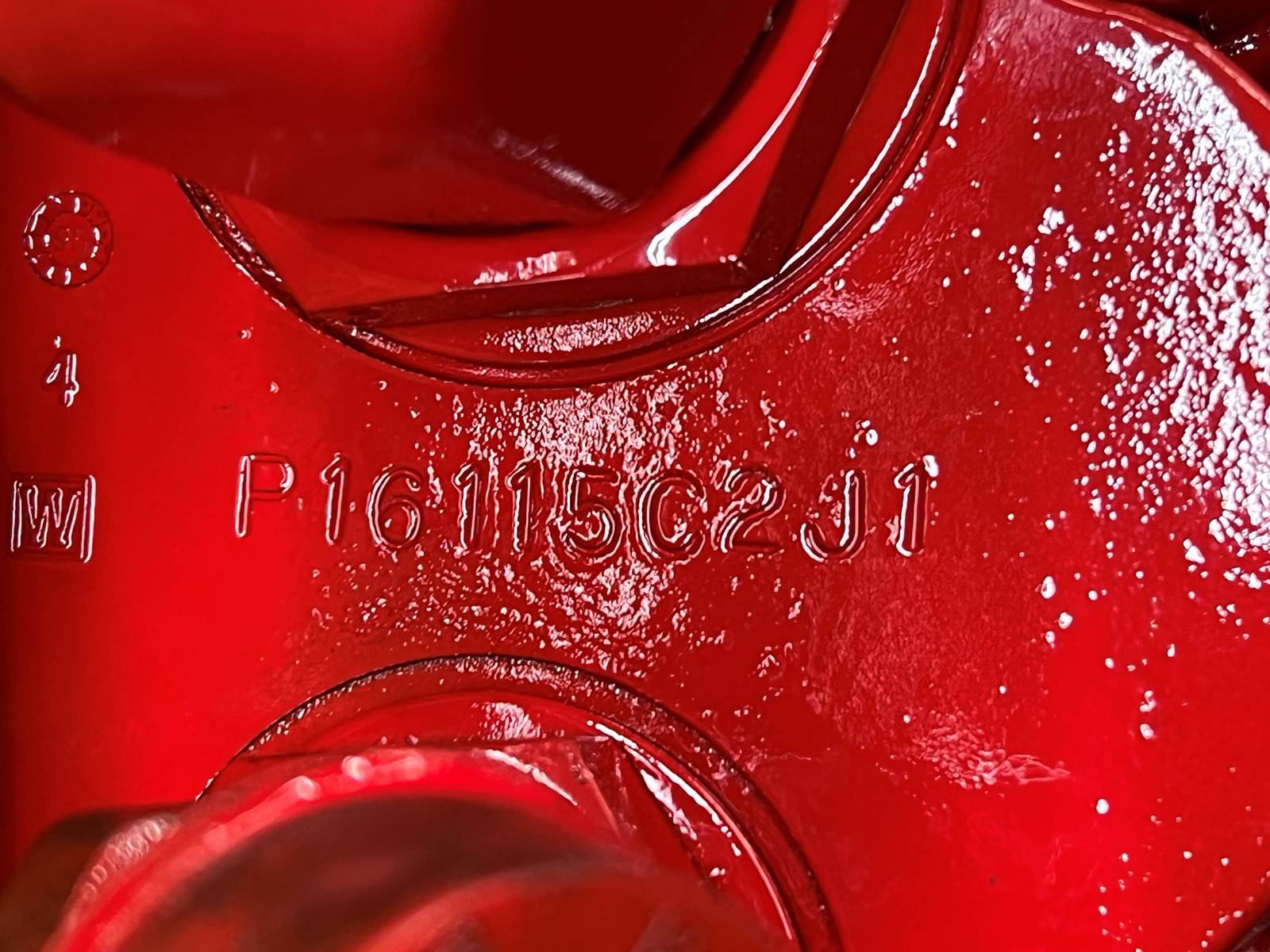

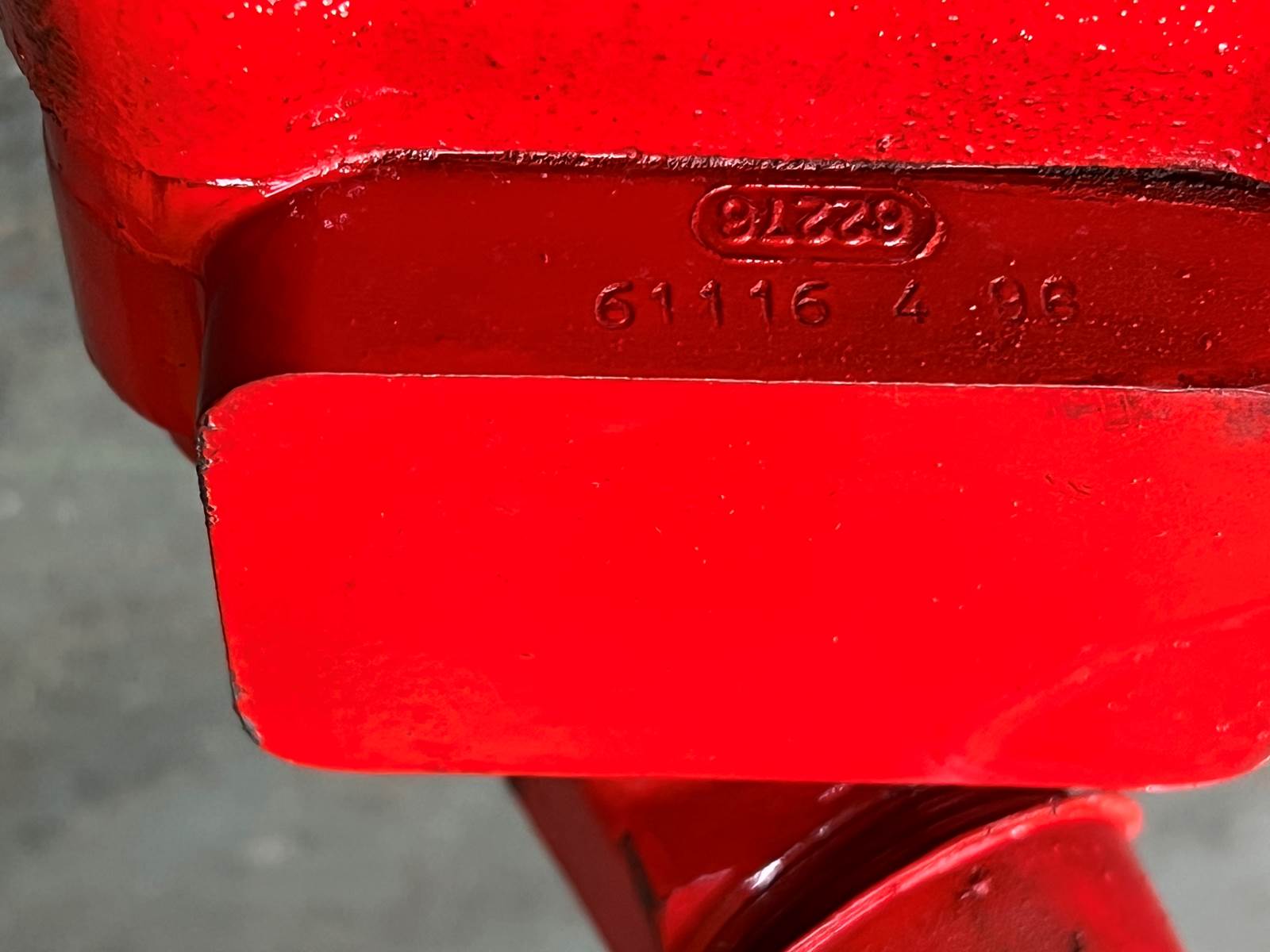

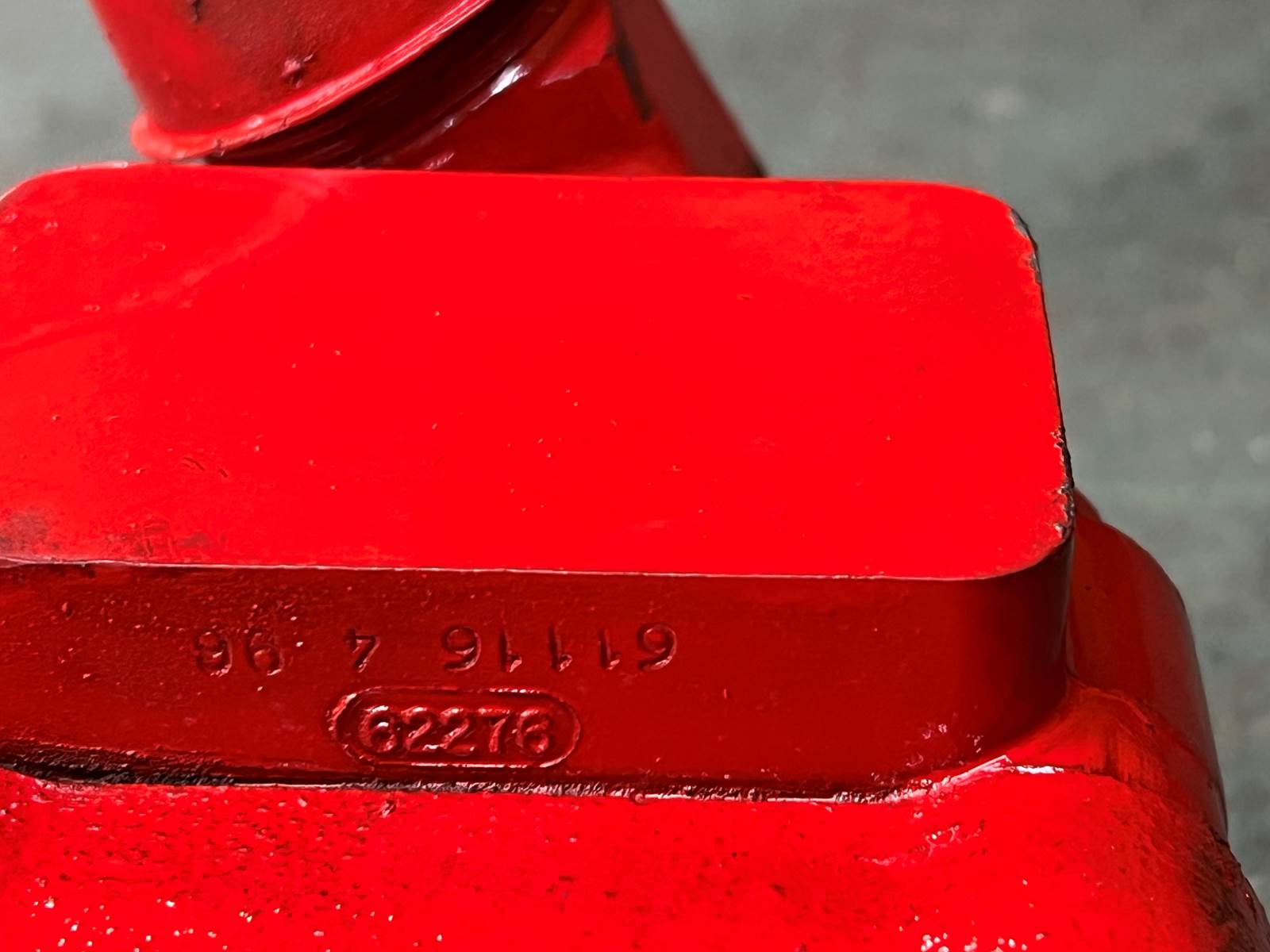

Parker Hydraulic Pump: P16115C2J1, Part # 61116 4 96, 62276, 60624, Serial # 07189605

MODEL: P16
SECTION SIZE: 115
ROTATION: C = CLOCKWISE
SHAFT: 2 = 7/8” DIA. 13 TOOTH SPLINE
FLANGE: J = SAE B 4-BOLT
COVER PLATE: 1 = REAR PORTED STRAIGHT THREAD

DISPLACEMENT / REVOLUTION (THEORETICAL)

US GALLONS: 0.0097
CUBIC INCHES: 2.241
LITERS: 0.0367
CUBIC CENTERMETERS: 36.723
IMPERIAL GALLONS: 0.0080

MAXIMUM PRESSURE

PSI: 3000
BAR: 207

MAXIMUM SPEED: RPM 3100

All our PARTS are TESTED and Ship PRIORITY MAIL! OVERNIGHT SHIPPING options are available! Contact us for more information! CALL (305)688-1101
