ConMet VARIOUS CONMET MODELS Hub for a Conmet VARIOUS MODELS

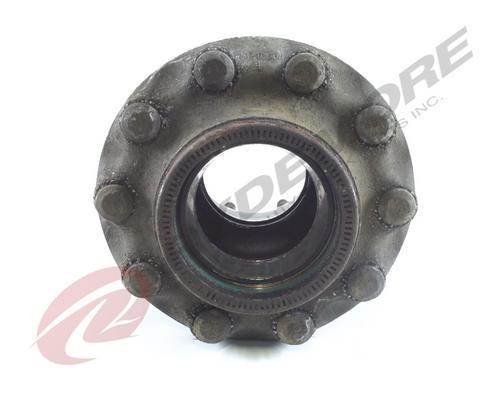

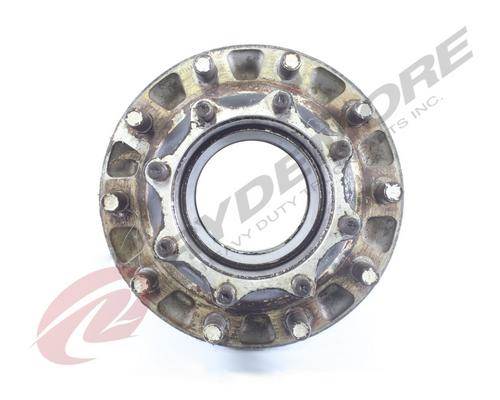

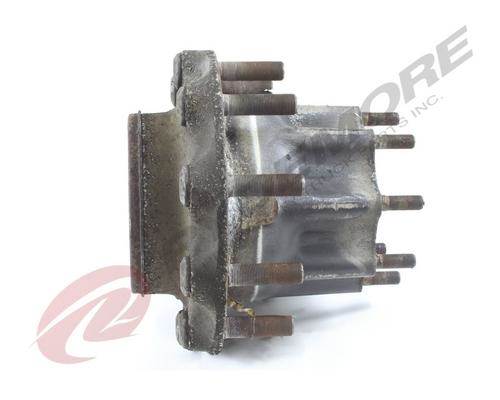

Good used, cleaned and inspected Conmet Rear Hub.

LONG STUD VERSION - 10082217

Material - Aluminum

Axle Position - Drive

Axle - R

Assembly Type - PreSet

Bearing Set (Inboard) - SET: 429

CUP - 592A PS (PreSet)

Cone - 594A PS (PreSet)

Bearing Set (Outboard) - SET: 430

CUP - 572 PS (PreSet)

Cone - 580 PS (PreSet)

Compatible Brake Type - Drum

Rotor Type - N/A

Hub Mounting System - HP10

Wheel Stud Standout (in.) - 2.94

Wheel Material - Steel Wheels

Axle Stud Thread - 5/8”-11 UNC - R.H.

Flange Offset (in.) - 1.31

Brake Drum Pilot (in.) - 8.78

Barrel Length - Long Barrel: 7.69" - 7.75"

ABS TONE RING INCLUDED - YES

Weight (lbs.) - 49.6

PreSet / PreSet Plus Hub Rebuild Kit - 10081729

Inner Bearing - 10041915

Outer Bearing - 10041916

Seal & Spacer - 10081520
