Cummins X15 Engine Oil Pan for a Cummins X15 EPA 17

Buyer Activity

Viewed

1 time

Shared

Not yet

Saved

Not yet

Product Specifications

Year	Unknown
Category	Engine Oil Pans
Manufacturer	Cummins
Model	X15
Condition	Used
Stock Number	2451983
MLS Number	13117454
Cast Number	N/A

Part & Attachment Details

Fits To Make(s)	CUMMINS
Fits To Model(s)	X15 EPA 17
Replaces OEM Number(s)	5647538
Material	STEEL

Product Description

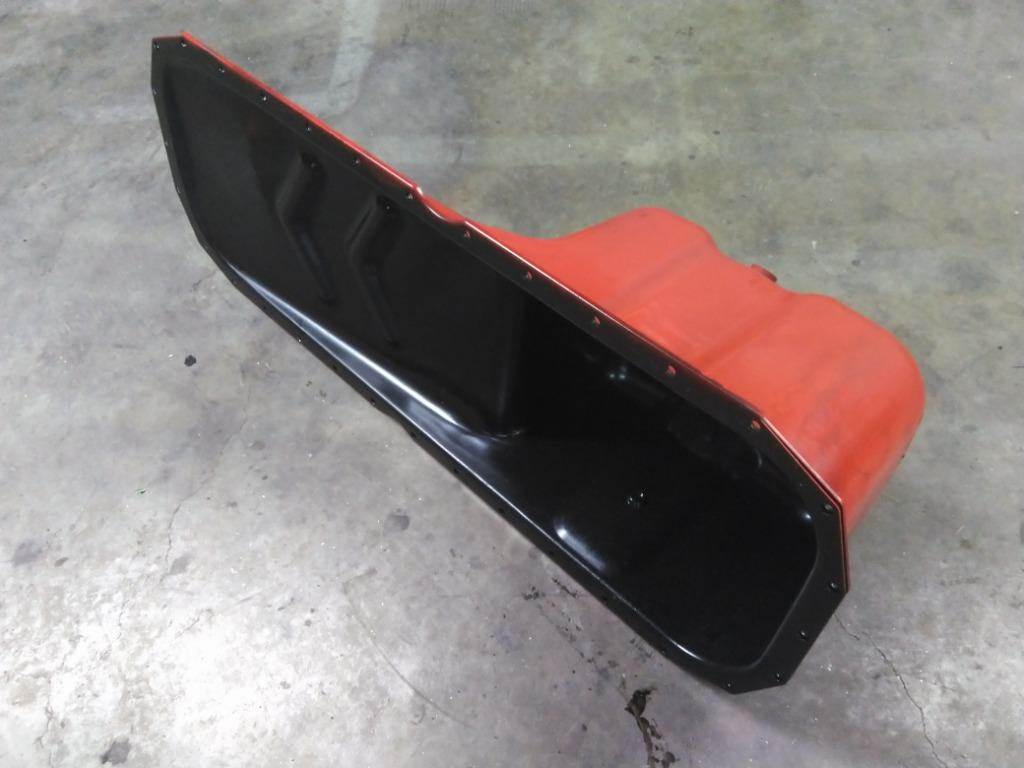

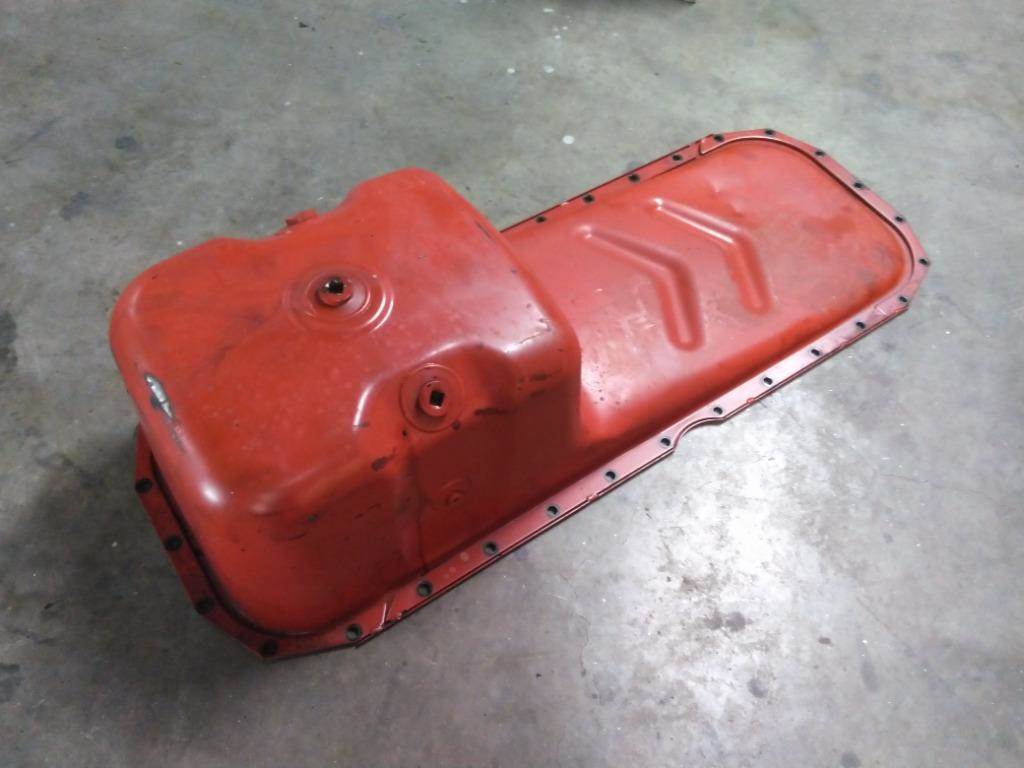

USED GTO OEM CUMMINS X15 (5535) OIL PAN
5647538

SUMP LOCATION: FRONT
MATERIAL: STEEL
CONSTRUCTION: STAMPED
SUMP CAPACITY: 11 GAL HIGH, 9 GAL LOW
ANGULARITY LIMITS (GRAVITATIONAL HORIZONTAL): 38 DEGREES FRONT DOWN
22 DEGREES REAR DOWN
30 DEGREES FUEL PUMP DOWN
30 DEGREES EXHAUST DOWN
UNIQUE CHARACTERISTICS: STUDS ON OIL PAN
FLANGE LOCATED AT #2, #5, #28 AND #32
MOUNTING HOLES ON EXHAUST SIDE AND AT #11,
#12, #15, #16, #18, #19, #22 AND #23
MOUNTING HOLES ON FUEL PUMP SIDE OF ENGINE
REFER TO THE NEW ENGINE BUILD STANDARD FOR
D10 HOLE LOCATIONS IN OIL PAN. AEB 46.05
MAY ALSO BE CONSULTED. MAXIMUM WEIGHT
LIMIT ON ANY SINGLE STUD IS SEVEN (7) POUNDS.
POWER ANGLE: NOT TO EXCEED 5 DEG.
