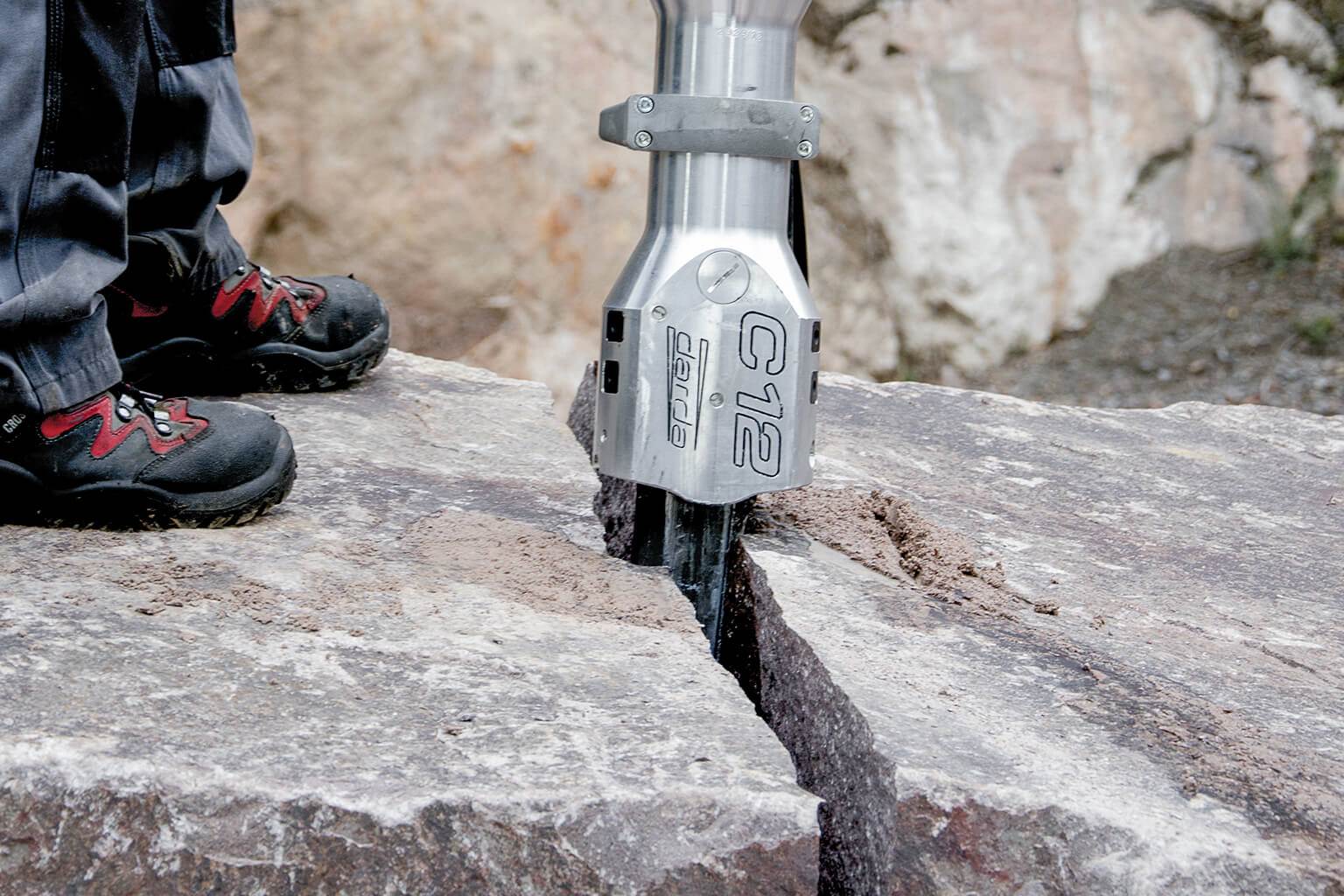

Darda C12 Rock Splitter

Manufacturer: Darda

Model: C12

Specifications:

• Required Hole Diameter: 1.77" - 1.89" (45mm - 48mm)
• Minimum Drill Depth: 24" (610mm)
• Splitting Force (theoretical): 1,363,000 lb/ft (1847979.86 Nm)
• Effective Splitting Force: 789,000 lb/ft (1069740.36 Nm)
• Weight: 68 lbs (31kg)
• Length of Splitting Cylinder: 51" (1290mm)
• Length of Wedge Set: 15" (380mm)

Applications of Use:

• Splitting of concrete and reinforced concrete
• Splitting walls and masonry
• Splitting piles heads
• Rock splitting (e.g. in trench work)
• Secondary splitting of boulders
• Tunnel-driving work
• Expansion work in underground mining
• Granite block quarrying in the natural stone industry
• Chimney demolition
• Underwater demolition

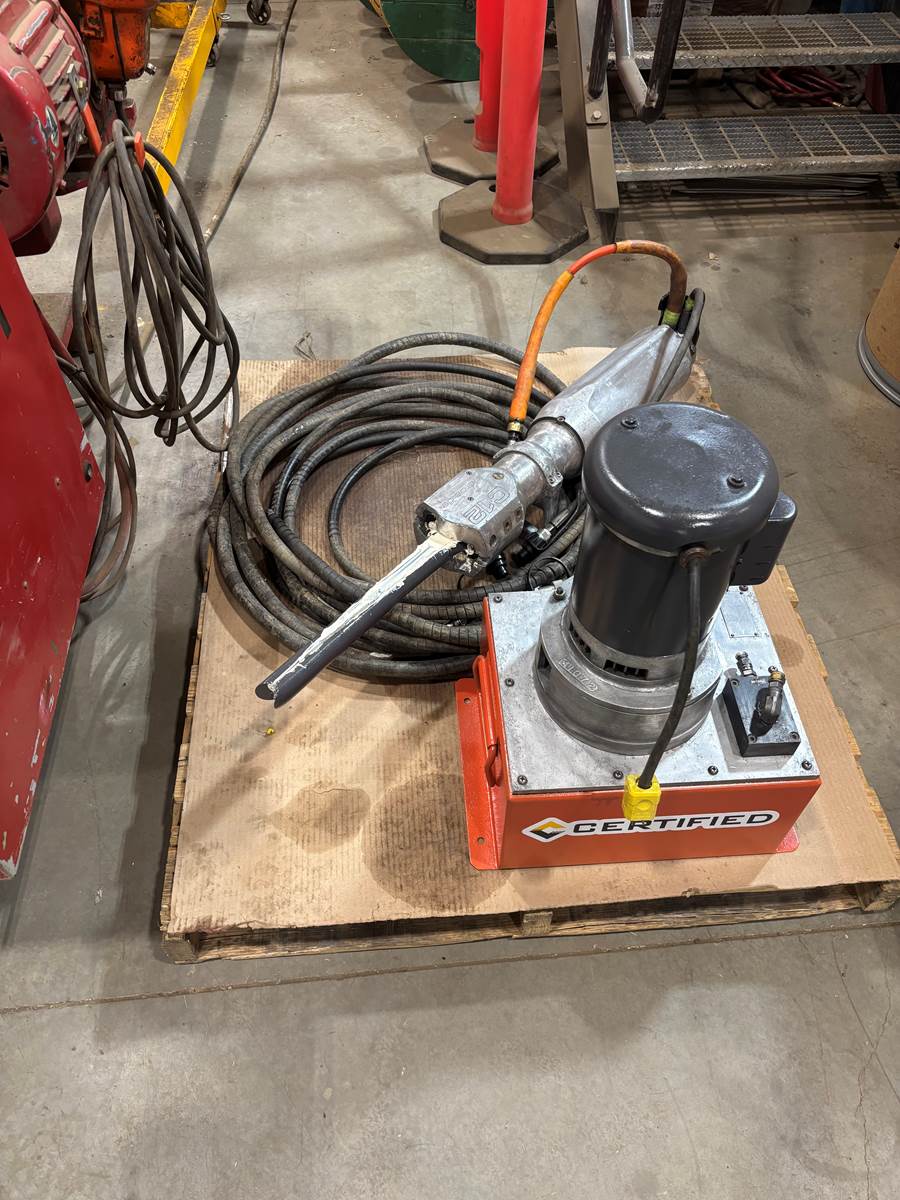

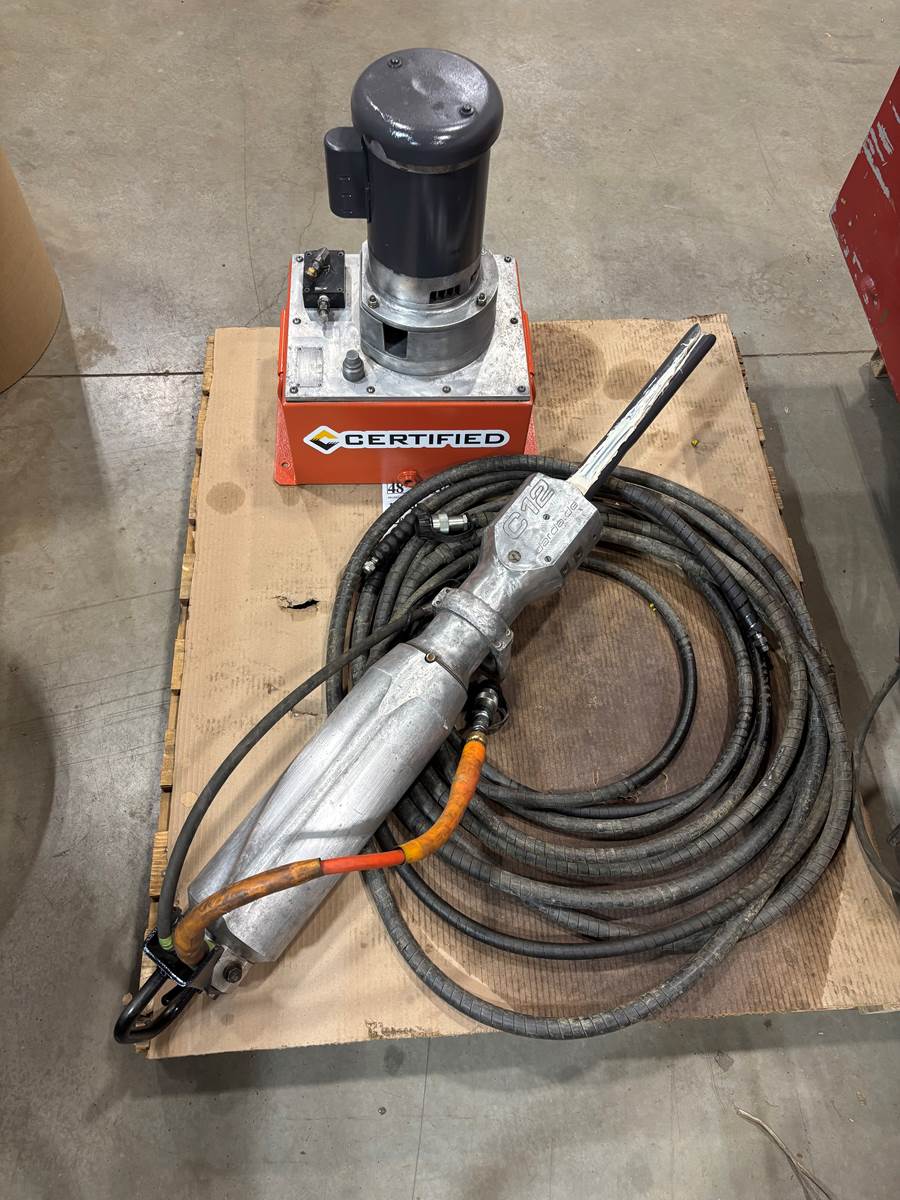

Power Pack Specifications:

• Power Requirement: 115V - 20 Amp/ 220V - 10 Amp

Shipping Dimensions:

• Shipping Length: 18"
  Width: 18"
  Height: 24"
  Weight: 74lbs
