Product Description

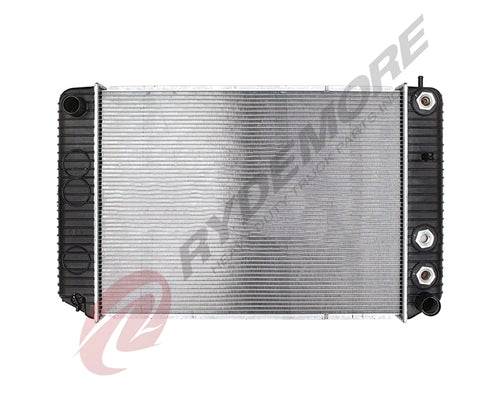

New Aftermarket Chevy / GM Radiator - 31 3/8 x 23 1/4 x 1 1/4
FITS: 1992-2002 KODIAK, TOPKICK
2 Year or 250,000 mile warranty from installation
CORE HEIGHT: 31 3/8
CORE WIDTH: 23 1/4
DEPTH: 1 1/4
INLET: 2" UPPER LEFT AT 2 1/8" IN
OUTLET: 2" LOWER RIGHT AT 2" IN
OIL COOLER: 6 PLT 18" CTRS WITH 1 1/16" O-RING FACE FITTINGS
Notes:
*CONSTRUCTION MAY VARY*
THIS RADIATOR HAS A 3/4" NPT PORT AND 1 1/16" ORF (O-RING FACE) COOLER FITTINGS
FOR COPPER / BRASS CONSTRUCTION SEE 239148
INCLUDES HEATER BYPASS AND PLUG
Cross Reference: 1R2678, 1R2974, 20634, 20853, 20854, 21625, 231374, 232110, 232148, 437378P, 52409706, 52458537, 52471173, 52471174, 52471175, 89018633, FLX000822, GMC09, GMC13, HDC010289, RA1111, REA41-2460A, REA412460A, SRM2110, SRM2975, 20853, 52471173, 52471174, 52471175, 20854, 1R2678, 1R2974, RA1111, 89018633, 232109, 52458537, 89018634
