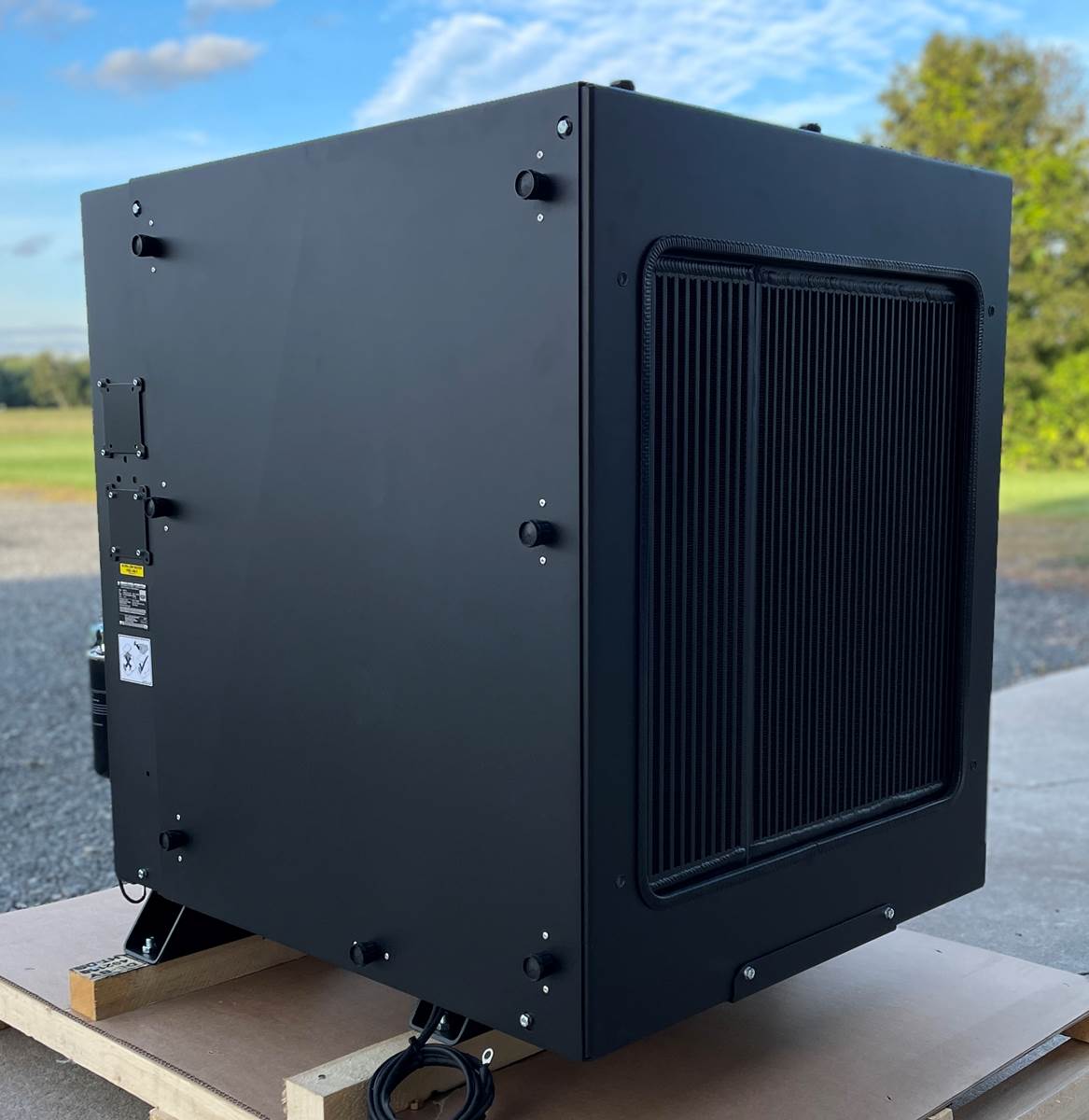

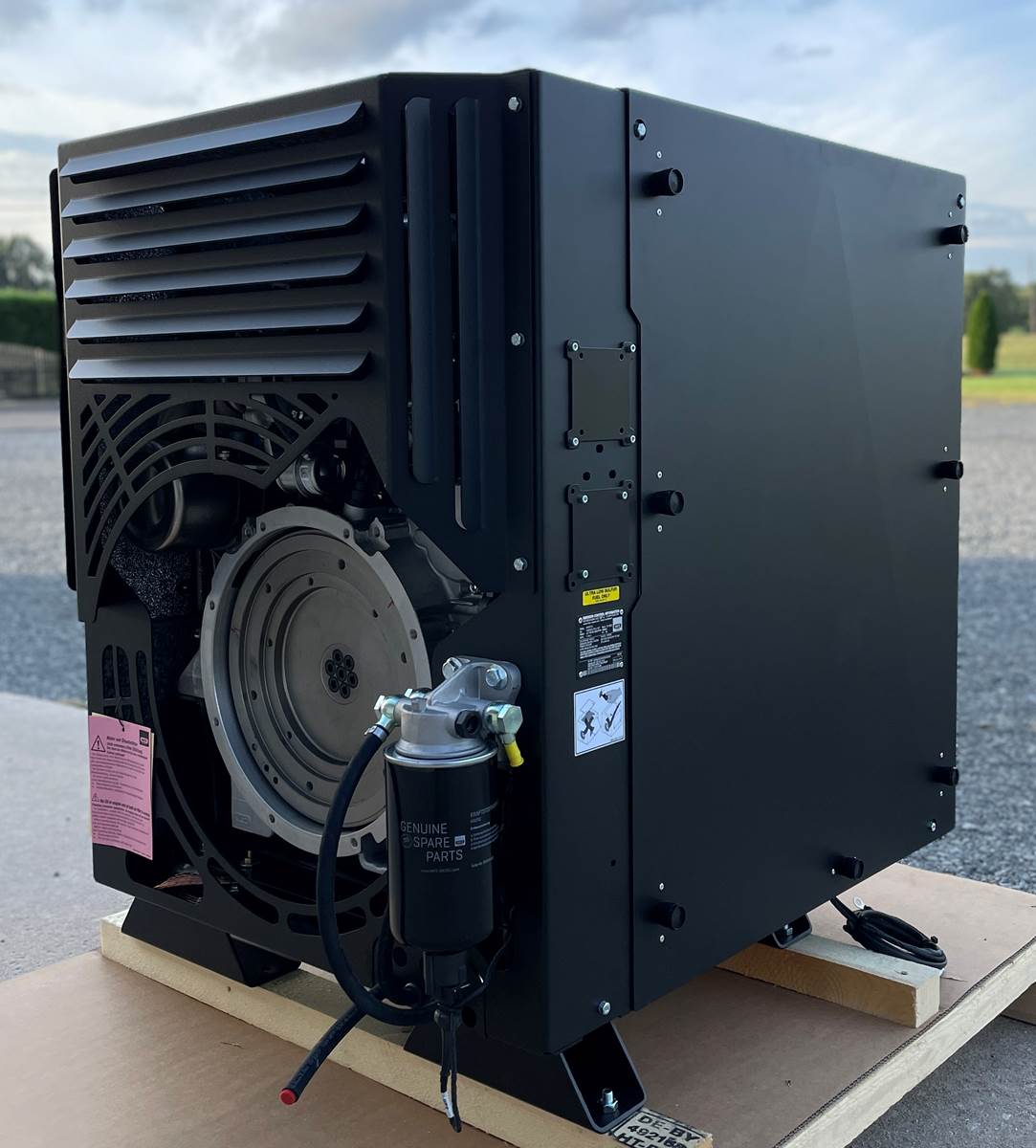

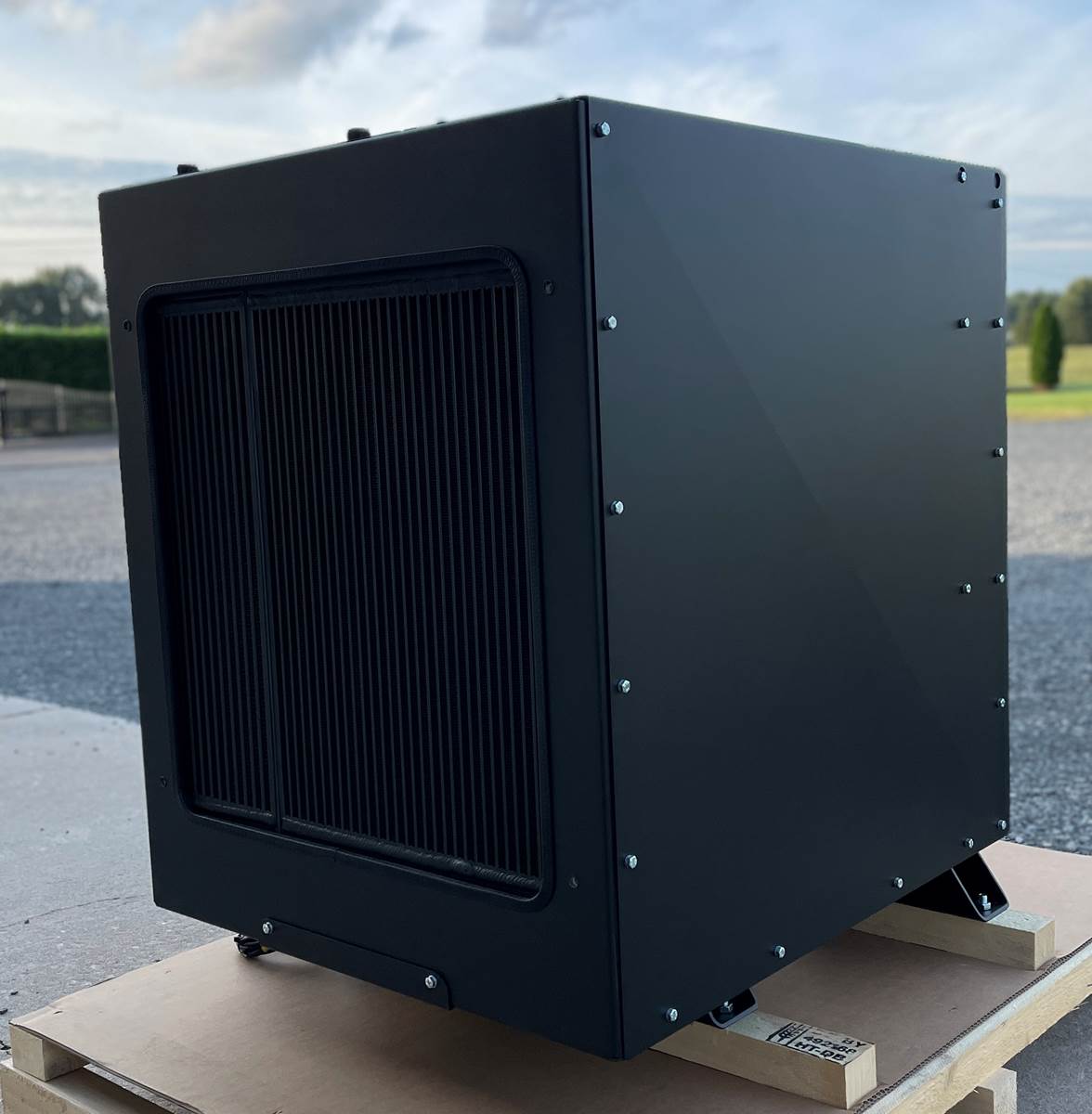

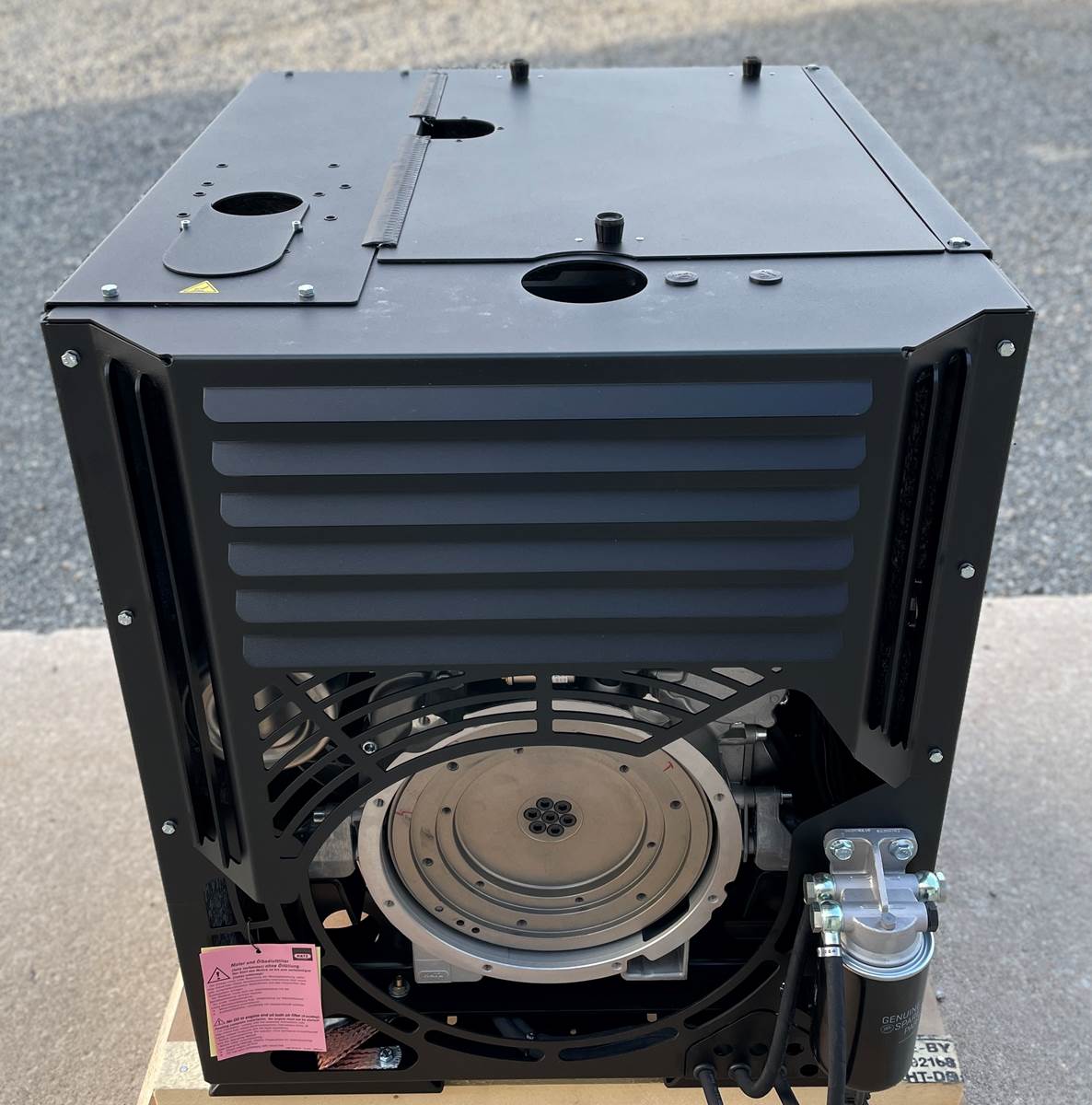

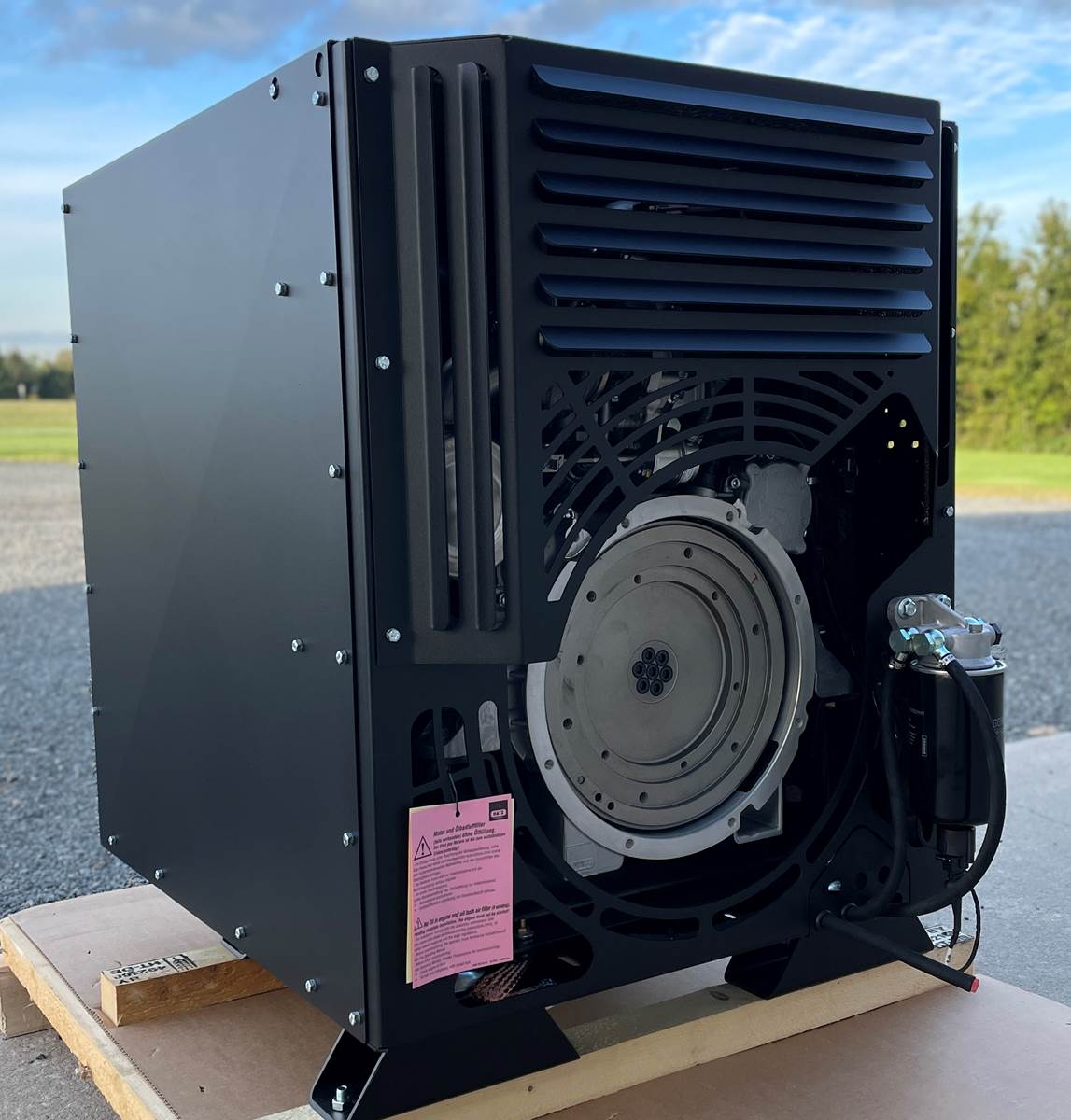

HATZ 3H50TIC Semi Silent Diesel Power Unit, 56HP

Hatz Tier IV 3H50TIC Power Unit with Semi Silent Enclosure Includes:
-3H50TIC Hatz Diesel Engine
-Radiator
-Intercooler
-Suction Fan
-Starter, 12V
-Alternator, 12V
-Mounting Brackets
-SAE 5 Flywheel
-Top Mount Air Cleaner Assy
-Top Outlet Exhaust Pipe

This ready-to-install plug and play solution 3H50TIC Semi Silent Enclosed Power Unit includes all parts needed for the operation of the engine.   This includes radiator and intercooler, and the corresponding piping and wiring harness.  The parts are factory installed and tested.  The customer only needs to connect the fuel tank, battery, fill with fluids, and controller.

• The system is ideally suited for applications up to 56 horsepower such as hydraulic lifts, hydraulic power units, forestry machinery, drilling rigs, and stationary applications such as pumps and generators.  In addition, the 3H50TIC semi silent power unit is immediately available from lot sizes of one piece to full container loads, an ideal solution for small as well as large OEMs.
  Power from 30HP to 56HP
  Maximum Torque of 150 Ft.Lbs.
  Bosch Common Rail System
  Exhaust Gas Turbocharger with Intercooler
  EPA Tier IV Final Certified
  500 Hour Service Intervals
  Low Fuel Consumption
  Lowest Power to Weight Ratio in its Class
  Overall Dimensions of 36.1″ x 29.5″ x 36.3″
  Weight: 721 lbs.
