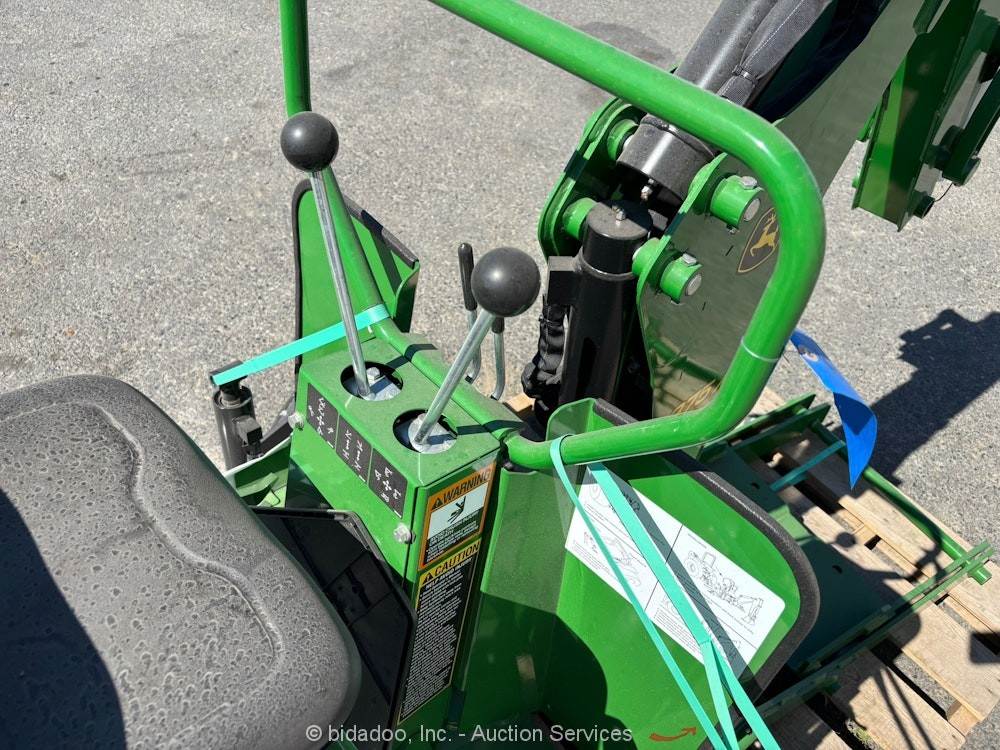

Valve spools have machined-metering grooves
Improved feel and feathering capabilities
Strong sub-frame
Mid-mount mower compatibility
3-point hitch arms can remain on the tractor
Transport Dimensions: 84" L x 48" W x 78" H
Transport Weight: 1,445 lbs
Pin Diameter: 1 in
Bucket
Size: 16 in
Digging Force: 3,063 lbs
Digging Depth: 94 in
Swing Arc: 170 degrees
Boom Lift Capacity: 595 lbs
Stabilizer Spread: 89 in
Loading Height: 68 in
Reach From Center Line of Swing Pivot: 129 in
