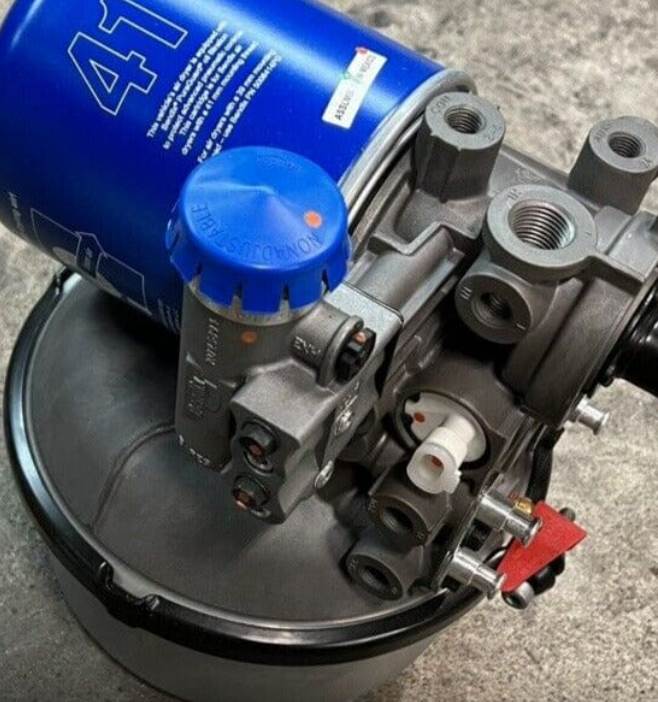

Description: Air Dryer - AD-HF® Condition: Used In Good Condition Brand: Bendix® Part Number: K160648 Cross Reference Part Numbers: K160648SCBXW, K160648SCBXW, BXK160648SC, BW K160648SC, EXK160648SC, 745-K160648SC, BWRK160648SCX, K160648SCBXW, BW K160648SC, BW K160648SC Specifications: Mounting: Purge Reservoir - 3/8-16 UNC-2B (4x) Supply Port: 1/2-14 NPT Governor Unloader Port: 1/8-27 NPT (Plugged) Governor Reservoir Port: 1/8-27 NPT (Plugged) Compressor Unloader Port: 1/4-18 NPT Remote Charge / Fill Port (through Desiccant): 1/4-18 NPT Remote Charge / Fill Port 1 (after Desiccant): 1/4-18 NPT (Plugged) Remote Charge / Fill Port 2 (after Desiccant): 1/4-18 NPT (with Safety Valve) PRI Delivery Port 21: 1/4-18 NPT PRI Delivery Opening Pressure: 103 PSI SEC Delivery Port 22: 1/4-18 NPT SEC Delivery Opening Pressure: 112 PSI AUX 1 Delivery Port 1: 1/4-18 NPT AUX 1 Delivery Port 2: 1/4-18 NPT AUX 1 Delivery Port 3: 1/4-18 NPT AUX 1 Delivery Port 4: 1/4-18 NPT AUX 1 Delivery Opening Pressure: 112 PSI AUX 2 Delivery Port: 1/4-18 NPT AUX 2 Delivery Opening Pressure: 112 PSI Purge Exhaust Port: Standard Purge Volume: Extended Purge Valve Type: Hard Seat Safety Valve Opening Pressure: 153 PSI Heater / Thermostat Rating: 12V / 90W Heater Connector Type: Metri-Pack 280 Series 2-Way Sealed Connector (Male) Heater Connector Color: White Cartridge Type: PuraGuard (Coalescing) Cartridge Thread: M41 x 1.5-6H RH Clearance to Remove Cartridge: 1.00 IN Governor Type: Non-Adjustable Cut-in Pressure: 110 PSI Cut-out Pressure: 130 PSI Pressure Protection Valve Configuration: 4 in Parallel Reservoir Diameter: Ø 10.2 IN Reservoir Length: 6.35 IN Reservoir Material: Aluminum Number of Compartments: 1 Reservoir Fill Type: Integral Fill Maximum Inlet Temperature: 160 °F (71 °C) Minimum Operating Temperature: -40 °F (-40 °C)
Manufacturer information A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
