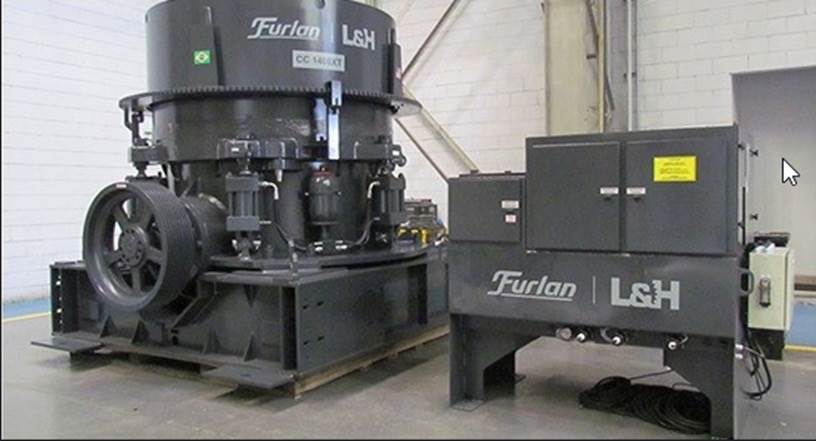

For Sale: New Furlan CC 1400 XT, Cone Crusher.
AVAILABLE AS PORTABLE OR STATIONARY CONFIGURATION.

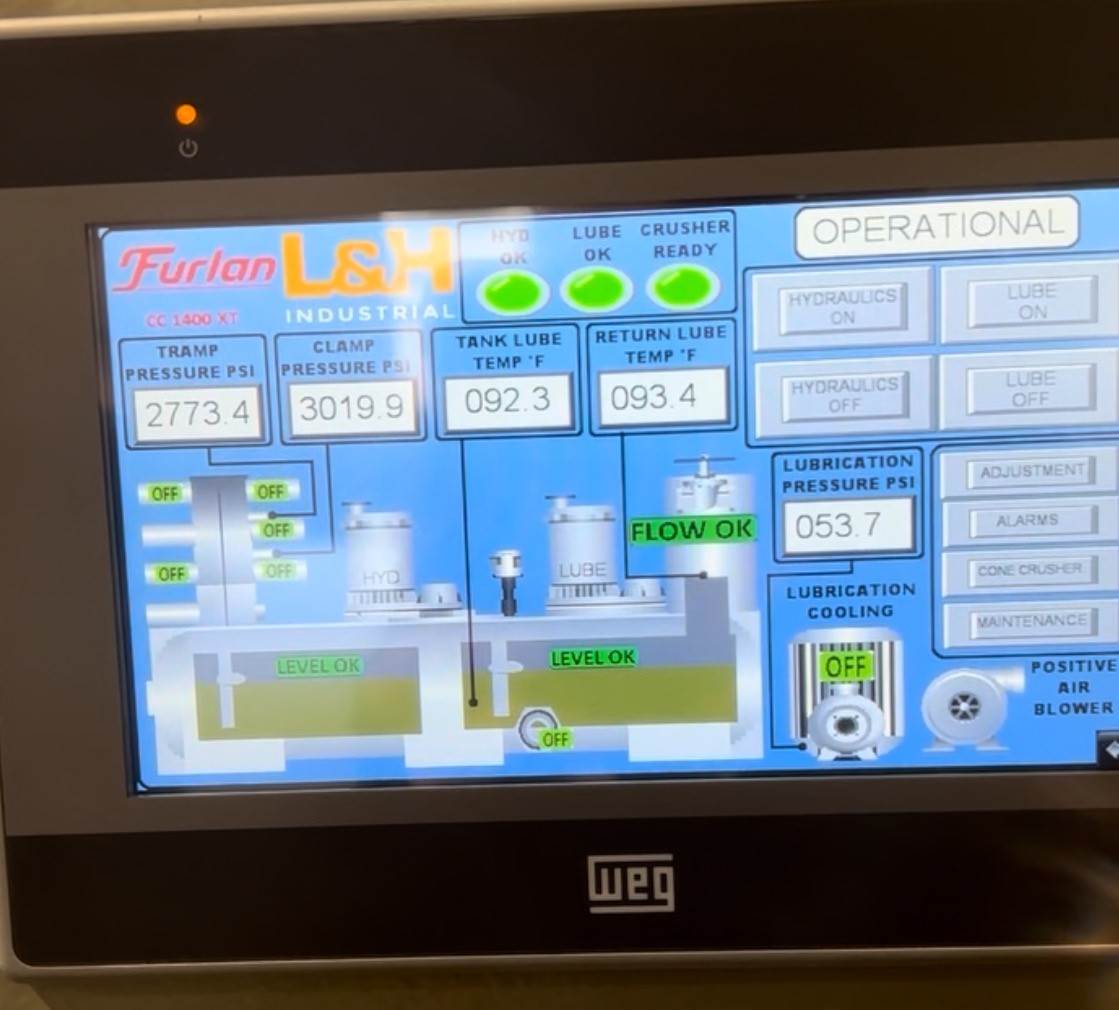

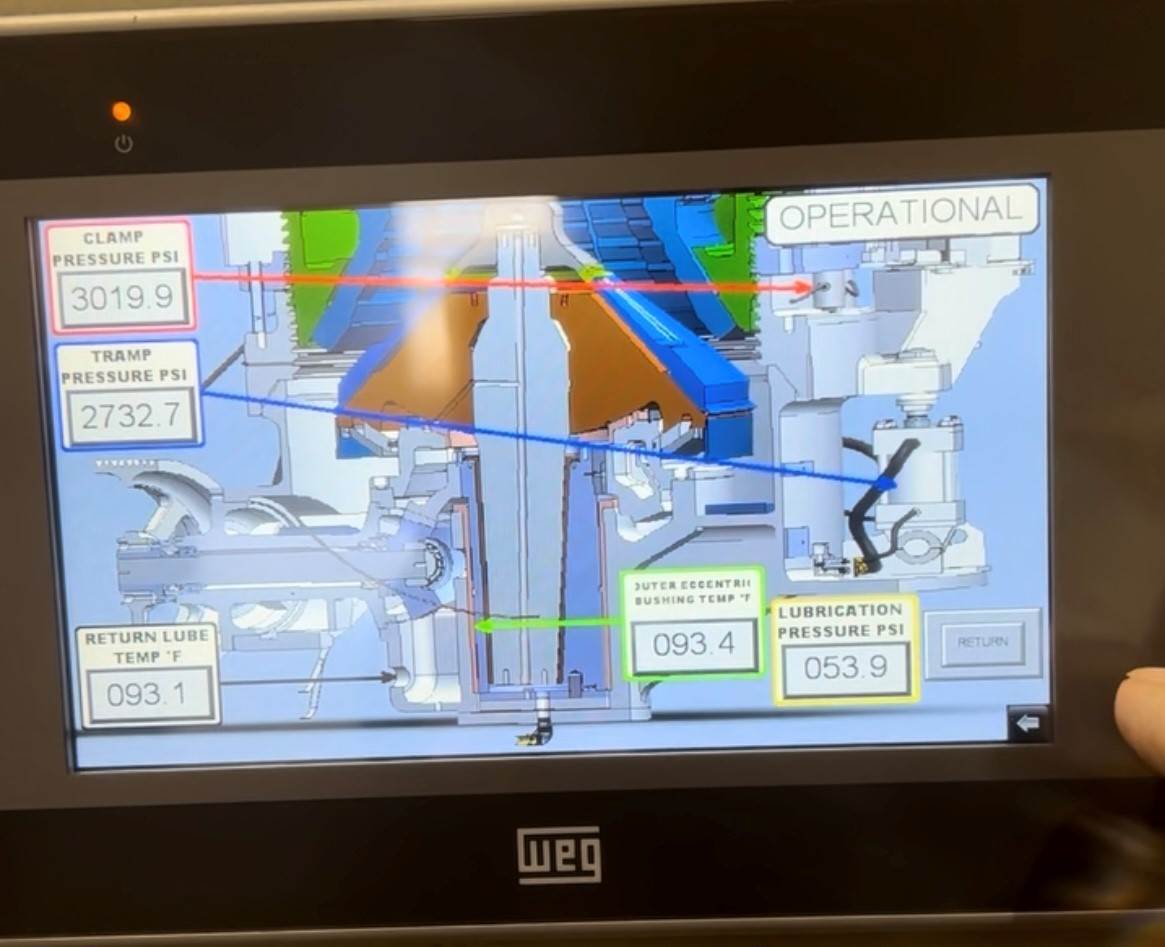

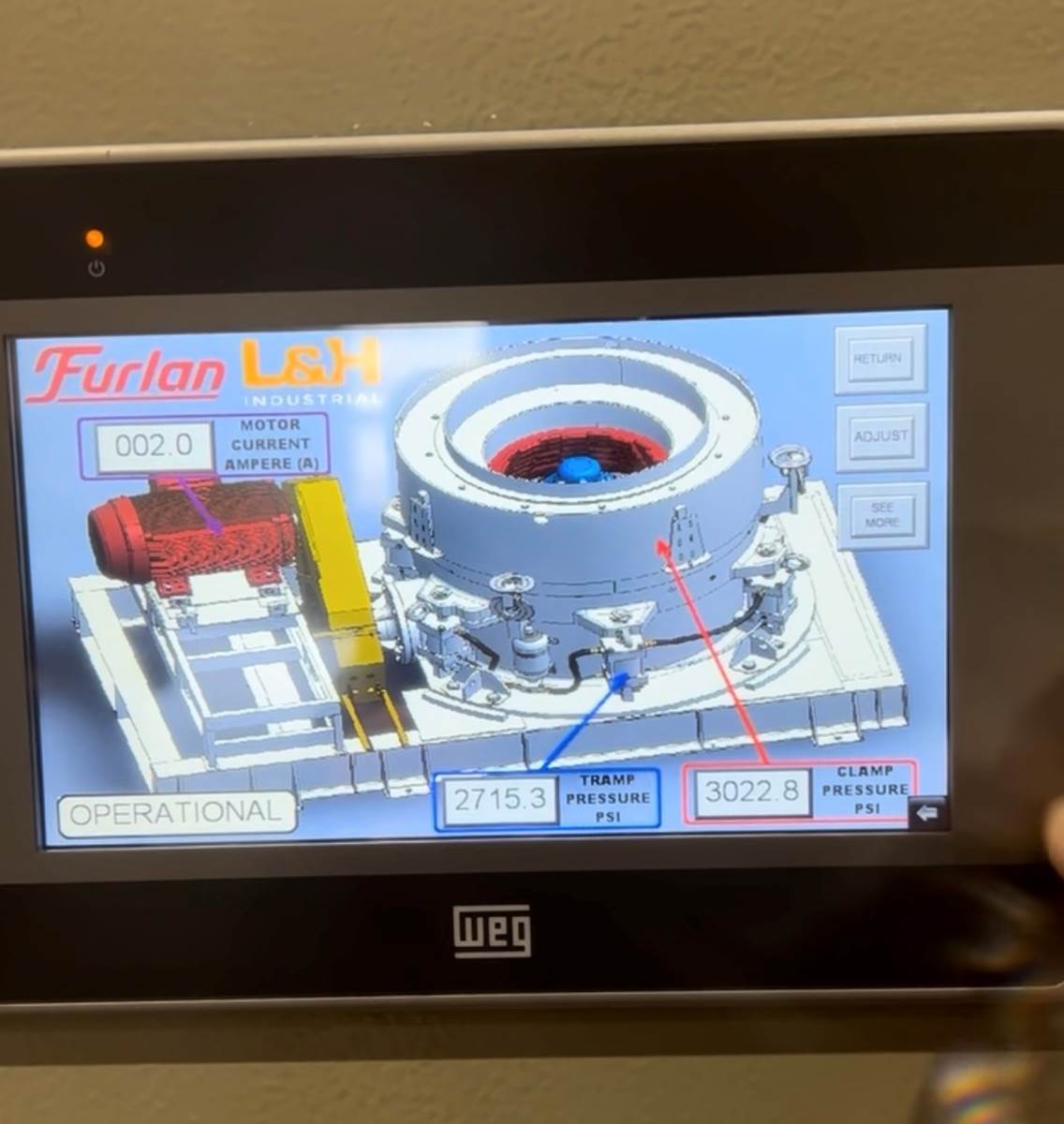

GENERAL: - Manufacture: Furlan - One (1) WEG 400HP electric motor less (electrical starter). - Oil cooler and heater. - Air blower: Generates positive pressure below the crushing chamber to prevent dust and contaminants from entering the seal area and damaging internal components. - Hydraulic and lubrication systems. - Control panel: includes digital touchscreen. - One (1) set of mantle and bowl liners. OPS IQ Monitoring System with 1-Year Online Access: - Provides easy monitoring of liner wear. The system records the crusher’s adjustment setting and displays the values on a digital interface. These values are logged to help plan and schedule the next liner change efficiently. DETAILS: - Bronze Eccentric Bushing: Oil-lubricated under pressure for extended service life. - Spherical Bronze Bearings: Provide excellent shock resistance and prolonged life of the eccentric shaft and head, supported by continuous lubrication. - Tapered Roller Bearings: Support the drive shaft with automatic grease feed. - Hydraulic Adjustment System: Features a hydraulic motor for precise CSS adjustments. The upper liner support is raised or lowered hydraulically and automatically locked in place by cylinders. A digital display shows the machine opening and liner wear for simplified monitoring. - Overload Protection: Hydraulic accumulator protects the crusher from uncrushable materials and overload conditions. - Automatic Lubrication: Includes an oil cooler and heater, with continuous flow and pressure monitoring to protect critical components. - No Anti-Spin Hydraulic System Required: The design eliminates rotational movement of the main shaft, resulting in longer life for both the equipment and liners.
