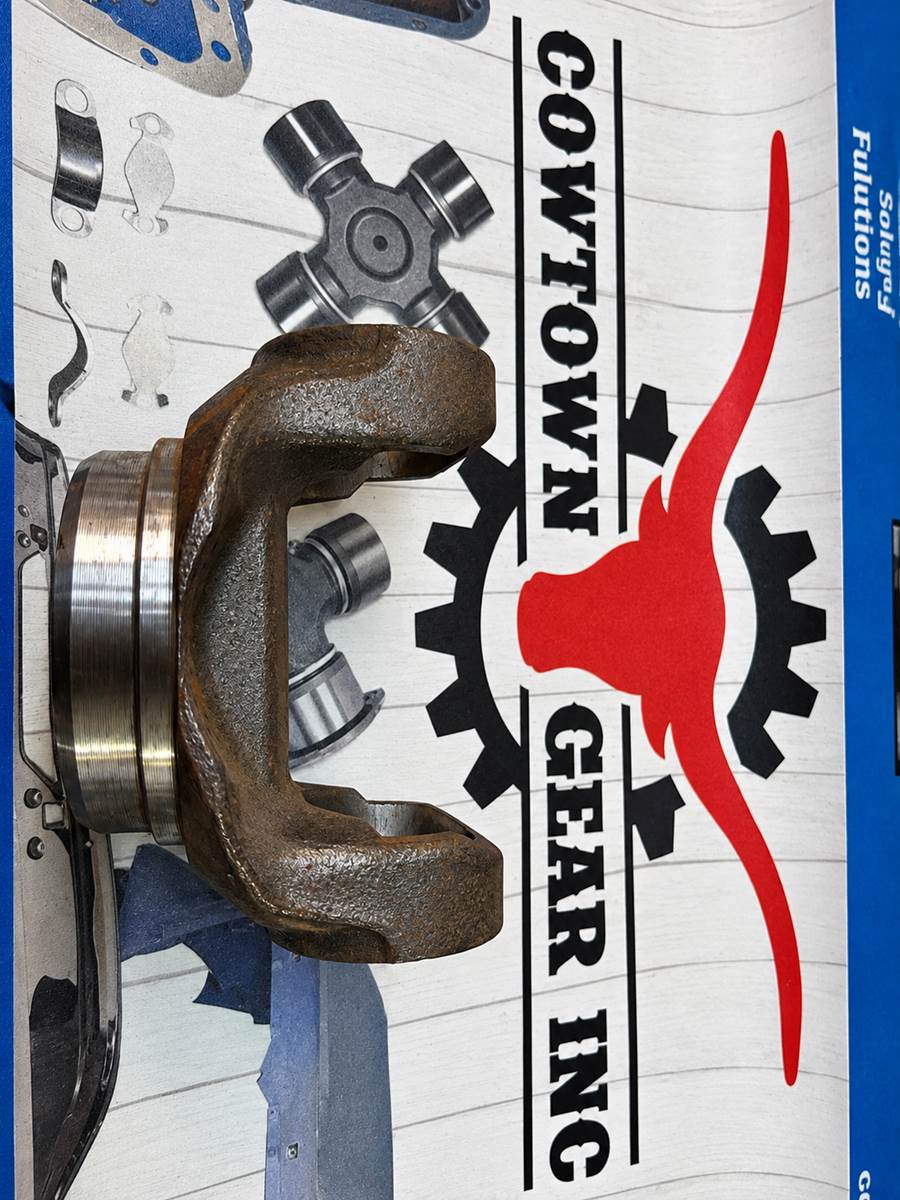

The Spicer 3-28-497 Driveshaft Tube Weld Yoke is a steel 1480-series driveshaft component designed to fit a 3.000-inch outside diameter driveshaft tube with a 0.095-inch wall thickness. [1, 2] Key Specifications Brand/Manufacturer: Dana Spicer Series: 1480 Fits Tube Diameter: 3.000 in Fits Tube Wall: 0.095 in (Welded) Bearing Cap Diameter (D): 1.375 in Outside Yoke Dimension (E): 4.438 in Butt Diameter (F): 2.821 in Centerline to Weld (H): 1.688 in Material: Steel Compatible U-Joint Kits: Spicer 5-188X, SPL55X, or SPL55-1X
