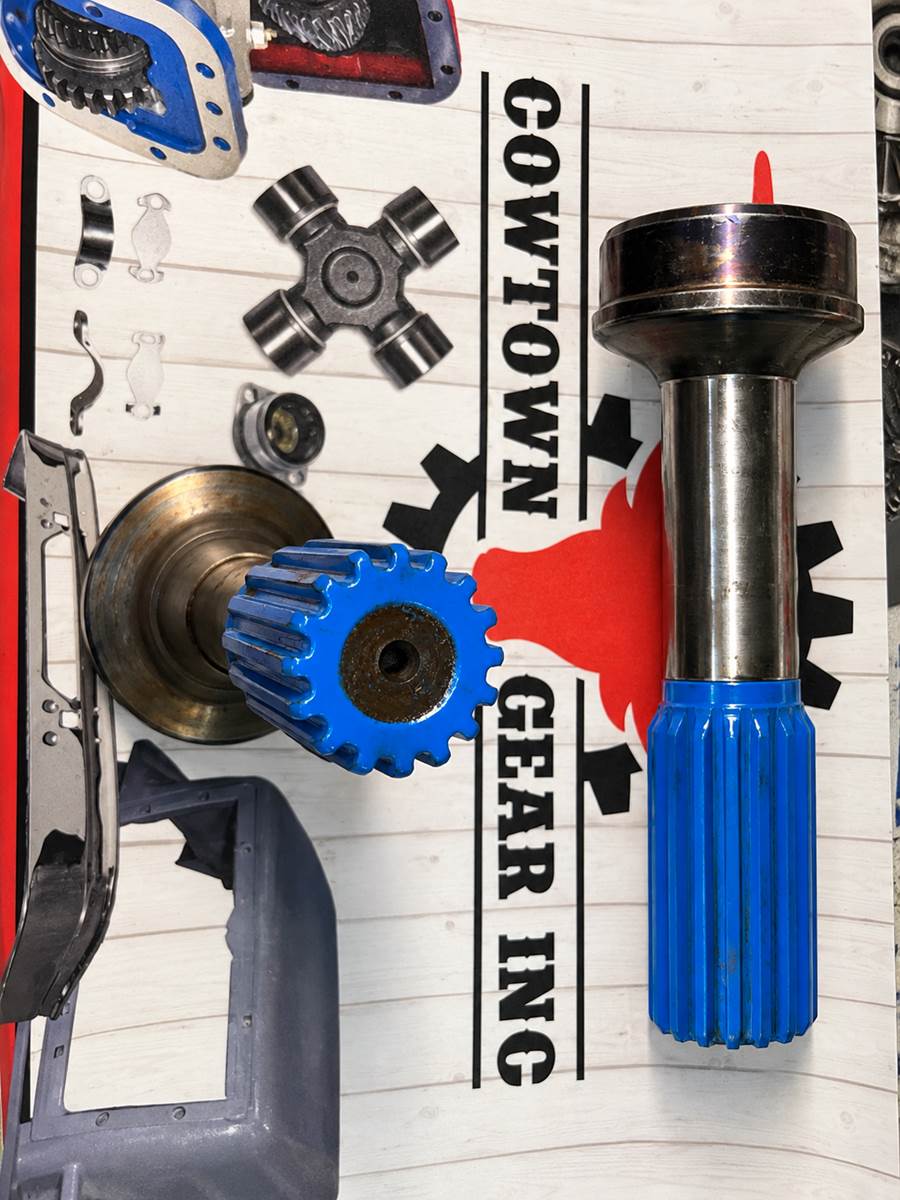

The Spicer 3-40-1471 is a steel driveshaft tube shaft (stub shaft) designed for slip yoke and driveline assemblies in light-duty cars, trucks, and commercial applications. [1, 2, 3] Key Specifications Brand / Manufacturer: Dana Spicer (Summit Racing Part #: SDH-3-40-1471) Series: 1210–1350 Material: Steel (with Glidecote spline coating) Spline Count: 16 splines Major Spline Diameter: 1.500 in Length of Spline (L): 2.500 in Fits Tube Diameter: 2.500 in Fit Tube Wall Thickness: 0.083 in (butt diameter 2.345 in) End of Spline to Weld (K): 5.625 in End of Spline to Radius (R): 4.969 in
