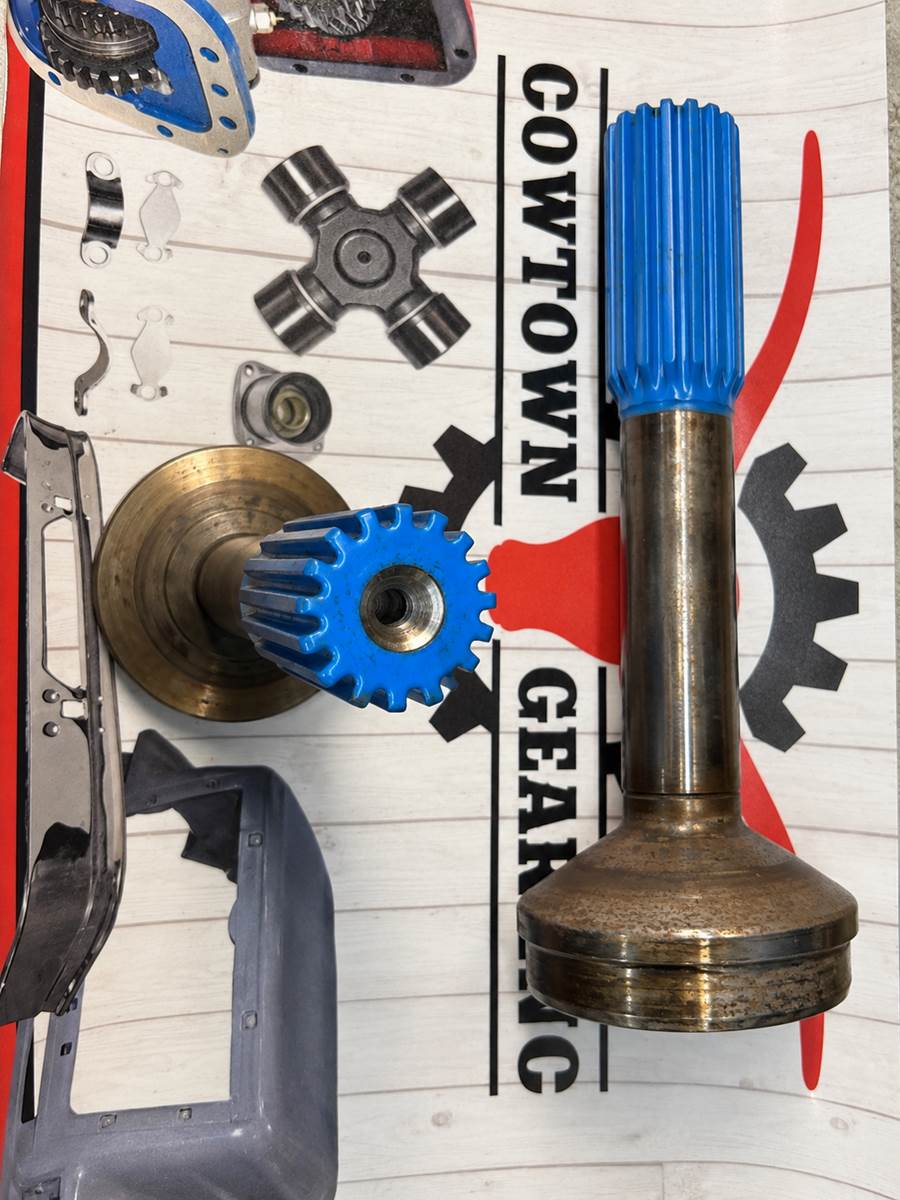

The Spicer 3-40-1871 is a genuine Dana Spicer driveshaft splined stub shaft (also referred to as a tube shaft) designed for heavy-duty and light-duty truck driveline applications. [1, 2, 3] Key Specifications Spline Count: 16 splines [1] Spline Major Diameter: 1.562 inches (1 9/16") [1, 2] Spline Length (L): 3.000 inches [1] Fits Tube Size: 3.500-inch outside diameter with a 0.083-inch wall thickness [1] End of Spline to Weld (K): 8.750 inches [1] End of Spline to Radius (R): 7.810 inches [1] Butt Diameter (B): 3.345 inches [1] Glidecote Spline: Yes (anti-friction coating) [1] Weight: ~5.08 lbs
ALL SALES FINAL
NO RETURNS
NO REFUNDS
