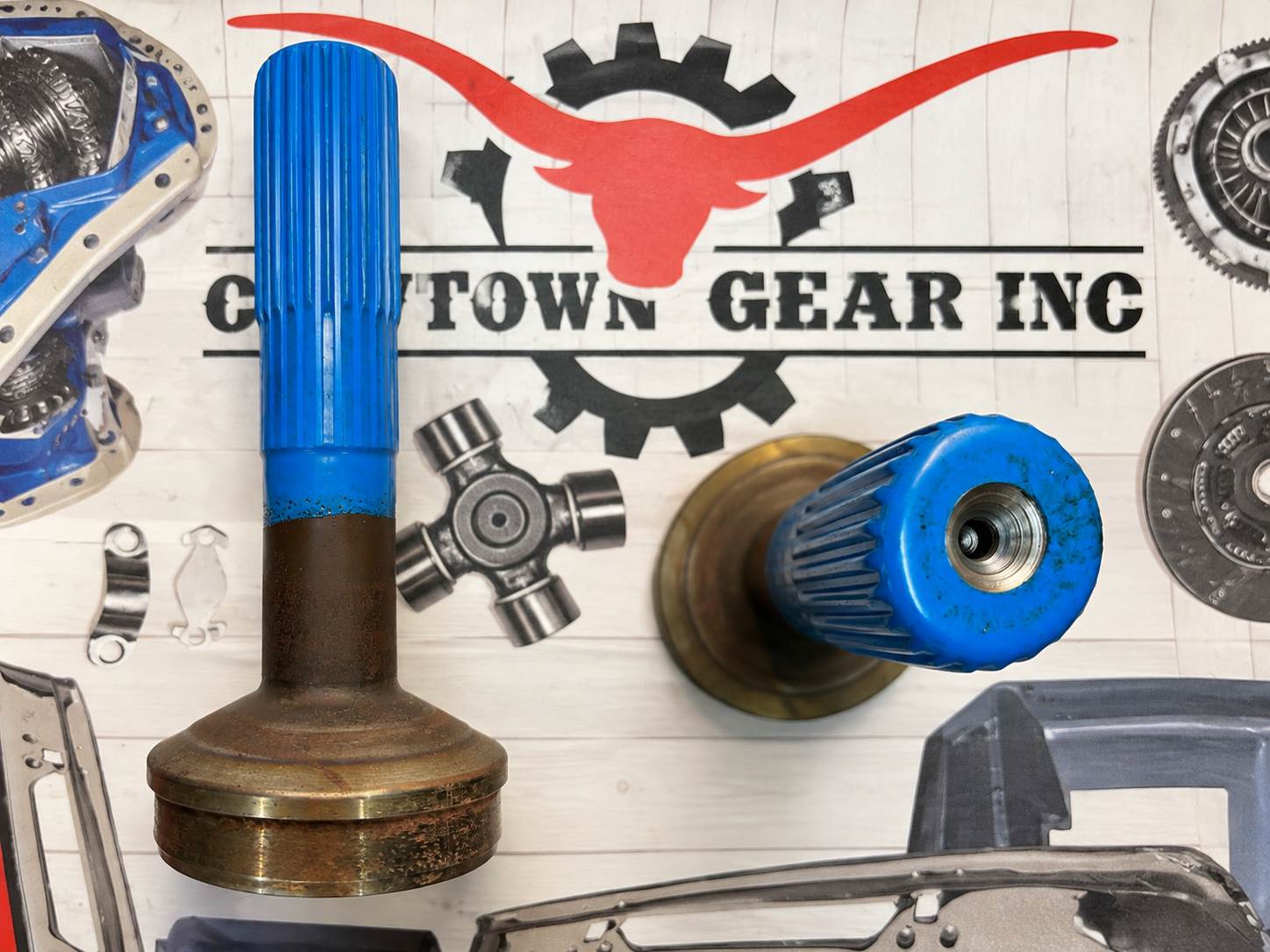

The Spicer 3-40-2171 is a steel driveshaft tube shaft (stub shaft) manufactured by Dana Aftermarket designed for use with 3.500-inch diameter steel tubing. Key Specifications Brand: Spicer (Dana) Series: 1310-1480 Material: Steel with Glidecote spline coating for wear resistance Spline Count: 23/24 (23 active splines based on 24 with one dead spot) Spline Major Diameter: 1.563 inches Length of Spline (L): 3.000 inches Fits Tube Diameter: 3.500 inches Fit Tube Wall Thickness: 0.083 inches Butt Diameter: 3.345 inches End Of Spline To Weld (K): 8.000 inches End Of Spline To Radius (R): 7.060 inches
ALL SALES FINAL
NO RETURNS
NO REFUNDS
