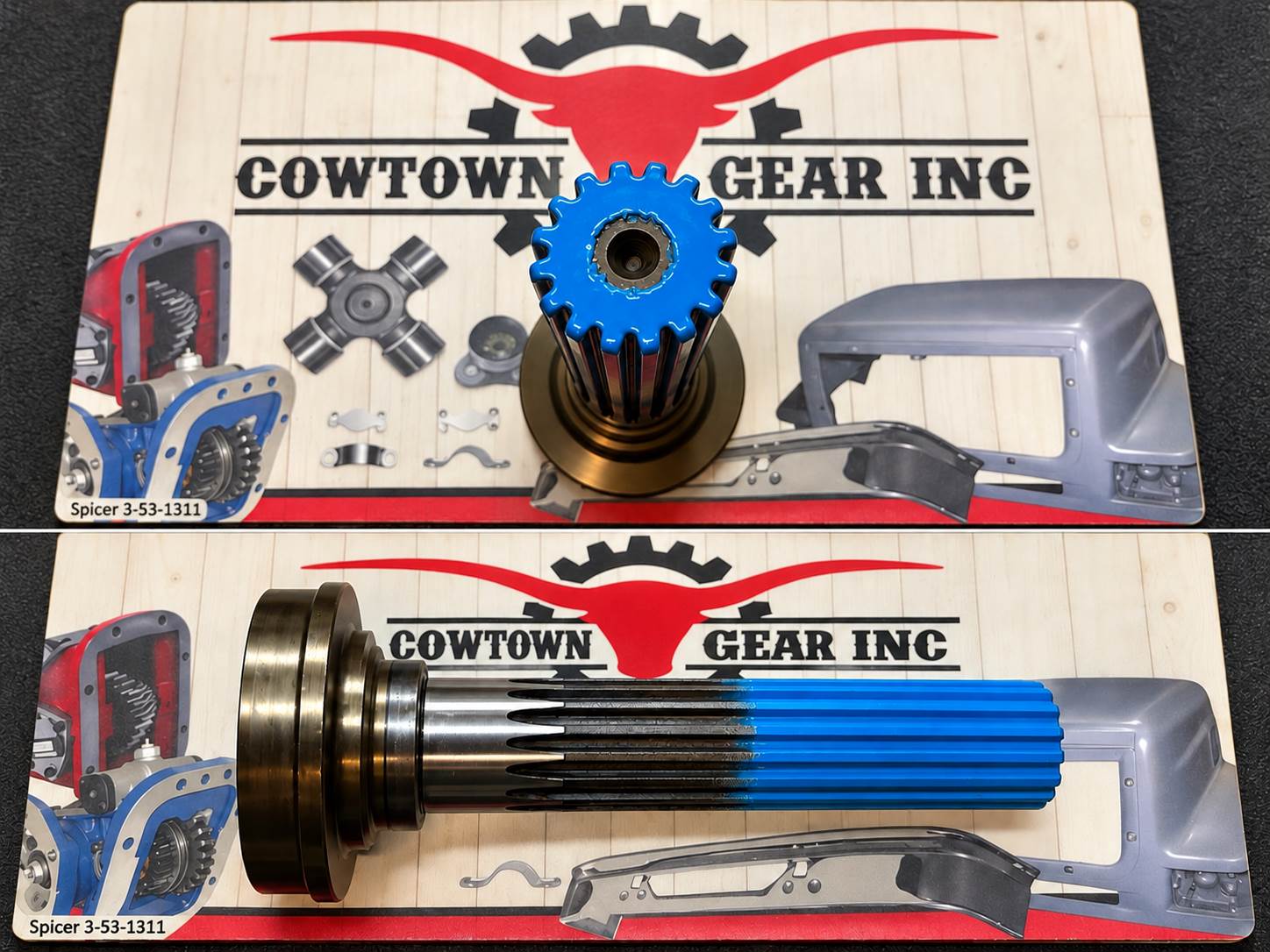

The Dana Spicer 3-53-1311 Midship Stub Shaft is a steel driveline component designed for use with a center support bearing and an outboard slip yoke. [1, 2] Key Specifications Part Number: 3-53-1311 (Dana Spicer) [1] Series: 1310-1480 [1] Tube Compatibility: Fits a 3.5-inch outside diameter tube with a 0.083-inch wall thickness [1] Spline Count & Size: 16 splines with a 1.562-inch major spline diameter [1] Special Notes: Features blue GLIDECOAT on the splines for smooth operation and long life (do not remove this coating) [1] Dimensions: Bearing Diameter (C): 1.575 in Shoulder Diameter (B): 1.810 in Shoulder Length (G): 0.875 in Spline Length (L): 5.906 in Spline End to Point of Weld (K): 8.531 in Spline End to Bearing Shoulder (Y): 7.410 in Butt Diameter: 3.345 in Weight: ~5.55 to 6.0 lbs
ALL SALES FINAL
NO RETURNS
NO REFUNDS
