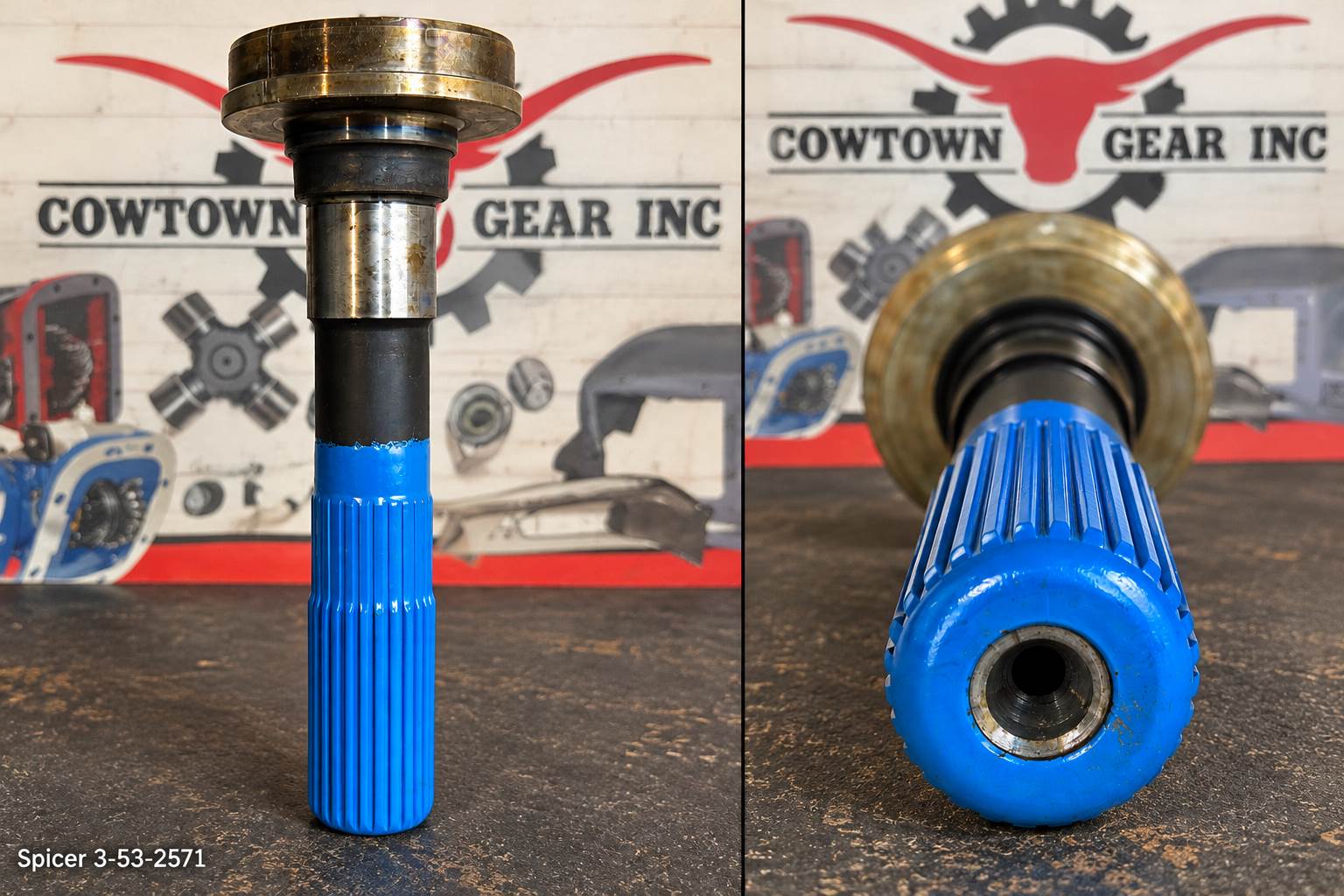

Key Specifications SPICER EQUIV. Part Number: 3-53-2571 (Alternate/Cross: 3532571) Product Type: Midship Tube Shaft / Carrier Bearing Splined Stub Shaft U-Joint / Series: 1310–1480 Material: Steel Spline Count: 23 / 24 teeth (24-spline with 1 dead spot) Spline Major Diameter (O.D.): 1.562 in Spline Length: 3.000 in Bearing Diameter: 1.575 in (Max: 1.5752 in, Min: 1.5747 in) Bearing Diameter Length: 1.5 in Tube Diameter Compatibility: 3.500 in Tube Wall Compatibility: 0.083 in Butt Diameter: 3.345 in End of Spline to Bearing Shoulder: 8.750 in End of Spline to Point of Weld: 9.875 in Shoulder Diameter: 1.812 in Shoulder Length: 0.880 in
ALL SALES FINAL
NO RETURNS
NO REFUNDS
