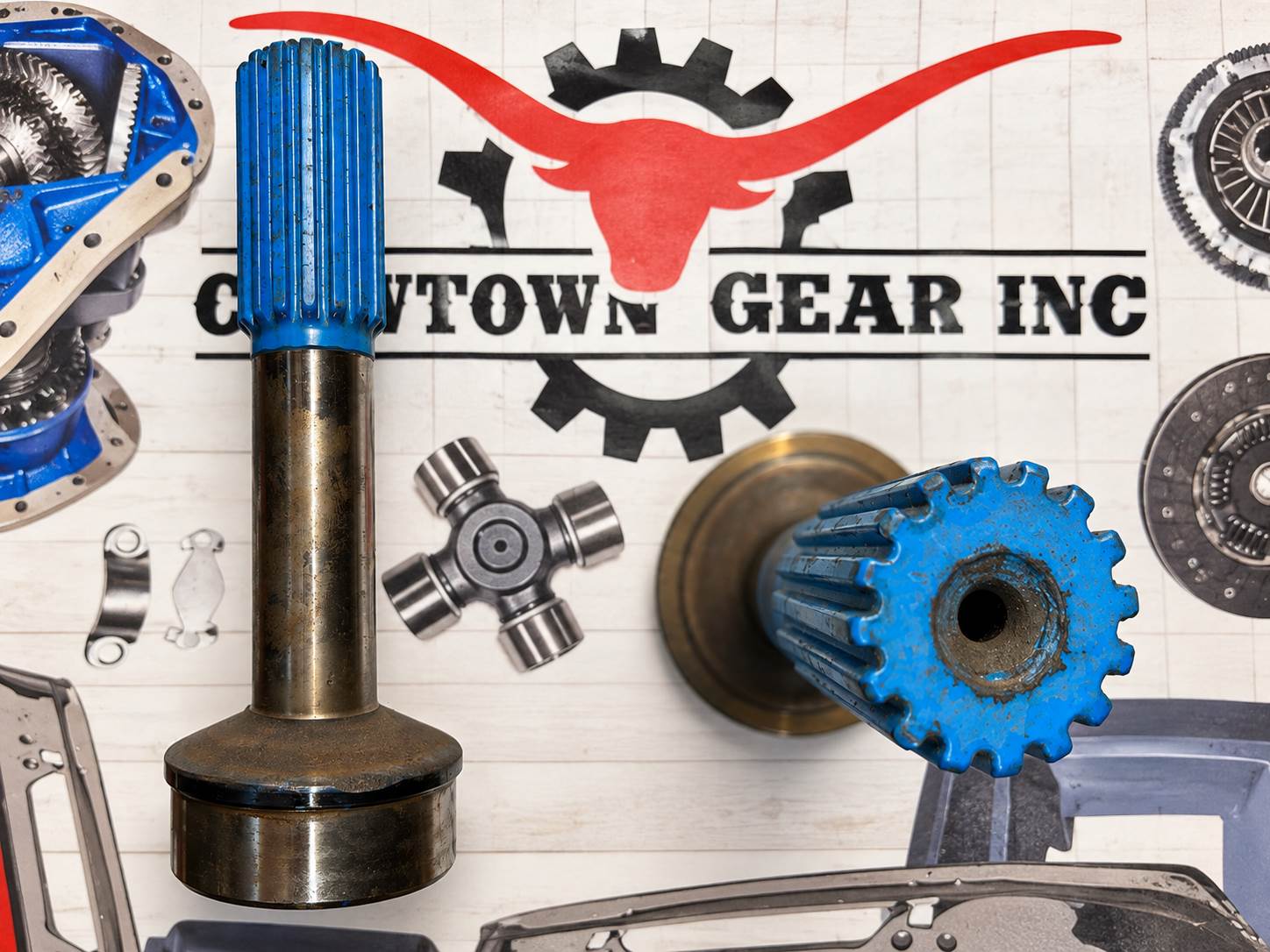

The Dana Spicer 5-40-501 Driveshaft Spline is a 1610-series driveshaft stub/slip shaft component designed for heavy-duty driveline applications. Specifications Series: 1610 Series Spline Count & Major Diameter: 16 splines, 2.000-inch major diameter Tube Compatibility: Fits 3.500-inch outside diameter (OD) tubing with a 0.095-inch wall thickness Spline Length (L): 3.500 inches End of Spline to Weld (K): 9.562 inches End of Spline to Radius (R): 8.656 inches Butt Diameter: ~3.321 inches
ALL SALES FINAL
NO RETURNS
NO REFUNDS
