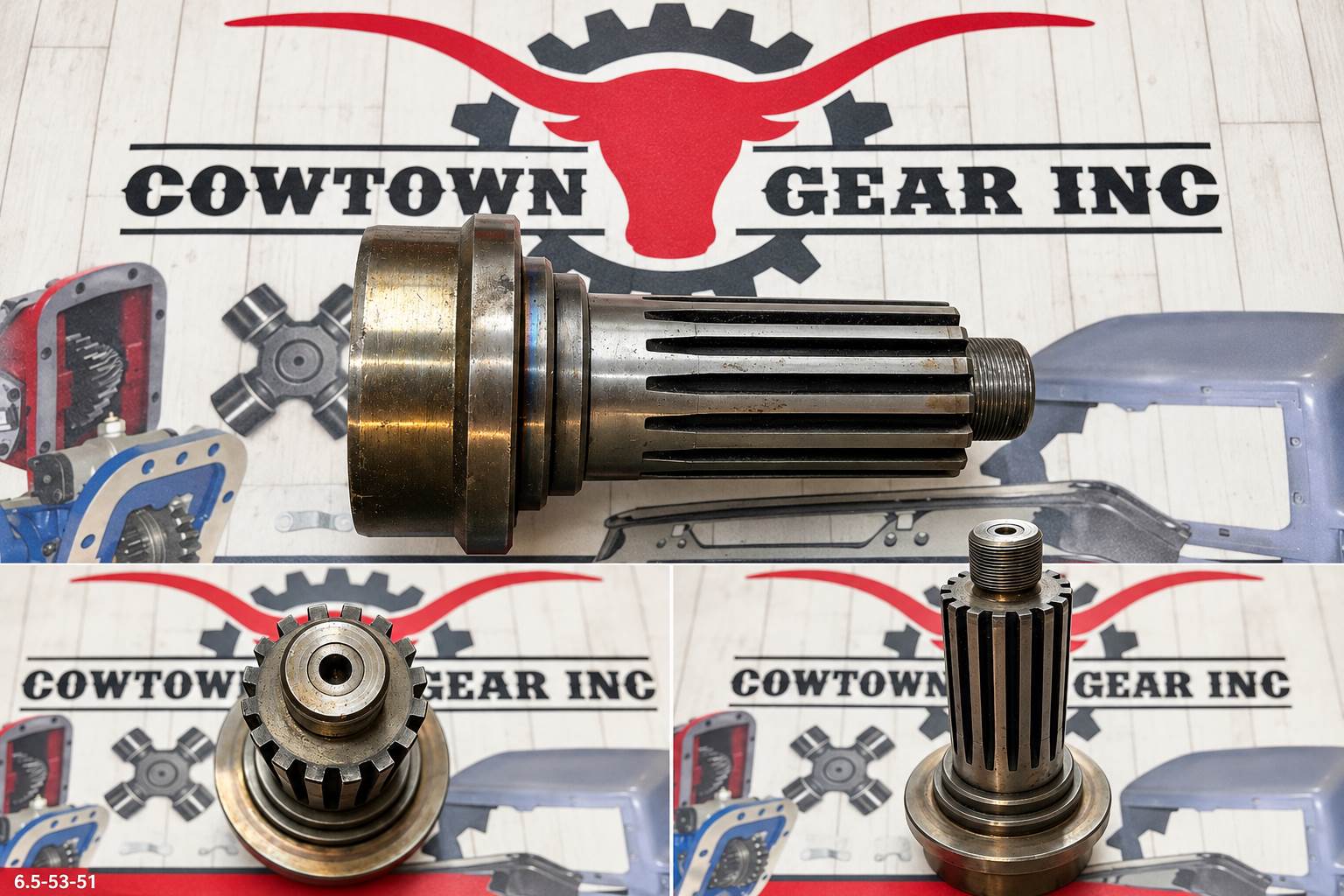

The Spicer 6.5-53-51 is a genuine Dana Spicer 1810-series splined midship tube stub shaft designed for heavy-duty commercial vehicle drivelines. [1, 2] Key Specifications Series: 1810 Material: Steel Style: 2 (Non-involute profile) Splines: 16 splines (Spline O.D.: 2.350 in., Spline length: 2.750 in.) Fits Tube Dimensions: 4.500 in. tube diameter with a 0.188 in. wall thickness (also compatible with .259 in. wall variations depending on exact sub-application) Bearing Diameter: 2.3617 – 2.3622 in. tolerance range Shoulder Dimensions: 2.875 in. shoulder diameter, 0.812 in. shoulder length Thread Size: 1.250-18 (1 1/4-18 in.) Spline End-to-Weld (K): 5.438 in. Spline End-to-Bearing Shoulder (Y): 4.000 in. Butt Diameter: 4.003 in. Weight: ~10.50 lbs
ALL SALES FINAL
NO RETURNS
NO REFUNDS
