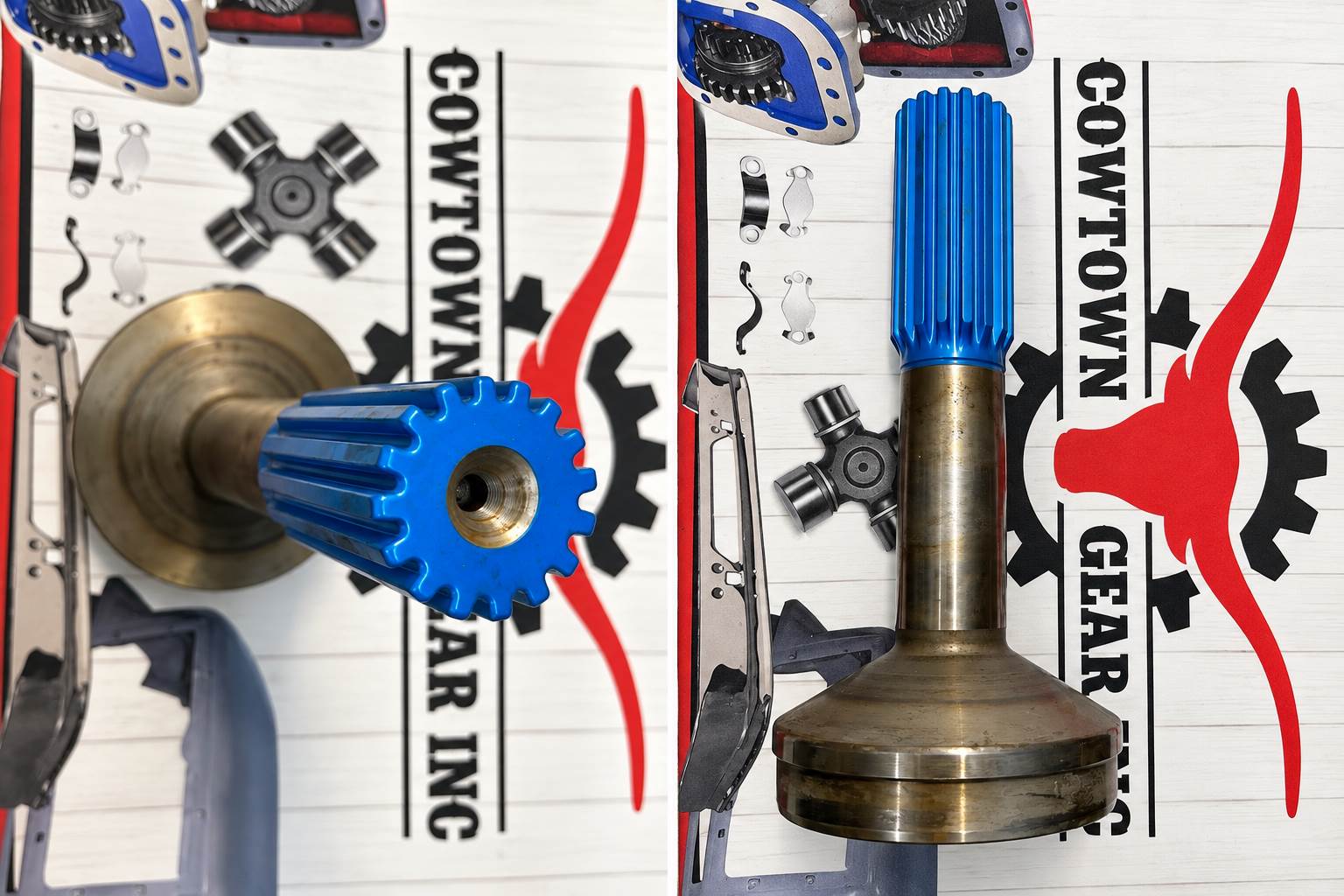

The Dana Spicer 3-40-1501 is a steel splined stub shaft (tube shaft) component used for automotive and commercial vehicle driveshafts. [1, 2] Specifications Brand/Manufacturer: Dana Spicer Drivetrain Products Part Number: 3-40-1501 (Summit Racing: SDH-3-40-1501) Series Compatibility: 1310-1550 Spline Count: 16 teeth Major Spline Diameter: 1.500 inches Spline Length (L): 3.000 inches Glidecote Spline: Yes (Coated for smooth sliding) Fits Tube Size: 4.000-inch outside diameter with a 0.083-inch wall thickness Butt Diameter: 3.845 inches End of Spline to Weld (K): 7.875 inches End of Spline to Radius (R): 6.688 inches
ALL SALES FINAL
NO RETURNS
NO REFUNDS
