Product Description

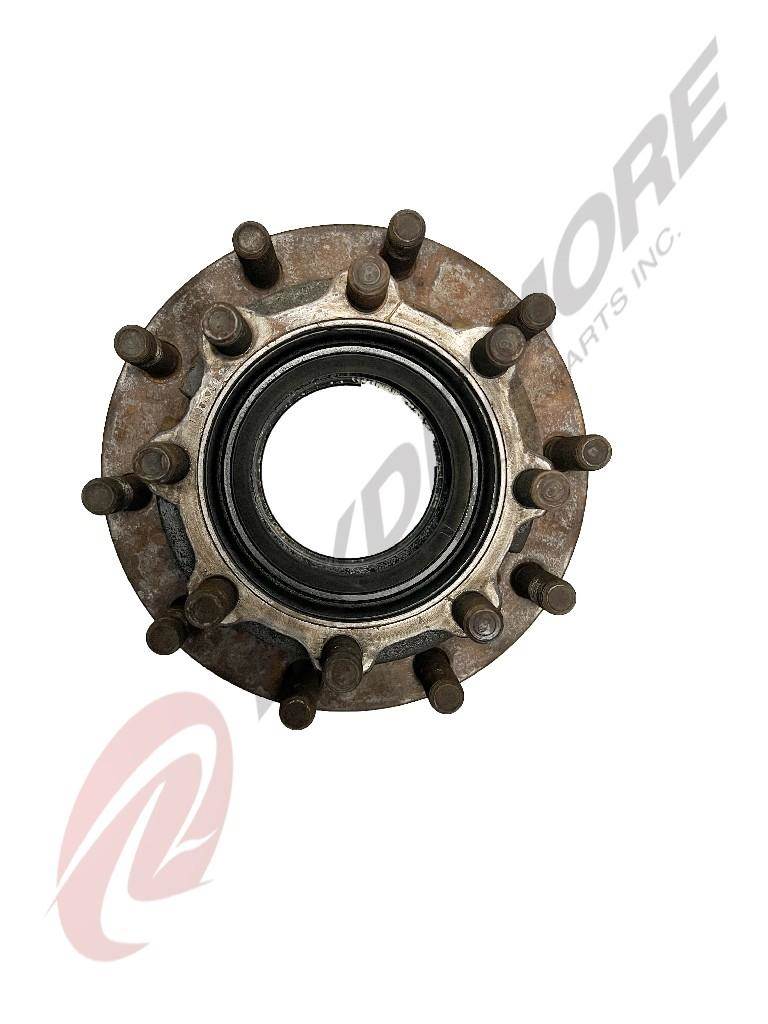

Good used, cleaned and inspected Webb rear hub. Part number: 2651
Conment Interchange: 10082222, 10082223 (Long Studs)
Cross Reference: 26511--3, 26511--4, 26511--5, 26511--6, 26512--3, 26512--4, 26512--5, 26512--6, 26515--3, 26515--4, 26515--5, 26515--6, 26511PD3, 26511PD4, 26511PD5, 26511PD6, 26512PD3, 26512PD4, 26512PD5, 26512PD6, 26515PD3, 26515PD4, 26515PD5, 26515PD6, 26511MH3, 26511MH4, 26511MH5, 26511MH6, 26512MH3, 26512MH4, 26512MH5, 26512MH6, 26515MH3, 26515MH4, 26515MH5, 26515MH6, 26511RK3, 26511RK4, 26511RK5, 26511RK6, 26512RK3, 26512RK4, 26512RK5, 26512RK6, 26515RK3, 26515RK4, 26515RK5, 26515RK6, 26511RH3, 26511RH4, 26511RH5, 26511RH6, 26512RH3, 26512RH4, 26512RH5, 26512RH6, 26515RH3, 26515RH4, 26515RH5, 26515RH6, 26511LU3, 26511LU4, 26511LU5, 26511LU6, 26512LU3, 26512LU4, 26512LU5, 26512LU6, 26515LU3, 26515LU4, 26515LU5, 26515LU6, 26511KA3, 26511KA4, 26511KA5, 26511KA6, 26512KA3, 26512KA4, 26512KA5, 26512KA6, 26515KA3, 26515KA4, 26515KA5, 26515KA6, 26511JB3, 26511JB4, 26511JB5, 26511JB6, 26512JB3, 26512JB4, 26512JB5, 26512JB6, 26515JB3, 26515JB4, 26515JB5, 26515JB6, 26511DQ3, 26511DQ4, 26511DQ5, 26511DQ6, 26512DQ3, 26512DQ4, 26512DQ5, 26512DQ6, 26515DQ3, 26515DQ4, 26515DQ5, 26515DQ6
FITMENT:
ArvinMeritor: (Short Drive “R” Series)
RS-21-145, RS-21-160, RS-21-230, RS-23-160,
RS-23-161, RS-23-186, RS-23-240, RS-23-380,
RS-25-160, RS-26-185, RS-26-380, RS-40-145,
RT-40-145, RT-44-145, RT-46-160, RT-46-164,
RT-50-160, RT-52-185, RT-52-380
Dana Spicer (Eaton): (Short Drive)
21060S, 21060T, 22060S, 22060T, 23082T, D40-170,
D46-170, D46-590P, D50-170, D52-190, D52-590P,
DS404, DS405, DSH40, DSH44, DST40, DST41,
DT463-P, DT521-P, S21-170, S23-170, S23-190,
S23-590, S25-170, S26-190, S26-590, T69-170HP,
T78-190P, T78-590P
Outer Bearing:
Cup - 572
Cone - 580
Inner Bearing:
Cup - 592A
Cone - 598A or 594A
Overall length (with ABS Teeth) - 9.23
Outer Hubcap Face to Inner Brg. Cup Seat - 6.90
Distance Between Cups - 4.31
Inner Cup to Mounting Face:
Cast Drum - 1.81
Steel Shell Drum - 1.56
Bolt Circle Diameter - 11.25
Wheel Stud Qty. / Thread Diameter - 10 (M22 x 1.5
)
Drive Stud Pattern - 8 Studs (.75 Dia, 7.00 Dia. Bolt Circle)
