Western Star 4700 Instrument Panel Cluster

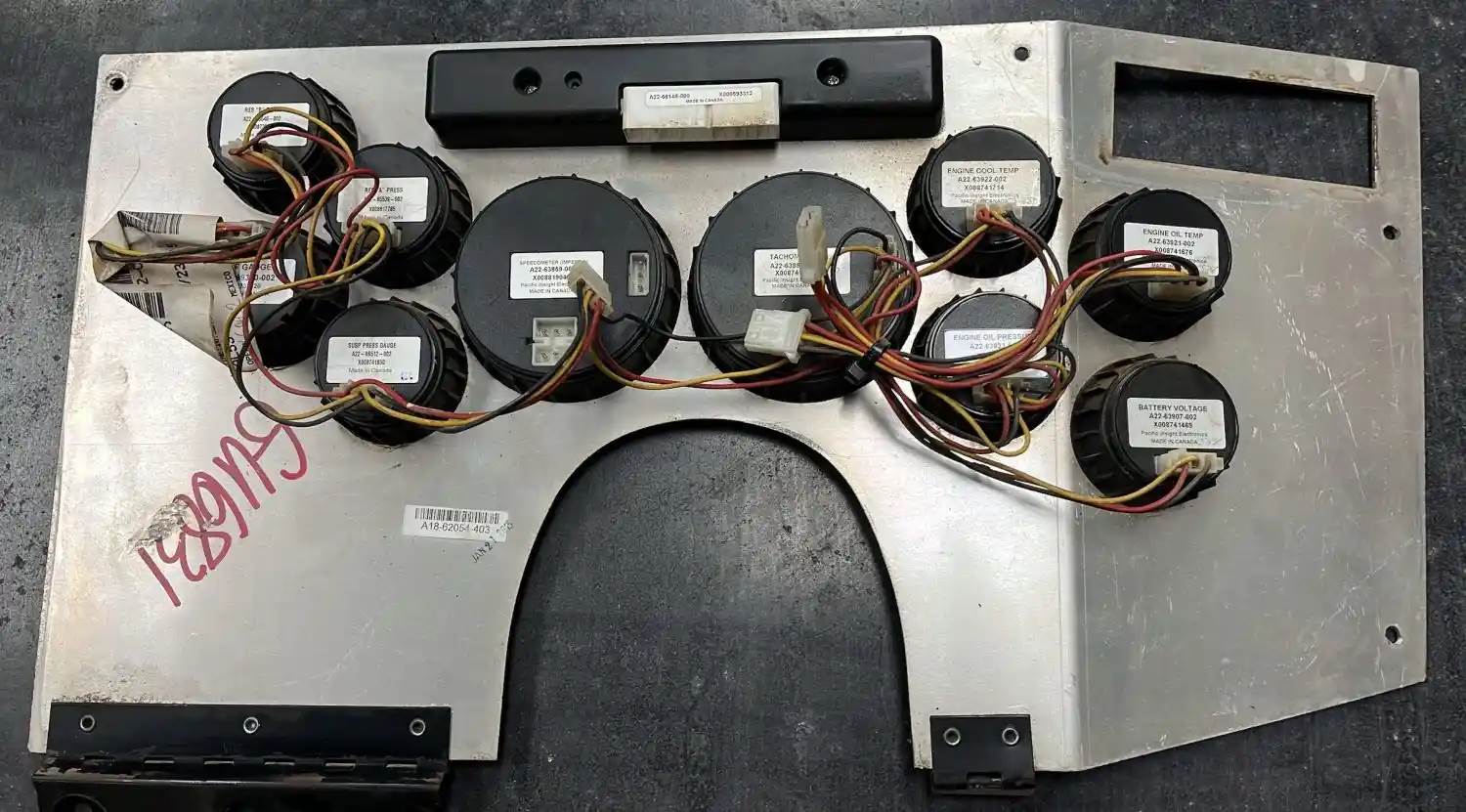

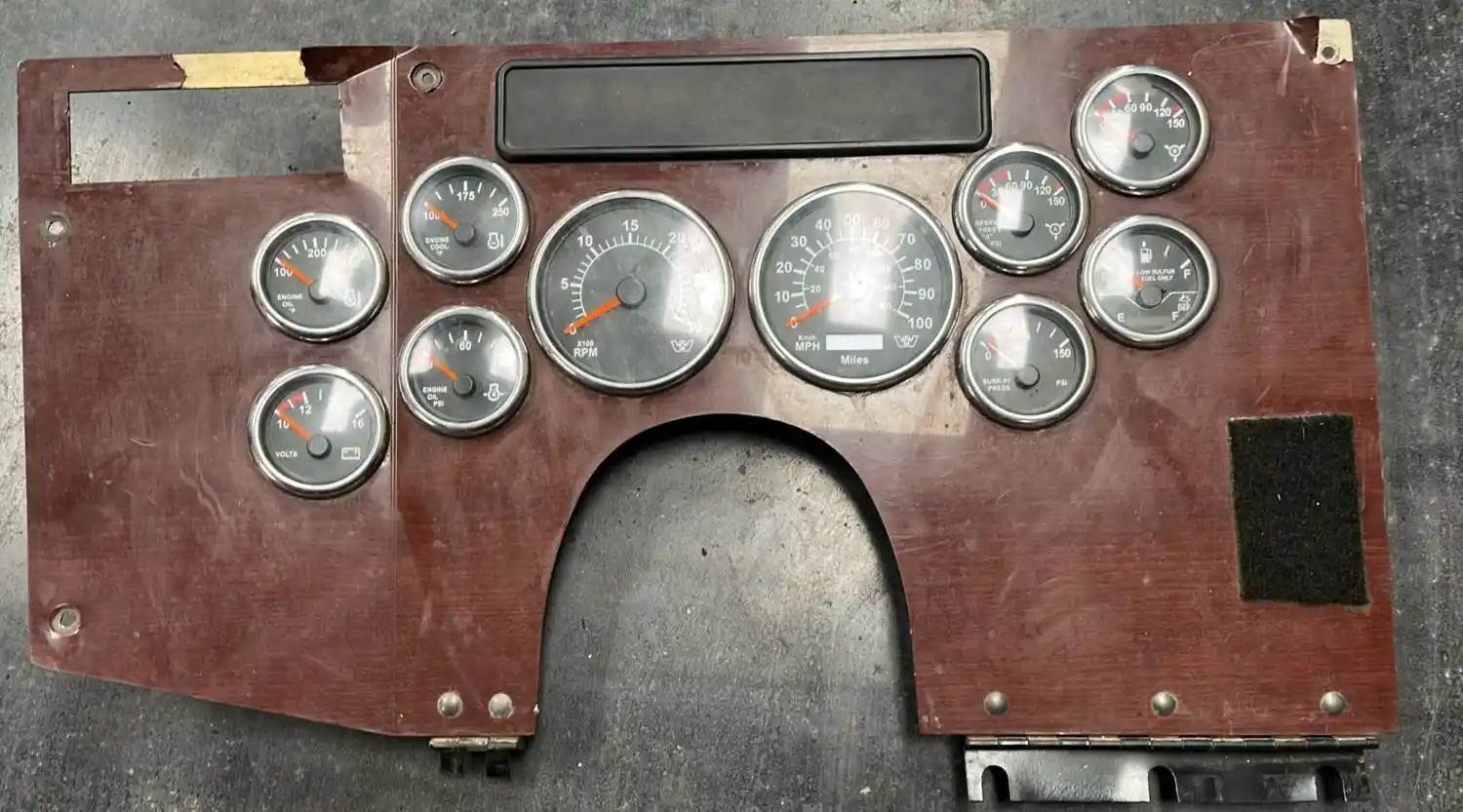

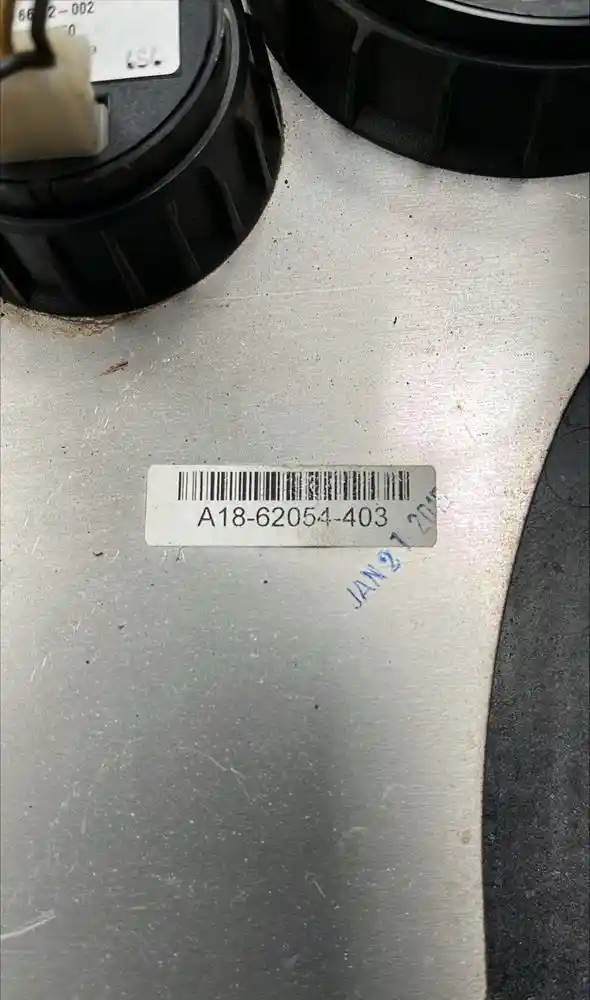

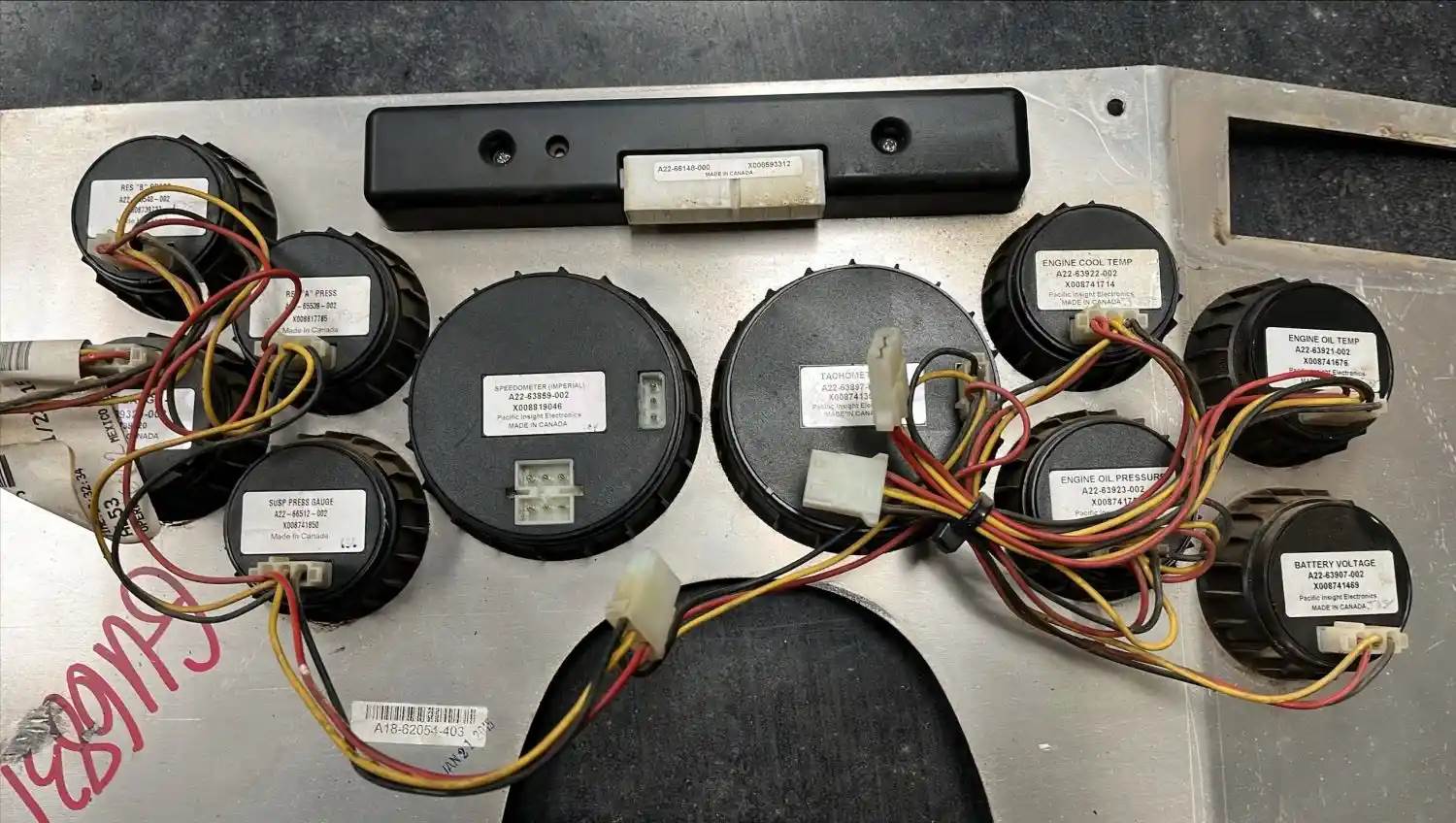

Gauge panel assembly with gauges – cherry woodgrain. Used condition Key Specs: Panel Part #: A18-62054-403 Replaced by: A18-71725-203 Type: Speedometer / Tachometer Gauge Panel Drive: Left Hand Drive Material: Aluminum Finish: Cherry Woodgrain Application: Cab instrumentation / dashboard Includes Gauges: Voltmeter Gauge: A22-63907-002 / Replaced by A22-78485-002 Engine Oil Temp Gauge: A22-63921-002 / Replaced by A22-78495-002 Engine Coolant Temp Gauge: A22-63922-002 / Replaced by A22-78496-002 Engine Oil Pressure Gauge: A22-63923-002 / Replaced by A22-78463-002 Speedometer: A22-63859-002 Suspension Pressure Gauge: A22-66512-002 / Replaced by A22-78470-002 Reservoir A Pressure Gauge: A22-65539-002 / Replaced by A22-78466-002 Reservoir B Pressure Gauge: A22-65540-002 / Replaced by A22-78467-002 Tachometer Gauge: A22-63897-002 Fuel / DEF Gauge: A22-69320-002 Warning Lightbar Assembly: A22-66148-000 Dimensions: Length: 23.32 in Width: 13.11 in Height: 2.15 in Thickness: 0.08 in (TAYLOR'S MOTOR CO.) 3229 Presson Rd, Monroe, NC 28112 Call or text: 704-242-3008
