Product Specifications

Year2011
CategoryAsphalt / Cement / Hot Mix Silos
Manufacturer
Montana Tank Works
Model350 BBL
Condition Used
MLS Number14640839

Product Description

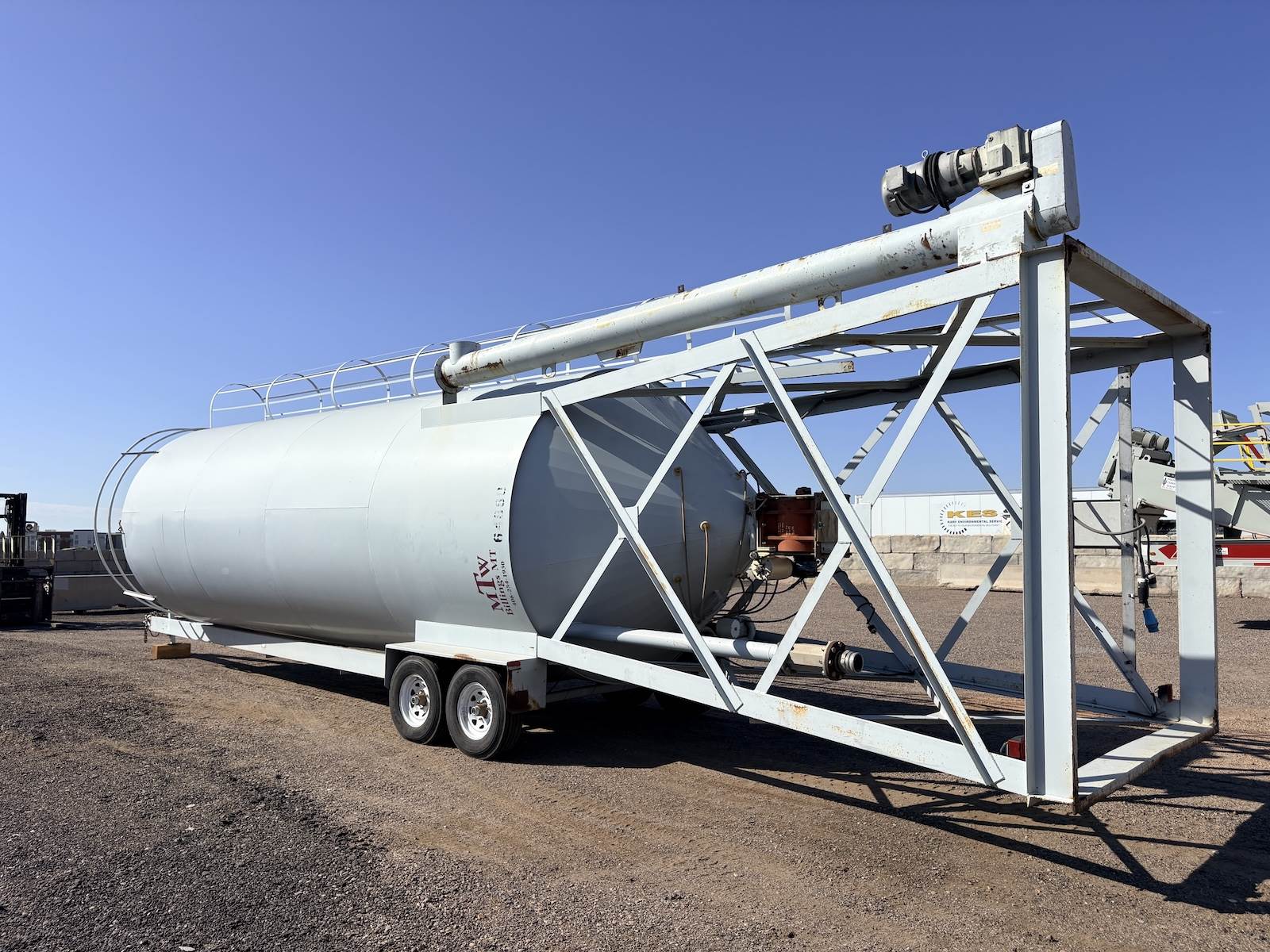

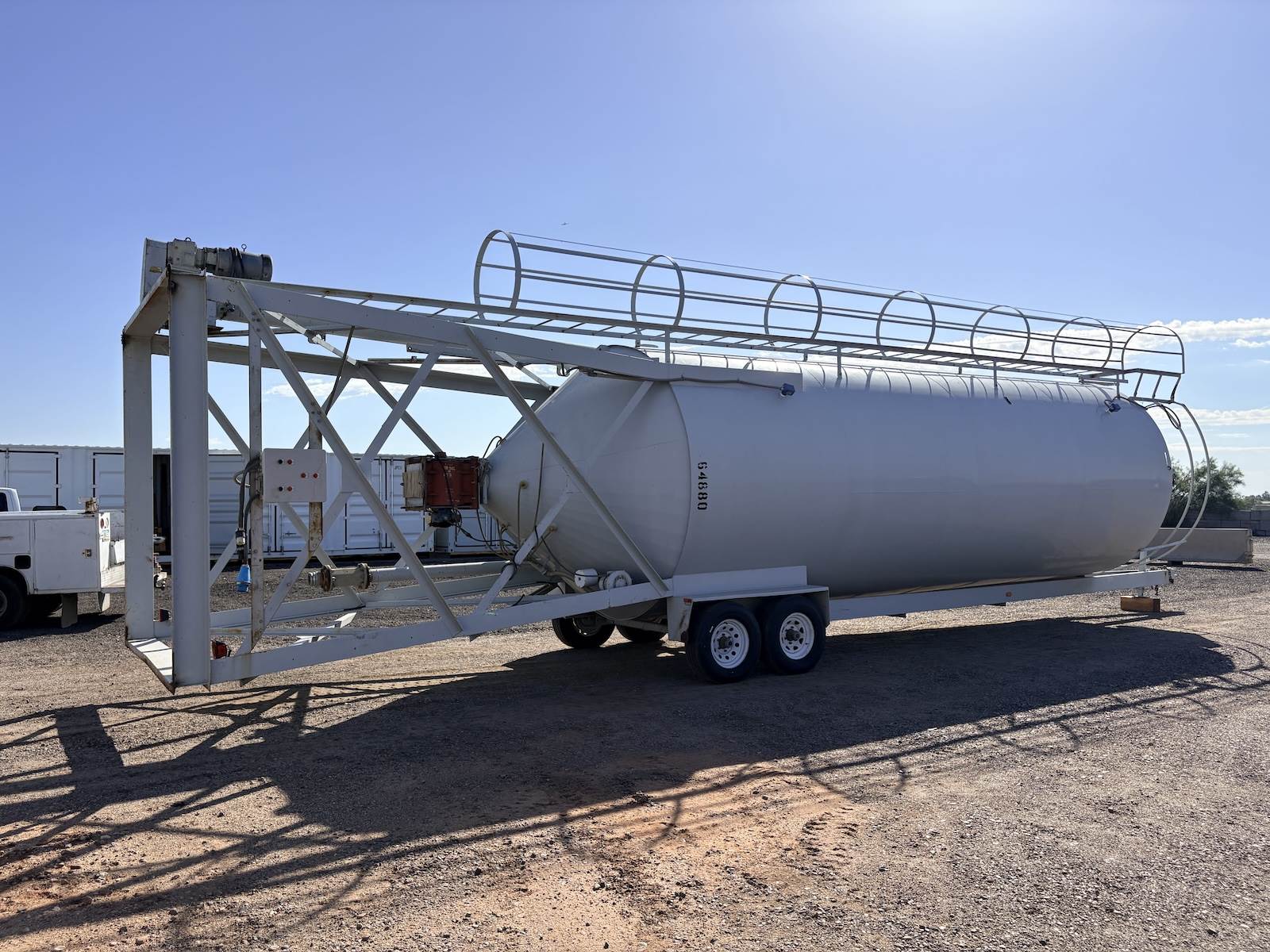

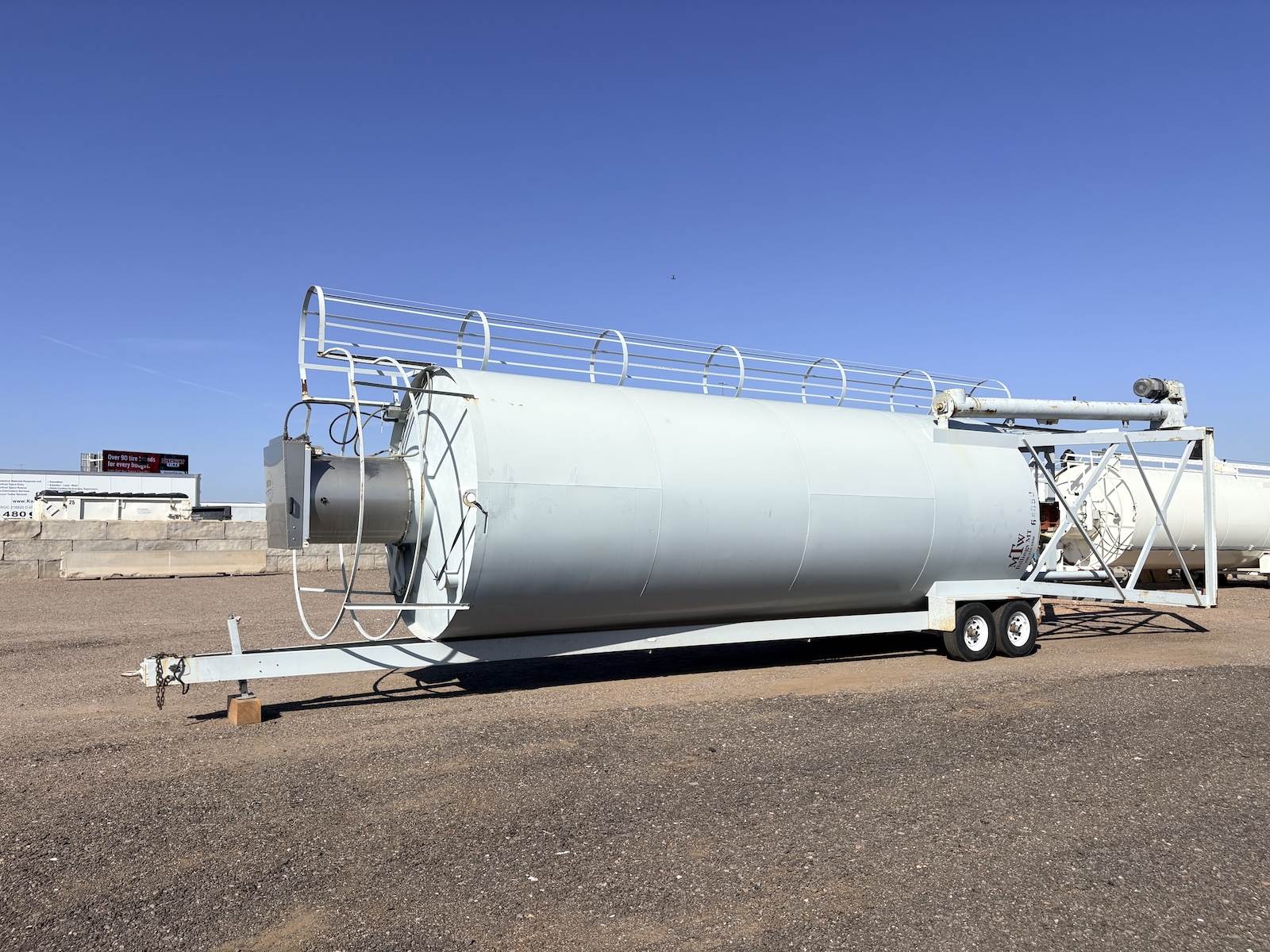

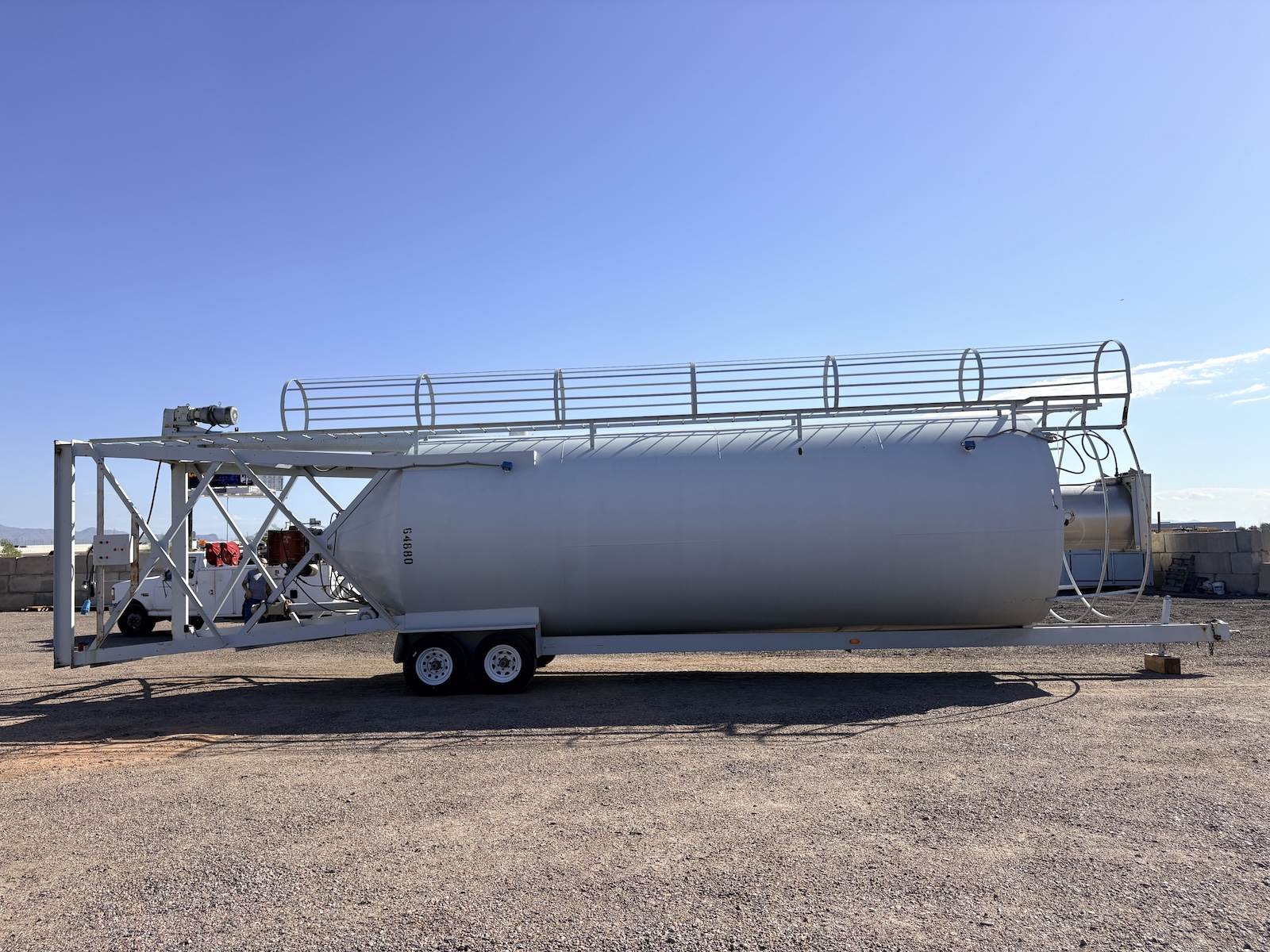

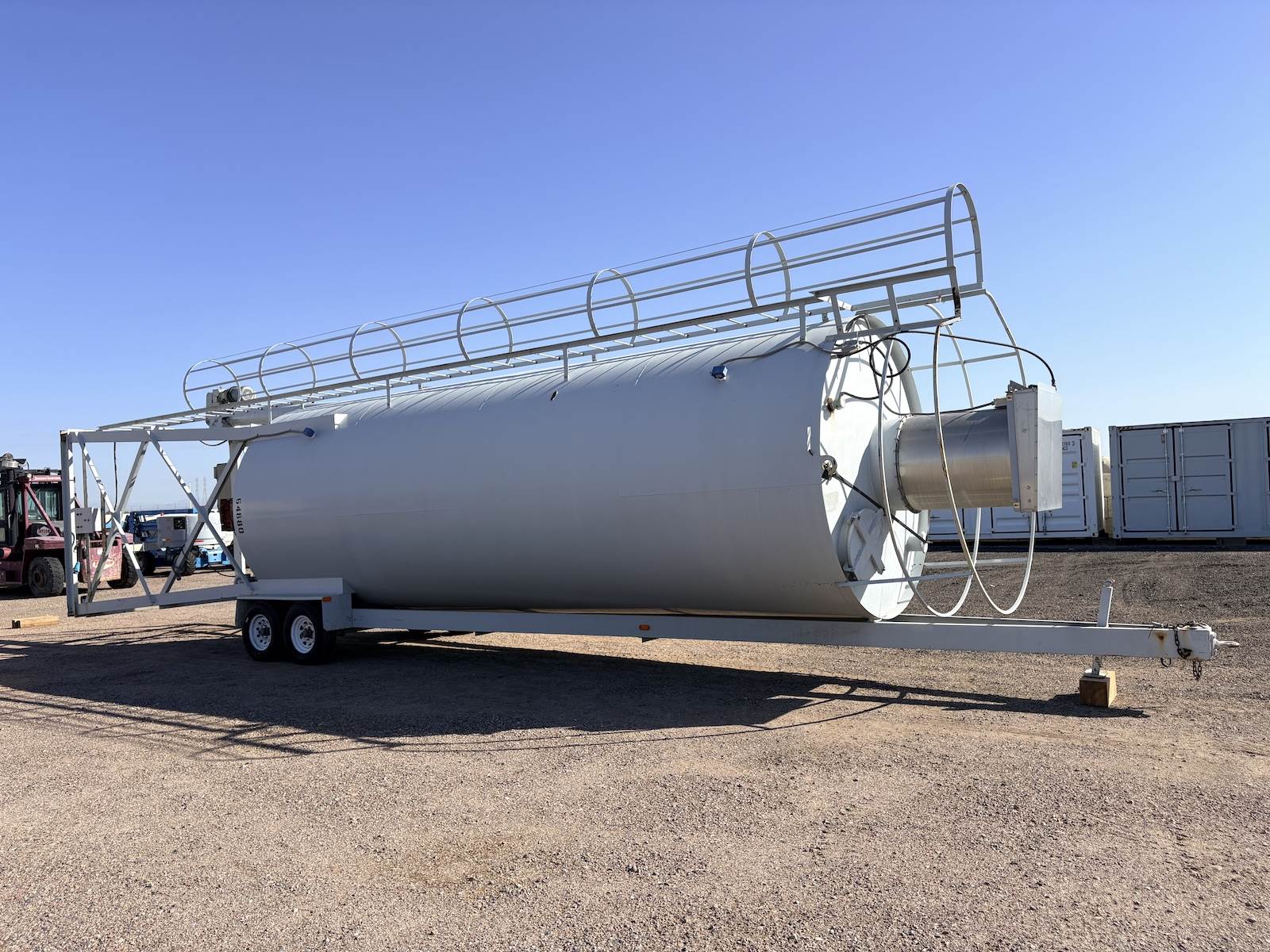

For Sale: Used 2011 MTW 350 Barrel Portable Silo

DETAILS AND SPECIFICATIONS:
- Manufacturer: Montana Tank Works (MTW)
- 350 Barrels
- 1,400 Cubic Foot Capacity
- 65 Ton Capacity (Cement)
- 4" Fill Pipe with Coupler
- Pressure Relief Valve

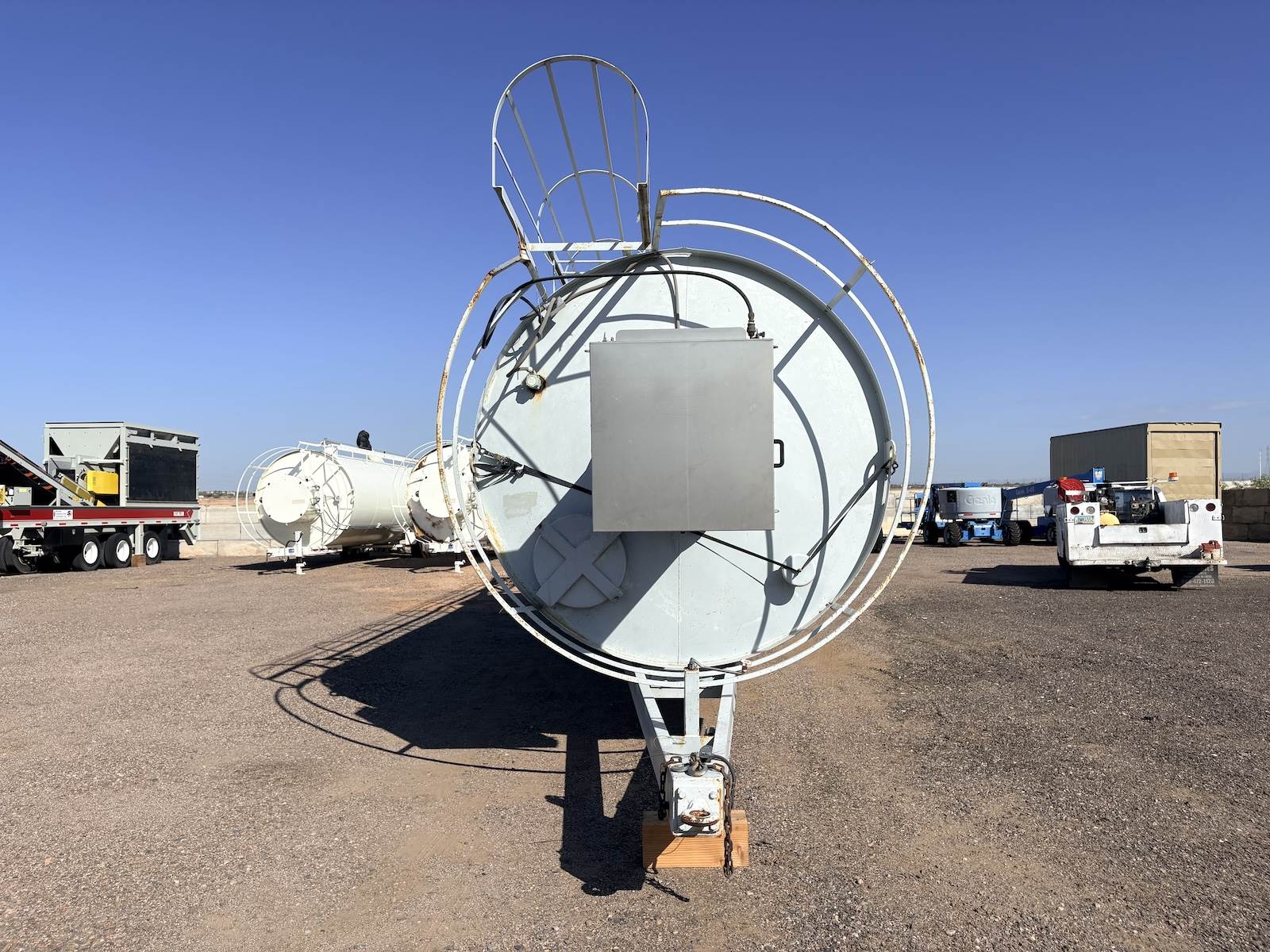

- Exterior Access Ladder

WAM PULSE-JET SILO VENT:
- WAM SILOTOP Zero Pulse-Jet Dust Collector
- Seven-Cartridge Filter System
- ALL NEW CARTRIDGE FILTERS INSTALLED
- Rated for Approximately 1,500 CFM with Cement
- Rated for Approximately 1,300 CFM with Fly Ash
- Requires Approximately 3 CFM at 90 PSI

AERATION / FLUIDIZATION SYSTEM:

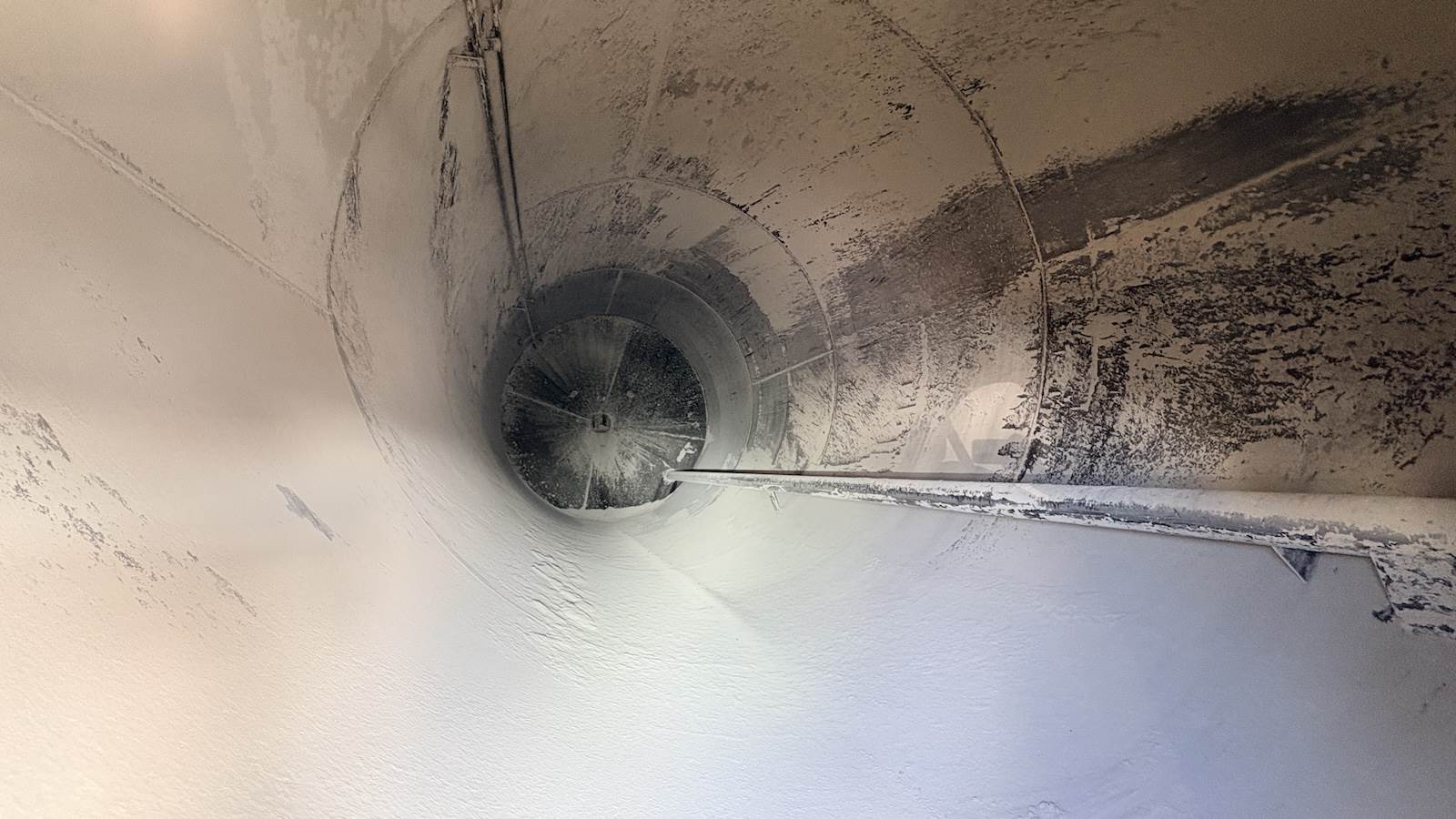

- Multiple Aeration Pads Installed Around Lower Silo Cone
- Aeration Pads Plumbed to Air Distribution Lines
- Republic Blower Systems HRB-100 Regenerative Blower with 0.5 HP, 220/440V, 3-Phase Electric Motor
- Local Air Pad Blower Controls

SILO LEVEL / PRESSURE MONITORING:
- TOREX ILTC2 Level Indicators
- Upper and Lower Silo Level Indication
- High-Level and Low-Level Indicator Lights
- Solon 2PS/35B Pressure Switch
- 0–2 PSI Pressure Range
- NEMA 4 Enclosure

TOREX ROTARY FEEDER:
- TOREX Rotary Feeder / Rotary Airlock
- Motovario Worm Gear Speed Reducer
- Baldor Reliance 2 HP, 230/460V, 3-Phase Electric Motor
- Previously Configured for Variable-Speed Operation
- VFD Not Included

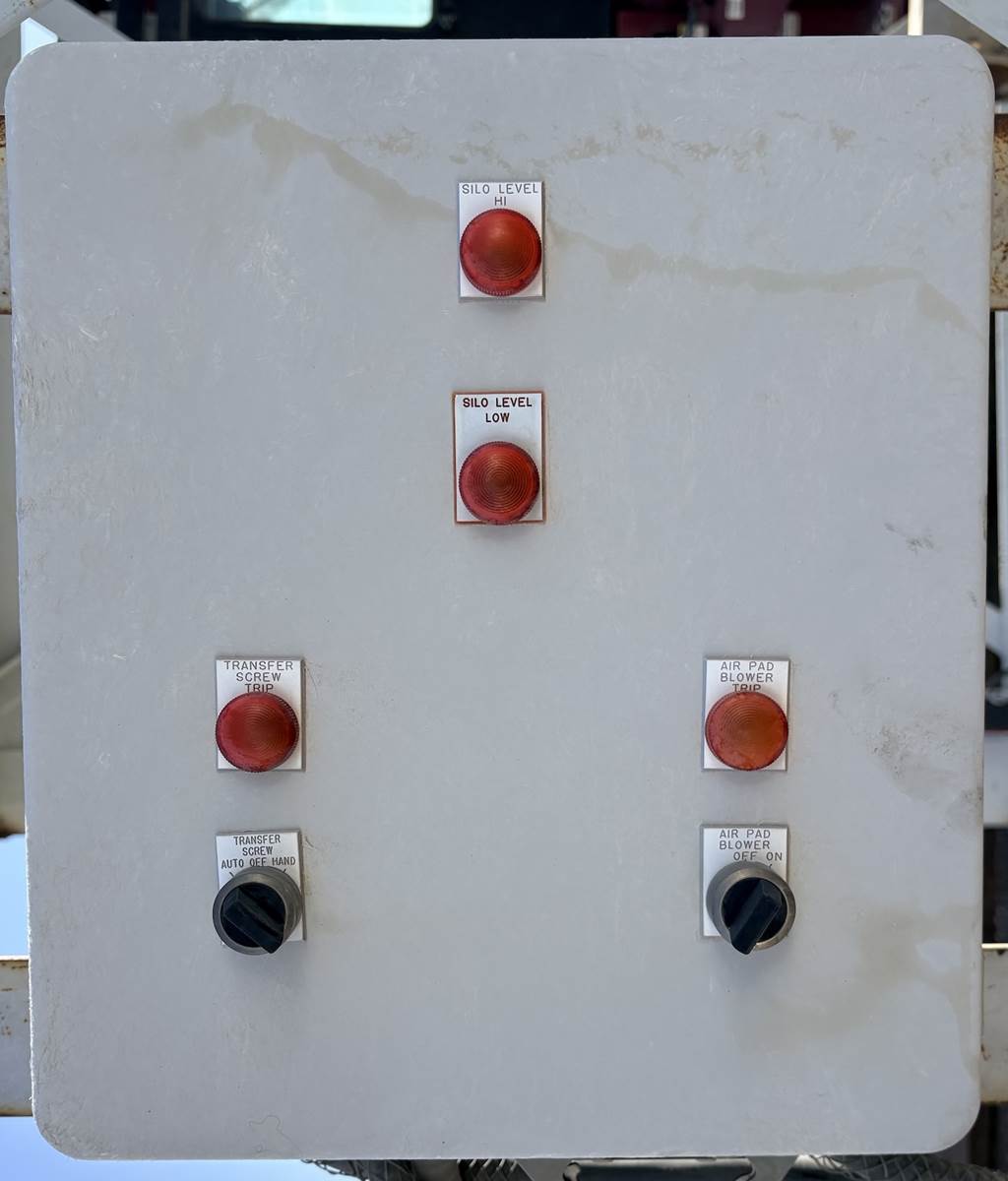

ELECTRICAL CONTROL PANEL:
- Silo-Mounted Motor Control Panel
- Siemens Motor Starters / Contactors
- Motor Overload Protection
- Control Relays and Terminal Blocks
- Transfer Screw Auto / Off / Hand Selector
- Transfer Screw Trip Indicator
- Air Pad Blower Off / On Selector
- Air Pad Blower Trip Indicator
- High- and Low-Level Indicator Lights
- Industrial Multipin Control Connector
- 480V, 3-Phase Main Power Connection
- 30 Amp Main Power Connector
- Detachable Transfer Screw / Auger Power Connection

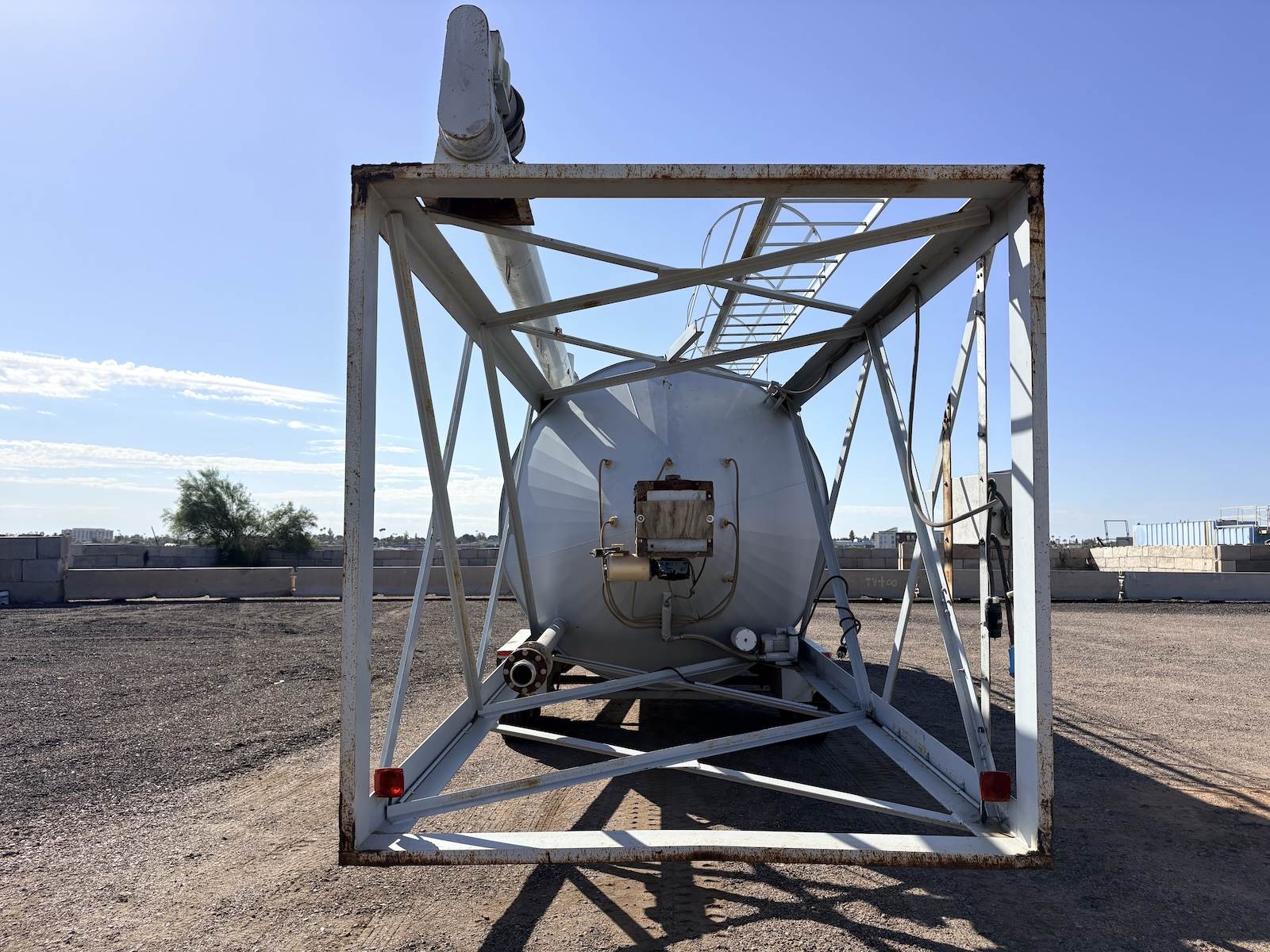

SCREW CONVEYOR:
- 8" Diameter Internal Screw Conveyor
- Baldor Reliance 10 HP, 208-230/460V, 3-Phase Electric Motor
- Gearbox and Chain Drive
- Sliding-Jaw Clutch
- Discharge Height: Approximately 13'6"

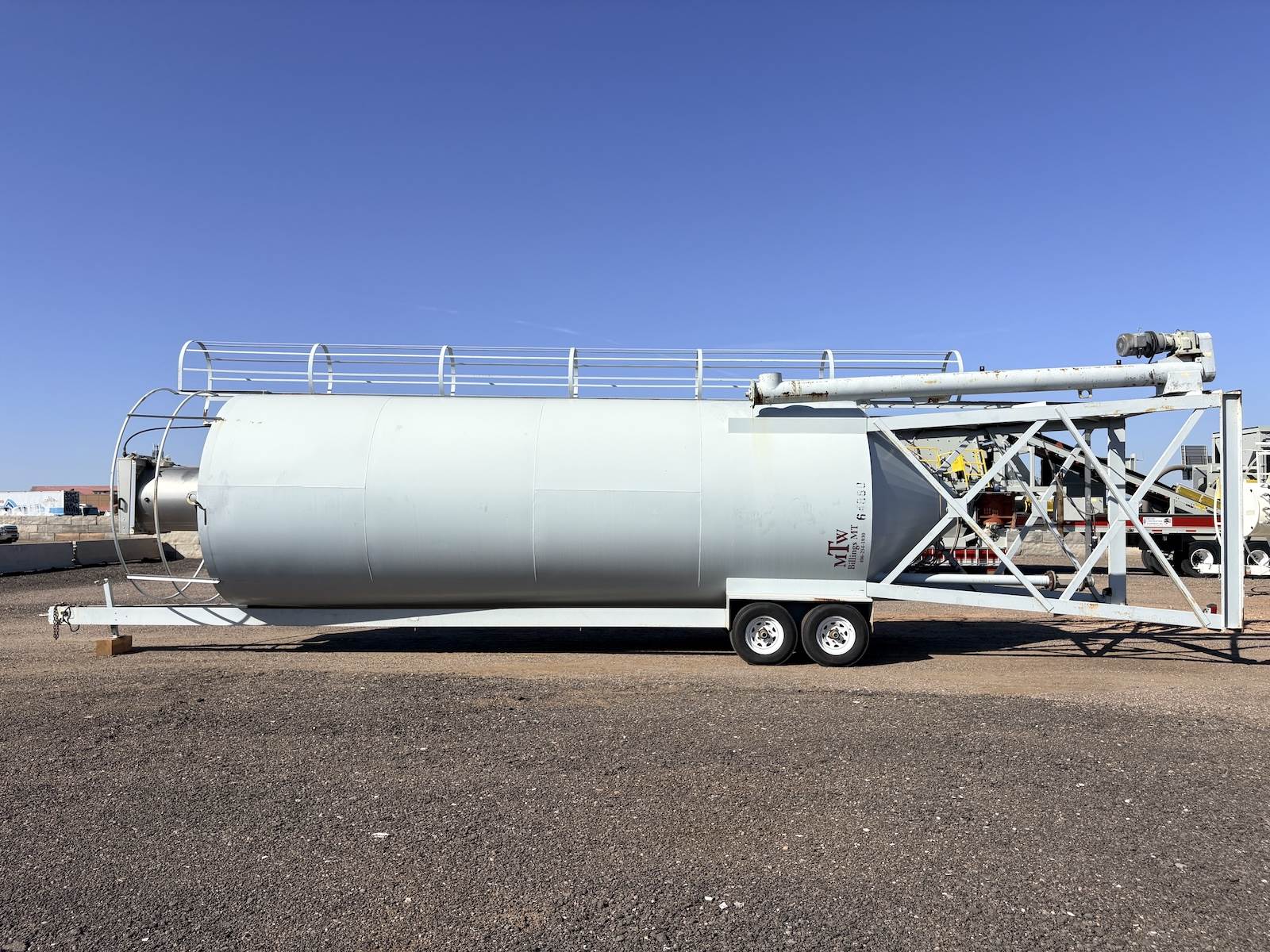

TRANSPORT DIMENSIONS:
- Length: 45'
- Width: 8' 6"
- Height: 13' 6"
- Weight: 15,000 lbs.
- Pintle Hitch
- Tandem axle with four (4) electric drum brakes.
- Trailer lights
- Single Speed Trailer Jack

Location: Phoenix, AZ

PLEASE NOTE: THE FORMER COMPANY'S LOGO HAS BEEN DIGITALLY REMOVED FROM PHOTOS.

$39,500 USD

Located in Phoenix, AZ, US
