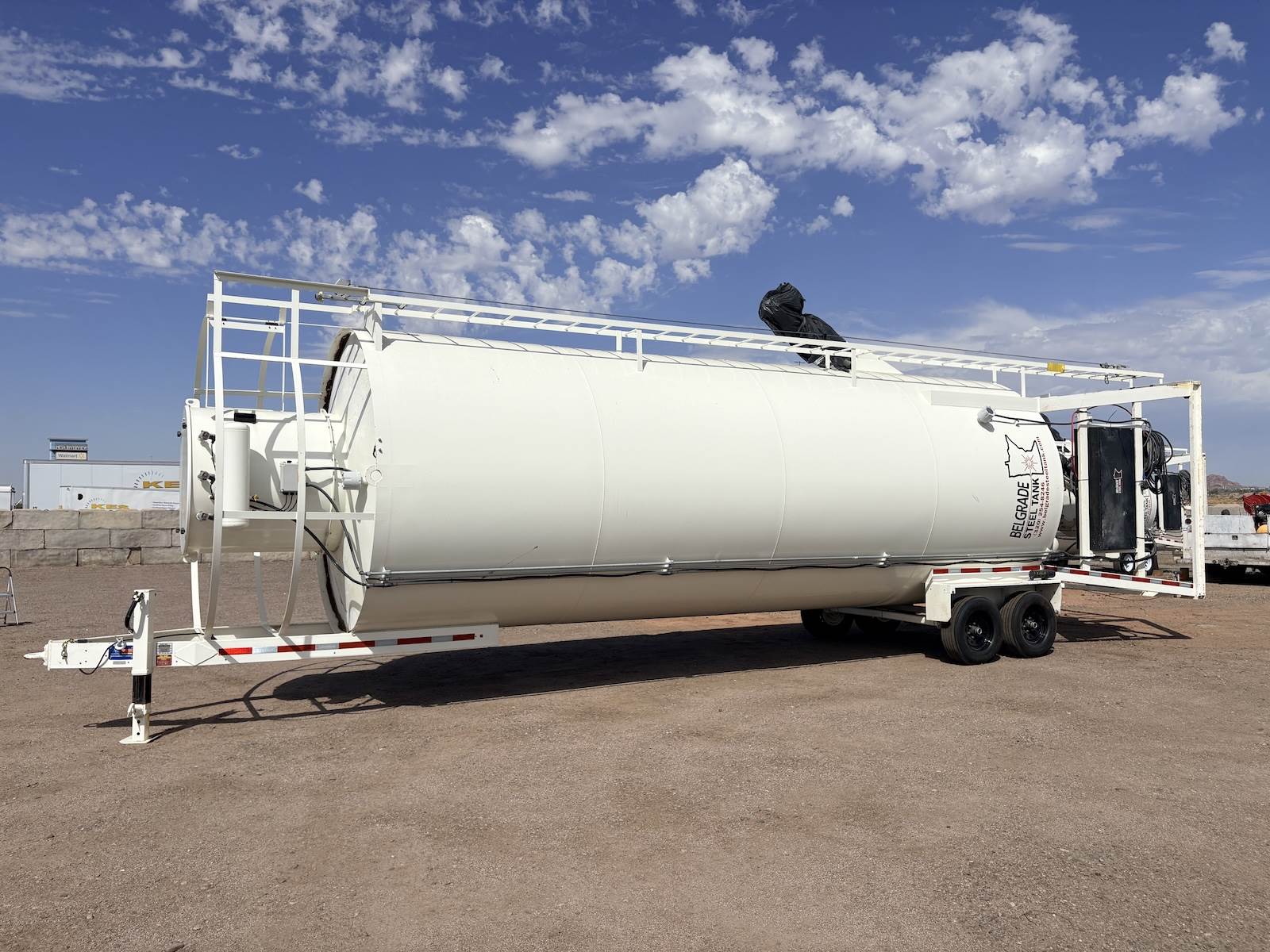

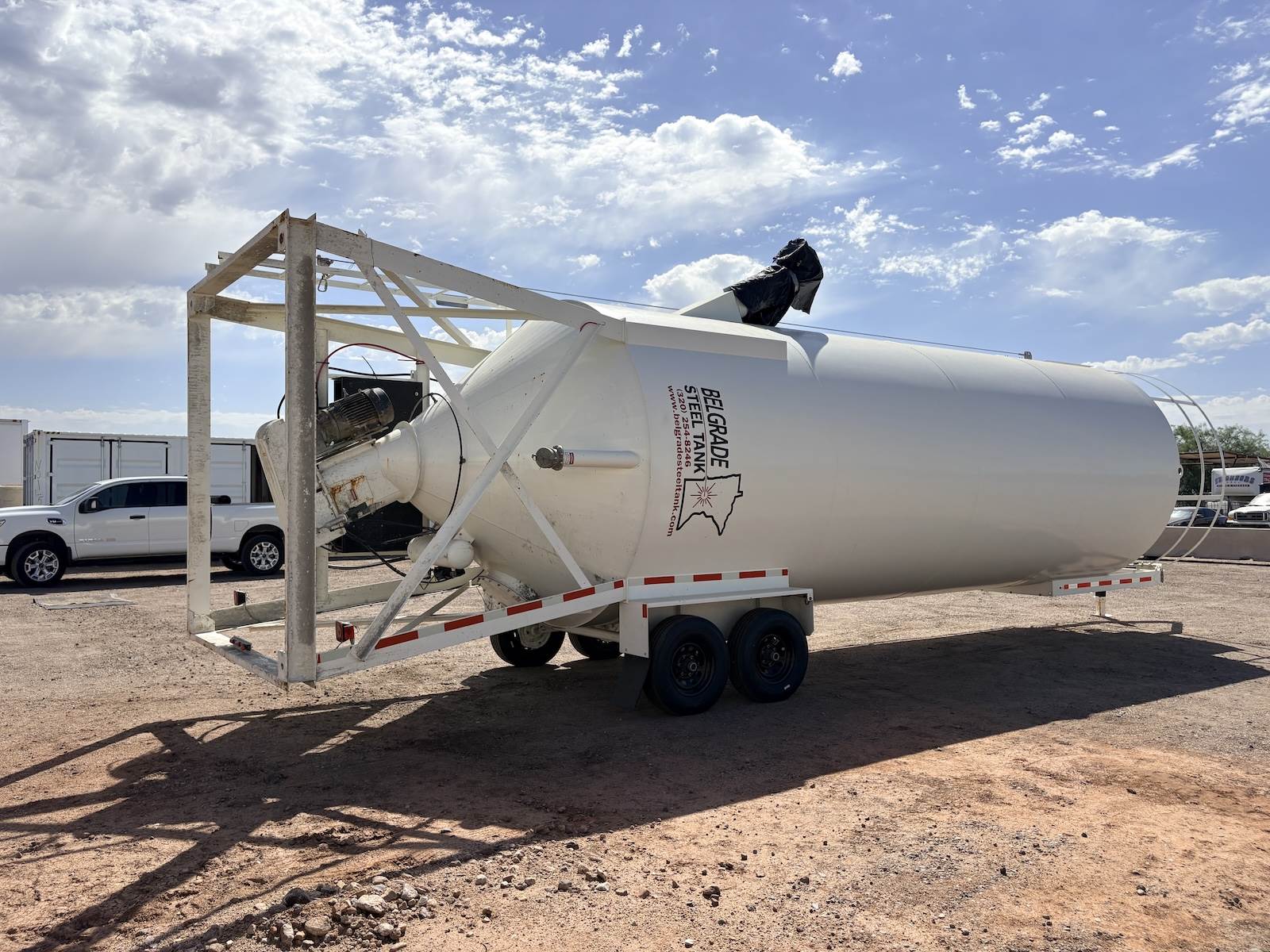

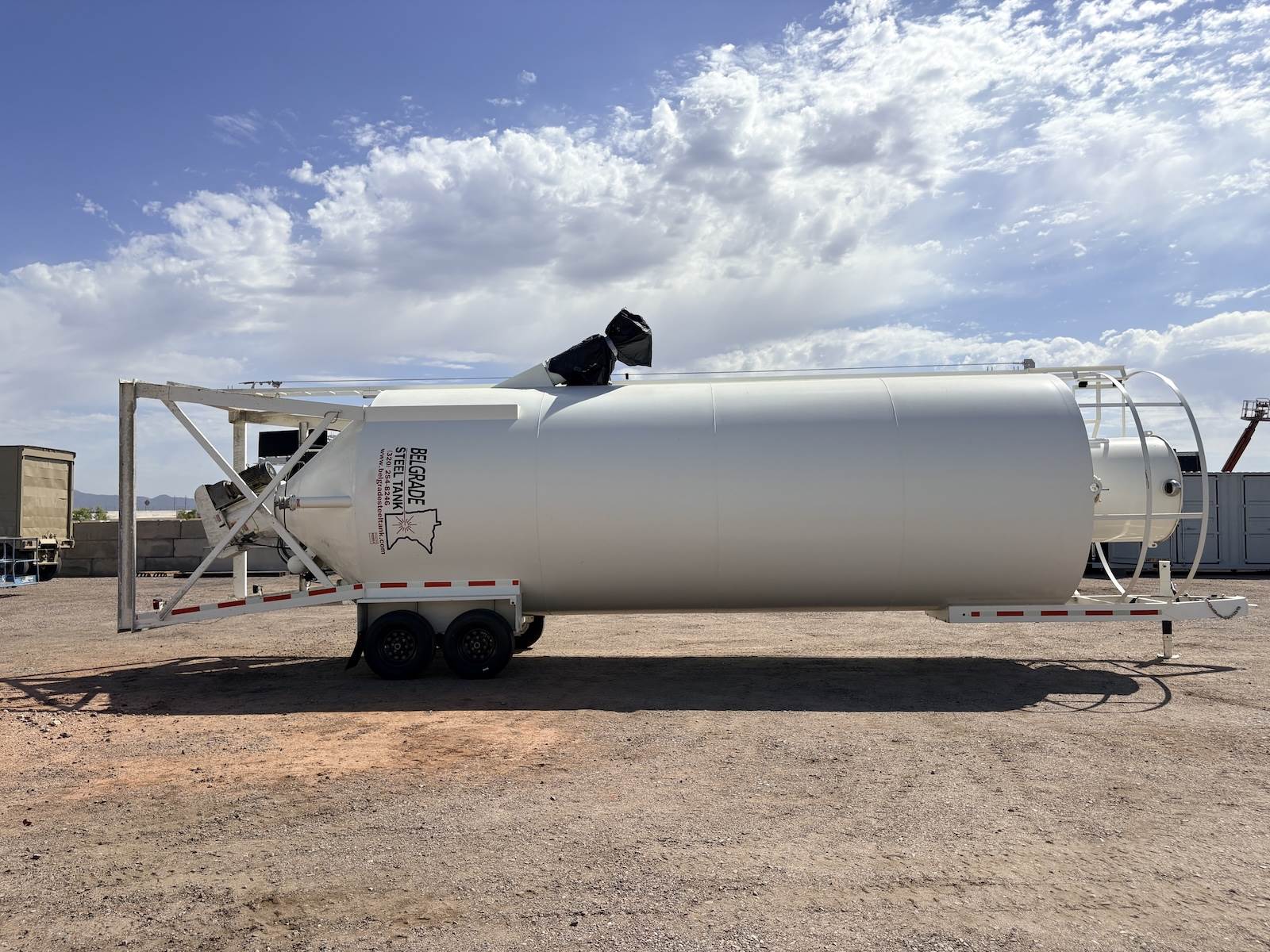

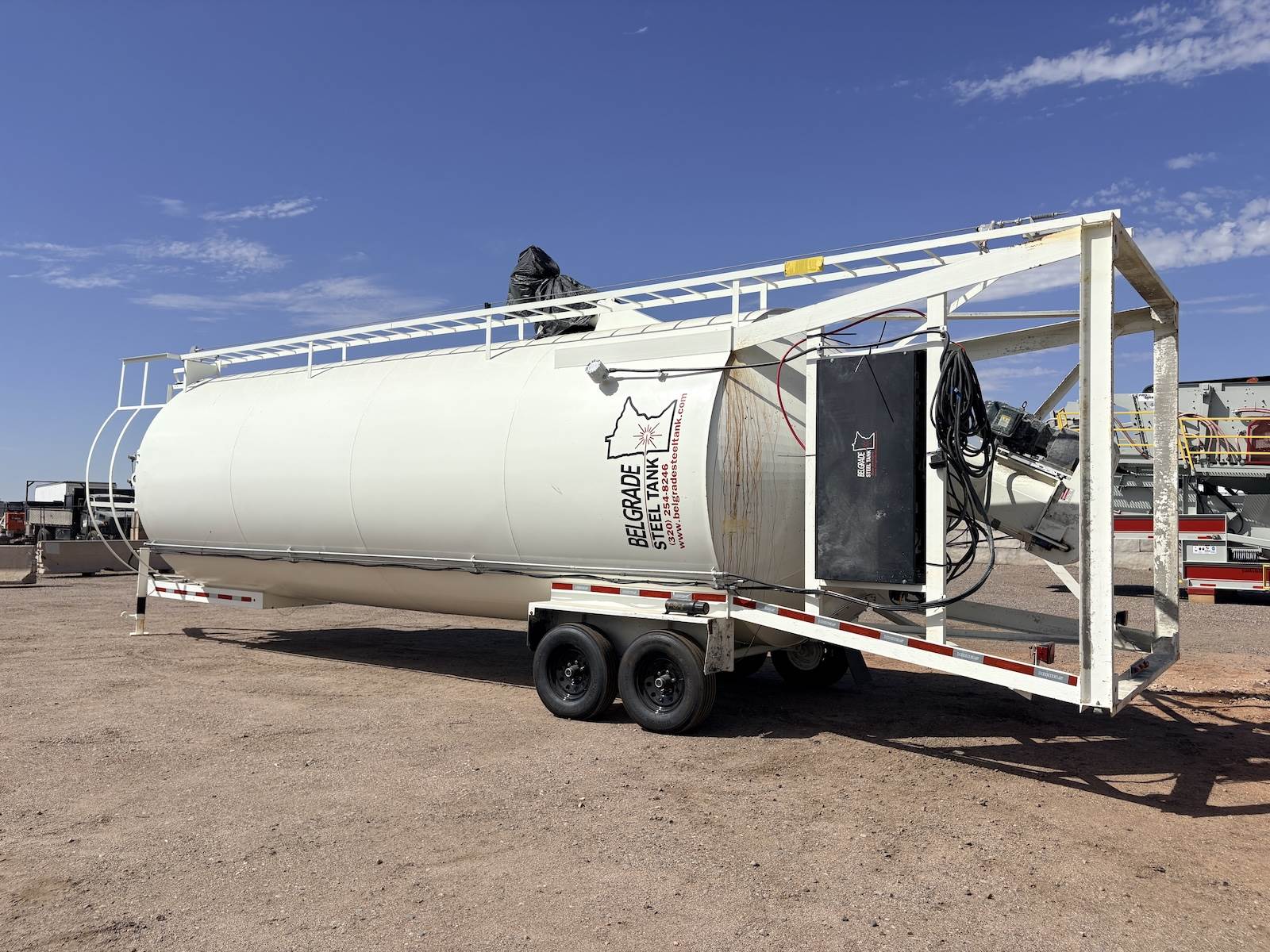

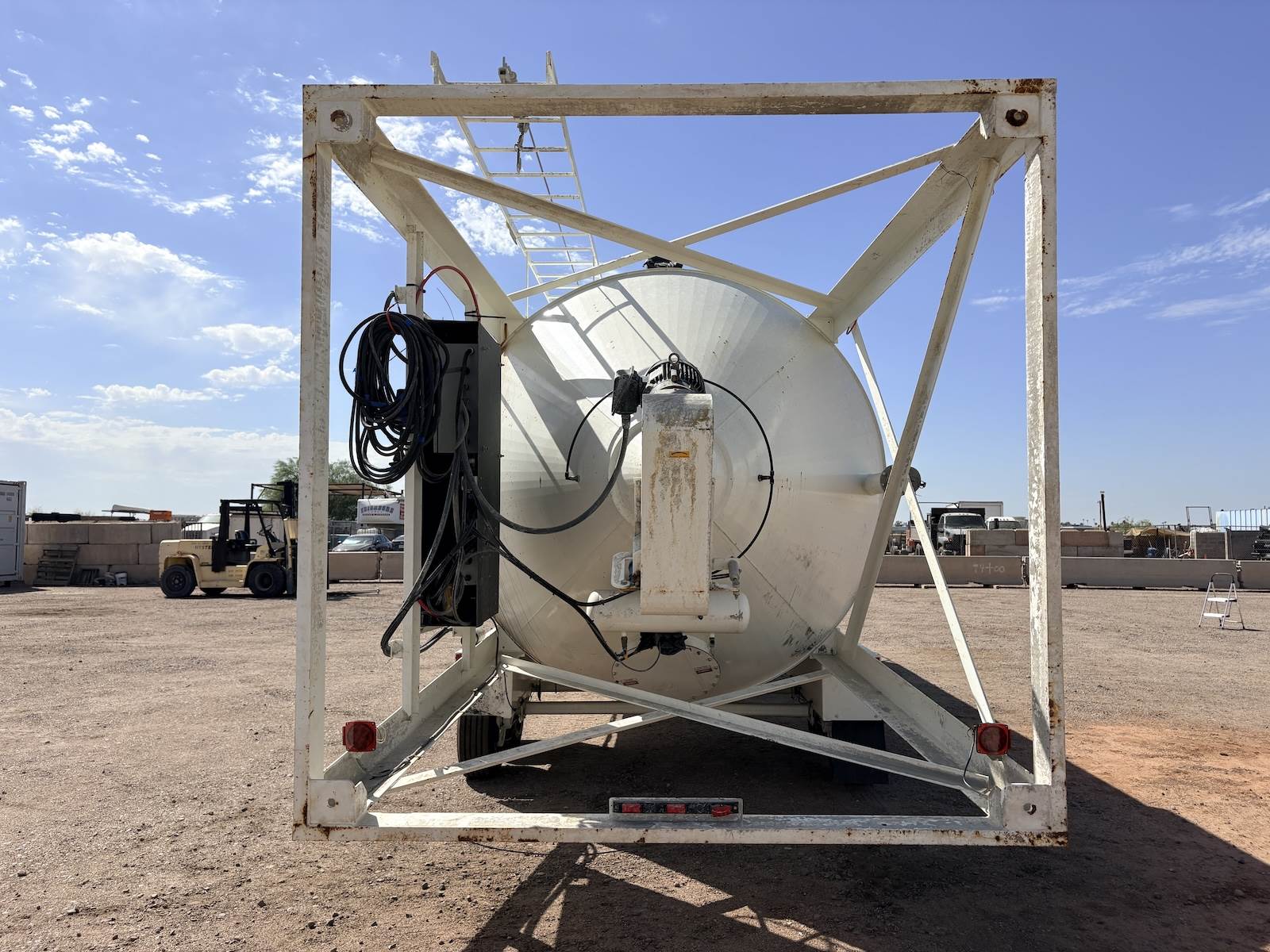

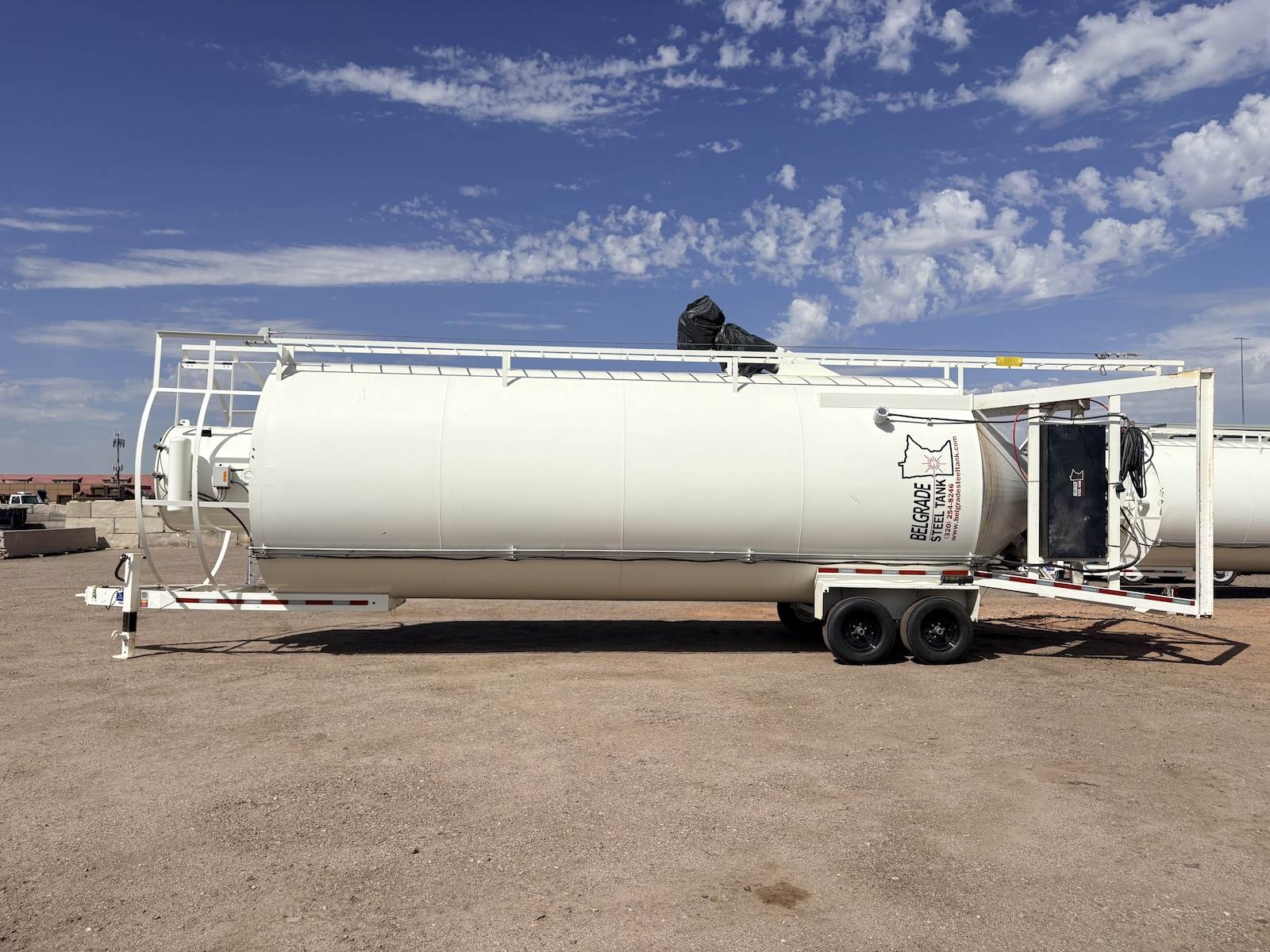

For Sale: 2023 Belgrade 350 Barrel Portable Silo
DETAILS AND SPECIFICATIONS: - 350 Barrels - 1,400 Cubic Foot Capacity - 65 Ton Capacity (Cement) - Output Capacity Approximately 15 Cubic Foot per Minute (9" Screw Conveyor)

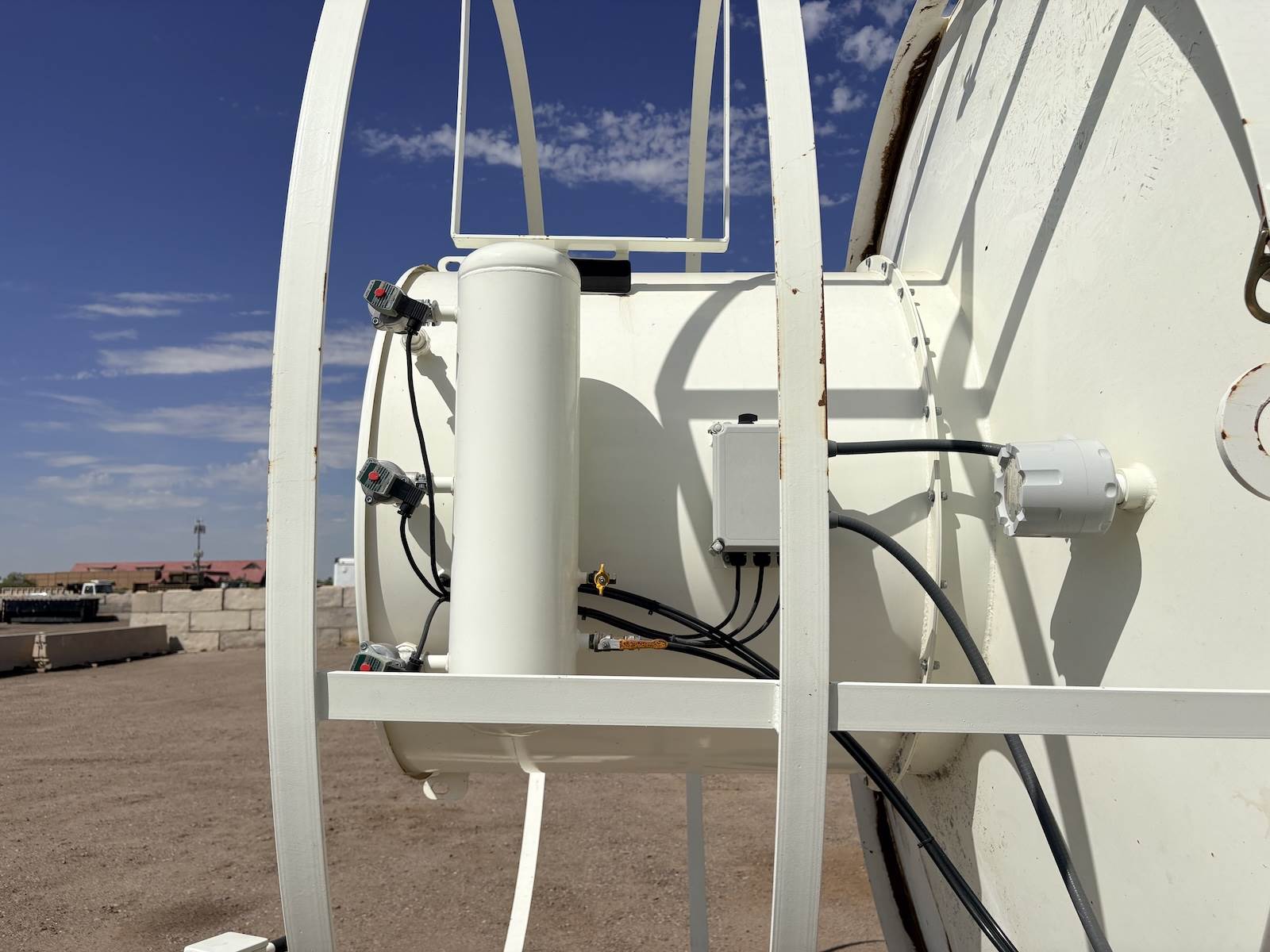

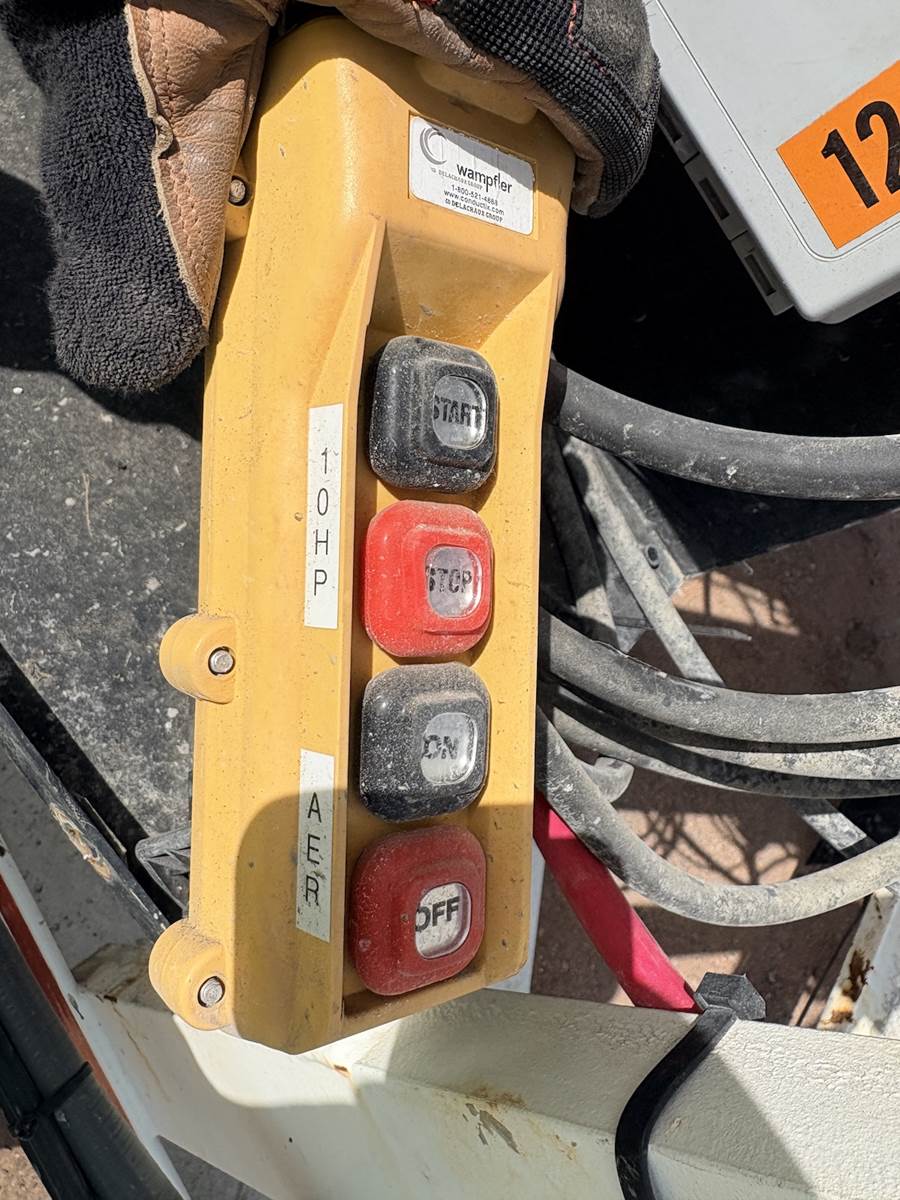

Auger - Positive Feed Drive Auger System - 9" Diameter Screw x 17'-0" - Toshiba 10HP Motor and Gear Box Drive (Chain) Switchgear: Motor Starter Controls with wired remote control. - 460V, 3-Phase Electrical System - Schneider Electric Main Disconnect and Motor Controls - Dust Collector ON/OFF Control - High and Low Level Warning Indicators - Two (2) Monitor Technologies Model KA Rotary Paddle Bin Level Sensors - Wired remote with START/STOP and ON/OFF Functions -120V Dust Collector Control Enclosure

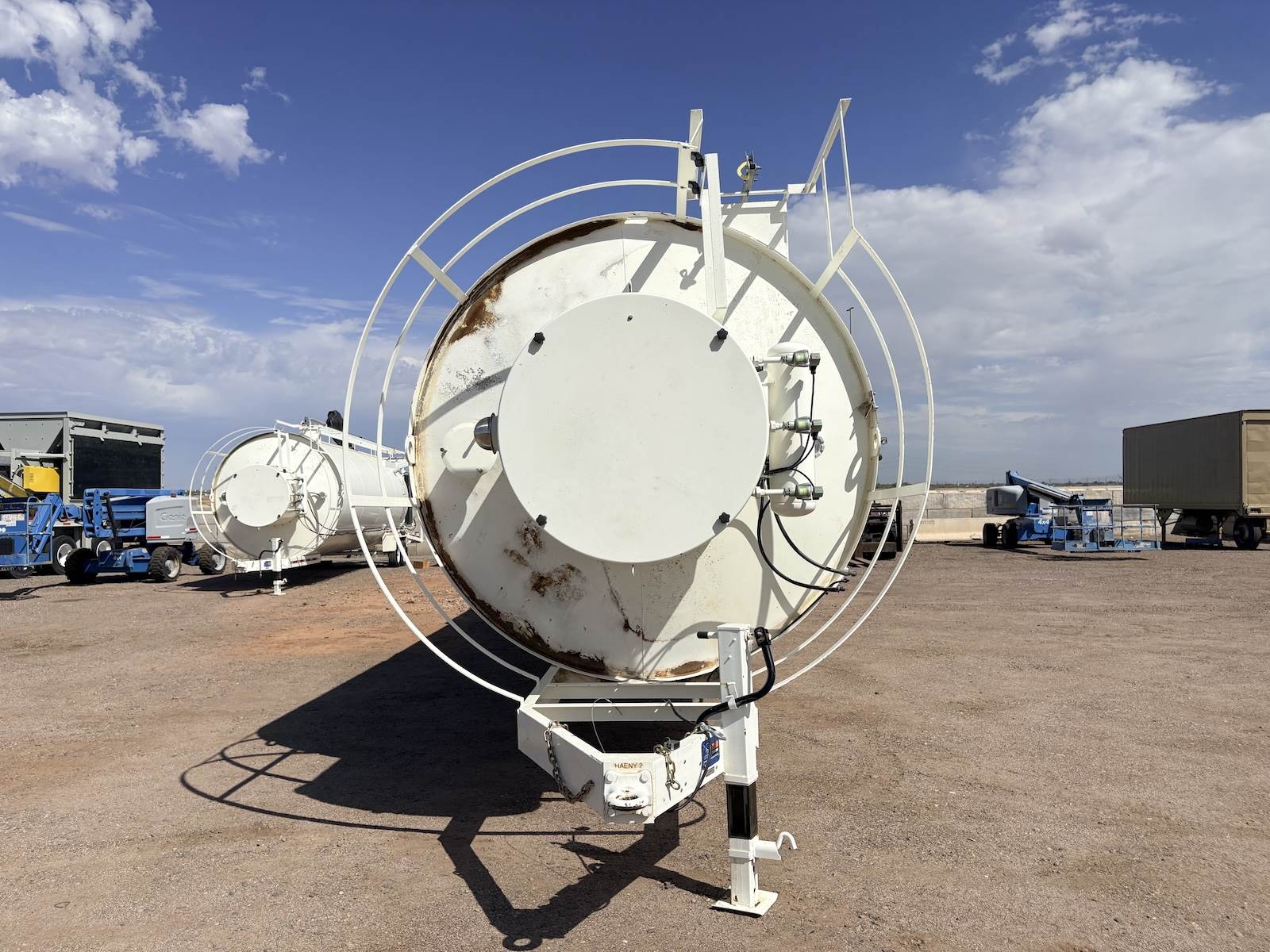

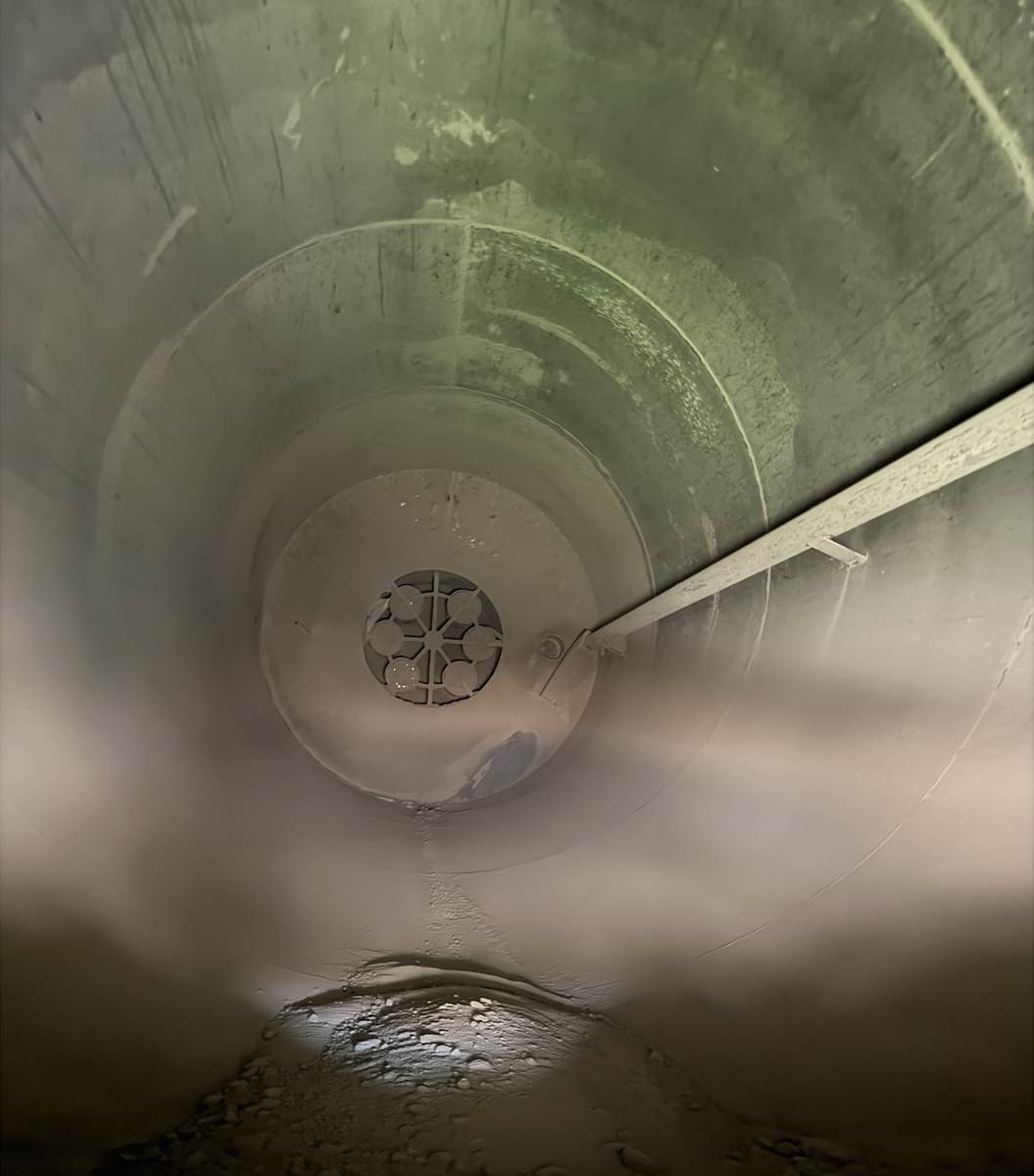

330 Sq.Ft. Pulse Jet Dust Collector - Six (6) DC-1030 Filter Cartridges - 4" Fill Pipe with Aluminum Adapter - Pressure Relief Valve - Solimar Vibratory Discs with Manifold Regulator, and Check Valve - Outside Ladder with OSHA Compliant Fall Arrest Cable System - 18" Non-Pressurized Inspection Manhole - 13'-6" Auger Discharge Height

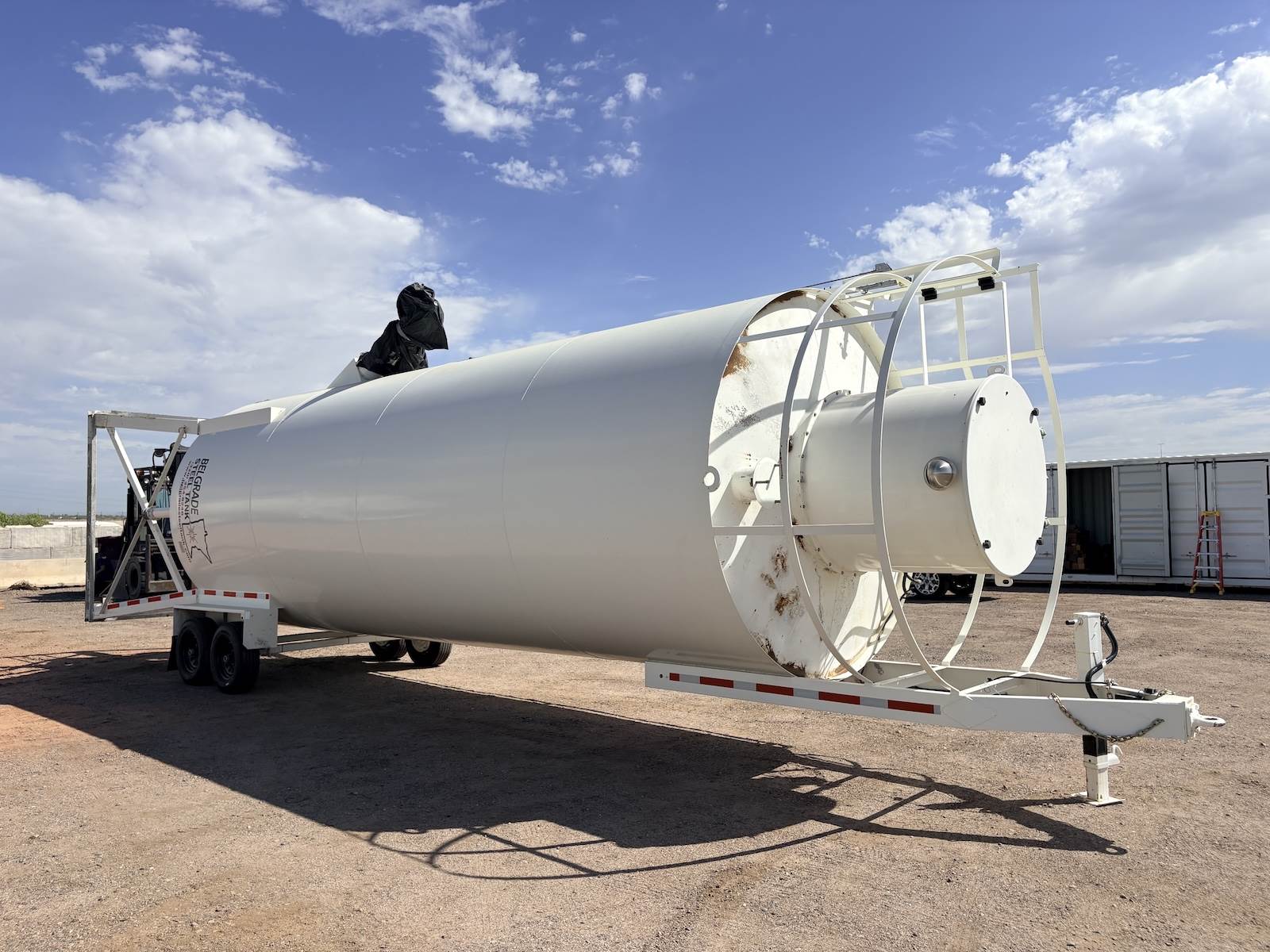

TRANSPORT DIMENSIONS: - Length: 39' 3" - Width: 8' 6" - Height: 13' 2" - Weight: 12,000 lbs. - Pintle Hitch Weight: 2,100 lbs. - Tandem axle with four (4) electric drum brakes. - Trailer lights - Single Speed Trailer Jack
Location: Phoenix, AZ
