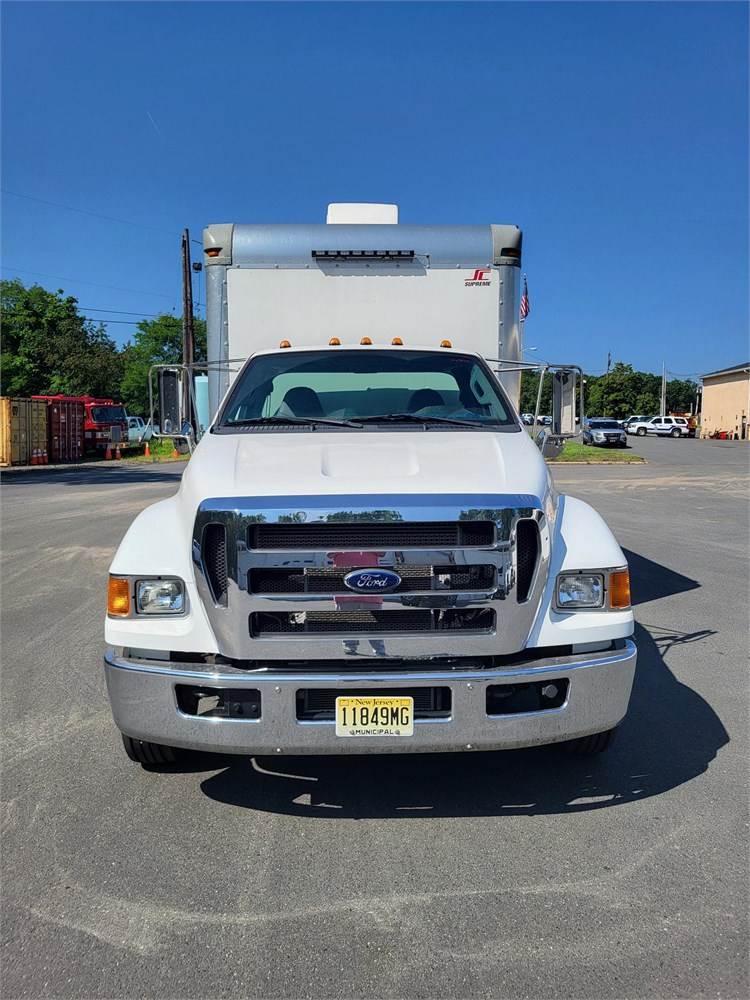

2014 Ford F-650 Super Duty CCTV Pipeline Inspection & Chemical Grouting Truck
Highly recommend inspecting before bidding.
Make / Model: Ford F-650 Super Duty (Supreme Body Works Box Van Body)
VIN: 3FRNF6FA2DV038692
Manufactured Date: November 28, 2013 (2014 Model Year)
Odometer: Low mileage at 8,234.3 miles
Engine: Cummins ISB 6.7L Turbo Diesel
Transmission: Automatic
GVWR: 20,940 lbs (Front GAWR: 7,280 lbs | Rear GAWR: 13,660 lbs)
Wheelbase: 230 in
Color: White
Vehicle Specifications & Exterior Features

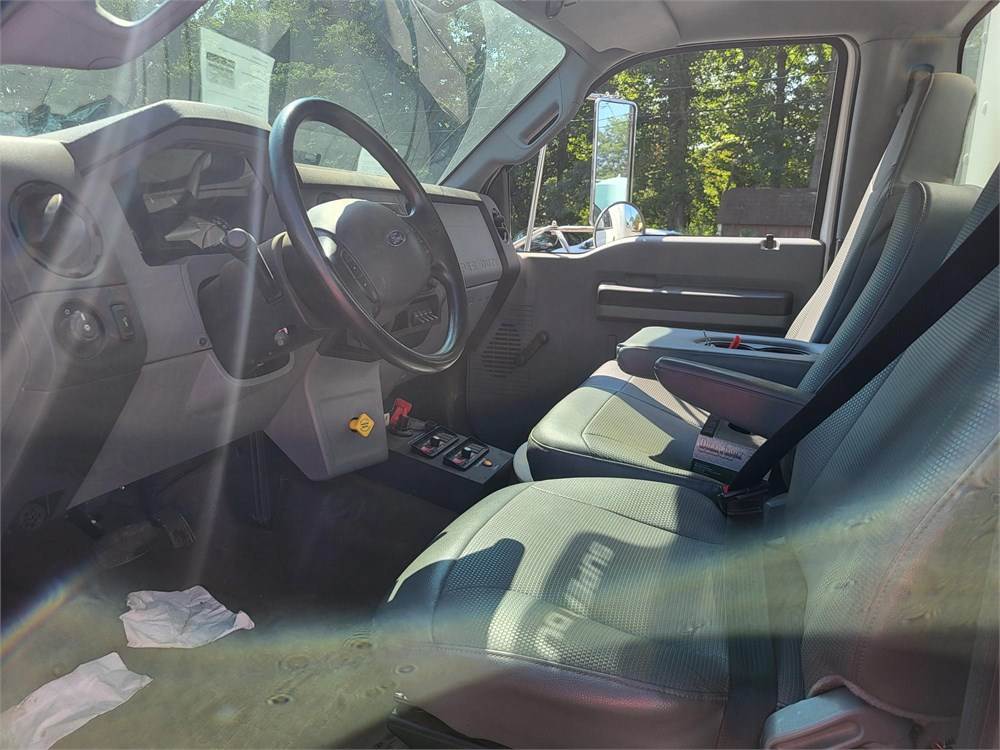

Cab Interior: Clean grey cloth interior with dual high-back bucket seats and center console controls.
Emergency & Traffic Control: Whelen Front and Rear Arrow Bar controllers, strobe controls, and a heavy-duty battery transfer switch installed in-cab.

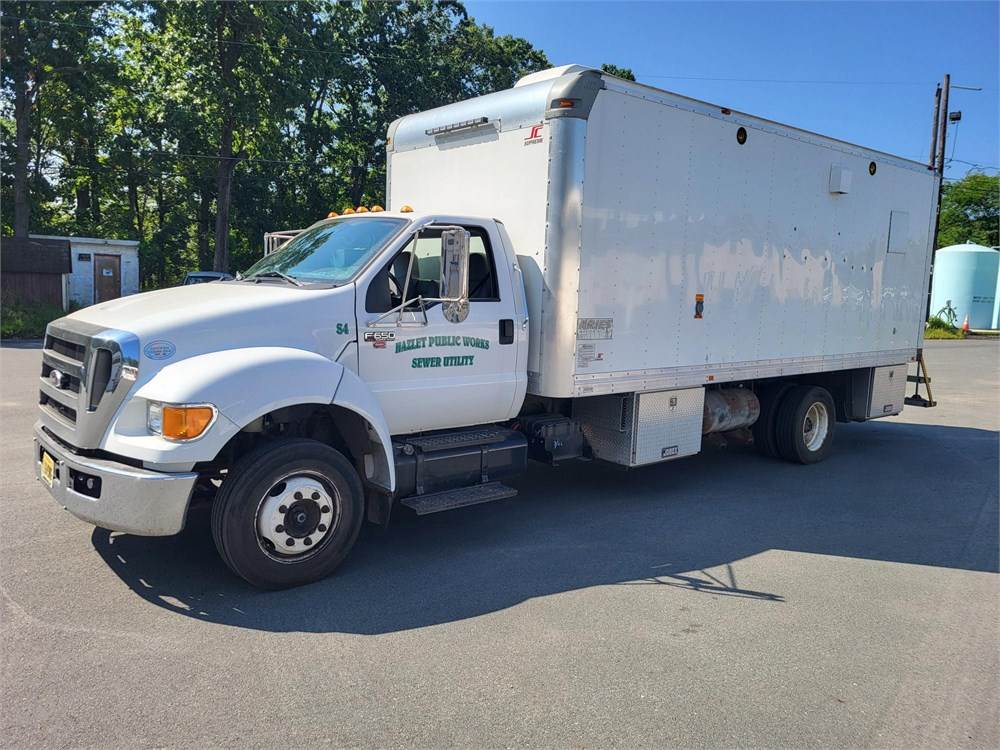

Body Construction: J.C. Supreme commercial aluminum box enclosure with side utility door access and under-body Jobox diamond-plate storage boxes.
Door-Mounted Tooling Racks:
Exterior rear door-mounted holder containing 8 yellow fiberglass quick-connect extension poles and 3 red insertion poles.
Rear door-mounted storage bracket holding 2 heavy-duty manhole guide rollers / upper hole hooks.

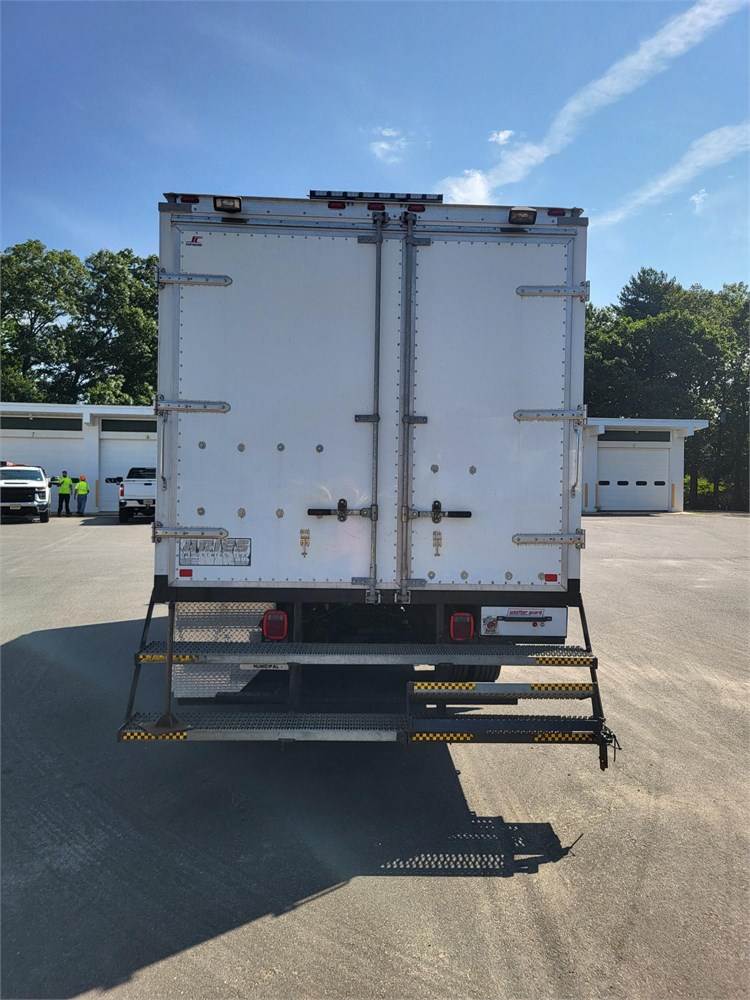

Rear Access & Step: Rear pull-down / fold-out heavy-duty metal step platform with safety striping and Weather Guard undermount storage drawer.
Undercarriage & Chassis:
Heavy-duty rear axle with single rear dual-wheel setup (Tires: 225/70R19.5F on 19.5x6.75 rims).
Frame-mounted rear trailer socket assembly (Phillips 7-way connector box with green protective cover).
Solid frame rails, leaf spring rear suspension, and underbody electrical harness routing.
Auxiliary Power & On-Board Utilities
Generator Unit: Cummins Onan RV QD 12500 commercial diesel generator unit.
Generator Hours: 729.6 Total Hours on meter (handwritten maintenance notes indicate 619 hours recorded in Jan 2021).
Power Controls: Remote Cummins Onan start/preheat control panel with analog voltage and frequency (Hertz) gauges located inside the control room.
Air Compressor & Storage System:
Side compartment mounted electric air compressor motor with twin-cylinder belt-driven pump head (handwritten service note indicates service in June 2019).
Frame-mounted auxiliary air receiver storage tank with pressure lines and mounting brackets.
Hose Reel Compartment: Diamond-plate side utility compartment housing a heavy-duty stainless steel cable/hose reel with electrical twist-lock plugs and custom aluminum mounting brackets.
Aries Industries CCTV & Grouting System Equipment
1. Control Room & Video Inspection Station
Manufacturer: Aries Industries, Inc. (Manufactured Feb 2014 | Order #225544 | System #144)
Monitors: Dual TRU-VU industrial flat-panel display monitors for real-time video feed and system diagnostics.
Video & Data Logging Rack:
Aries Video Data Display / Logger VL3000 unit
Integrated PCM / Toshiba recording media unit
Camera & Lighthead Power Supply unit with analog voltage/amperage monitoring meters
Operator Workstation: Built-in desk console with swivel operator seat, desktop control interface, overhead lighting, storage cabinetry, and HP OfficeJet printer.
2. Chemical Grout & Test/Seal Control System
Aries Test & Seal System Panel: Master control panel equipped with precision pressure gauges (air supply, tank air, void pressure, pump supply), vacuum/pressure gauges, and power winch controls.
Dual Chemical Tanks: Twin high-capacity polyethylene chemical grout storage tanks with top-mounted Dayton electric agitators/mixers.
Pressurization Tank: ACE-1 Coating / NSF-certified pressurized chemical vessel (Max W.P. 75 PSI) with top-mounted manifold, valves, and regulator display.
Motorized Grout Hose Reel Station: Heavy-duty motorized reel rack assembly carrying a color-coded multi-conductor chemical grout hose bundle, equipped with top-mounted electric winch assembly and boom/crane arm.
3. Pipeline Crawler, Cable Reel & Accessories
Aries Heavy-Duty Pipeline Crawler / Transporter: All-wheel-drive Aries pipeline tractor unit featuring integrated pan-and-tilt camera head, hazard lighting, heavy-duty treaded tires, and top lifting/rigging bail.
Winch & Cable Reel System: Heavy-duty Aries motorized cable winch frame assembly with steel cable drum, drive motor, and wheel guide.
Spare Wheels & Tires: Includes multiple set stacks of heavy-duty treaded crawler rubber tires/wheels for various pipe diameters and line conditions.
4. Rear Equipment Bay & Work Area
Storage & Organization:
Heavy-duty Weather Guard Pack Rat pull-out under-bed drawer storage system.
Diamond-plate aluminum workbench with integrated vise and removable parts bins.
Built-in stainless steel handwashing sink with faucet and plumbing.
Condition & Terms
Status: Municipal/public works fleet vehicle. Shows typical surface rust on undercarriage elements and external air tank consistent with municipal utility work.
Inspection: Prospective buyers are strongly encouraged to inspect the vehicle and equipment in person prior to bidding.
SOLD AS IS, WHERE IS
