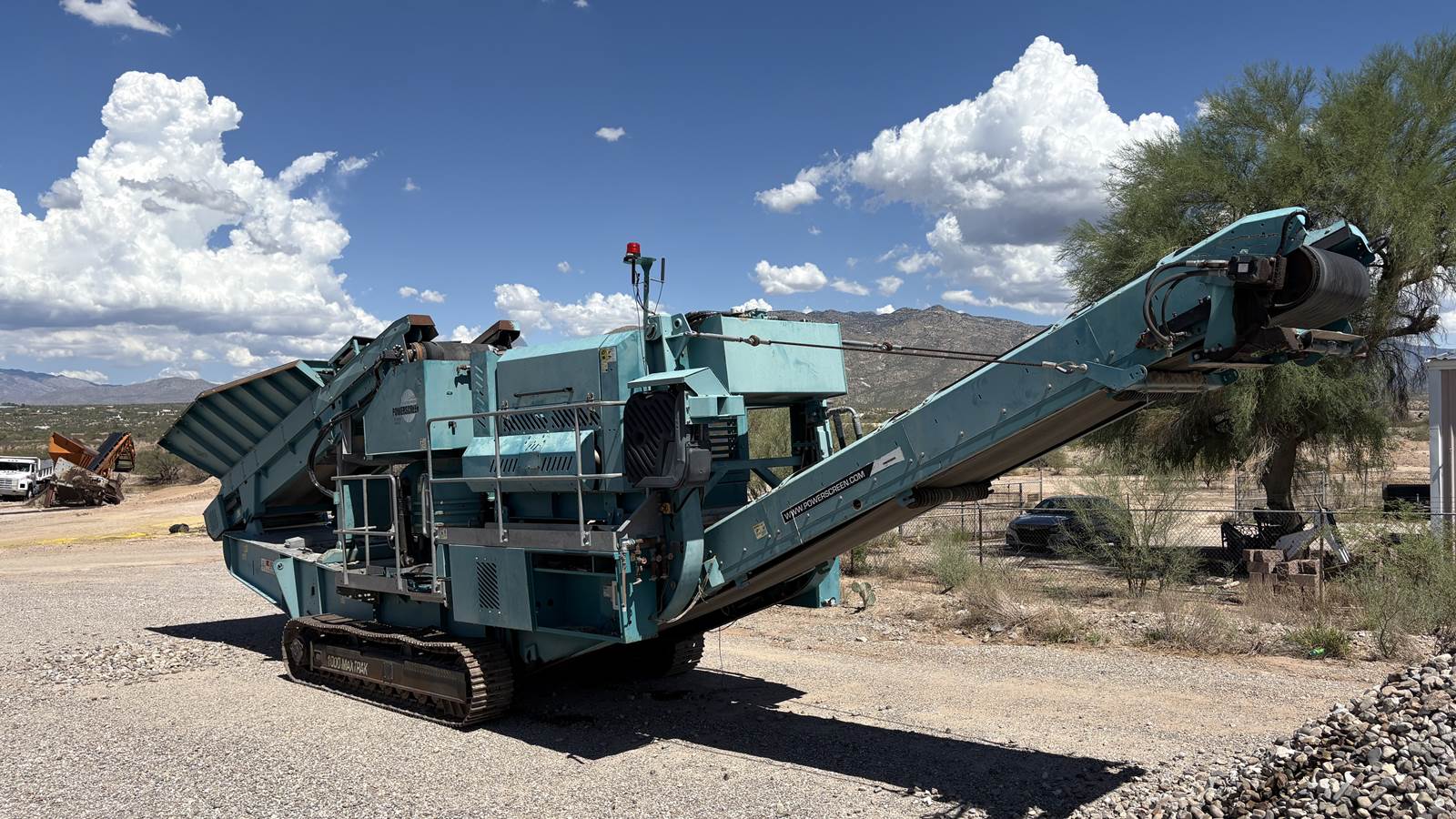

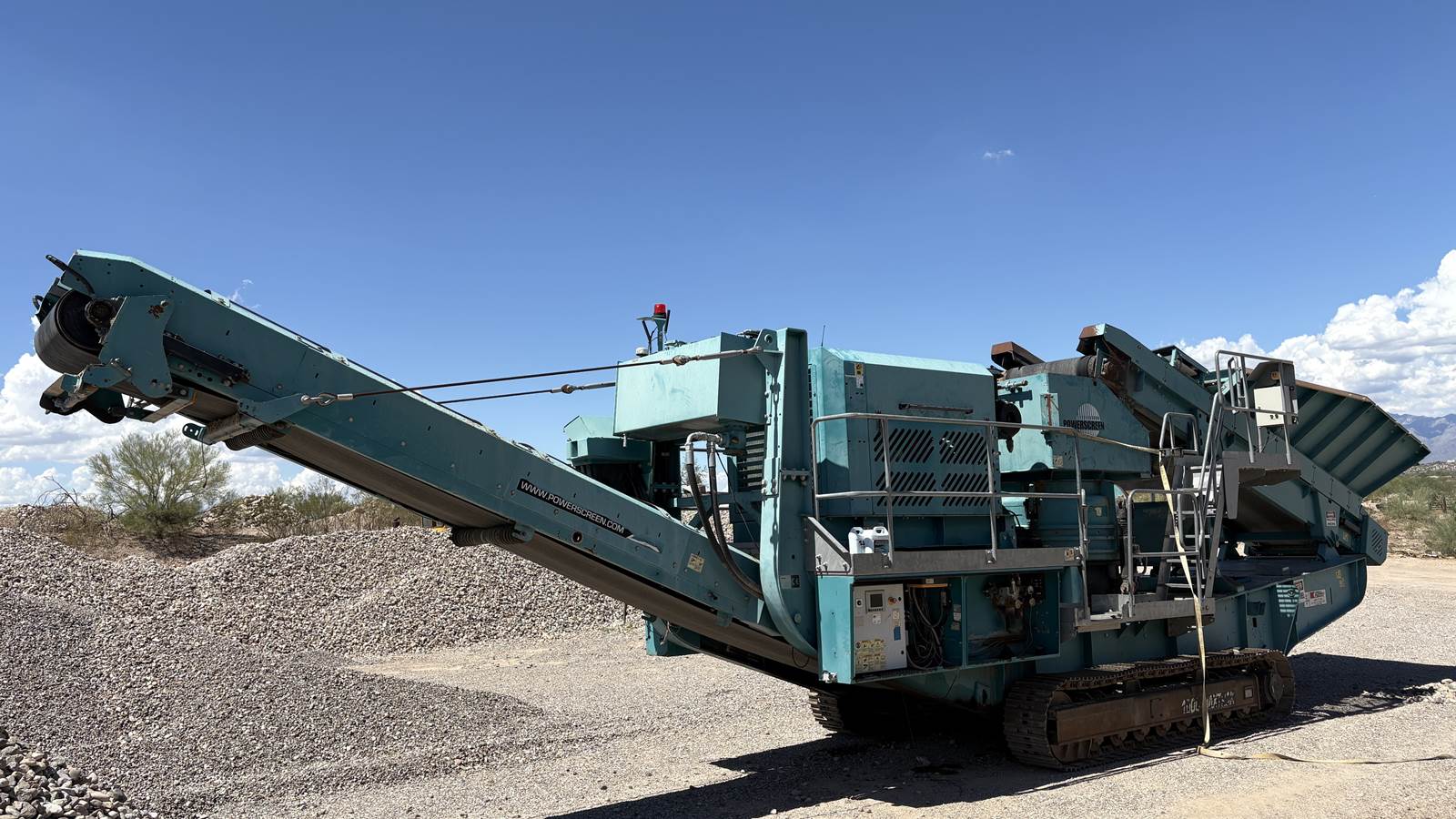

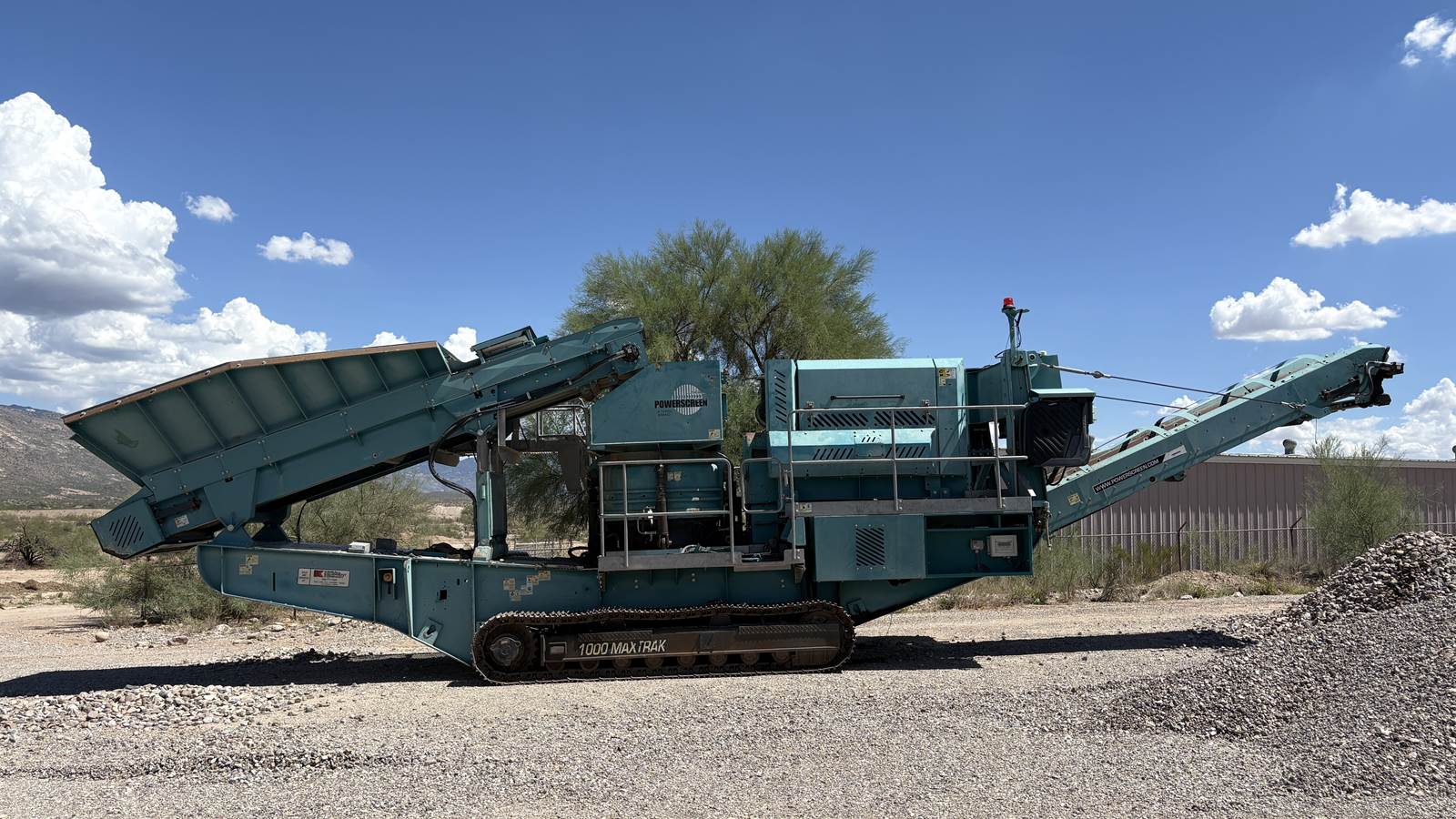

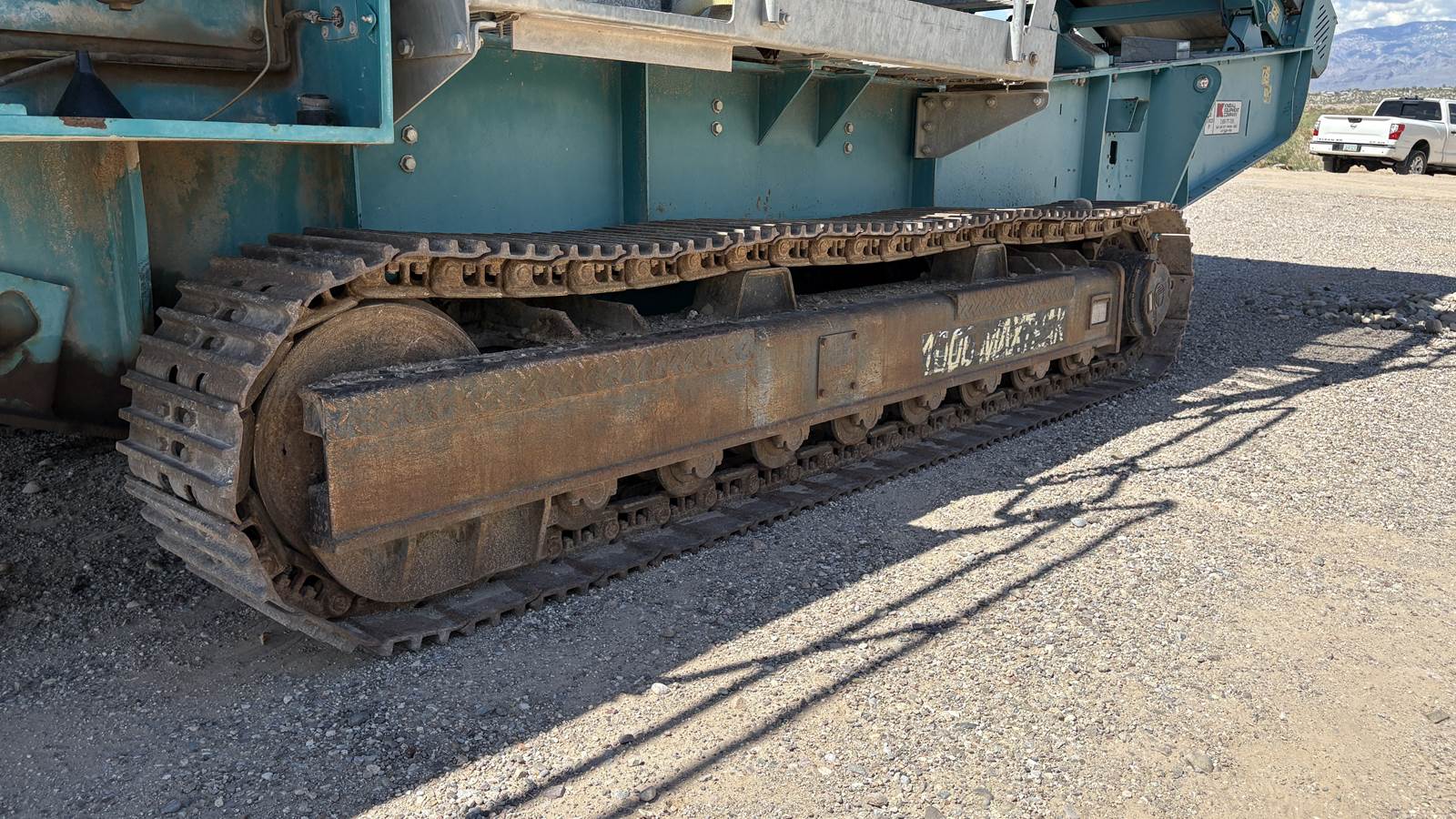

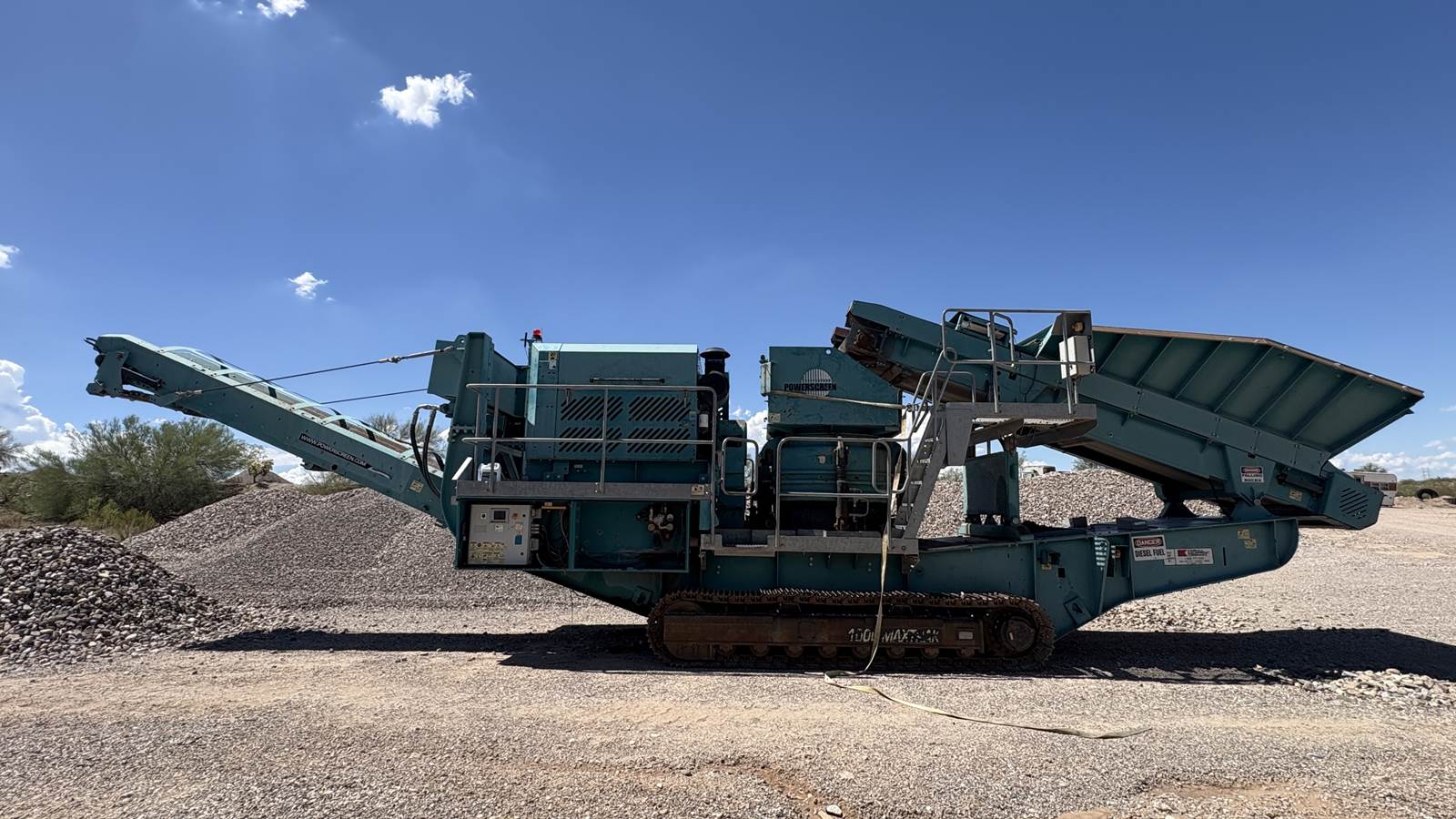

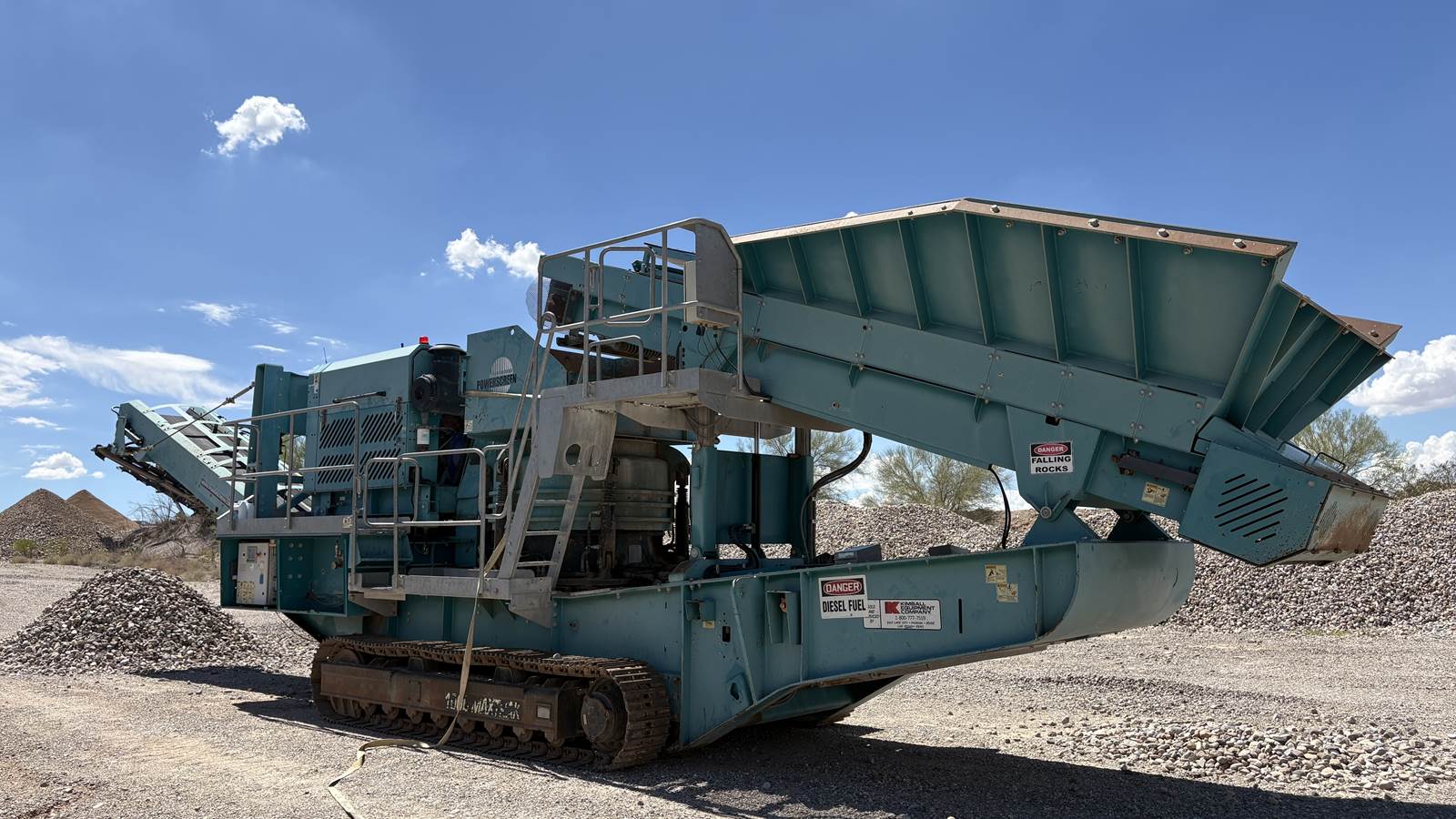

For Sale: 2013 Powerscreen 1000 Maxtrak - Track-Mounted Cone Crusher.
Condition Highlights:
- Low hours, well-maintained, belts in good condition, new clutch installed, liners at 50% wear.
- Ready to go to work.
Manufacture: Powerscreen

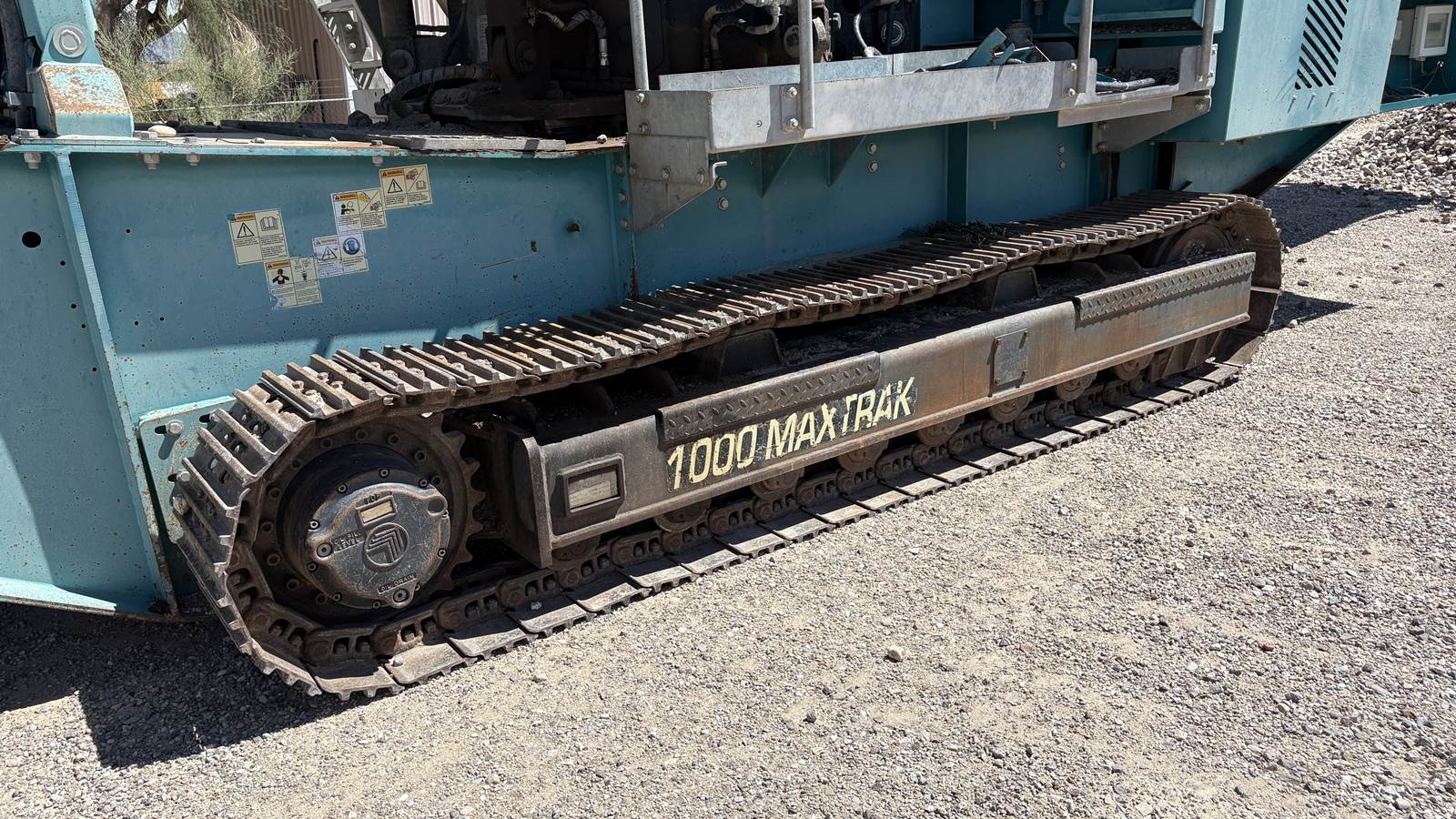

Model: 1000 Maxtrak (Track-mounted Cone Crusher)

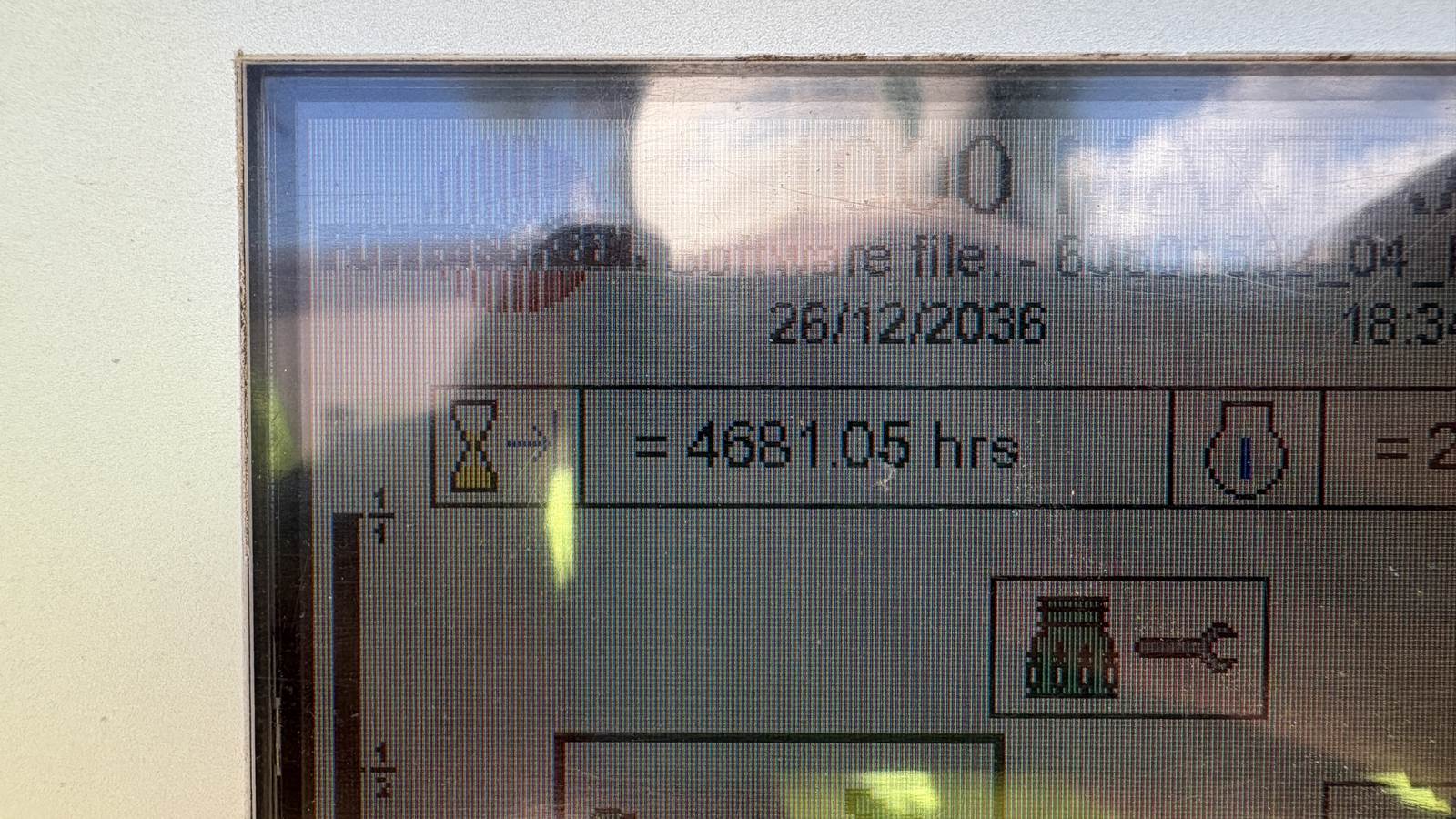

Hour meter reads: 4,681 (A.O. 09/08/2025)

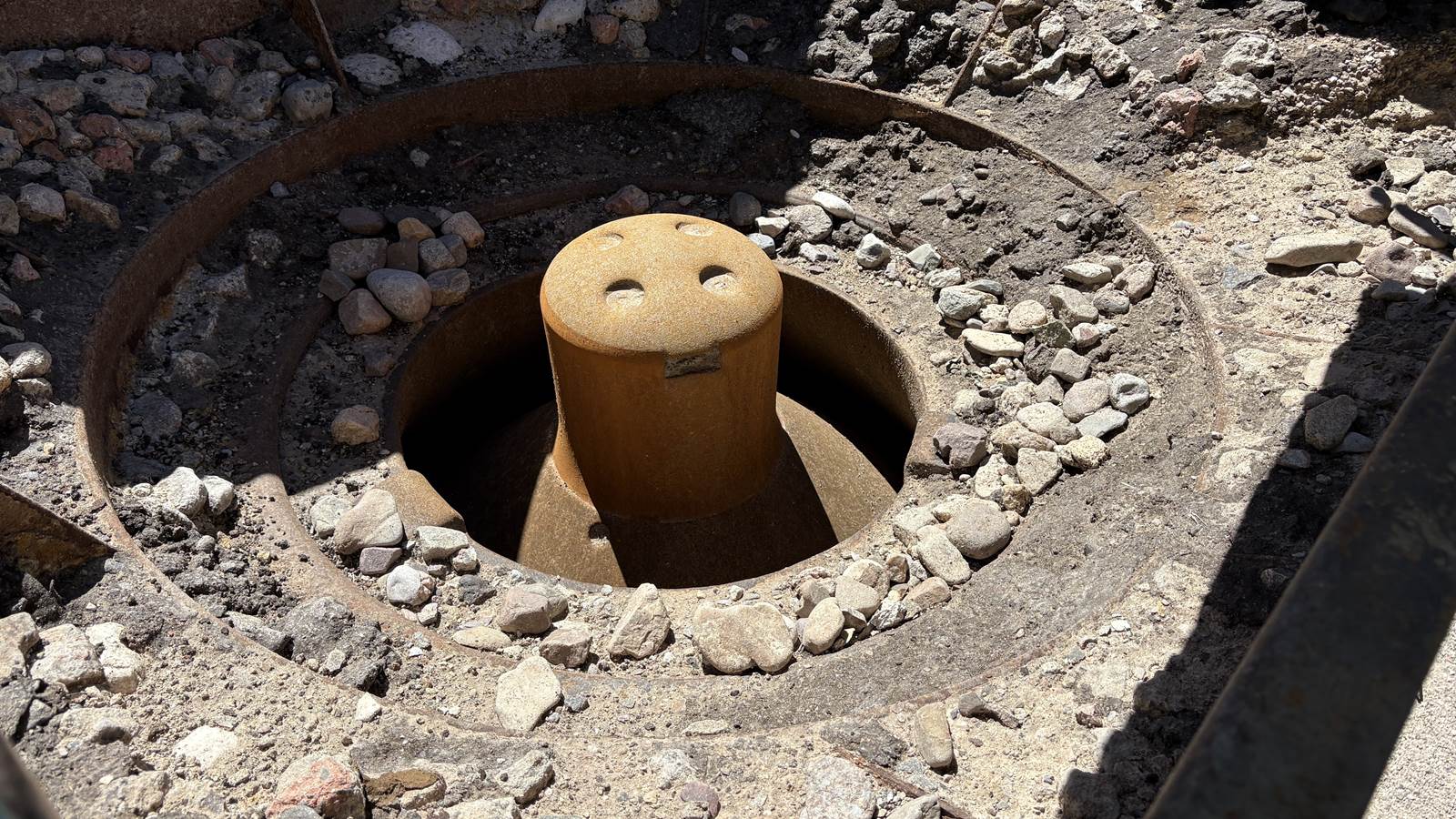

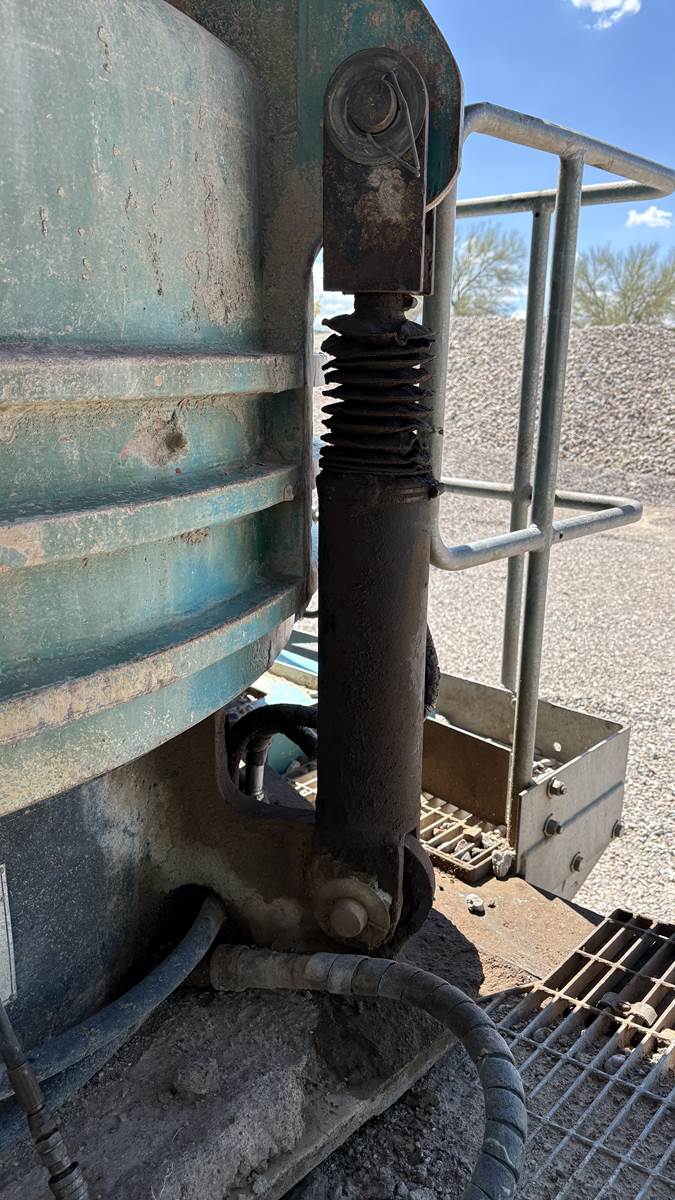

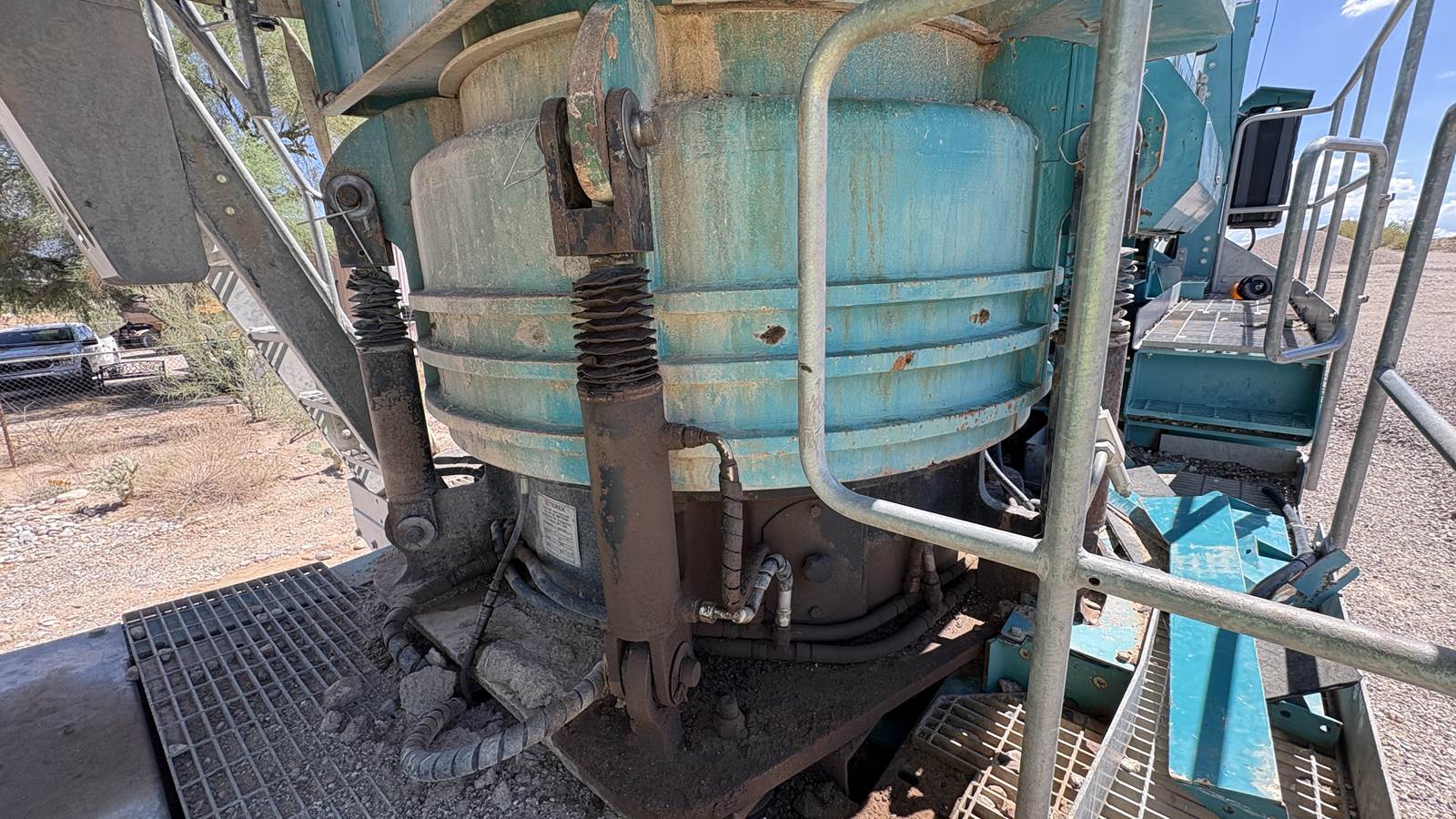

Cone Crusher:
- Cone Model: TC1000 Long Throw
- Countershaft RPM: 936
- Max Feed Size: 6 1/4"
- Minimum CSS: 3/4"
- TPH Capacity Range: 135-210 (See Brochure attached below for additional information)
- Medium Liners at ~50% wear
Setup & Components:

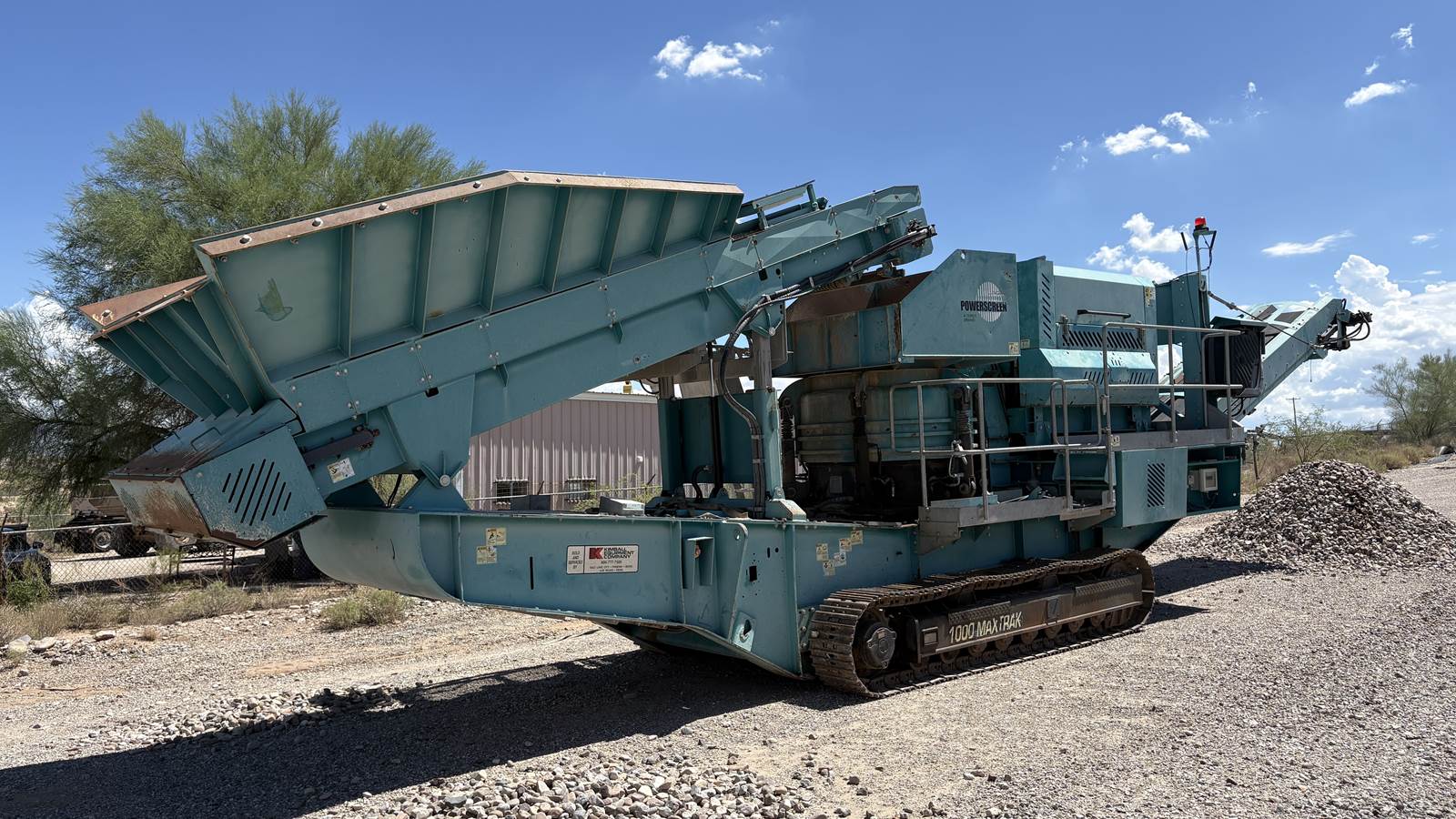

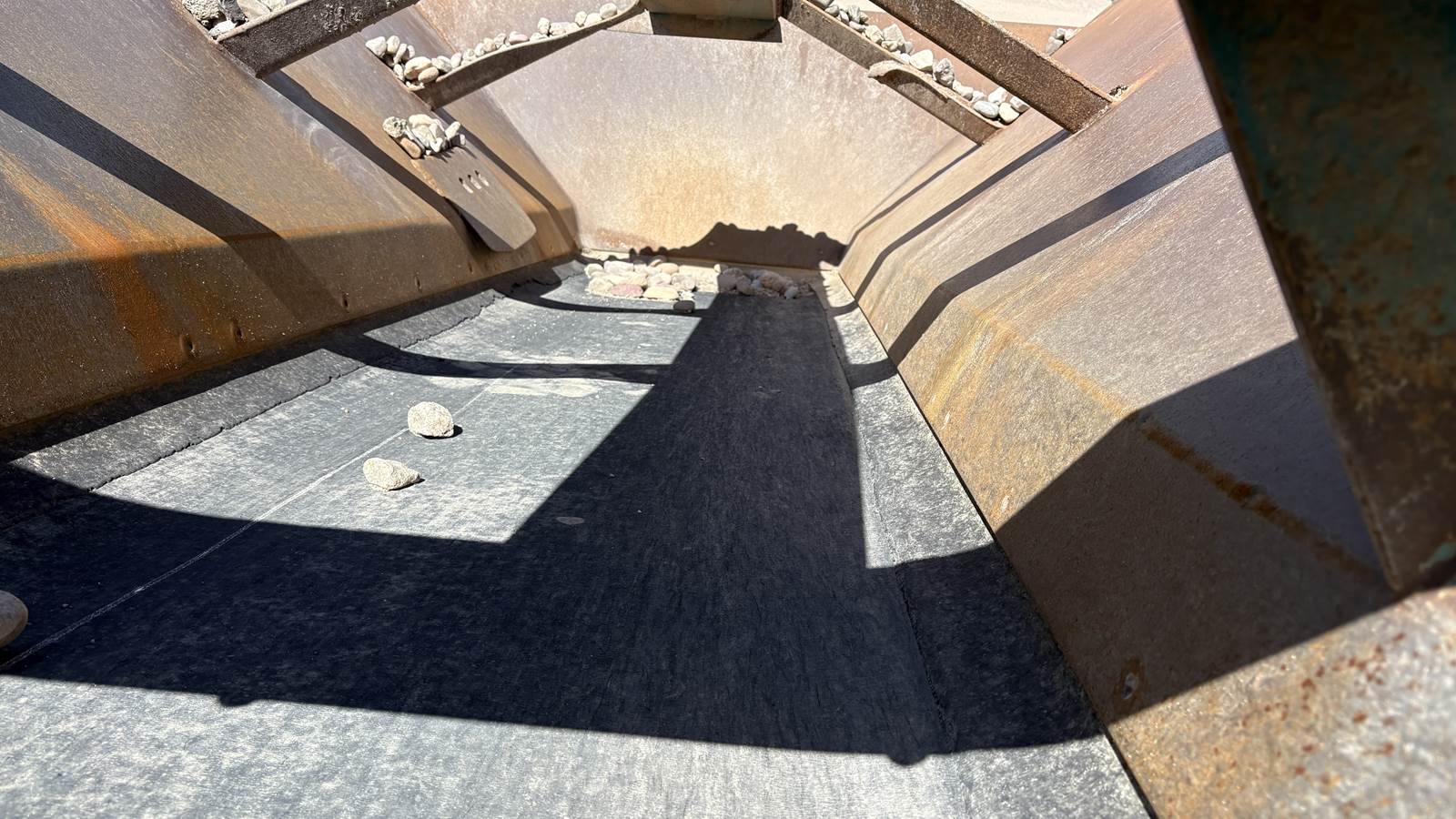

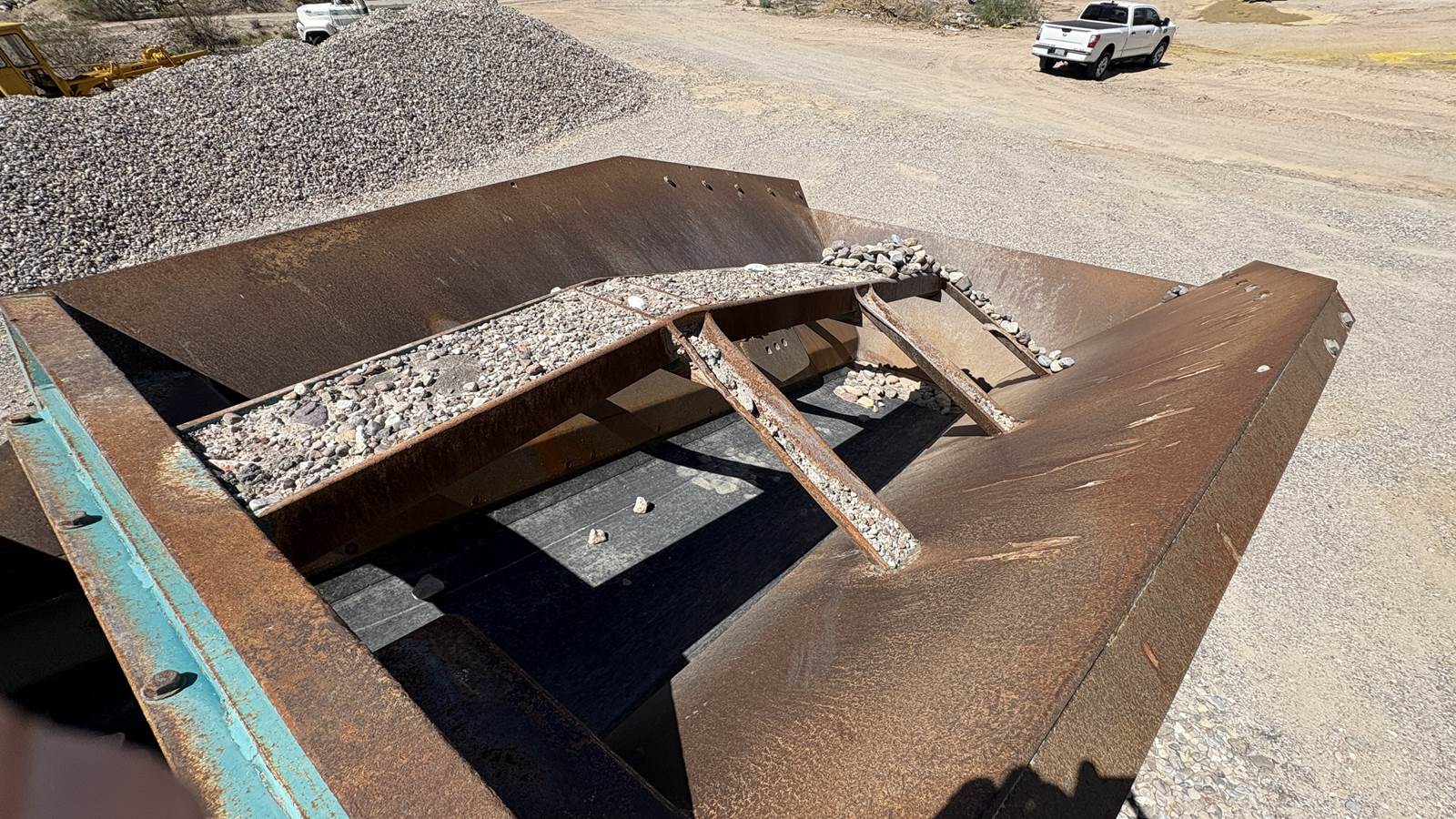

- Hopper: 5.8 cu. yd. heavy-duty steel hopper with crash bars
- Feed Conveyor: 40" variable-speed belt with integrated metal detector

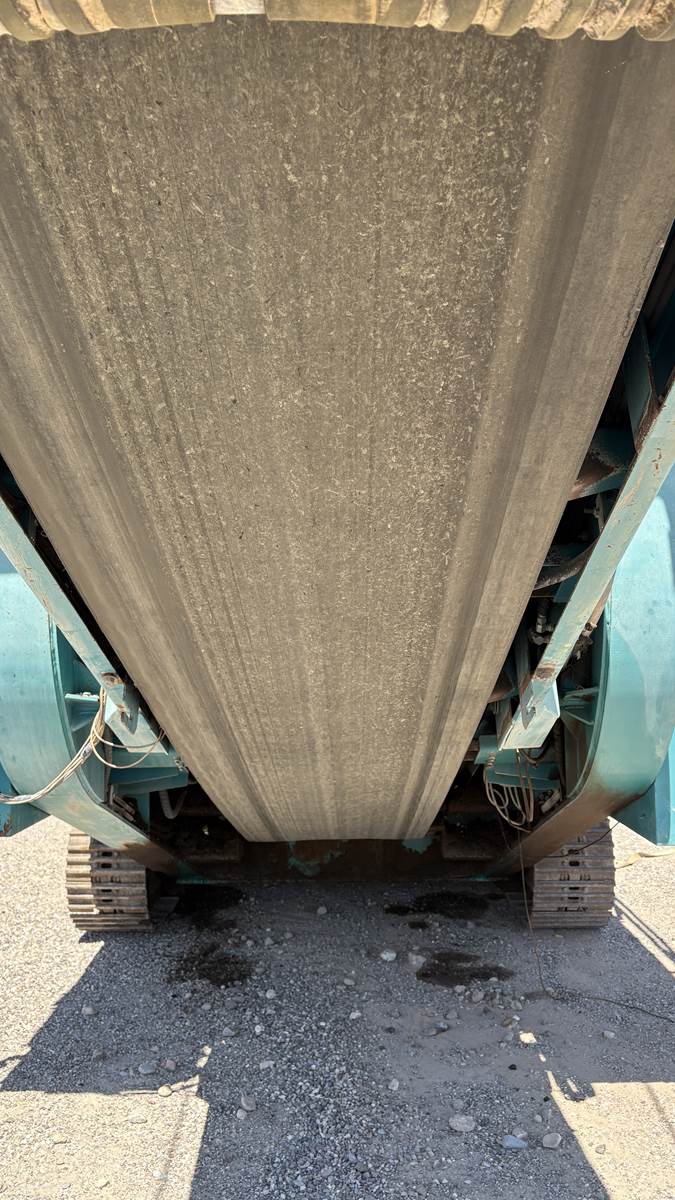

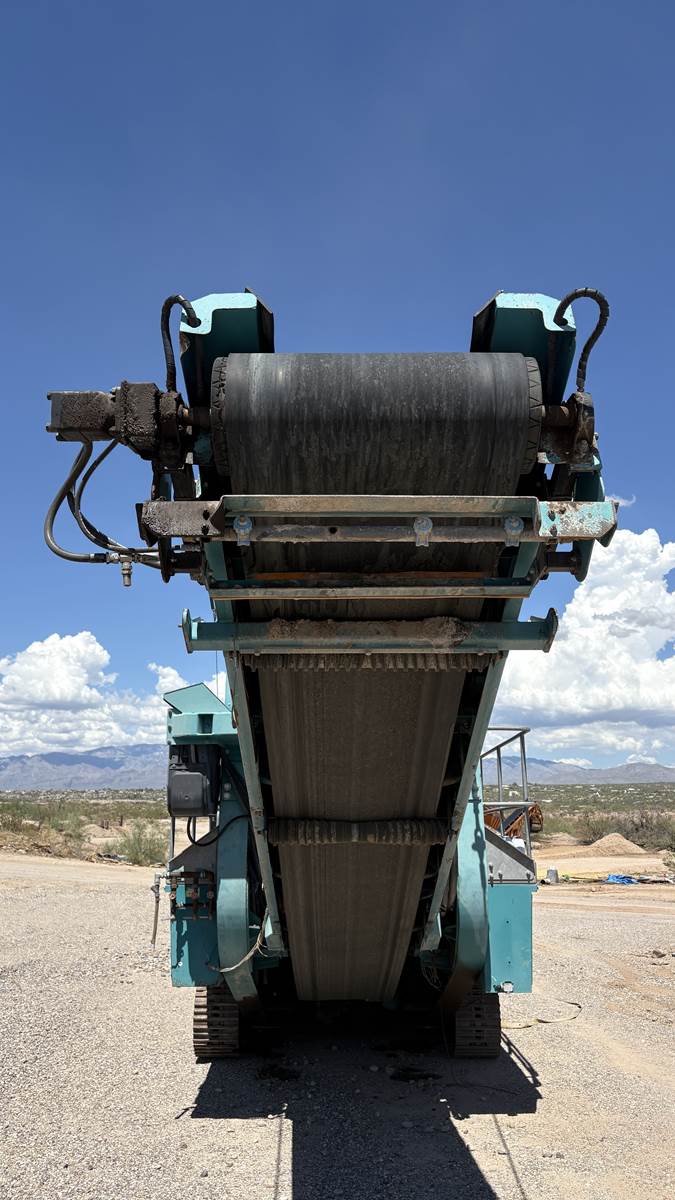

- Discharge Conveyor: 32" wide with a discharge height of 10' 8"

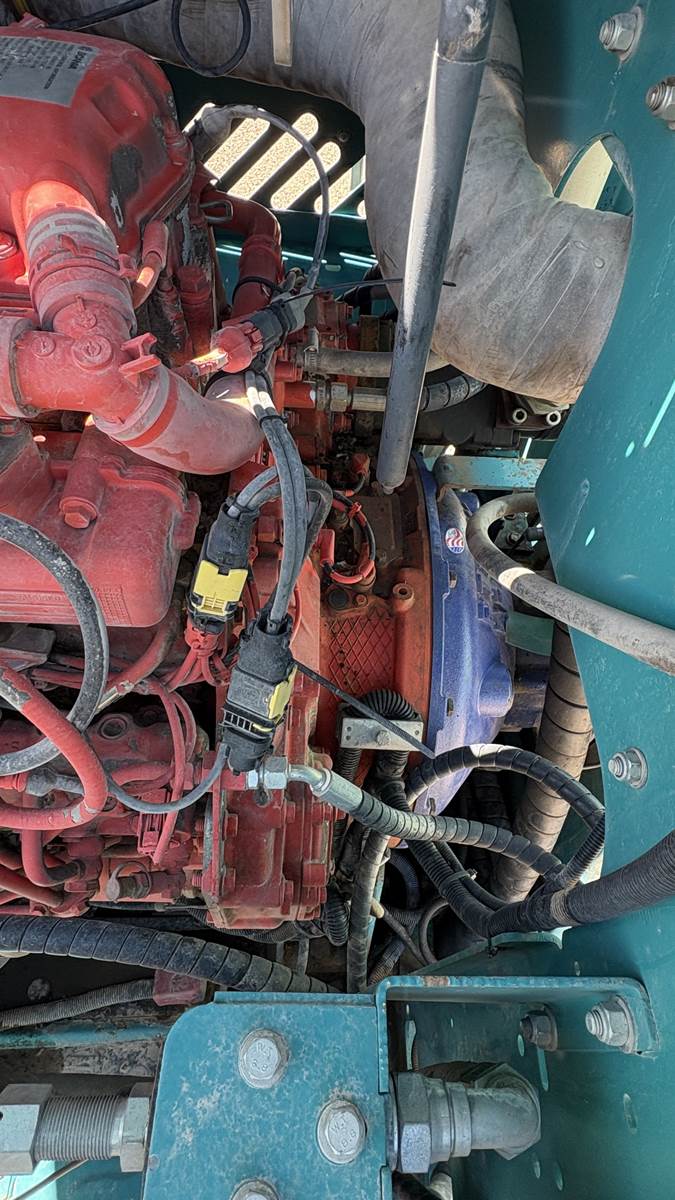

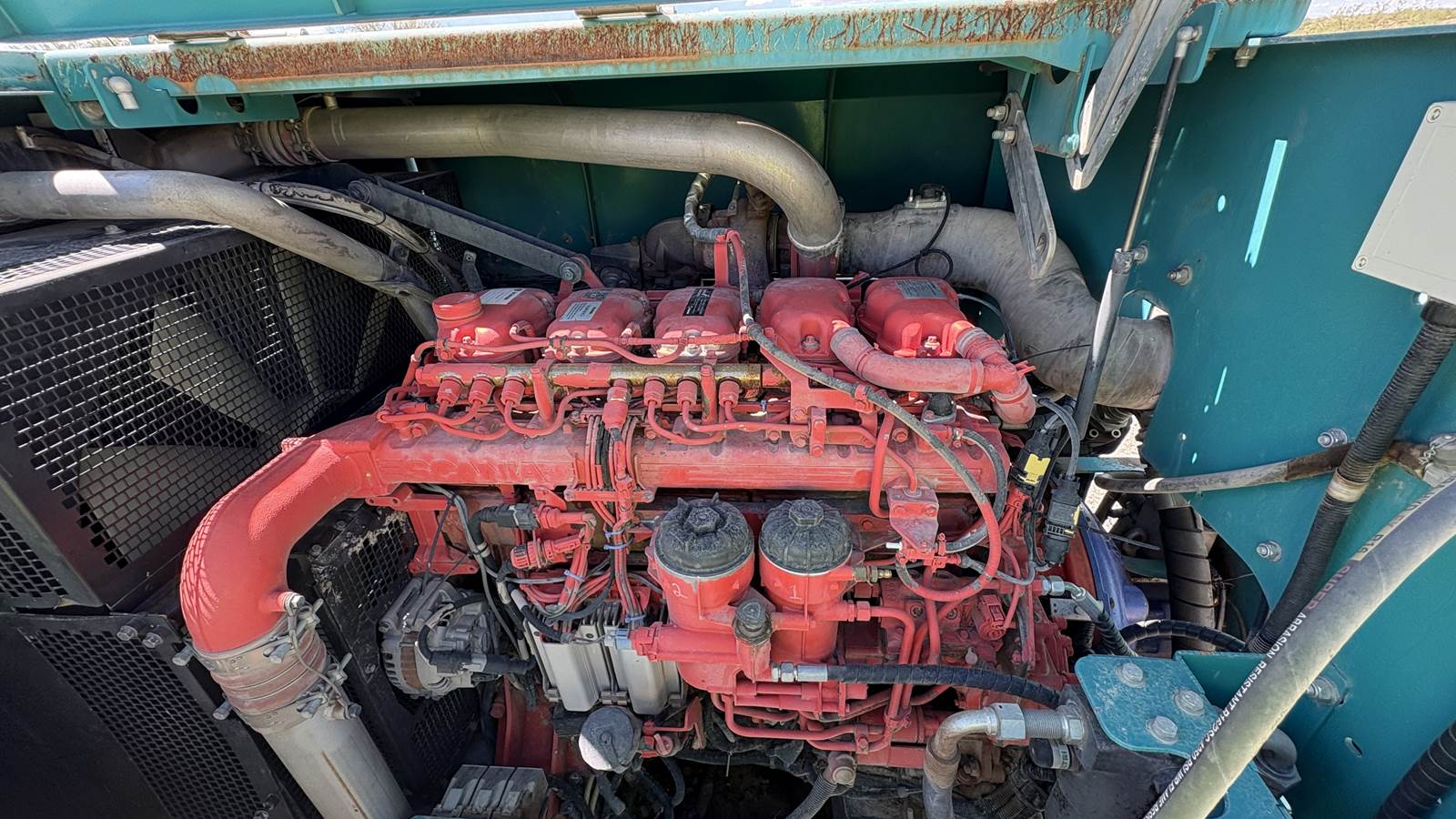

Power Unit:
- Manufacture: Scania
- Model: DC09 9.3L Inline 5-cylinder diesel
- Power Output: 311hp - 394hp @ 2100 RPM
- Liquid-cooled & turbocharged (charge-air cooled intake system)
- Turbocharger is oil-lubricated/oil-cooled

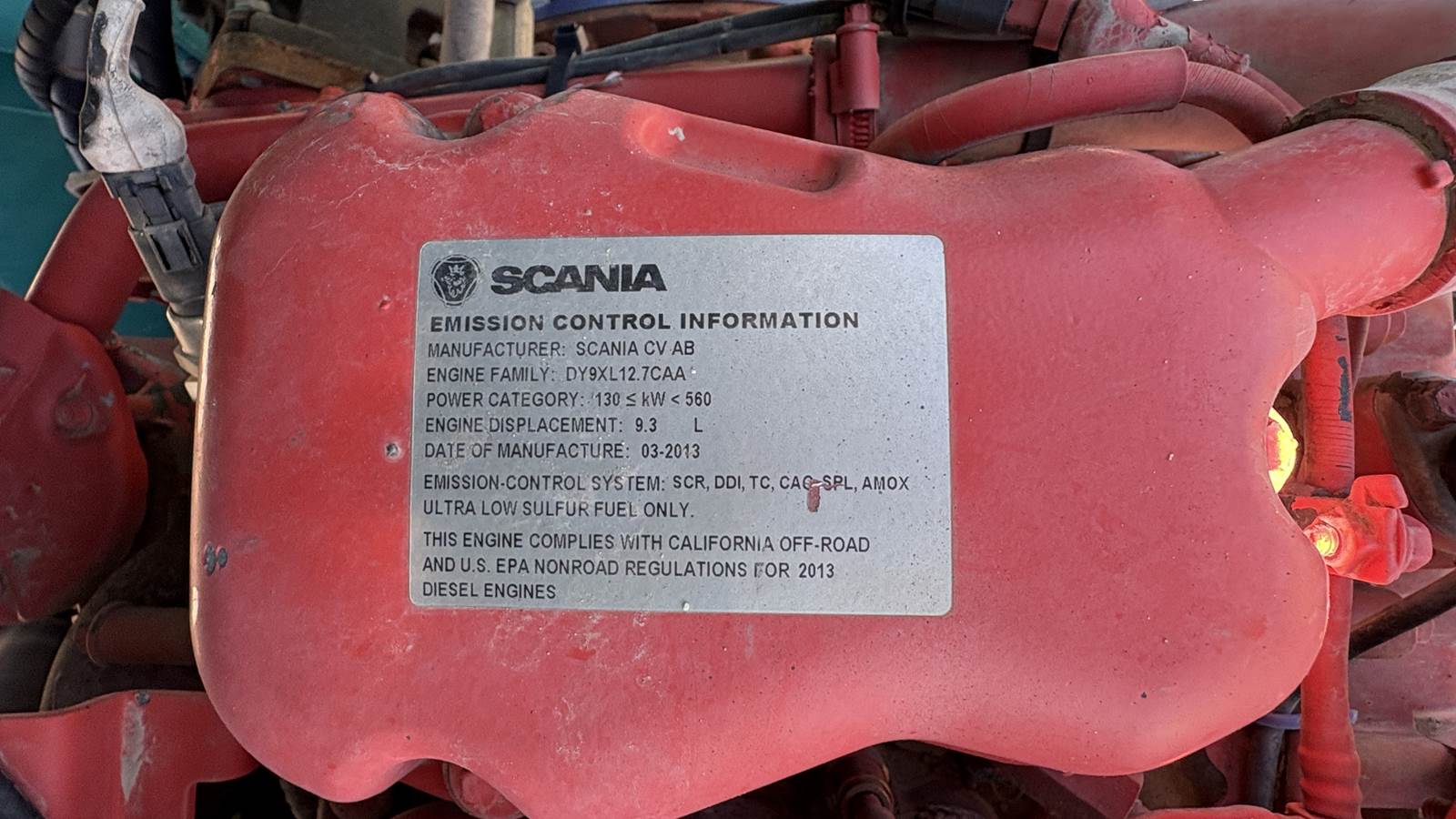

- Emission Certification: Built 03-2013, EPA Tier 4i / CARB compliant – SCR system with DEF and Crankcase Ventilation Filter
- No EGR or DPF
- Clutch: New HPTO clutch (Hydraulic Power Take-Off clutch) installed between engine and drive belts.
Transport Dimensions:
- Length: 47' 11"
- Width: 9' 2"
- Height: 11' 4"
- Weight: 67,200 lbs.
