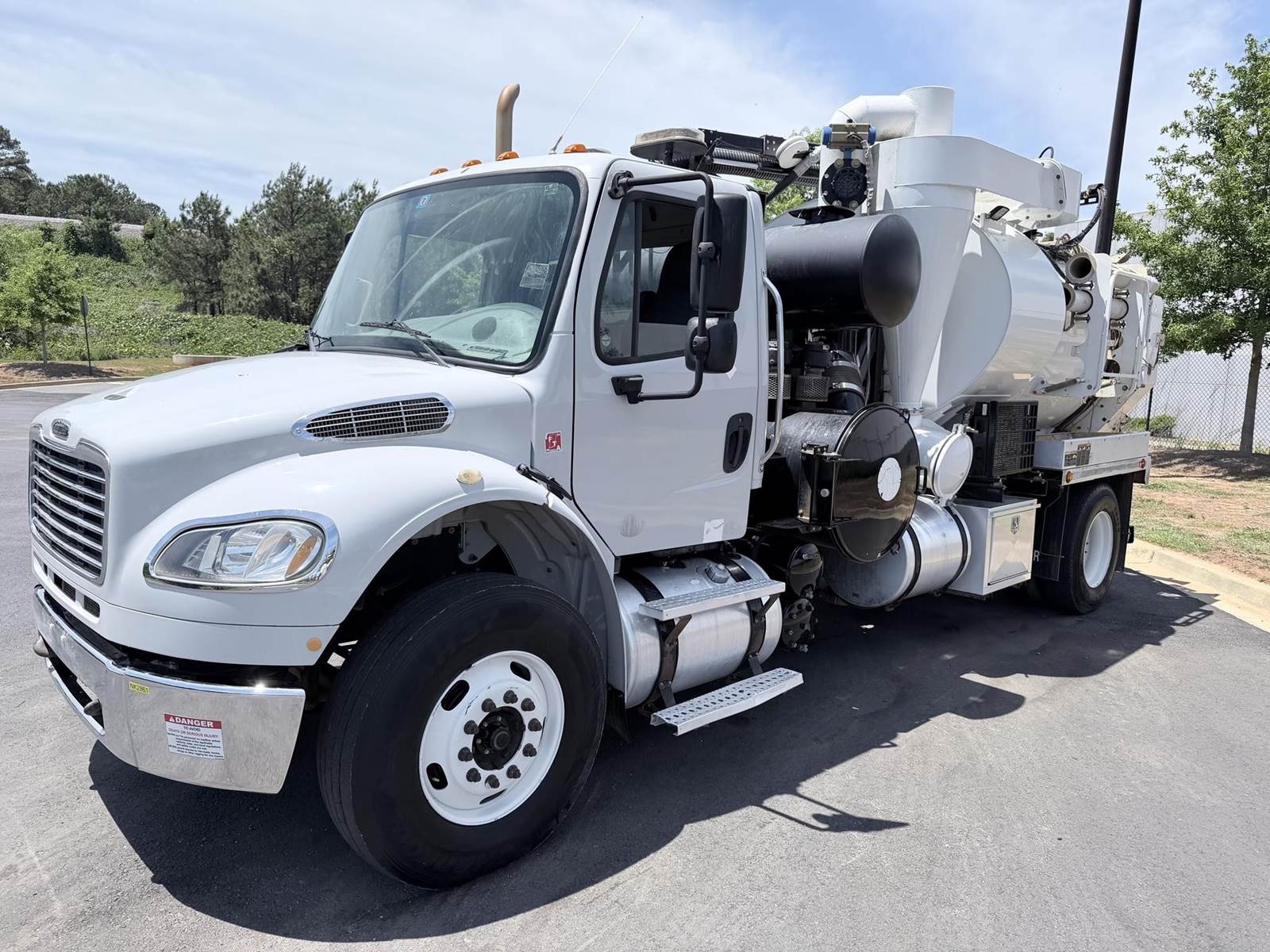

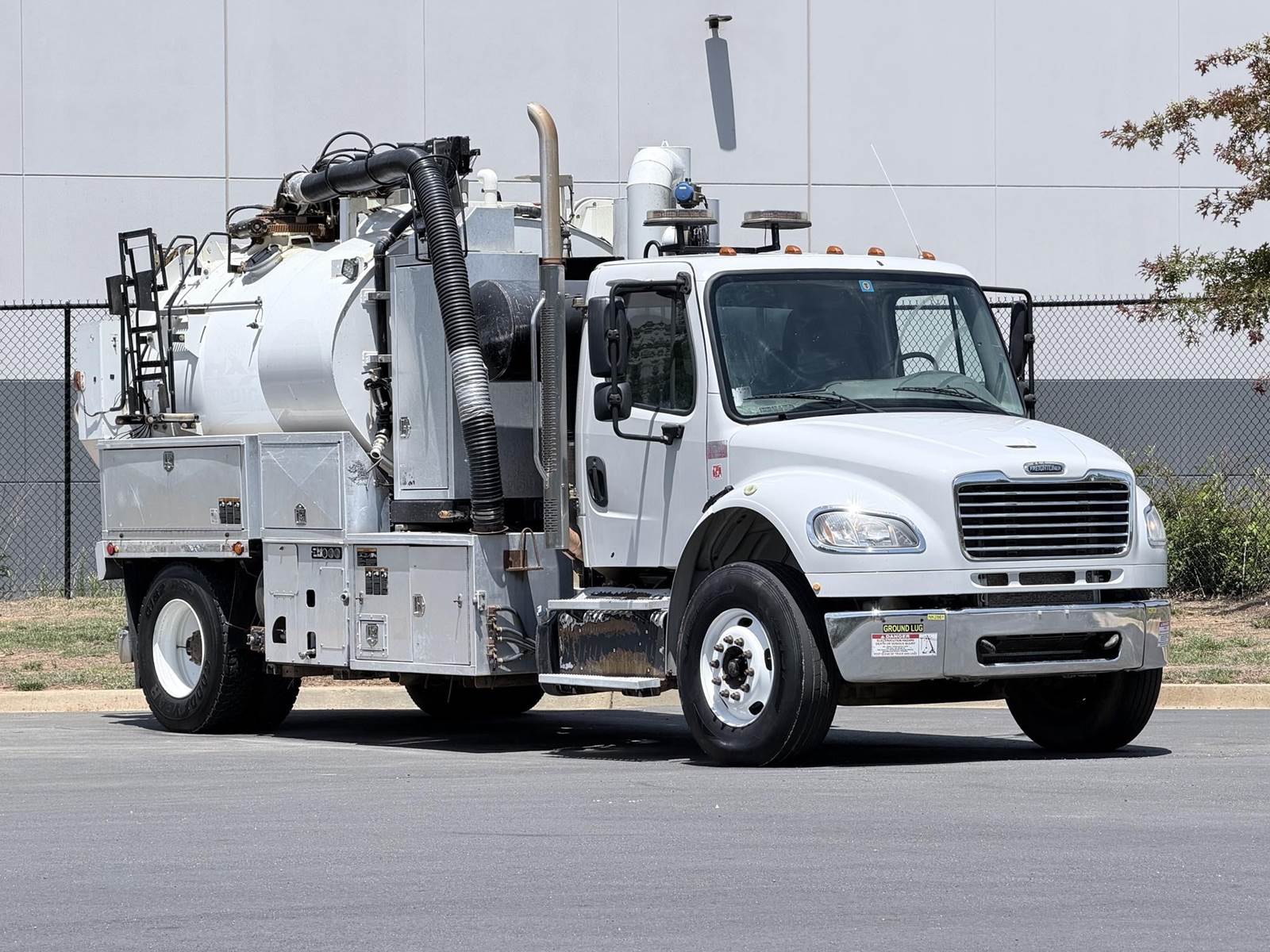

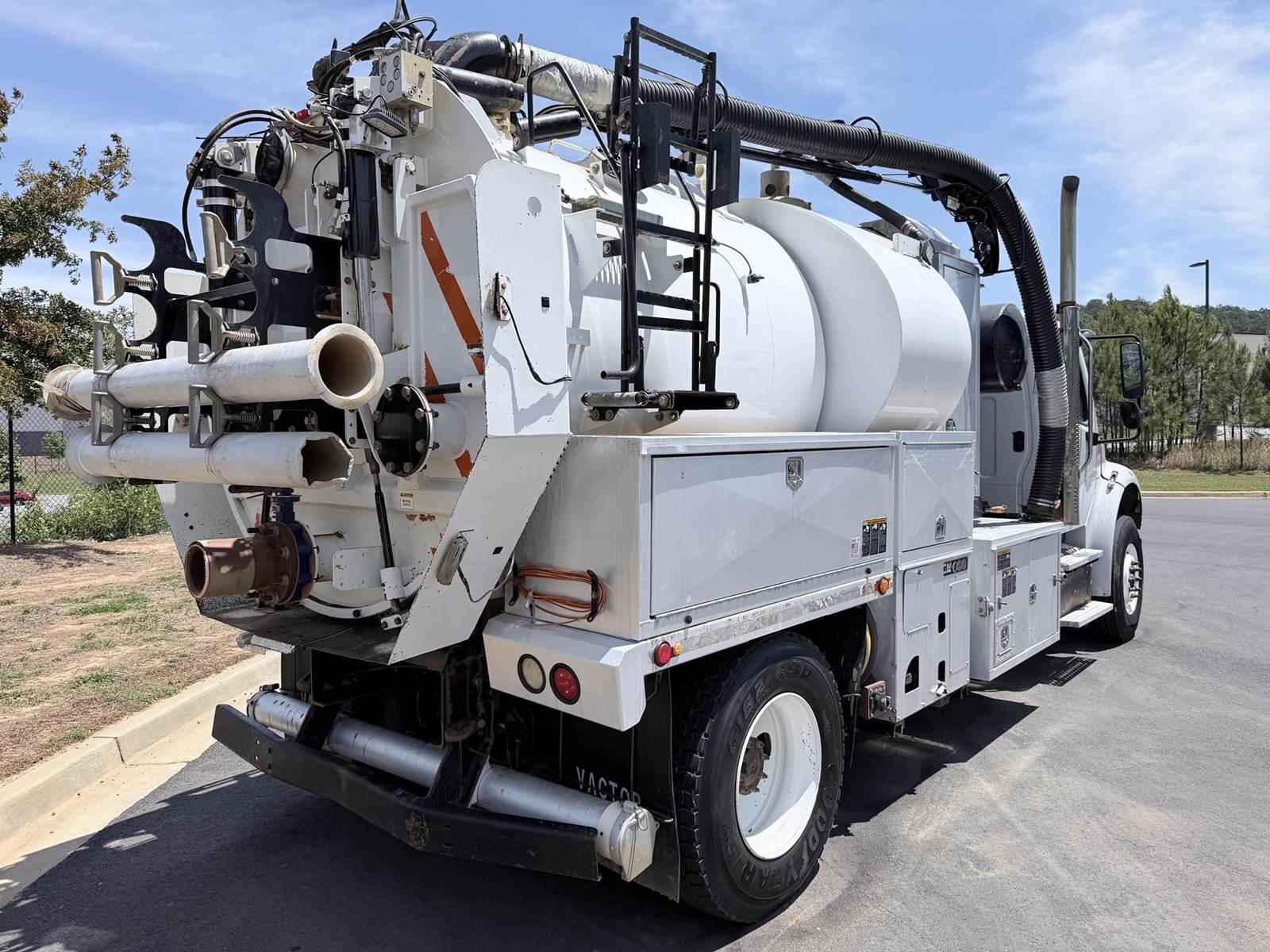

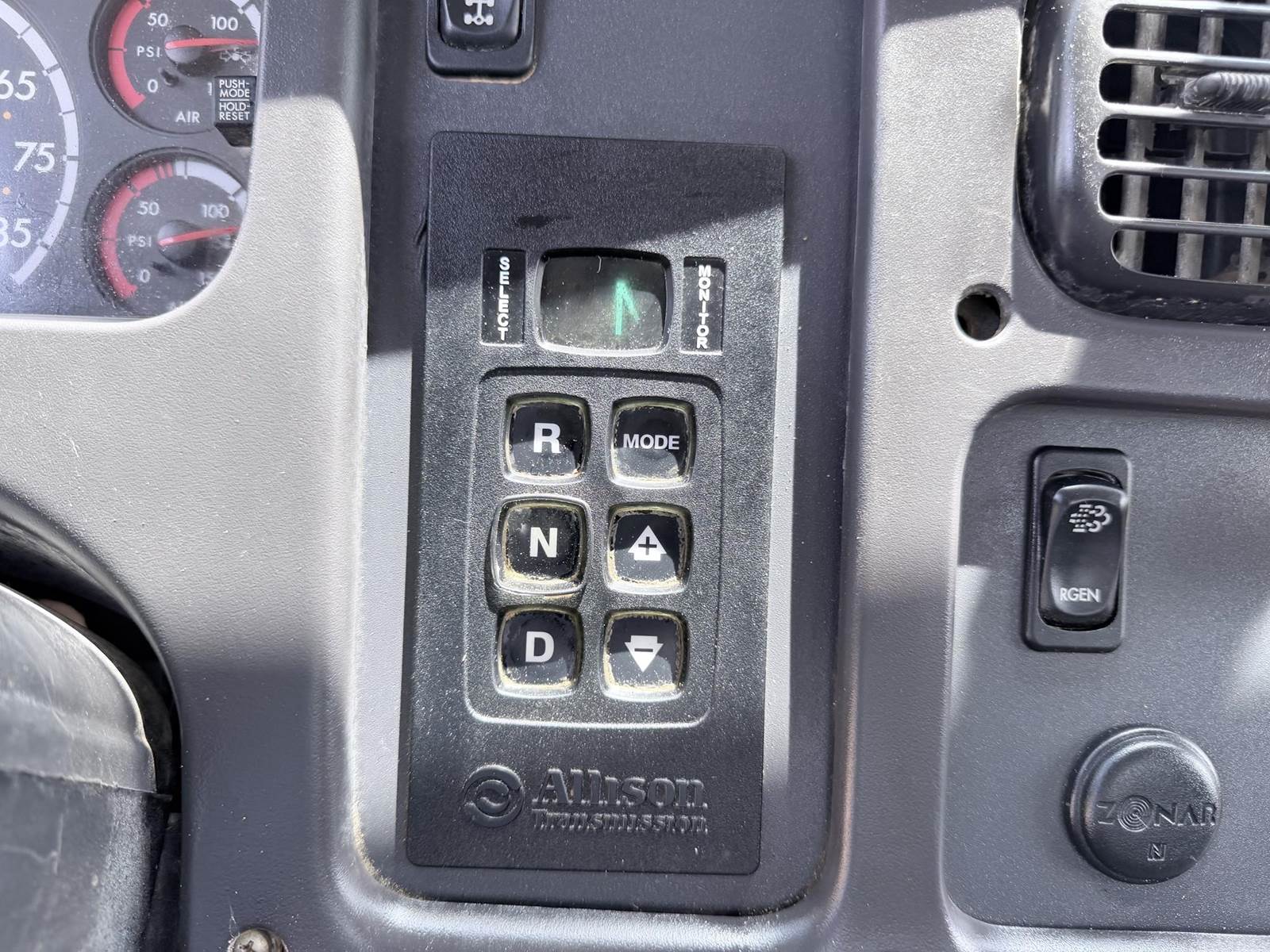

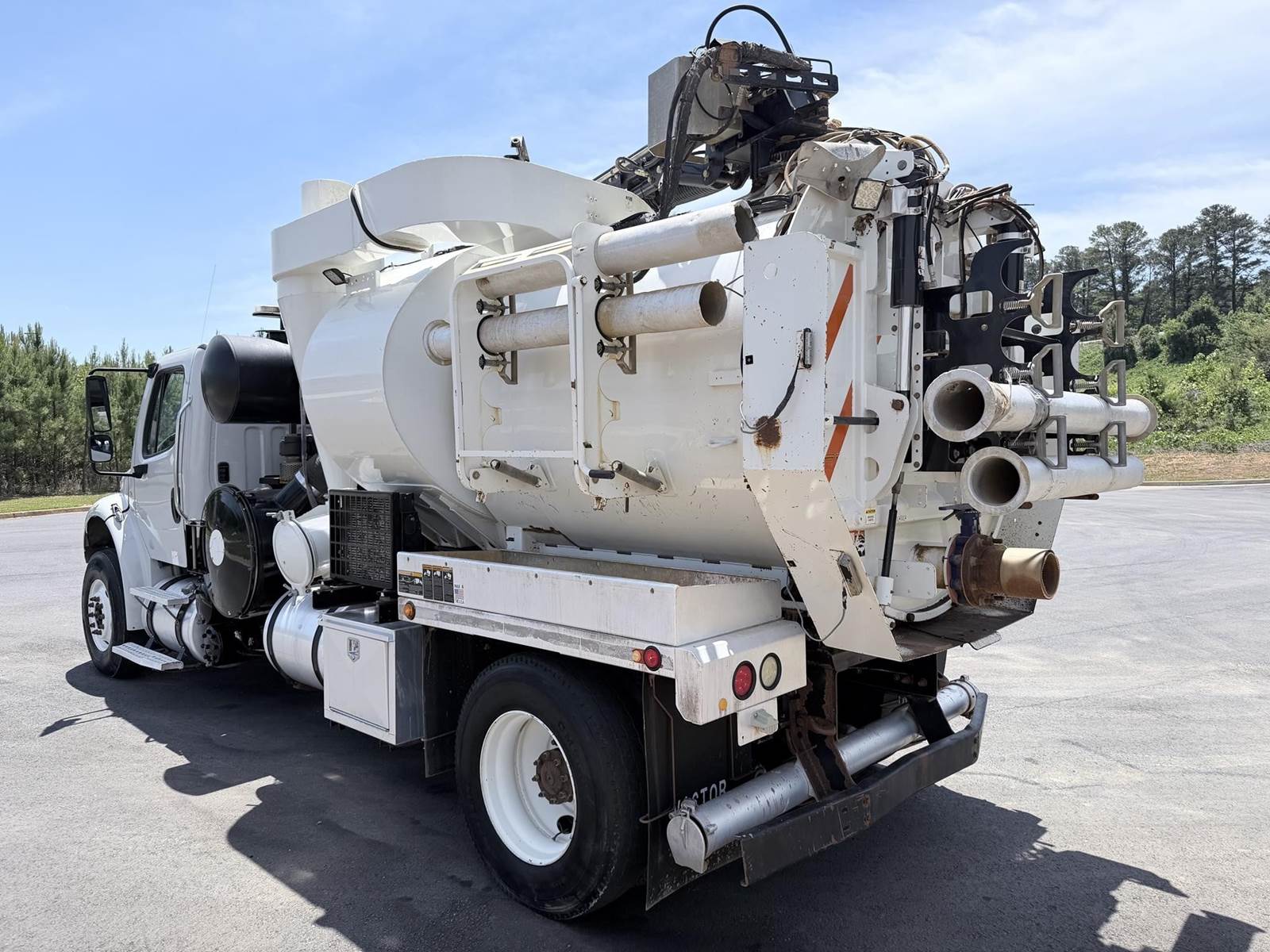

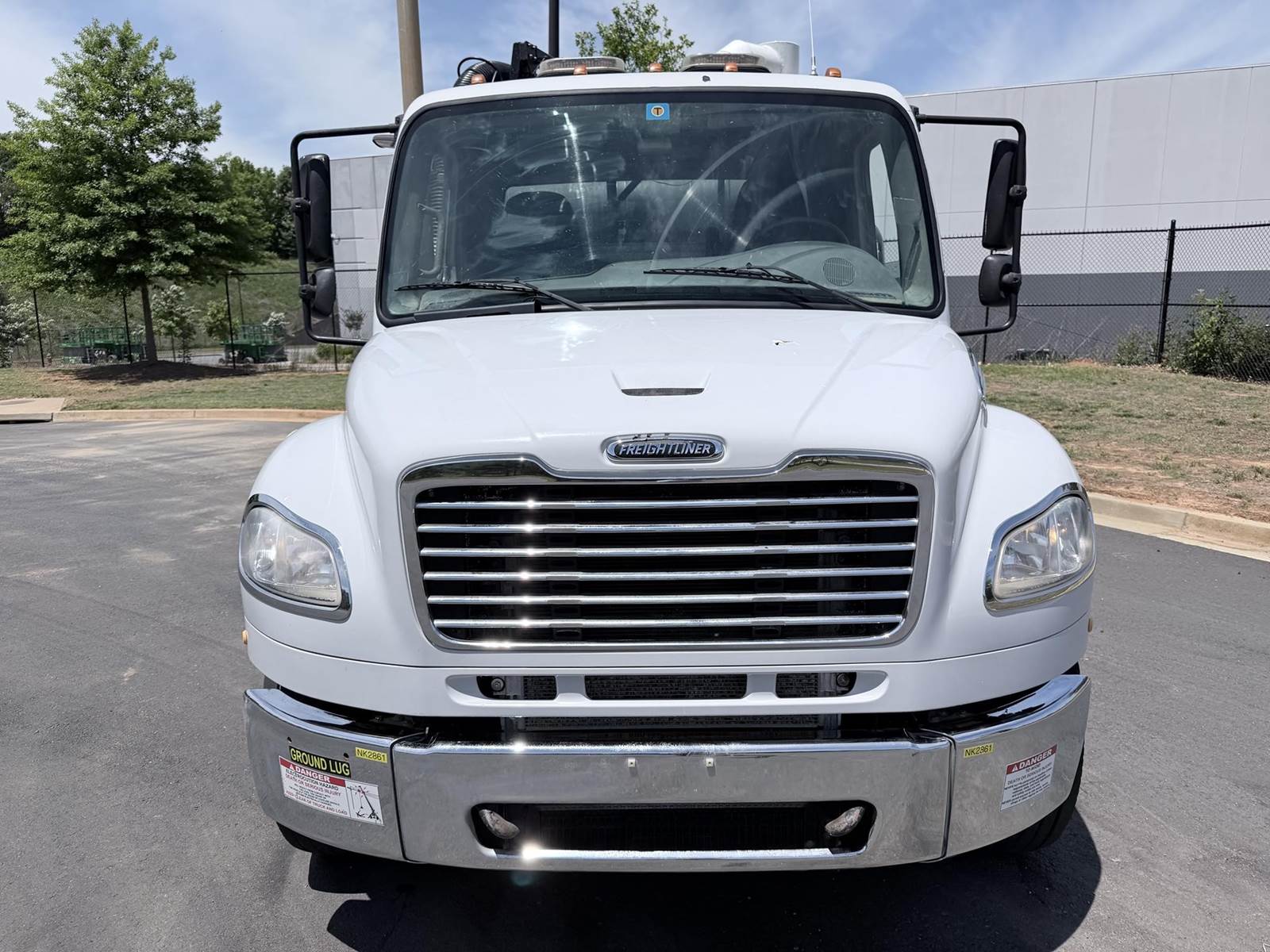

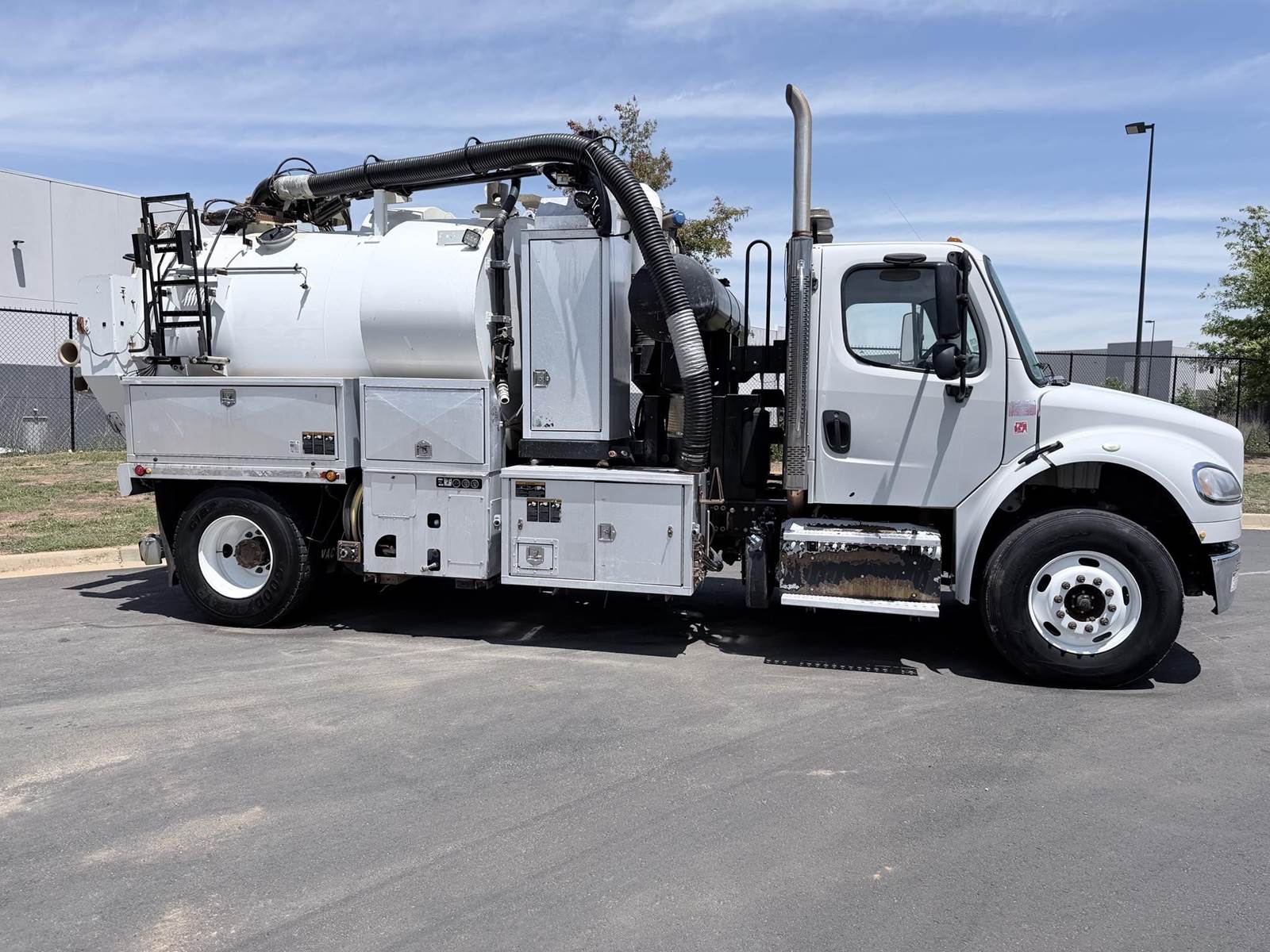

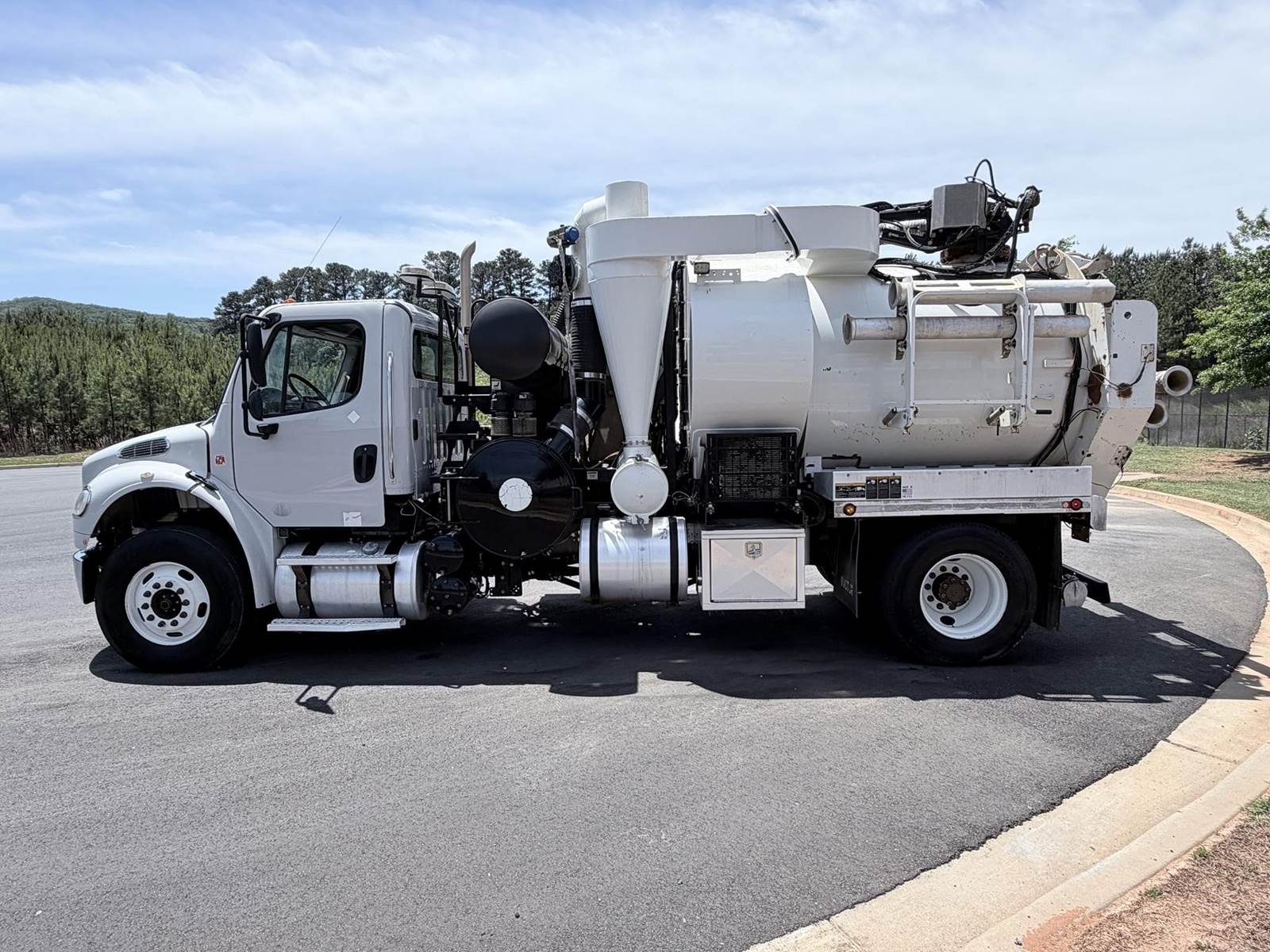

2015 Freightliner M2 106 Single Axle Vacuum Truck - Cummins, 300HP, Automatic

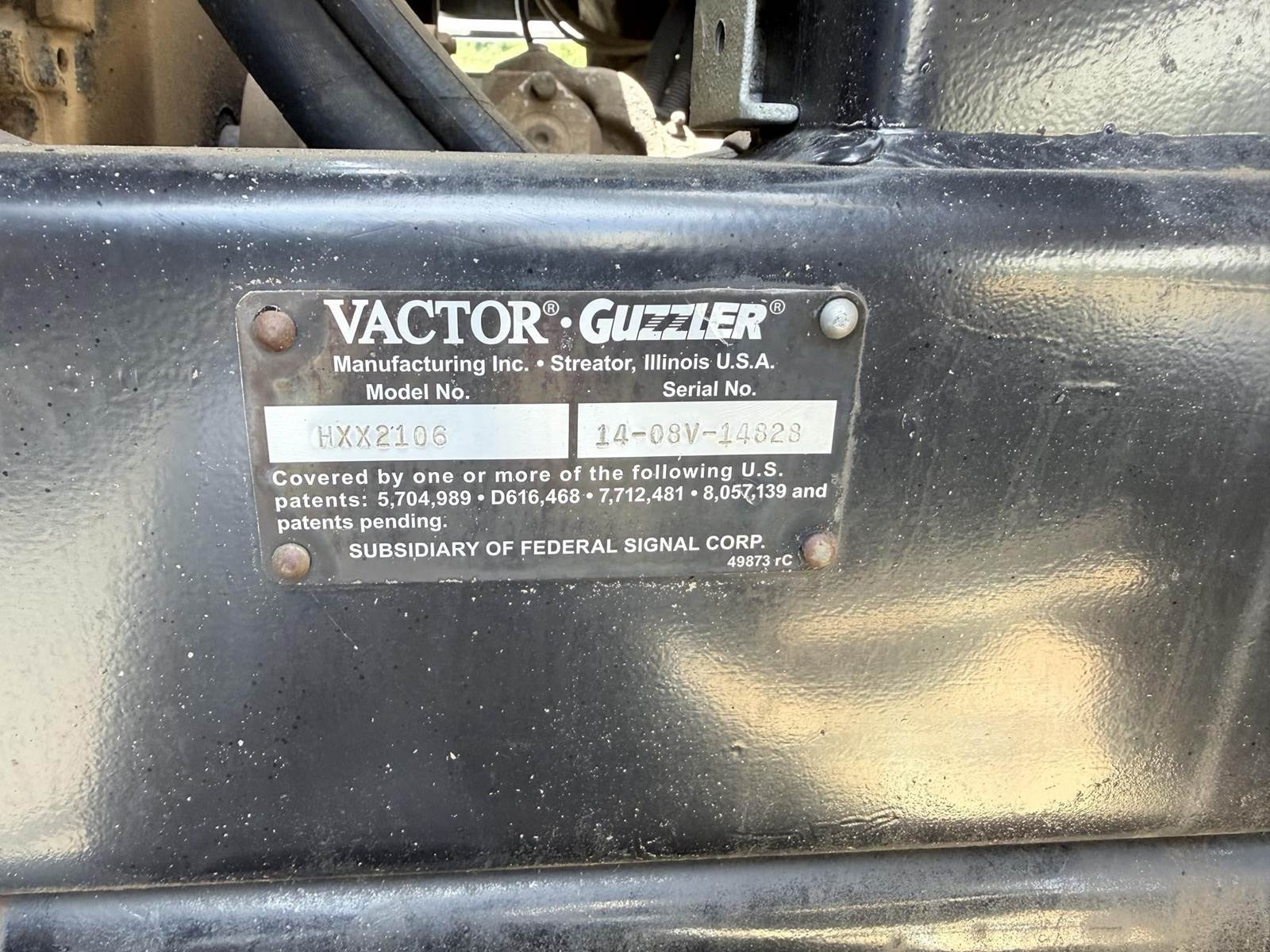

The Vactor HXX Paradigm is loaded with standard features making it ‘work ready.’

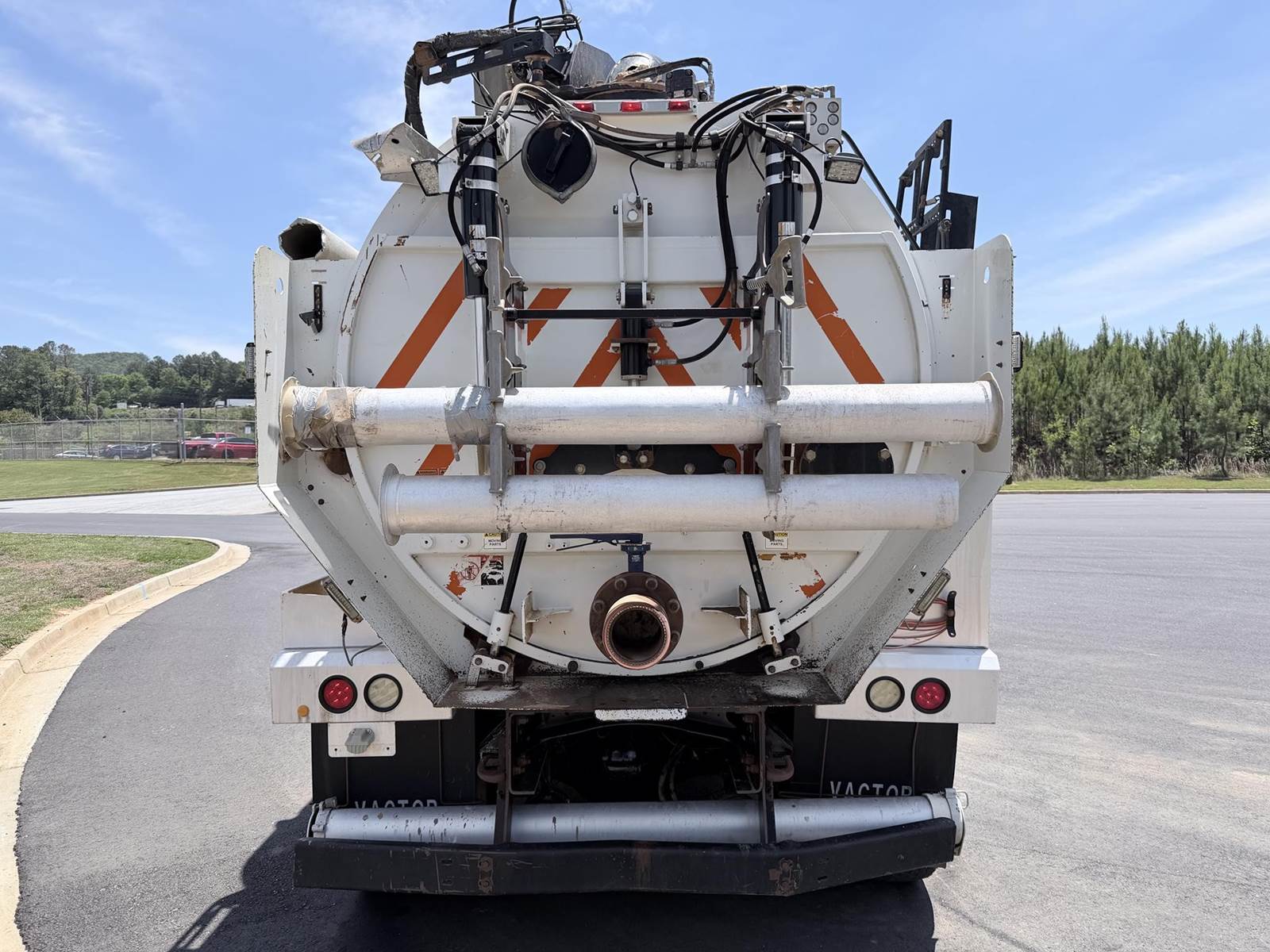

Debris Body
• 675 gal volumetric capacity debris body
• Hydraulically open and close and hydraulic locking
rear door
• 6” vacuum pipe storage
• Hydraulically raising debris body for easy offloading
• Electric vibrator
• 48” unladed dump height
• Rear door splash shield
• 4” quick connect loading port

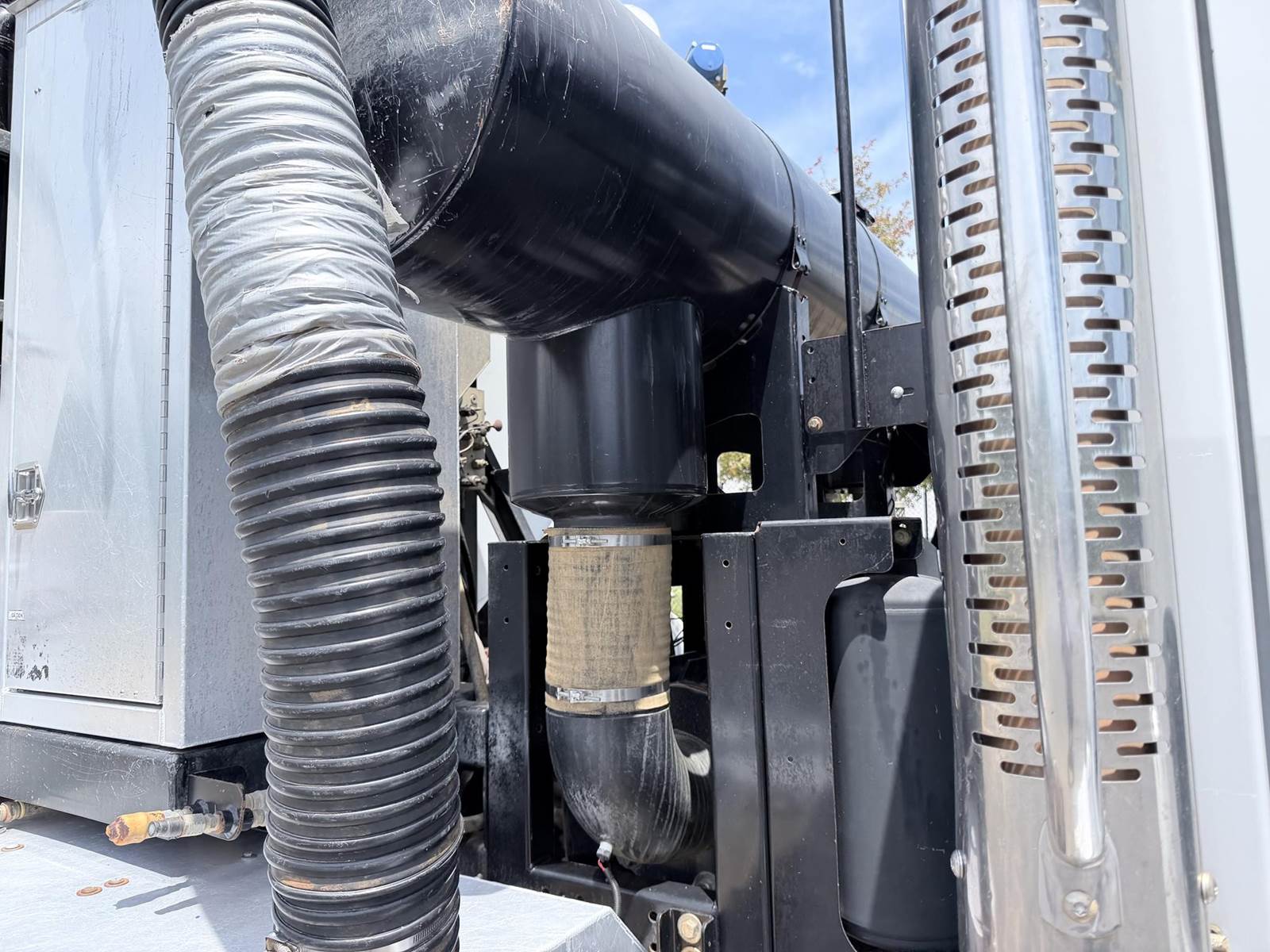

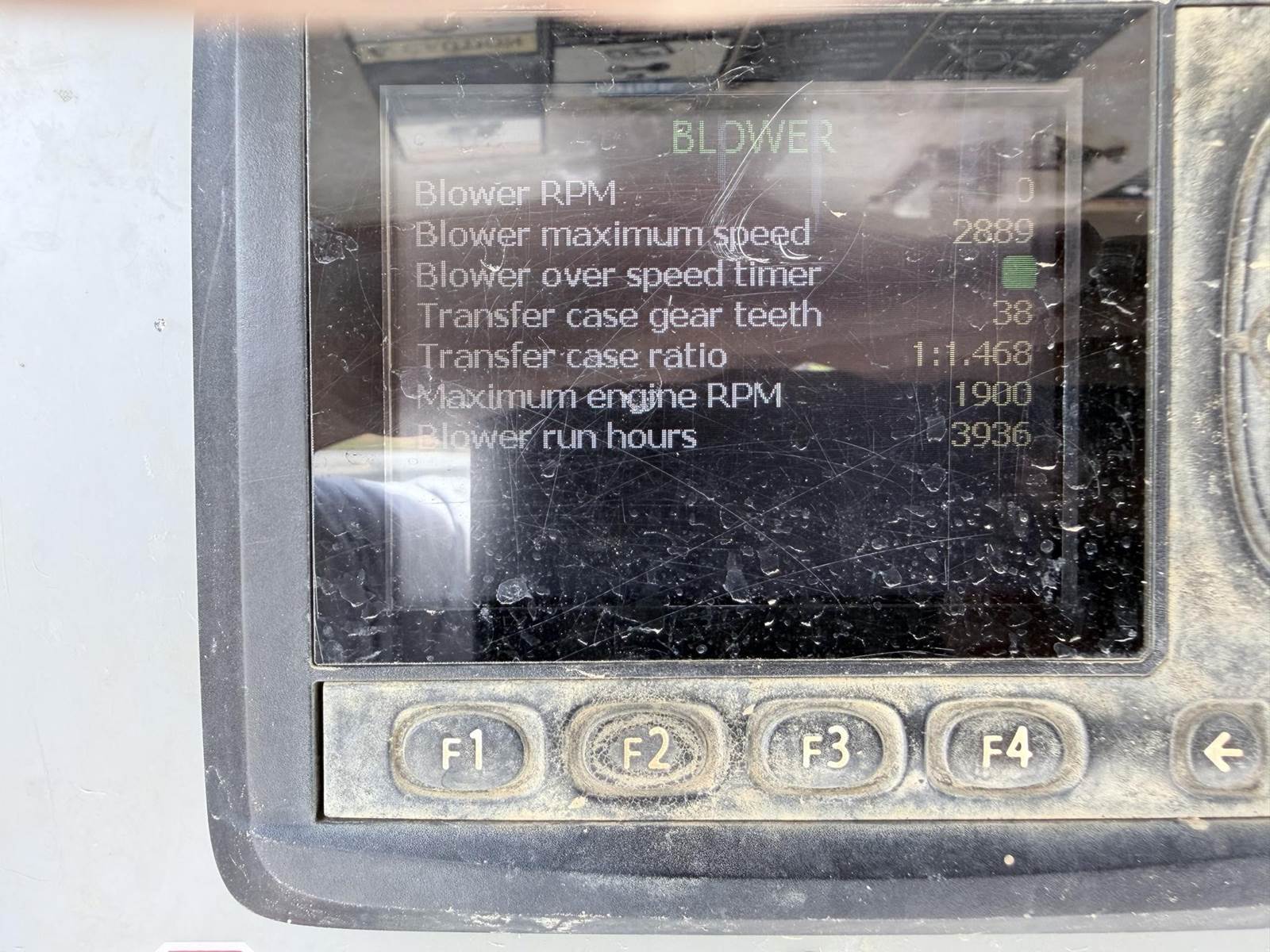

Vacuum System
• 2,200 CFM blower, 15" Hg
• Ultra quiet blower silencer package
• Hydrostatic blower drive
• 6” pipe package with clamps
• Final filter with washable 5-micron polyester insert for dry
fines vacuuming
• Park-N-Dig quick operation design
• Dual Cyclone Filtration
Boom and Vacuum Pipe
• 6” diameter extendable boom with 5’ of extension
• Hydraulic up/down control

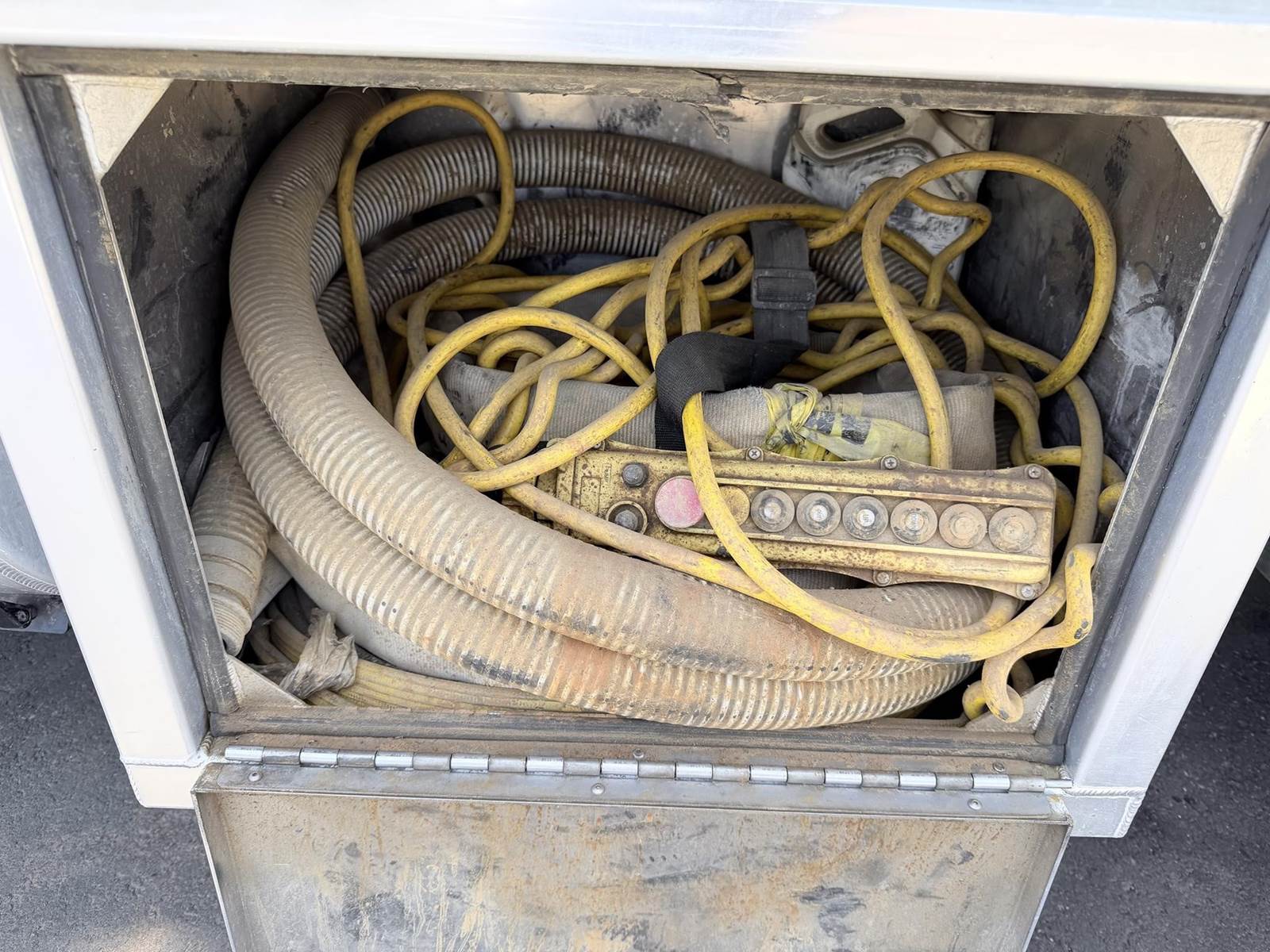

• 4” loading port on rear door includes 4” x 25 ft
smooth-bore vacuum hose
• Boom tube handle

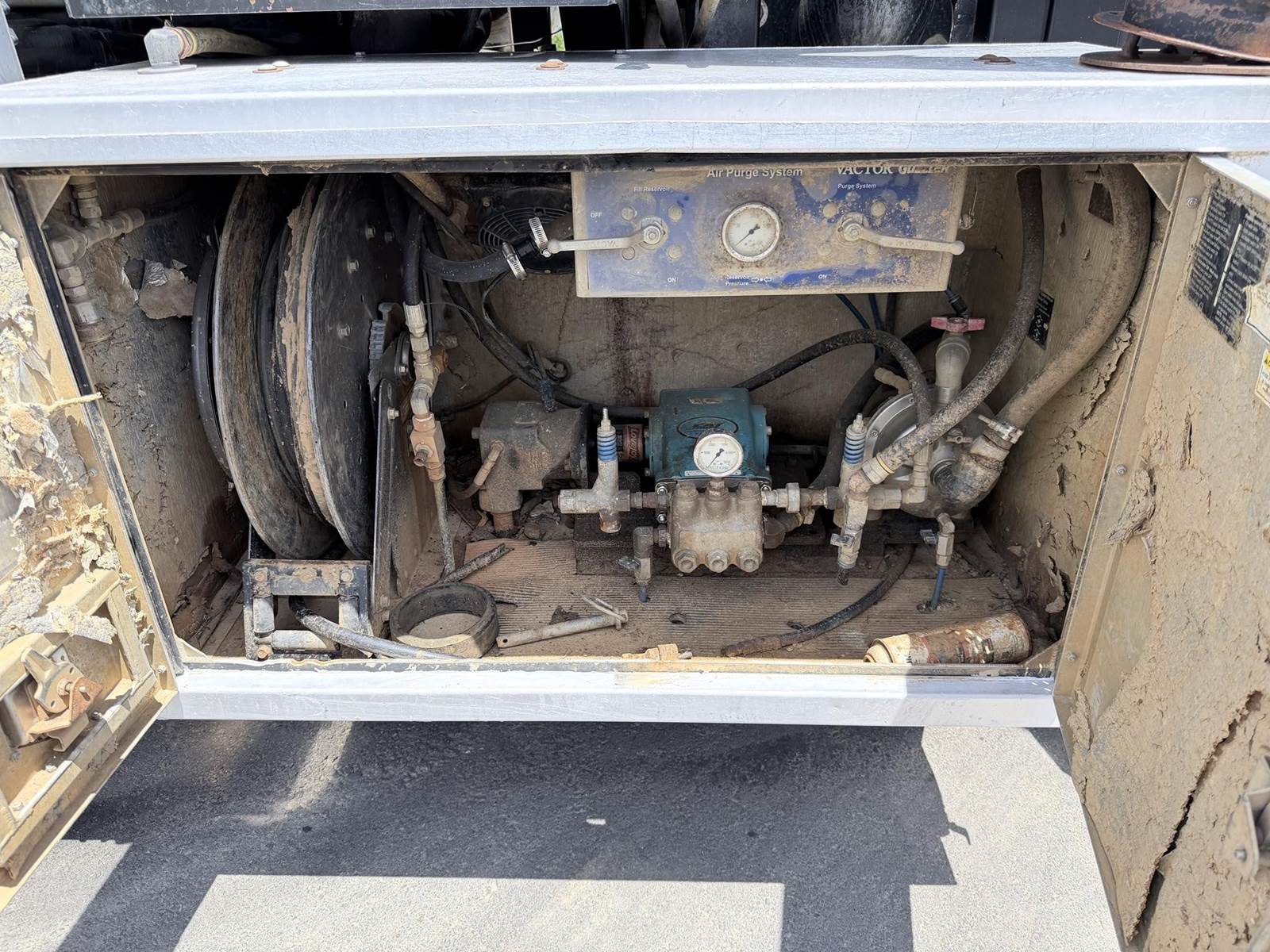

Water System
• 300 gal capacity polyethylene water tank
• Anti-siphon fill device & anti-splash valve
• 2”camlock with 25 ft hydrant fill hose
• 3/4” x 25 ft garden fill hose

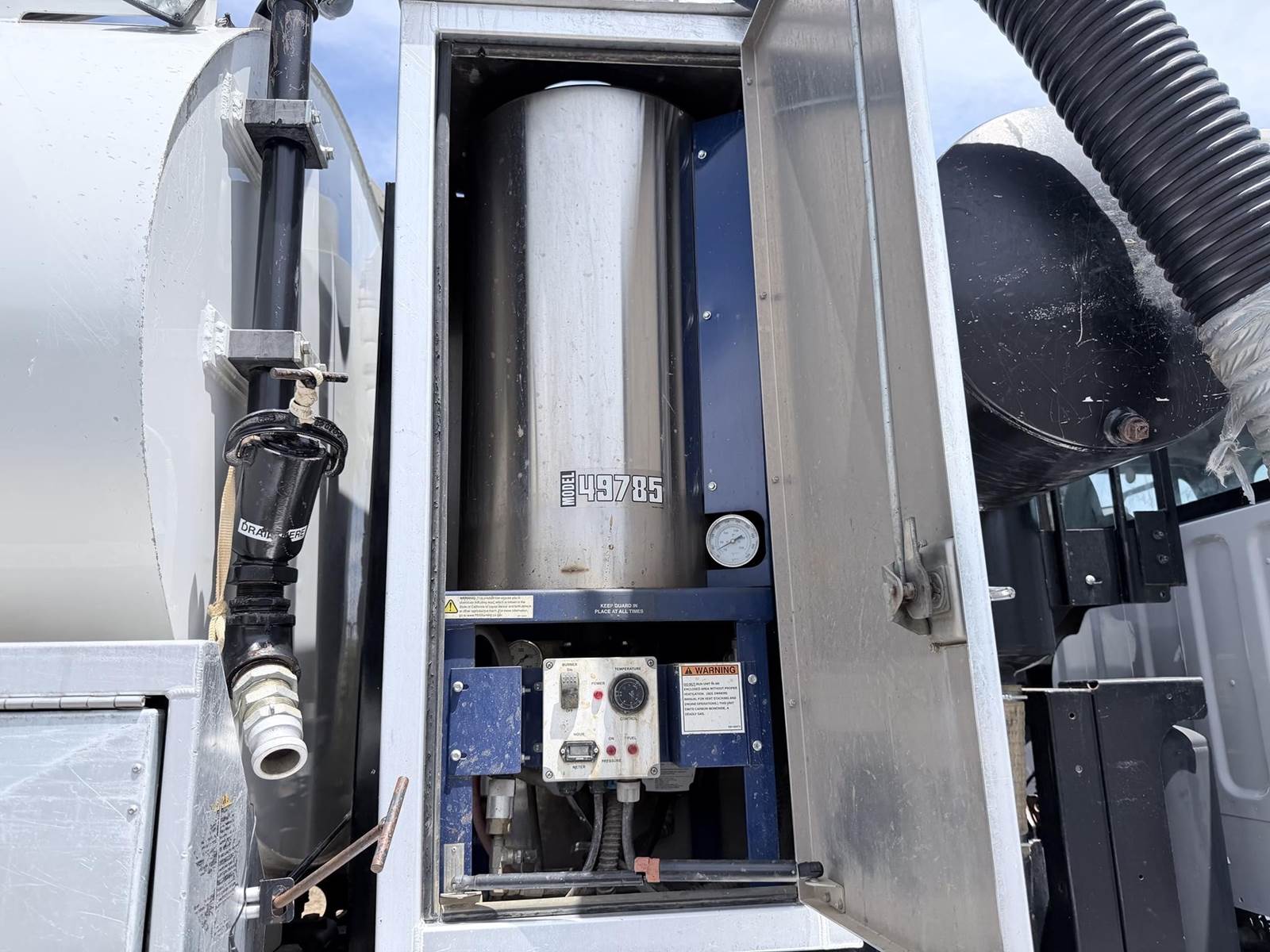

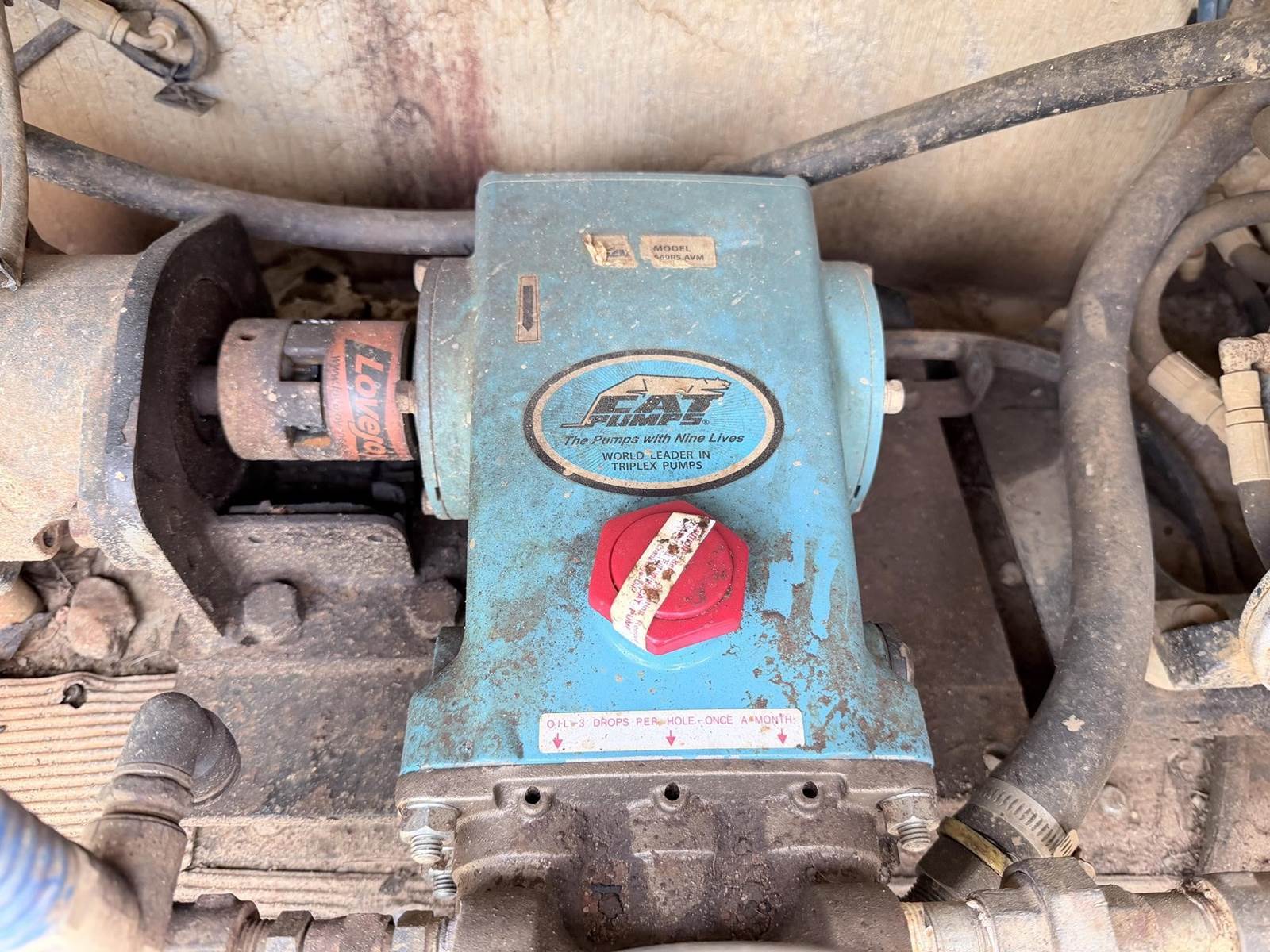

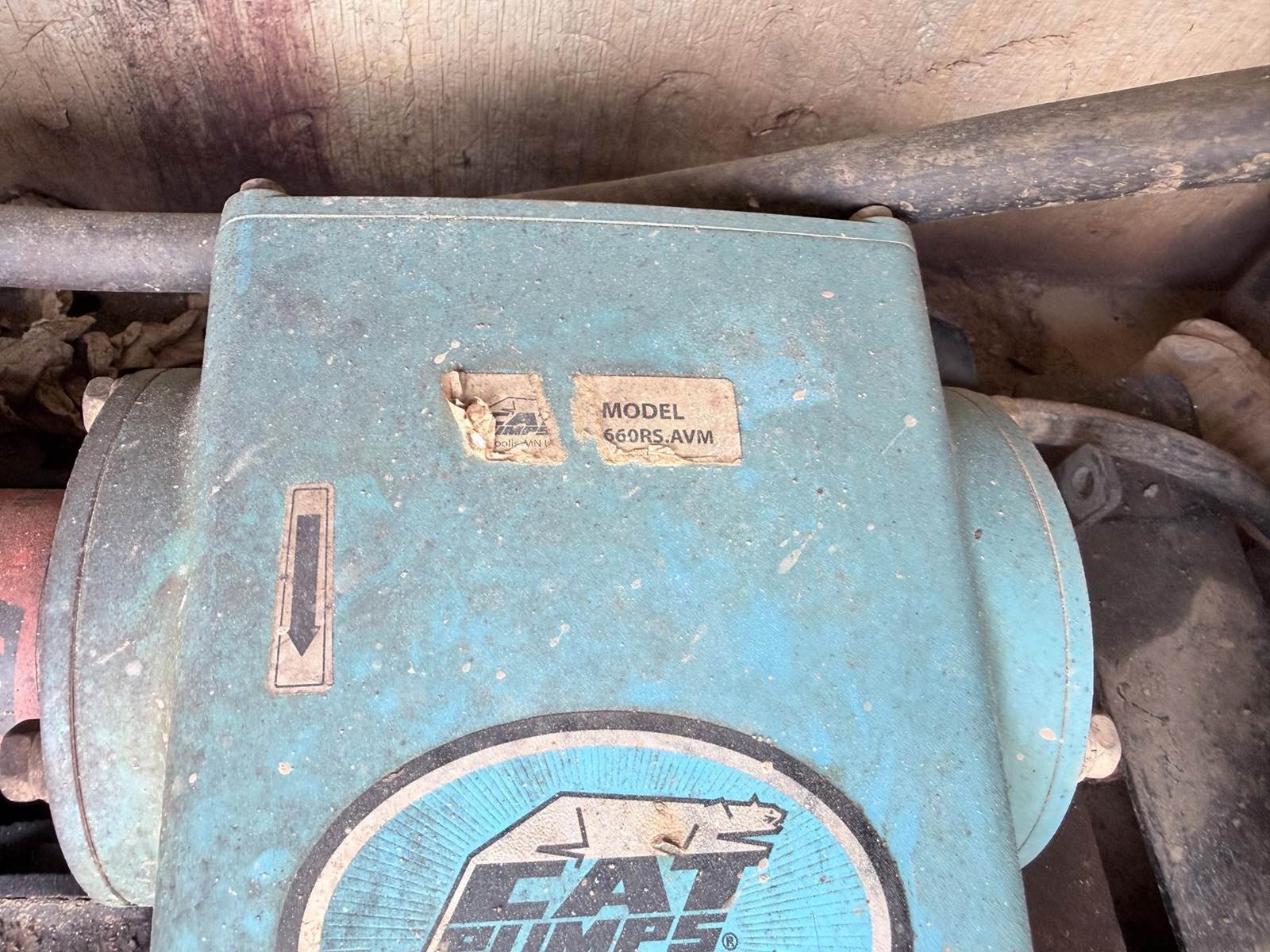

• Triplex water pump - 8 GPM @ 2500 PSI
• Hydraulic water pump drive

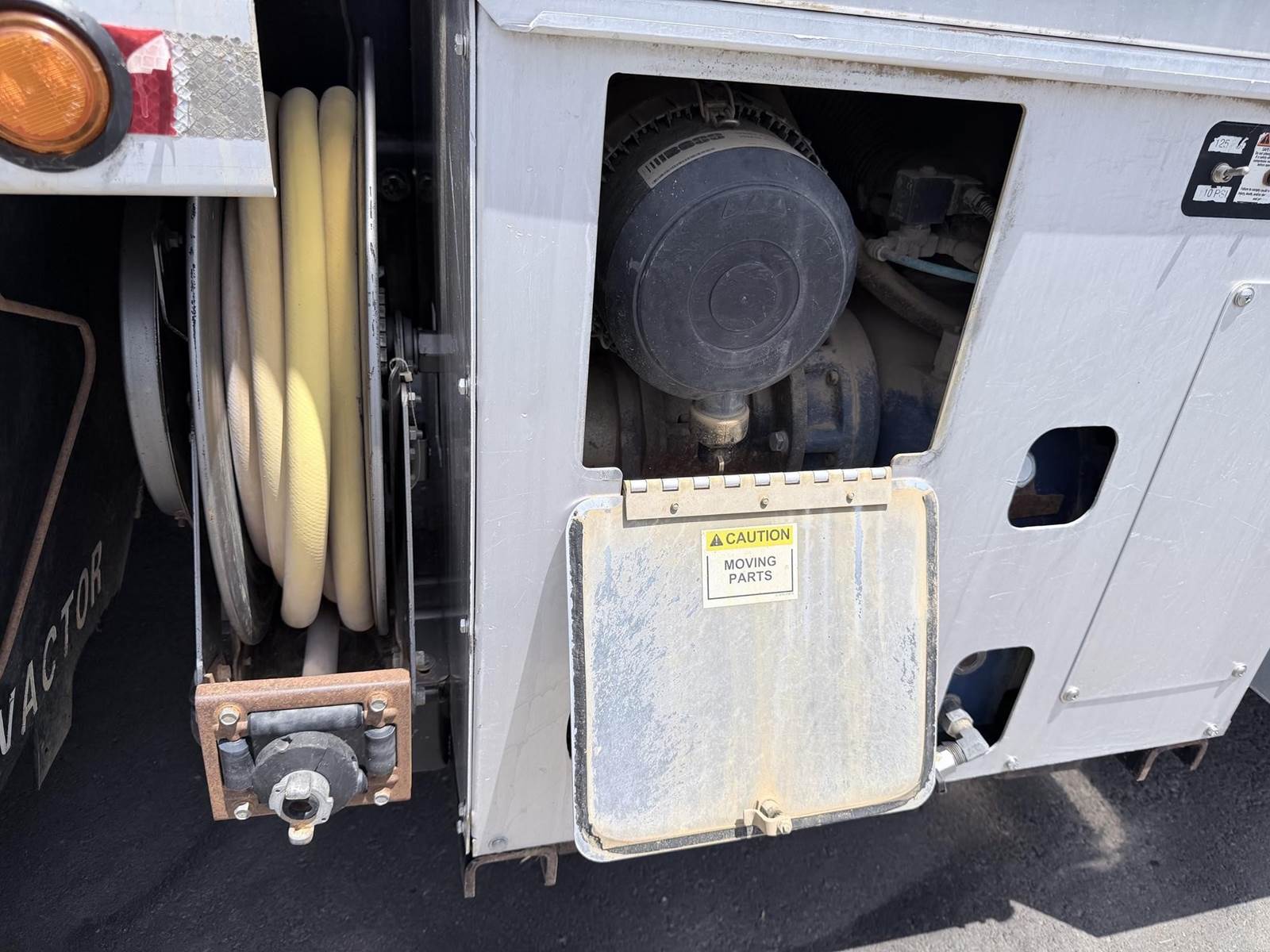

• Hose reel equipped with 1/2” x 50 ft hose
• Excavating water lance with quick connect fittings
• Two Vactor HXXPOSE™ rotating nozzles
