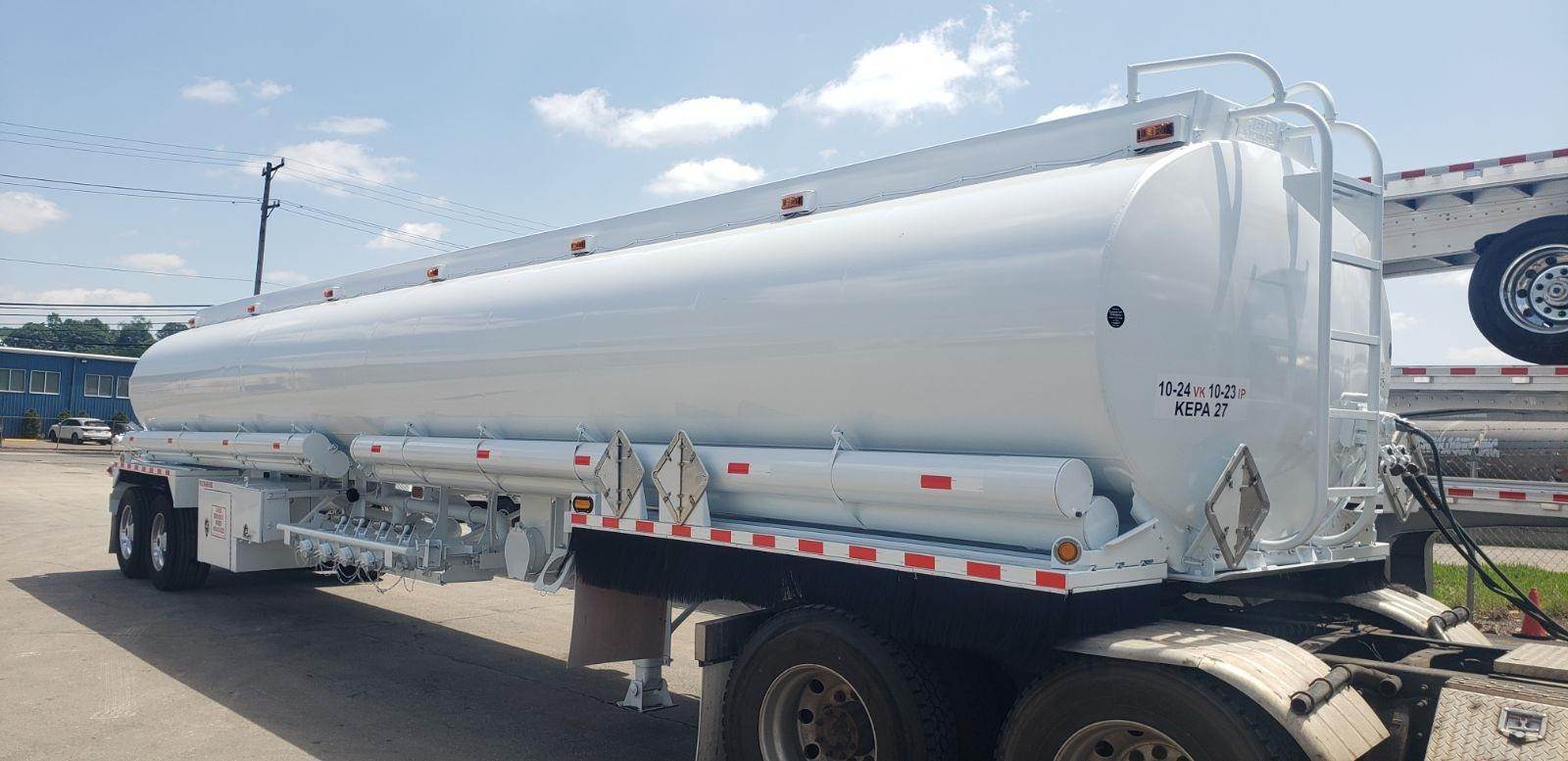

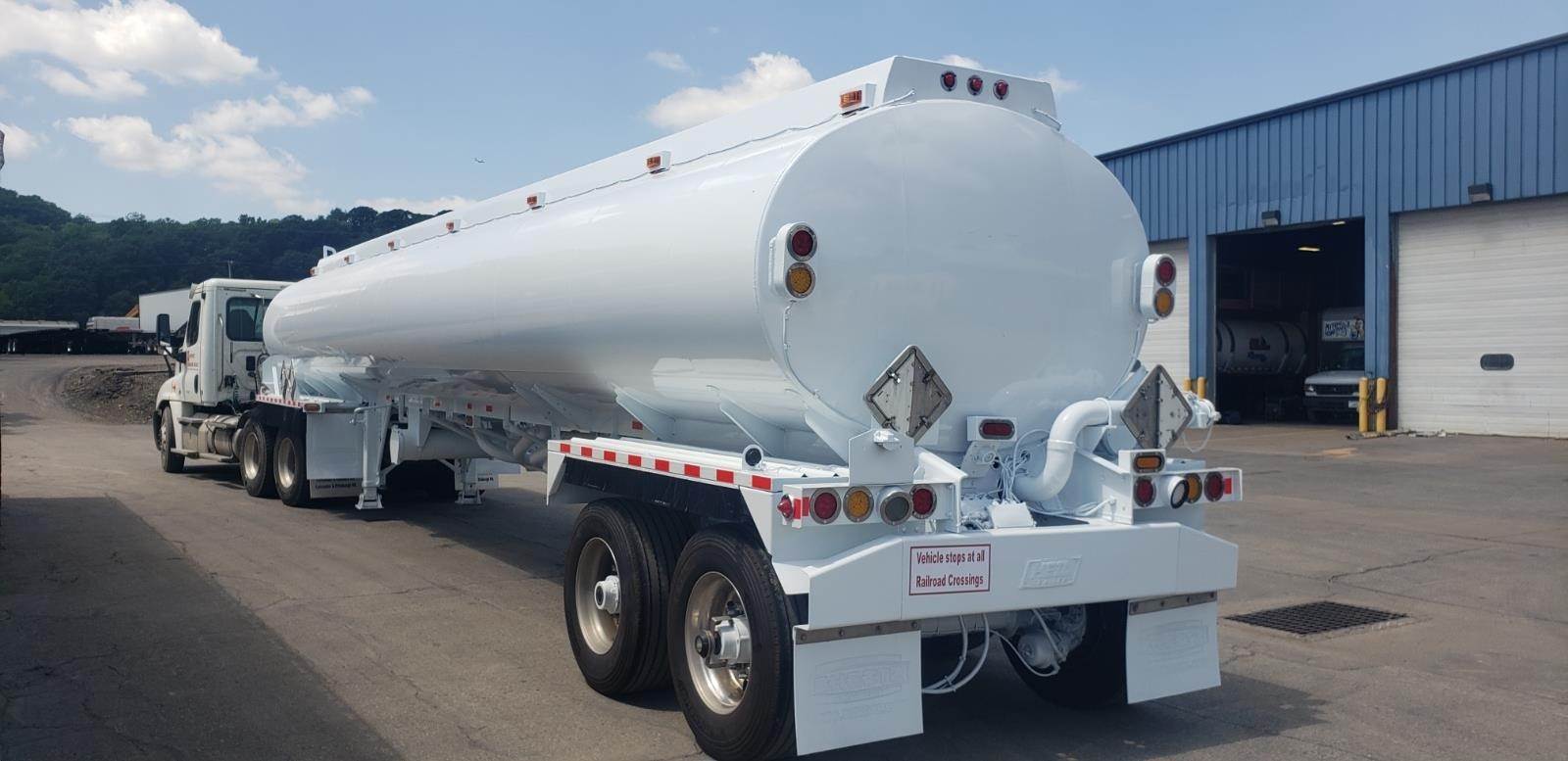

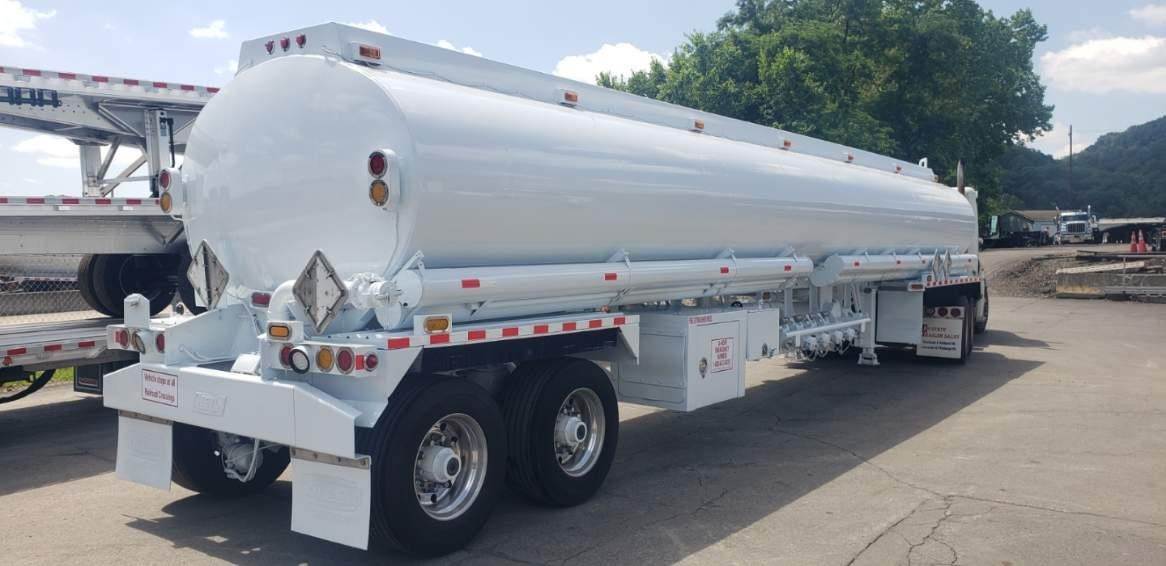

2019 Heil PETROLEUM TANK Fuel Tanker Trailer

V&K Tests 10-24
I&P Tests 10-23

Total Capacity 9200 Gallon
Compartment Sizes 3200/2300/1100//2600
Shape/Style Elliptical
MC Code MC-406
Bulkheads Single with Double between 3&4
Drain Troughs Under Compts. 1-3, Double Sump under 4
Barrel Condition Good
Product Hauled Gasoline

Piping Aluminum

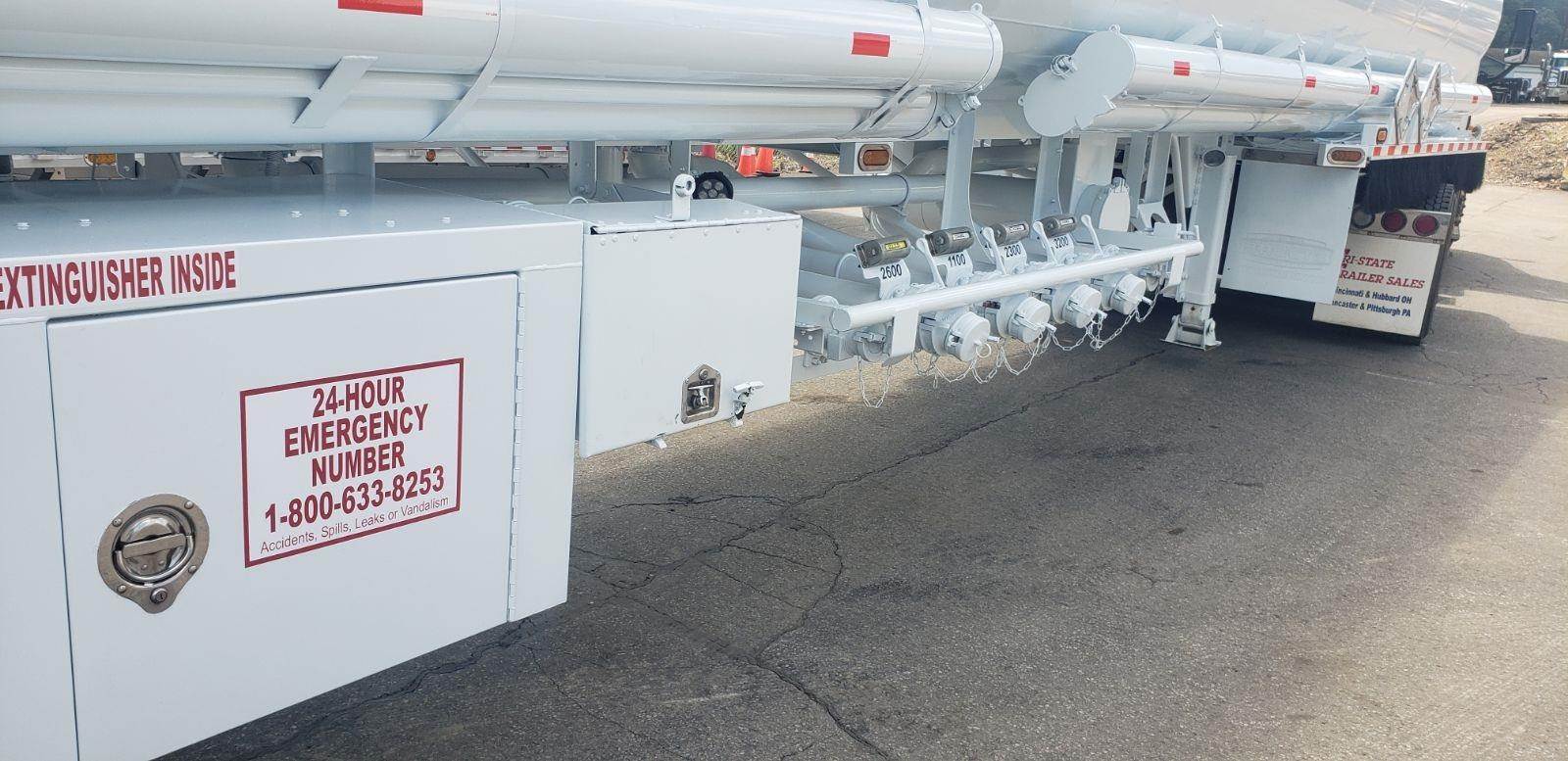

Discharge Valves Openable Adaptors
Sight Glass Bubble Sight Glass
Commodity Indicators Yes, 8-Sided
Vapor Recovery Three Outlets
Overfill Protection Civacon ROMLink, Top & Bottom Probes
Emergency Valves Air
EV Operators Inside EVO Cabinet

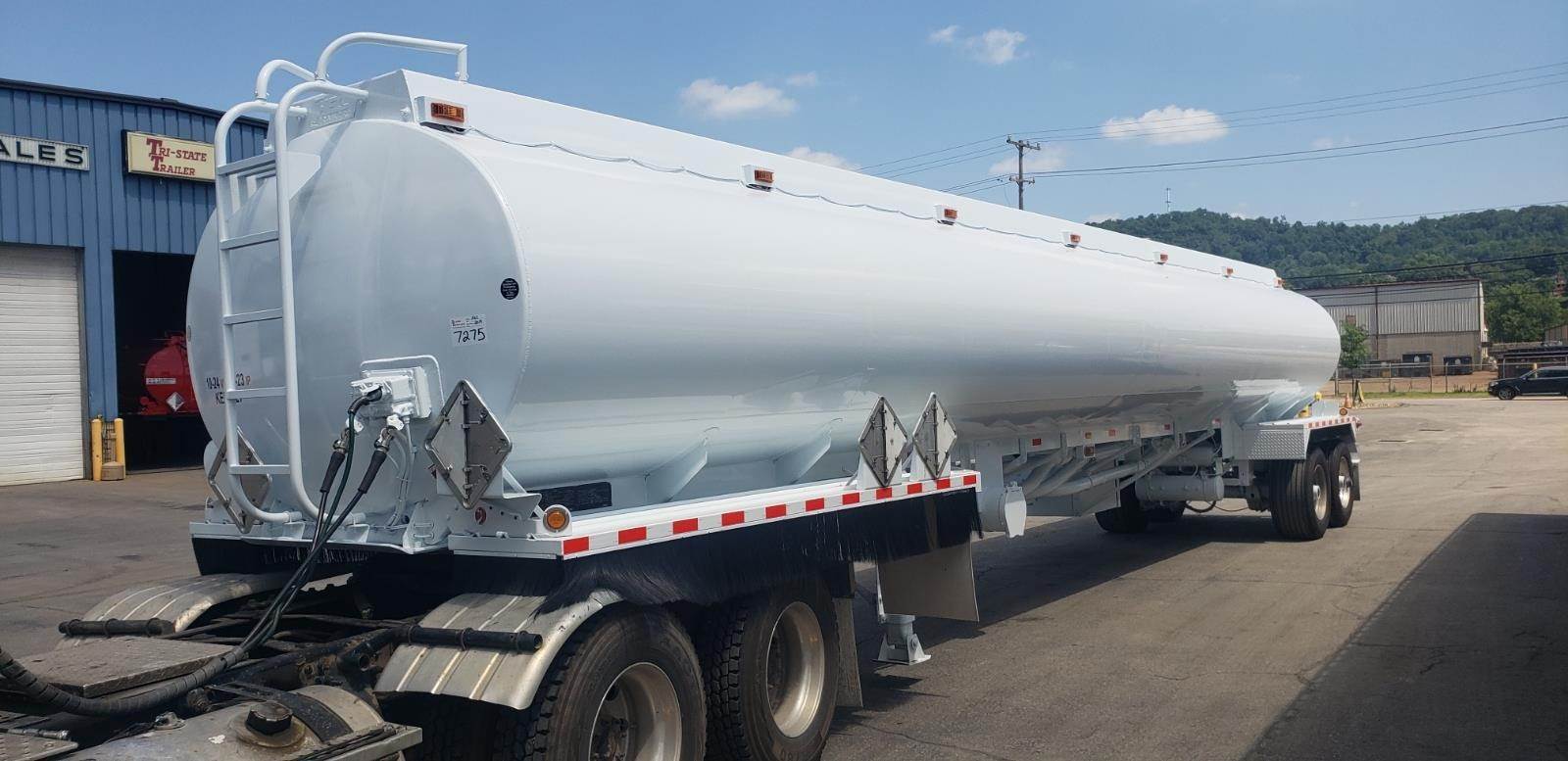

Ladder Front
Hose Tubes Four: Two C/S Front, Two C/S Rear
Stick Tube One
Fittings Cabinet 42"Wx30"Hx28"D with Shelves & Dividers
EVO Cabinet 25"Wx17"Hx9"D w/ Top Hinged Door
Fenders Flat Aluminum, Front & Rear
Cone Holder Yes
Placards (8) Flip Style: 2 per Side, 2 Front & 2 Rear
Side Lights Seven (7) per Side on Flashing Rail
Rear Light Pkg (4) Stop/Tail, (3) Clearance w/ S/T at 3:00 & 9:00
Backup Lights Yes
Spot Lights Two at Discharge Area
Strobe Light Three Total - Two on C/S, One at Rear

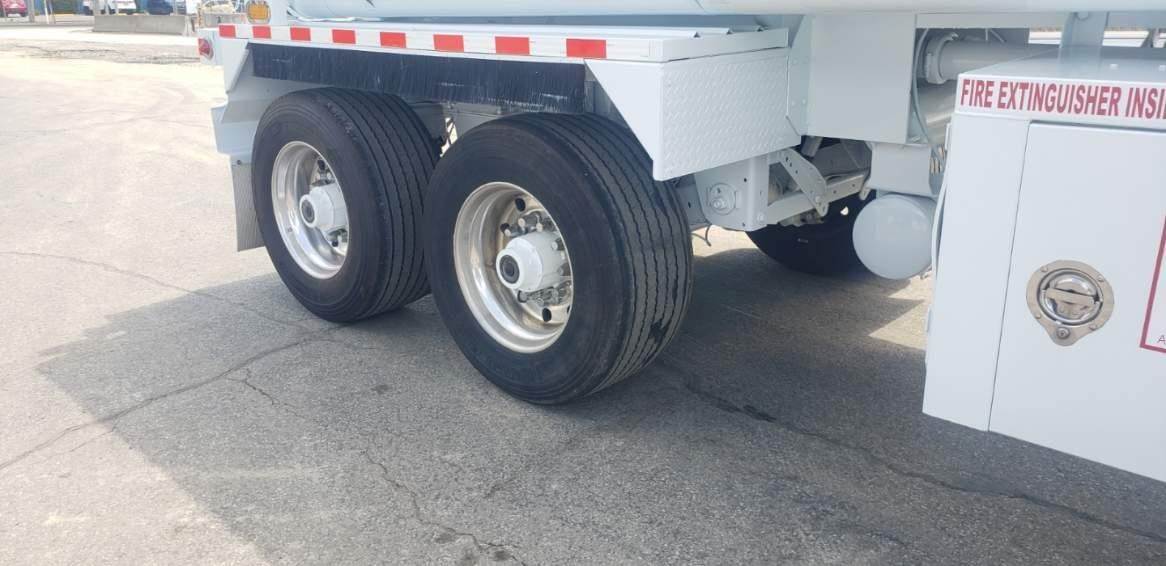

# of Axles 2
Suspension Type Air Ride
Suspension Brand Hendrickson Intraax AANT-23K
Suspension Setting 49" Tandem
Lift Axle None
Tire Size 445/50R22.5
Tire % 2-70%, 1-40%, 1-30%
Wheels Aluminum
Brake % Disc Brakes

King Pin Setting 30"
5th Wheel Condition Good
Landing Gear Jost, Two-Speed, Aluminum Housing
Suspension Frame Aluminum
Paint Entire Trailer Painted White
Paint Condition New

Internal Vapor Line
Internal Drains
Spray Guard Side Skirts
LED Light in 42" Cabinet
ISO 7-Way Auxillary Receptacle
12" Diameter x 4' Long Spill Kit Tube Behind Landing Gear. Door Each Side.
77.5" Track Axles
Bendix ABS w/ Roll Stability
