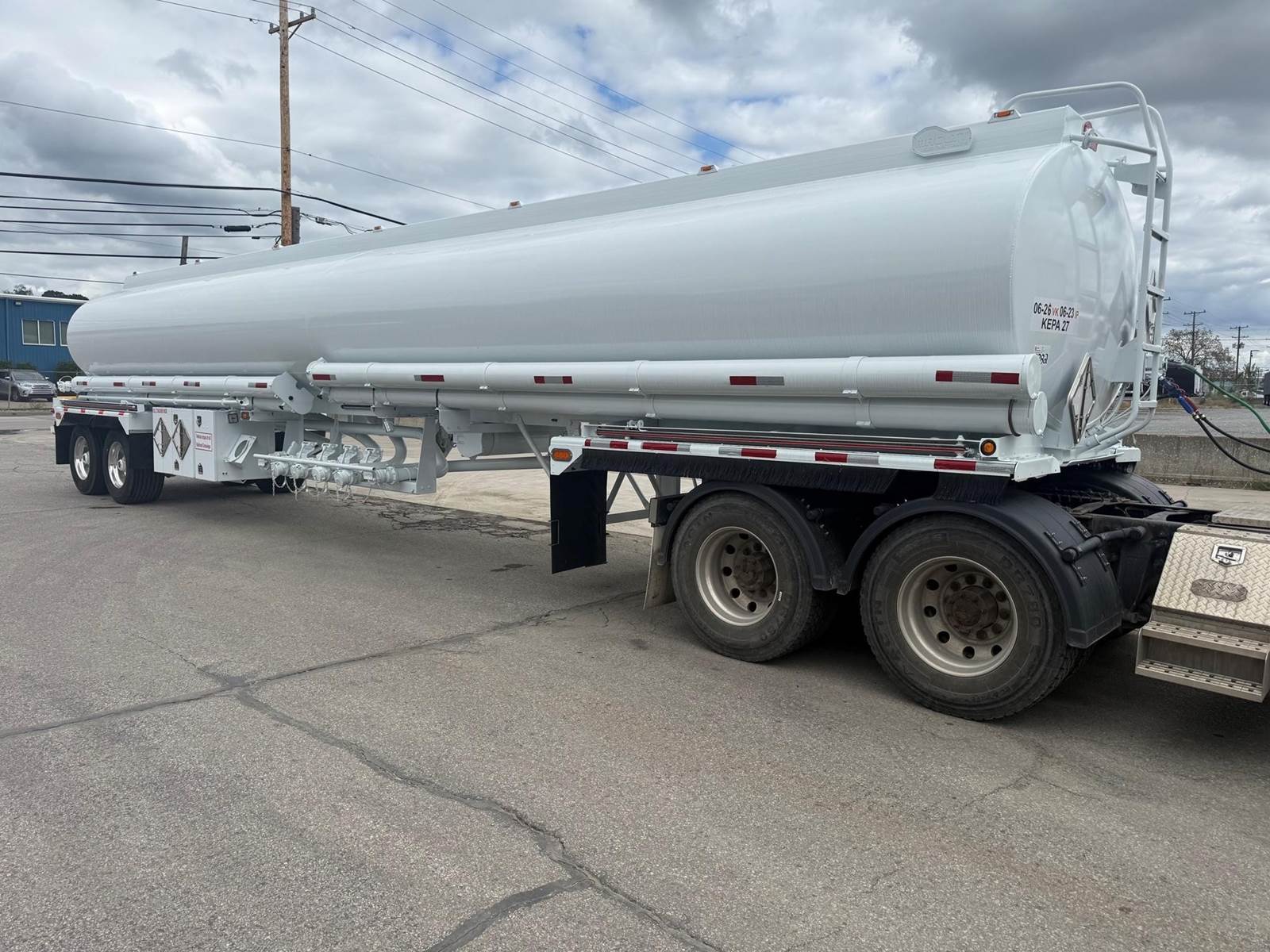

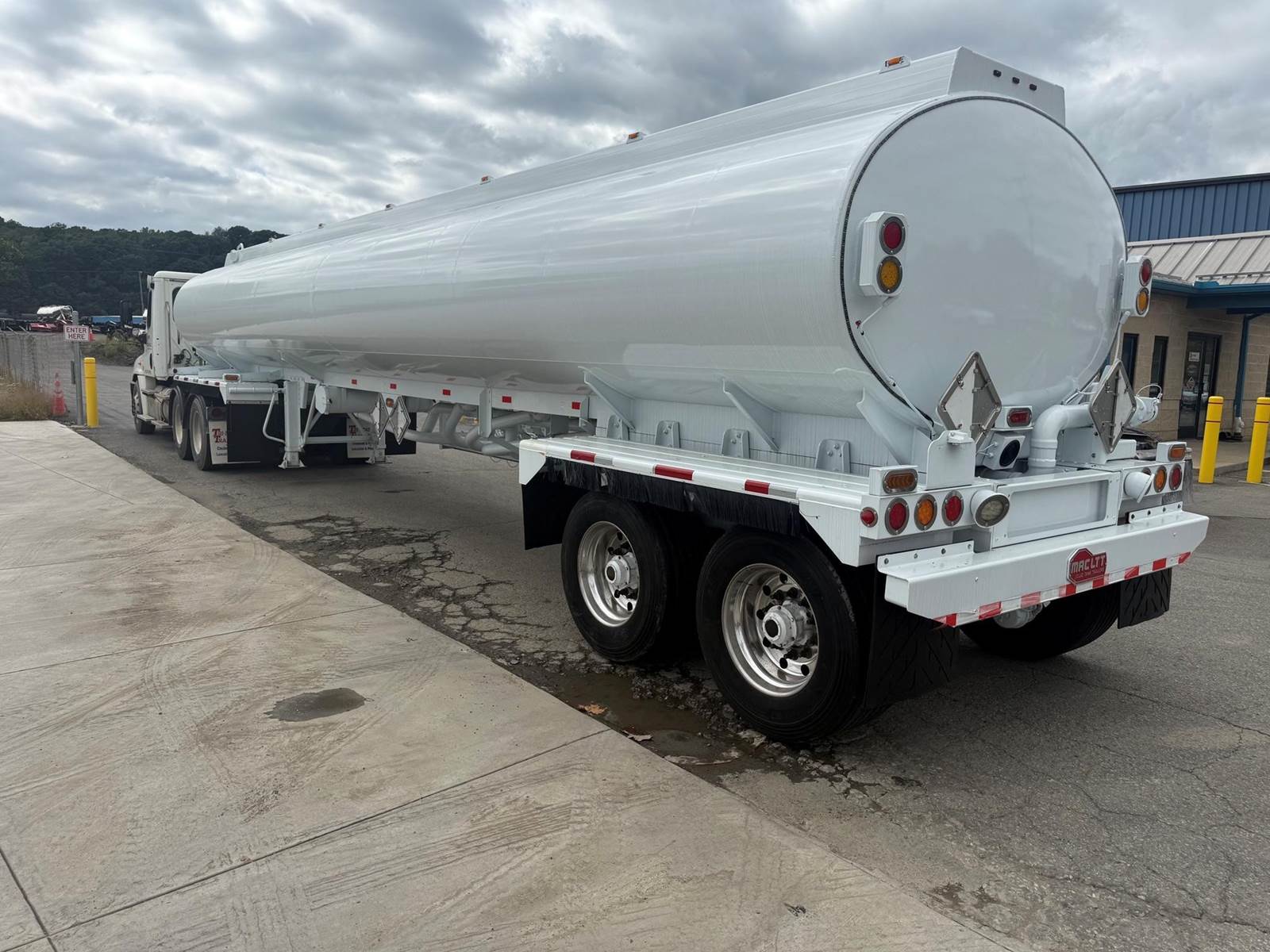

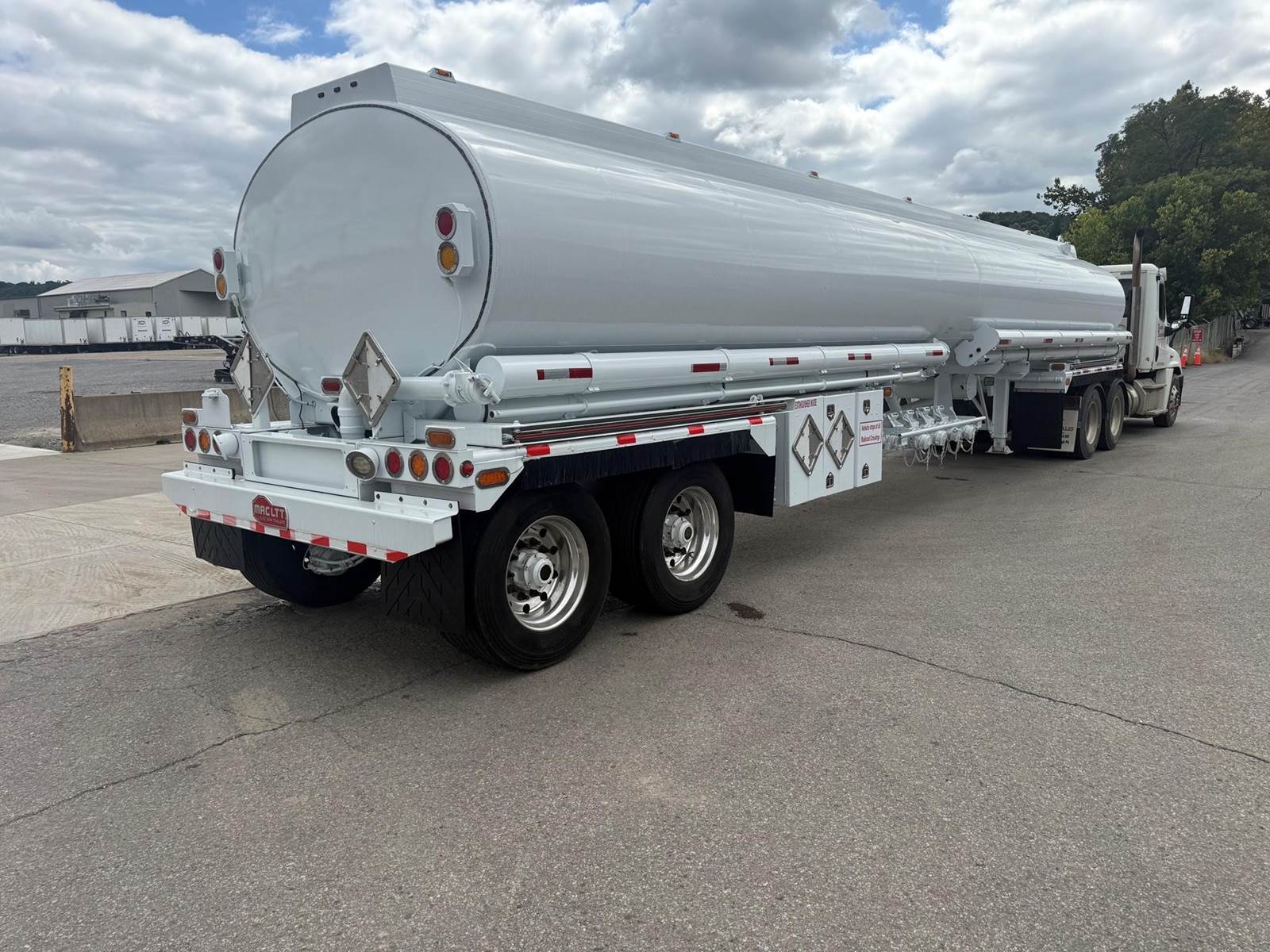

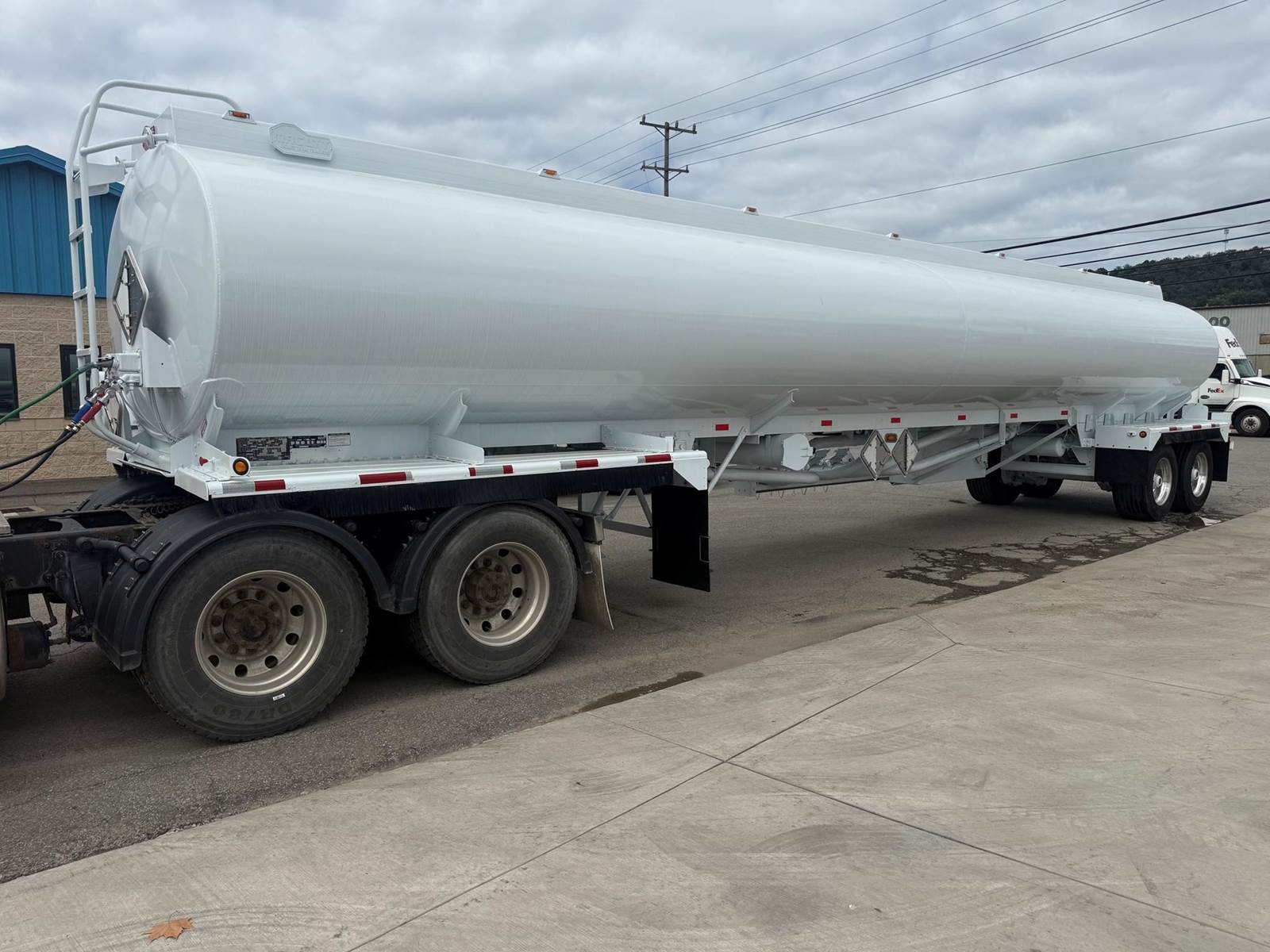

2020 Mac LTT PETRO TANK Fuel Tanker Trailer

V&K Tests 6/26
I&P Tests 6/23
Inspection C-FHWA 6/26

Total Capacity 9200 Gallon
Compartment Sizes 3200/2300/1100//2600
Shape/Style Elliptical
MC Code MC-406
Bulkheads Single with Double between 3&4
Drain Troughs Under All Four Compartments
Barrel Condition Good
Product Hauled Gasoline

Piping Aluminum

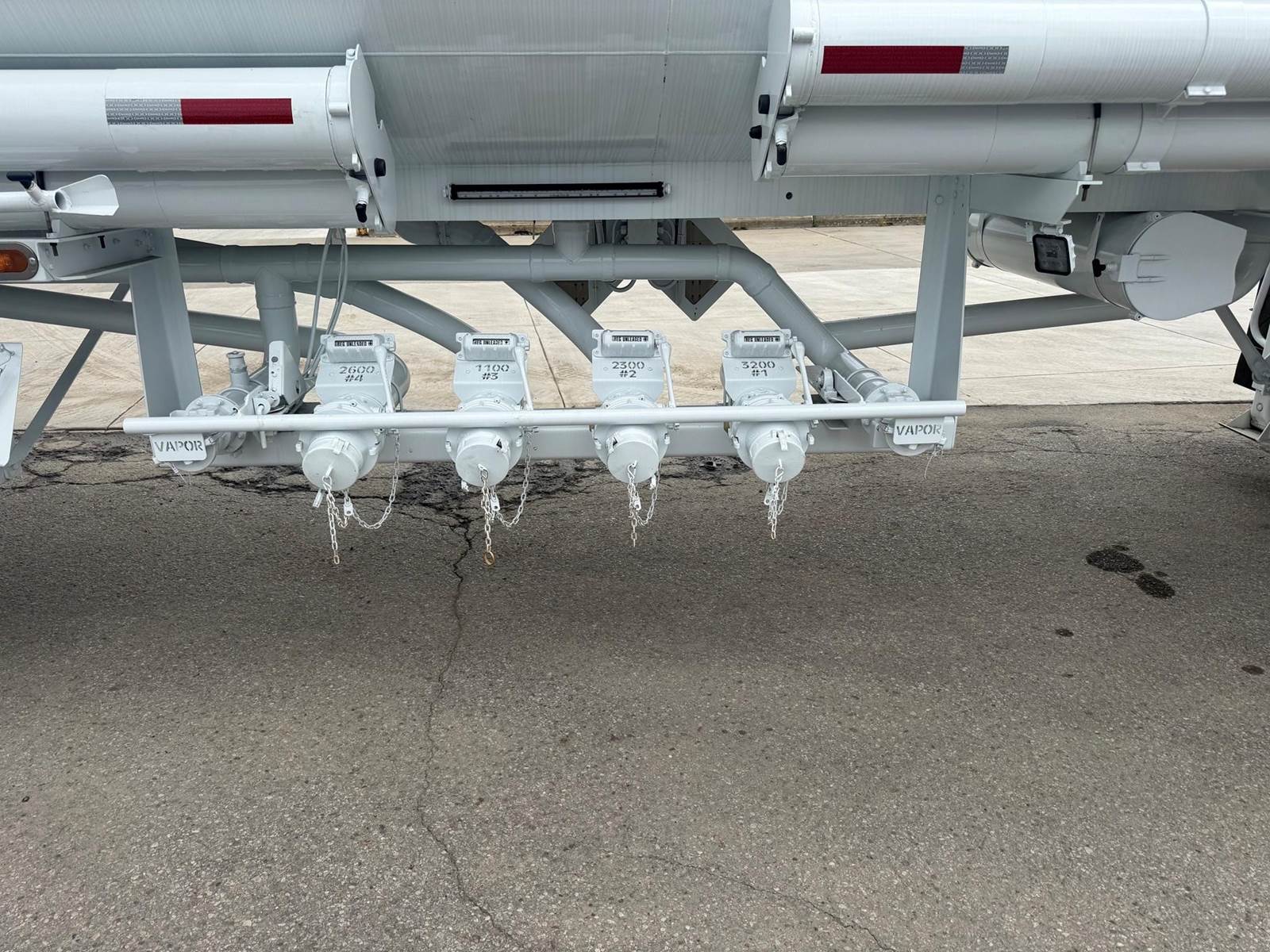

Discharge Valves Openable Adaptors
Sight Glass Bubble Sight Glass
Commodity Indicators Yes, 8-Sided
Vapor Recovery Three Outlets

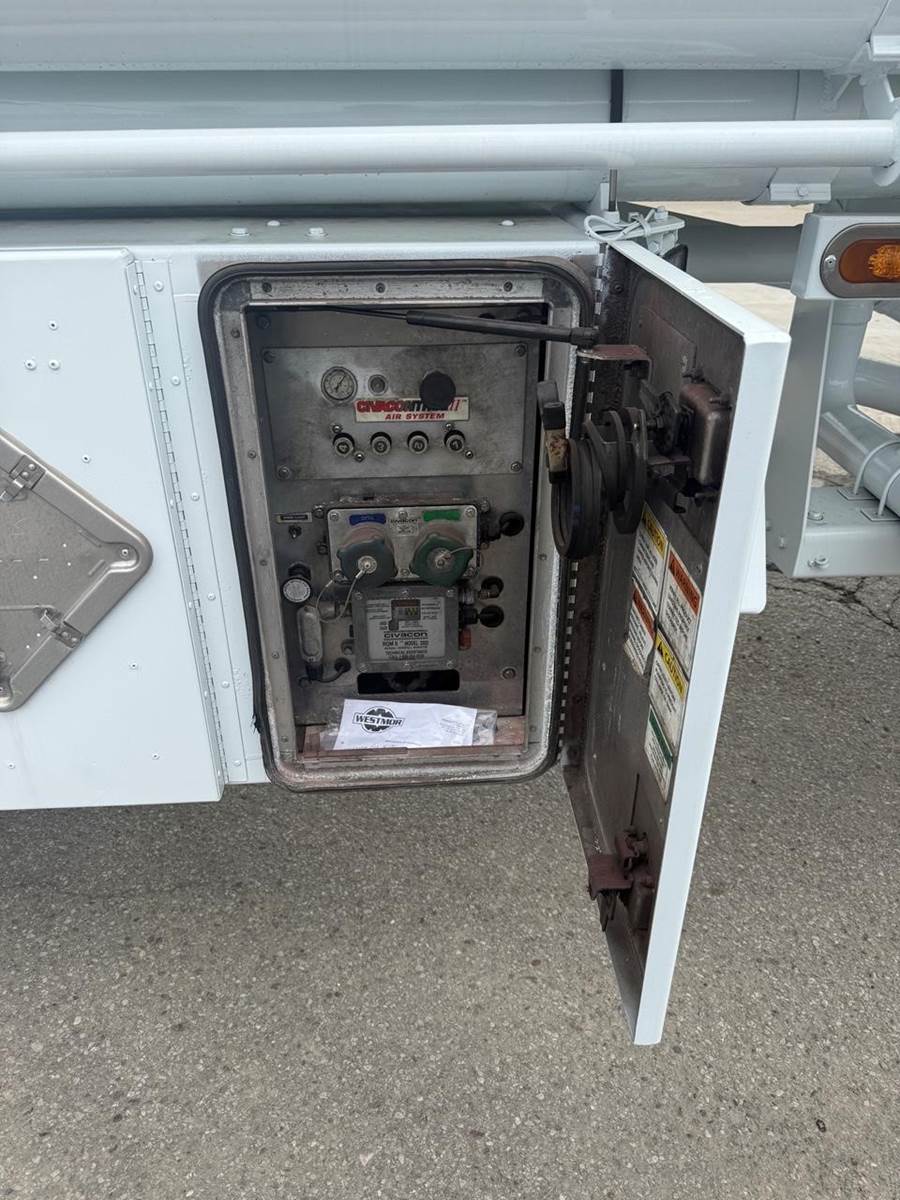

Overfill Protection Civacon ROM II, Top & Bottom Probes
Emergency Valves Air
EV Operators Inside EVO Cabinet

Ladder Front
Hose Tubes Four: Two C/S Front, Two C/S Rear
Stick Tube One

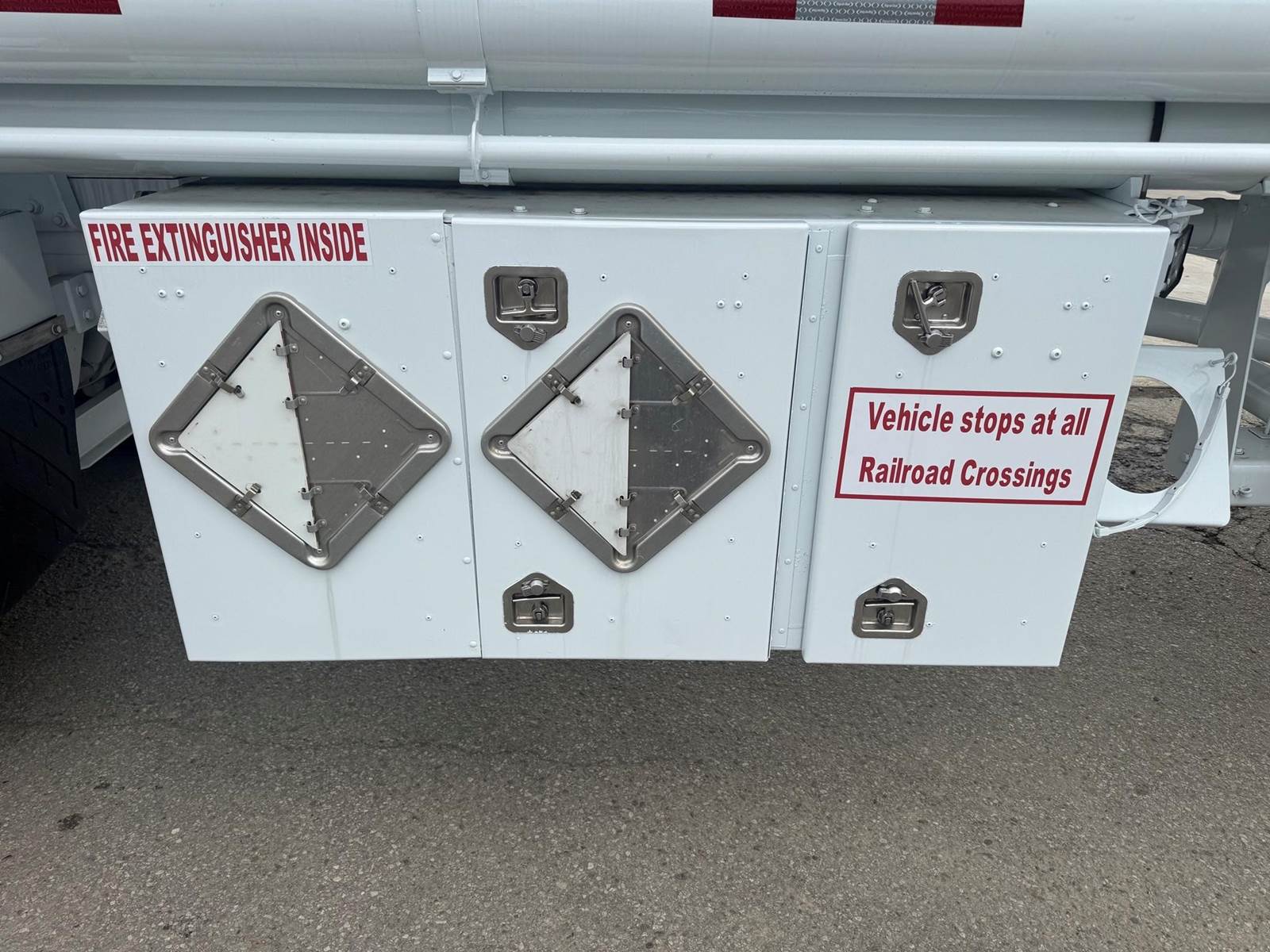

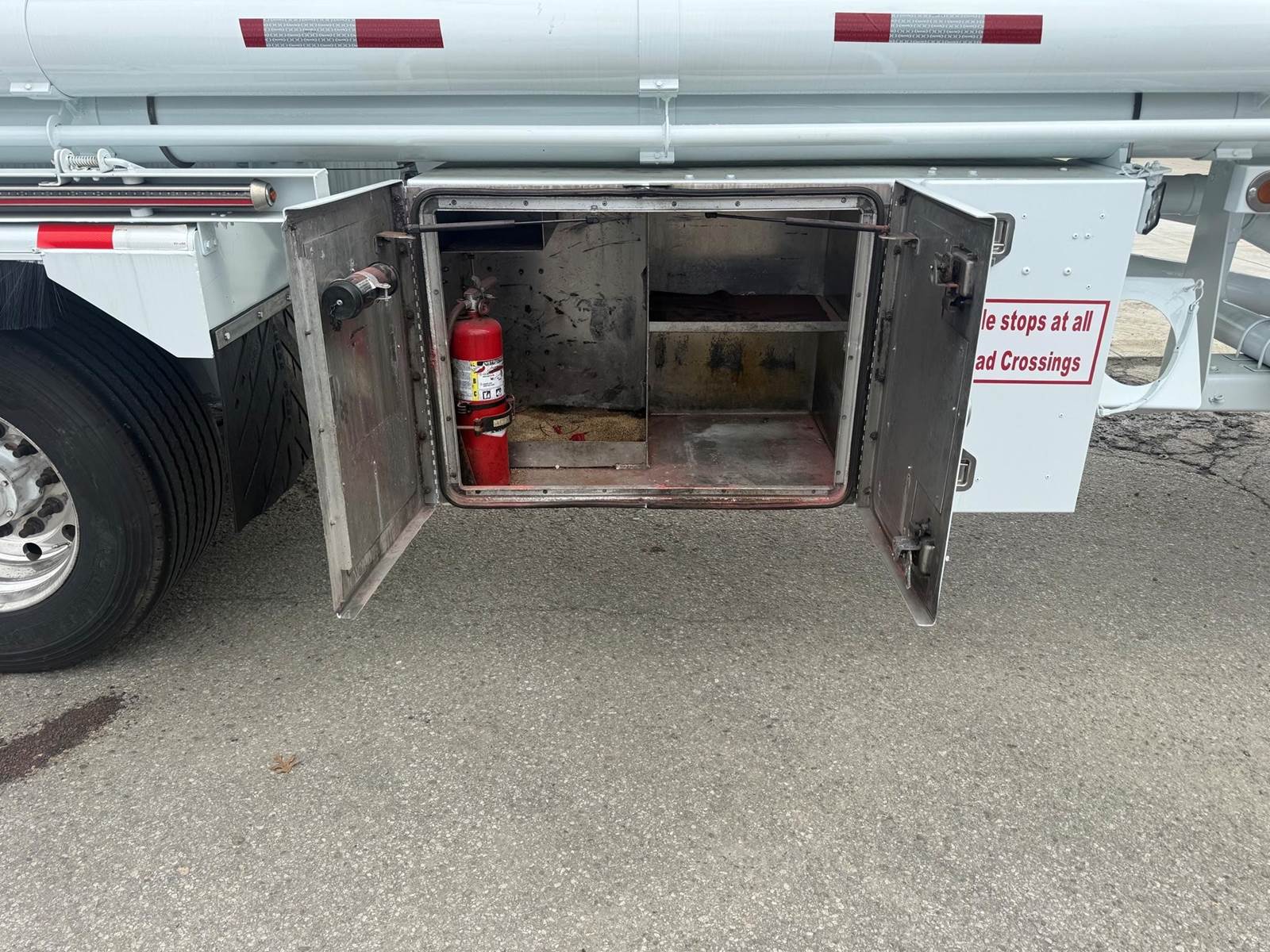

Fittings Cabinet 60"Wx30"Hx26"D w 3 Doors
EVO Cabinet Part of 60" Box
Fenders Flat Aluminum, Front & Rear
Cone Holder Yes
Placards (8) Flip Style: 2 per Side, 2 Front & 2 Rear
Side Lights Seven (7) per Side on Flashing Rail

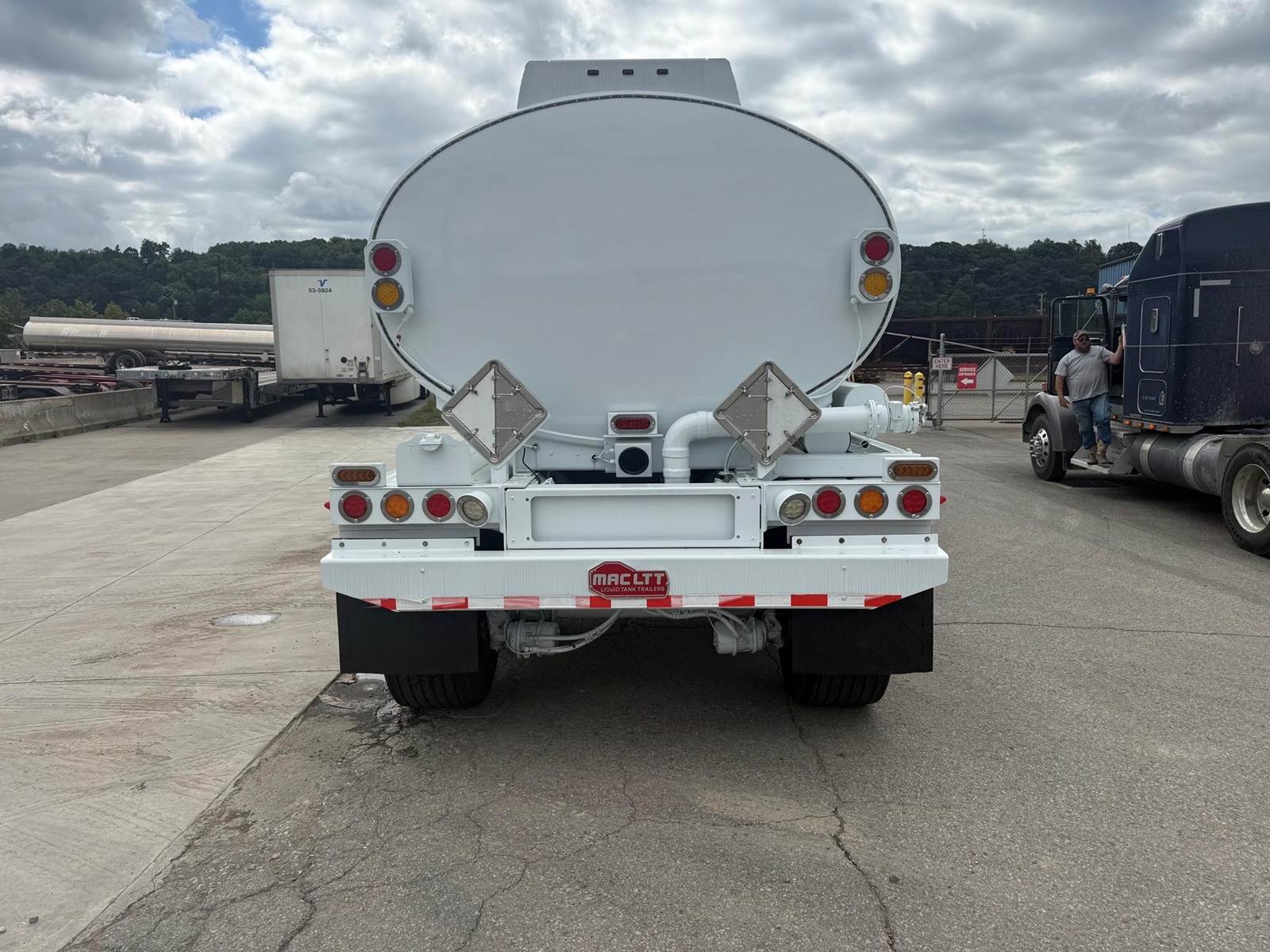

Rear Light Pkg (4) Stop/Tail, (3) Clearance w/ S/T at 3:00 & 9:00
Backup Lights Yes
Spot Lights Two at Discharge Area
Strobe Light Three Total - One on C/S, Two at Rear

# of Axles 2
Suspension Type Air Ride
Suspension Brand Hendrickson Intraax AANT-23K
Suspension Setting 49" Tandem
Lift Axle None
Tire Size 445/50R22.5
Tire % 3-75%, 1-40%
Wheels Aluminum
Brake % Disc Brakes

King Pin Setting 30"
5th Wheel Condition Good
Landing Gear Jost, Two-Speed
Suspension Frame Aluminum
Paint Entire Trailer Painted White
Paint Condition New

Comments
Internal Vapor Line
Internal Drains
Spray Guard Side Skirts
Swing-Out Light Bar on C/S, Front & Rear
ISO 7-Way Auxillary Receptacle
12" Diameter x 4' Long Spill Kit Tube Behind Landing Gear. Door Each Side.
77.5" Track Axles
Bendix ABS w/ Roll Stability
