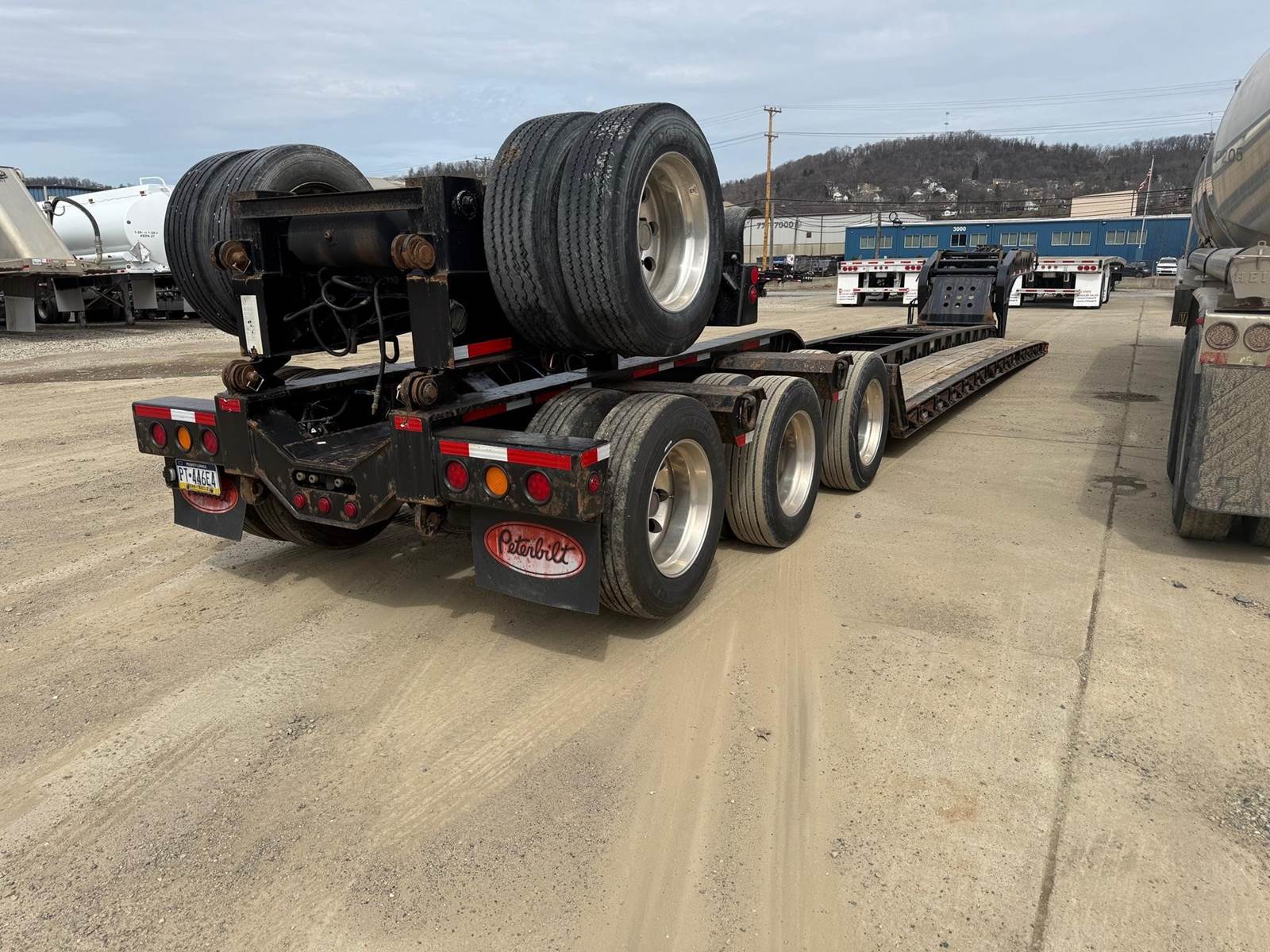

2022 Fontaine MAGNITUDE 55H-DSR Lowboy Trailer

*FLIP AXLE SOLD SEPERATELY. UNIT 7651*

Length 52' 5"
Width 102"
Top Deck Length 11' 11" Gooseneck

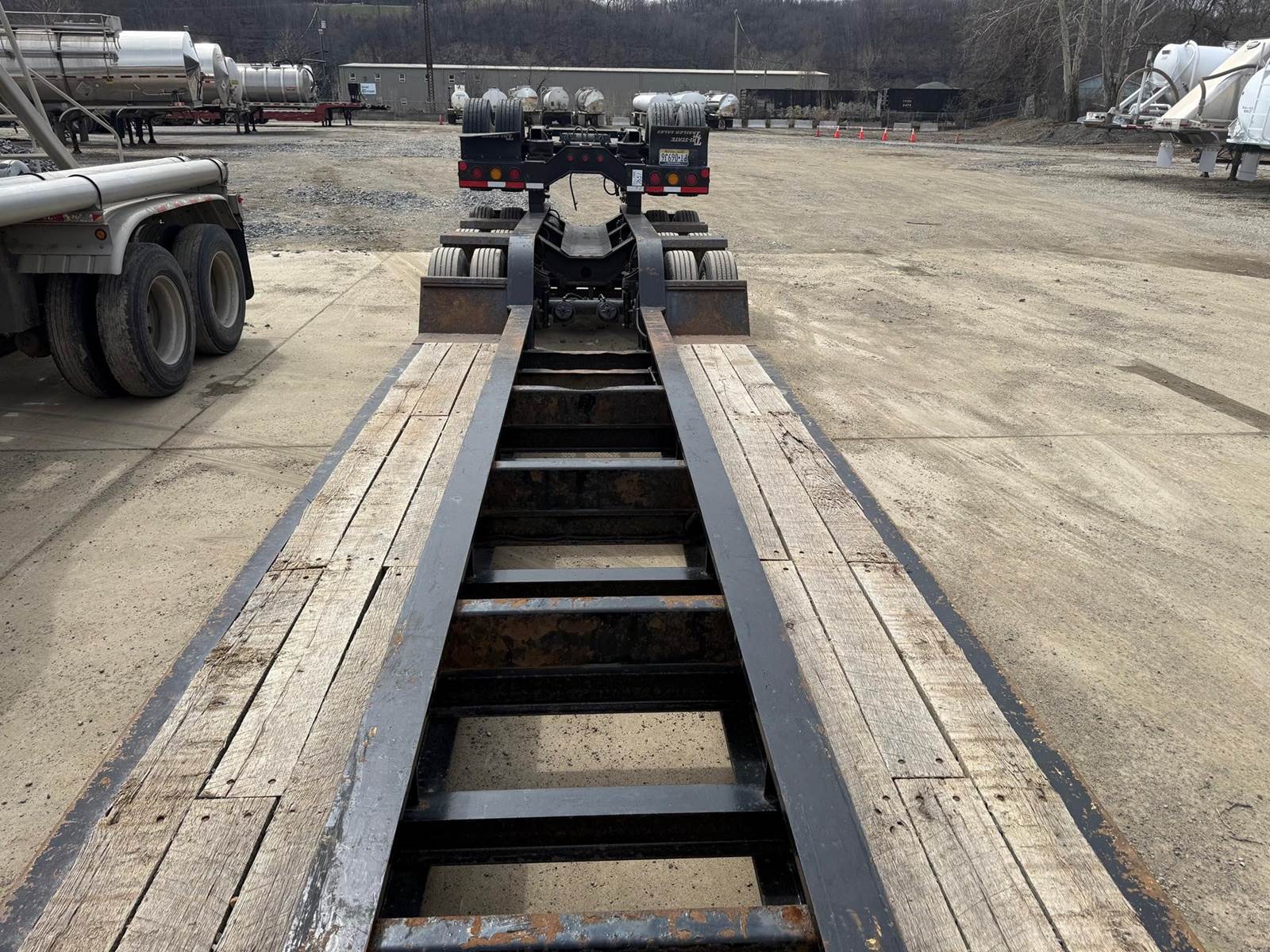

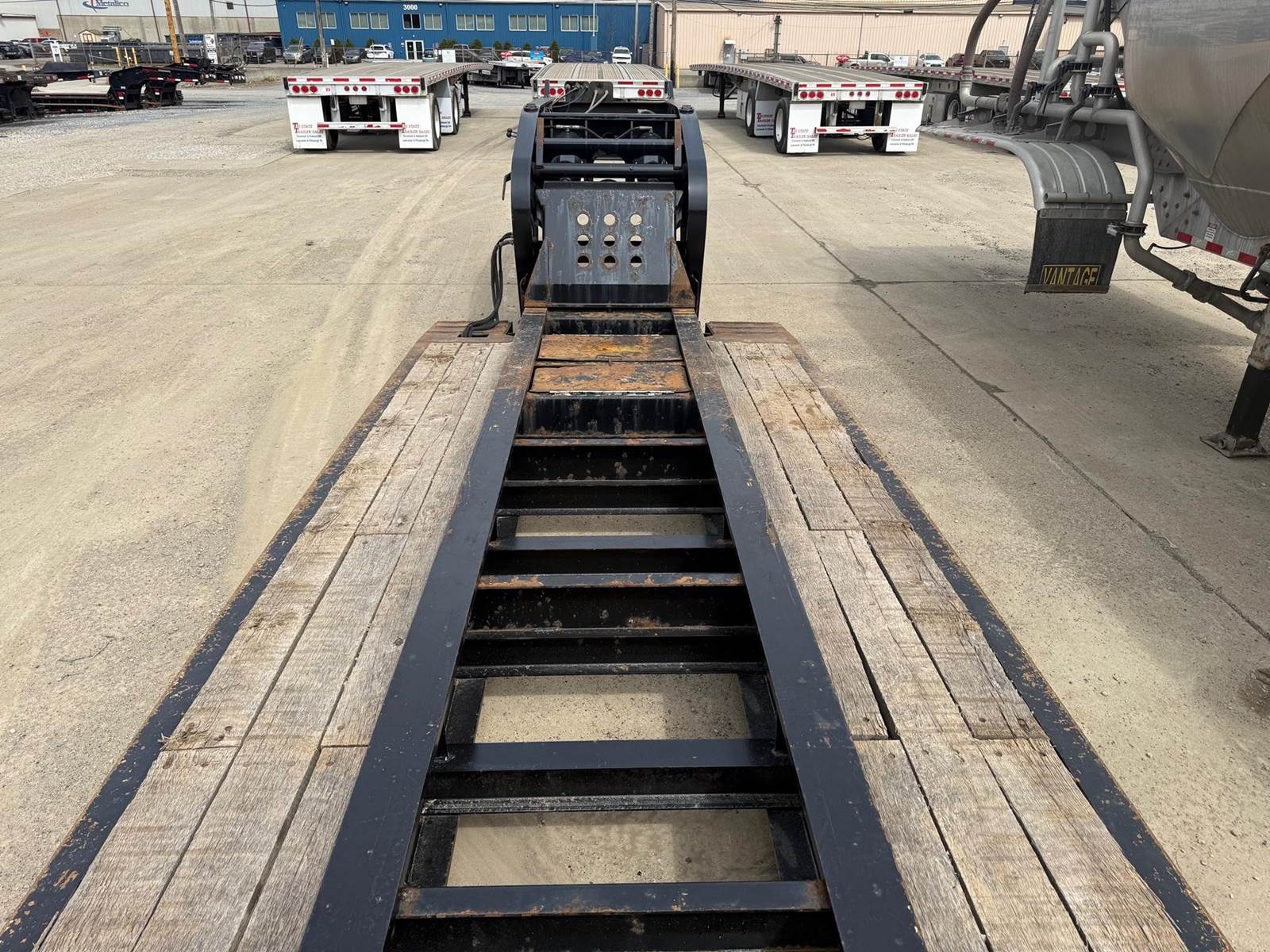

Main Deck Length 26'
Main Deck Height 14.5" at Side Rails; 22" at Main Beams
Weight 22,676 Lbs. +/-3%
Inspection C - PA 2/27
Unit Description Magnitude 55HDSR
Flat Body
Compatibility Designed to Accept Flip Neck Extension & Flip Axle
Floor 1.5" Nominal Wood - Side Rails Only
Side Rail Drop Side Rail - Steel
Outriggers 13 Pair, Removable Swing Type
D-Rings 14 Pair
Toolbox Two Covered Trays Between Mainbeams
Rear Lights (3) Stop/Tail, (3) Clearance
Strobe Lights Amber Strobes with Battary Power
Flag Holders One Pair at Front of Deck, One Pair on Bumper
Modular Connection Fixed

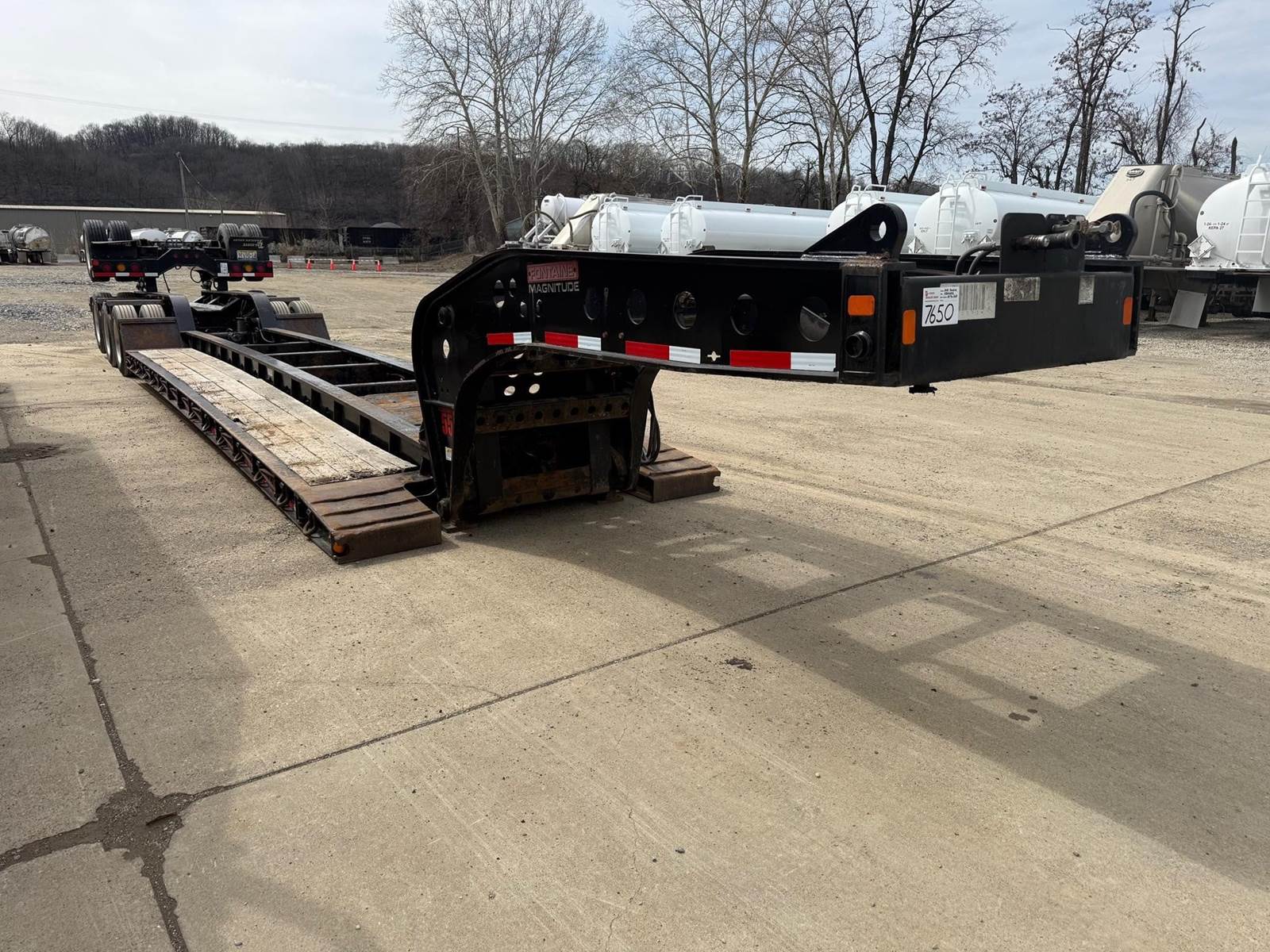

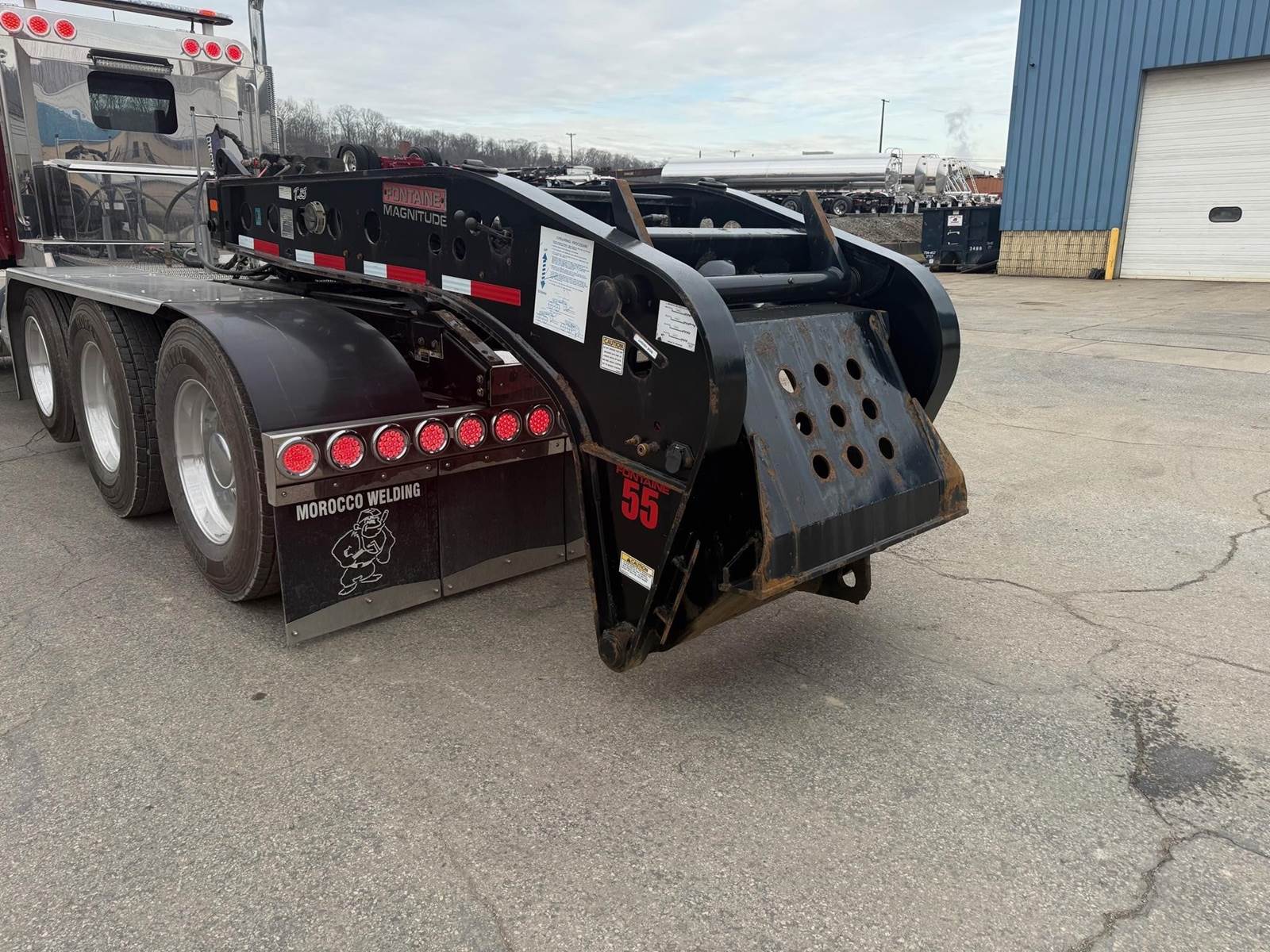

Gooseneck

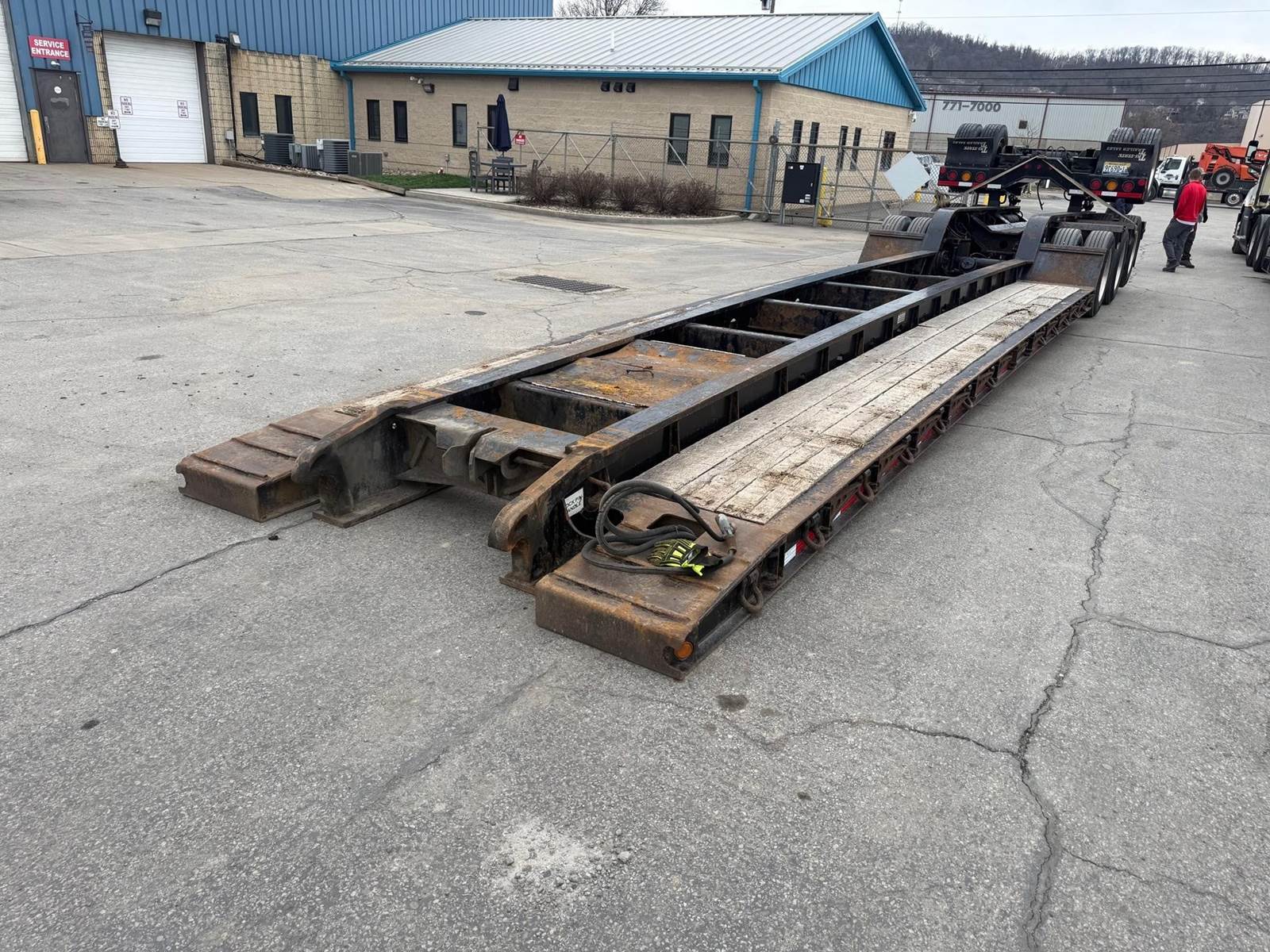

Gooseneck Hydraulic Detachable, Non-Ground Bearing
Loaded 5th Wheel 50" with Five Ride Height Positions

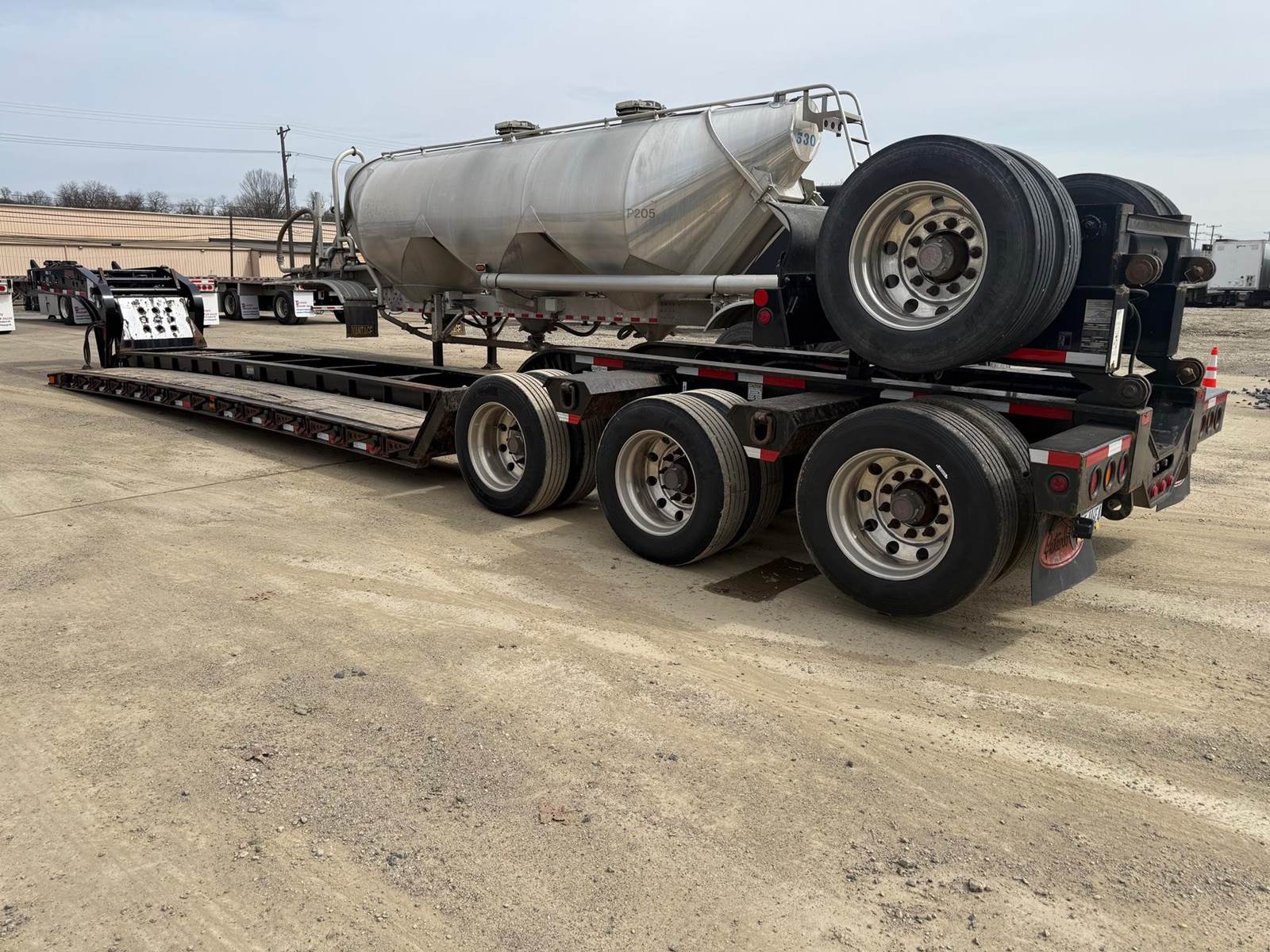

Suspension
# of Axles 3
Suspension Type Air Ride
Suspension Brand Hendrickson
Suspension Setting 54.5" Axle Spacing
Lift Axle Air Lift Rear
Manual Dumpvalve Yes
Raise & Lower Valve Mechanical Ride Height Control Valve
Tire Size 275/70R22.5
Tire % 75%
Wheels Aluminum/Steel
Brake % 20%
Liquid Filled Gauge Yes

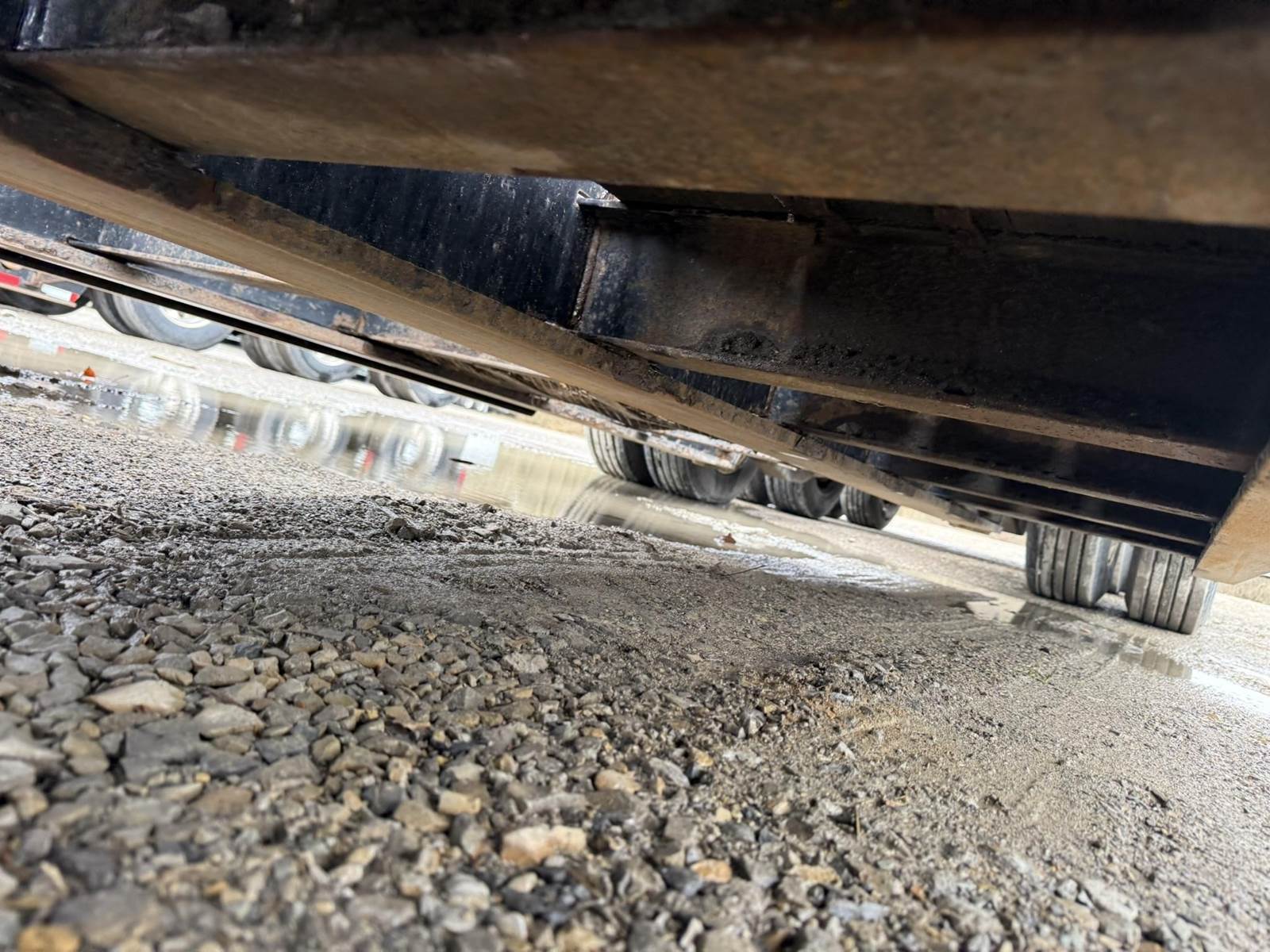

UnderFrame
Paint Black
Paint Condition Good
Weight Ratings 55 Ton in 12' Length
