Truck Chassis Information:

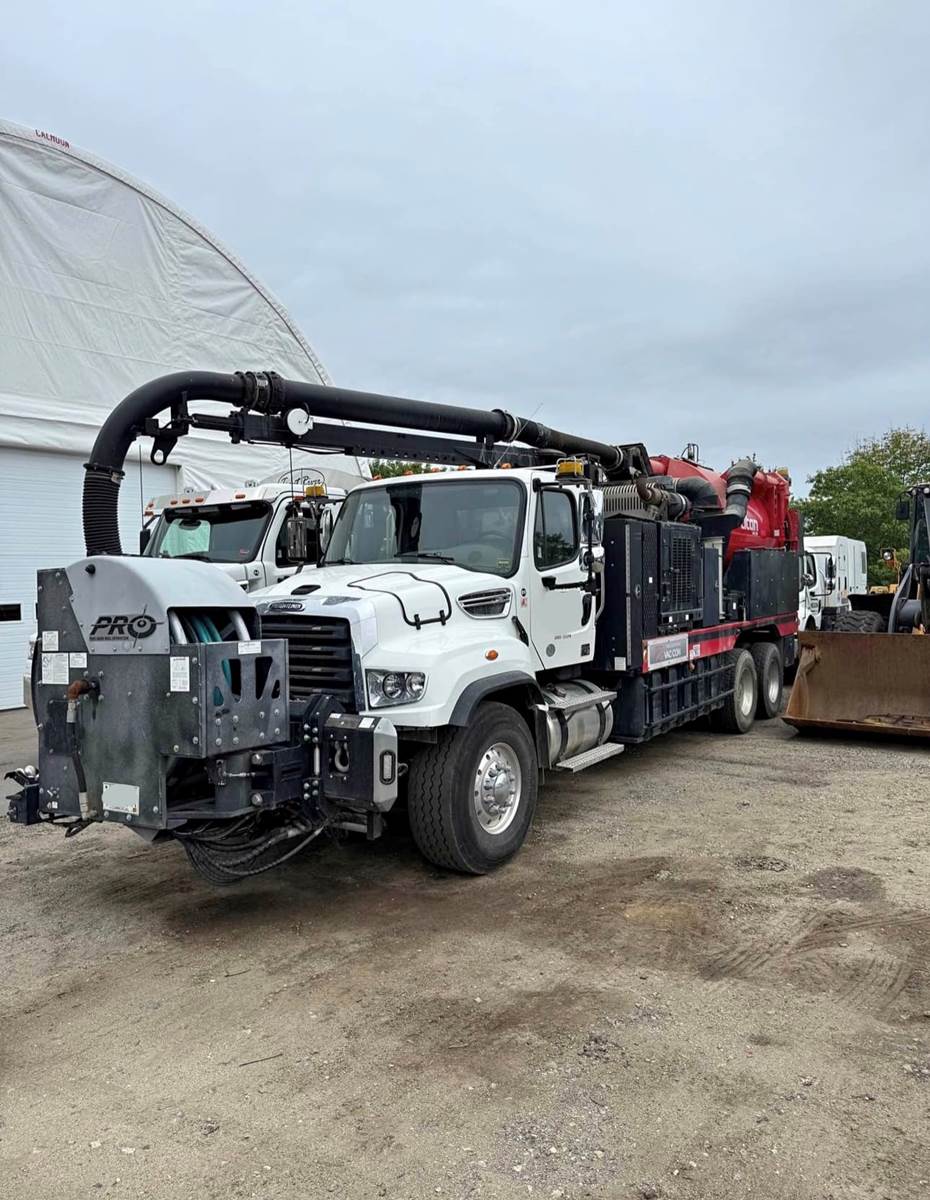

Pool Truck Chassis Model Freightliner 114SD 6x4 66000GVWR ISL370 3000RDS
FR 114SD/WS 47X: 3yrs./200,000mi. Cummins-ISL370 3yr./150,000mi. (PP1 W/Aftertreatment),
1 Allison 3000 5yrs./UNLmi. (Requires TrandSynd Synthetic Transmission Fluid or TES-295)
Standard Equipment Includes:
Hinge type / Body Prop Permanently mount debris body prop (hinge-type)
Vacuum System (as specified by Model Number)
Vacuum Drive: hydrostatic driven via transfer case
1/4" Corten steel debris tank
Hydraulic rear door locks
6" knife valve with 10' lay flat hose
Debris tank dumping: minimum 50 degree, hydraulic cylinder lift- power up/power down
Cross-linked polyethylene water tanks
Automatic vacuum breaker and overfill protection
8" vacuum intake hose
6 Way hydraulic boom with 230 degree rotation and joystick control
60gpm/2000psi water pump system
Water pump drive: Standard Aux Engine GM gasoline powered
400' high pressure jet rodder hose
Heavy-duty dual roller level wind guide (aluminum)
Flexible hose guide (Tiger Tail)
30" leader hose
20gpm/750psi wash-down system w/hand-gun and 25' of hose
1 each sanitary and penetrator nozzles
25' aluminum suction pipe(1-3', 2-5', 1-6' and 1-6.5' catch basin nozzle) w/quick clamps
ICC lighting LED
Zinc, PPG Paint - line on process. "Aircraft-grade" primer
12 month standard warranty for module
5# Fire Extinguisher
Set Triangles
5 year centrifugal compressor (fans) warranty
5 year debris tank warranty
10 year water tank warranty
Two boxes 36" Tall x 12" Wide x 30" Deep with integrated 1" and 3/4" nozzle storage
Two boxes 35" Tall x 24" wide x 14.5" deep (6cyl JD or Cat C4.4 will only be able to fit one 35" box.)
Behind Cab Boom Support Chassis frame mounted 711-55997A Boom Cradle Assembly with 711-55619 bumper mounted boom docking assembly
Plastic engraved decals - adhesive type (ilo standard, remove as selectable option)
Main Information
Model TAQD312HE/1300
Blower Boom Hose Reel AQD Fan Drive for Titan
10' Aluminum Telescoping Boom with Pendant Control Station

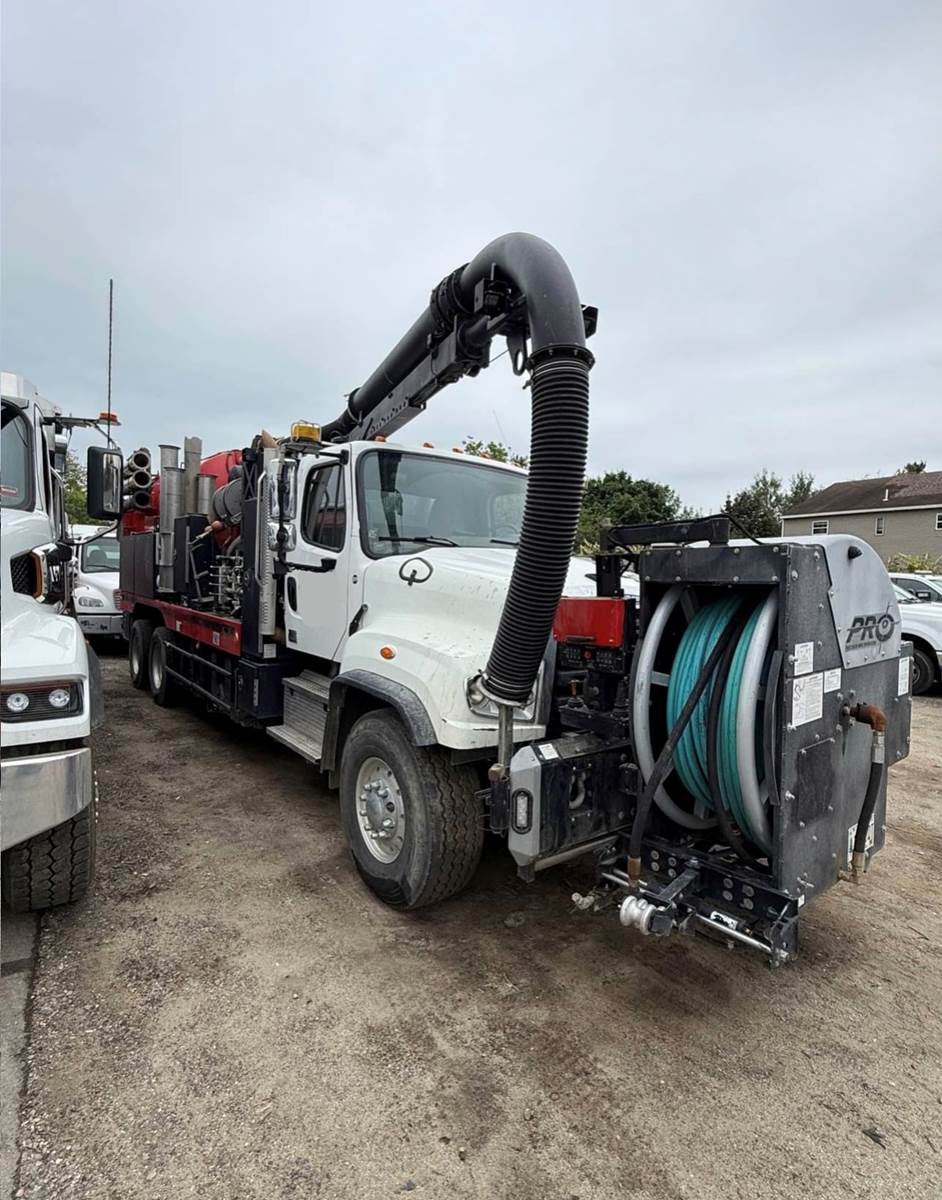

PRO Reel (Precision Reel Operation) Articulating to driver's and curb side (800 x 1" Capacity) Includes 12VDC Auxiliary hydraulic
pump. Transfer case selection required for Dual Engine builds
Jet Rodder Hose Water System 600' x 1" - 3000 psi Jet Rodder Hose
60/3000, GIANT 7000, GM 6.0 GAS 172 HPWater Pump 0
Auxiliary Engine 0
Hose Brand

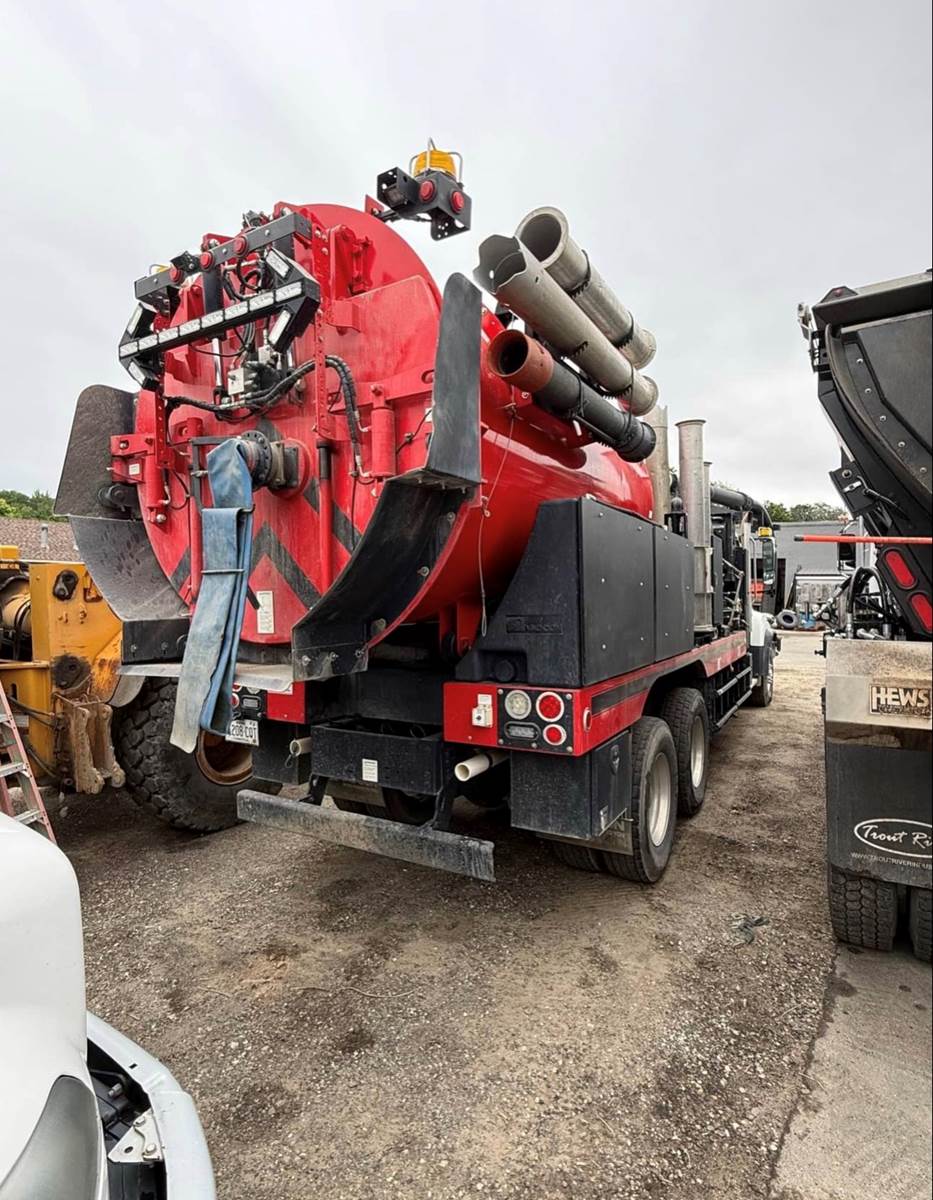

Debris Body Options
1 Rear splash guard (2 - 10 O'clock) - tank mounted
1 Stainless Steel Ball on Debris Body Level Indicator
Water System Options
1 1/4 turn ball valve water drain ( cannot choose both 2-1/2" gate valve and 1/4 turn ball valve, only choose one)
1 50' Capacity Retractable Hand Gun Hose Reel
1 Air Purge System
1 Artic Winter Recirculating System Rodder Hose (No Insulation), includes plumbing to upper water tanks.
1 Debris Body "Power Flush" System, 8 jets
1 Hydroexcavation Package Includes: 50 foot handgun hose reel with 1/2" hose, 711-53686 72" 1/2" schedule 80 lance with single forward
spray nozzle, Storage tubes for lances, Heavy duty unloader valve, Main control ball valve, Variable flow valve
1 Variable Flow Valve (Valve Only ) - nozzles required
1 Water Pump Remote Oil Drain
1 Winter Recirculating connection for high pressure circuit.
Hose Reel Options
1 Power Guide "Reel Power" level wind guide
Misc Machine Options
1 12VDC Auxiliary Hydraulic Pump (12v pump is standard with PRO reel selection)
1 Auxiliary Engine Remote Oil Drain
1 Centrifugal Compressor Quiet Silencer, Class 4, 304 Stainless Steel Construction, 14in x 40in with 8in discharge
1 Grate Lifting Hook 711-9700
1 Long Handle Storage Placement - Rear of Mainframe
1 Long Handle Storage/PVC (2) - MUST SELECT LOCATION BELOW
1 Offset Manhole Roller 711-0050
1 Remote Boom Grease Zerk Assembly (Ground Level - includes water pump drive) - If Applicable
1 Remote Debris Tank Grease Assembly (Ground Level)
1 Tungsten Infused Carbide Boom Elbow and Reducer (Only available on 8" Booms)
Lighting Options
1 Hand Held Spot Light - LED
1 LED 4 Strobes - (2) front bumper / (2) rear bumper - Whelen 500 Series TIR6 01-0663507129E - Amber
1 LED Arrow Board, Rear Debris Tank Door Mounted - Whelen TA1251NF1 Traffic Arrow
1 LED Boom Mounted Flood Lights with Limb Guard - Whelen NP6BB Worklight
1 LED Lighting for Tool Box
1 LED Midbody Flood Lights with guards - Whelen NP6BB (Driverside and Curbside)
1 LED Rear Mounted Flood Lights with Limb Guard - Whelen NP6BB Worklight
2 LED strobe with Limb Guard, Rear Debris Tank Mounted - Whelen L31HAF LED Beacon with Whelen BGH Branch Guard
2 Mirror Mounted LED Beacon/Strobe Light with Limb Guard - Whelen L31HAF LED Beacon with Whelen BGH Branch Guard
Electrical Options
1 6 Way Pendant Control Station (Spare)
1 Back Up Alarm
1 Curbside Camera Placement - Mirror Mounted Standard
1 Driver's Side Camera Placement - Mirror Mounted Standard
1 Remote Control (Wireless): Boom, Vacuum Breaker, Throttle & Debris Body (includes Hi-Dump, if applicable). Does not include remote
cable pendant controls for boom or hi dump.
Water System Accessories
1 711-30906 B 72" Extension for 711-53686 high-pressure handwand
1 Additional Water Tank Sight Guage (Drivers Side)
Misc Accessories
1 2.5" Male threaded to 2" male camlock adapter for hydrant fill hose (loose in toolbox)
1 8" to 6" HydroX Tube (Dura-tube or equal) 690-2247
1 Anti-Sail Mud Flaps (rear)
1 Bulldozer Nozzle 681-1945
1 Enz High Pressure Spray Gun 18.45 680-0459
1 Folding Cone Rack - Deck Mounted
1 Hose Guide, spare 665-0004
1 New Style Bandlock Clamps - 680-0414 ILO standard quick clamps
1 New Style Steel Storage Box behind Cab with Additional Nozzle Storage Box- TBA - Painted to match rear toolboxes
1 PRO REEL Fiberglass Top to be wrapped by Marketing
1 Ripsaw Nozzle for Hydro X with QD 681-1826
1 Standard Hydro X wand to be Schedule 80 with QD
1 Standard Long Handle Storage to be mounted in new Storage box
1 Vac-Con DOT Decals for Cab Doors to be added after Dealer Summit
Spare Nozzles
1 1" 60 gpm Grenade Nozzle
1 1" 60 gpm Rotating Spinning Style
1 1" Bulldog with skid 400.060BS
1 1" Nozzle rack
Leader Hose
1 1" x 20' Length Leader Hose
Pipe Storage Racks
1 Folding Pipe Rack (3), Tank Mtd, Curbside
1 Lazy Susan Pipe Rack (Holds 5 Pipes)
Tool/Storage Boxes
1 2) 24" x 18" x 18" Steel Rear Tool Boxes, mtd each side of extended frame units, 1000 or 1300 gallons only
Vacuum Tubing
1 3' x 8" Clear Demo Tube 711-1255
1 5' x 8" Aluminum Pipe Extension
1 8" Adjustable Air Gap w/quick clamp
Paint
1 Optional Striping Package - Black 692-5204-03
1 Paint Module: Single-Stage Polyeurethene Coca Cola Red (Sherwin Williams code: 911065)
1 Paint: To be advised
1 Painted steel upper water tank panels to match Body Color in lieu of standard aluminum diamond plate
Paint Notes : Painted steel upper water tank panels in lieu of standard aluminum diamond plate - painted textured black
