2025 Earthworm Conveyors 18x100 Conveyor

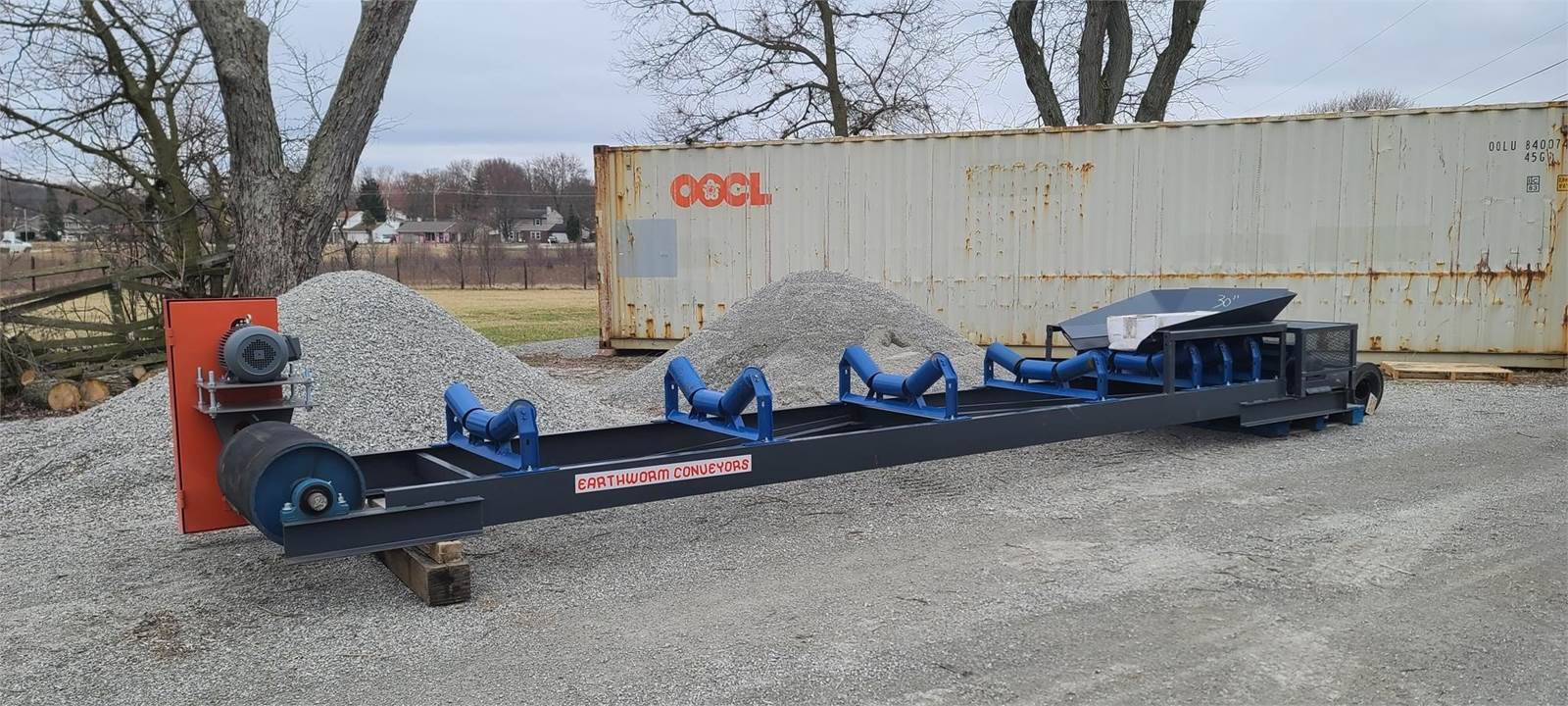

18 x 100 CHANNEL FRAME CONVEYOR
These Heavy-Duty Channel Frame Conveyors Are Proudly Manufactured Here In The USA and Come
With A 2-year Warranty. Hundreds Have Been Sold, Making This A No-Drama Product.

•   8” Channel Frame
o   2 x 2 x ¼ Angle Cross Bracing
o   4” Channel Laterals
   6’ Channel across Tail as Sand Pad
•   Head
o   16” Lagged Head
o   2 3/16 Shaft
o   Ball Bearings
•   Tail
o   14” Winged Tail
o   2 3/16 Shaft
o   Screw take-ups
o   Ball Bearings
•   Motor
o   5 HP
o   TEFC
o   1800 rpm
o   230/460V 60 Hz)
•   World Wide Drive
o   #3-25
o   Motor Mount
o   Belt Guard
•   Pioneer Idlers – CEMA B x 4 – 20/35 Degree – 48” Centers
•   Pioneer Return rollers, CEMA B x 4 – 10 ft Centers
•   Belt – 2 Ply – 220 PIW – 3/16 x 1/16 Cover

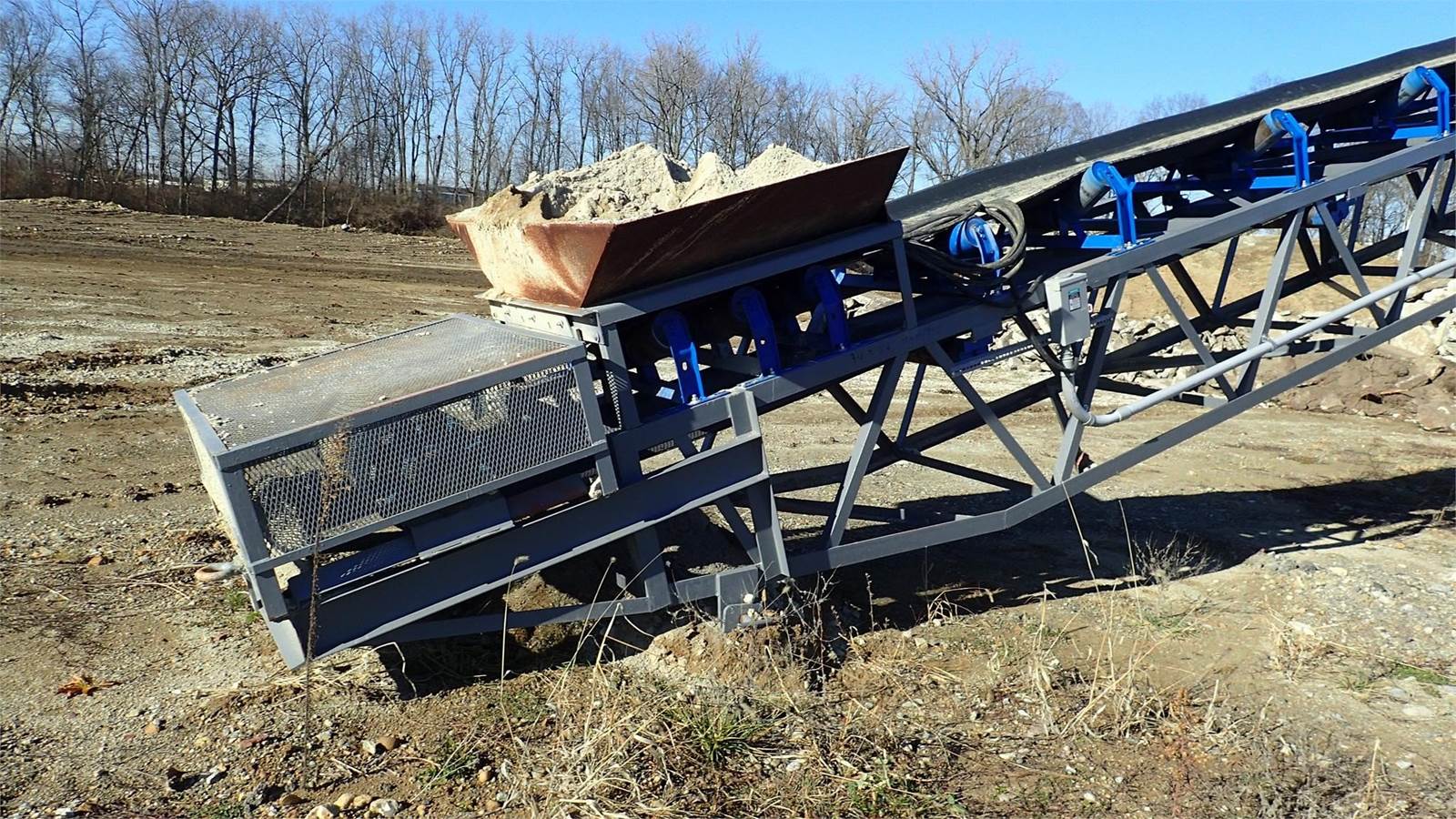

•   4 ft Load Zone w/Skirting
•   Tail Guard
•   Primed & Painted - Grey

PRICE……………………………………………...…………………………….…….…….$ Competitive.

Options:
•   Belt Scraper
•   Back Stop
. "H" Section Leg Sets

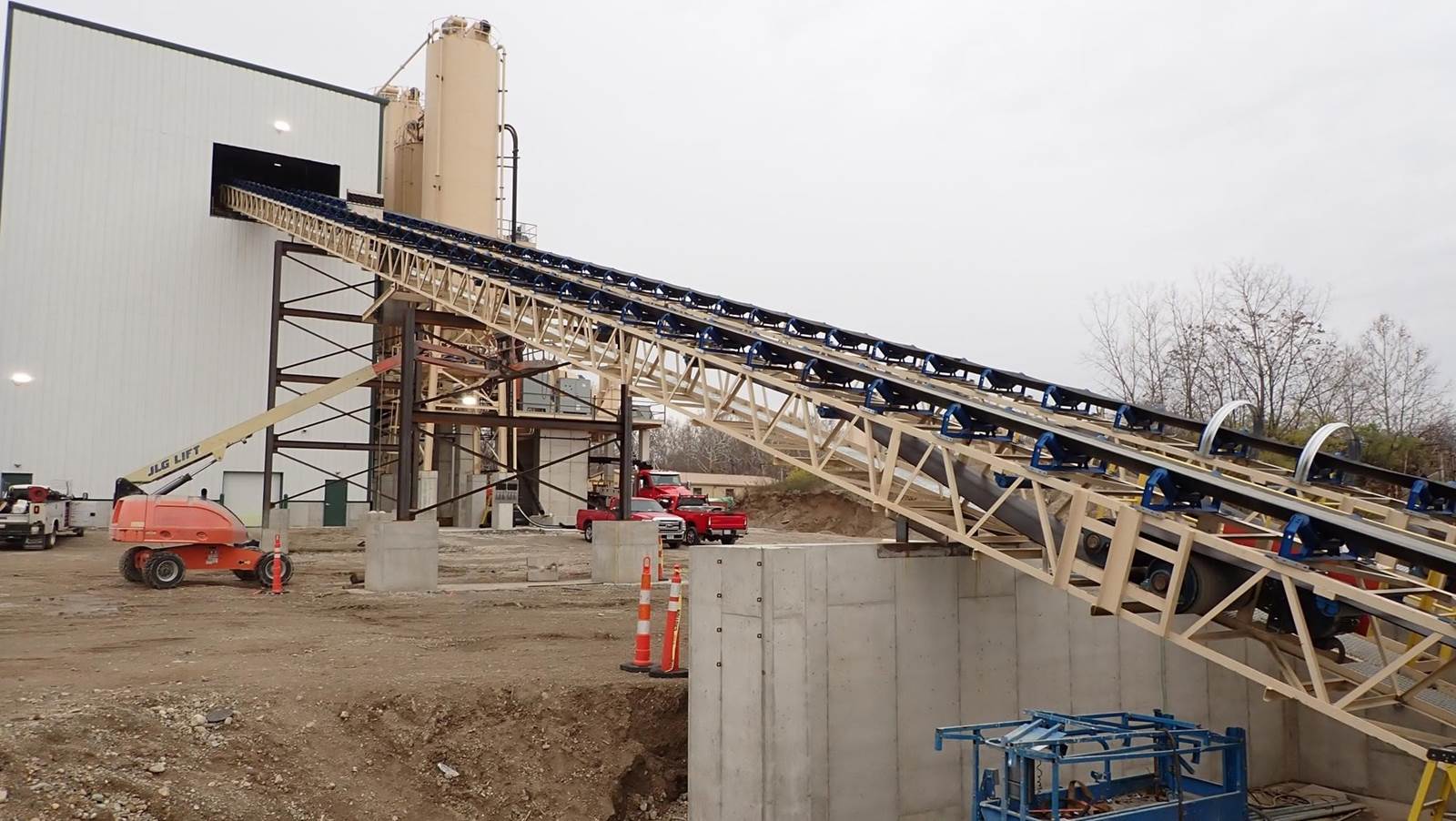

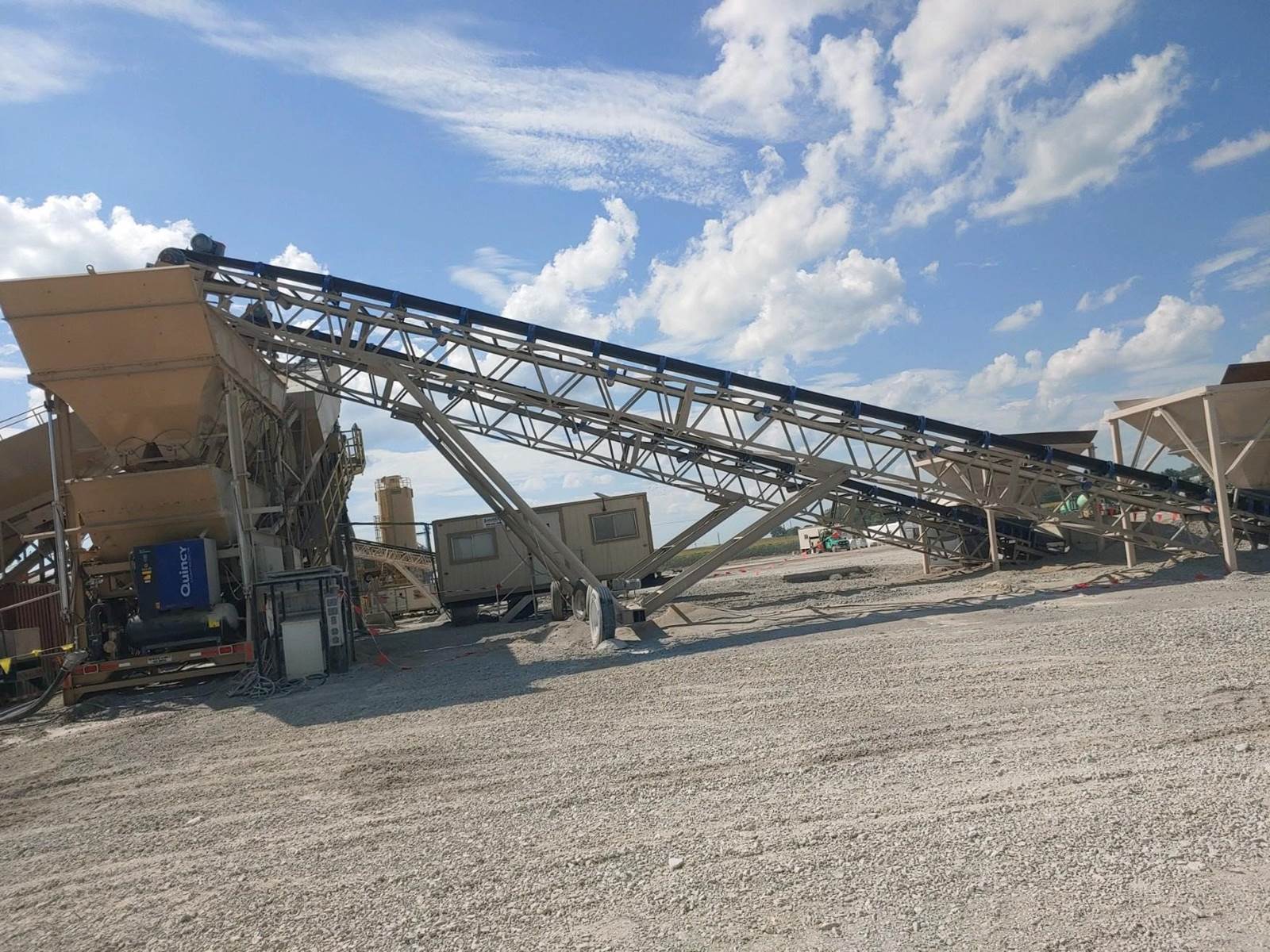

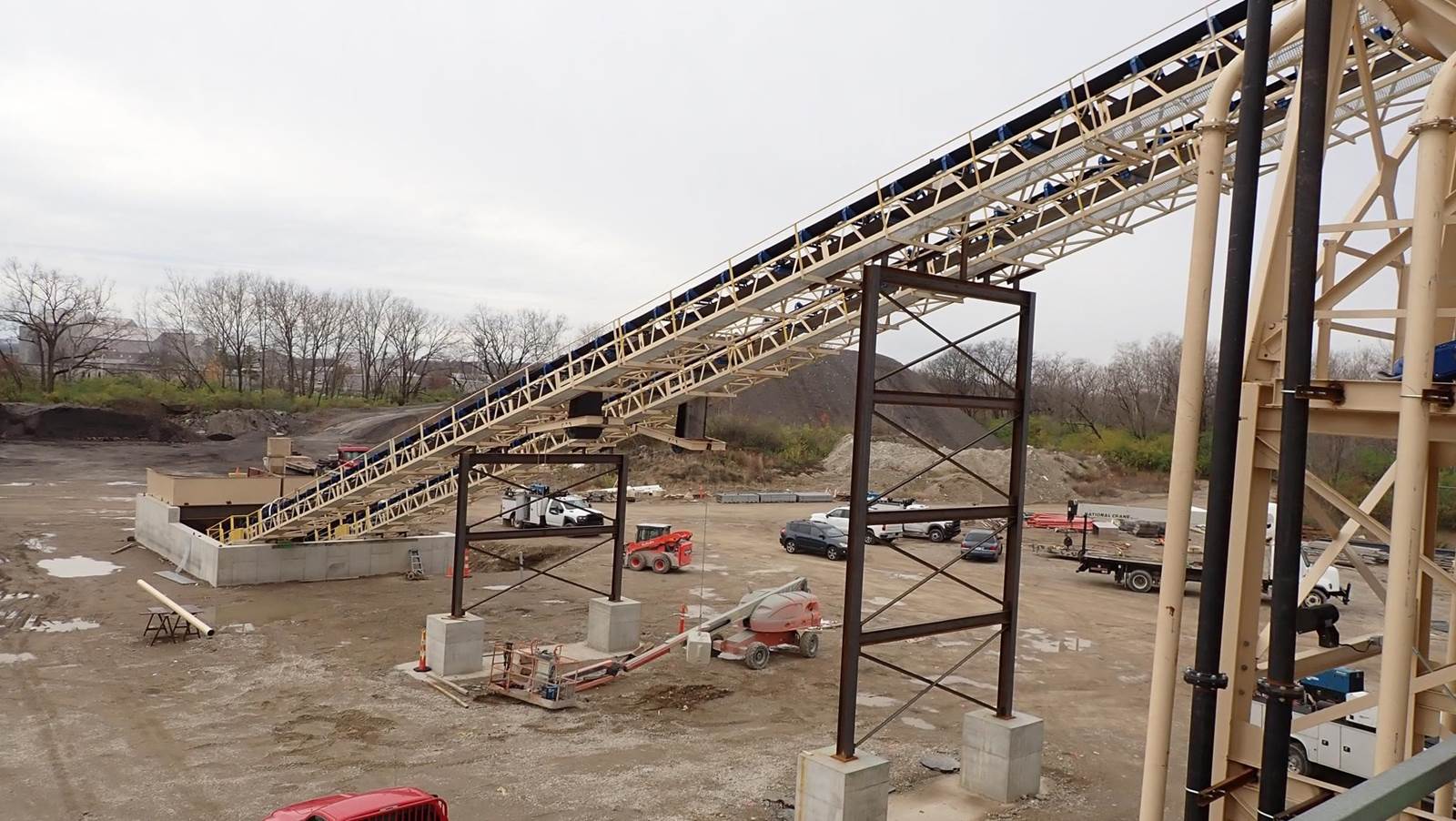

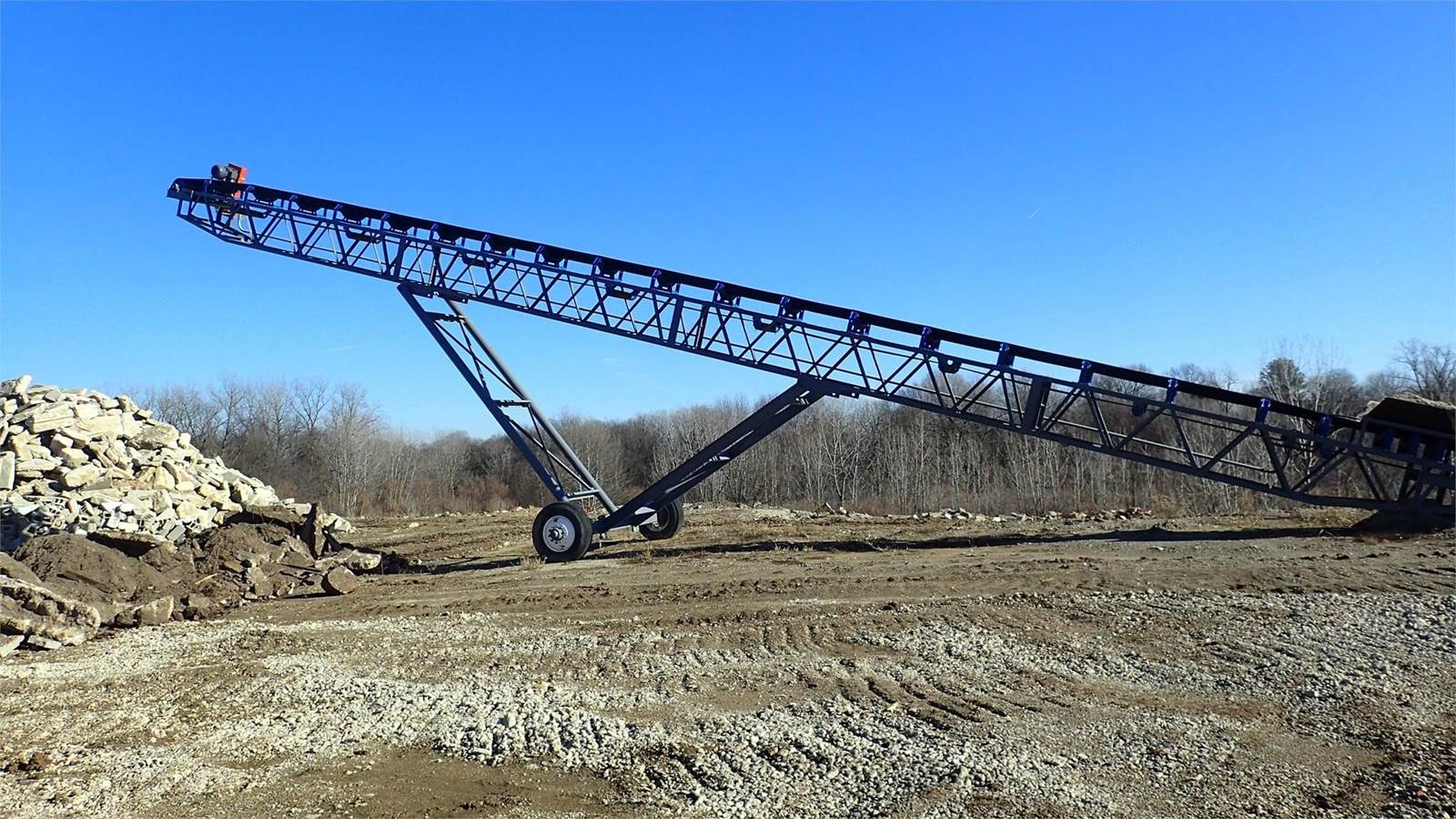

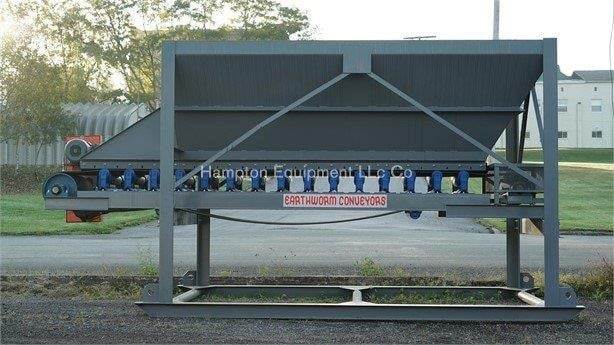

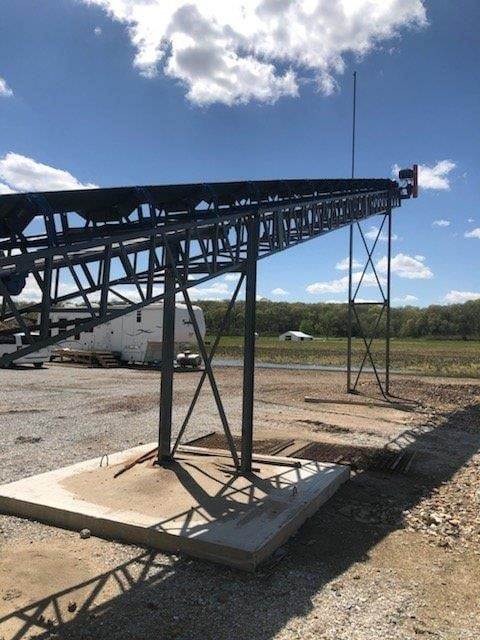

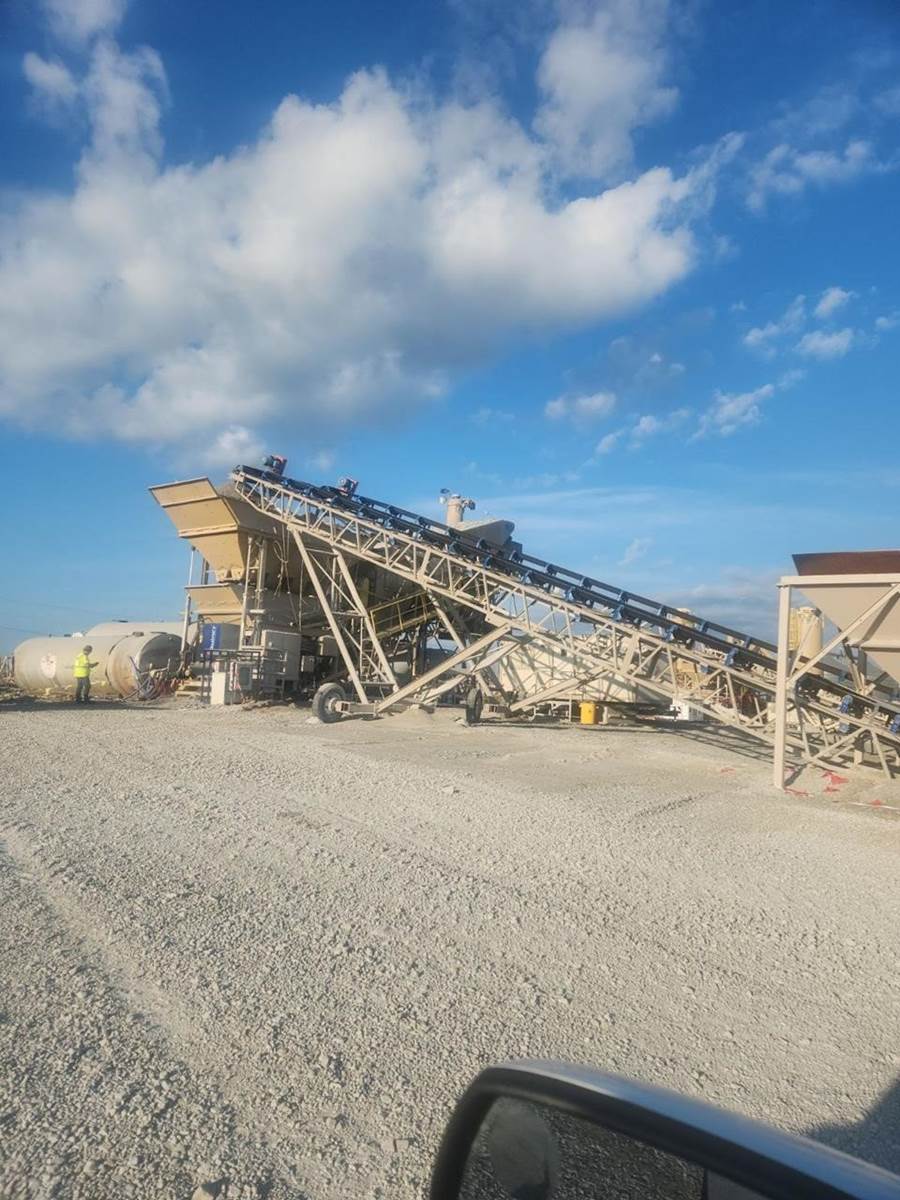

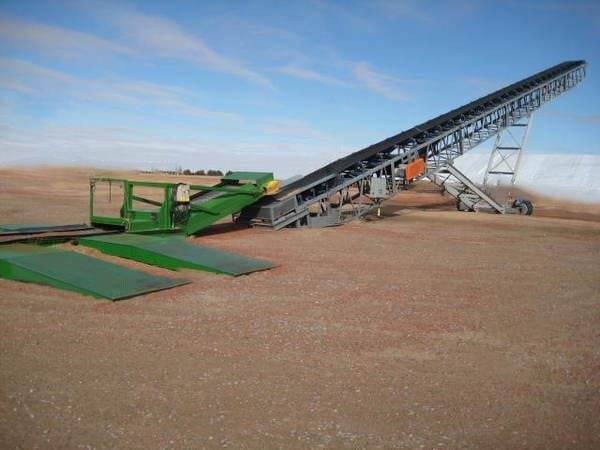

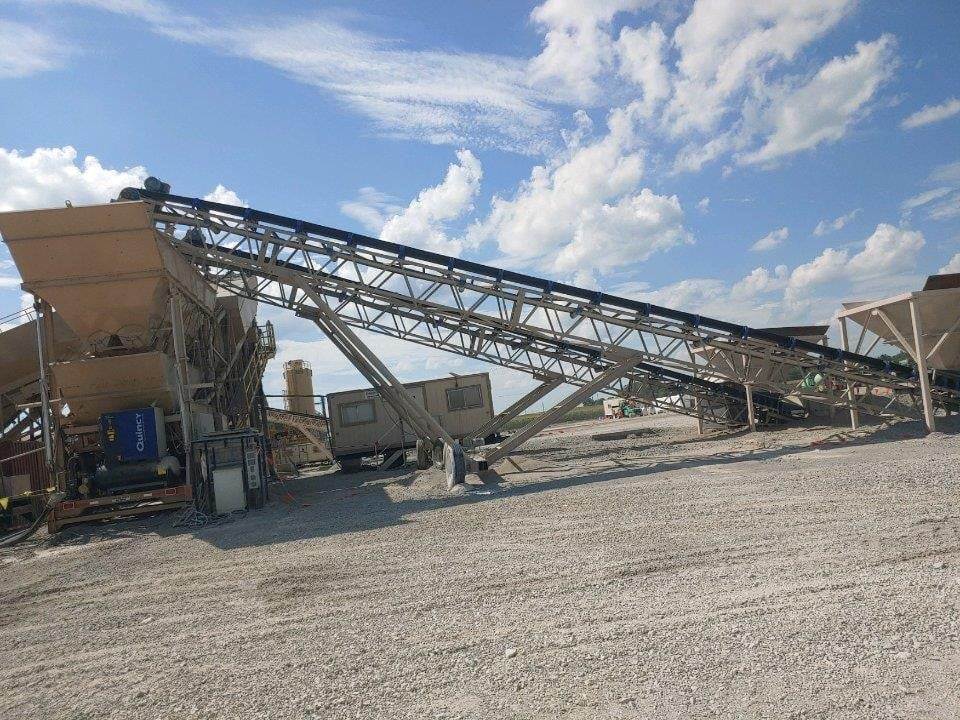

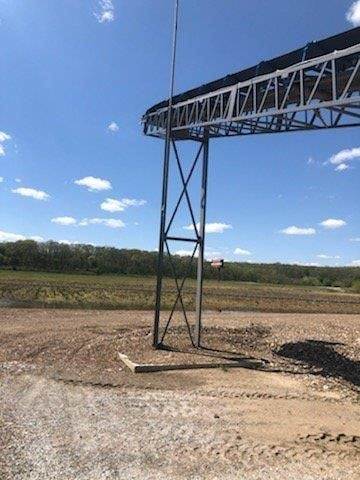

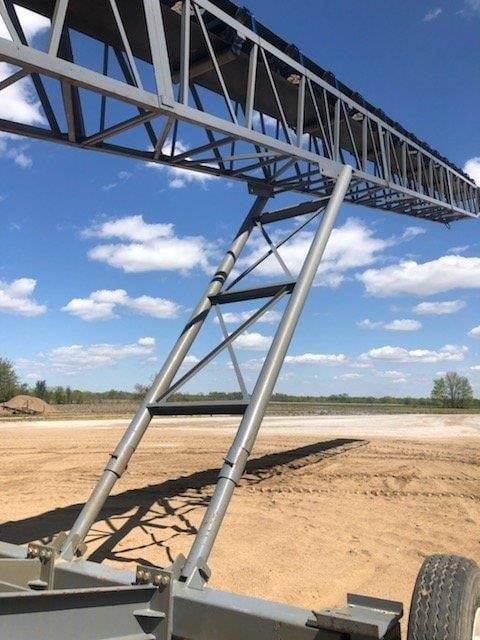

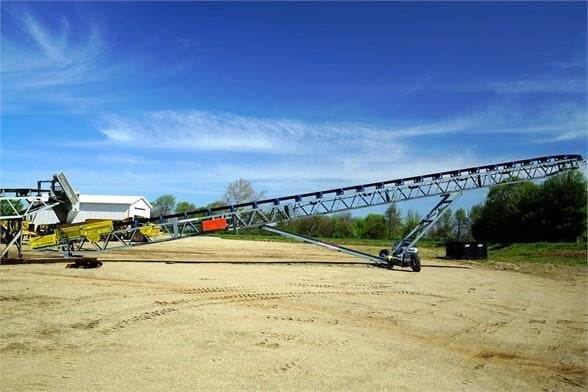

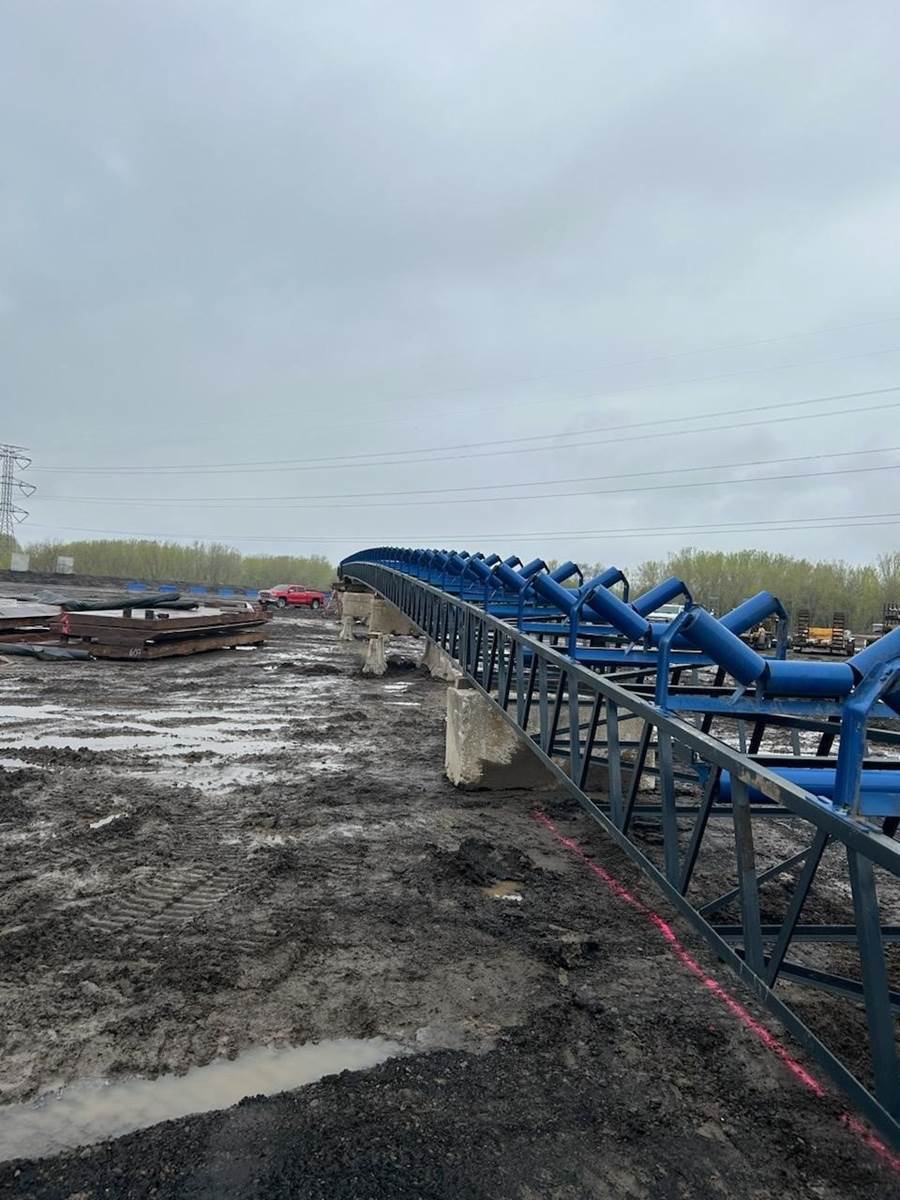

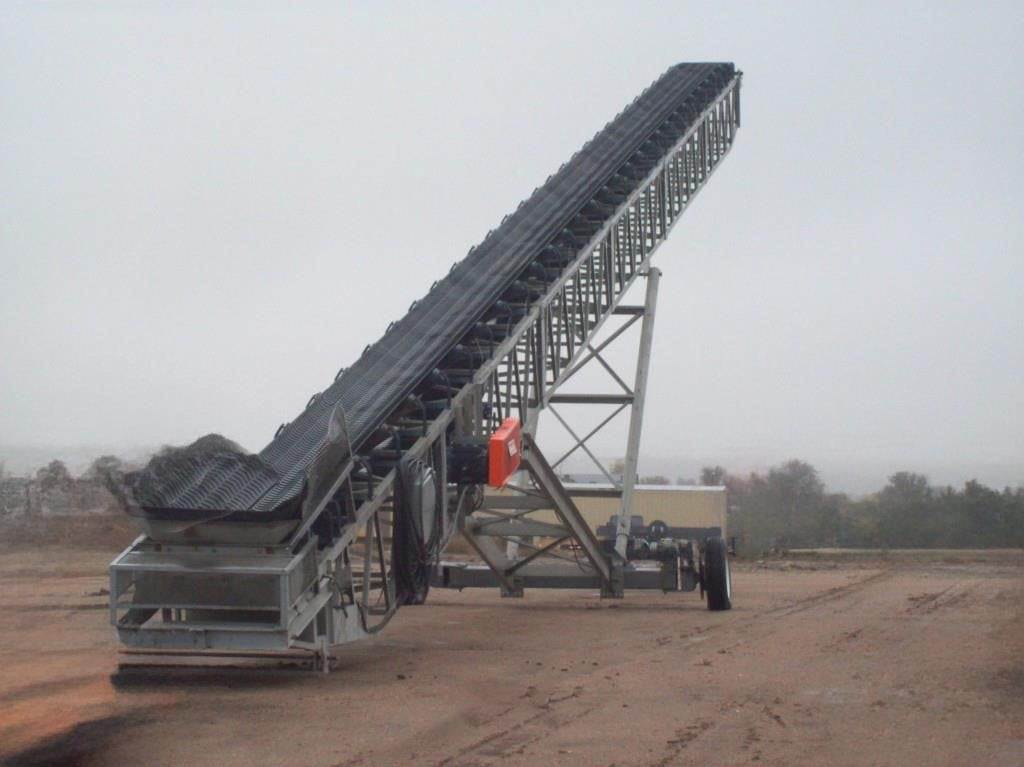

We Manufacture All Types Of: Radial Stackers, Transfer Conveyors, Channel Frame Conveyors, Truss
Frame Conveyors, Jump/Grasshopper Conveyors, Overland Conveyors, Feeder Conveyors. Any Width
Or Length. Anywhere In The USA.

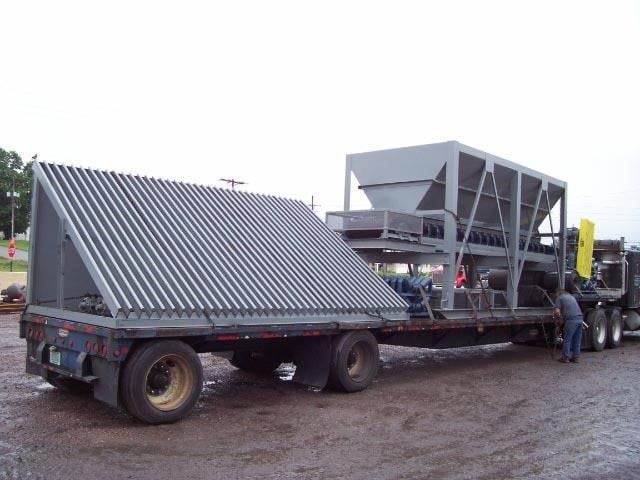

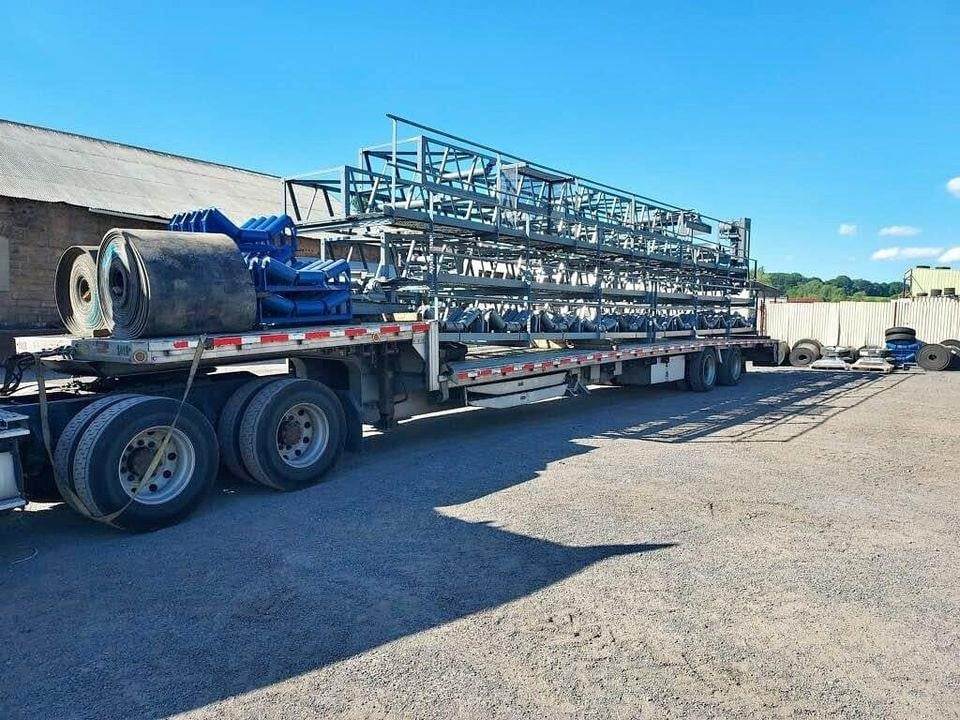

WE DELIVER.
