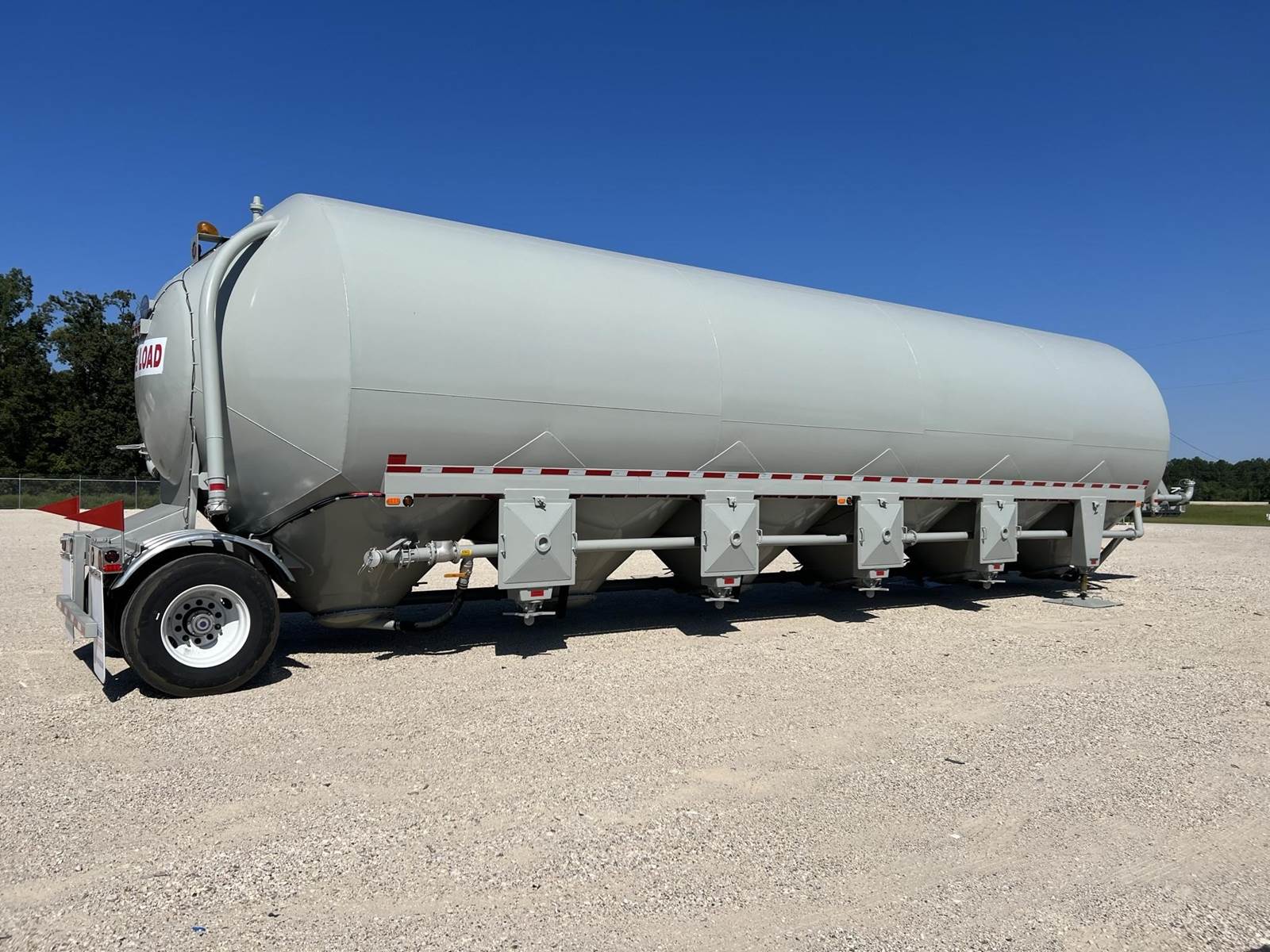

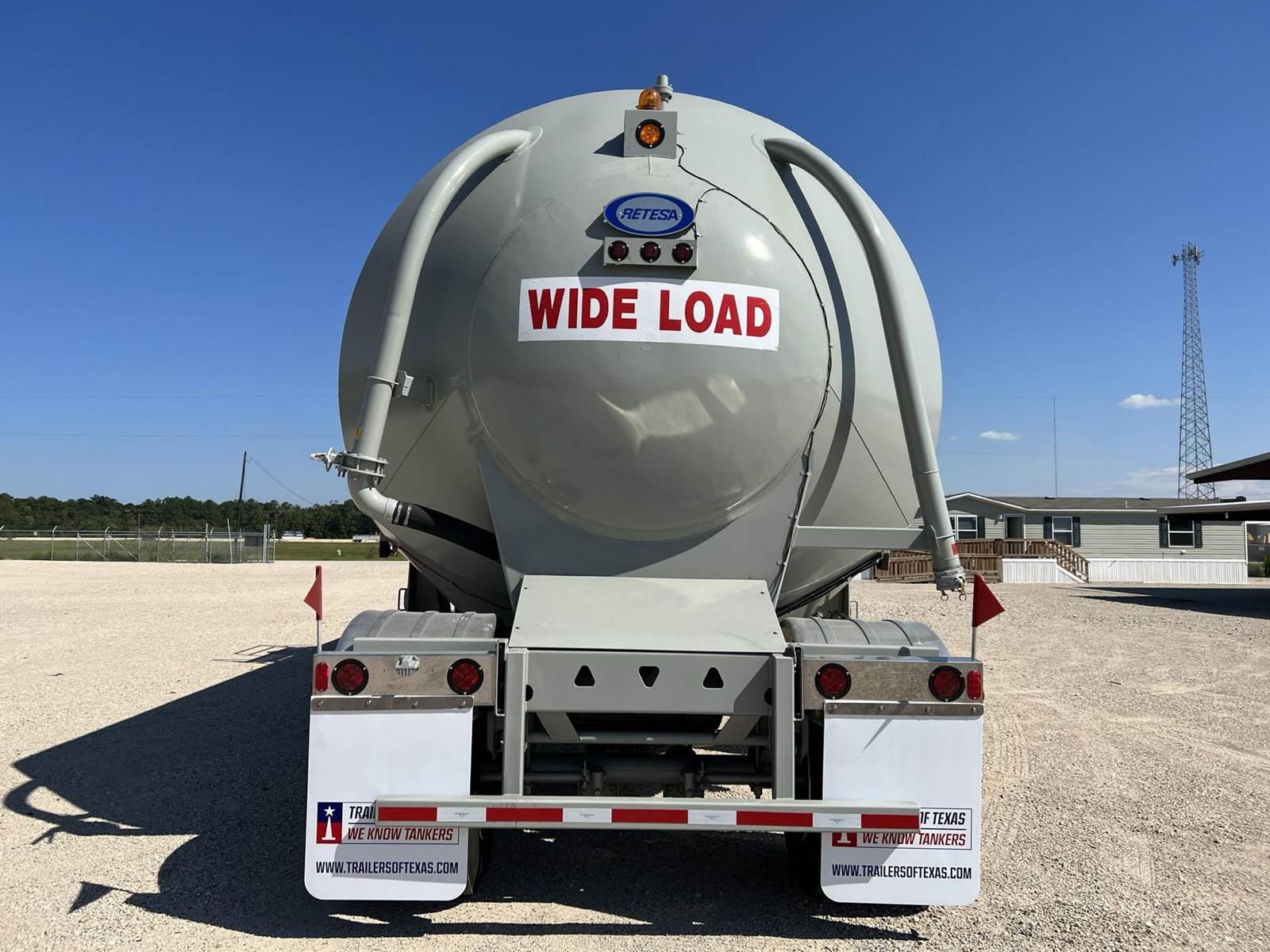

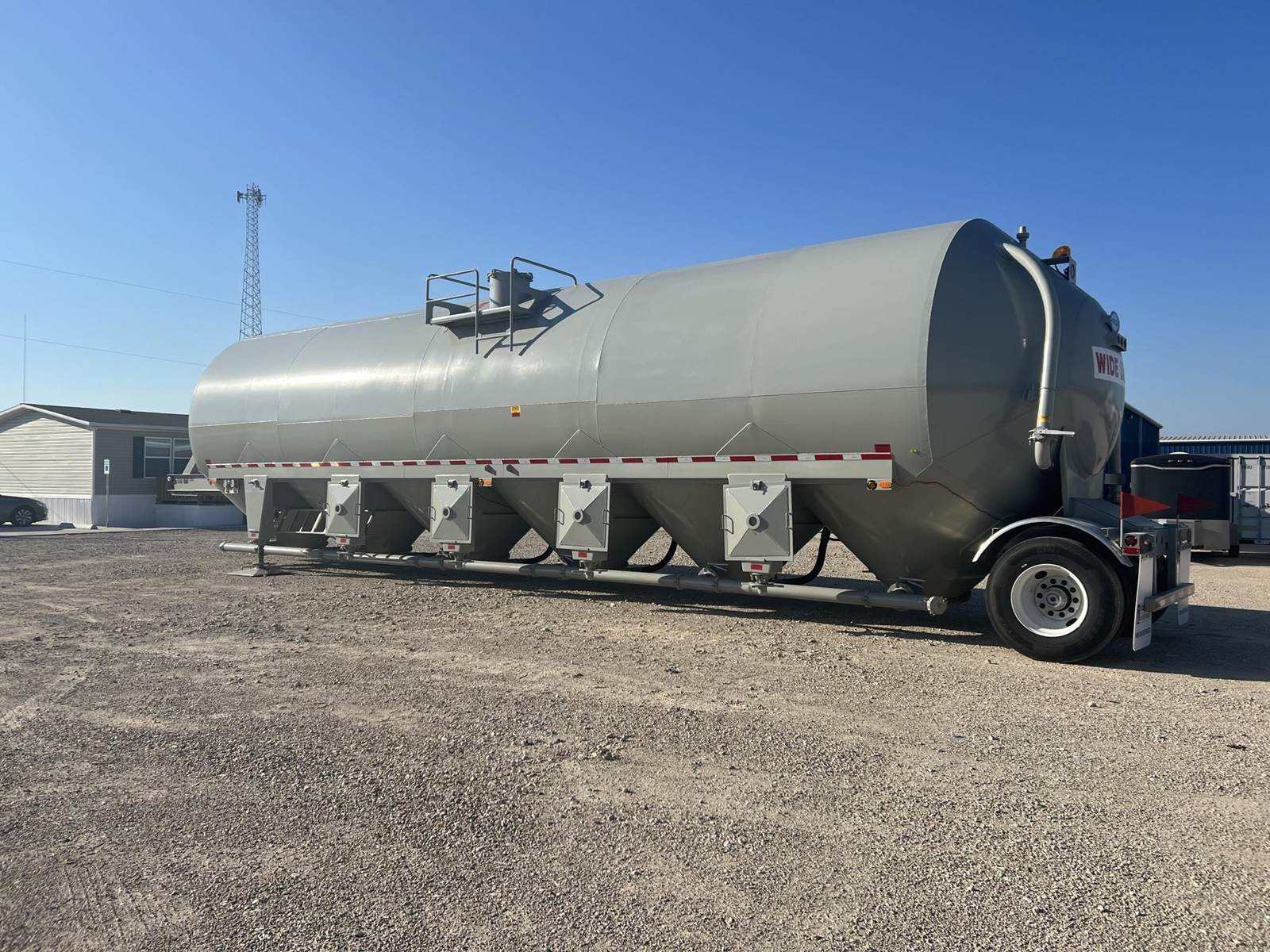

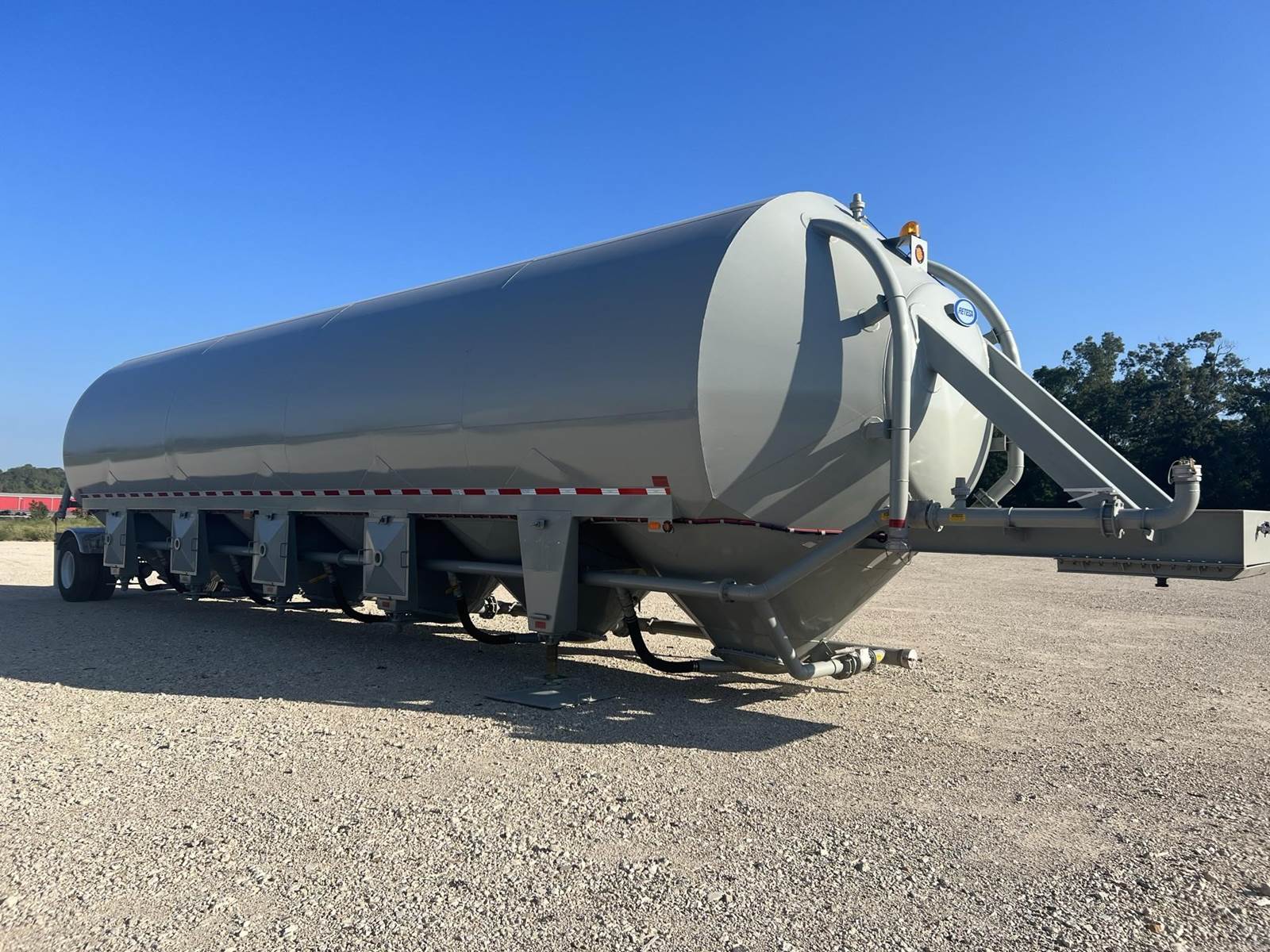

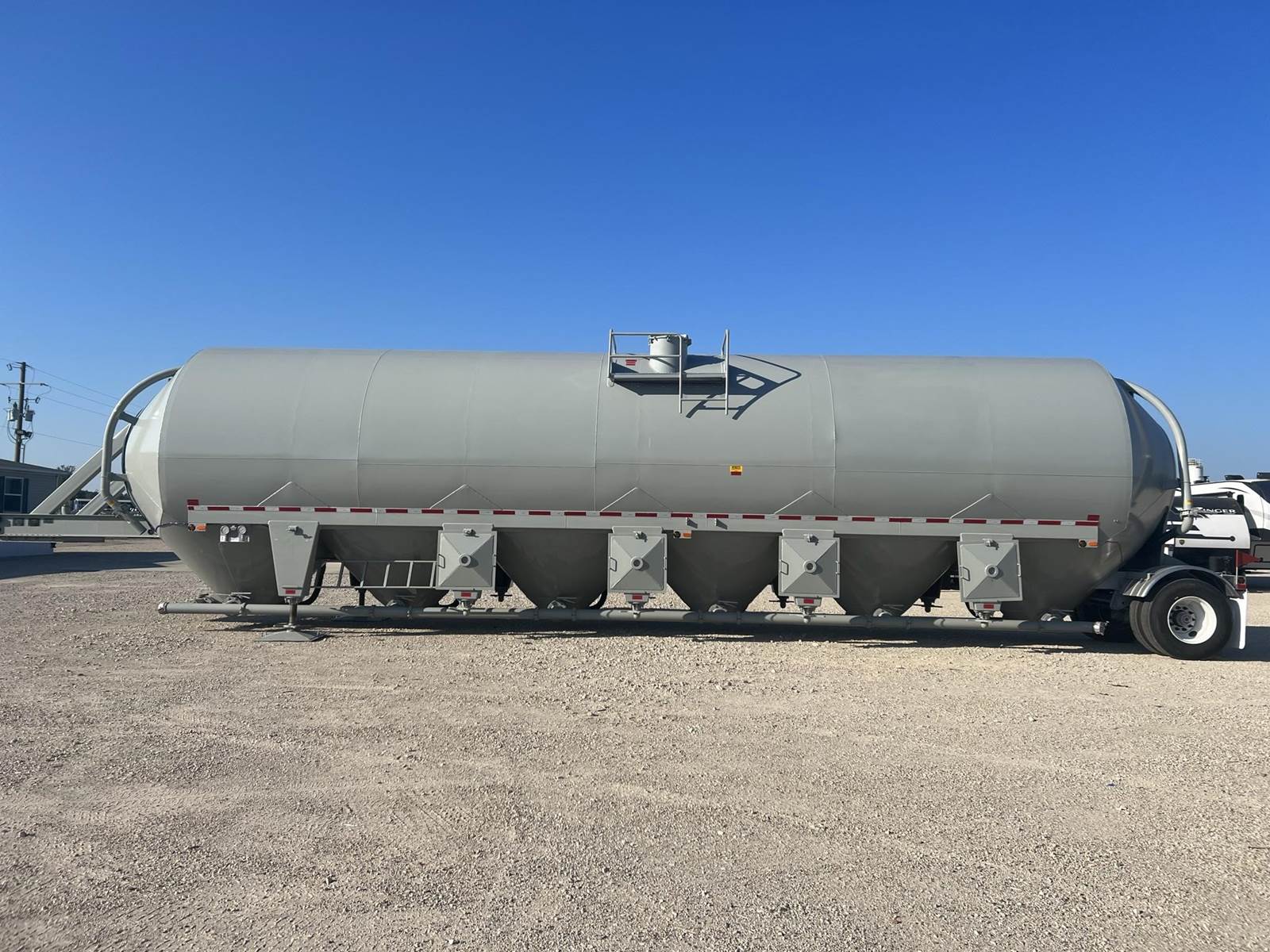

2024 EXA 4100 CU FT PIG Dry Bulk / Pneumatic Tank Trailer

2024 NEW EXA 4100CF PNEUMATIC PIG STORAGE SILO TANK

- Pressure: 15 PSI, tested at 23 PSI Gross

- Overall Length: 62 ft.Height: 13 ft. 3.4 in.Weight: 30,865 Lbs.Width: 132 in.

- Material: Carbon Steel

- Suspension: Hutch spring suspension with three variable sections

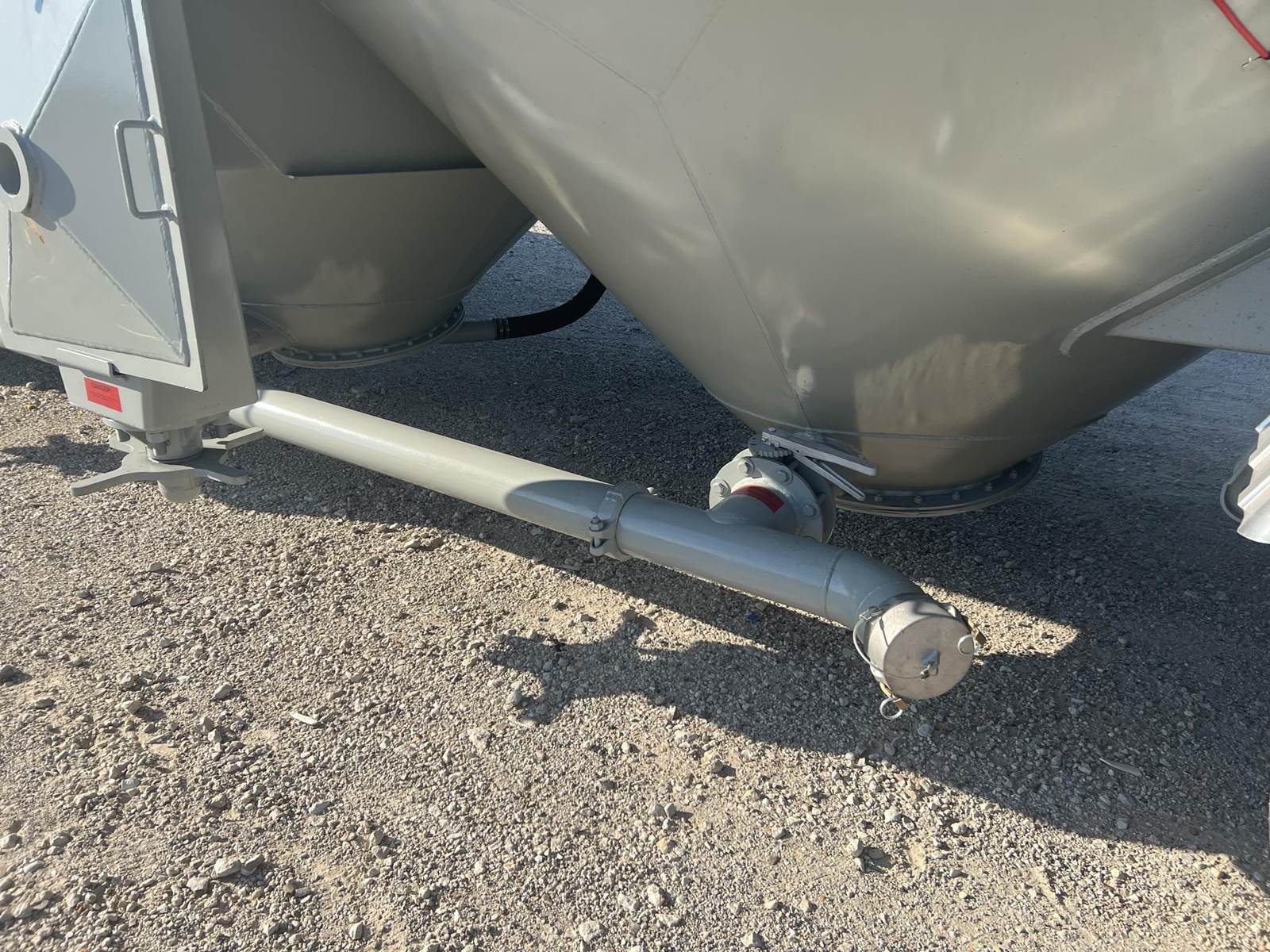

- Single Hopper(s): Six (6) discharge cones with aerators with discharge 6 in. butterfly valve shall: 3/16 in. A572-55 High resistance steel welding: Inside and out, minimal tie-ins with automatic welding

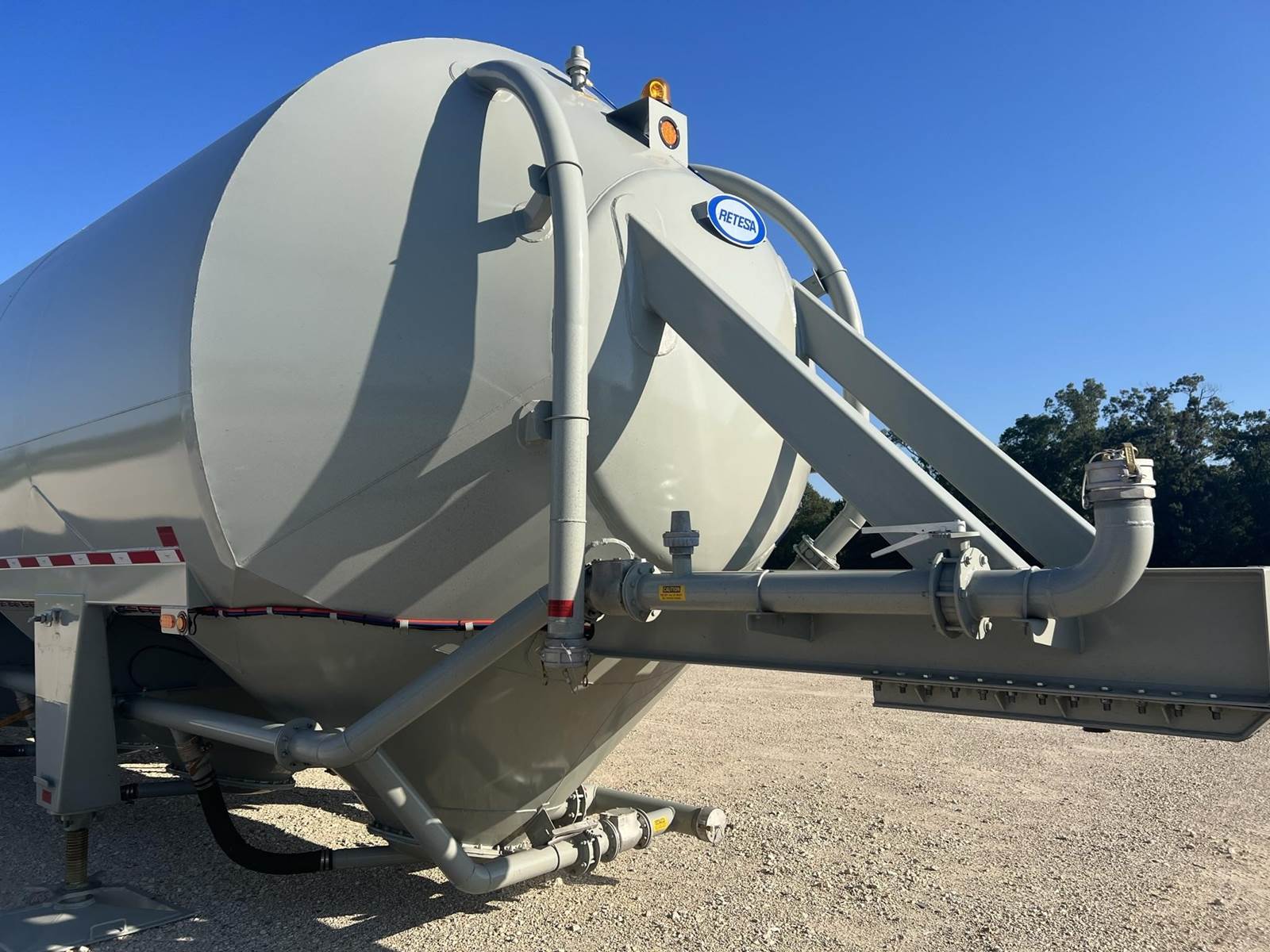

- Connections: One (1) 4 in. tank pressurization line Inlet: 3 in. with aluminum quick coupling, 3 in. check valve, 3 in. auxiliary connection, and 3 in. butterfly valve outlet: One (1) Rear of 5 in. diam with six butterfly valves Shut Off External Venting/Reliefs: Two (2), one in the airline and another one in the front of the tank axles: One (1) 30,000 lbs., 102 in. wide, 77.5 in. track TP type with the automatic slack adjuster brake: Air brakes with two boosters FMVSS-121, ABS 2S/1M Bendix Bumper: 4 in. X 4 in. tube per Dot Frame: Full Length 1/4 in. A-36 Formed Landing Gear: Five (5) pairs of screw Type 3 in. diam

- Tires: Four (4) 11 X 24.5 R

- Upper Coupler: Adjustable 3/8 in. plate with Holland kingpin Wheels: 10 hole Budd wheels powder coated white access

- Ladder: One (1)

- External Coating: Jones-Blair two coats of polyurethane on an epoxy primer (4-6 mils DFT)Paint Prep:

- All steel surfaces sandblasted inside and out

- Conspicuity Tape: 3M Per Dot Fenders: Two (2) steel made Lights: Sealed harness and recessed GROTE LED lights per DOT

- Mud Flaps Two (2) Anti-sailVacuum

- Manometer: Two (2) manometers, one of airline and another one for the tank paint

The Jack Olsta Co. also offers custom Diesel and Electric blower pack that can be mounted on the pig or on a utility trailer. Each blower pack is built is Huntsville, Texas and is spec’d with 74 Diesel Engine or 50 HP electric motor which is paired with the Drum D 807 Blower.
