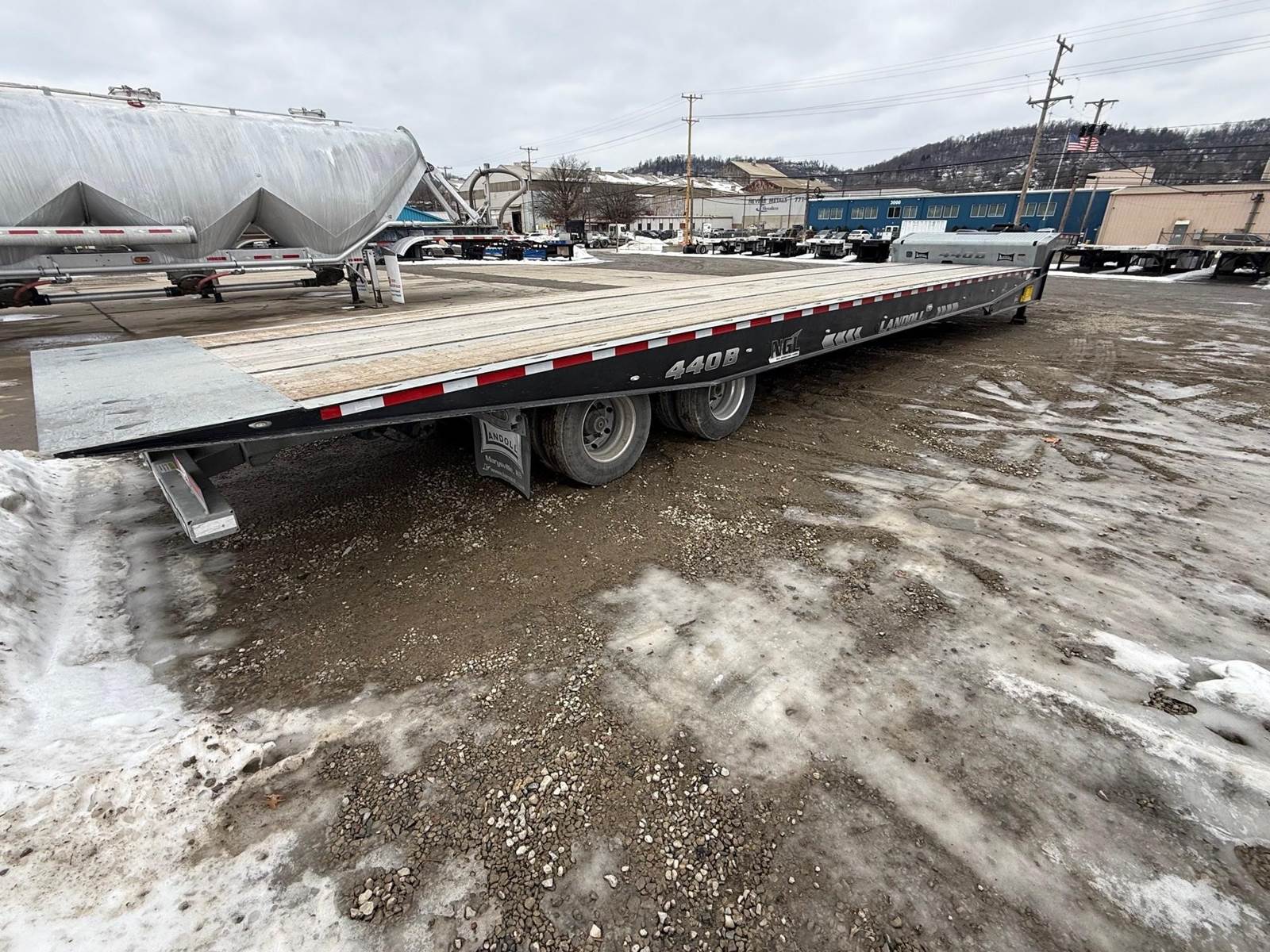

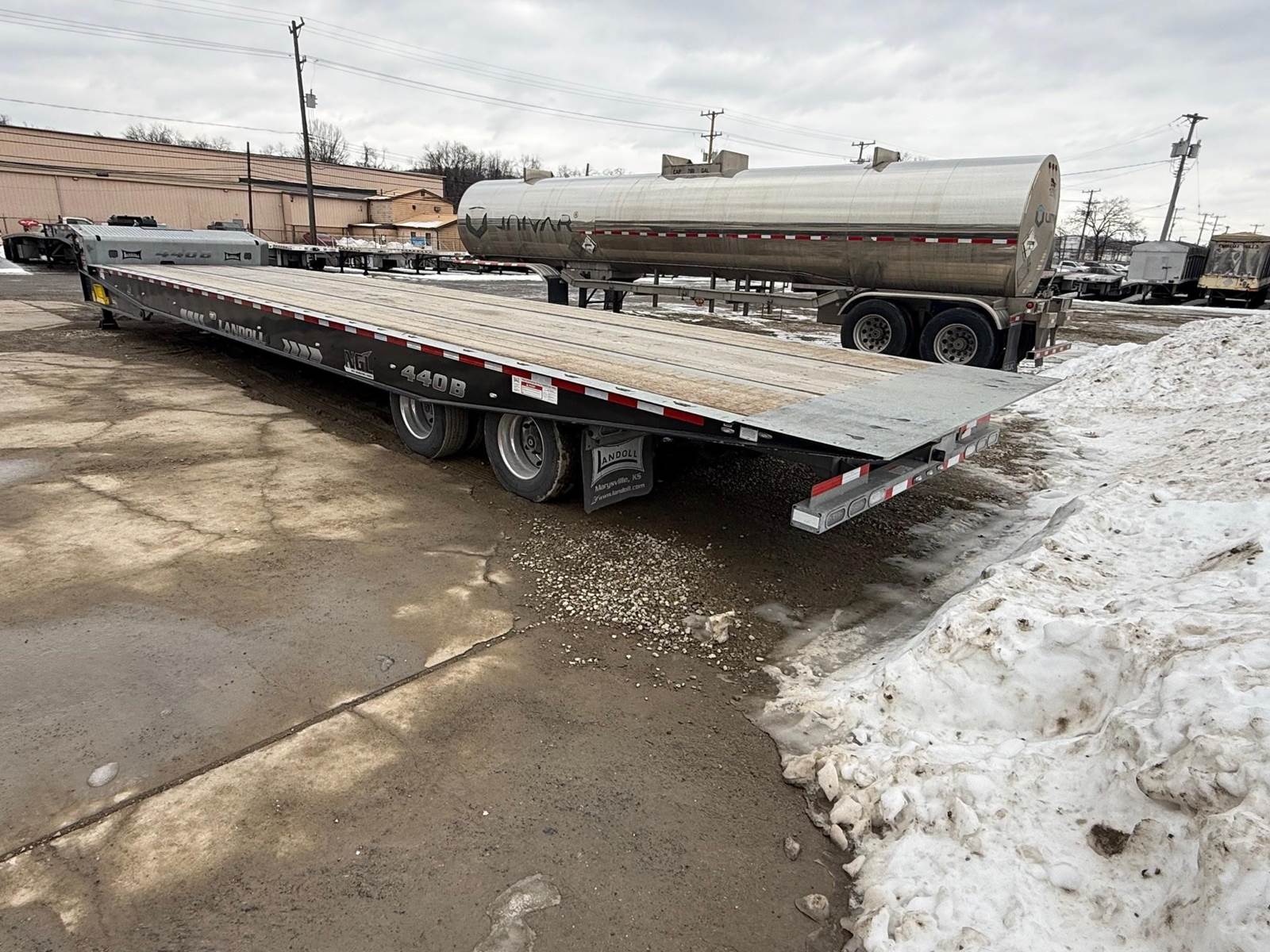

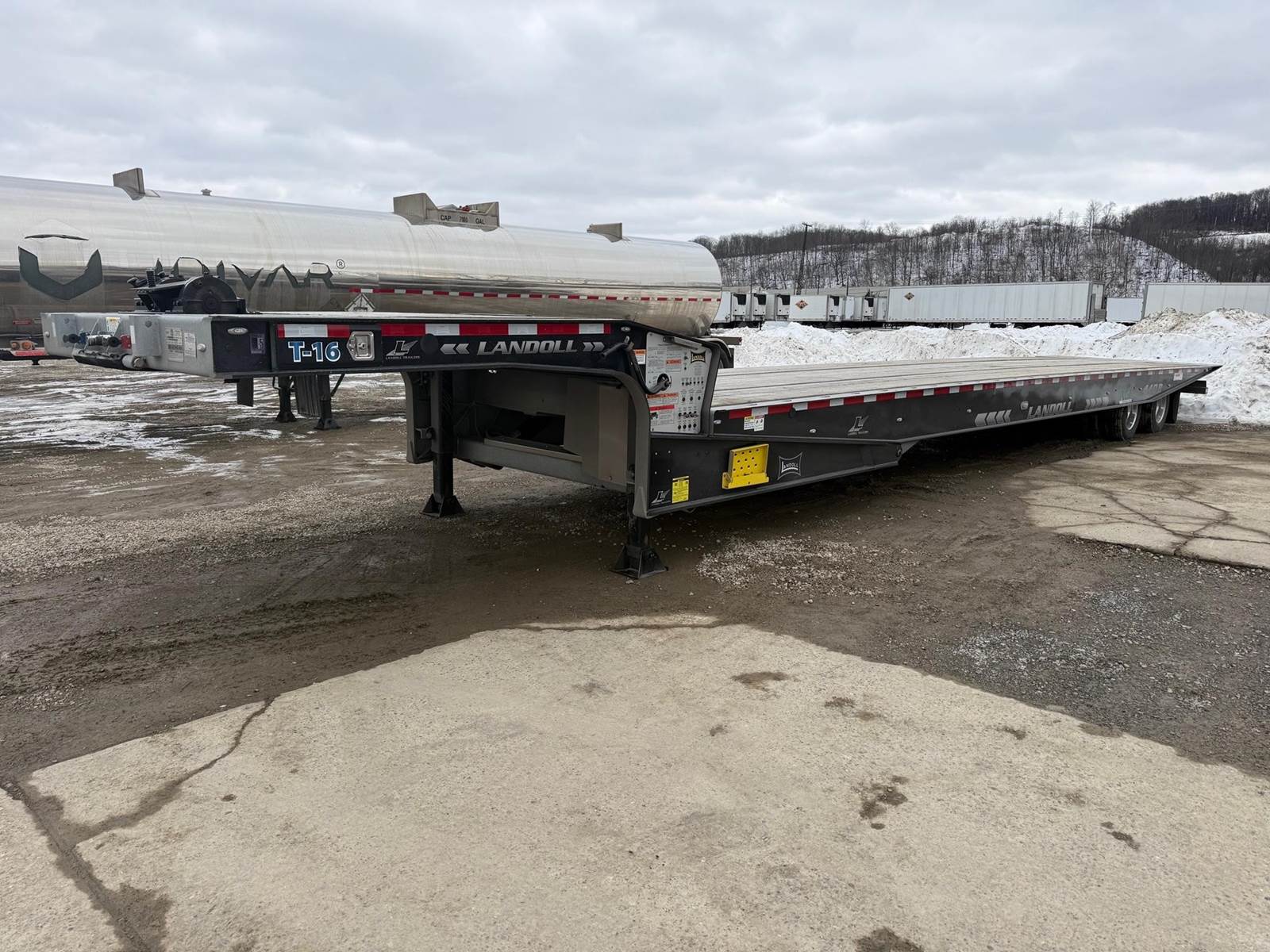

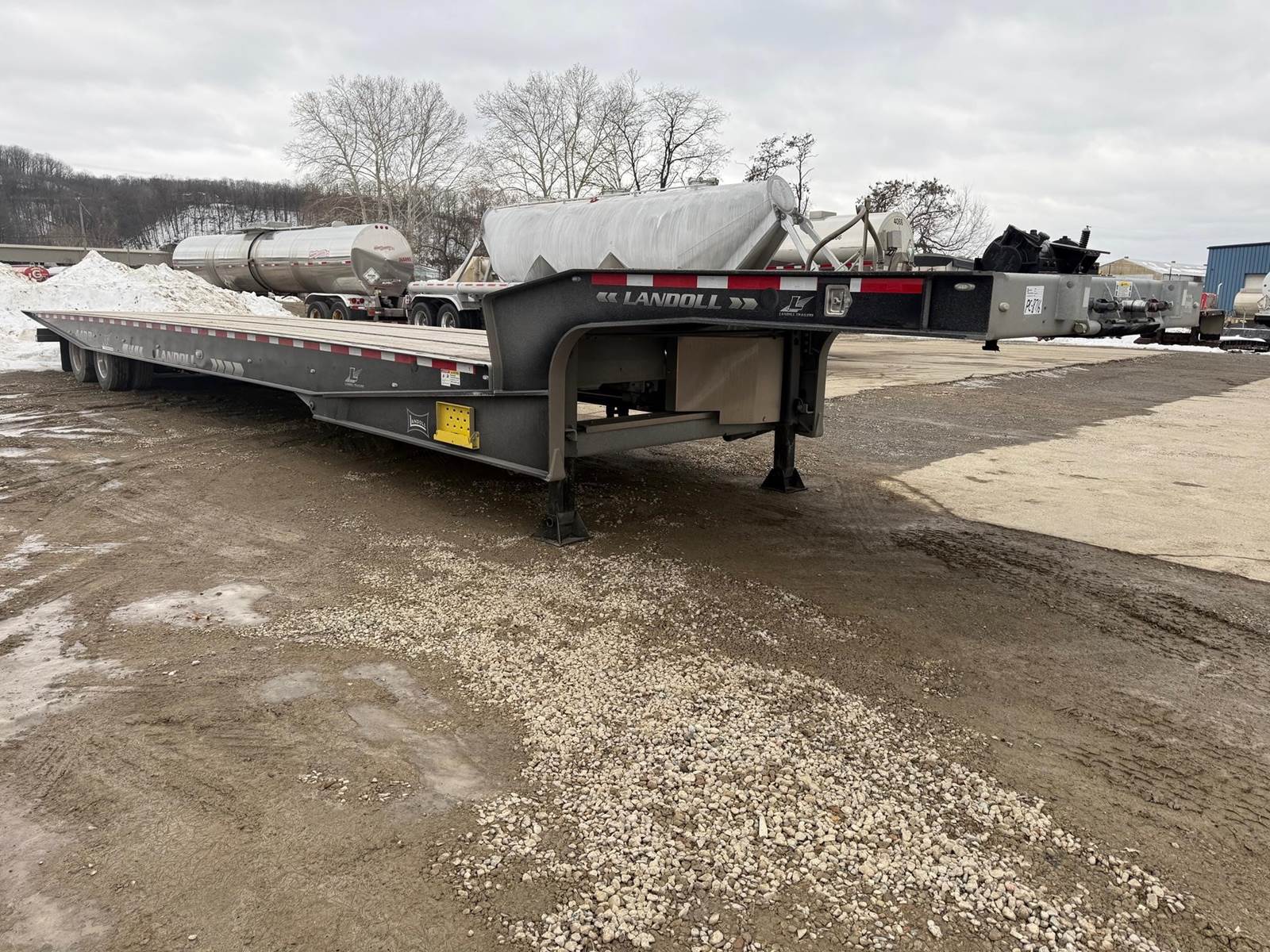

2023 Landoll 440B Traveling Axle Trailer

Length 50'
Width 102"
Top Deck Length 9' 8.5"
Main Deck Length 40' 1.5"
Main Deck Height 37"
Weight 19,355 lbs +/-3%
Inspection C-PA 5/26
Unit Description 440B-50CA
Flat Body
Floor 1 3/8" Apitong
Chain Slots Double Key Hole on 16" Centers
Approach Plate Flat with Six (6) Key Hole Tie Downs
Load Angle 6.5 Degrees
Side Rail Perimiter Beam - Steel
Toolbox Twin Upper Deck Side Opening with Lockable Door
Side Rail Lights Twelve (12) per side, LED
Rear Lights (3) Stop/Tail, (3) Clearance
Strobe Lights Strobe Light Package in Bumper
Hydraulics
Hydraulic Hook Up Quick Couplers
Hydraulic Valve Body Rexroth 20GPM at Controls, 50 GPM Max
Tilt Cylinders Two - 6"x30"
Undercarriage Cylndr 4"x126" & 4"x138" - 50'
Hydraulic Winch Braden Winch, 20,000 lbs.
Cable 85' of 1/2" Cable
Wireless Remote Prince Valve, Controls Winch, Tilt & Axle Travel
Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Brand Neway RLU228, 22,500 lb. Capacity
Suspension Setting 49" Sliding Tandem
Tire Brand Double Coin
Tire Size 235/75R17.5
Tire % 60%
Wheels Alum/Steel - Hub Pilot
Brake % 50%
Centralized Grease Centralized Grease System
UnderFrame
King Pin Setting 21"
Cross Member Center 8"
Landing Gear Jost, Two-Speed
Paint Entire Trailer Galvanized, Sides Painted Black
Weight Ratings 40 Ton Overall, 50,000 lbs. in 10'
