2023 Superior 30X80PRSC Conveyor

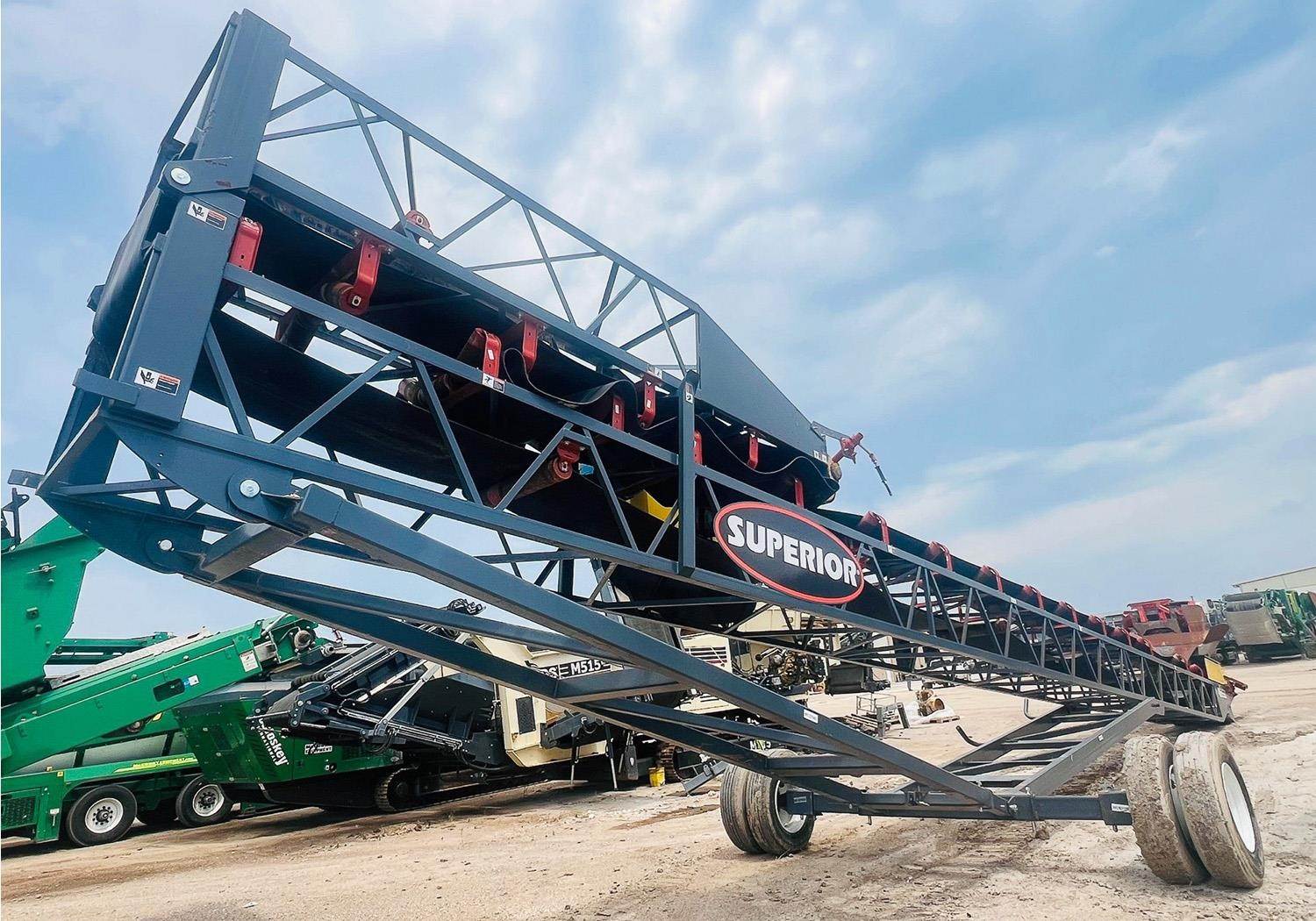

SUPERIOR 30” X 80’ PORTABLE RADIAL STACKING CONVEYOR

CONVEYOR FRAME

- MAIN FRAME: 30”DEEP TRUSS
- CHORD ANGLES: 3” X 3” X ¼”
- LATTICE MEMBERS: 1-1/2” X 1-1/2” X 3/16”
- CONTAINERIZED: NOT INCLUDED

DRIVE SPECIFICATIONS

- DRIVE: CLASS I HEAD DRIVE
- GEAR REDUCER: DODGE SHAFT MOUNT
- BACKSTOP: INSTALLED IN REDUCER
- MOTOR: 20 HP TEFC
- V-BELT DRIVE: WITH DRIVE GUARD
- CAPACITY: 500 STPH OF 100 PCF MATERIAL, 25° SURCHARGE (90% FINES, 10% SPHERICAL LUMPS, 5” MINUS)
- BELT SPEED: 400 FPM
- DRIVE PULLEY: 16” DIAMETER, 3/8” HERRINGBONE LAGGED DRUM
- TAIL PULLEY: 14” DIAMETER, CEMA CHEVRON® WING
- SHAFTS: TURNED AND POLISHED
- BEARINGS: DODGE
- TAKE-UP: SCREW TYPE
- *BACKSTOP INCLUDED: INSTALLED IN REDUCER

PORTABILITY

- CONVEYOR SPLICE: MANUAL TOP FOLDING HEAD SECTION
- UNDERCARRIAGE: MANUAL RAISE WITH PIN LOCK ADJUSTMENT
- AXLE TYPE: TELESCOPING AXLE, ROAD PORTABLE
- TRANSPORT AXLE: DUAL (4) 11R-22.5 TIRES AND WHEELS
- RADIAL AXLE: MANAUL SWIVEL BOXES
- RADIAL TRAVEL: MANUAL
- FIFTH WHEEL: NOT INCLUDED
- ANCHOR PIVOT: MAINTAINS TAIL END DURING RADIAL TRAVEL
- BRAKES: NOT INCLUDED
- LIGHTS: NOT INCLUDED
- MUD FLAPS: NOT INCLUDED
- AXLE JACKS: NOT INCLUDED
- LANDING GEAR: NOT INCLUDED
- TOWING EYE: PINTLE HITCH TYPE
- MANUAL TOP FOLD: MANUAL TOP FOLDING HEAD SECTION
- *ANCHOR PIVOT PLATE: MAINTAINS TAIL END DURING RADIAL TRAVEL

CONVEYOR COMPONENTS

- BELTING: 2-PLY 1/8 X 1/16 220PIW
- BELT SPLICE: FLEXCO MECHANICAL STEEL FASTENERS
- *SCRAPERS: SUPERIOR EXTERRA® PRIMARY BELT SCRAPER
- IDLERS: CEMA B, 5” DIA. STEEL ROLLS, SEALED FOR LIFE BALL BEARINGS
- IDLER SEAL: SUPERIOR STANDARD SPINGUARD® SEAL
- LOAD AREA: 20° TROUGH, 12-16” SPACING
- TROUGH: 35° ON 4’ SPACING
- RETURNS: STEEL CANS ON 10’ SPACING

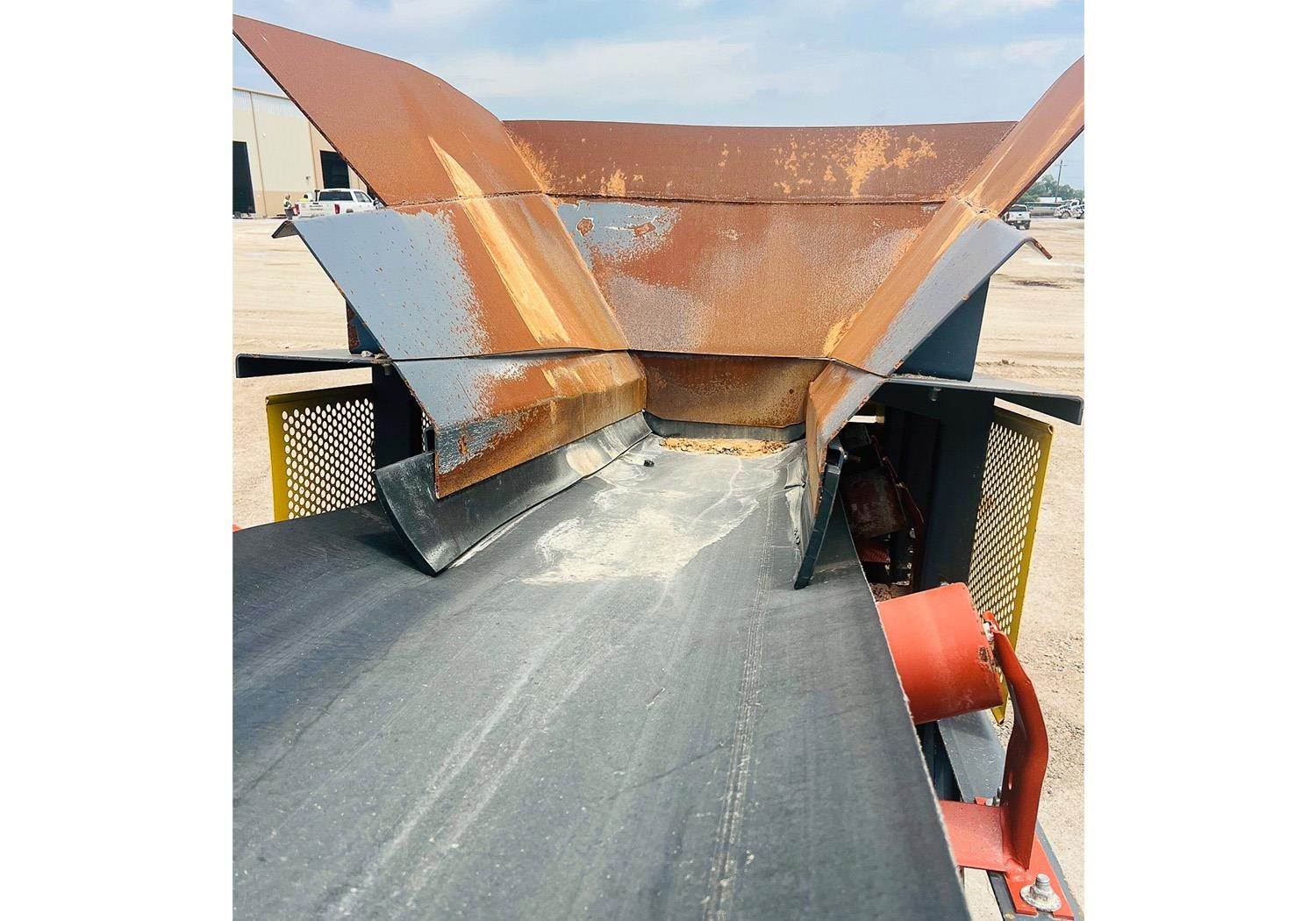

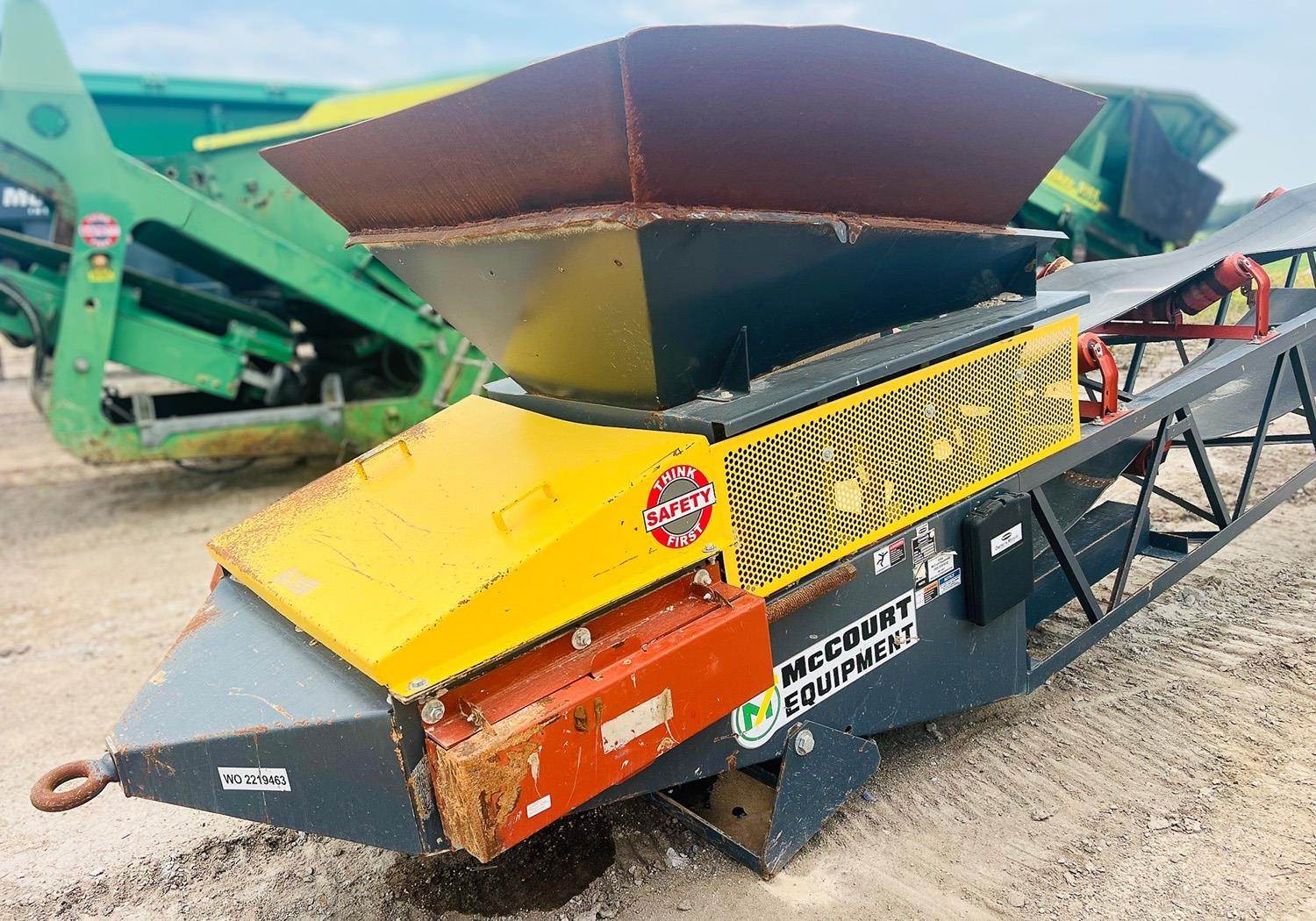

- *RADIAL RECEIVING HOPPER: SLOPED, 5’ LONG, BOLT ON DESIGN
- RADIAL HOPPER LINER: NOT INCLUDED
- GATHERING TROUGH: 5’ LONG WITH ADJUSTABLE RUBBER FLASHING


ADDITIONAL SPECIFICATIONS

- GUARDING: FOR DRIVE AND TAIL PULLEYS, V-BELT DRIVE AND RETURN IDLERS. GUARDS MAY NOT MEET ALL LOCAL CODES; CUSTOMER RESPONSIBLE TO HAVE GUARDING INSPECTED
- VOLTAGE: 480 V / 3 PH / 60 HZ
- CORD HOLDERS: (1) SET BENT PIPE STYLE
- CONTROL PANEL PLATE: NOT INCLUDED
- PAINT: 1 COAT PRIMER, 1 COAT FINISH ENAMEL, SUPERIOR GRAPHITE GREY (12-00636)
- GUARD PAINT: YELLOW IDLER PAINT: POWDER COATED SUPERIOR ORANGE
