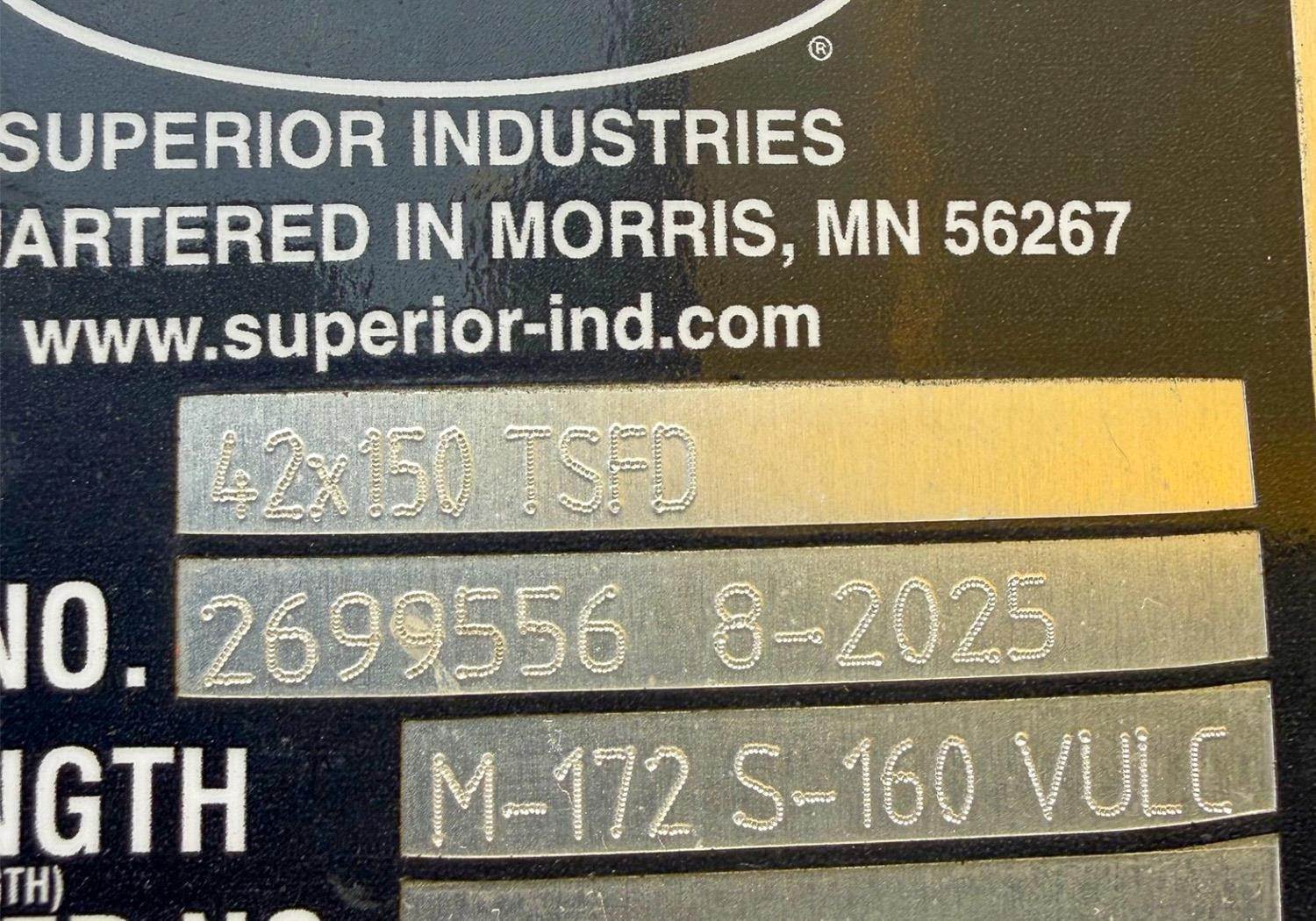

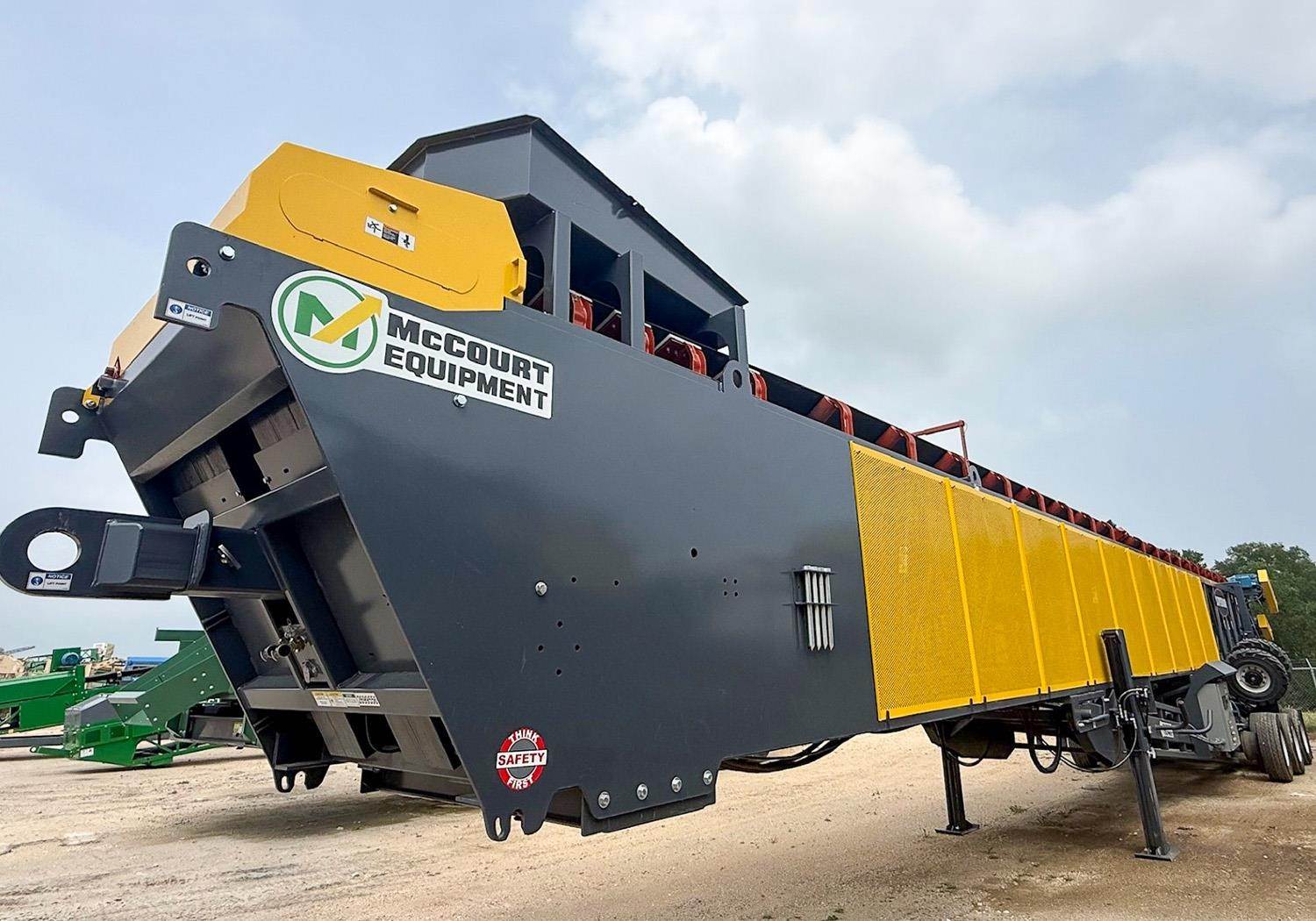

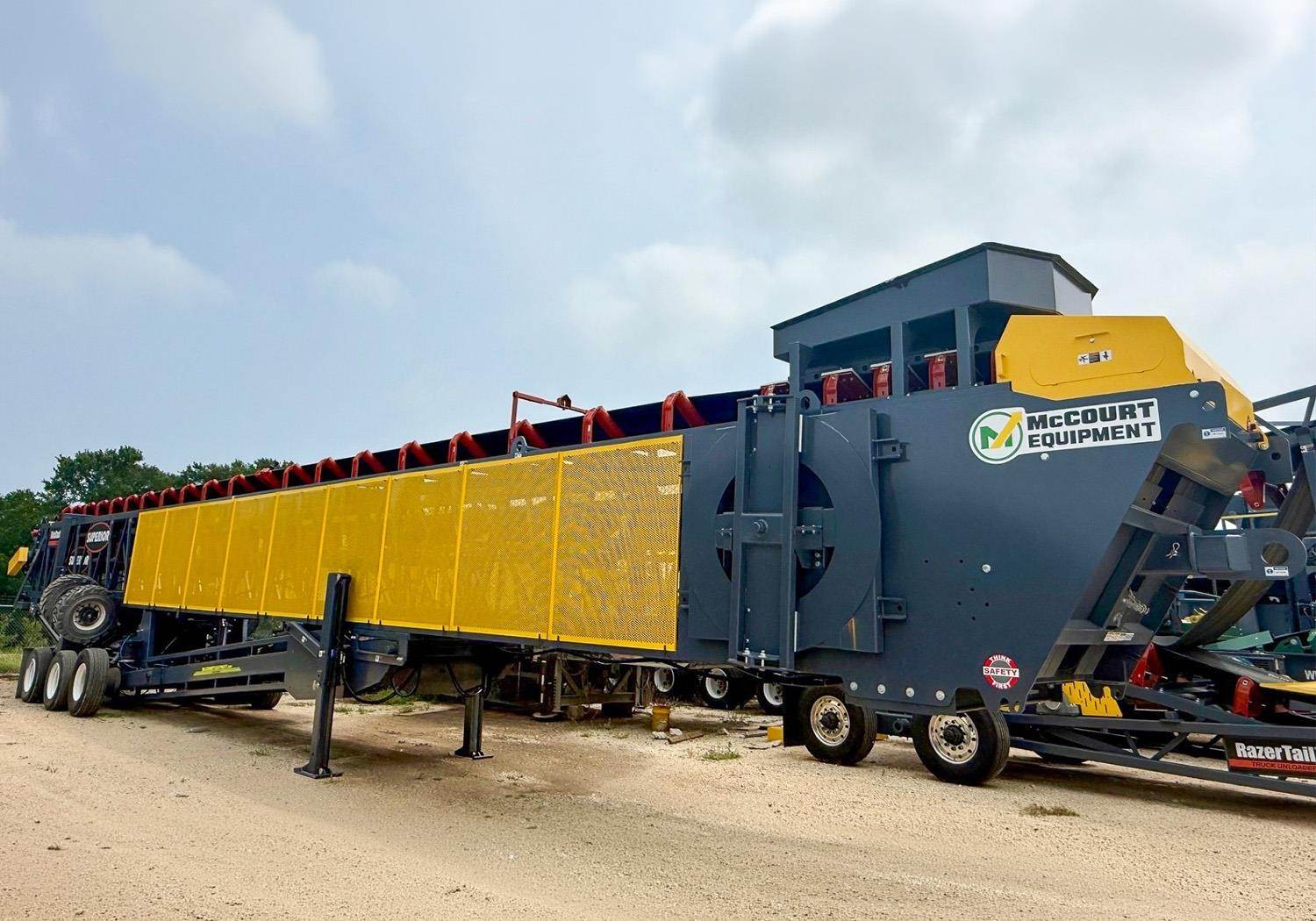

2025 Superior 42x150 Conveyor

SUPERIOR 42" X 150' PORTABLE TELESTACKER® CONVEYOR

CONVEYOR FRAME

TRUSS DESIGN: HEAVY-DUTY TRUSS, DESIGNED FOR MAXIMUM STRENGTH / WEIGHT RATIO
MAIN CONVEYOR: 80' LONG WITH 70" DEEP TRUSS
STINGER CONVEYOR: 80' LONG WITH 54" DEEP TRUSS
EXTENSION: CONVEYOR EXTENDS TO 150' LONG WITH HYDRAULIC CABLE WINCH
SAFETY STOP: MECHANICALLY STOPS RETRACTION IN THE EVENT OF CABLE FAILURE

DRIVE SPECIFICATIONS

DRIVE: CLASS I HEAD DRIVE
GEAR REDUCER: SHAFT MOUNT
BACKSTOPS: INSTALLED IN REDUCERS
MOTORS: 60 / (2) 30 HP TEFC
V-BELT DRIVE: WITH DRIVE GUARD
CAPACITY: 1500 STPH OF 100 PCF MATERIAL, 25° SURCHARGE (90% FINES, 10% SPHERICAL LUMPS, 6" MINUS)
BELT SPEED: 450/650 FPM
DRIVE PULLEYS: 16" DIAMETER, 3/8" HERRINGBONE LAGGED DRUM
TAIL PULLEYS: 14" DIAMETER, CEMA CHEVRON® WING
SHAFTS: TURNED AND POLISHED
BEARINGS: INCLUDED
TAKE-UPS: SCREW TYPES

PORTABILITY

UNDERCARRIAGE: FULLY-BRACED UNDERCARRIAGE WITH HYDRAULIC RAISE CYLINDERS AND COVERS. 15 HP POWER UNIT
AXLE TYPE: FD 50 AXLE
TRANSPORT AXLE: (8) 11R-22.5 TIRES, TANDEM WALKING BEAM. 11'11" TRAVEL WIDTH
TAG AXLE: (2) TIRES, AIR SPRING SUSPENSION
AXLE JACKS: NOT APPLICABLE
COMPENSATION LINKAGE: SLIP-JOINT, FOR RAISING ANS LOWERED OF CONVEYOR WITH WHEELS IN RADIAL POSITION
RADIAL AXLE: (4) 385/65D-19.5 TIRES ON HYDRAULIC OUTRIGGERS, 18'5" STACKING WIDTH
RADIAL TRAVEL: 4 WHEEL DRIVE WIHT HYDRAULIC DRIVEN PLANETARY ON EACH WHEEL
FIFTH WHEEL: INCLUDED
ANCHOR PIVOT: SECURES TAIL END DURING RADIAL TRAVEL
BRAKES: COMPLETE AIR BRAKE PACKAGE
LIGHTS: BRAKE AND DIRECTIONAL SIGNALS
MUD FLAPS: INSTALLED BEHIND TRANSPORT WHEELS
LANDING GEAR: HYDRAULIC ADJUSTABLE WITH CONTROL VALVE AND HONDA POWER UNIT
TOWING EYE: ADJUSTABLE, FOR PIT TRANSPORT

CONVEYOR COMPONENTS

BELTING: 3-PLY 3/16 X 1/16 330 PIW
BELT SPLICE: FACOTRY VULCANIZED BELT SPLICE
SCRAPERS: SUPERIOR CLICK TENSIONING EXTERRA® PRIMARY BELT SCRAPER ON MAIN AND STINGER
SUPERIOR IDLERS: CEMA C, 5" DIA. SEALED FOR LIFE BALL BEARINGS
IDLER SEAL: SUPERIOR STANDARD SPINGUARD® SEAL
LOAD AREA (MAIN CONVEYOR): SUPERIOR SEAL SYSTEM WITH 10" CARTRIDGES AND STEEL ROLLERS
TROUGH: 35° (3.5' MAIN/ 4' STINGER SPACING)
RETURNS: FLAT STEEL ROLLS ON 8' SPACING
SELF-ALIGNING: STEEL CAN TROUGHING ALIGNER ON MAIN / SUPERIOR NAVIGATOR® TRAINER ON STINGER
V-PLOW: NOT INCLUDED
RADIAL HOPPER: ROCK BOX STYLE
GATHERING TROUGH: 6' LONG WITH ADJUSTABLE RUBBER FLASHING

CONTROLS

CONTROL SYSTEM: PILEPRO™ V14 AUTOMATION - FD AXLE, POWER TRAVEL CONVEYOR RAISE, AND STINGER EXTENSION CONTROLLED BY PLC PARAMETERS OR WITH PANEL MOUNTED SWITCHES, INCLUDES AUTO-LEVEL
REMOTE HMI: NOT INCLUDED
SLIDE-TRACK: GALVANIZED C-RAIL AND STEEL WHEELS TO DELIVER HYDRAULIC HOSES AND ELECTRICAL CORDS TO STINGER
MATERIAL FLOW SWITCH: SONICSCOUT™ ULTRASONIC SENSOR, STOPS POWER TRAVEL WHEN BELT IS EMPTY
WIRELESS REMOTE: OPERATES MANUAL HYDRAULIC FUNCTIONS AND ELECTRIC MOTORS FROM UP TO 1000' AWAY
ZERO SPEED SENSOR: SUPERIOR CLEAN SIDE ROLL INCLUDED ON STINGER CONVEYOR, INTERLOCKED TO MAIN BELT MOTOR

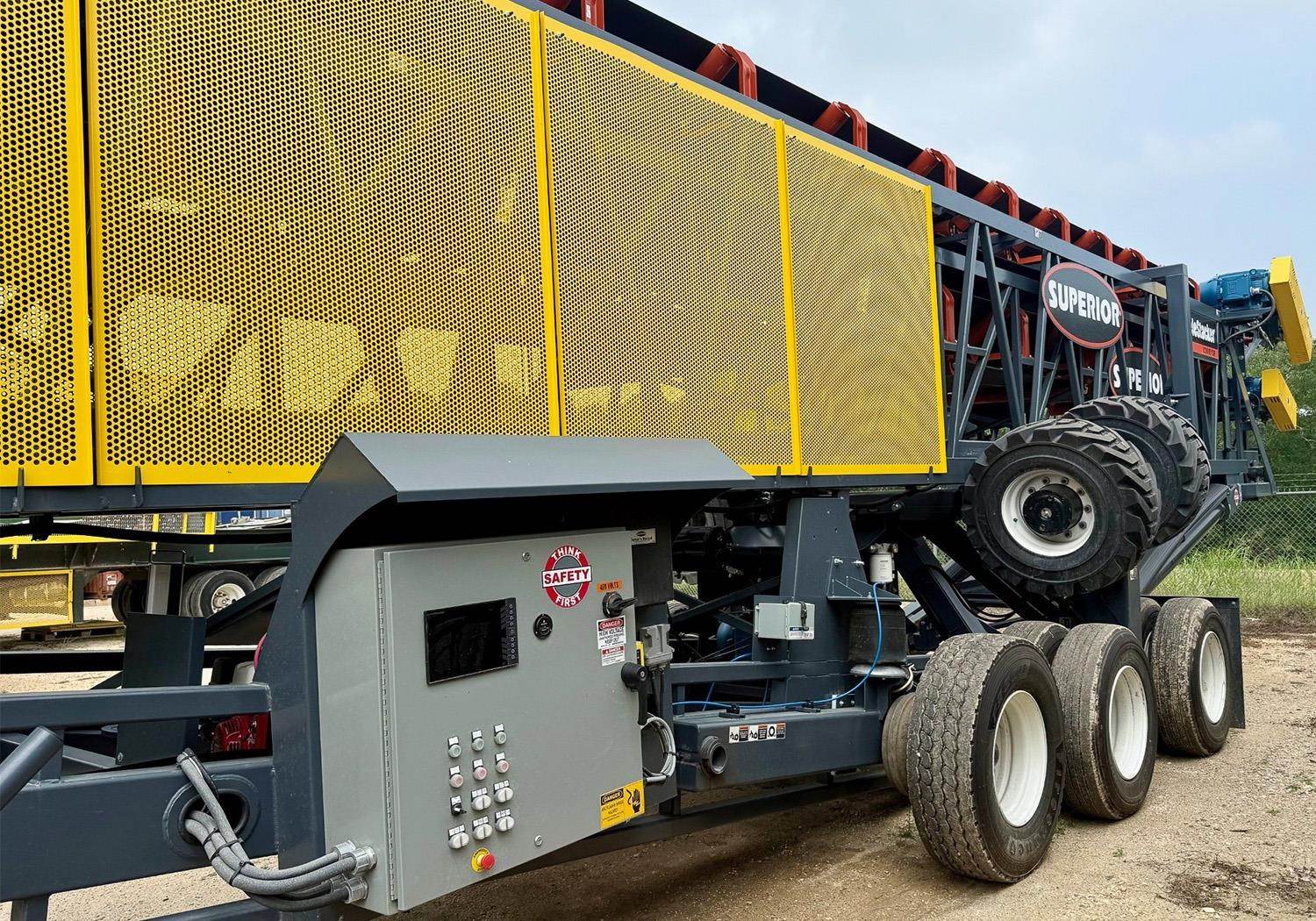

ELECTRICAL: ENCLOSURE WITH MAIN DISCONNECT, CIRCUIT BREAKER, AND STARTERS WITH ON/OFF PUSH BUTTONS TO CONTROL EACH ELECTRIC MOTOR AND FUNCTION
VOLTAGE: 480 V / 3 PH / 60 HZ - 1800 RPM

GUARDING

GUARDING: FOR DRIVE AND TAIL PULLEYS, V-BELT DRIVE AND RETURN IDLERS. GUARDS MAY NOT MEET ALL LOCAL CODES; CUSTOMER RESPONSIBLE TO HAVE GUARDING INSPECTED
